Model Electrolux 30-7648-23-01 RANGE – Common Parts & Diagrams

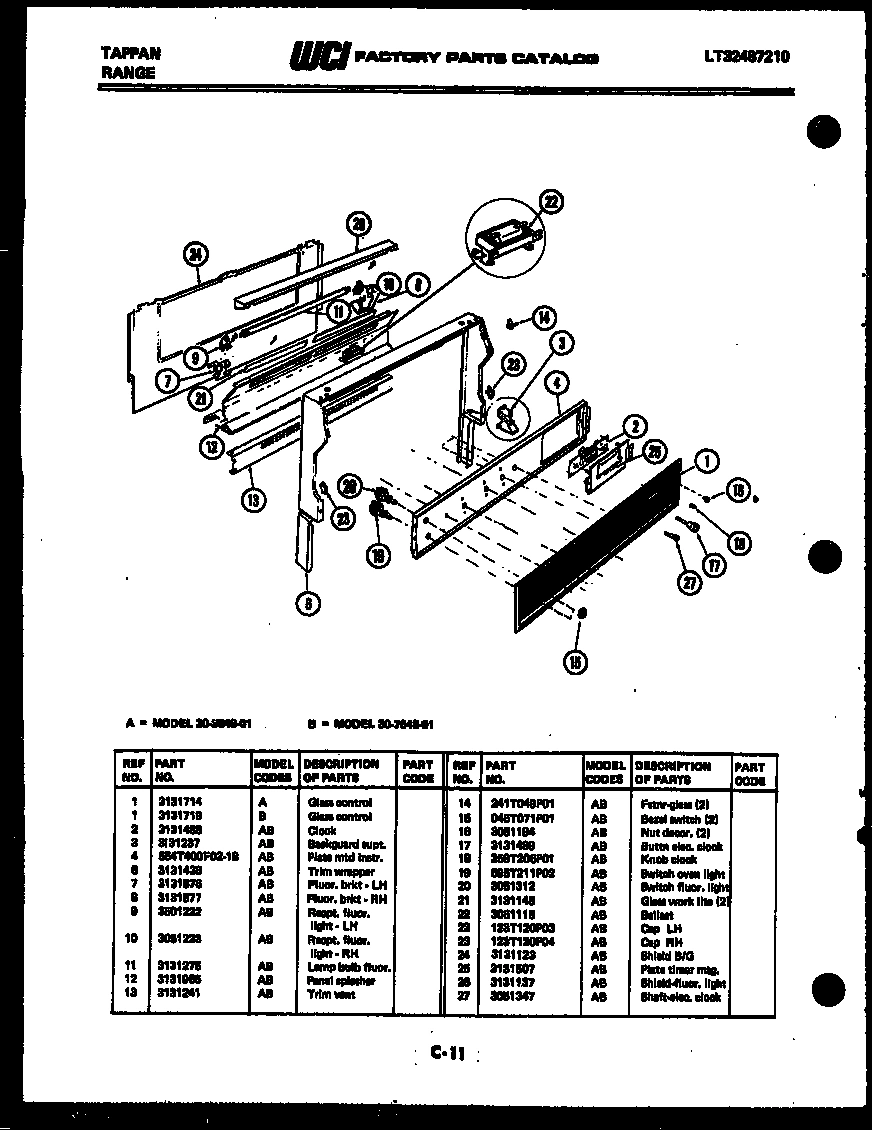

02 - BACKGUARD

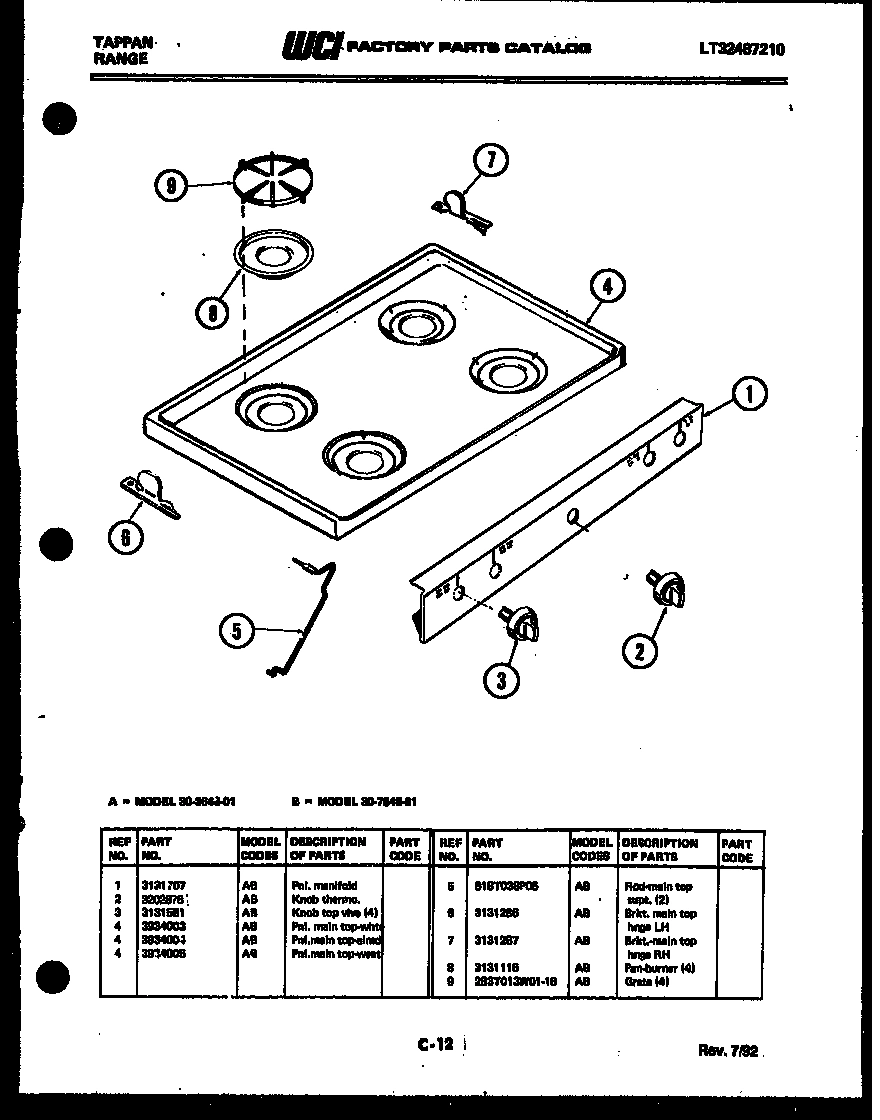

03 - COOKTOP PARTS

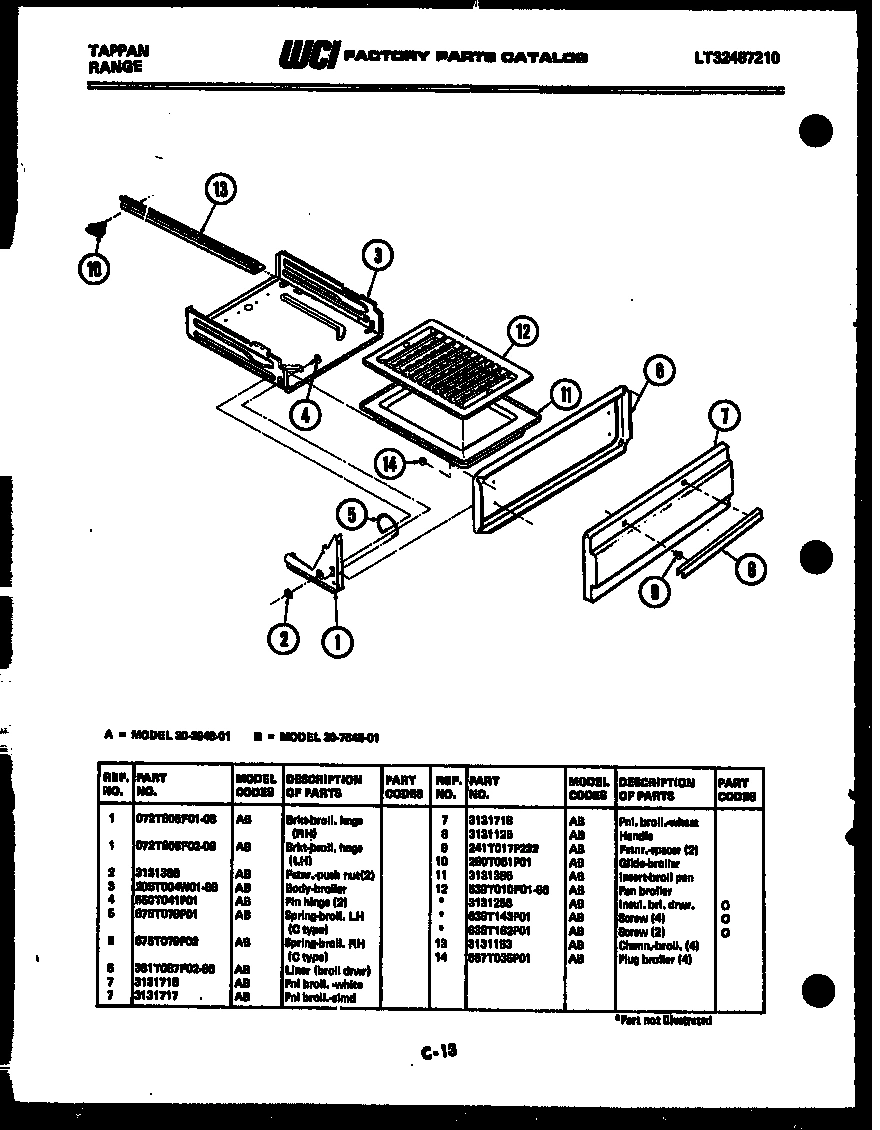

04 - BROILER DRAWER PARTS

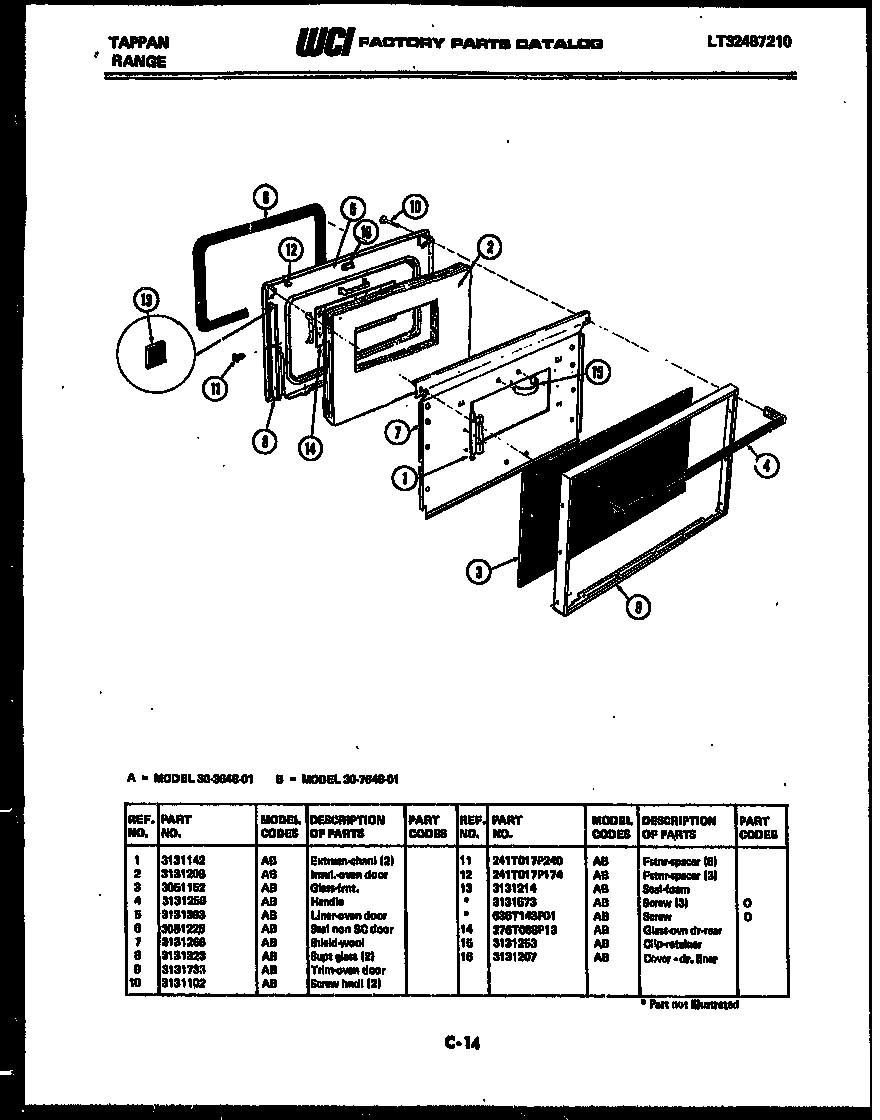

05 - DOOR PARTS

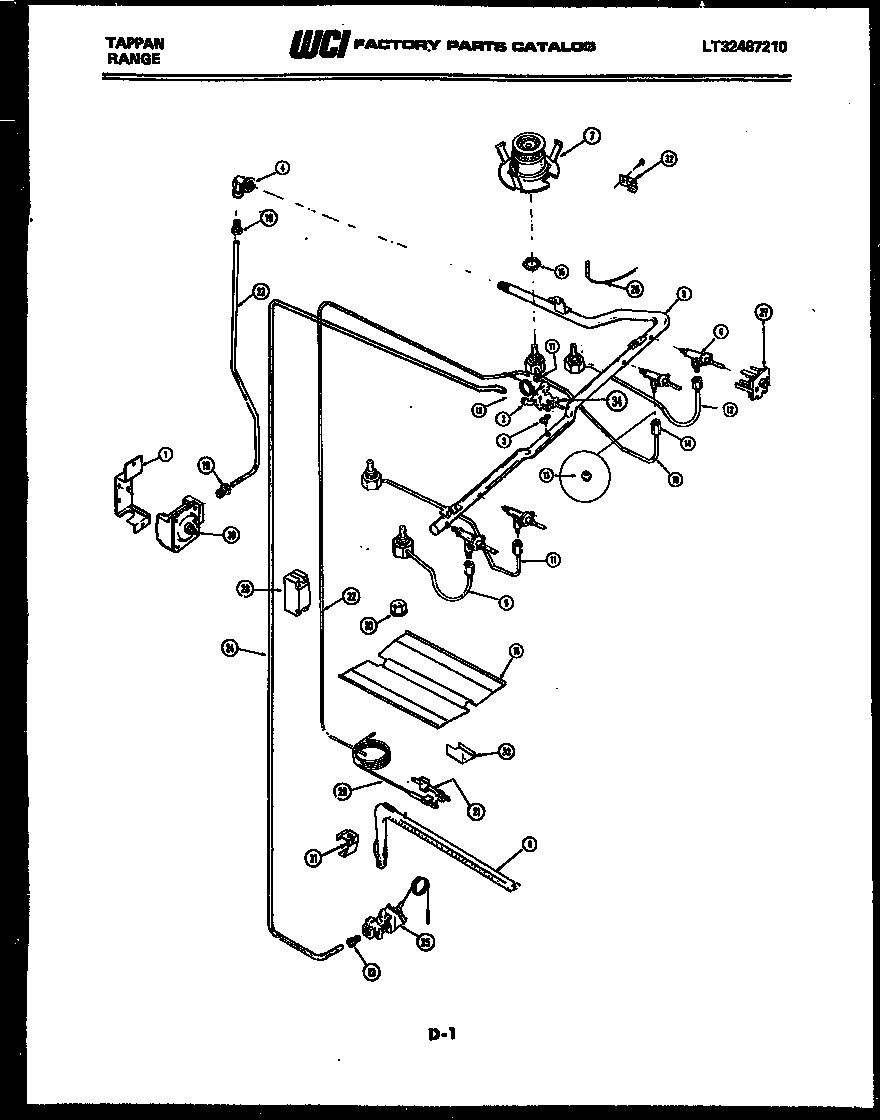

06 - BURNER, MANIFOLD AND GAS CONTROL

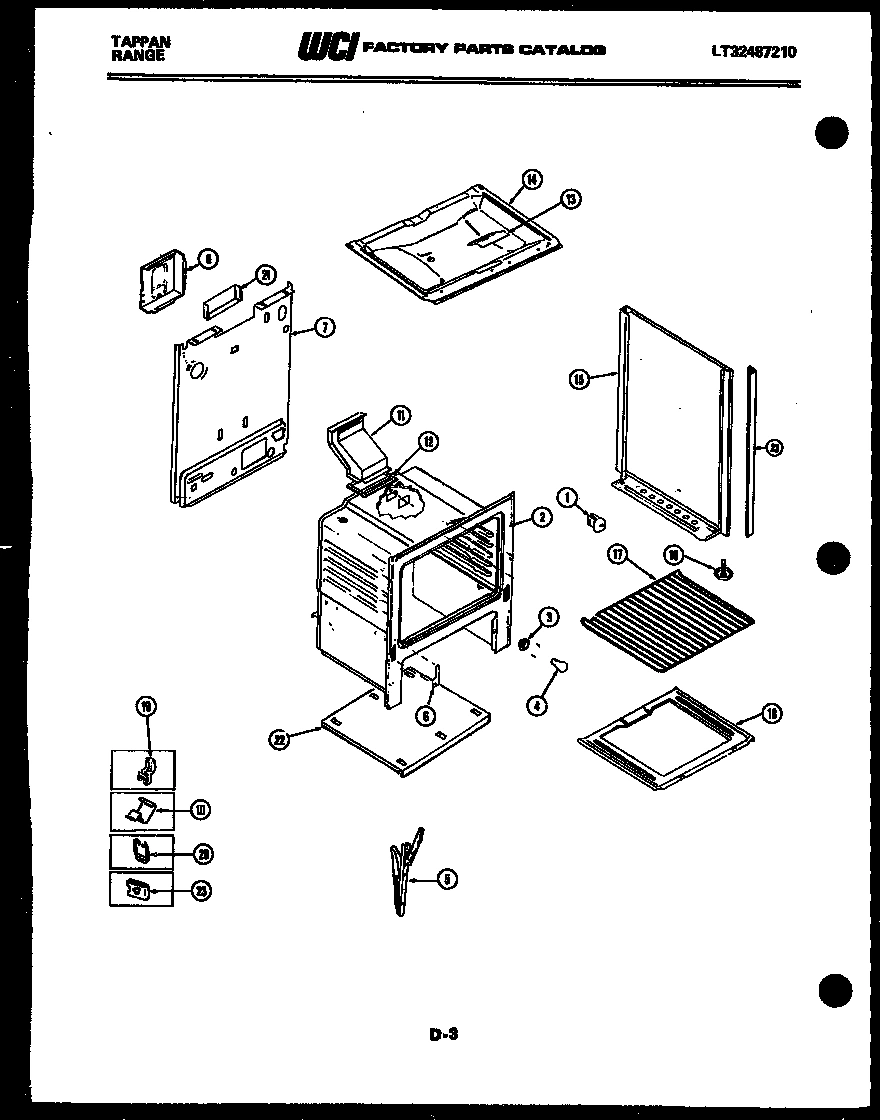

07 - BODY PARTS
Common parts from model Electrolux 30-7648-23-01 RANGE
*74252
COVER FRNT MAIN WCI 3015372 Contact Us For Availability
1
WCI 3131707 WCI 3131707 Contact Us For Availability
1
WCI 072T805F01-08 WCI 072T805F01-08 Contact Us For Availability
1
WCI 072T805F02-08 WCI 072T805F02-08 Contact Us For Availability
1
EXTRUSN-CHANL (2) WCI 3131142 Contact Us For Availability
1
WCI 072T850F01 WCI 072T850F01 Contact Us For Availability
1
WCI 665T188P02 WCI 665T188P02 Contact Us For Availability
2
KNOB THERMO. WCI 3202878 Contact Us For Availability
2
FSTNR, PUSH NUT (2) WCI 3131386 Contact Us For Availability
2
WCI 3131208 WCI 3131208 Contact Us For Availability
2
WCI 722T073P01 WCI 722T073P01 Contact Us For Availability
3
BACKGUARD SUPT. WCI 3131237 Contact Us For Availability
3
WCI 3131581 WCI 3131581 Contact Us For Availability
3
BODY, BROILER WCI 205T004W01-86 Contact Us For Availability
3
GLASS-FRNT WCI 3051152 Contact Us For Availability
3
WCI 003T039P01 WCI 003T039P01 Contact Us For Availability
4
PLATE MTD INSTR. WCI 554T400F02-18 Contact Us For Availability
4
PNL MAIN TOP-ALMD WCI 3934004 Contact Us For Availability
4
PIN, HINGE (2) WCI 550T041P01 Contact Us For Availability
4
WCI 3131256 WCI 3131256 Contact Us For Availability
4
WCI 215T013P01 WCI 215T013P01 Contact Us For Availability
5
ROD-MAIN TOP SUPT (2) WCI 618T038P05 Contact Us For Availability
5
SPRING-BROIL, LH (C TYPE) WCI 675T079P01 Contact Us For Availability
5
SPRING-BROIL, RH (C TYPE) WCI 675T079P02 Contact Us For Availability
5
WCI 3131393 WCI 3131393 Contact Us For Availability
5
WCI 439T055P07 WCI 439T055P07 Contact Us For Availability
5
CHANL-DOOR HNGE (2) WCI 3131569 Contact Us For Availability
6
COVER-HNGE CUT-OUT (2) WCI 3131570 Contact Us For Availability
6
WCI 3131436 WCI 3131436 Contact Us For Availability
6
BRKT-MAIN TOP HNGE LH WCI 3131286 Contact Us For Availability
6
LINER (BROIL DRWR) WCI 381T087F02-86 Contact Us For Availability
6
WCI 3131126 WCI 3131126 Contact Us For Availability
7
FLUOR, BRKT LH WCI 3131576 Contact Us For Availability
7
BRKT MAIN TOP HNGE RH WCI 3131287 Contact Us For Availability
7
PNL BROIL,-ALMD WCI 3131717 Contact Us For Availability
7
WCI 3131266 WCI 3131266 Contact Us For Availability
7
WCI 079T032S02 WCI 079T032S02 Contact Us For Availability
7
WCI 3131567 WCI 3131567 Contact Us For Availability
8
WCI 5303131115 No Longer Available
8
FLUOR, BRKT RH WCI 3131577 Contact Us For Availability
8
WCI 3131125 WCI 3131125 Contact Us For Availability
8
SUPT. GLASS (2) WCI 3131323 Contact Us For Availability
8
WCI 3131571 WCI 3131571 Contact Us For Availability
8
SHIELD-RR WALL WCI 665T421F02-18 Contact Us For Availability
9
WCI 3501222 WCI 3501222 Contact Us For Availability
9
FSTNR-SPACER (2) WCI 241T017P232 Contact Us For Availability
9
WCI 3131733 WCI 3131733 Contact Us For Availability
9
WCI 070T033H01 WCI 070T033H01 Contact Us For Availability
10
RECPT, FLUOR, LIGHT RH WCI 3051223 Contact Us For Availability
10
GLIDE - BROILER WCI 280T061P01 Contact Us For Availability
10
WCI 3131102 WCI 3131102 Contact Us For Availability
10
WCI 079T033H02 WCI 079T033H02 Contact Us For Availability
10
WCI 145T130P01 WCI 145T130P01 Contact Us For Availability
11
LAMP BULB FLUOR. WCI 3131275 Contact Us For Availability
11
INSERT-BROIL PAN WCI 3131356 Contact Us For Availability
11
FSTNR - SPACER (6) WCI 241T017P240 Contact Us For Availability
11
WCI 079T033H03 WCI 079T033H03 Contact Us For Availability
11
WCI 252T048W01-18 WCI 252T048W01-18 Contact Us For Availability
12
PANEL, SPLASHER WCI 3131965 Contact Us For Availability
12
PAN, BROILER WCI 539T010F01-86 Contact Us For Availability
12
FSTNR-SPACER (3) WCI 241T017P174 Contact Us For Availability
12
WCI 079T033H04 WCI 079T033H04 Contact Us For Availability
12A
INSUL, BRL, DRWR (NON-ILLUSTRATED) WCI 3131258 Contact Us For Availability
12B
WCI 636T162P01 WCI 636T162P01 Contact Us For Availability
13
WCI 3131241 WCI 3131241 Contact Us For Availability
13
CHANN.-BROIL. (4) WCI 3131153 Contact Us For Availability
13
WCI 3131214 WCI 3131214 Contact Us For Availability
13
WCI 247T074P01 WCI 247T074P01 Contact Us For Availability
13
WCI 3131101 WCI 3131101 Contact Us For Availability
13A
SCREW (3) (NON-ILLUSTRATED) WCI 3131573 Contact Us For Availability
14
FSTNR-GLASS(2) WCI 241T049P01 Contact Us For Availability
14
WCI 557T035P01 WCI 557T035P01 Contact Us For Availability
14
GLASS-OVN DR REAR WCI 276T088P13 Contact Us For Availability
14
NUT-COMPRSSN. (4) WCI 3131148 Contact Us For Availability
14
WCI 095T030F02-86 WCI 095T030F02-86 Contact Us For Availability
15
WCI 045T071P01 WCI 045T071P01 Contact Us For Availability
15
CLIP, RETAINER WCI 3131253 Contact Us For Availability
15
WCI 479T069P40 WCI 479T069P40 Contact Us For Availability
15
B/S PNL-ALMD LH WCI 3131453 Contact Us For Availability
15
B/S PNL-ALMD RH WCI 3131454 Contact Us For Availability
16
NUT - DECOR (2) WCI 3051194 Contact Us For Availability
16
WCI 3131207 WCI 3131207 Contact Us For Availability
16
WCI 3131327 WCI 3131327 Contact Us For Availability
16
SCREW, LEVEL (4) WCI 636M004P01 Contact Us For Availability
17
BUTTN ELEC CLOCK WCI 3131489 Contact Us For Availability
17
WCI 3131404 WCI 3131404 Contact Us For Availability
18
WCI 358T206P01 WCI 358T206P01 Contact Us For Availability
18
WCI 3131403 WCI 3131403 Contact Us For Availability
18
WCI 058T036F02-86 WCI 058T036F02-86 Contact Us For Availability
18A
WCI 3131201 WCI 3131201 Contact Us For Availability
19
WCI 695T211P02 WCI 695T211P02 Contact Us For Availability
19
WCI 3131261 WCI 3131261 Contact Us For Availability
19A
FSTNR-POWER CORD (NON-ILLUSTRATED) WCI 241T017P255 Contact Us For Availability
20
SWITCH - FLUOR LIGHT WCI 3051312 Contact Us For Availability
21
GLASS-WORK LITE (2) WCI 3131145 Contact Us For Availability
21
PILOT, OVEN WCI 549T037P01 Contact Us For Availability
21
WCI 3131348 WCI 3131348 Contact Us For Availability
22
WCI 3051115 WCI 3051115 Contact Us For Availability
22
TUBE, OVEN PILOT, 3/16 WCI 750T056P21 Contact Us For Availability
22
WCI 3131180 WCI 3131180 Contact Us For Availability
22A
WCI 554T386F02 WCI 554T386F02 Contact Us For Availability
22B
COVER-POWER CORD, (NON-ILLUSTRATED) WCI 3131244 Contact Us For Availability
23
WCI 123T120P03 WCI 123T120P03 Contact Us For Availability
23
WCI 123T120P04 WCI 123T120P04 Contact Us For Availability
23
WCI 750T085H09 WCI 750T085H09 Contact Us For Availability
24
SHIELD B/G WCI 3131123 Contact Us For Availability
24
WCI 750T085H13 WCI 750T085H13 Contact Us For Availability
25
WCI 3131507 WCI 3131507 Contact Us For Availability
25
WCI 3131405 WCI 3131405 Contact Us For Availability
26
SHIELD - FLUOR LIGHT WCI 3131137 Contact Us For Availability
26
IGNITER-ELEC. WCI 316T034P02 Contact Us For Availability
27
WCI 3051347 WCI 3051347 Contact Us For Availability
29
IGNITER-ELEC. WCI 316T039P03 Contact Us For Availability
30
WCI 166T013P01 WCI 166T013P01 Contact Us For Availability
31
WCI 072T821F01 WCI 072T821F01 Contact Us For Availability
32
RETAINER IGN. WCI 612T121F01 Contact Us For Availability
33
WCI 174T297F01 WCI 174T297F01 Contact Us For Availability
34
OVEN IGNT. SWITCH WCI 695T220P01 Contact Us For Availability
× ![]()
