Model Electrolux 30-7347-23-03 RANGE – Common Parts & Diagrams

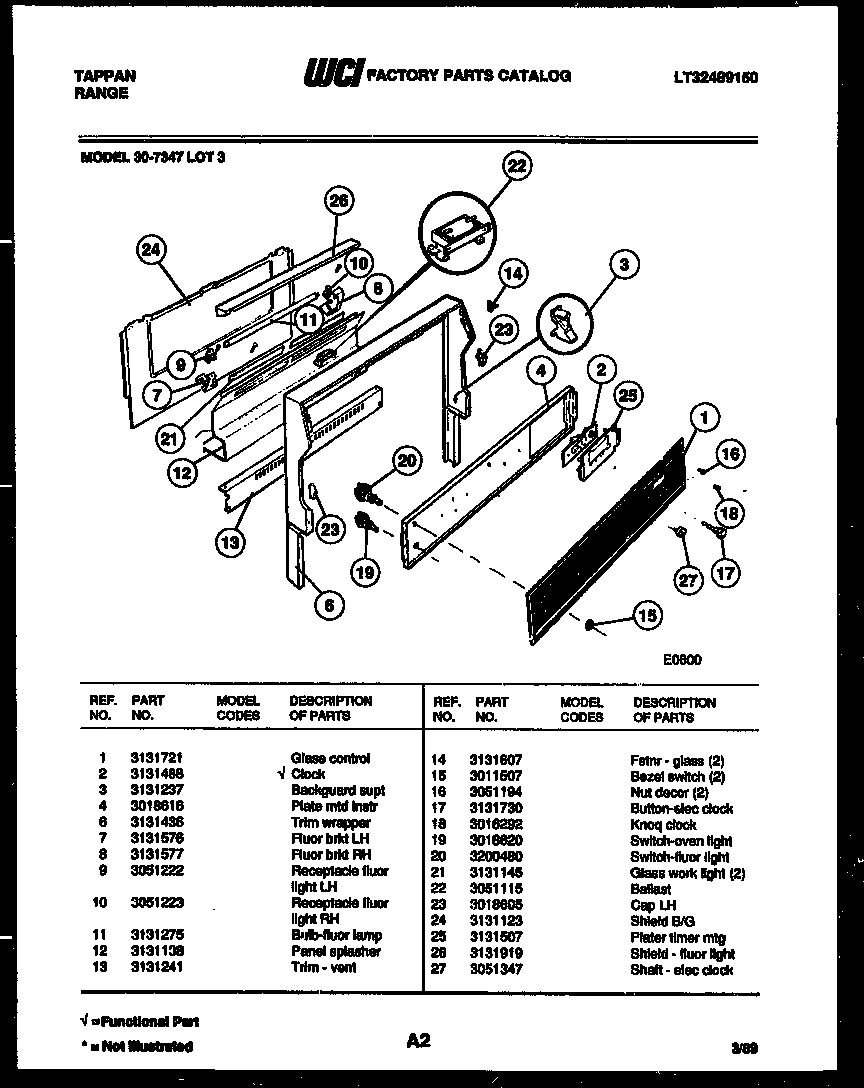

02 - BACKGUARD

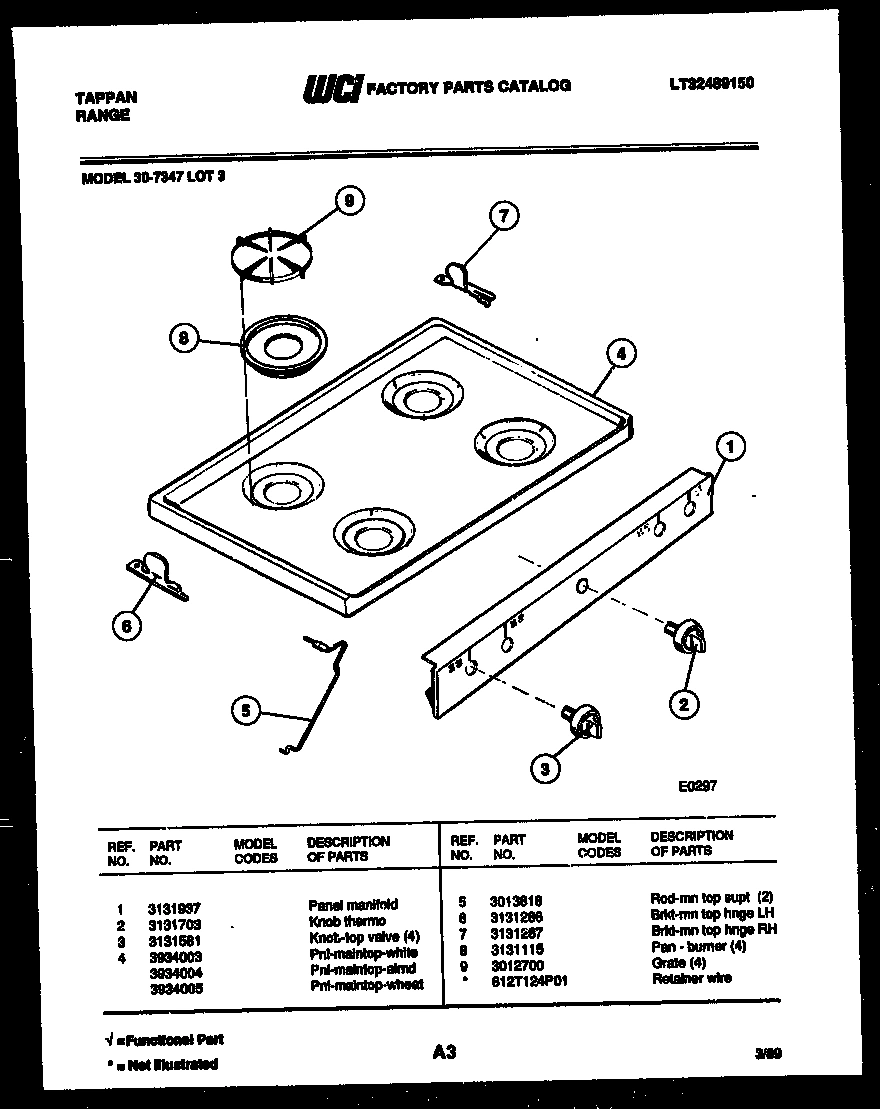

03 - COOKTOP PARTS
04 - BURNER, MANIFOLD AND GAS CONTROL
05 - DOOR PARTS
06 - BROILER DRAWER PARTS
07 - BODY PARTS
Common parts from model Electrolux 30-7347-23-03 RANGE
*21172
WCI 612T124P01 WCI 612T124P01 Contact Us For Availability
1
SPACER B/S WCI 3014099 Contact Us For Availability
1
WCI 3131937 WCI 3131937 Contact Us For Availability
1
BRACKET-REGULAR WCI 3131183 Contact Us For Availability
1
WCI 3131142 WCI 3131142 Contact Us For Availability
1
BRKT-BROILER HNG (RH) WCI 3018860 Contact Us For Availability
1A
BRKT-BROILER HNG (LH) WCI 3200673 Contact Us For Availability
2
WCI 3131703 WCI 3131703 Contact Us For Availability
2
WCI 3018622 WCI 3018622 Contact Us For Availability
2
FSTNR, PUSH NUT (2) WCI 3131386 Contact Us For Availability
3
KNOB, TOP VALVE (4) WCI 3131581 Contact Us For Availability
3
ADAPTER-THERMO WCI 3018601 Contact Us For Availability
3
WCI 3051152 WCI 3051152 Contact Us For Availability
3
WCI 3018608 WCI 3018608 Contact Us For Availability
4
PNL MAIN TOP-ALMD WCI 3934004 Contact Us For Availability
4
WCI 3012204 WCI 3012204 Contact Us For Availability
4
WCI 3131256 WCI 3131256 Contact Us For Availability
4
PIN, HINGE (2) WCI 3018614 Contact Us For Availability
5
ROD-MN TOP SUPT (2) WCI 3013818 Contact Us For Availability
5
WCI 3018612 WCI 3018612 Contact Us For Availability
5
LINER - OVEN DOOR WCI 3131392 Contact Us For Availability
5
SPRNG-BRLR LH C TYPE WCI 3018618 Contact Us For Availability
5
CHANNEL DR HNG (2) WCI 3131569 Contact Us For Availability
5A
SPRNG-BRLR RH C TYPE WCI 3018619 Contact Us For Availability
6
COVER HNG. CUTOUT (2) WCI 3131570 Contact Us For Availability
6
BRKT-MN TOP HNGE LH WCI 3131286 Contact Us For Availability
6
WCI 3017846 WCI 3017846 Contact Us For Availability
6
LINER - BROILER DRWR WCI 3018611 Contact Us For Availability
7
BRKT-MN TOP HNGE RH WCI 3131287 Contact Us For Availability
7
BURNER TOP (4) WCI 3011567 Contact Us For Availability
7
WCI 3131266 WCI 3131266 Contact Us For Availability
7
PNL BROILER (ALMOND) WCI 3131717 Contact Us For Availability
7
WCI 3131567 WCI 3131567 Contact Us For Availability
8
FLUOR, BRKT RH WCI 3131577 Contact Us For Availability
8
WCI 3131571 WCI 3131571 Contact Us For Availability
8
SUPT. GLASS (2) WCI 3131323 Contact Us For Availability
8
WCI 3131125 WCI 3131125 Contact Us For Availability
8
WCI 3131660 WCI 3131660 Contact Us For Availability
9
RECEPTACLE - FLUOR LIGHT LH WCI 3051222 Contact Us For Availability
9
BURNER TUBE LF WCI 3131970 Contact Us For Availability
9
WCI 3051728 WCI 3051728 Contact Us For Availability
9
FSTNR, SPACER (2) WCI 3131387 Contact Us For Availability
10
GLIDE-BROILER WCI 3018610 No Longer Available
10
RECEPTACLE - FLUOR LIGHT RH WCI 3051223 Contact Us For Availability
10
WCI 3011569 WCI 3011569 Contact Us For Availability
10
SCREW, HANDLE (2) WCI 3131102 Contact Us For Availability
10
WCI 145T130P01 WCI 145T130P01 Contact Us For Availability
11
BULB - FLUOR LAMP WCI 3131275 Contact Us For Availability
11
WCI 3011570 WCI 3011570 Contact Us For Availability
11
FSTNR - SPACER (6) WCI 3131254 Contact Us For Availability
11
INSERT-BRLR PAN WCI 3131356 Contact Us For Availability
11
WCI 3131904 WCI 3131904 Contact Us For Availability
12
PANEL SPLASHER WCI 3131138 Contact Us For Availability
12
WCI 136T355W03 WCI 136T355W03 Contact Us For Availability
12
FSTNR - SPACER (3) WCI 3131974 Contact Us For Availability
12
WCI 3013568 WCI 3013568 Contact Us For Availability
12A
INSUL BRLR DRAWER (NON-ILLUSTRATED) WCI 3131258 Contact Us For Availability
12B
WCI 636T162P01 WCI 636T162P01 Contact Us For Availability
13
WCI 3131241 WCI 3131241 Contact Us For Availability
13
WCI 3012358 WCI 3012358 Contact Us For Availability
13
WCI 3934033 WCI 3934033 Contact Us For Availability
13
WCI 3131153 WCI 3131153 Contact Us For Availability
13
WCI 3131101 WCI 3131101 Contact Us For Availability
14
FSTNR GLASS (2) WCI 3131607 Contact Us For Availability
14
NUT COMPRESSION (4) WCI 3131148 Contact Us For Availability
14
GLASS-OVN. DR.-REAR WCI 3018609 Contact Us For Availability
14
WCI 3018702 WCI 3018702 Contact Us For Availability
14
WCI 095T030F02-86 WCI 095T030F02-86 Contact Us For Availability
15
BEZEL - SWITCH (2) WCI 3011507 Contact Us For Availability
15
WCI 3013279 WCI 3013279 Contact Us For Availability
15
WCI 3131720 WCI 3131720 Contact Us For Availability
15
B/S PNL-ALMD RH WCI 3131454 Contact Us For Availability
15A
B/S PNL-ALMD LH WCI 3131453 Contact Us For Availability
16
NUT - DECOR (2) WCI 3051194 Contact Us For Availability
16
WCI 3131327 WCI 3131327 Contact Us For Availability
16
WCI 08010569 WCI 08010569 Contact Us For Availability
17
BUTTON ELEC. CLOCK WCI 3131730 Contact Us For Availability
17
WCI 3131404 WCI 3131404 Contact Us For Availability
18
KNOQ CLOCK WCI 3016292 Contact Us For Availability
18
WCI 3131403 WCI 3131403 Contact Us For Availability
18
WCI 3011519 WCI 3011519 Contact Us For Availability
18A
WCI 3017146 WCI 3017146 Contact Us For Availability
18B
WCI 3131246 WCI 3131246 Contact Us For Availability
19
WCI 3018620 WCI 3018620 Contact Us For Availability
19
WCI 3131261 WCI 3131261 Contact Us For Availability
19A
FSTNR-POWER CORD (NON-ILLUSTRATED) WCI 3012327 Contact Us For Availability
20
SWITCH-FLUOR LIGHT WCI 3200480 Contact Us For Availability
21
WCI 3131145 WCI 3131145 Contact Us For Availability
21
PILOT-OVEN WCI 3018613 Contact Us For Availability
21
WCI 3131348 WCI 3131348 Contact Us For Availability
22
WCI 3051115 WCI 3051115 Contact Us For Availability
22
TUBE-OVN PILOT 3/16 WCI 3018623 Contact Us For Availability
22
WCI 3131180 WCI 3131180 Contact Us For Availability
22A
WCI 3018615 WCI 3018615 Contact Us For Availability
22B
COVER-POWER CORD, (NON-ILLUSTRATED) WCI 3131244 Contact Us For Availability
23
CAP LH WCI 3018605 Contact Us For Availability
23
TUBE-ALUMINUM 3/8 WCI 3014477 Contact Us For Availability
23A
COVER - FRONT MAIN (NON-ILLUSTRATED) WCI 3015373 Contact Us For Availability
24
WCI 3018607 WCI 3018607 Contact Us For Availability
24
SHIELD B/G WCI 3131123 Contact Us For Availability
24
TUBE-ALUMINUM 3/8 WCI 3018624 Contact Us For Availability
25
PLATER TIMER MTG WCI 3131507 Contact Us For Availability
25
WCI 3131405 WCI 3131405 Contact Us For Availability
25
WCI 3015371 WCI 3015371 Contact Us For Availability
26
WCI 3131919 WCI 3131919 Contact Us For Availability
26
IGNITER-ELEC TOP BURN WCI 3012879 Contact Us For Availability
27
WCI 3051347 WCI 3051347 Contact Us For Availability
29
IGNITER-ELECTRIC WCI 3934047 Contact Us For Availability
30
CONTROL - REGULAR WCI 3018606 Contact Us For Availability
31
BRKT OVN BURN SPT WCI 3018603 Contact Us For Availability
32
WCI 3018617 WCI 3018617 Contact Us For Availability
32A
POP RIVET (NON-ILLUSTRATED) WCI 3051420 Contact Us For Availability
33
OVEN IGNITER SWITCH WCI 3018621 Contact Us For Availability
× ![]()
