Model Electrolux 30-6759-23-03 RANGE – Common Parts & Diagrams
02 - BACKGUARD
03 - COOKTOP PARTS

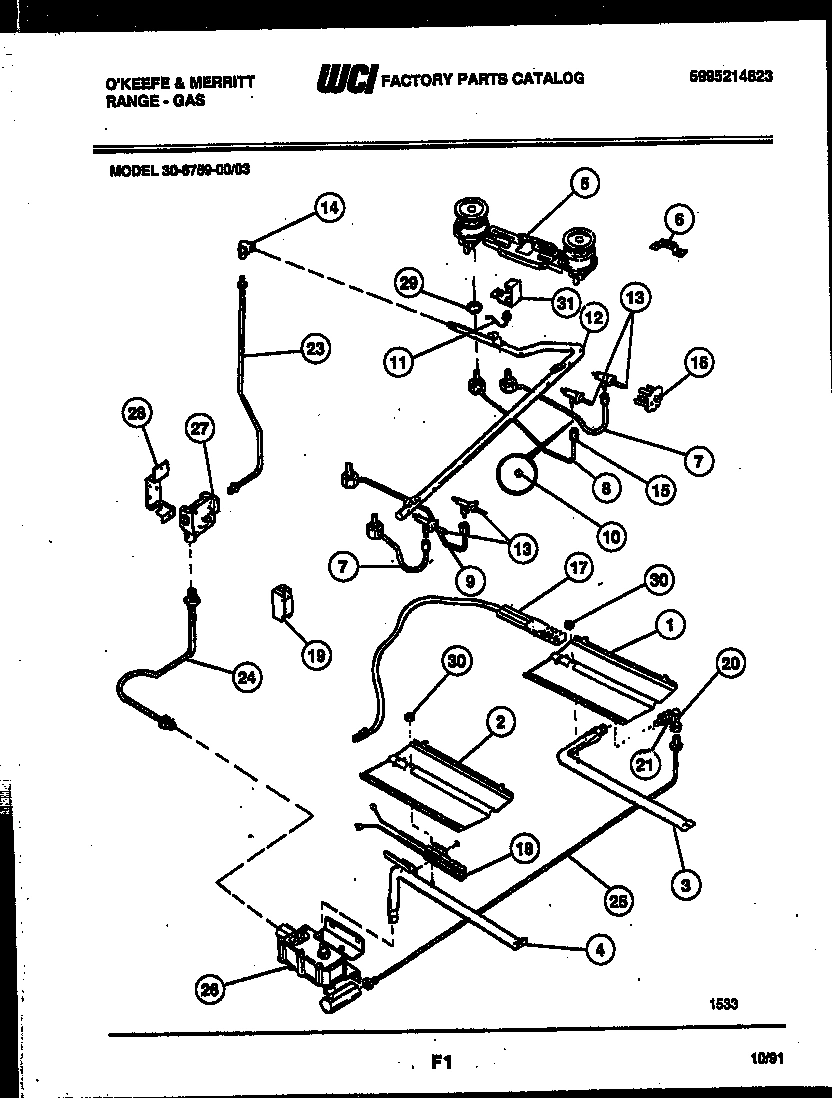

04 - BURNER, MANIFOLD AND GAS CONTROL

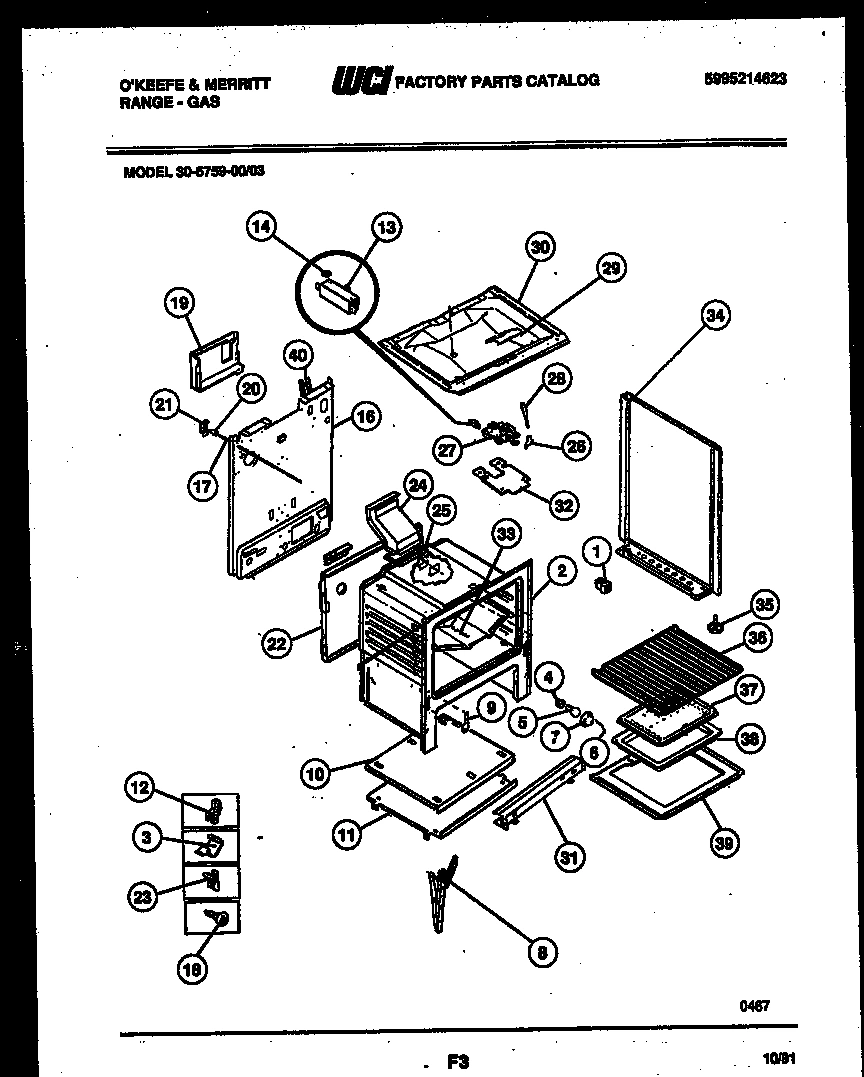

05 - BODY PARTS

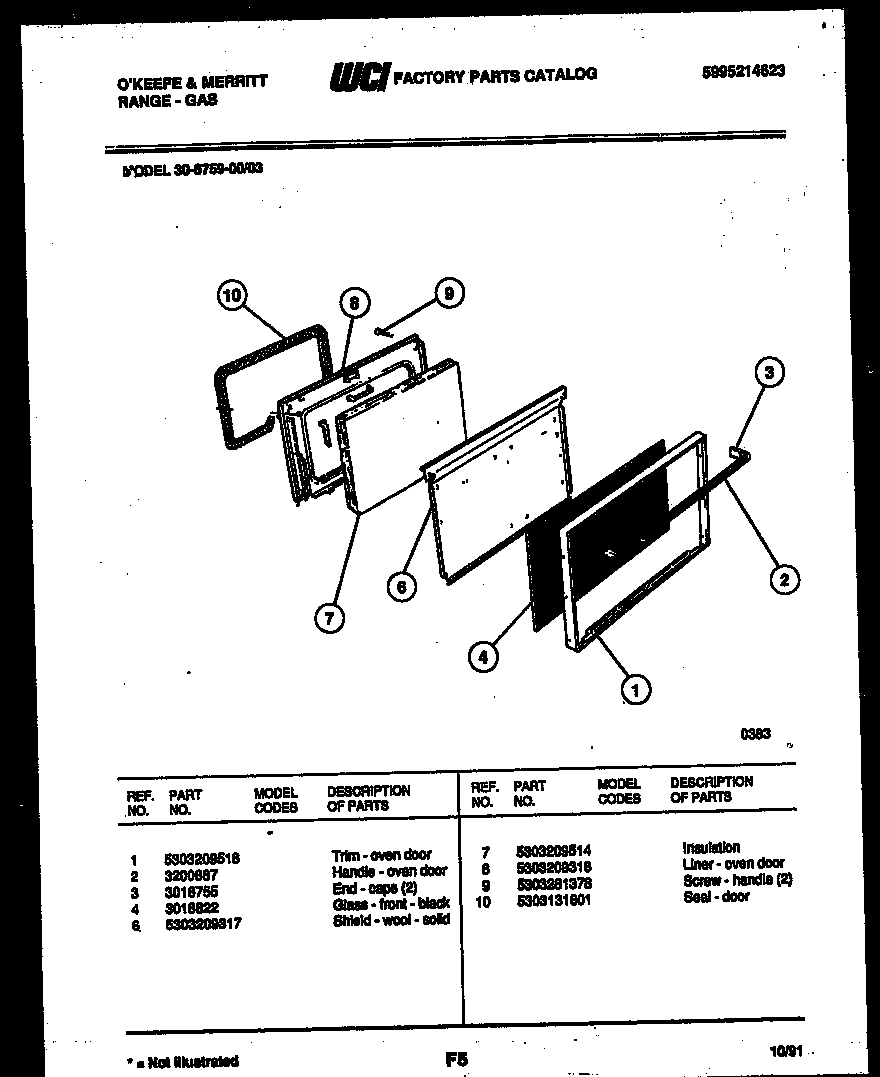

06 - DOOR PARTS

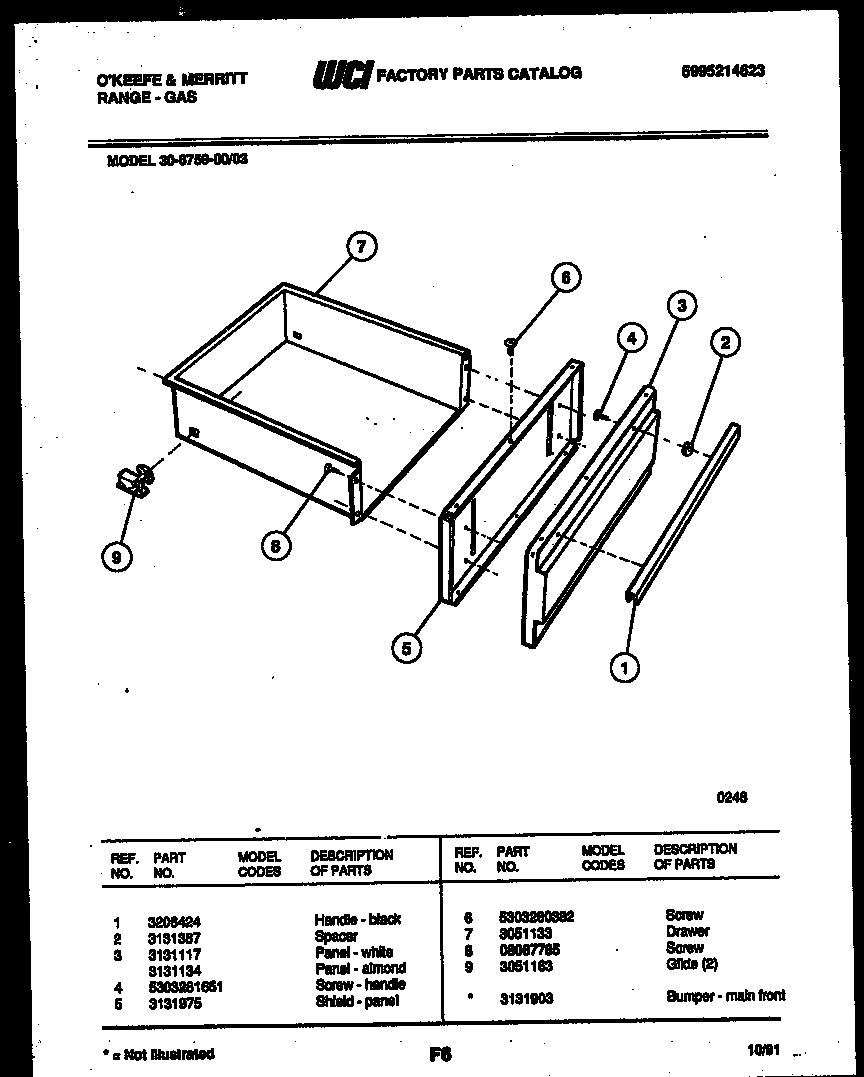

07 - DRAWER PARTS
Common parts from model Electrolux 30-6759-23-03 RANGE
*61347
WCI 08010570 WCI 08010570 Contact Us For Availability
*61347
WCI 3131314 WCI 3131314 Contact Us For Availability
*61347
WCI 3200834 WCI 3200834 Contact Us For Availability
*61347
WCI 3934056 WCI 3934056 Contact Us For Availability
*61348
WIRING DIAGRAM (NOT FOR PURCHASE) WCI 19100180305 Contact Us For Availability
1
SPACER-BODYSIDE, (8) WCI 3014099 Contact Us For Availability
1
WCI 5303210379 WCI 5303210379 Contact Us For Availability
1
WCI 5303209518 WCI 5303209518 Contact Us For Availability
1
HANDLE - BLACK WCI 3206424 Contact Us For Availability
2
BAFFLE-OVEN BURNER WCI 3131284 Contact Us For Availability
2
HANDLE-OVEN DOOR WCI 3200887 Contact Us For Availability
2
SPACER WCI 3131387 Contact Us For Availability
3
WCI 08067935 WCI 08067935 Contact Us For Availability
3
PANEL-ALMOND WCI 3131134 Contact Us For Availability
4
SCREW-HANDLE WCI 5303281651 Contact Us For Availability
4
ROD-MAIN TOP WCI 5303271609 Contact Us For Availability
4
WCI 3131290 WCI 3131290 Contact Us For Availability
4
WCI 3018822 WCI 3018822 Contact Us For Availability
5
BRACKET-MAIN TOP HINGE LH WCI 08067746 Contact Us For Availability
5
BURNER-TOP-DOUBLE WCI 5303131147 Contact Us For Availability
5
WCI 3131975 WCI 3131975 Contact Us For Availability
6
BRACKET-MAIN TOP HINGE RH WCI 08067747 Contact Us For Availability
6
BRACKET-BURNER MOUNTING WCI 3200277 Contact Us For Availability
6
WIRE, GLASS RETAINER WCI 3204483 Contact Us For Availability
6
SHIELD-WOOL SOLID WCI 5303209317 Contact Us For Availability
7
GRATE SQUARE WCI 3018432 Contact Us For Availability
7
WCI 5303131970 WCI 5303131970 Contact Us For Availability
7
INSULATION WCI 5303209514 Contact Us For Availability
7
DRAWER WCI 3051133 Contact Us For Availability
8
SCREW WCI 08067785 Contact Us For Availability
8
BURNER, TUBE REAR, RR WCI 5303011569 Contact Us For Availability
8
CHANNEL - DOOR HINGE (2) WCI 316007000 Contact Us For Availability
8
LINER-OVEN DOOR WCI 5303209318 Contact Us For Availability
9
SCREW, HANDLE (2) WCI 5303281378 Contact Us For Availability
9
COVER-HINGE CUTOUT (2) WCI 3131570 Contact Us For Availability
9
BURNER, TUBE REAR, LR WCI 5303011570 Contact Us For Availability
10
WCI 08067945 WCI 08067945 Contact Us For Availability
10
WCI 3131951 WCI 3131951 Contact Us For Availability
11
IGNITOR, TOP BURNER (2) WCI 3200276 Contact Us For Availability
11
WCI 3131313 WCI 3131313 Contact Us For Availability
11A
WCI 08067992 WCI 08067992 Contact Us For Availability
12
WCI 3018861 WCI 3018861 Contact Us For Availability
13
WCI 5303017846 WCI 5303017846 Contact Us For Availability
13
WCI 3131672 WCI 3131672 Contact Us For Availability
14
WCI 08067948 WCI 08067948 Contact Us For Availability
14
WCI 08067776 WCI 08067776 Contact Us For Availability
14A
WCI 08067978 WCI 08067978 Contact Us For Availability
15
NUT COMPRESSION (4) WCI 3131148 Contact Us For Availability
16
WCI 3203082 WCI 3203082 Contact Us For Availability
17
ROD LIGHT WCI 5303209316 Contact Us For Availability
19
WCI 5303269502 WCI 5303269502 Contact Us For Availability
20
WCI 08067979 WCI 08067979 Contact Us For Availability
20
SWITCH, DOOR WCI 5303202622 Contact Us For Availability
21
NUT WCI 3131358 Contact Us For Availability
21
BRACKET-LIGHT SWITCH WCI 5303131289 Contact Us For Availability
22
WCI 08067991 WCI 08067991 Contact Us For Availability
23
TUBE - ALUM 3/8 - REGUL TO MANIFOLD W/FITTING WCI 5303208495 Contact Us For Availability
23
CLIP-WIRE WCI 3011813 Contact Us For Availability
24
TUBE - ALUM 3/8 - VALVE TO REGULATOR W/FITTIN WCI 5303208494 Contact Us For Availability
24
WCI 3131931 WCI 3131931 Contact Us For Availability
25
TUBE - ALUM 3/8 - VALVE TO MIXER W/FITTINGS WCI 5303208493 Contact Us For Availability
25A
SHIELD, BIMETAL LATCH (NON-ILLUSTRATED) WCI 3131593 Contact Us For Availability
25B
WCI 08013188 WCI 08013188 Contact Us For Availability
26
WCI 3203218 WCI 3203218 Contact Us For Availability
27
WCI 5303015453 WCI 5303015453 Contact Us For Availability
28
WCI 5303131357 WCI 5303131357 Contact Us For Availability
29
NUT, SPECIAL WCI 3013279 Contact Us For Availability
29
WCI 08067757 WCI 08067757 Contact Us For Availability
30
WCI 3011597 WCI 3011597 Contact Us For Availability
31
WCI 5303271047 WCI 5303271047 Contact Us For Availability
32
WCI 3051413 WCI 3051413 Contact Us For Availability
33
WCI 3200836 WCI 3200836 Contact Us For Availability
34
WCI 5303269545 WCI 5303269545 Contact Us For Availability
34A
WCI 5303269543 WCI 5303269543 Contact Us For Availability
35
SCREW-LEVELING WCI 5303203397 Contact Us For Availability
37
WCI 5303131356 WCI 5303131356 Contact Us For Availability
38
PAN-BROILER WCI 5303013568 Contact Us For Availability
39
OVEN BOTTOM WCI 5303212540 Contact Us For Availability
39B
INSULATION-WRAP (NON-ILLUSTRATED) WCI 3200833 Contact Us For Availability
39C
WCI 08067961 WCI 08067961 Contact Us For Availability
39D
WCI 3204582 WCI 3204582 Contact Us For Availability
39F
INSULATION-TOP (NON-ILLUSTRATED) WCI 3131304 Contact Us For Availability
40
SHIELD-WIRE WCI 08068018 Contact Us For Availability
× ![]()
