Model Electrolux 30-6238-66-06 RANGE – Common Parts & Diagrams
02 - BACKGUARD
03 - COOKTOP PARTS

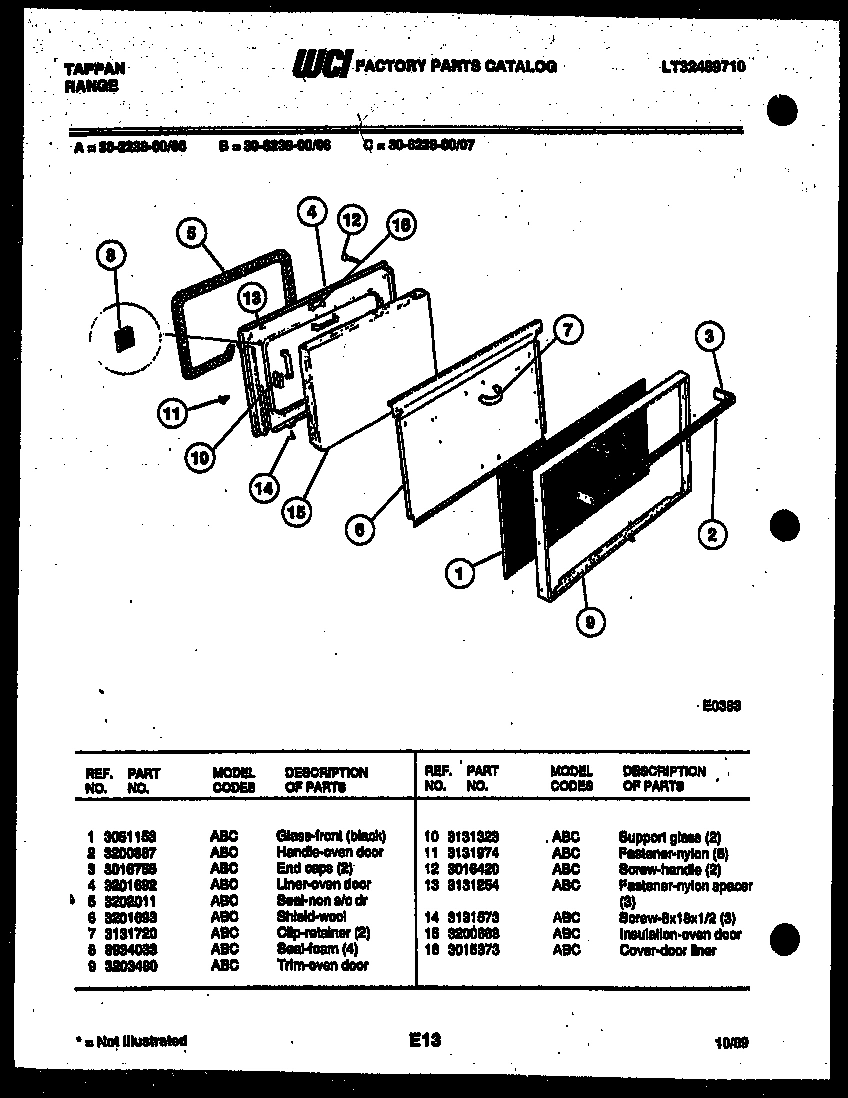

04 - DOOR PARTS

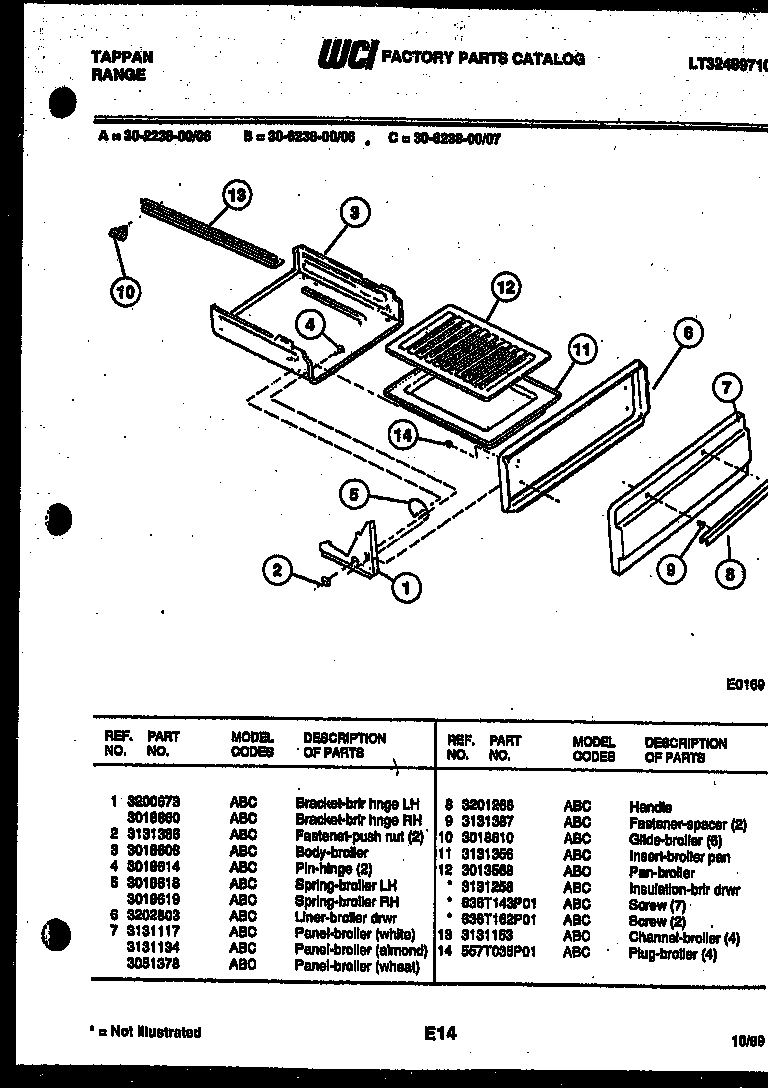

05 - BROILER DRAWER PARTS

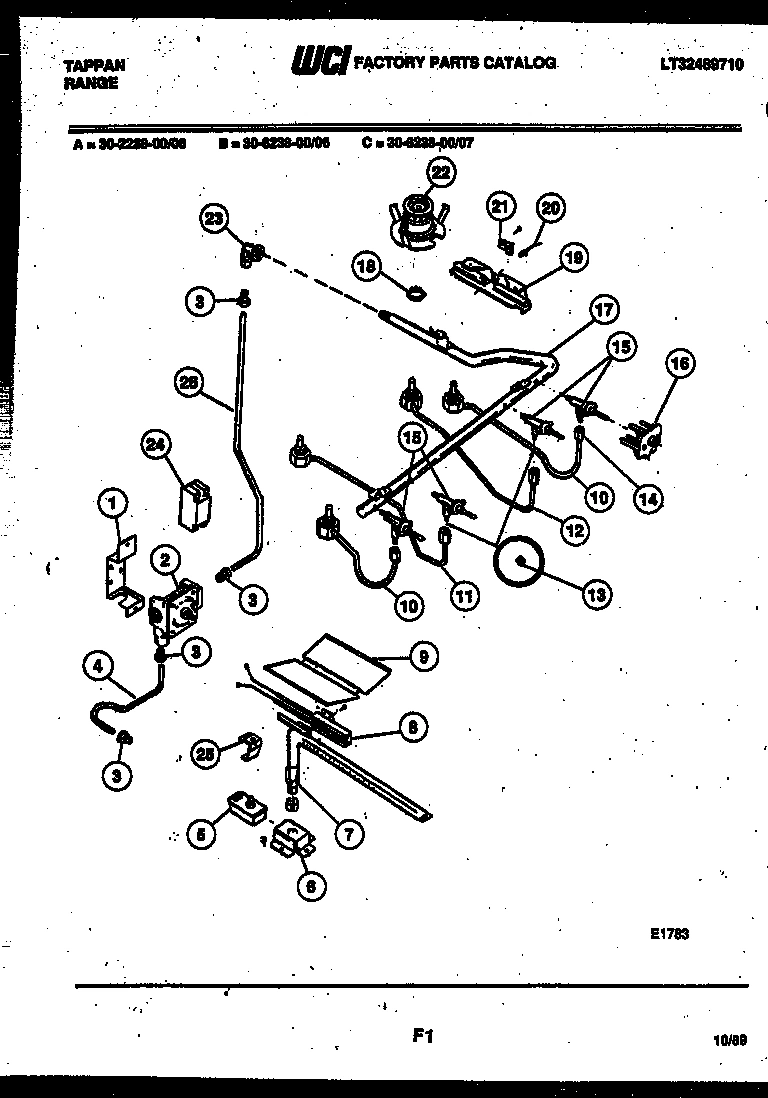

06 - BURNER, MANIFOLD AND GAS CONTROL

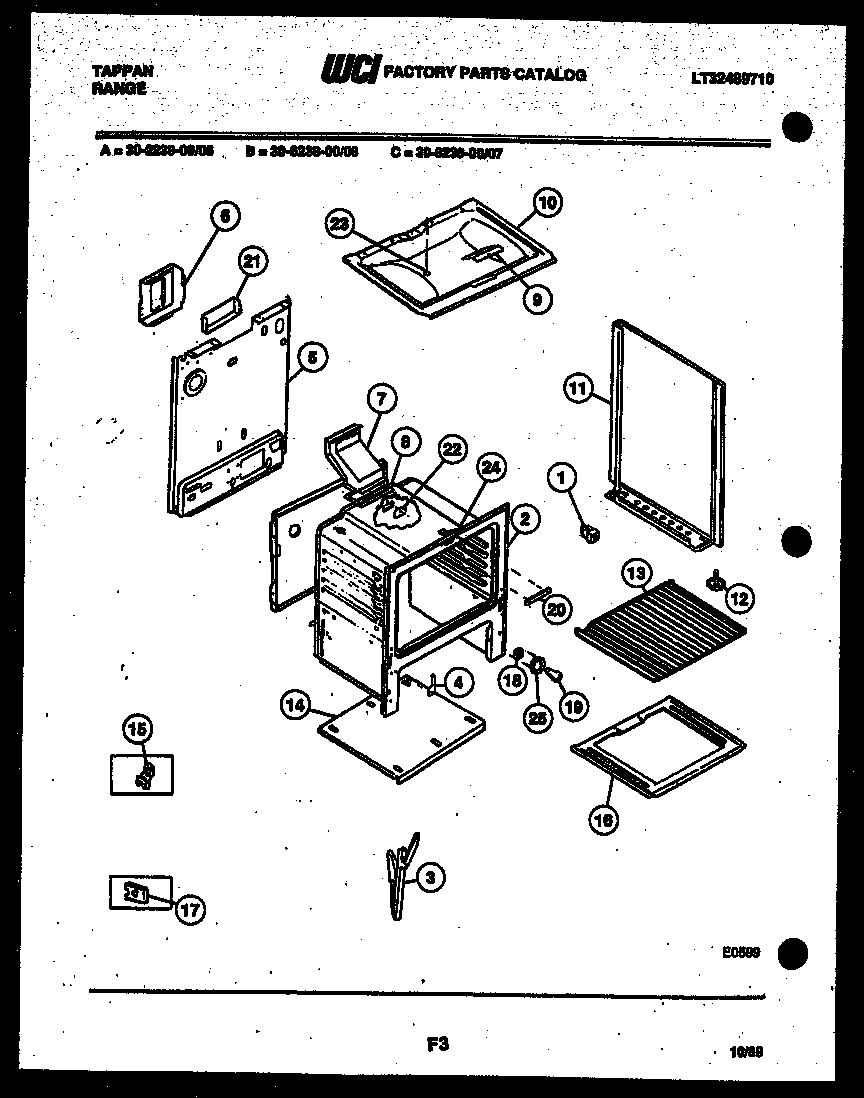

07 - BODY PARTS
Common parts from model Electrolux 30-6238-66-06 RANGE
*39726
WCI 3051420 WCI 3051420 Contact Us For Availability
*39732
WCI 3934056 WCI 3934056 Contact Us For Availability
1
WCI 3131937 WCI 3131937 Contact Us For Availability
1
GLASS-FRONT BLACK WCI 3051153 Contact Us For Availability
1
BRACKET-BRLR HNGE LH WCI 3200673 Contact Us For Availability
1A
BRACKET-BRLR HNGE RH WCI 3018860 Contact Us For Availability
2
WCI 3201817 WCI 3201817 Contact Us For Availability
2
HANDLE-OVEN DOOR WCI 3200887 Contact Us For Availability
2
FASTENET-PUSH NUT (2) WCI 3131386 Contact Us For Availability
3
KNOB-THERMO. WCI 3201082 Contact Us For Availability
3
WCI 3018608 WCI 3018608 Contact Us For Availability
3
FITTING LOXIT (4) WCI 3131261 Contact Us For Availability
3
WCI 3131569 WCI 3131569 Contact Us For Availability
4
COVER HNG. CUTOUT (2) WCI 3131570 Contact Us For Availability
4
ROD-MAIN TOP SPRT (2) WCI 3013818 Contact Us For Availability
4
WCI 3201692 WCI 3201692 Contact Us For Availability
4
PIN, HINGE (2) WCI 3018614 Contact Us For Availability
4
TUBE - VALVE TO REGUL WCI 3131448 Contact Us For Availability
5
BRACKET-MAIN TOP LH WCI 3011558 Contact Us For Availability
5
SPRING-BROILER, LH WCI 3018618 Contact Us For Availability
5
WCI 3131567 WCI 3131567 Contact Us For Availability
5A
SPRING-BROILER, RH WCI 3018619 Contact Us For Availability
6
BRACKET-MAIN TOP RH WCI 3011559 Contact Us For Availability
6
WCI 3201693 WCI 3201693 Contact Us For Availability
6
LINER - BROILER DRWR WCI 3202803 Contact Us For Availability
6
BRKT.-VALVE WCI 3131438 Contact Us For Availability
6
WCI 3131660 WCI 3131660 Contact Us For Availability
7
WCI 3131439 WCI 3131439 Contact Us For Availability
7
WCI 3018605 WCI 3018605 Contact Us For Availability
7
WCI 3934005 WCI 3934005 Contact Us For Availability
7
CLIP, RETAINER (2) WCI 3131720 Contact Us For Availability
7
PANEL-BROILER-WHEAT WCI 3051378 Contact Us For Availability
7
WCI 3131904 WCI 3131904 Contact Us For Availability
8
WCI 3206094 WCI 3206094 Contact Us For Availability
8
SEAL, FOAM (4) WCI 3934033 Contact Us For Availability
8
WCI 3201268 WCI 3201268 Contact Us For Availability
8A
RETAINER, WIRE (NON-ILLUSTRATED) WCI 612T124P01 Contact Us For Availability
9
WCI 277T219P03 WCI 277T219P03 Contact Us For Availability
9
WCI 3021107 WCI 3021107 Contact Us For Availability
9
WCI 3203480 WCI 3203480 Contact Us For Availability
9
FASTENER-SPACER (2) WCI 3131387 Contact Us For Availability
9
WCI 3131327 WCI 3131327 Contact Us For Availability
9
WCI 3131101 WCI 3131101 Contact Us For Availability
10
WCI 3018610 No Longer Available
10
RETAINER-GLASS CLOCK (2) WCI 3201700 Contact Us For Availability
10
WCI 3131323 WCI 3131323 Contact Us For Availability
10
BURNER TUBE-FRONT (2) WCI 3131970 Contact Us For Availability
10
WCI 3011597 WCI 3011597 Contact Us For Availability
11
WCI 358T201P01 WCI 358T201P01 Contact Us For Availability
11
FASTENER, NYLON (6) WCI 3131974 Contact Us For Availability
11
WCI 3131356 WCI 3131356 Contact Us For Availability
11
WCI 3011570 WCI 3011570 Contact Us For Availability
11
PANEL, BODYSIDE, RH (WHEAT) WCI 3200791 Contact Us For Availability
11A
PANEL, BODYSIDE, LH (WHEAT) WCI 3200794 Contact Us For Availability
12
NUT - DECOR (2) WCI 3051194 Contact Us For Availability
12
SCREW - HANDLE (2) WCI 3016420 Contact Us For Availability
12
WCI 3013568 WCI 3013568 Contact Us For Availability
12
WCI 3011569 WCI 3011569 Contact Us For Availability
12
SCREW-LEVELING (4) WCI 3203397 Contact Us For Availability
12A
INSULATION-BRLR DRWR (NON-ILLUSTRATED) WCI 3131258 Contact Us For Availability
12C
WCI 636T162P01 WCI 636T162P01 Contact Us For Availability
13
WCI 3131241 WCI 3131241 Contact Us For Availability
13
WCI 3131254 WCI 3131254 Contact Us For Availability
13
WCI 3131153 WCI 3131153 Contact Us For Availability
13
WCI 3012358 WCI 3012358 Contact Us For Availability
14
TRIM-LOWER SPLASHER WCI 3131955 Contact Us For Availability
14
SCREW-8 X 18 X 1/2 (3) WCI 3131573 Contact Us For Availability
14
WCI 557T035P01 WCI 557T035P01 Contact Us For Availability
14
NUT-COMPRESSION WCI 3131148 Contact Us For Availability
14
WCI 3011519 WCI 3011519 Contact Us For Availability
14A
WCI 3017142 WCI 3017142 Contact Us For Availability
14B
INSULATION-OVEN BACK (NON-ILLUSTRATED) WCI 3131246 Contact Us For Availability
15
SHIELD, REAR WALL WCI 3131123 Contact Us For Availability
15
INSULATION-OVEN DOOR WCI 3200668 Contact Us For Availability
15
VALVE-TOP BURNERS (4) WCI 3017542 Contact Us For Availability
16
FASTENER-CLASS (2) WCI 3131607 Contact Us For Availability
16
WCI 3015373 WCI 3015373 Contact Us For Availability
16
WCI 695T225P02 WCI 695T225P02 Contact Us For Availability
16
WCI 3131180 WCI 3131180 Contact Us For Availability
16A
SPACER WCI 3016408 Contact Us For Availability
17
BRACKET B/G WCI 3131468 Contact Us For Availability
17
WCI 3201106 WCI 3201106 Contact Us For Availability
17B
FASTENER-POWER CORD (NON-ILLUSTRATED) WCI 3012327 Contact Us For Availability
18
WCI 3131237 WCI 3131237 Contact Us For Availability
18
NUT, SPECIAL WCI 3013279 Contact Us For Availability
19
WCI 136T355W03 WCI 136T355W03 Contact Us For Availability
19
WCI 3010371 WCI 3010371 Contact Us For Availability
20
WCI 3131105 WCI 3131105 Contact Us For Availability
20
COVER-FRONT MAIN WCI 3131548 Contact Us For Availability
21
WCI 3018617 WCI 3018617 Contact Us For Availability
21
WCI 3131348 WCI 3131348 Contact Us For Availability
22
WCI 3018607 WCI 3018607 Contact Us For Availability
22
BURNER TOP ASSY. WCI 3011567 Contact Us For Availability
22A
COVER-POWER CORD, (NON-ILLUSTRATED) WCI 3131244 Contact Us For Availability
23
WCI 3012204 WCI 3012204 Contact Us For Availability
23
WCI 3015371 WCI 3015371 Contact Us For Availability
24
WCI 3015372 WCI 3015372 Contact Us For Availability
24A
WCI 3018615 WCI 3018615 Contact Us For Availability
25
BRACKET, OVEN BURNER SUPPORT WCI 3018603 Contact Us For Availability
26
TUBE - ALUM (REGUL. TO ELBOW) WCI 3014477 Contact Us For Availability
× ![]()
