Model Electrolux 30-4997-08-03 RANGE – Common Parts & Diagrams

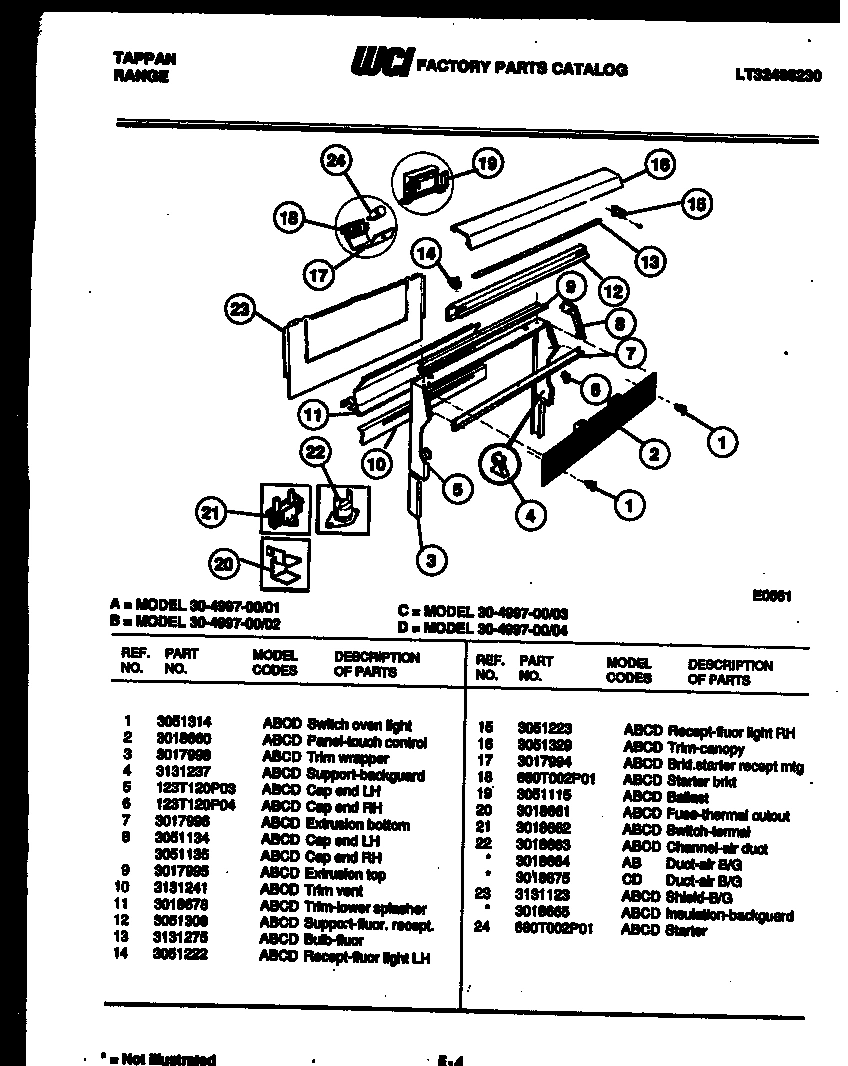

02 - BACKGUARD

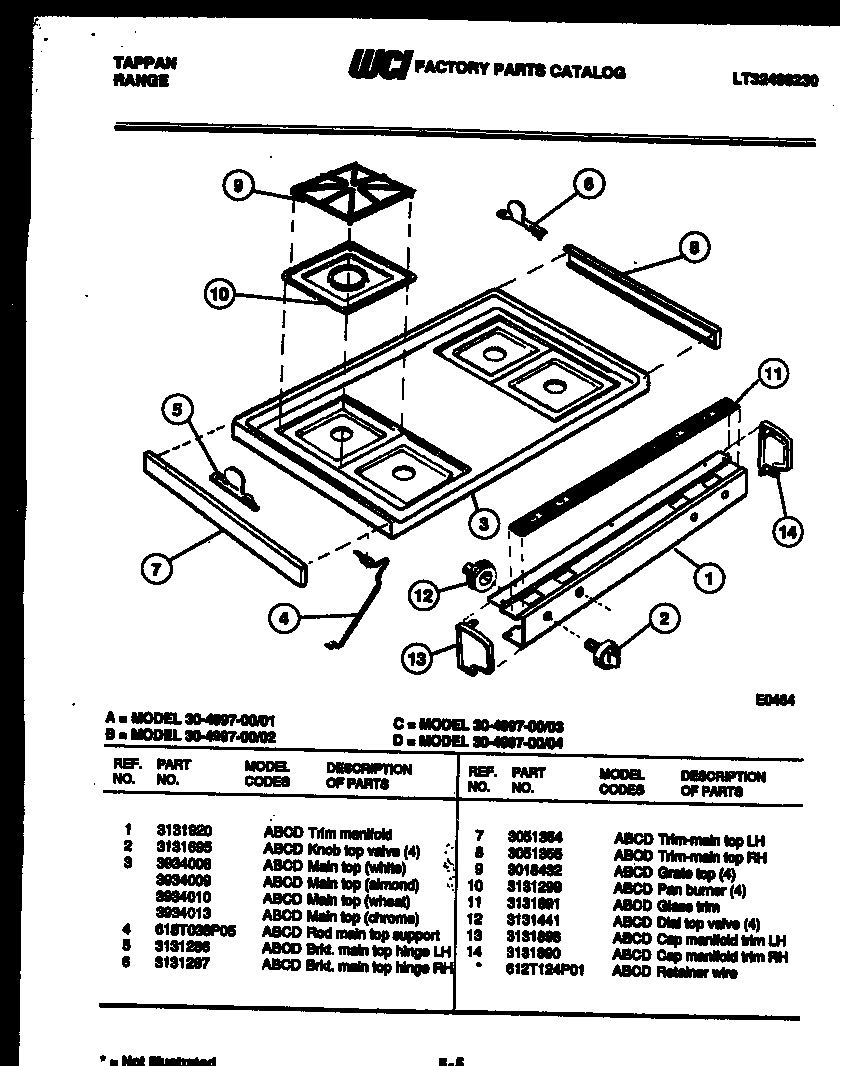

03 - COOKTOP PARTS

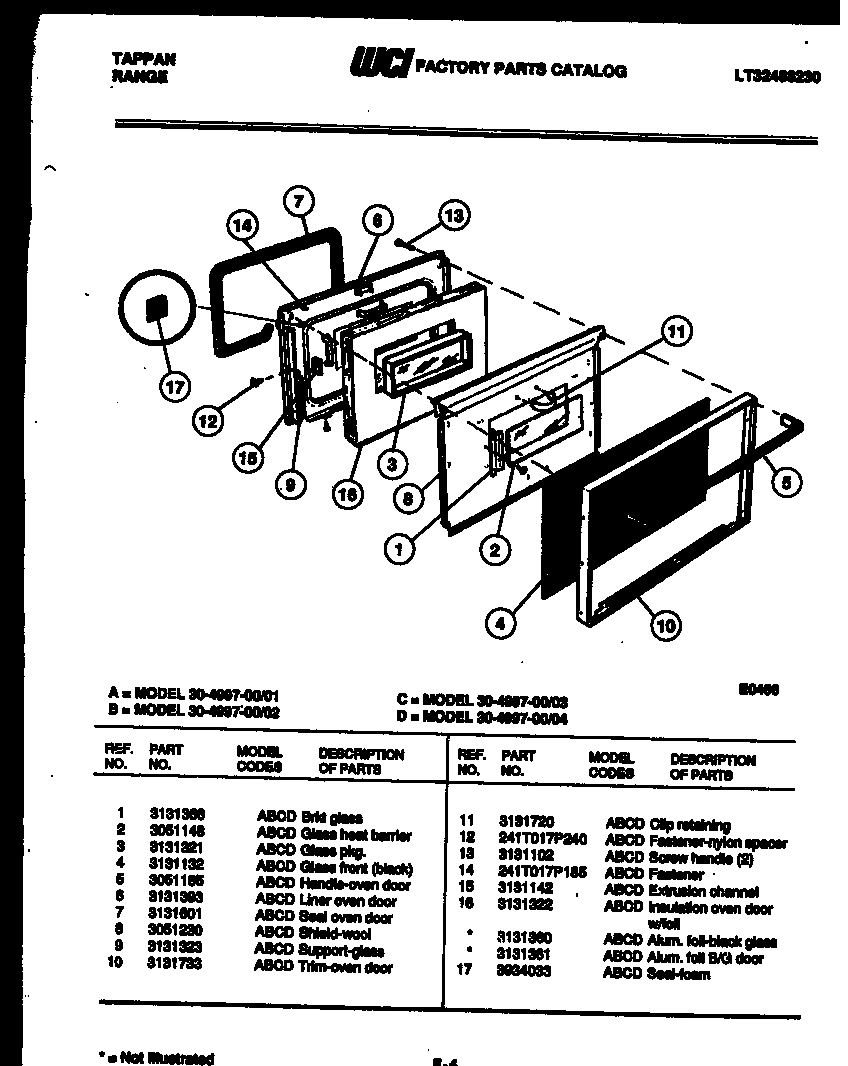

04 - DOOR PARTS

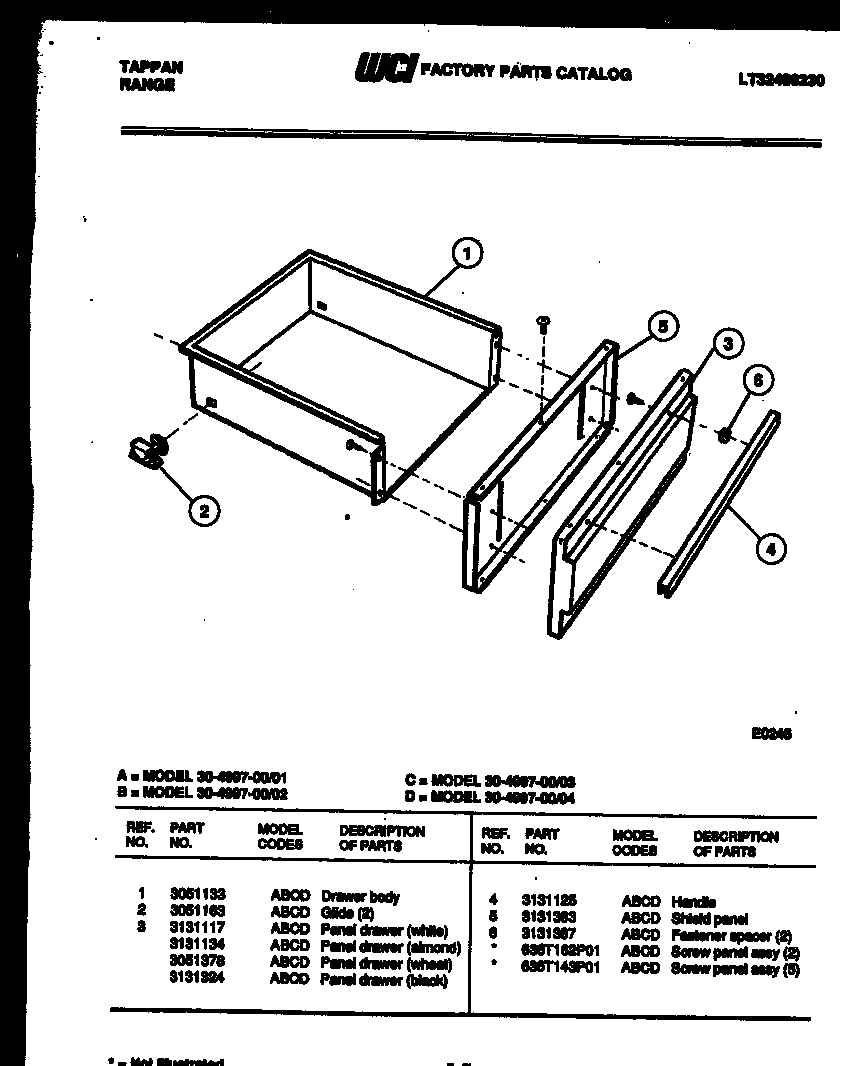

05 - DRAWER PARTS

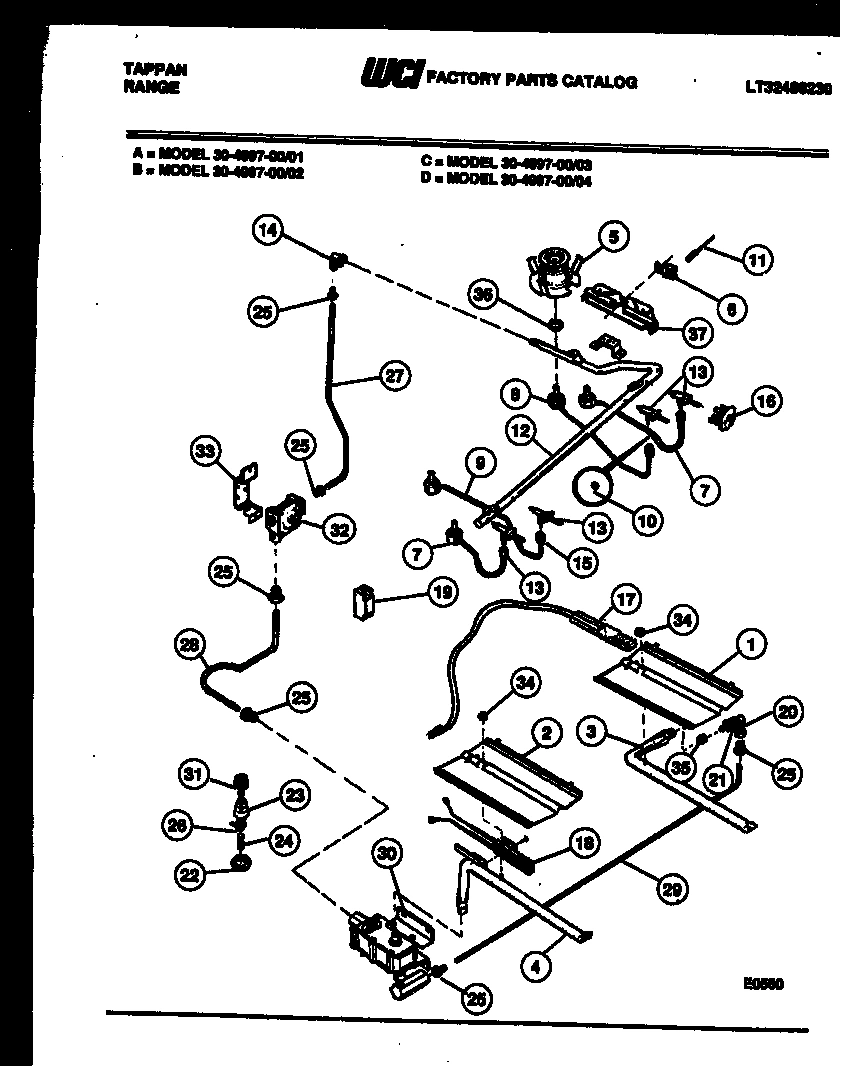

06 - BURNER, MANIFOLD AND GAS CONTROL

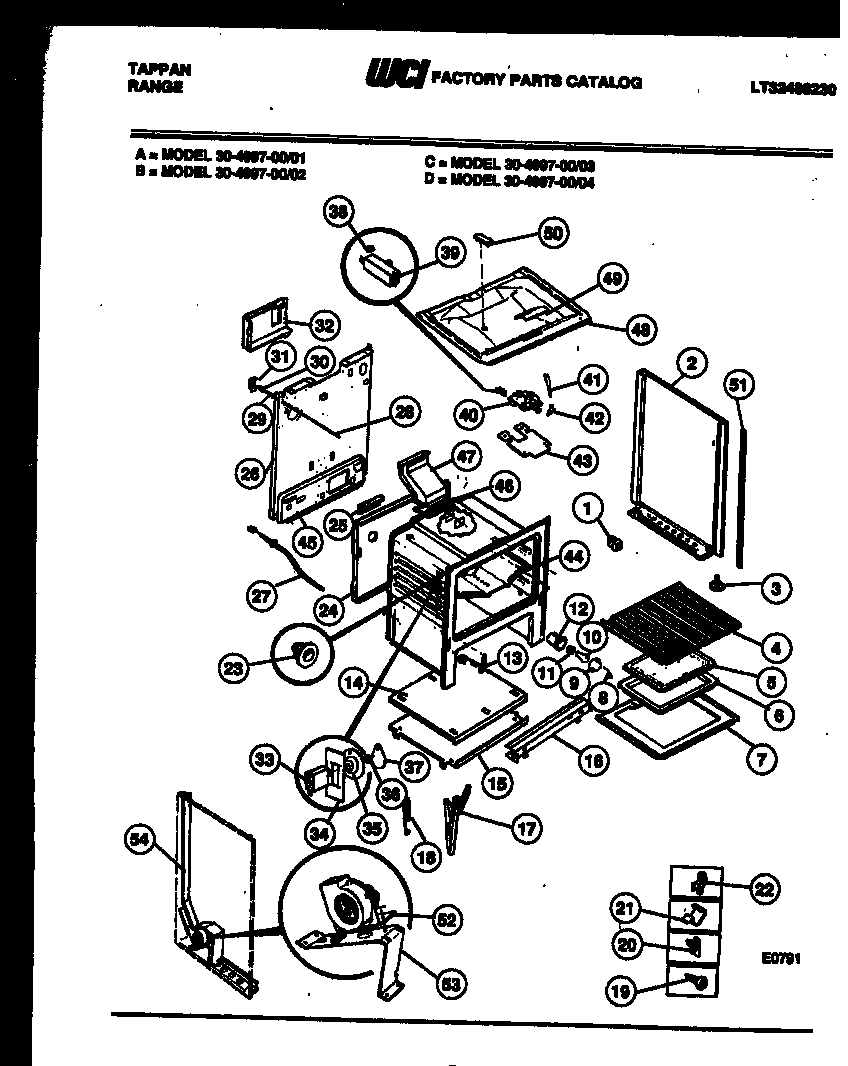

07 - BODY PARTS
Common parts from model Electrolux 30-4997-08-03 RANGE
*15041
WCI 612T124P01 WCI 612T124P01 Contact Us For Availability
*15043
SCREW PANEL ASSY (2) WCI 636T162P01 Contact Us For Availability
*15046
RIVET WCI 3051420 Contact Us For Availability
*15052
SHIELD-BI METAL WCI 3051413 Contact Us For Availability
*15052
SPACER-BAFFLE (2) WCI 3131956 Contact Us For Availability
*15052
RIVET WCI 615T030P03 Contact Us For Availability
1
TRIM MANIFOLD WCI 3131920 Contact Us For Availability
1
BRKT GLASS WCI 3131366 Contact Us For Availability
1
WCI 3051133 WCI 3051133 Contact Us For Availability
1
WCI 3131283 WCI 3131283 Contact Us For Availability
1
WCI 3051736 WCI 3051736 Contact Us For Availability
2
WCI 3131695 WCI 3131695 Contact Us For Availability
2
WCI 3051148 WCI 3051148 Contact Us For Availability
2
WCI 3131284 WCI 3131284 Contact Us For Availability
2
PANEL BODYSIDE (BLACK) LH WCI 3131221 Contact Us For Availability
2A
PANEL BODYSIDE (BLACK) RH WCI 3131217 Contact Us For Availability
3
WCI 3934013 WCI 3934013 Contact Us For Availability
3
WCI 3131321 WCI 3131321 Contact Us For Availability
3
PANEL-DRAWER (BLACK) WCI 3131324 Contact Us For Availability
3
WCI 079T028P01 WCI 079T028P01 Contact Us For Availability
3
SCREW - LEVELING (4) WCI 636M004P01 Contact Us For Availability
4
WCI 618T038P05 WCI 618T038P05 Contact Us For Availability
4
GLASS FRONT (BLACK) WCI 3131132 Contact Us For Availability
4
WCI 3131125 WCI 3131125 Contact Us For Availability
4
WCI 3131290 WCI 3131290 Contact Us For Availability
5
BRKT MAIN TOP HINGE-LH WCI 3131286 Contact Us For Availability
5
HANDLE OVEN DOOR WCI 3051165 Contact Us For Availability
5
WCI 3131383 WCI 3131383 Contact Us For Availability
5
WCI 079T032S02 WCI 079T032S02 Contact Us For Availability
5
WCI 3131356 WCI 3131356 Contact Us For Availability
6
BRKT MAIN TOP HINGE-RH WCI 3131287 Contact Us For Availability
6
WCI 3131393 WCI 3131393 Contact Us For Availability
6
FASTENER-SPACER (2) WCI 3131387 Contact Us For Availability
6
RETAINER, IGNITER (4) WCI 612T119F01 Contact Us For Availability
6
PAN, BROILER WCI 539T010F01-86 Contact Us For Availability
7
WCI 3017996 WCI 3017996 Contact Us For Availability
7
WCI 3051354 WCI 3051354 Contact Us For Availability
7
BURNER TUBE-RF & LF WCI 3131970 Contact Us For Availability
7
WCI 058T036F03-86 WCI 058T036F03-86 Contact Us For Availability
8
CAP, END LH WCI 3051134 Contact Us For Availability
8
WCI 3051355 WCI 3051355 Contact Us For Availability
8
WCI 3051230 WCI 3051230 Contact Us For Availability
8
WCI 079T033H02 WCI 079T033H02 Contact Us For Availability
8A
CAP, END RH WCI 3051135 Contact Us For Availability
9
WCI 3017995 WCI 3017995 Contact Us For Availability
9
GRATE-TOP (4) WCI 3018432 Contact Us For Availability
9
SUPPORT, GLASS WCI 3131323 Contact Us For Availability
9
WCI 079T033H03 WCI 079T033H03 Contact Us For Availability
9
WCI 3131104 WCI 3131104 Contact Us For Availability
10
WCI 3131241 WCI 3131241 Contact Us For Availability
10
WCI 3131299 WCI 3131299 Contact Us For Availability
10
WCI 3131733 WCI 3131733 Contact Us For Availability
10
WCI 247T074P01 WCI 247T074P01 Contact Us For Availability
11
WCI 3018678 WCI 3018678 Contact Us For Availability
11
WCI 3131891 WCI 3131891 Contact Us For Availability
11
CLIP-RETAINING WCI 3131720 Contact Us For Availability
11
IGNITER, TOP 50`` (4) WCI 316T034P02 Contact Us For Availability
12
WCI 3051308 WCI 3051308 Contact Us For Availability
12
WCI 3131441 WCI 3131441 Contact Us For Availability
12
FASTENER-NYLON SPACER WCI 241T017P240 Contact Us For Availability
12
WCI 3131440 WCI 3131440 Contact Us For Availability
12
WCI 3131363 WCI 3131363 Contact Us For Availability
13
BULB-FLUOR WCI 3131275 Contact Us For Availability
13
WCI 3131570 WCI 3131570 Contact Us For Availability
13
CAP MANIFOLD TRIM LH WCI 3131896 Contact Us For Availability
13
SCREW, HANDLE (2) WCI 3131102 Contact Us For Availability
13
WCI 3131126 WCI 3131126 Contact Us For Availability
14
RECEPT-FLUOR LIGHT LH WCI 3051222 Contact Us For Availability
14
CAP MANIFOLD TRIM RH WCI 3131890 Contact Us For Availability
14
FASTENER WCI 241T017P185 Contact Us For Availability
14
ELBOW 1/2 NPT WCI 215T013P01 Contact Us For Availability
14
WCI 3131951 WCI 3131951 Contact Us For Availability
15
RECEPT-FLUOR LIGHT RH WCI 3051223 Contact Us For Availability
15
EXTRUSION CHANNEL WCI 3131142 Contact Us For Availability
15
NUT-COMPRESSION WCI 3131148 Contact Us For Availability
15
WCI 3131313 WCI 3131313 Contact Us For Availability
16
WCI 3051329 WCI 3051329 Contact Us For Availability
16
INSULATION OVEN DOOR W/ FOIL WCI 3131322 Contact Us For Availability
16
SHIELD, MAIN FRONT WCI 3131311 Contact Us For Availability
16B
ALUM. FOIL B/G DOOR (NON-ILLUSTRATED) WCI 3131361 Contact Us For Availability
17
WCI 316007002 No Longer Available
17
WCI 3017994 WCI 3017994 Contact Us For Availability
17
WCI 3934033 WCI 3934033 Contact Us For Availability
18
WCI 3051306 WCI 3051306 Contact Us For Availability
19
WCI 3051115 WCI 3051115 Contact Us For Availability
19
SCREW OVEN BOTTOM WCI 3131731 Contact Us For Availability
20
WCI 3018661 WCI 3018661 Contact Us For Availability
20
WCI 455T008P02 WCI 455T008P02 Contact Us For Availability
21
WCI 3018662 WCI 3018662 Contact Us For Availability
21
HEX NUT 3/4 WCI 3131358 Contact Us For Availability
21
CLIP, WIRE WCI 145T130P01 Contact Us For Availability
22
WCI 3018663 WCI 3018663 Contact Us For Availability
22
WCI 3131309 WCI 3131309 Contact Us For Availability
23
SHIELD B/G WCI 3131123 Contact Us For Availability
23
SEAL ``O``RING WCI 647T087P01 Contact Us For Availability
23
WCI 3051731 WCI 3051731 Contact Us For Availability
23A
WCI 3018665 WCI 3018665 Contact Us For Availability
24
STARTER WCI 680T002P01 Contact Us For Availability
24
WCI 3131297 WCI 3131297 Contact Us For Availability
24
WCI 3131316 WCI 3131316 Contact Us For Availability
25
FITTING, LOXIT (6) WCI 3131261 Contact Us For Availability
25
ANGLE LIGHT SWITCH WCI 3131278 Contact Us For Availability
26
WCI 3131359 WCI 3131359 Contact Us For Availability
26
MAIN-BACK WCI 3131567 Contact Us For Availability
27
TUBE SLUM REG. MANIFOLD WCI 750T085H09 Contact Us For Availability
28
TUBE-VALVE TO REG WCI 3131109 Contact Us For Availability
28
WCI 3051251 WCI 3051251 Contact Us For Availability
29
TUBE ALUM VALVE/MIXER WCI 3131364 Contact Us For Availability
29
ROD-LIGHT SWITCH WCI 3051495 Contact Us For Availability
30
SWITCH-OVEN LIGHT WCI 695T128P04 Contact Us For Availability
31
BRKT LIGHT SWITCH WCI 3131289 Contact Us For Availability
32
CHANNEL, LIGHT SHIELD WCI 3131294 Contact Us For Availability
33
WCI 3018010 WCI 3018010 Contact Us For Availability
34
WCI 3018013 WCI 3018013 Contact Us For Availability
35
SPUD NO 50 WCI 499T015P08 Contact Us For Availability
35
WCI 3018009 WCI 3018009 Contact Us For Availability
36
NUT SPECIAL WCI 479T069P40 Contact Us For Availability
36
WCI 479T069P35 WCI 479T069P35 Contact Us For Availability
37
WCI 072T839F02 WCI 072T839F02 Contact Us For Availability
37
WCI 3018001 WCI 3018001 Contact Us For Availability
38
FASTENER-PUSH ON WCI 241T001P01 Contact Us For Availability
39
WCI 3131672 WCI 3131672 Contact Us For Availability
40
WCI 3015453 WCI 3015453 Contact Us For Availability
41
WCI 3131357 WCI 3131357 Contact Us For Availability
42
WCI 358T158S02 WCI 358T158S02 Contact Us For Availability
43
WCI 3131314 WCI 3131314 Contact Us For Availability
44
WCI 3131315 WCI 3131315 Contact Us For Availability
45
WCI 3131590 WCI 3131590 Contact Us For Availability
47
WCI 3131931 WCI 3131931 Contact Us For Availability
48
BURNER BOX BOTTOM WCI 095T030F02-86 Contact Us For Availability
49
WCI 3131101 WCI 3131101 Contact Us For Availability
50
COVER-BURNER BOX WCI 3015372 Contact Us For Availability
51
TRIM BODY SIDE WCI 3051326 Contact Us For Availability
51A
WCI 655T437F01 WCI 655T437F01 Contact Us For Availability
51B
STUD, SPACER (2) (NON-ILLUSTRATED) WCI 3051307 Contact Us For Availability
51D
FASTENER, POWER CORD (NON-ILLUSTRATED) WCI 241T017P255 Contact Us For Availability
51E
SHIELD-BI-METAL (NON-ILLUSTRATED) WCI 3131593 Contact Us For Availability
51F
SET SCREW KNOB (NON-ILLUSTRATED) WCI 636T144P01 Contact Us For Availability
51J
INSULATION-OVEN BACK (NON-ILLUSTRATED) WCI 3131303 Contact Us For Availability
51K
INSULATION-TOP (NON-ILLUSTRATED) WCI 3131304 Contact Us For Availability
51L
INSULATION-WRAP (NON-ILLUSTRATED) WCI 3017133 Contact Us For Availability
51M
WCI 3018670 WCI 3018670 Contact Us For Availability
51N
ALUM-FOIL (USE WHEN REPLACING BODY SIDE) (NON WCI 3017527 Contact Us For Availability
52
WCI 3018671 WCI 3018671 Contact Us For Availability
53
WCI 3018672 WCI 3018672 Contact Us For Availability
54
WCI 3018675 WCI 3018675 Contact Us For Availability
× ![]()
