Model Electrolux 30-4990-00-01 RANGE – Common Parts & Diagrams

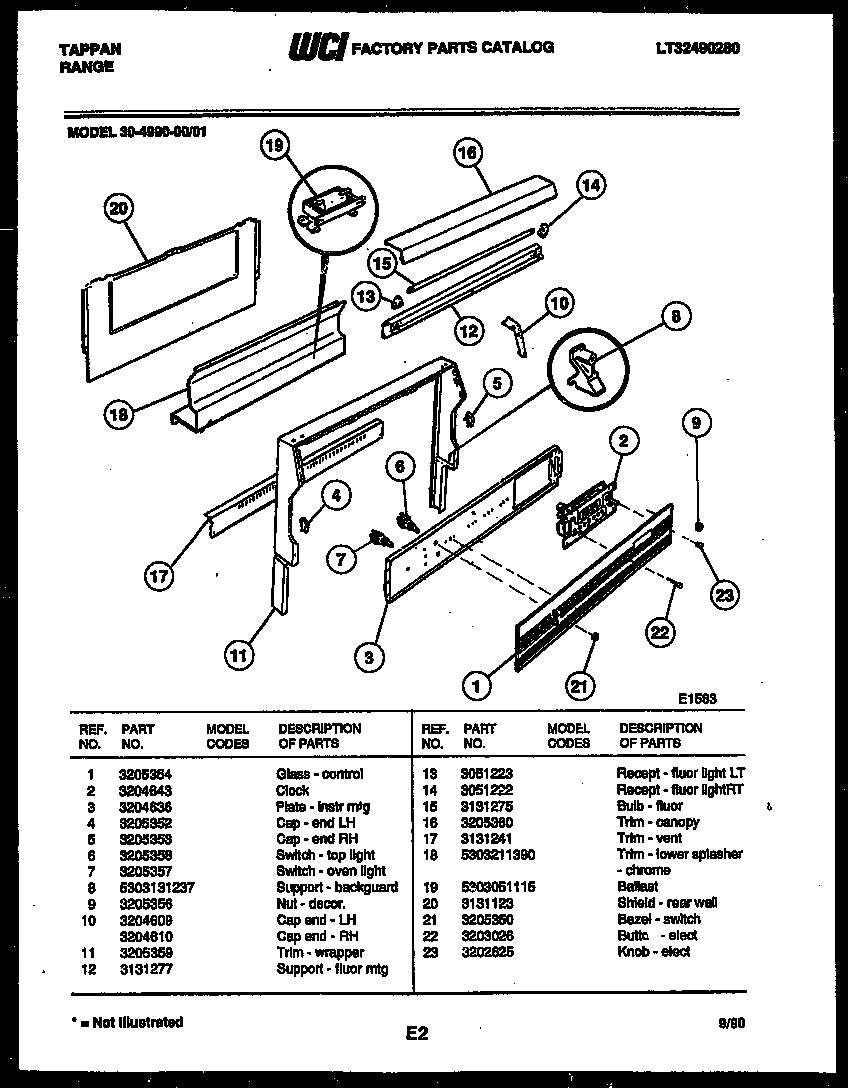

02 - BACKGUARD

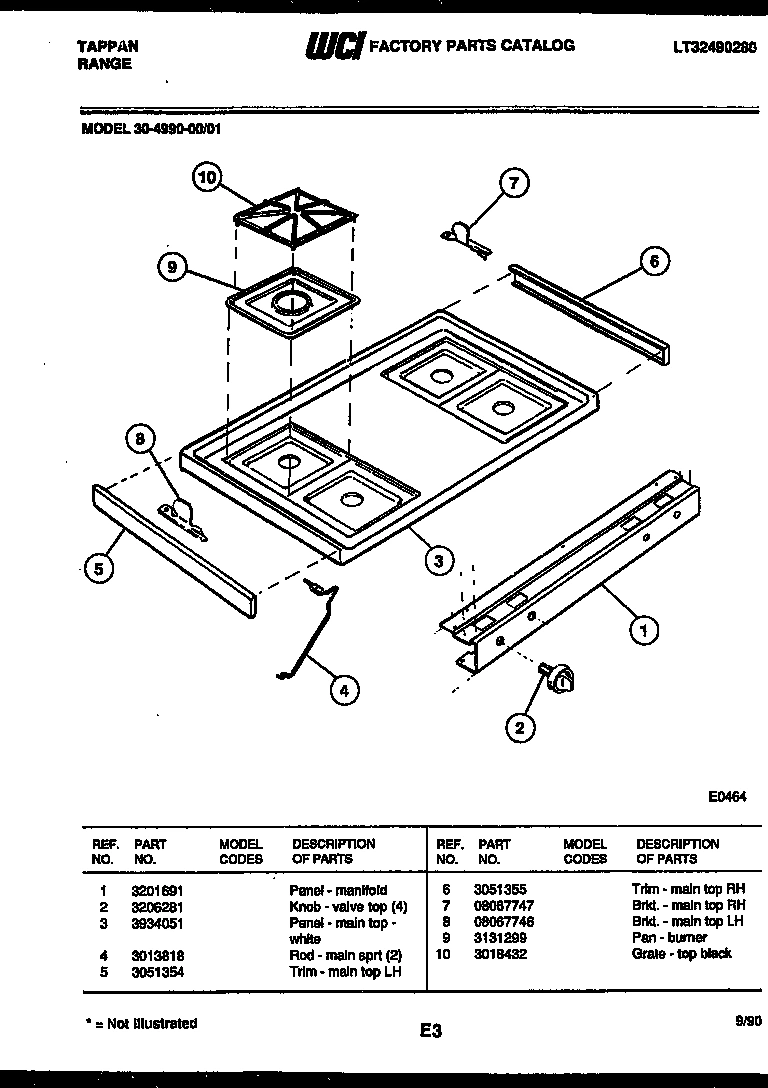

03 - COOKTOP PARTS

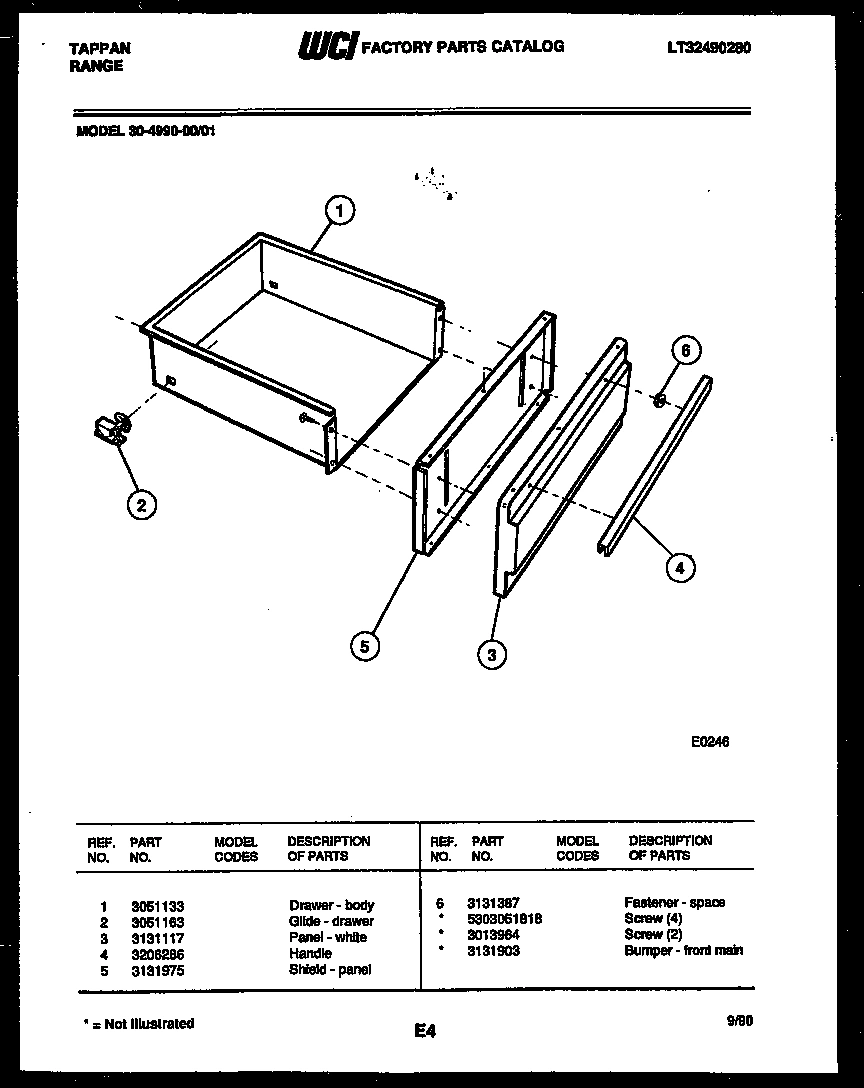

04 - DRAWER PARTS

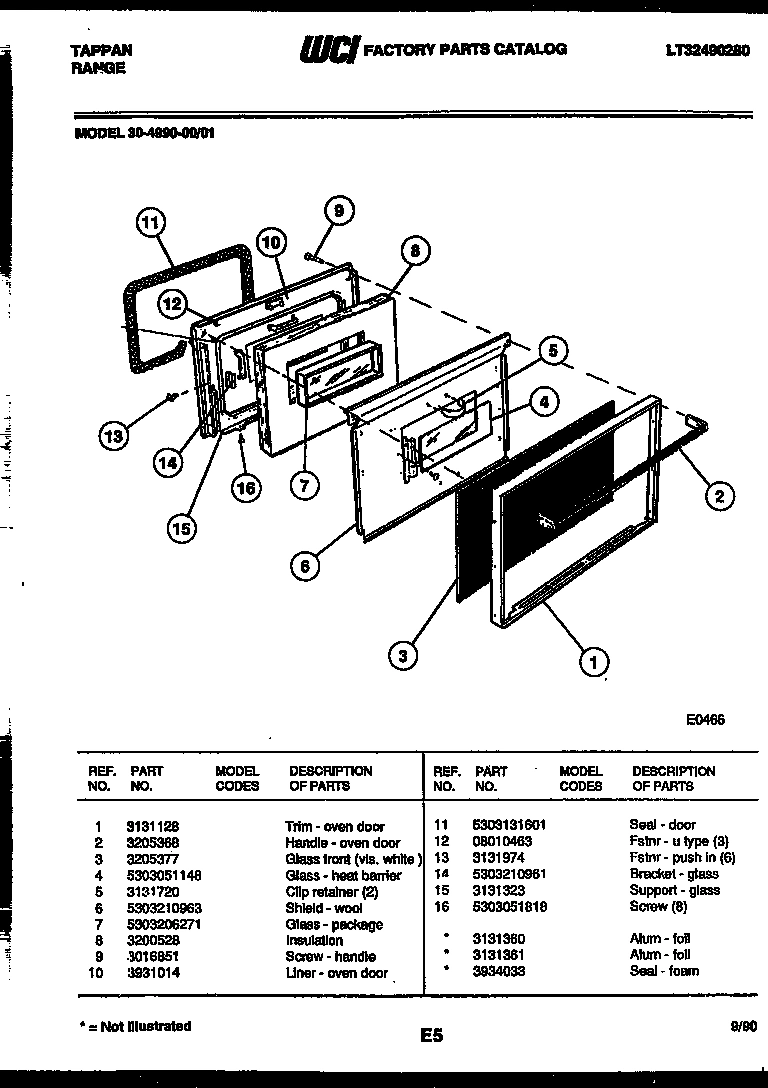

05 - DOOR PARTS

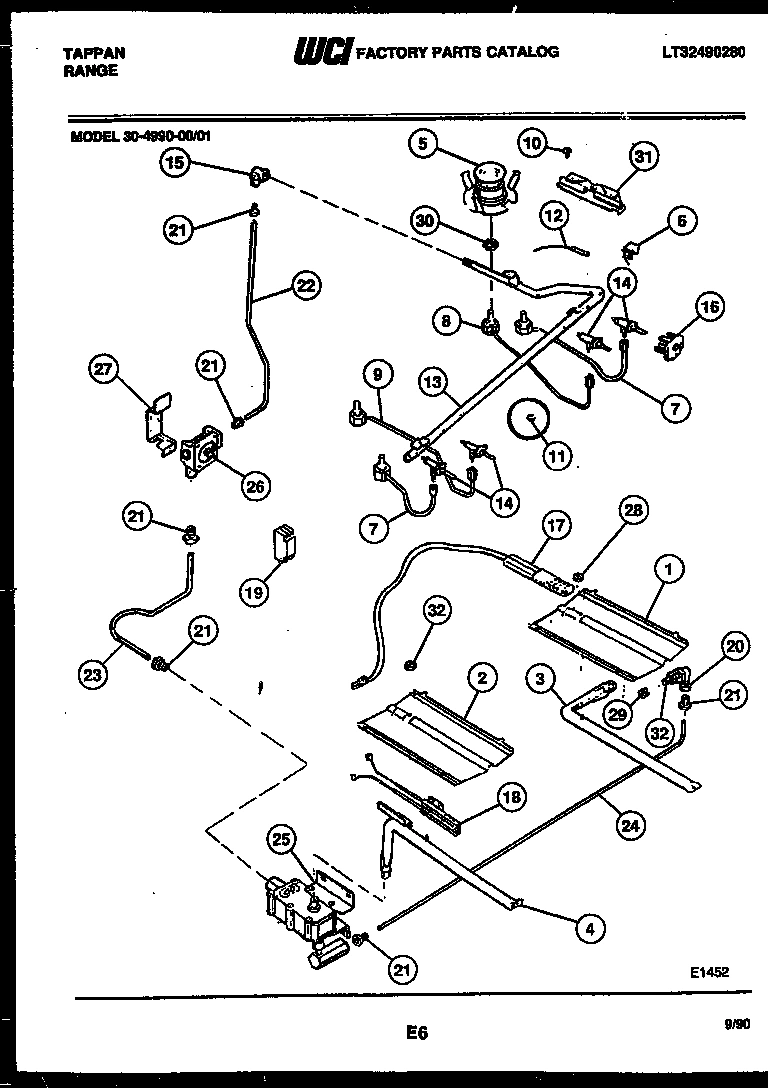

06 - BURNER, MANIFOLD AND GAS CONTROL

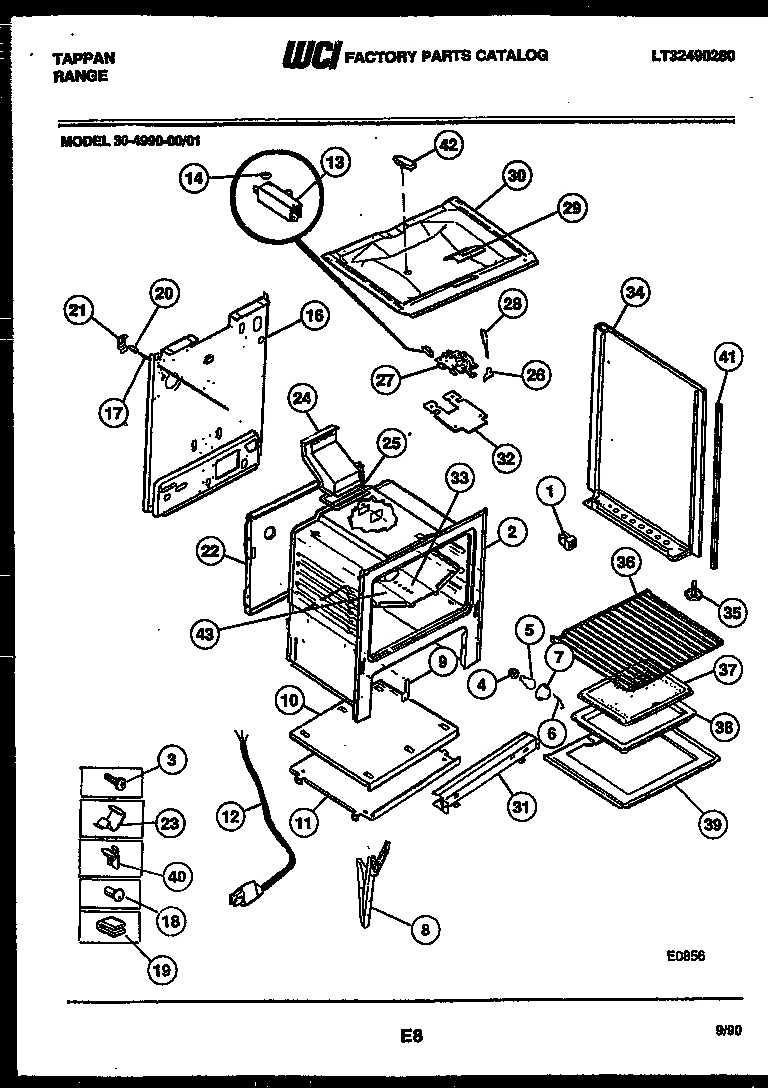

07 - BODY PARTS
Common parts from model Electrolux 30-4990-00-01 RANGE
*85084
WCI 3013964 WCI 3013964 Contact Us For Availability
*85111
ALUM FOIL WCI 3131361 Contact Us For Availability
*85112
WCI 3934033 WCI 3934033 Contact Us For Availability
*85220
SHIELD-WIRE WCI 08068018 Contact Us For Availability
*85222
ANTI-TIP BRKT WCI 3934056 Contact Us For Availability
1
WCI 3201691 WCI 3201691 Contact Us For Availability
1
WCI 3051133 WCI 3051133 Contact Us For Availability
1
WCI 3131128 WCI 3131128 Contact Us For Availability
1
WCI 5303210379 WCI 5303210379 Contact Us For Availability
1
WCI 3014900 WCI 3014900 Contact Us For Availability
2
WCI 3206281 WCI 3206281 Contact Us For Availability
2
HANDLE-OVEN DOOR WCI 3205368 Contact Us For Availability
2
WCI 3131284 WCI 3131284 Contact Us For Availability
3
WCI 08067935 WCI 08067935 Contact Us For Availability
3
PANEL - MAIN TOP - WHITE WCI 3934051 Contact Us For Availability
3
PANEL-WHITE WCI 3131117 Contact Us For Availability
3
GLASS FRONT (VIS. WHITE) WCI 3205377 Contact Us For Availability
4
ROD - MAIN SPRT (2) WCI 3013818 Contact Us For Availability
4
WCI 3206286 WCI 3206286 Contact Us For Availability
4
WCI 5303051148 WCI 5303051148 Contact Us For Availability
4
WCI 3131290 WCI 3131290 Contact Us For Availability
5
WCI 3051354 WCI 3051354 Contact Us For Availability
5
WCI 3131975 WCI 3131975 Contact Us For Availability
5
CLIP, RETAINER (2) WCI 3131720 Contact Us For Availability
5
BURNER TOP (4) WCI 5303011567 Contact Us For Availability
6
WCI 3051355 WCI 3051355 Contact Us For Availability
6
FASTENER-SPACE WCI 3131387 Contact Us For Availability
6
WCI 5303210963 WCI 5303210963 Contact Us For Availability
6
WCI 5303206266 WCI 5303206266 Contact Us For Availability
6
RETAINER-GLASS WCI 3204483 Contact Us For Availability
7
BRKT, MAIN TOP (RH) WCI 08067747 Contact Us For Availability
7
GLASS PACKAGE WCI 5303206271 Contact Us For Availability
7
BURNER - TUBE LF, RF WCI 5303131970 Contact Us For Availability
8
WCI 316007002 No Longer Available
8
BRKT, MAIN TOP (LH) WCI 08067746 Contact Us For Availability
8
WCI 3200528 WCI 3200528 Contact Us For Availability
8
WCI 5303011569 WCI 5303011569 Contact Us For Availability
9
COVER HNG. CUTOUT (2) WCI 3131570 Contact Us For Availability
9
PAN BURNER WCI 3131299 Contact Us For Availability
9
WCI 3016851 WCI 3016851 Contact Us For Availability
9
WCI 5303011570 WCI 5303011570 Contact Us For Availability
10
GRATE - TOP BLACK WCI 3018432 Contact Us For Availability
10
WCI 3931014 WCI 3931014 Contact Us For Availability
10
WCI 3051420 WCI 3051420 Contact Us For Availability
10
WCI 3131951 WCI 3131951 Contact Us For Availability
11
FERRULE (4) WCI 08067945 Contact Us For Availability
11
WCI 3131313 WCI 3131313 Contact Us For Availability
11A
WCI 08067992 WCI 08067992 Contact Us For Availability
12
WCI 08010463 WCI 08010463 Contact Us For Availability
12
IGNITER - TOP 50`` (4) WCI 5303131105 Contact Us For Availability
13
RECEPT - FLUOR LIGHT LT WCI 3051223 Contact Us For Availability
13
FSTNR, PUSH IN (6) WCI 3131974 Contact Us For Availability
13
MANNIFOLD - PIPE WCI 3131440 Contact Us For Availability
13
WCI 3204592 WCI 3204592 Contact Us For Availability
14
RECEPT - FLUOR LIGHT RT WCI 3051222 Contact Us For Availability
14
WCI 5303210961 WCI 5303210961 Contact Us For Availability
14
VALVE - TOP 3 POS (4) WCI 3017846 Contact Us For Availability
14
WCI 08067776 WCI 08067776 Contact Us For Availability
14A
WCI 08067978 WCI 08067978 Contact Us For Availability
15
BULB-FLUOR WCI 3131275 Contact Us For Availability
15
SUPPORT, GLASS WCI 3131323 Contact Us For Availability
15
ELBOW - 1/2 NP X 9/16 - 24 WCI 08067948 Contact Us For Availability
15A
NUT COMPRESSOR (4) (NON-ILLUSTRATED) WCI 3131148 Contact Us For Availability
16
TRIM - CANOPY WCI 3205360 Contact Us For Availability
16
WCI 3203082 WCI 3203082 Contact Us For Availability
17
WCI 3131241 WCI 3131241 Contact Us For Availability
17
WCI 53008067970 WCI 53008067970 Contact Us For Availability
17
ROD LIGHT WCI 5303209316 Contact Us For Availability
18
WCI 5303211390 WCI 5303211390 Contact Us For Availability
19
WCI 5303051115 WCI 5303051115 Contact Us For Availability
20
SHIELD, REAR WALL WCI 3131123 Contact Us For Availability
20
WCI 5303208640 WCI 5303208640 Contact Us For Availability
20
SWITCH, DOOR WCI 5303202622 Contact Us For Availability
21
WCI 3205350 WCI 3205350 Contact Us For Availability
21
FITTING, LOXIT (6) WCI 3131261 Contact Us For Availability
21
BRACKET-LT SWITCH WCI 5303131289 Contact Us For Availability
22
BUTTON - ELECT WCI 3203026 Contact Us For Availability
22
TUBE - ALUM 3/8 WCI 5303208495 Contact Us For Availability
22
WCI 3131316 WCI 3131316 Contact Us For Availability
23
KNOB - ELECT WCI 3202625 Contact Us For Availability
23
TUBE - ALUM 3/8 WCI 5303208494 Contact Us For Availability
23
CLIP-WIRE WCI 3011813 Contact Us For Availability
24
TUBE - ALUM 3/8 WCI 5303208493 Contact Us For Availability
24
WCI 3131931 WCI 3131931 Contact Us For Availability
25A
SHIELD, BIMETAL LATCH (NON-ILLUSTRATED) WCI 3131593 Contact Us For Availability
25B
WCI 08013188 WCI 08013188 Contact Us For Availability
26
WCI 5303210956 WCI 5303210956 Contact Us For Availability
27
WCI 5303015453 WCI 5303015453 Contact Us For Availability
28
WCI 5303131357 WCI 5303131357 Contact Us For Availability
29
WCI 499T015P08 WCI 499T015P08 Contact Us For Availability
29
WCI 08067757 WCI 08067757 Contact Us For Availability
30
NUT, SPECIAL WCI 3013279 Contact Us For Availability
30
WCI 3011597 WCI 3011597 Contact Us For Availability
31
WCI 3206267 WCI 3206267 Contact Us For Availability
31
SHIELD, MAIN FRONT WCI 3200835 Contact Us For Availability
32
WCI 3051413 WCI 3051413 Contact Us For Availability
33
WCI 3200836 WCI 3200836 Contact Us For Availability
33A
WCI 3200834 WCI 3200834 Contact Us For Availability
34
PANEL-B/S LH (WHITE) WCI 3205620 Contact Us For Availability
34A
PANEL-B/S RH (WHITE) WCI 3205623 Contact Us For Availability
35
SCREW-LEVELING WCI 3206285 Contact Us For Availability
37
WCI 5303131356 WCI 5303131356 Contact Us For Availability
38
PAN-BROILER WCI 5303013568 Contact Us For Availability
39
WCI 3011519 WCI 3011519 Contact Us For Availability
39B
WCI 08067961 WCI 08067961 Contact Us For Availability
39C
INSUL.-WOOL (BACK) (NON-ILLUSTRATED) WCI 3204582 Contact Us For Availability
39E
INSUL-OVEN WRAP (NON-ILLUSTRATED) WCI 3200833 Contact Us For Availability
39F
INSUL-OVEN TOP (NON-ILLUSTRATED) WCI 3131304 Contact Us For Availability
41
TRIM - VERTICAL B/S (2) WCI 5303051326 Contact Us For Availability
41A
SHIELD, OVEN TOP (NON-ILLUSTRATED) WCI 3131314 Contact Us For Availability
41B
SHIELD-REAR WALL (NON-ILLUSTRATED) WCI 3131590 Contact Us For Availability
42
WCI 3015371 WCI 3015371 Contact Us For Availability
× ![]()
