Model Electrolux 30-4979-00-02 RANGE – Common Parts & Diagrams

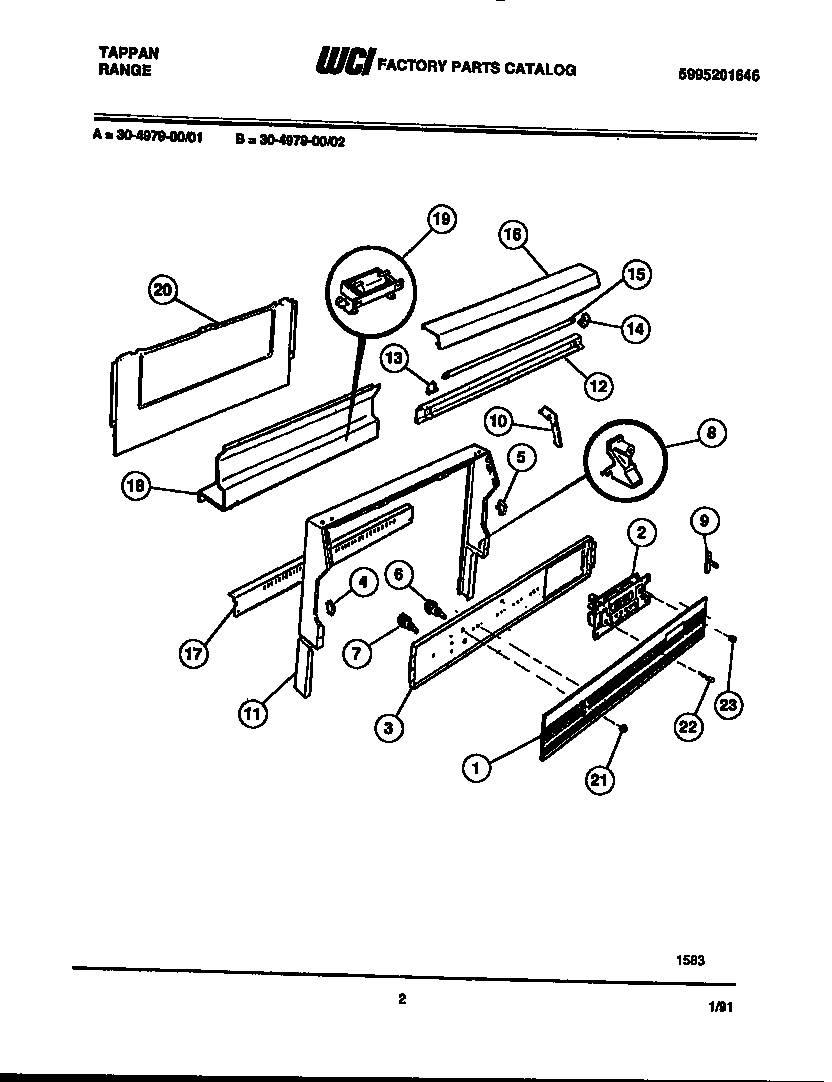

02 - BACKGUARD

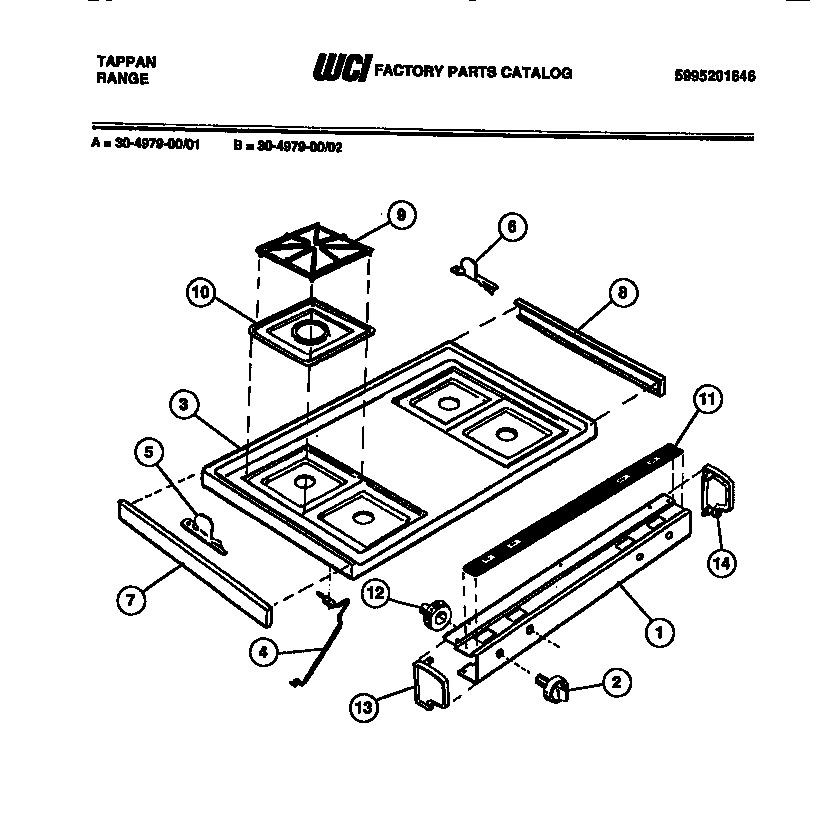

03 - COOKTOP PARTS

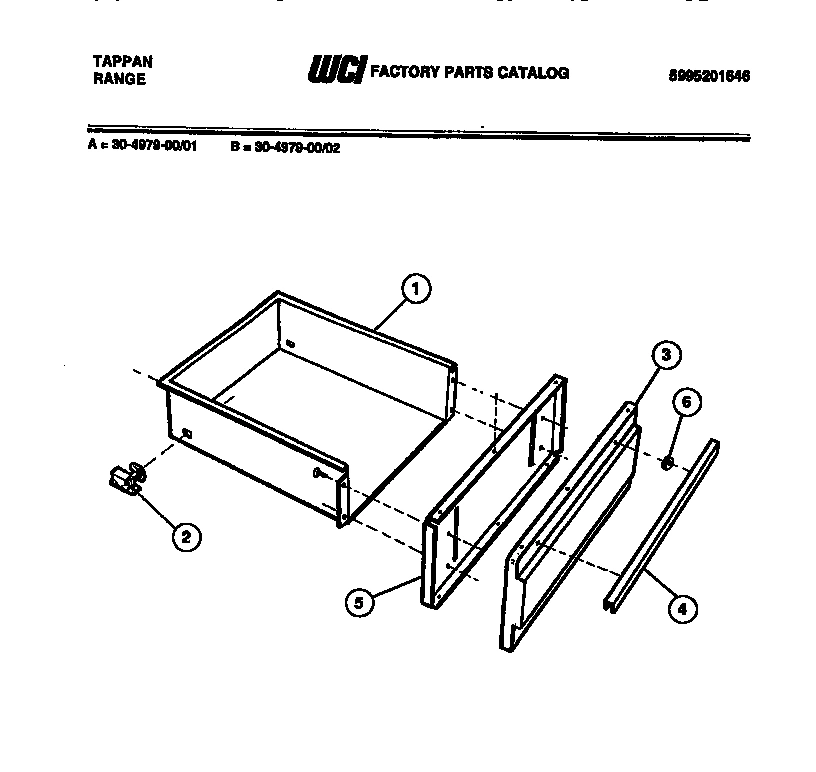

04 - DRAWER PARTS

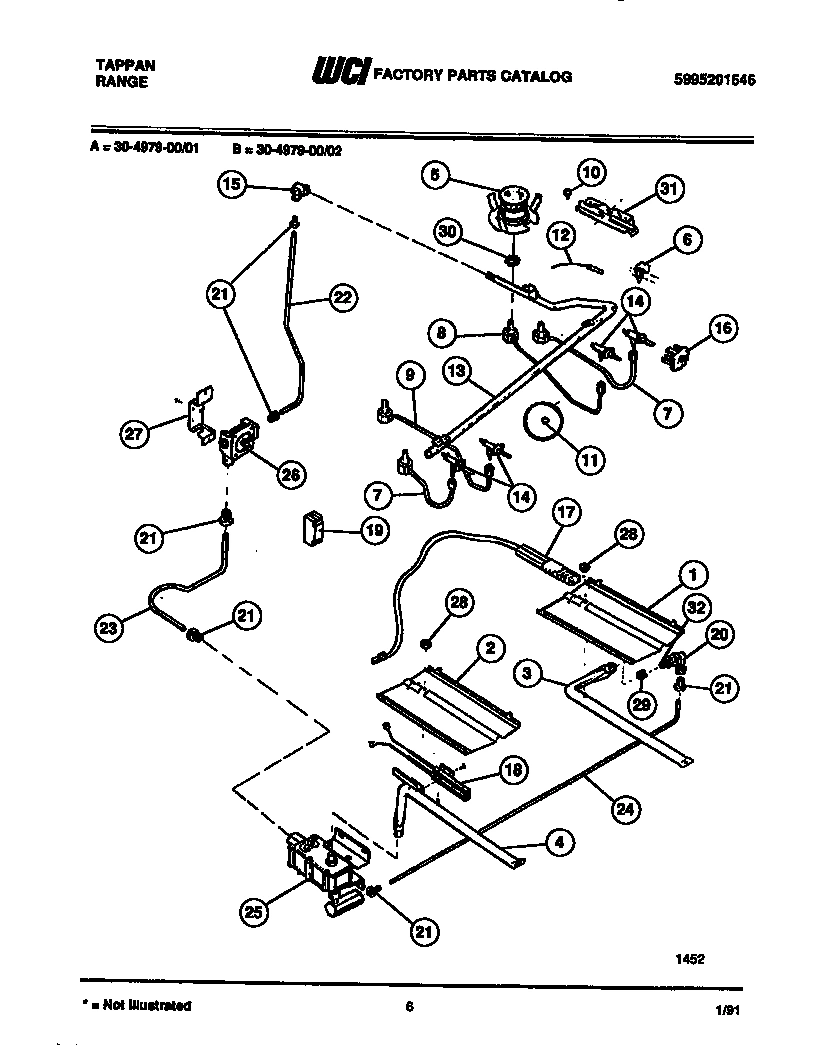

05 - BURNER, MANIFOLD AND GAS CONTROL

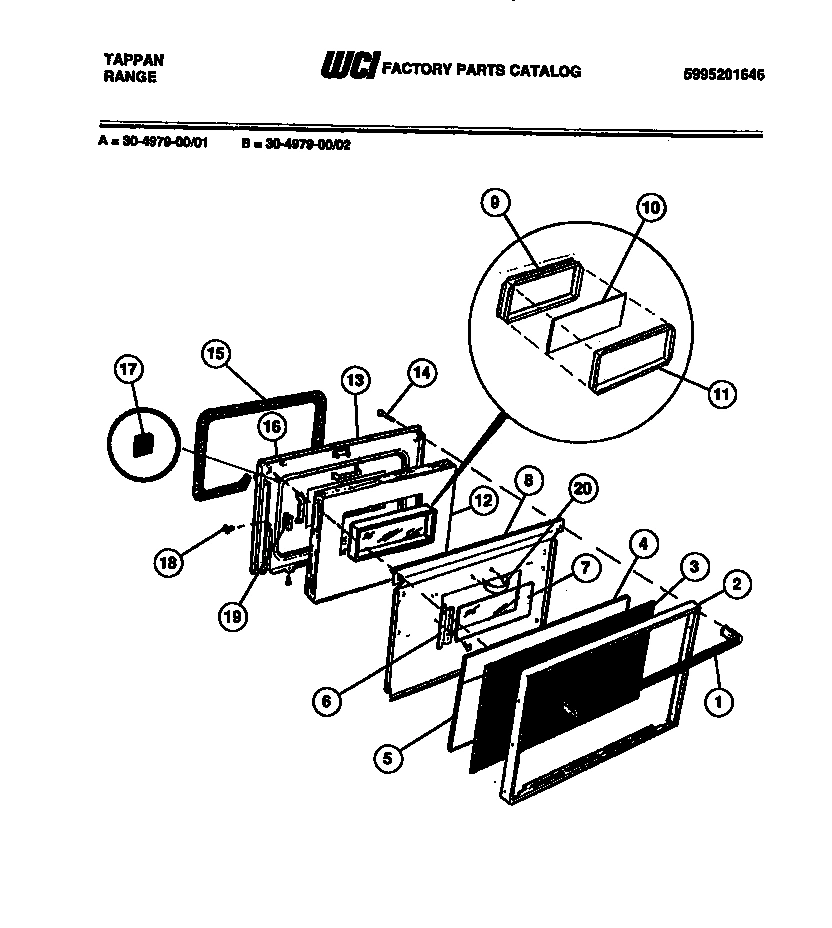

06 - DOOR PARTS

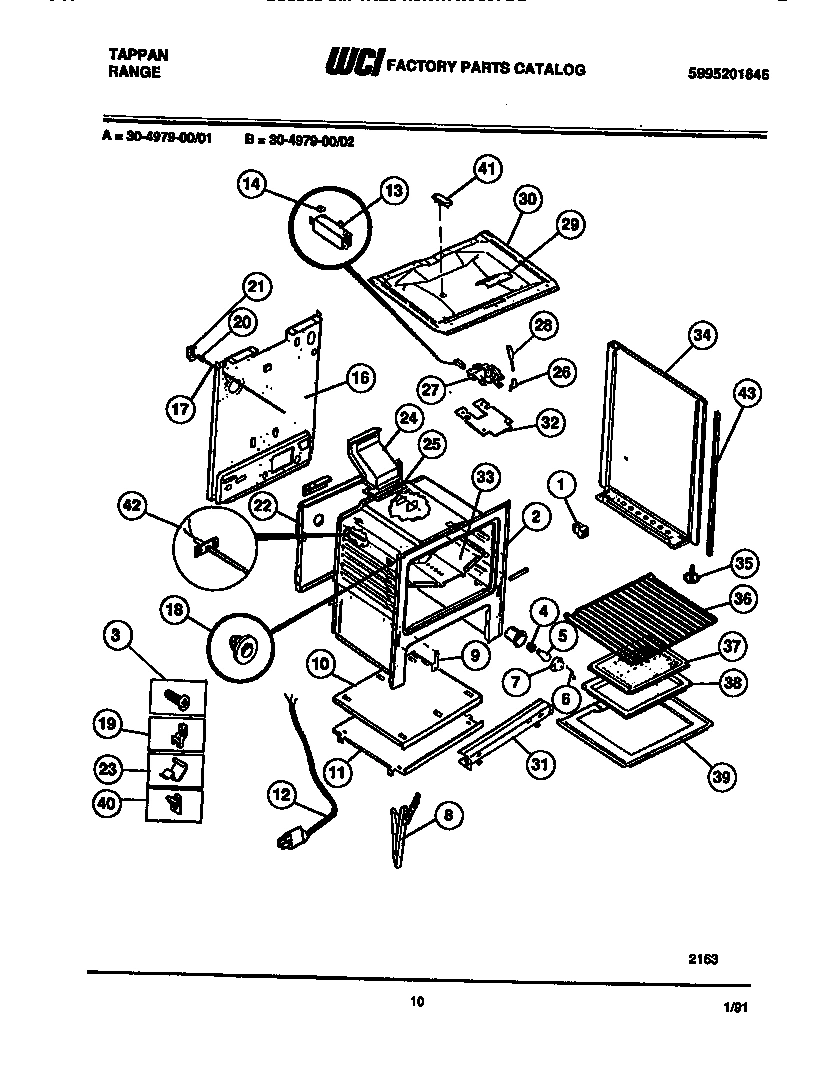

07 - BODY PARTS
Common parts from model Electrolux 30-4979-00-02 RANGE
*31480
RETAINER WIRE WCI 3206266 Contact Us For Availability
*31482
WCI 3013964 WCI 3013964 Contact Us For Availability
*31491
WCI 5303211085 WCI 5303211085 Contact Us For Availability
*31491
FSTNR-NYLON SPACER WCI 5303212674 Contact Us For Availability
*31501
WCI 19100200014 WCI 19100200014 Contact Us For Availability
1
SPACER-BODYSIDE, (8) WCI 3014099 Contact Us For Availability
1
WCI 3205436 WCI 3205436 Contact Us For Availability
1
WCI 3051133 WCI 3051133 Contact Us For Availability
1
WCI 5303210379 WCI 5303210379 Contact Us For Availability
1
HANDLE WCI 5303131256 Contact Us For Availability
2
KNOB-VALVE TOP (4) WCI 3131695 Contact Us For Availability
2
WCI 3131284 WCI 3131284 Contact Us For Availability
2
WCI 5303209518 WCI 5303209518 Contact Us For Availability
3
WCI 08067935 WCI 08067935 Contact Us For Availability
3
WCI 3934051 WCI 3934051 Contact Us For Availability
3
PANEL-WHITE WCI 3131117 Contact Us For Availability
3
WCI 3131324 WCI 3131324 Contact Us For Availability
3
WCI 5303131132 WCI 5303131132 Contact Us For Availability
4
ROD - MAIN SPRT (2) WCI 3013818 Contact Us For Availability
4
WCI 3131125 WCI 3131125 Contact Us For Availability
4
WCI 3131290 WCI 3131290 Contact Us For Availability
4
WCI 5303208656 WCI 5303208656 Contact Us For Availability
5
HINGE-TOP LH WCI 08067746 Contact Us For Availability
5
WCI 3131975 WCI 3131975 Contact Us For Availability
5
BURNER TOP (4) WCI 5303011567 Contact Us For Availability
6
HINGE-TOP RH WCI 08067747 Contact Us For Availability
6
FASTENER-SPACE WCI 3131387 Contact Us For Availability
6
RETAINER-IGNITER (4) WCI 3018617 Contact Us For Availability
6
WCI 5303209510 WCI 5303209510 Contact Us For Availability
6
RETAINER-GLASS WCI 3204483 Contact Us For Availability
7
WCI 5303200479 WCI 5303200479 Contact Us For Availability
7
GLASS-HEAT BARRIER WCI 5303209512 Contact Us For Availability
7
TRIM-TOP LH WCI 3051354 Contact Us For Availability
7
BURNER - TUBE LF, RF WCI 5303131970 Contact Us For Availability
8
CHANNEL-DOOR HINGE WCI 316007002 No Longer Available
8
TRIM-TOP RH WCI 3051355 Contact Us For Availability
8
WCI 5303011569 WCI 5303011569 Contact Us For Availability
8
WCI 3202151 WCI 3202151 Contact Us For Availability
8
WCI 5303211084 WCI 5303211084 Contact Us For Availability
9
WCI 3131570 WCI 3131570 Contact Us For Availability
9
GRATE (4) WCI 3018432 Contact Us For Availability
9
WCI 5303011570 WCI 5303011570 Contact Us For Availability
9
WCI 5303209517 WCI 5303209517 Contact Us For Availability
10
WCI 3131299 WCI 3131299 Contact Us For Availability
10
WCI 3051420 WCI 3051420 Contact Us For Availability
10
WCI 5303209513 WCI 5303209513 Contact Us For Availability
10
WCI 3131951 WCI 3131951 Contact Us For Availability
11
WCI 3205305 WCI 3205305 Contact Us For Availability
11
FERRULE (4) WCI 08067945 Contact Us For Availability
11
WCI 5303209511 WCI 5303209511 Contact Us For Availability
11
WCI 3131313 WCI 3131313 Contact Us For Availability
11A
WCI 08067992 WCI 08067992 Contact Us For Availability
12
WCI 3205300 WCI 3205300 Contact Us For Availability
12
IGNITER - TOP 50`` (4) WCI 5303131105 Contact Us For Availability
12
INSULATION WCI 5303209514 Contact Us For Availability
13
WCI 3131445 WCI 3131445 Contact Us For Availability
13
WCI 3131440 WCI 3131440 Contact Us For Availability
13
WCI 5303209515 WCI 5303209515 Contact Us For Availability
13
WCI 3204592 WCI 3204592 Contact Us For Availability
14
VALVE-TOP 3 POS (4) WCI 5303017846 Contact Us For Availability
14
WCI 3131492 WCI 3131492 Contact Us For Availability
14
SCREW, HANDLE (2) WCI 3016851 Contact Us For Availability
14
WCI 08067776 WCI 08067776 Contact Us For Availability
14A
WCI 08067978 WCI 08067978 Contact Us For Availability
15
BULB-FLUOR WCI 3131275 Contact Us For Availability
15
ELBOW - 1/2 NP X 9/16 - 24 WCI 08067948 Contact Us For Availability
15A
NUT COMPRESSOR (4) (NON-ILLUSTRATED) WCI 3131148 Contact Us For Availability
16
WCI 3203082 WCI 3203082 Contact Us For Availability
17
WCI 530806790 WCI 530806790 Contact Us For Availability
17
ROD LIGHT WCI 5303209316 Contact Us For Availability
20
SHIELD, REAR WALL WCI 3131123 Contact Us For Availability
20
WCI 5303208640 WCI 5303208640 Contact Us For Availability
20
SWITCH, DOOR WCI 5303202622 Contact Us For Availability
21
BEZEL-SWITCH WCI 5303011507 Contact Us For Availability
21
BRACKET-LIGHT SWITCH WCI 5303131289 Contact Us For Availability
22
BUTTON-ELECT WCI 3204586 Contact Us For Availability
22
WCI 08067991 WCI 08067991 Contact Us For Availability
22A
TUBE ALUM 3/8 REG/ MANIF PIPE W/ FIT WCI 5303208495 Contact Us For Availability
23
KNOB-ELECT WCI 3204590 Contact Us For Availability
23
TUBE-ALUM 3/8 VALVE-REG W/ FIT WCI 5303208494 Contact Us For Availability
23
CLIP-WIRE WCI 3011813 Contact Us For Availability
24
TUBE-ALUM 3/8 VALVE-MIXER W/ FIT WCI 5303208493 Contact Us For Availability
24
WCI 3131931 WCI 3131931 Contact Us For Availability
26
WCI 3203218 WCI 3203218 Contact Us For Availability
27
LATCH-DOOR BI METAL WCI 5303015453 Contact Us For Availability
28
WCI 5303131357 WCI 5303131357 Contact Us For Availability
29
SPUD-50 WCI 08068015 Contact Us For Availability
29
WCI 08067757 WCI 08067757 Contact Us For Availability
30
NUT, SPECIAL WCI 3013279 Contact Us For Availability
30
WCI 3011597 WCI 3011597 Contact Us For Availability
31
WCI 3206267 WCI 3206267 Contact Us For Availability
31
SHIELD, MAIN FRONT WCI 3200835 Contact Us For Availability
32
WCI 3131358 WCI 3131358 Contact Us For Availability
32
SHIELD-LATCH WCI 3051413 Contact Us For Availability
33
WCI 3200836 WCI 3200836 Contact Us For Availability
33A
SHIELD-HEAT B/S (NON-ILLUSTRATED) WCI 3200834 Contact Us For Availability
34
PANEL-B/S LH (WHITE) WCI 3205620 Contact Us For Availability
34
WCI 5303269818 WCI 5303269818 Contact Us For Availability
34A
PANEL-B/S RH (WHITE) WCI 3205623 Contact Us For Availability
34A
WCI 5303269817 WCI 5303269817 Contact Us For Availability
35
SCREW-LEVELING WCI 5303203397 Contact Us For Availability
35A
FSTNR-TEE NUT LEVELING LEG (NON-ILLUSTRATED) WCI 241T017P10 Contact Us For Availability
37
WCI 5303131356 WCI 5303131356 Contact Us For Availability
38
PAN-BROILER WCI 5303013568 Contact Us For Availability
39
WCI 3011519 WCI 3011519 Contact Us For Availability
39B
WCI 08067961 WCI 08067961 Contact Us For Availability
39C
INSUL.-WOOL (BACK) (NON-ILLUSTRATED) WCI 3204582 Contact Us For Availability
39E
INSUL-OVEN WRAPPER (NON-ILLUSTRATED) WCI 3200833 Contact Us For Availability
39F
INSUL-OVEN TOP (NON-ILLUSTRATED) WCI 3131304 Contact Us For Availability
40A
SHIELD, OVEN TOP (NON-ILLUSTRATED) WCI 3131314 Contact Us For Availability
40B
SHIELD-REAR WALL (NON-ILLUSTRATED) WCI 3131590 Contact Us For Availability
41
WCI 3015371 WCI 3015371 Contact Us For Availability
41A
ANTI-TIP BRKT (NON-ILLUSTRATED) WCI 3934056 Contact Us For Availability
42A
WCI 08068018 WCI 08068018 Contact Us For Availability
42B
SHIELD-LATCH (NON-ILLUSTRATED) WCI 3131593 Contact Us For Availability
42C
WCI 0813188 WCI 0813188 Contact Us For Availability
43
WCI 5303051326 WCI 5303051326 Contact Us For Availability
× ![]()
