Model Electrolux 30-3989-23-06 RANGE – Common Parts & Diagrams
02 - BACKGUARD
03 - COOKTOP PARTS

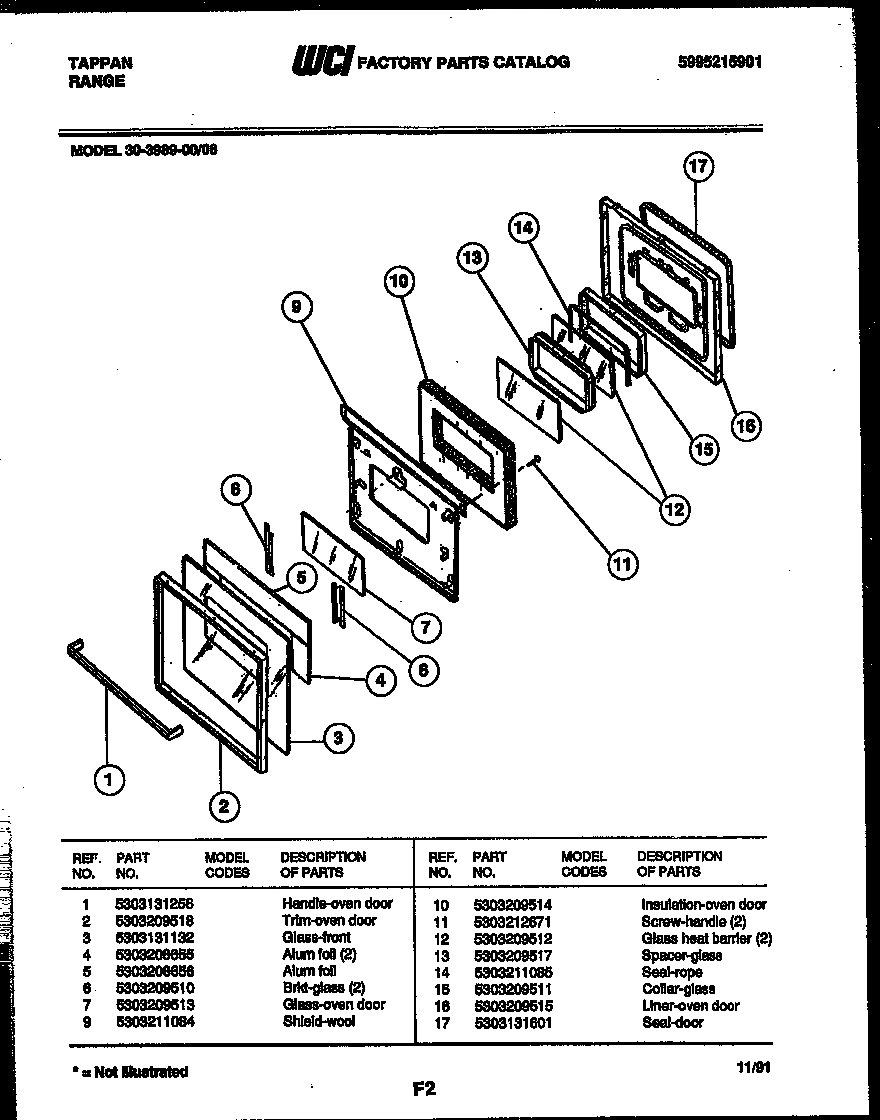

04 - DOOR PARTS

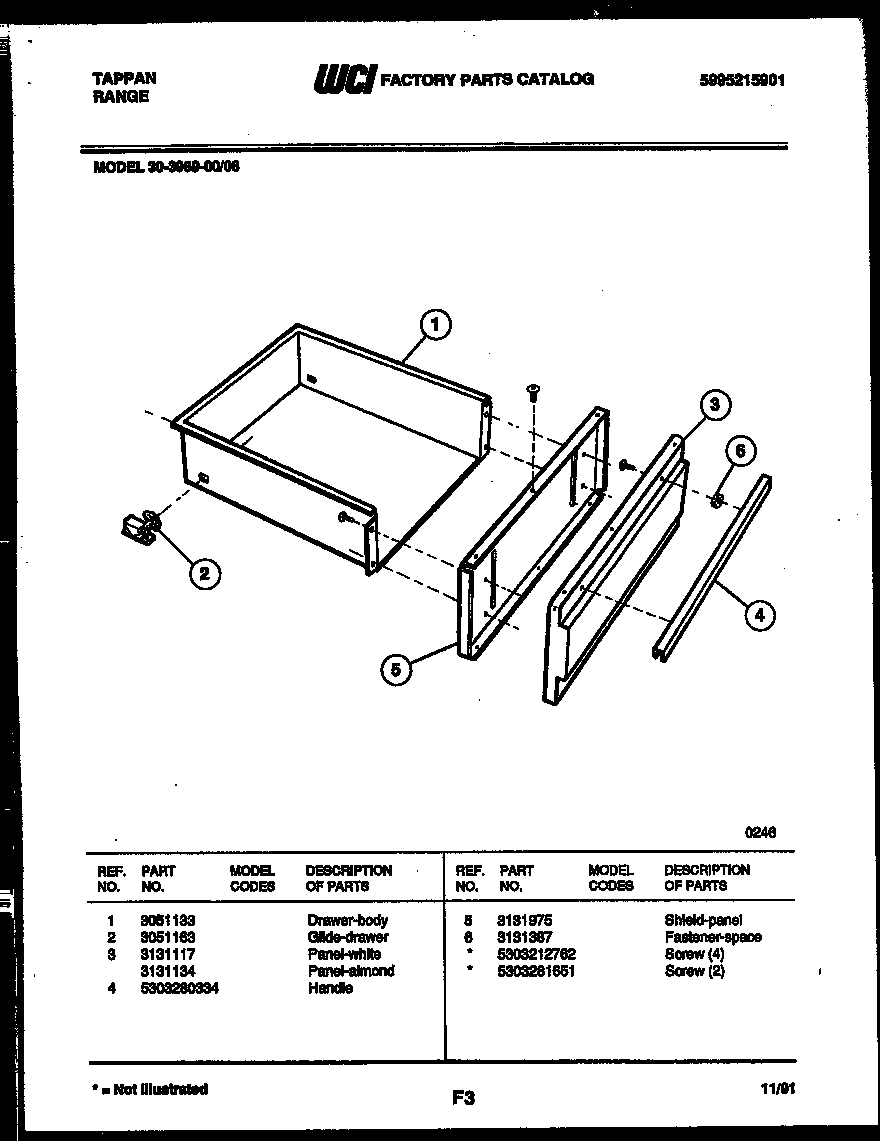

05 - DRAWER PARTS

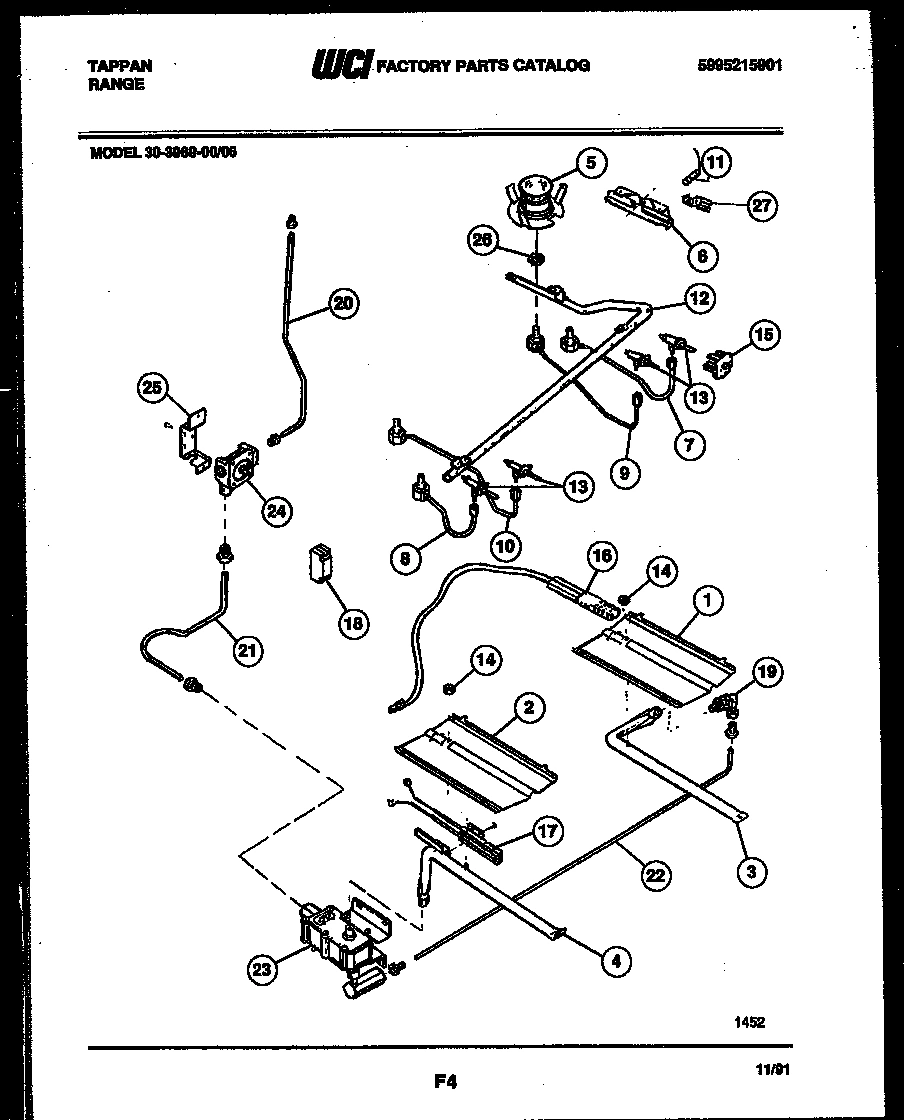

06 - BURNER, MANIFOLD AND GAS CONTROL

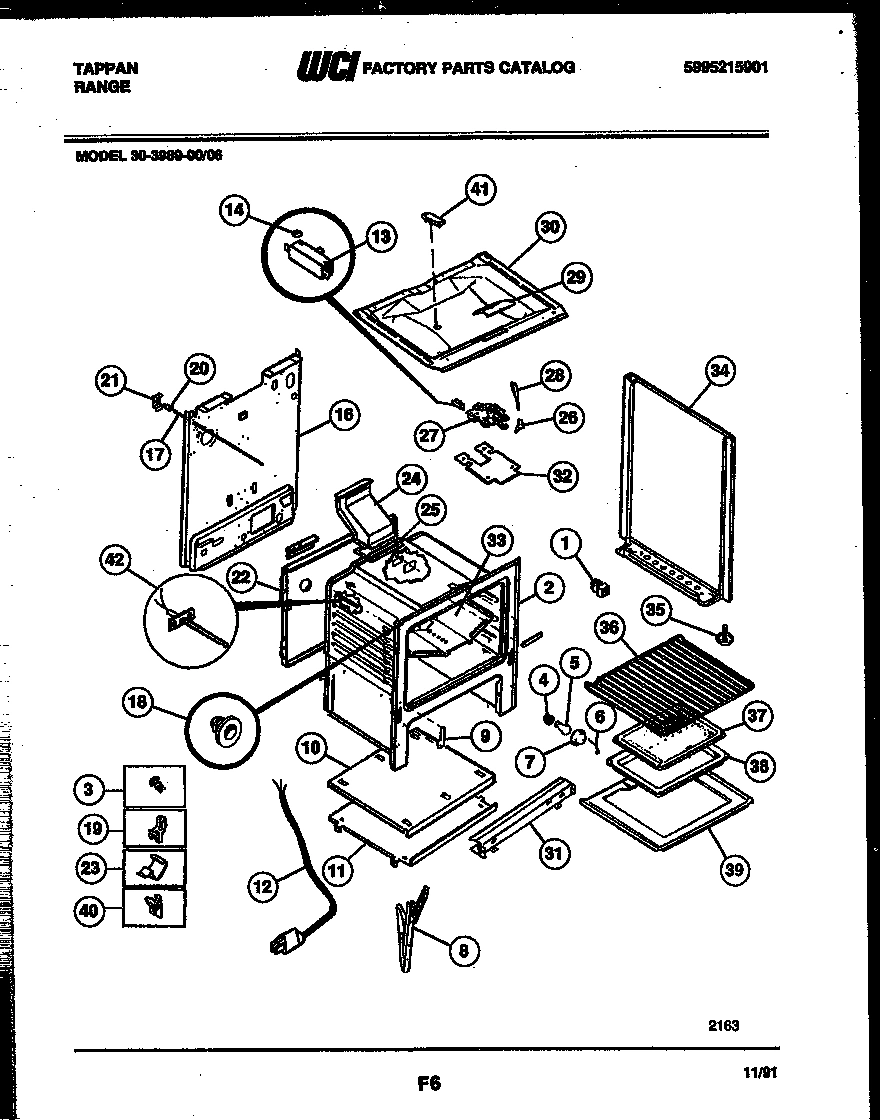

07 - BODY PARTS
Common parts from model Electrolux 30-3989-23-06 RANGE
*63038
RETAINER-WIRE (4) WCI 3206266 Contact Us For Availability
*63040
WCI 5303281651 WCI 5303281651 Contact Us For Availability
*63042
WCI 3051420 WCI 3051420 Contact Us For Availability
*63045
SHIELD-WIRE WCI 08068018 Contact Us For Availability
*63046
WCI 08013188 WCI 08013188 Contact Us For Availability
*63046
WCI 19100200015 WCI 19100200015 Contact Us For Availability
*63046
SHIELD-LATCH WCI 3051413 Contact Us For Availability
1
SPACER-BODYSIDE, (8) WCI 3014099 Contact Us For Availability
1
WCI 5303208492 WCI 5303208492 Contact Us For Availability
1
WCI 5303131256 WCI 5303131256 Contact Us For Availability
1
WCI 3051133 WCI 3051133 Contact Us For Availability
1
WCI 5303210379 WCI 5303210379 Contact Us For Availability
2
KNOB-TOP VALVE, (4) WCI 5303209616 Contact Us For Availability
2
WCI 5303209518 WCI 5303209518 Contact Us For Availability
2
BAFFLE-OVEN BURNER WCI 3131284 Contact Us For Availability
3
WCI 08067935 WCI 08067935 Contact Us For Availability
3
ROD-MAINTOP SUPPORT WCI 5303271609 Contact Us For Availability
3
GLASS, FRONT WCI 5303131132 Contact Us For Availability
3
PANEL-ALMOND WCI 3131134 Contact Us For Availability
4
WCI 3934050 WCI 3934050 Contact Us For Availability
4
HANDLE WCI 5303280334 Contact Us For Availability
4
WCI 3131290 WCI 3131290 Contact Us For Availability
5
WCI 3051354 WCI 3051354 Contact Us For Availability
5
WCI 5303208656 WCI 5303208656 Contact Us For Availability
5
WCI 3131975 WCI 3131975 Contact Us For Availability
5
BURNER-TOP-DOUBLE WCI 5303011567 Contact Us For Availability
6
WCI 3051355 WCI 3051355 Contact Us For Availability
6
BRKT-GLASS (2) WCI 5303209510 Contact Us For Availability
6
FASTENER-SPACE WCI 3131387 Contact Us For Availability
6
WCI 3206267 WCI 3206267 Contact Us For Availability
6
RETAINER-GLASS WCI 3204483 Contact Us For Availability
7
BRKT, MAIN TOP (LH) WCI 08067746 Contact Us For Availability
7
WCI 5303209513 WCI 5303209513 Contact Us For Availability
7
WCI 5303271044 WCI 5303271044 Contact Us For Availability
8
BRKT, MAIN TOP (RH) WCI 08067747 Contact Us For Availability
8
WCI 5303271041 WCI 5303271041 Contact Us For Availability
9
WCI 3131570 WCI 3131570 Contact Us For Availability
9
WCI 3131299 WCI 3131299 Contact Us For Availability
9
WCI 5303211084 WCI 5303211084 Contact Us For Availability
9
WCI 5303271043 WCI 5303271043 Contact Us For Availability
10
GRATE (4) WCI 3018432 Contact Us For Availability
10
INSULATION-OVEN DOOR WCI 5303209514 Contact Us For Availability
10
WCI 5303271042 WCI 5303271042 Contact Us For Availability
10
SHIELD-HEAT UPPER WCI 5303270104 Contact Us For Availability
11
SCREW-HANDLE (2) WCI 5303212671 Contact Us For Availability
11
IGNITER-TOP BURNER, (2) WCI 5303283573 Contact Us For Availability
11
WCI 3131313 WCI 3131313 Contact Us For Availability
11A
WCI 08067992 WCI 08067992 Contact Us For Availability
12
WCI 5303209512 WCI 5303209512 Contact Us For Availability
12
WCI 5303271375 WCI 5303271375 Contact Us For Availability
13
SWITCH-LATCH WCI 5303269499 Contact Us For Availability
13
WCI 5303209517 WCI 5303209517 Contact Us For Availability
13
VALVE-TOP-3 POS WCI 5303280597 Contact Us For Availability
14
WCI 5303211085 WCI 5303211085 Contact Us For Availability
14
FASTENER-PUSH-IN WCI 08067776 Contact Us For Availability
14A
WCI 08067978 WCI 08067978 Contact Us For Availability
15
WCI 5303209511 WCI 5303209511 Contact Us For Availability
15
IGNITION SWITCH (4) WCI 5303280314 Contact Us For Availability
16
WCI 5303209515 WCI 5303209515 Contact Us For Availability
16
WCI 3203082 WCI 3203082 Contact Us For Availability
17
RECEPT-FLUOR LIGHT RH WCI 3051222 Contact Us For Availability
17
ROD LIGHT WCI 5303209316 Contact Us For Availability
18
BULB-FLUOR WCI 3131275 Contact Us For Availability
19
WCI 3201738 WCI 3201738 Contact Us For Availability
19
WCI 5303208640 WCI 5303208640 Contact Us For Availability
20
RECEPT - STARTER WCI 5303282715 Contact Us For Availability
20
TUBE-ALUM-REGUL TO MANIFOLD WCI 5303208495 Contact Us For Availability
20
SWITCH, DOOR WCI 5303202622 Contact Us For Availability
21
STARTER-FLUOR LIGHT WCI 3206218 Contact Us For Availability
21
TUBE, ALUM 3/8 (VALVE TO REGULATOR) WCI 5303208494 Contact Us For Availability
21
WCI 5303131289 WCI 5303131289 Contact Us For Availability
22
TUBE-ALUM 3/8-VALVE TO MIXER WCI 5303208493 Contact Us For Availability
22
WCI 08067991 WCI 08067991 Contact Us For Availability
23
SHIELD, REAR WALL WCI 3131123 Contact Us For Availability
23
CLIP-WIRE WCI 3011813 Contact Us For Availability
24
WCI 3131241 WCI 3131241 Contact Us For Availability
24
WCI 3131931 WCI 3131931 Contact Us For Availability
26
NUT, SPECIAL WCI 3013279 Contact Us For Availability
26
WCI 3203218 WCI 3203218 Contact Us For Availability
27
LATCH-DOOR BI METAL WCI 5303015453 Contact Us For Availability
27
RETAINER-IGNITER (2) WCI 3018617 Contact Us For Availability
28
WCI 5303131357 WCI 5303131357 Contact Us For Availability
29
WCI 08067757 WCI 08067757 Contact Us For Availability
30
WCI 3011597 WCI 3011597 Contact Us For Availability
31
WCI 5303271047 WCI 5303271047 Contact Us For Availability
32
SHIELD-LATCH WCI 3131593 Contact Us For Availability
33
WCI 3200836 WCI 3200836 Contact Us For Availability
33A
SHIELD-HEAT B/S (NON-ILLUSTRATED) WCI 3200834 Contact Us For Availability
34
WCI 5303269545 WCI 5303269545 Contact Us For Availability
34A
WCI 5303269543 WCI 5303269543 Contact Us For Availability
35
SCREW-LEVELING WCI 5303203397 Contact Us For Availability
35A
WCI 08010570 WCI 08010570 Contact Us For Availability
37
WCI 5303131356 WCI 5303131356 Contact Us For Availability
38
PAN-BROILER WCI 5303013568 Contact Us For Availability
39
WCI 5303212540 WCI 5303212540 Contact Us For Availability
39B
WCI 08067961 WCI 08067961 Contact Us For Availability
39C
INSULATION-WOOL-BACK (NON-ILLUSTRATED) WCI 3204582 Contact Us For Availability
39E
INSULATION-OVEN-WRAP (NON-ILLUSTRATED) WCI 3200833 Contact Us For Availability
39F
INSULATION-OVEN-TOP (NON-ILLUSTRATED) WCI 3131304 Contact Us For Availability
40A
SHIELD, OVEN TOP (NON-ILLUSTRATED) WCI 3131314 Contact Us For Availability
40B
SHIELD-REAR WALL (NON-ILLUSTRATED) WCI 5303269502 Contact Us For Availability
41
WCI 3015371 WCI 3015371 Contact Us For Availability
41A
ANTI-TIP BRKT (NON-ILLUSTRATED) WCI 3934056 Contact Us For Availability
× ![]()
