Model Electrolux 30-3989-23-01 RANGE – Common Parts & Diagrams

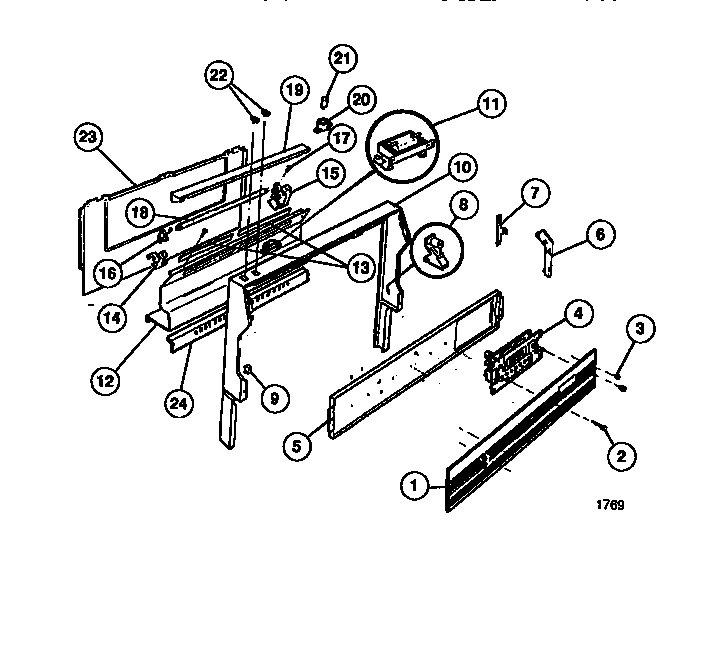

02 - BACKGUARD

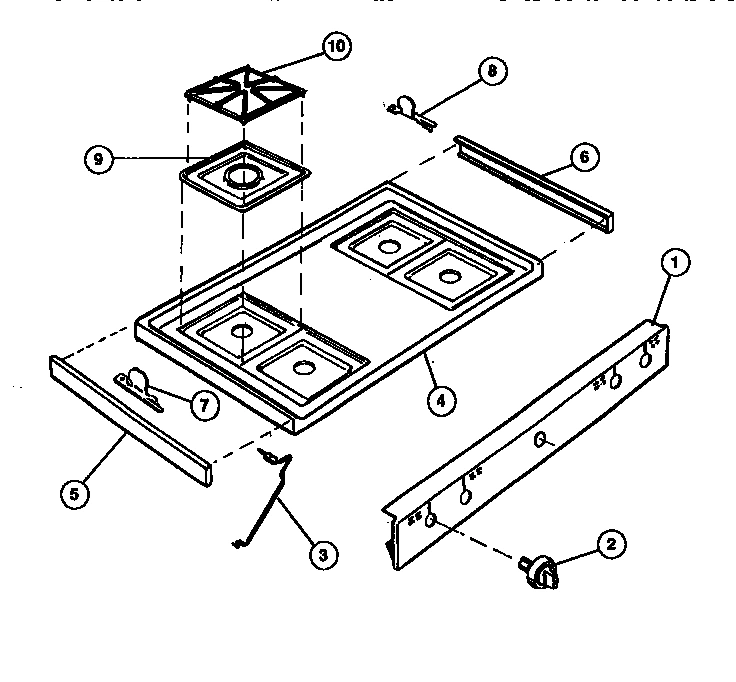

03 - COOKTOP PARTS
04 - DOOR PARTS
05 - DRAWER PARTS
06 - BURNER, MANIFOLD AND GAS CONTROL
07 - BODY PARTS
Common parts from model Electrolux 30-3989-23-01 RANGE
*31799
RETAINER-WIRE (4) WCI 3206266 Contact Us For Availability
*31802
WCI 3206271 WCI 3206271 Contact Us For Availability
*31803
WCI 3013964 WCI 3013964 Contact Us For Availability
*31805
WCI 3051420 WCI 3051420 Contact Us For Availability
*31809
SHIELD-WIRE WCI 08068018 Contact Us For Availability
*31809
SHIELD-LATCH WCI 3131593 Contact Us For Availability
*31810
WCI 08013188 WCI 08013188 Contact Us For Availability
*31810
WCI 19100200012 WCI 19100200012 Contact Us For Availability
1
SPACER-BODYSIDE, (8) WCI 3014099 Contact Us For Availability
1
WCI 3205470 WCI 3205470 Contact Us For Availability
1
HANDLE WCI 5303131256 Contact Us For Availability
1
WCI 3051133 WCI 3051133 Contact Us For Availability
1
WCI 5303210379 WCI 5303210379 Contact Us For Availability
2
KNOB-TOP VALVE (4) WCI 3205135 Contact Us For Availability
2
WCI 3203480 WCI 3203480 Contact Us For Availability
2
BAFFLE-OVEN BURNER WCI 3131284 Contact Us For Availability
3
WCI 08067935 WCI 08067935 Contact Us For Availability
3
ROD, MAIN TOP SUPPORT WCI 3013818 Contact Us For Availability
3
WCI 5303131132 WCI 5303131132 Contact Us For Availability
3
PANEL-ALMOND WCI 3131134 Contact Us For Availability
4
WCI 3934050 WCI 3934050 Contact Us For Availability
4
ALUM FOIL WCI 3131361 Contact Us For Availability
4
WCI 3131125 WCI 3131125 Contact Us For Availability
4
WCI 3131290 WCI 3131290 Contact Us For Availability
5
WCI 3051354 WCI 3051354 Contact Us For Availability
5
WCI 3131975 WCI 3131975 Contact Us For Availability
5
BURNER-TOP-DOUBLE WCI 5303011567 Contact Us For Availability
6
WCI 3051355 WCI 3051355 Contact Us For Availability
6
WCI 3051148 WCI 3051148 Contact Us For Availability
6
BRKT GLASS (2) WCI 3131366 Contact Us For Availability
6
FASTENER-SPACE WCI 3131387 Contact Us For Availability
6
WCI 3206267 WCI 3206267 Contact Us For Availability
6
RETAINER-GLASS WCI 3204483 Contact Us For Availability
7
BRKT, MAIN TOP (LH) WCI 08067746 Contact Us For Availability
7
WCI 5303131970 WCI 5303131970 Contact Us For Availability
8
BRKT, MAIN TOP (RH) WCI 08067747 Contact Us For Availability
8
WCI 3202151 WCI 3202151 Contact Us For Availability
8
WCI 5303011569 WCI 5303011569 Contact Us For Availability
9
WCI 3131570 WCI 3131570 Contact Us For Availability
9
WCI 3131299 WCI 3131299 Contact Us For Availability
9
WCI 5303011570 WCI 5303011570 Contact Us For Availability
10
GRATE (4) WCI 3018432 Contact Us For Availability
10
WCI 08067945 WCI 08067945 Contact Us For Availability
10
WCI 3131951 WCI 3131951 Contact Us For Availability
11
IGNITER-TOP BURNER (2) WCI 5303131105 Contact Us For Availability
11
WCI 3131313 WCI 3131313 Contact Us For Availability
11A
WCI 08067992 WCI 08067992 Contact Us For Availability
12
INSULATION-DOOR WCI 3200528 Contact Us For Availability
12
WCI 3018861 WCI 3018861 Contact Us For Availability
13
VALVE-TOP (3 POS) WCI 5303017846 Contact Us For Availability
13
WCI 3202147 WCI 3202147 Contact Us For Availability
13
WCI 3204592 WCI 3204592 Contact Us For Availability
14
BRK T-FLOUR LIGHT MTG-LH WCI 3131576 Contact Us For Availability
14
SCREW, HANDLE (2) WCI 3016851 Contact Us For Availability
14
WCI 08067948 WCI 08067948 Contact Us For Availability
14
FASTENER-PUSH-IN WCI 08067776 Contact Us For Availability
14A
WCI 08067978 WCI 08067978 Contact Us For Availability
15
BRKT-FLUOR LIGHT MTG RH WCI 3131577 Contact Us For Availability
15
NUT COMPRESSION (4) WCI 3131148 Contact Us For Availability
16
RECEPT-FLUOR LIGHT LH WCI 3051223 Contact Us For Availability
16
WCI 08010463 WCI 08010463 Contact Us For Availability
16
WCI 3203082 WCI 3203082 Contact Us For Availability
17
RECEPT-FLUOR LIGHT RH WCI 3051222 Contact Us For Availability
17
WCI 3934033 WCI 3934033 Contact Us For Availability
17
ROD LIGHT WCI 5303209316 Contact Us For Availability
18
BULB-FLUOR WCI 3131275 Contact Us For Availability
18
FSTNR PUSH IN WCI 3131974 Contact Us For Availability
19
WCI 3201738 WCI 3201738 Contact Us For Availability
19
SUPPORT, GLASS WCI 3131323 Contact Us For Availability
20
RECEPT STARTER WCI 3204842 Contact Us For Availability
20
WCI 3131720 WCI 3131720 Contact Us For Availability
20
WCI 08067979 WCI 08067979 Contact Us For Availability
20
WCI 5303208640 WCI 5303208640 Contact Us For Availability
20
SWITCH, DOOR WCI 5303202622 Contact Us For Availability
21
STARTER-FLUOR LIGHT WCI 3206218 Contact Us For Availability
21
NUT WCI 3131358 Contact Us For Availability
21
WCI 5303131289 WCI 5303131289 Contact Us For Availability
22
WCI 5303203080 WCI 5303203080 Contact Us For Availability
22
WCI 3131261 WCI 3131261 Contact Us For Availability
22
WCI 08067991 WCI 08067991 Contact Us For Availability
23
SHIELD, REAR WALL WCI 3131123 Contact Us For Availability
23
TUBE ALUM. 3/8-REGUL. TO MANIFOLD WCI 5303014477 Contact Us For Availability
23
CLIP-WIRE WCI 3011813 Contact Us For Availability
23A
TUBE-ALUM-REGUL TO MANIFOLD WCI 5303208495 Contact Us For Availability
24
WCI 3131241 WCI 3131241 Contact Us For Availability
24
TUBE, ALUM 3/8 (VALVE TO REGULATOR) WCI 5303208494 Contact Us For Availability
24
WCI 3131931 WCI 3131931 Contact Us For Availability
25
TUBE-ALUM 3/8-VALVE TO MIXER WCI 5303208493 Contact Us For Availability
26
WCI 3203218 WCI 3203218 Contact Us For Availability
27
LATCH-DOOR BI METAL WCI 5303015453 Contact Us For Availability
28
WCI 5303131357 WCI 5303131357 Contact Us For Availability
29
NUT, SPECIAL WCI 3013279 Contact Us For Availability
29
WCI 08067757 WCI 08067757 Contact Us For Availability
30
RETAINER-IGNITER (2) WCI 3018617 Contact Us For Availability
30
WCI 3011597 WCI 3011597 Contact Us For Availability
31
SHIELD, MAIN FRONT WCI 3200835 Contact Us For Availability
32
SHIELD-LATCH WCI 3051413 Contact Us For Availability
33
WCI 3200836 WCI 3200836 Contact Us For Availability
33A
SHIELD-HEAT B/S (NON-ILLUSTRATED) WCI 3200834 Contact Us For Availability
34
PANEL-B/S LH (ALMOND) WCI 3205621 Contact Us For Availability
34A
PANEL-B/S RH (ALMOND) WCI 3205624 Contact Us For Availability
35
SCREW-LEVELING WCI 5303203397 Contact Us For Availability
35A
FSTNR-TEE NUT LEVELER LEG (NON-ILLUSTRATED) WCI 241T017P10 Contact Us For Availability
37
WCI 5303131356 WCI 5303131356 Contact Us For Availability
38
PAN-BROILER WCI 5303013568 Contact Us For Availability
39
WCI 3011519 WCI 3011519 Contact Us For Availability
39B
WCI 08067961 WCI 08067961 Contact Us For Availability
39C
INSULATION-WOOL-BACK (NON-ILLUSTRATED) WCI 3204582 Contact Us For Availability
39E
INSULATION-OVEN-WRAP (NON-ILLUSTRATED) WCI 3200833 Contact Us For Availability
39F
INSULATION-OVEN-TOP (NON-ILLUSTRATED) WCI 3131304 Contact Us For Availability
40A
SHIELD, OVEN TOP (NON-ILLUSTRATED) WCI 3131314 Contact Us For Availability
40B
SHIELD-REAR WALL (NON-ILLUSTRATED) WCI 3131590 Contact Us For Availability
41
WCI 3015371 WCI 3015371 Contact Us For Availability
41A
ANTI-TIP BRKT (NON-ILLUSTRATED) WCI 3934056 Contact Us For Availability
× ![]()
