Model Electrolux 30-3987-23-04 RANGE – Common Parts & Diagrams
02 - BACKGUARD
03 - DOOR PARTS

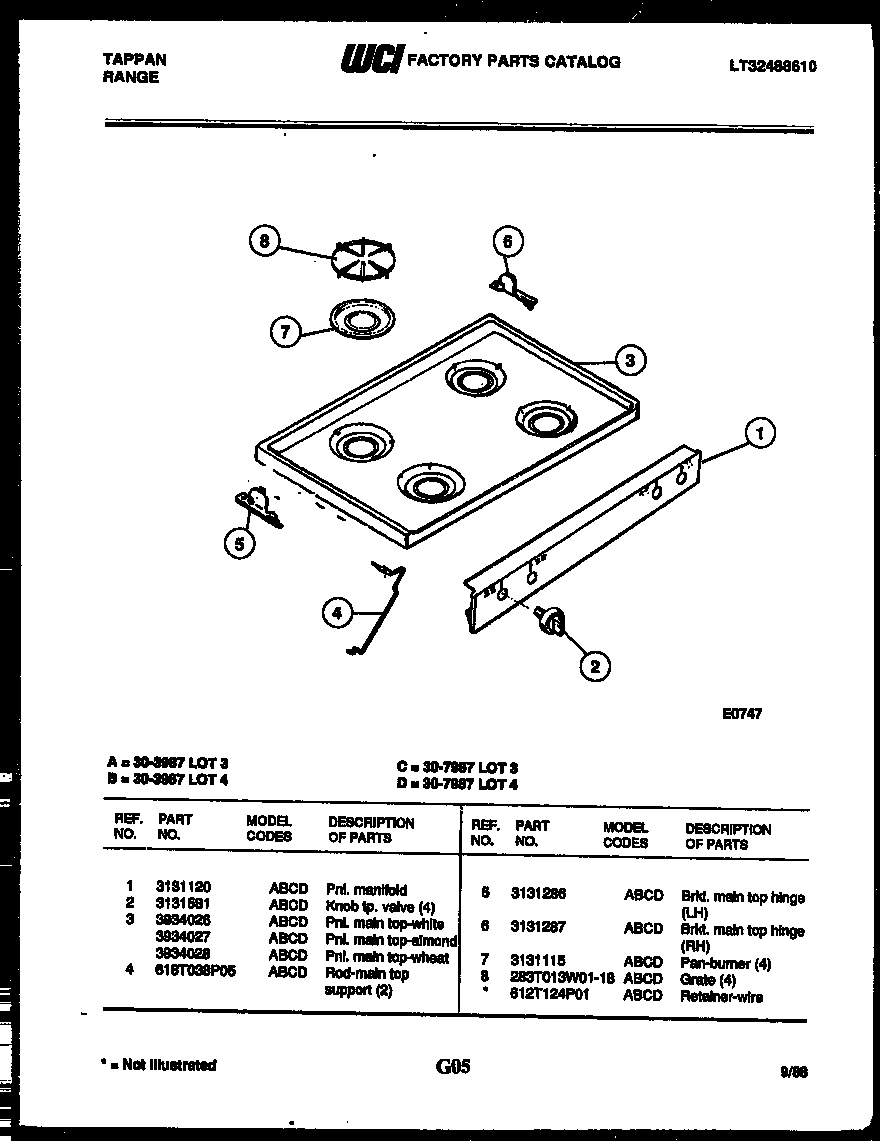

04 - COOKTOP PARTS

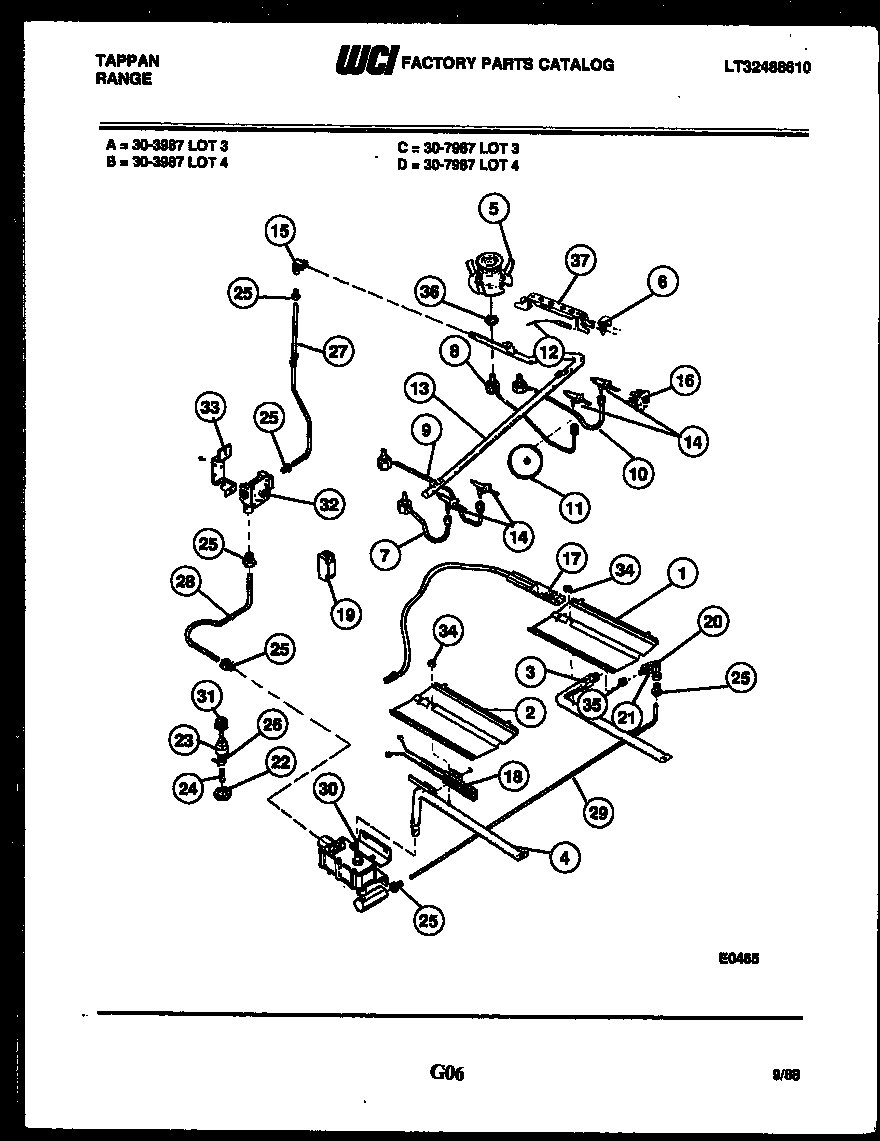

05 - BURNER, MANIFOLD AND GAS CONTROL

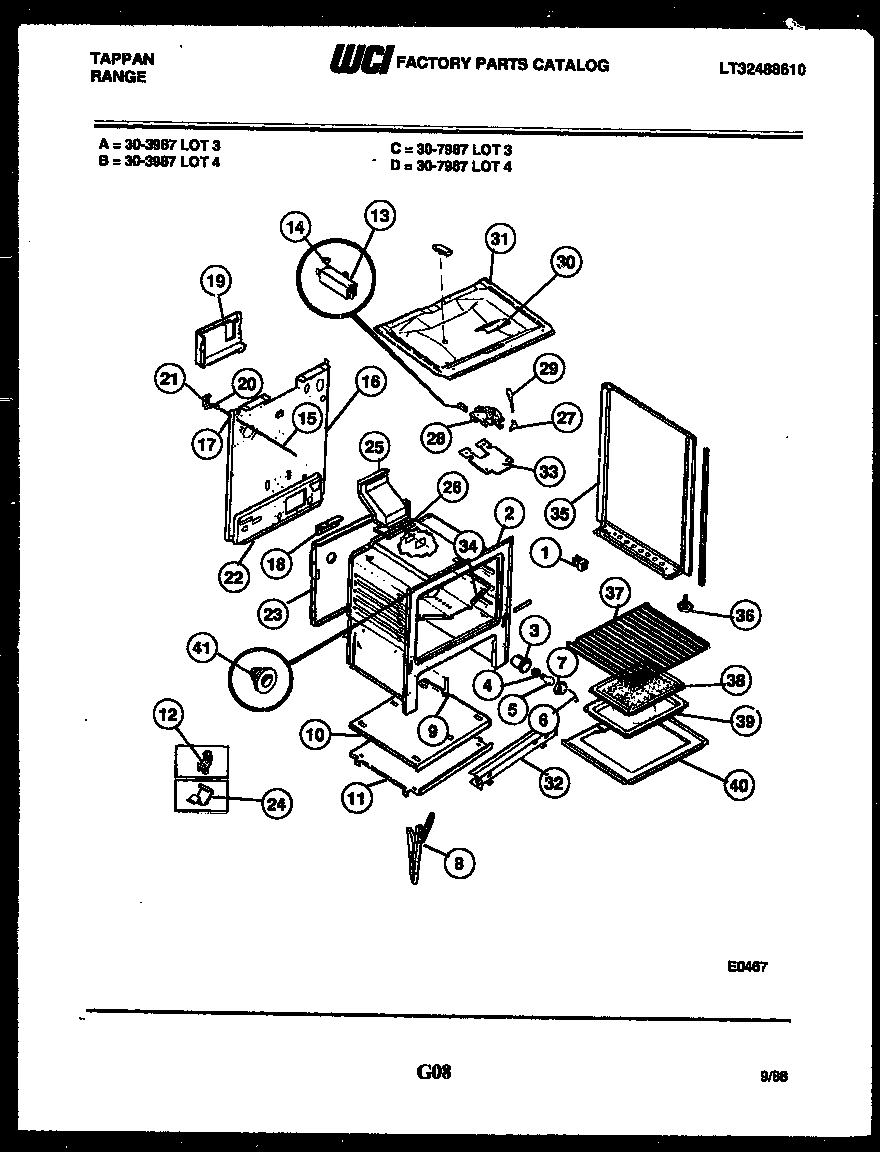

06 - BODY PARTS

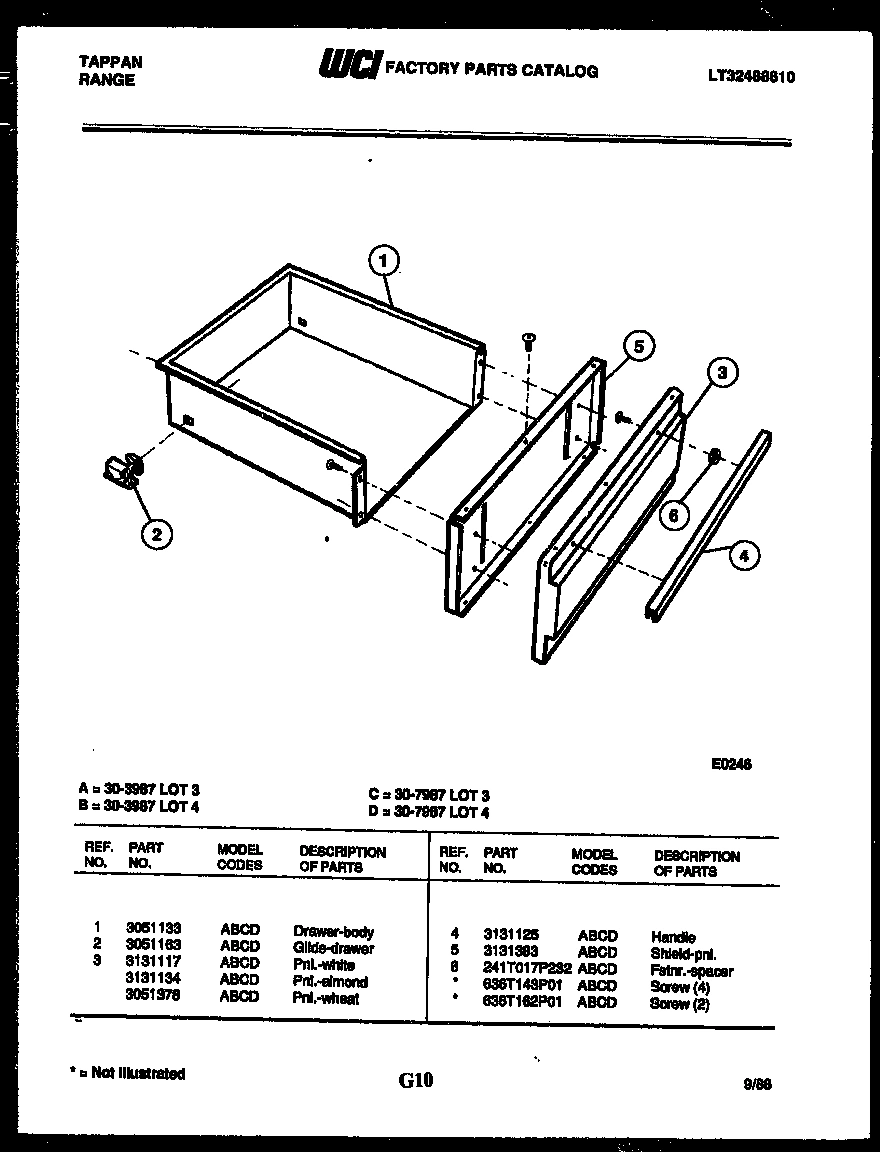

07 - DRAWER PARTS
Common parts from model Electrolux 30-3987-23-04 RANGE
*18474
WCI 3131236 WCI 3131236 Contact Us For Availability
*18474
WCI 3131322 WCI 3131322 Contact Us For Availability
*18474
ALUM. FOIL-B/G GLS. WCI 3131361 Contact Us For Availability
*18475
WCI 612T124P01 WCI 612T124P01 Contact Us For Availability
*18477
RIVET (4) WCI 3051420 Contact Us For Availability
*18482
WCI 241T017P255 WCI 241T017P255 Contact Us For Availability
*18482
INSUL. BACK WCI 3131303 Contact Us For Availability
*18482
INSUL. TOP WRAP WCI 3131304 Contact Us For Availability
*18482
INSUL. TOUCH WCI 3131305 Contact Us For Availability
*18482
SHIELD, WIRE WCI 655T434F01 Contact Us For Availability
*18483
WCI 3017527 WCI 3017527 Contact Us For Availability
*18483
SCREW (2) WCI 636T162P01 Contact Us For Availability
1
BRKT GLASS (2) WCI 3131366 Contact Us For Availability
1
PNL. MANIFOLD WCI 3131120 Contact Us For Availability
1
WCI 3131283 WCI 3131283 Contact Us For Availability
1
SPCR BODYSIDE (8) WCI 665T188P02 Contact Us For Availability
1
WCI 3051133 WCI 3051133 Contact Us For Availability
2
GLASS HT. BARRIER WCI 3051148 Contact Us For Availability
2
KNOB TP. VALVE (4) WCI 3131581 Contact Us For Availability
2
WCI 3131284 WCI 3131284 Contact Us For Availability
3
WCI 3131321 WCI 3131321 Contact Us For Availability
3
PNL. MAIN TOP-ALMOND WCI 3934027 Contact Us For Availability
3
WCI 079T028P01 WCI 079T028P01 Contact Us For Availability
3
WCI 3131363 WCI 3131363 Contact Us For Availability
3
PNL.-ALMOND WCI 3131134 Contact Us For Availability
4
PLATE MTD INSTR. WCI 554T400F02-18 Contact Us For Availability
4
WCI 3131132 WCI 3131132 Contact Us For Availability
4
ROD, MAIN TOP SUPPORT (2) WCI 618T038P05 Contact Us For Availability
4
WCI 3131290 WCI 3131290 Contact Us For Availability
4
WCI 3131125 WCI 3131125 Contact Us For Availability
5
IND. LIGHT (3) WCI 318T023P11 Contact Us For Availability
5
WCI 3051165 WCI 3051165 Contact Us For Availability
5
BRKT MAIN TOP HINGE-LH WCI 3131286 Contact Us For Availability
5
WCI 079T032S02 WCI 079T032S02 Contact Us For Availability
5
SHIELD-PNL WCI 3131383 Contact Us For Availability
6
WCI 3131436 WCI 3131436 Contact Us For Availability
6
LINER OV DR WCI 3131393 Contact Us For Availability
6
BRKT MAIN TOP HINGE-RH WCI 3131287 Contact Us For Availability
6
RETAINER, IGNITER (4) WCI 612T119F01 Contact Us For Availability
6
WCI 3131104 WCI 3131104 Contact Us For Availability
6
FSTNR.-SPACER WCI 241T017P232 Contact Us For Availability
7
FLUOR, BRKT LH WCI 3131576 Contact Us For Availability
7
WCI 079T033H01 WCI 079T033H01 Contact Us For Availability
7
GLASS, OVEN LAMP WCI 3131298 Contact Us For Availability
8
CHANNEL DR. HINGE WCI 316007002 No Longer Available
8
FLUOR, BRKT RH WCI 3131577 Contact Us For Availability
8
WCI 3051230 WCI 3051230 Contact Us For Availability
8
WCI 079T033H02 WCI 079T033H02 Contact Us For Availability
9
COVER-HINGE CUTOUT (2) WCI 3131570 Contact Us For Availability
9
RECEPT-FLUOR LIGHT LH WCI 3051222 Contact Us For Availability
9
SUPPT.-GLASS WCI 3131323 Contact Us For Availability
9
WCI 079T033H03 WCI 079T033H03 Contact Us For Availability
10
RECEPT-FLUOR LIGHT RH WCI 3051223 Contact Us For Availability
10
TRIM OVEN DOOR WCI 740T496P03 Contact Us For Availability
10
WCI 079T033H04 WCI 079T033H04 Contact Us For Availability
10
SHLD. HEAT (UPPER) WCI 3131312 Contact Us For Availability
11
LAMP BULB FLUOR. WCI 3131275 Contact Us For Availability
11
CLIP-RETAINING WCI 3131253 Contact Us For Availability
11
WCI 247T074P01 WCI 247T074P01 Contact Us For Availability
11
SHLD HEAT LOWER WCI 3131313 Contact Us For Availability
12
PANEL SPLASHER WCI 3131138 Contact Us For Availability
12
FSTNR.-SPACER WCI 241T017P240 Contact Us For Availability
12
IGNITER TOP 50`` WCI 316T034P02 Contact Us For Availability
12
CLP. THERM. BLB. (2) WCI 3131295 Contact Us For Availability
13
WCI 3131241 WCI 3131241 Contact Us For Availability
13
SCREW-HANDLE WCI 3131102 Contact Us For Availability
13
MANIFOLD, PIPE WCI 439T055P03 Contact Us For Availability
13
WCI 3131672 WCI 3131672 Contact Us For Availability
14
FSTNR-GLASS(2) WCI 241T049P01 Contact Us For Availability
14
SCREW DOOR MTG WCI 3131573 Contact Us For Availability
14
WCI 3131126 WCI 3131126 Contact Us For Availability
14
FSTNR.-PUSHING ON (3) WCI 241T001P01 Contact Us For Availability
14A
STUD, SPACER (2) (NON-ILLUSTRATED) WCI 3051307 Contact Us For Availability
15
WCI 045T071P01 WCI 045T071P01 Contact Us For Availability
15
EXTRUSN.-CHNNL. WCI 3131142 Contact Us For Availability
15
WCI 215T013P01 WCI 215T013P01 Contact Us For Availability
15
WCI 174T329P01 WCI 174T329P01 Contact Us For Availability
15A
NUT CMPRSSN. (4) (NON-ILLUSTRATED) WCI 3131148 Contact Us For Availability
16
NUT - DECOR (2) WCI 3051194 Contact Us For Availability
16
WCI 3131567 WCI 3131567 Contact Us For Availability
17
BTTN. ELEC. CLOCK WCI 3131489 Contact Us For Availability
17
WCI 3051495 WCI 3051495 Contact Us For Availability
18
WCI 358T206P01 WCI 358T206P01 Contact Us For Availability
18
ANGLE, LIGHT SHIELD WCI 3131278 Contact Us For Availability
19
WCI 695T211P02 WCI 695T211P02 Contact Us For Availability
19
CHANNEL, LIGHT SHIELD WCI 3131294 Contact Us For Availability
20
SWITCH - FLUOR LIGHT WCI 3051312 Contact Us For Availability
20
WCI 455T008P02 WCI 455T008P02 Contact Us For Availability
20
WCI 695T128P04 WCI 695T128P04 Contact Us For Availability
21
WCI 3131145 WCI 3131145 Contact Us For Availability
21
HEX NUT WCI 3131358 Contact Us For Availability
21
BRKT LIGHT SWITCH WCI 3131289 Contact Us For Availability
22
WCI 3051115 WCI 3051115 Contact Us For Availability
22
HEX NUT, FUSE (1) WCI 3131309 Contact Us For Availability
22
SHIELD, REAR WALL WCI 3131590 Contact Us For Availability
23
WCI 123T120P03 WCI 123T120P03 Contact Us For Availability
23
SEAL ``O``RING WCI 647T087P01 Contact Us For Availability
23
WCI 3131316 WCI 3131316 Contact Us For Availability
23A
WCI 123T120P04 WCI 123T120P04 Contact Us For Availability
24
SHIELD B/G WCI 3131123 Contact Us For Availability
24
FUSE, BUSS WCI 3131297 Contact Us For Availability
24
CLIP, WIRE WCI 145T130P01 Contact Us For Availability
25
WCI 3131556 WCI 3131556 Contact Us For Availability
25
FITTING, LOXIT (6) WCI 3131261 Contact Us For Availability
25
WCI 3131296 WCI 3131296 Contact Us For Availability
26
SHIELD - FLUOR LIGHT WCI 3131137 Contact Us For Availability
26
WCI 3131359 WCI 3131359 Contact Us For Availability
26A
SHIELD-BL-METAL LATCH (NON-ILLUSTRATED) WCI 3131593 Contact Us For Availability
26B
SCREW LATCH KNOB (NON-ILLUSTRATED) WCI 636T144P01 Contact Us For Availability
27
SHAFT-ELECT. CLOCK WCI 3051347 Contact Us For Availability
27
WCI 750T085H09 WCI 750T085H09 Contact Us For Availability
27
WCI 358T158S02 WCI 358T158S02 Contact Us For Availability
28
ANGLE-S/C THERM. MTG WCI 3131467 Contact Us For Availability
28
WCI 3131109 WCI 3131109 Contact Us For Availability
28
WCI 368T027P01 WCI 368T027P01 Contact Us For Availability
29
THREMO-OVEN S/C WCI 722T071P01 Contact Us For Availability
29
TUBE-ALUM VALVE/MIXED WCI 3131364 Contact Us For Availability
29
WCI 3051473 WCI 3051473 Contact Us For Availability
30
THERMO-BAKE WCI 3051322 Contact Us For Availability
30
WCI 3131101 WCI 3131101 Contact Us For Availability
31
SWITCH SELECTOR WCI 697T073P01 Contact Us For Availability
31
CAP FUSE RECEPT WCI 3131292 Contact Us For Availability
31
WCI 095T030F02-86 WCI 095T030F02-86 Contact Us For Availability
32
KNOB-SEL. SW. WCI 3131724 Contact Us For Availability
32
SHIELD-WOOL (BFFL.) WCI 3131311 Contact Us For Availability
33
WCI 3131725 WCI 3131725 Contact Us For Availability
33
WCI 3131314 WCI 3131314 Contact Us For Availability
34
WCI 3131315 WCI 3131315 Contact Us For Availability
35
SPUD NO 50 WCI 499T015P08 Contact Us For Availability
35
PNL B/S ALMOND RH WCI 3131454 Contact Us For Availability
35A
PNL B/S ALMOND LH WCI 3131453 Contact Us For Availability
36
WCI 479T069P40 WCI 479T069P40 Contact Us For Availability
36
WCI 636M004P01 WCI 636M004P01 Contact Us For Availability
36A
SPACER-BAFFLE (2) (NON-ILLUSTRATED) WCI 3131956 Contact Us For Availability
37
WCI 072T839F02 WCI 072T839F02 Contact Us For Availability
38
WCI 3131356 WCI 3131356 Contact Us For Availability
39
PAN, BROILER WCI 539T010F01-86 Contact Us For Availability
40
WCI 058T036F03-86 WCI 058T036F03-86 Contact Us For Availability
41
BTTN. REMOTE SWITCH WCI 102T044P02 Contact Us For Availability
× ![]()
