Model Electrolux 30-3978-23-02 RANGE – Common Parts & Diagrams

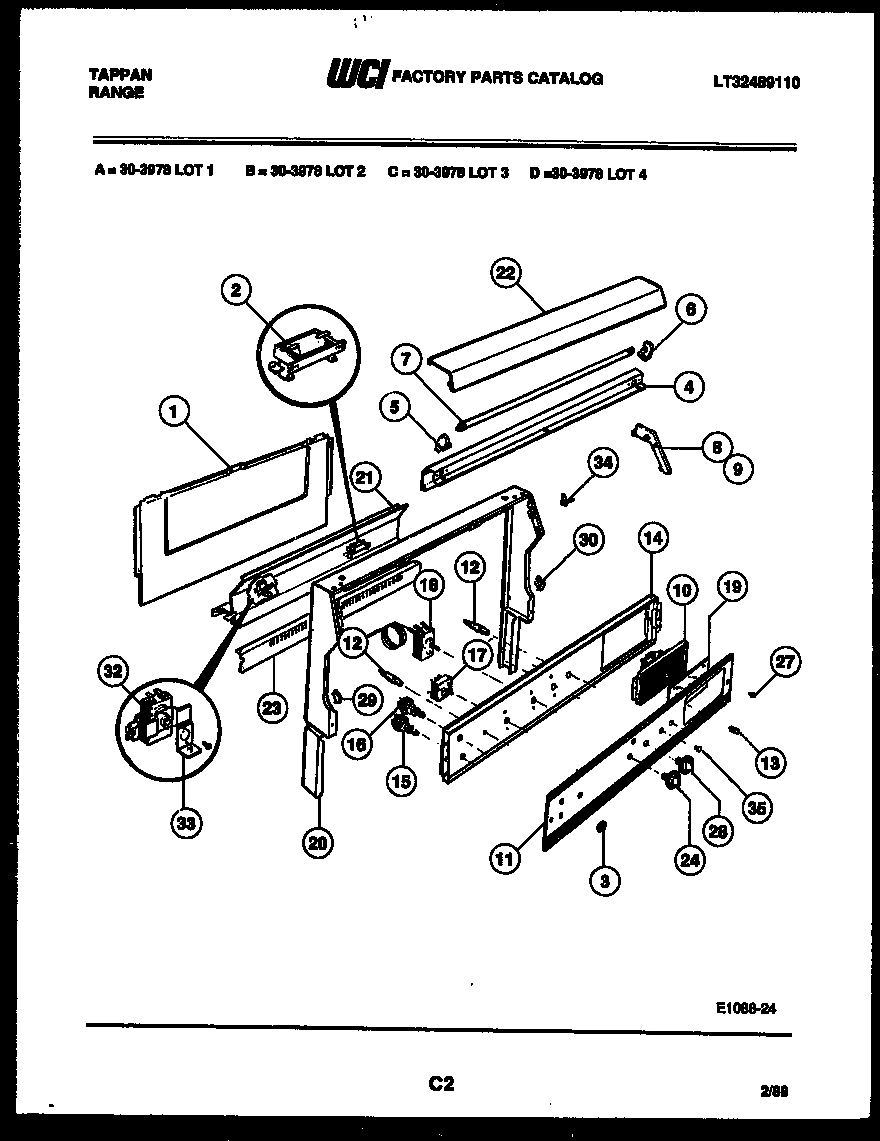

02 - BACKGUARD

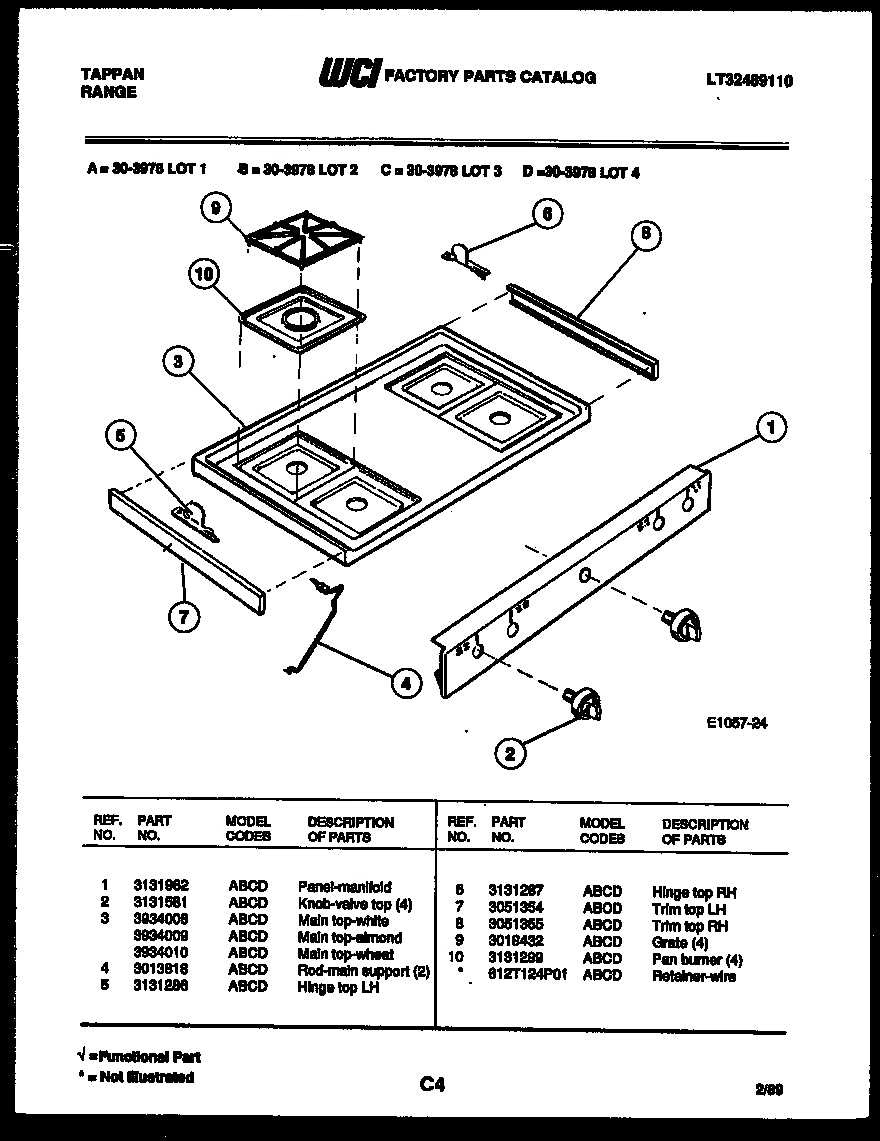

03 - COOKTOP PARTS

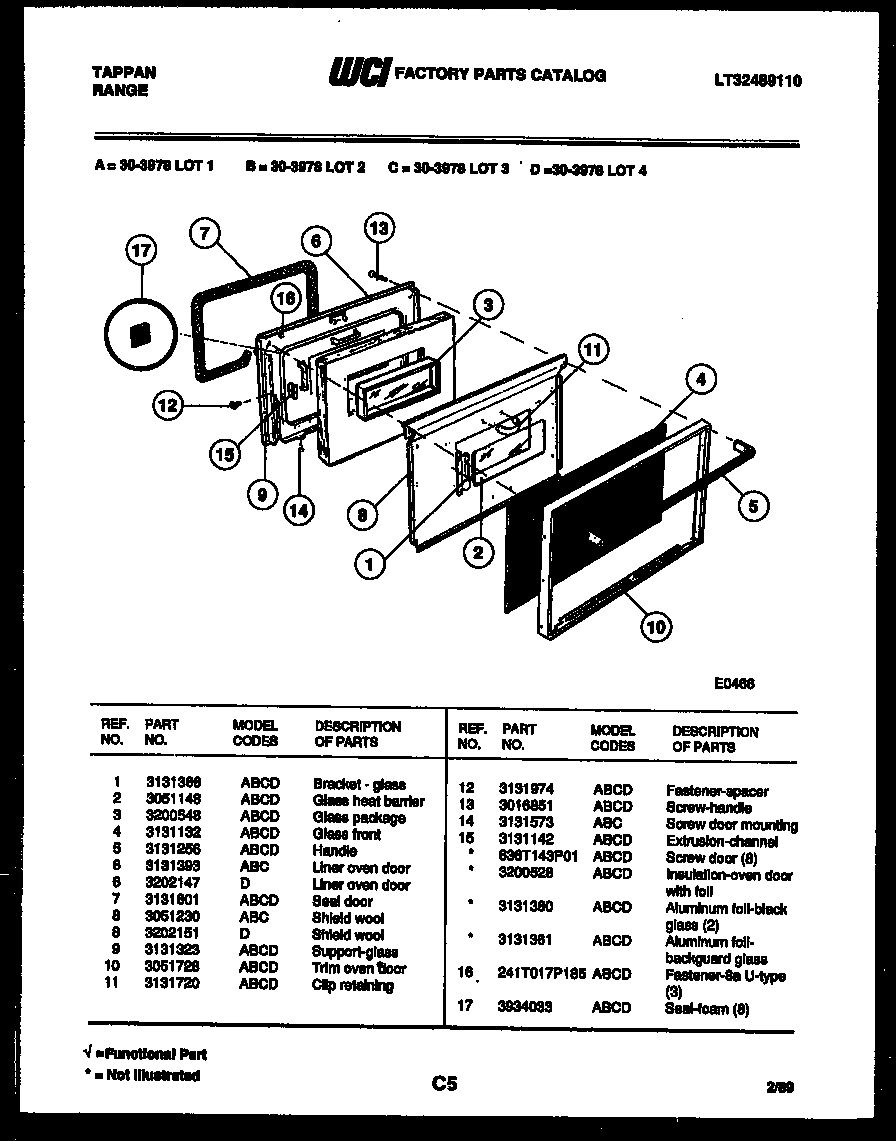

04 - DOOR PARTS

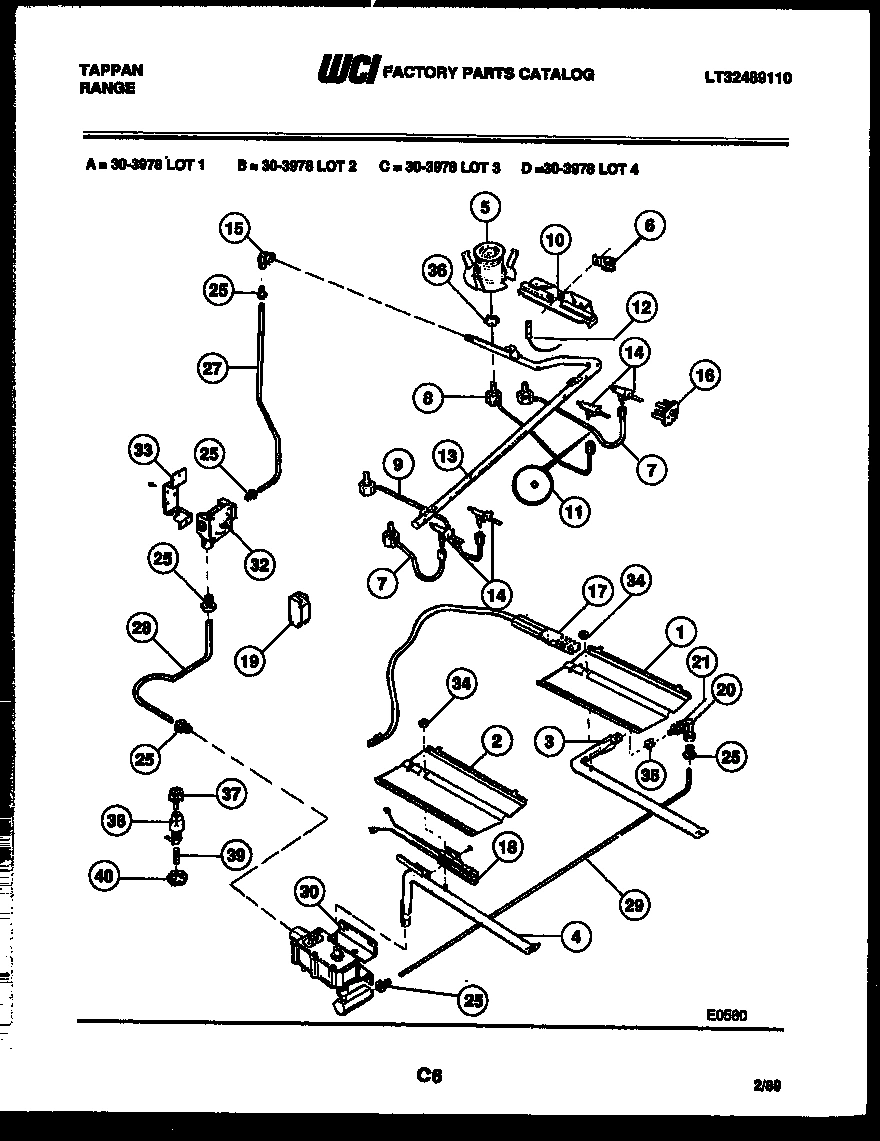

05 - BURNER, MANIFOLD AND GAS CONTROL

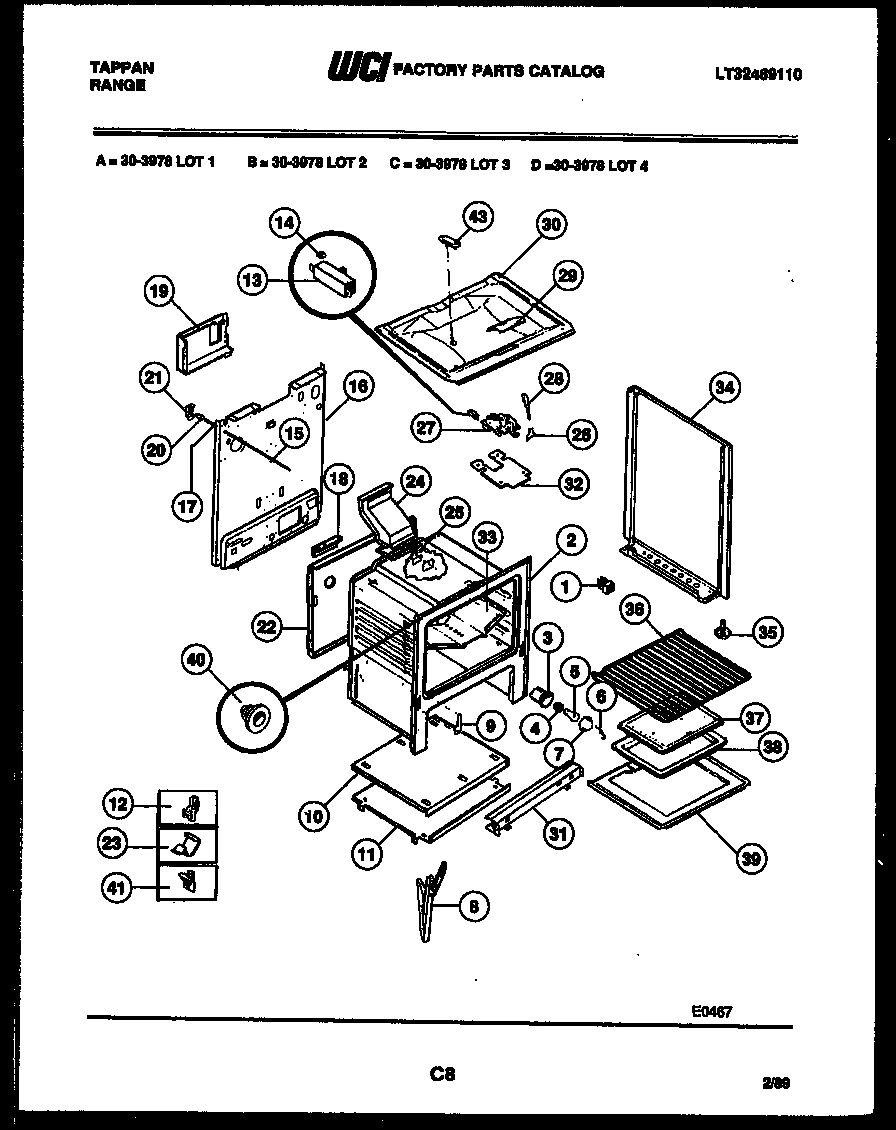

06 - BODY PARTS

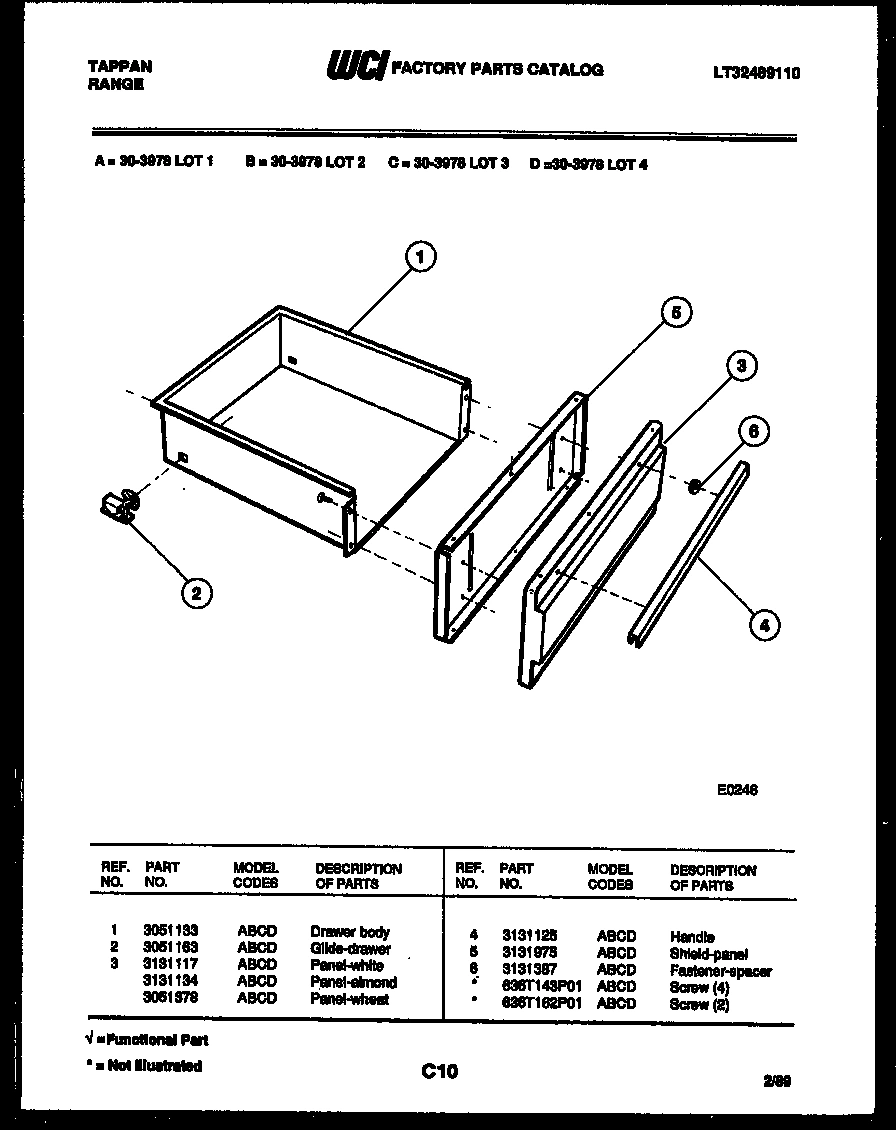

07 - DRAWER PARTS
Common parts from model Electrolux 30-3978-23-02 RANGE
*17983
WCI 612T124P01 WCI 612T124P01 Contact Us For Availability
*17997
FOIL-ALUMINUM (USE WITH REPLACEMENT BODYSIDE) WCI 3017527 Contact Us For Availability
*17997
WASHER-BLACK (4) WCI 3131737 Contact Us For Availability
*17998
SCREW (2) WCI 636T162P01 Contact Us For Availability
1
SPACER-BODYSIDE, (8) WCI 3014099 Contact Us For Availability
1
WCI 3131962 WCI 3131962 Contact Us For Availability
1
WCI 3131366 WCI 3131366 Contact Us For Availability
1
WCI 3131283 WCI 3131283 Contact Us For Availability
1
WCI 3051133 WCI 3051133 Contact Us For Availability
2
KNOB-VALVE TOP (4) WCI 3131581 Contact Us For Availability
2
WCI 3051148 WCI 3051148 Contact Us For Availability
2
WCI 3131284 WCI 3131284 Contact Us For Availability
3
WCI 3934009 WCI 3934009 Contact Us For Availability
3
WCI 3200548 WCI 3200548 Contact Us For Availability
3
WCI 079T028P01 WCI 079T028P01 Contact Us For Availability
3
WCI 3131363 WCI 3131363 Contact Us For Availability
3
PANEL-ALMOND WCI 3131134 Contact Us For Availability
4
ROD-MAIN SUPPORT (2) WCI 3013818 Contact Us For Availability
4
WCI 3131132 WCI 3131132 Contact Us For Availability
4
WCI 3131290 WCI 3131290 Contact Us For Availability
4
WCI 3131125 WCI 3131125 Contact Us For Availability
5
HINGE TOP LH WCI 3131286 Contact Us For Availability
5
WCI 3131256 WCI 3131256 Contact Us For Availability
5
BURNER TOP (4) WCI 3011567 Contact Us For Availability
5
WCI 3131975 WCI 3131975 Contact Us For Availability
6
HINGE TOP RH WCI 3131287 Contact Us For Availability
6
WCI 3131393 WCI 3131393 Contact Us For Availability
6
RETAINER IGNITER (2) WCI 612T121F01 Contact Us For Availability
6
WIRE-GLASS RETAINER WCI 3051224 Contact Us For Availability
6
FASTENER, SPACER WCI 3131387 Contact Us For Availability
7
WCI 3131275 WCI 3131275 Contact Us For Availability
7
TRIM-TOP LH WCI 3051354 Contact Us For Availability
7
BURNER-TUBE (LF RF) WCI 3131970 Contact Us For Availability
7
GLASS-OVEN LIGHT LENS WCI 3131298 Contact Us For Availability
8
TRIM-TOP RH WCI 3051355 Contact Us For Availability
8
WCI 3051230 WCI 3051230 Contact Us For Availability
8
WCI 079T033H02 WCI 079T033H02 Contact Us For Availability
9
COVER-HINGE CUTOUT (2) WCI 3131570 Contact Us For Availability
9
CAP END-RH-TRIM CANOPY WCI 3051135 Contact Us For Availability
9
GRATE (4) WCI 3018432 Contact Us For Availability
9
SUPPORT, GLASS WCI 3131323 Contact Us For Availability
9
WCI 079T033H03 WCI 079T033H03 Contact Us For Availability
10
ELECTRICAL CLOCK WCI 148T190P02 Contact Us For Availability
10
WCI 3131299 WCI 3131299 Contact Us For Availability
10
WCI 3051728 WCI 3051728 Contact Us For Availability
10
CHANNEL-FLAST TUBE (2) WCI 136T355W03 Contact Us For Availability
10
WCI 3131951 WCI 3131951 Contact Us For Availability
11
WCI 3200670 WCI 3200670 Contact Us For Availability
11
CLIP-RETAINING WCI 3131720 Contact Us For Availability
11
WCI 247T074P01 WCI 247T074P01 Contact Us For Availability
11
WCI 3131313 WCI 3131313 Contact Us For Availability
11A
WCI 665T437F01 WCI 665T437F01 Contact Us For Availability
12
INDICATOR LIGHT (3) WCI 318T023P11 Contact Us For Availability
12
FASTENER-SPACER WCI 3131974 Contact Us For Availability
12
IGNITER TOP 50`` (2) WCI 3131105 Contact Us For Availability
12
WCI 3131295 WCI 3131295 Contact Us For Availability
13
KNOB, CLOCK (3) WCI 358T201P01 Contact Us For Availability
13
WCI 3016851 WCI 3016851 Contact Us For Availability
13
WCI 3018861 WCI 3018861 Contact Us For Availability
13
SWITCH-LATCH WCI 3131672 Contact Us For Availability
14
PLATE INSTR MOUNTING WCI 3018616 Contact Us For Availability
14
SCREW-DOOR MOUNTING WCI 3131573 Contact Us For Availability
14
VALVE TOP POS (4) WCI 3017846 Contact Us For Availability
14
WCI 3051733 WCI 3051733 Contact Us For Availability
14A
WCI 3051307 WCI 3051307 Contact Us For Availability
15
WCI 3018620 WCI 3018620 Contact Us For Availability
15
EXTRUSION CHANNEL WCI 3131142 Contact Us For Availability
15
ELBOW 1/2 NP + 9/16 - 24 WCI 215T013P01 Contact Us For Availability
15
WCI 3051251 WCI 3051251 Contact Us For Availability
15A
NUT COMPRESSOR (4) (NON-ILLUSTRATED) WCI 3131148 Contact Us For Availability
15B
INSULATION-OVEN DOOR WITH FOIL (NON-ILLUSTRAT WCI 3200528 Contact Us For Availability
15D
WCI 3131361 WCI 3131361 Contact Us For Availability
16
WCI 3051312 WCI 3051312 Contact Us For Availability
16
FASTENER-8AU TYPE (3) WCI 241T017P185 Contact Us For Availability
16
WCI 3131567 WCI 3131567 Contact Us For Availability
17
SWITCH, SELECTOR WCI 3091345 Contact Us For Availability
17
SEAL-FOAM (8) WCI 3934033 Contact Us For Availability
17
WCI 3051495 WCI 3051495 Contact Us For Availability
18
THERMOSTAT BAKE WCI 3131964 Contact Us For Availability
18
ANGLE, LIGHT SHIELD WCI 3131278 Contact Us For Availability
19
WCI 277T219P02 WCI 277T219P02 Contact Us For Availability
19
CHANNEL, LIGHT SHIELD WCI 3131294 Contact Us For Availability
20
WCI 3016852 WCI 3016852 Contact Us For Availability
20
WCI 455T008P02 WCI 455T008P02 Contact Us For Availability
20
WCI 695T128P04 WCI 695T128P04 Contact Us For Availability
21
TRIM-SPLASHER WCI 3131955 Contact Us For Availability
21
WCI 3131358 WCI 3131358 Contact Us For Availability
21
BRACKET, LIGHT SWITCH WCI 3131289 Contact Us For Availability
22
WCI 3131466 WCI 3131466 Contact Us For Availability
22
WCI 3131316 WCI 3131316 Contact Us For Availability
23
WCI 3131241 WCI 3131241 Contact Us For Availability
23
CLIP, WIRE WCI 145T130P01 Contact Us For Availability
24
KNOB THERMOSTAT WCI 3131953 Contact Us For Availability
24
WCI 3131931 WCI 3131931 Contact Us For Availability
25
FITTING, LOXIT (6) WCI 3131261 Contact Us For Availability
25A
SHIELD, BIMETAL LATCH (NON-ILLUSTRATED) WCI 3131593 Contact Us For Availability
25B
SCREW LATCH KNOB (NON-ILLUSTRATED) WCI 636T144P01 Contact Us For Availability
26
WCI 358T158S02 WCI 358T158S02 Contact Us For Availability
27
NUT, DECORATIVE (2) WCI 3051194 Contact Us For Availability
27
TUBE ALUMINUM 3/8 WCI 750T084H09 Contact Us For Availability
27
WCI 3131972 WCI 3131972 Contact Us For Availability
27A
WCI 3013807 WCI 3013807 Contact Us For Availability
27B
WCI 655T444P01 WCI 655T444P01 Contact Us For Availability
28
KNOB-SELECTOR SWITCH WCI 3131943 Contact Us For Availability
28
TUBE, ALUMINUM, 3/8 WCI 3131109 Contact Us For Availability
28
WCI 3131357 WCI 3131357 Contact Us For Availability
29
CAP-LH WCI 3018604 Contact Us For Availability
29
TUBE ALUMINUM 3/8 WCI 3131364 Contact Us For Availability
29
WCI 3131101 WCI 3131101 Contact Us For Availability
30
CAP-RH WCI 3018605 Contact Us For Availability
30
WCI 095T030F02-86 WCI 095T030F02-86 Contact Us For Availability
31
SHIELD, MAIN FRONT WCI 3131311 Contact Us For Availability
32
THERMOSTAT-OVEN S/C WCI 722T071P01 Contact Us For Availability
32
WCI 3051413 WCI 3051413 Contact Us For Availability
33
ANGLE S/C THERMOSTAT MOUNTING WCI 3131467 Contact Us For Availability
33
WCI 3131315 WCI 3131315 Contact Us For Availability
34
FASTENER, GLASS (2) WCI 3131607 Contact Us For Availability
34
PANEL-BODYSIDE LH (ALMOND) WCI 3131453 Contact Us For Availability
34A
WCI 3018821 WCI 3018821 Contact Us For Availability
34A
PANEL-BODYSIDE RH (ALMOND) WCI 3131454 Contact Us For Availability
35
WCI 3012956 WCI 3012956 Contact Us For Availability
35
SPUD NO 50 WCI 499T015P08 Contact Us For Availability
35
WCI 636M004P01 WCI 636M004P01 Contact Us For Availability
36
NUT SPECIAL WCI 479T069P40 Contact Us For Availability
37
CAP FUSE WCI 3131292 Contact Us For Availability
37
WCI 3131356 WCI 3131356 Contact Us For Availability
38
WCI 08067984 WCI 08067984 Contact Us For Availability
38
WCI 3013568 WCI 3013568 Contact Us For Availability
39
FUSE WCI 3131297 Contact Us For Availability
39
WCI 058T036F03-86 WCI 058T036F03-86 Contact Us For Availability
40
NUT HEX FUSE WCI 3131309 Contact Us For Availability
40
BUTTON REMOTE SWITCH WCI 102T044P02 Contact Us For Availability
40A
FASTENER, POWER CORD (NON-ILLUSTRATED) WCI 241T017P255 Contact Us For Availability
40B
INSULATION, BACK (NON-ILLUSTRATED) WCI 3131303 Contact Us For Availability
40F
WCI 08068016 WCI 08068016 Contact Us For Availability
40H
INSULATION-TOUCH (NON-ILLUSTRATED) WCI 3017133 Contact Us For Availability
41A
SHIELD, OVEN TOP (NON-ILLUSTRATED) WCI 3131314 Contact Us For Availability
41B
SHIELD, WALL REAR (NON-ILLUSTRATED) WCI 3131590 Contact Us For Availability
43
WCI 3015371 WCI 3015371 Contact Us For Availability
× ![]()
