Model Electrolux 30-3858-66-01 RANGE – Common Parts & Diagrams
01 - COVER

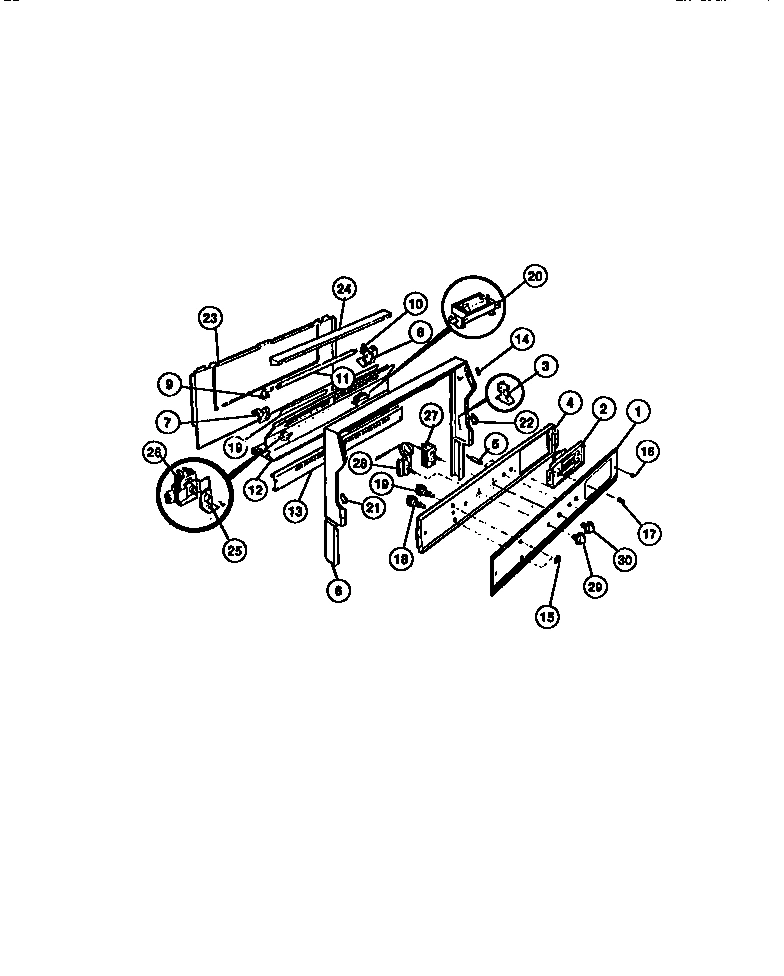

02 - BACKGUARD
03 - DOOR PARTS
04 - COOKTOP PARTS
05 - BURNER, MANIFOLD AND GAS CONTROL
06 - BODY PARTS
07 - DRAWER PARTS
Common parts from model Electrolux 30-3858-66-01 RANGE
*11611
SPACER, BAFFLE WCI 3131956 Contact Us For Availability
*11615
ALUM-FOIL (USE WITH REPLACEMENT BODY-SIDE) WCI 3017527 Contact Us For Availability
*11616
SCREW (2) WCI 636T162P01 Contact Us For Availability
1
EXTRUSION CHANNEL WCI 3131142 Contact Us For Availability
1
WCI 3131962 WCI 3131962 Contact Us For Availability
1
WCI 3131283 WCI 3131283 Contact Us For Availability
1
SPACER, BODYSIDE (8) WCI 665T188P02 Contact Us For Availability
1
WCI 3051133 WCI 3051133 Contact Us For Availability
2
GLASS-FRONT BLK WCI 276T106P03 Contact Us For Availability
2
KNOB, TOP VALVE (4) WCI 3131581 Contact Us For Availability
2
WCI 3131284 WCI 3131284 Contact Us For Availability
3
HANDLE, OVEN DOOR WCI 3131256 Contact Us For Availability
3
PANEL-MAIN TOP WHEAT WCI 3934028 Contact Us For Availability
3
WCI 079T028P01 WCI 079T028P01 Contact Us For Availability
3
WCI 3131363 WCI 3131363 Contact Us For Availability
3
PANEL (WHEAT) WCI 3051378 Contact Us For Availability
4
LINER, OVEN DOOR WCI 381T092W05-86 Contact Us For Availability
4
ROD-MAIN TOP SPRT (2) WCI 618T038P05 Contact Us For Availability
4
WCI 3131290 WCI 3131290 Contact Us For Availability
4
WCI 3131125 WCI 3131125 Contact Us For Availability
5
BRACKET, MAIN TOP HINGE (LH) WCI 3131286 Contact Us For Availability
5
WCI 079T032S02 WCI 079T032S02 Contact Us For Availability
5
WCI 3131383 WCI 3131383 Contact Us For Availability
6
WCI 3131436 WCI 3131436 Contact Us For Availability
6
WCI 3051231 WCI 3051231 Contact Us For Availability
6
BRACKET, MAIN TOP HINGE (RH) WCI 3131287 Contact Us For Availability
6
RETAINER, IGNITER (4) WCI 612T119F01 Contact Us For Availability
6
WCI 3131104 WCI 3131104 Contact Us For Availability
6
FASTENER, SPACER WCI 3131387 Contact Us For Availability
7
WCI 5303131115 No Longer Available
7
BRACKET - FLUOR LH WCI 3131576 Contact Us For Availability
7
WCI 3131210 WCI 3131210 Contact Us For Availability
7
WCI 079T033H01 WCI 079T033H01 Contact Us For Availability
7
GLASS, OVEN LAMP WCI 3131298 Contact Us For Availability
8
BRACKET - FLUOR RH WCI 3131577 Contact Us For Availability
8
WCI 3934033 WCI 3934033 Contact Us For Availability
8
WCI 079T033H02 WCI 079T033H02 Contact Us For Availability
8
CHANNEL DR. HINGE WCI 3131569 Contact Us For Availability
9
COVER-HINGE CUTOUT (2) WCI 3131570 Contact Us For Availability
9
RECEPTACLE-FLUOR LT LH WCI 3051222 Contact Us For Availability
9
WCI 3051728 WCI 3051728 Contact Us For Availability
9
WCI 079T033H03 WCI 079T033H03 Contact Us For Availability
10
RECEPTACLE-FLUOR LT RH WCI 3051223 Contact Us For Availability
10
WCI 145T129F02 WCI 145T129F02 Contact Us For Availability
10
WCI 079T033H04 WCI 079T033H04 Contact Us For Availability
10
WCI 3131312 WCI 3131312 Contact Us For Availability
11
LAMP BULB FLUOR. WCI 3131275 Contact Us For Availability
11
FASTENER-NYLON (6) WCI 3051374 Contact Us For Availability
11
WCI 247T074P01 WCI 247T074P01 Contact Us For Availability
11
WCI 3131313 WCI 3131313 Contact Us For Availability
12
PANEL, SPLASHER WCI 3131965 Contact Us For Availability
12
SCREW, HANDLE (2) WCI 3131102 Contact Us For Availability
12
IGNITER, TOP 50`` (4) WCI 316T034P02 Contact Us For Availability
12
CLIP-THERMO BULB (2) WCI 3131295 Contact Us For Availability
13
WCI 3131241 WCI 3131241 Contact Us For Availability
13
FASTENER, NYLON SPACER (3) WCI 241T017P185 Contact Us For Availability
13
MANIFOLD, PIPE WCI 439T055P03 Contact Us For Availability
13
WCI 3131672 WCI 3131672 Contact Us For Availability
14
FASTENER, GLASS (2) WCI 3131607 Contact Us For Availability
14
INSUL - OVEN DOOR WCI 3131384 Contact Us For Availability
14
WCI 3131126 WCI 3131126 Contact Us For Availability
14
FASTENER, PUSH ON (3) WCI 241T001P01 Contact Us For Availability
14A
STUD, SPACER (2) (NON-ILLUSTRATED) WCI 3051307 Contact Us For Availability
15
WCI 045T071P01 WCI 045T071P01 Contact Us For Availability
15
WCI 215T013P01 WCI 215T013P01 Contact Us For Availability
15
WCI 174T329P01 WCI 174T329P01 Contact Us For Availability
15A
NUT, COMPRESSION (4) (NON-ILLUSTRATED) WCI 3131148 Contact Us For Availability
16
NUT - DECOR (2) WCI 3051194 Contact Us For Availability
16
WCI 3131567 WCI 3131567 Contact Us For Availability
17
KNOB, CLOCK (3) WCI 358T206P01 Contact Us For Availability
17
WCI 3051495 WCI 3051495 Contact Us For Availability
18
SWITCH - FLUOR LIGHT WCI 3051312 Contact Us For Availability
18
ANGLE, LIGHT SHIELD WCI 3131278 Contact Us For Availability
19
WCI 3131145 WCI 3131145 Contact Us For Availability
19
CHANNEL, LIGHT SHIELD WCI 3131294 Contact Us For Availability
20
WCI 3051115 WCI 3051115 Contact Us For Availability
20
WCI 455T008P02 WCI 455T008P02 Contact Us For Availability
20
WCI 695T128P04 WCI 695T128P04 Contact Us For Availability
21
WCI 123T120P03 WCI 123T120P03 Contact Us For Availability
21
HEX NUT WCI 3131358 Contact Us For Availability
21
BRACKET, LIGHT SWITCH WCI 3131289 Contact Us For Availability
22
WCI 123T120P04 WCI 123T120P04 Contact Us For Availability
22
FUSE-NUT HEX (1) WCI 3131309 Contact Us For Availability
22
SHIELD, REAR WALL WCI 3131590 Contact Us For Availability
23
SHIELD, BACKGUARD WCI 3131123 Contact Us For Availability
23
SEAL ``O``RING WCI 647T087P01 Contact Us For Availability
23
WCI 3131316 WCI 3131316 Contact Us For Availability
24
SHIELD - FLUOR LIGHT WCI 3131137 Contact Us For Availability
24
FUSE WCI 3131297 Contact Us For Availability
24
CLIP, WIRE WCI 145T130P01 Contact Us For Availability
25
ANGLE S/C THERMO MTG WCI 3131467 Contact Us For Availability
25
FITTING, LOXIT (6) WCI 3131261 Contact Us For Availability
25
WCI 3131931 WCI 3131931 Contact Us For Availability
26
THERMO OVEN S/C WCI 722T071P01 Contact Us For Availability
26
RECEPTACLE, FUSE WCI 3131359 Contact Us For Availability
26A
SHIELD, BIMETAL LATCH (NON-ILLUSTRATED) WCI 3131593 Contact Us For Availability
26B
SCREW LATCH KNOB (NON-ILLUSTRATED) WCI 636T144P01 Contact Us For Availability
27
THERMO-BAKE WCI 3131964 Contact Us For Availability
27
WCI 750T085H09 WCI 750T085H09 Contact Us For Availability
27
WCI 358T158S02 WCI 358T158S02 Contact Us For Availability
27A
WASHER-BLK (NON-ILLUSTRATED) WCI 3131737 Contact Us For Availability
27B
WCI 655T437F01 WCI 655T437F01 Contact Us For Availability
28
SWITCH, SELECTOR WCI 3091345 Contact Us For Availability
28
WCI 3131109 WCI 3131109 Contact Us For Availability
28
WCI 368T027P01 WCI 368T027P01 Contact Us For Availability
29
KNOB-SELECT SWITCH WCI 3131724 Contact Us For Availability
29
TUBE-ALUM VALVE/MIXED WCI 3131364 Contact Us For Availability
29
WCI 3131357 WCI 3131357 Contact Us For Availability
30
KNOB, THERMOSTAT WCI 3131725 Contact Us For Availability
30
WCI 3131101 WCI 3131101 Contact Us For Availability
31
CAP, FUSE RECEPTACLE WCI 3131292 Contact Us For Availability
31
WCI 095T030F02-86 WCI 095T030F02-86 Contact Us For Availability
32
SHIELD-MAIN FR WCI 3131311 Contact Us For Availability
33
WCI 3131314 WCI 3131314 Contact Us For Availability
34
WCI 3131315 WCI 3131315 Contact Us For Availability
35
WCI 499T015P08 WCI 499T015P08 Contact Us For Availability
35
PANEL-BODYSIDE RH (WHEAT) WCI 3131477 Contact Us For Availability
35
PANEL-BODYSIDE LH (WHEAT) WCI 3131478 Contact Us For Availability
36
WCI 499T069P40 WCI 499T069P40 Contact Us For Availability
36
WCI 636M004P01 WCI 636M004P01 Contact Us For Availability
38
WCI 3131356 WCI 3131356 Contact Us For Availability
39
PAN, BROILER WCI 539T010F01-86 Contact Us For Availability
40
WCI 058T036F03-86 WCI 058T036F03-86 Contact Us For Availability
41
BUTTON-SWITCH WCI 102T044P02 Contact Us For Availability
41A
FASTENER-PWR CORD (NON-ILLUSTRATED) WCI 241T017P255 Contact Us For Availability
41B
WCI 3131303 WCI 3131303 Contact Us For Availability
41D
WCI 3131304 WCI 3131304 Contact Us For Availability
41E
WCI 655T434F01 WCI 655T434F01 Contact Us For Availability
41F
INSUL.-TOUCH (NON-ILLUSTRATED) WCI 3131305 Contact Us For Availability
41H
SHIELD-LATCH SW. (NON-ILLUSTRATED) WCI 657T018P01 Contact Us For Availability
42
COVER, BURNER BOX WCI 174T333P01 Contact Us For Availability
× ![]()
