Model Electrolux 30-3658-23-04 RANGE – Common Parts & Diagrams

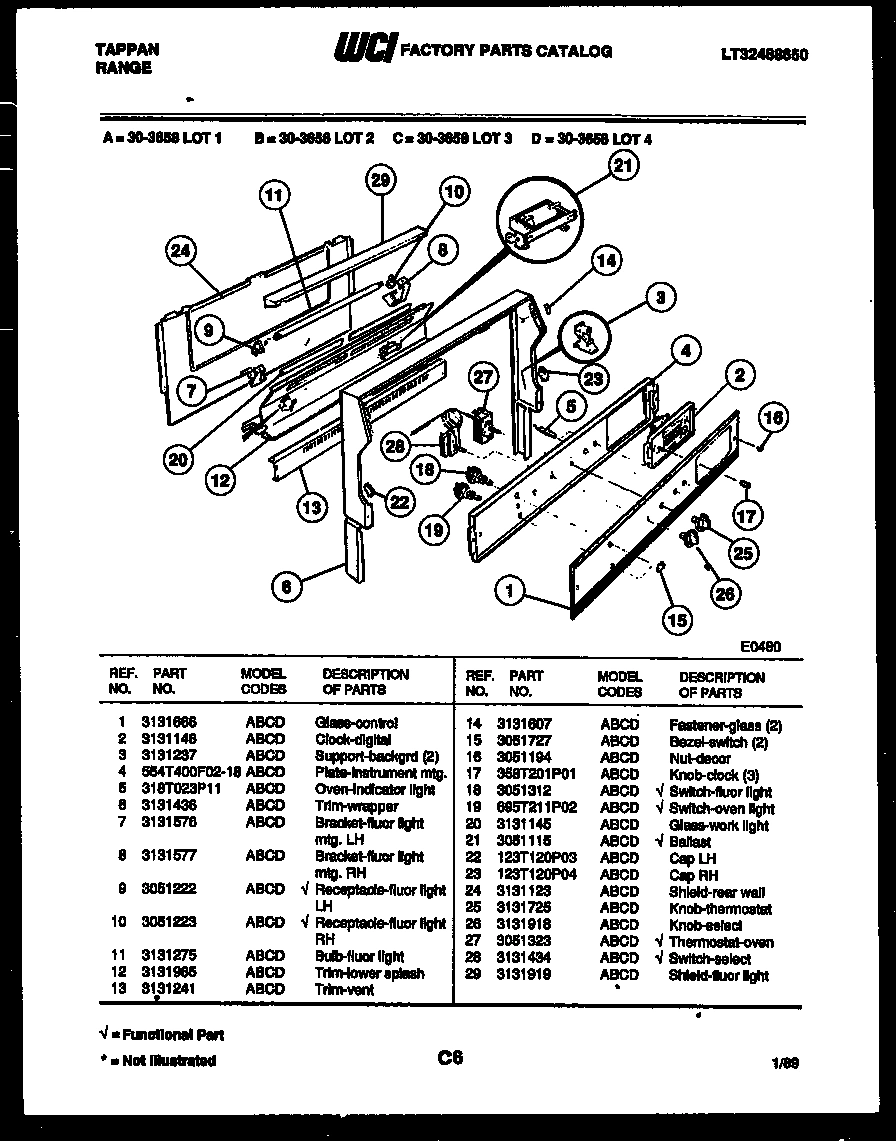

02 - BACKGUARD

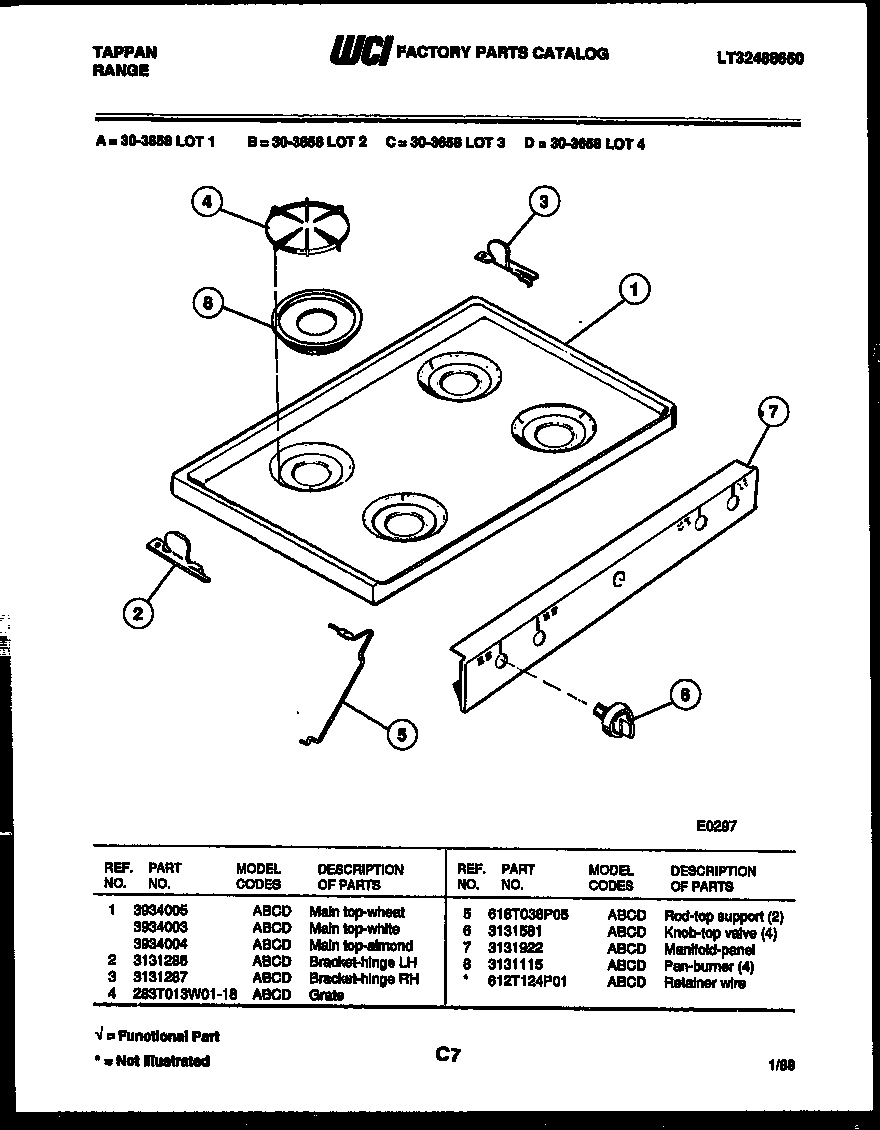

03 - COOKTOP PARTS
04 - DOOR PARTS
05 - BROILER DRAWER PARTS
06 - BURNER PARTS
07 - BODY PARTS
Common parts from model Electrolux 30-3658-23-04 RANGE
*20550
WCI 612T124P01 WCI 612T124P01 Contact Us For Availability
*20553
INSULATION-BROILER DRAWER WCI 3131258 Contact Us For Availability
*20553
SCREW (2) WCI 636T162P01 Contact Us For Availability
*20556
WCI 3051420 WCI 3051420 Contact Us For Availability
*20560
FASTENER, POWER CORD WCI 241T017P255 Contact Us For Availability
1
WCI 3934005 WCI 3934005 Contact Us For Availability
1
WCI 3131256 WCI 3131256 Contact Us For Availability
1
WCI 072T805F01-08 WCI 072T805F01-08 Contact Us For Availability
1
WCI 079T033H01 WCI 079T033H01 Contact Us For Availability
1
SPACER, BODYSIDE (8) WCI 665T188P02 Contact Us For Availability
1A
WCI 072T805F02-08 WCI 072T805F02-08 Contact Us For Availability
2
BRACKET, HINGE, LH WCI 3131286 Contact Us For Availability
2
WCI 3051728 WCI 3051728 Contact Us For Availability
2
WCI 3131386 WCI 3131386 Contact Us For Availability
2
WCI 079T033H03 WCI 079T033H03 Contact Us For Availability
3
BRACKET, HINGE, RH WCI 3131287 Contact Us For Availability
3
WCI 3051154 WCI 3051154 Contact Us For Availability
3
BODY, BROILER WCI 205T004W01-86 Contact Us For Availability
3
WCI 079T033H04 WCI 079T033H04 Contact Us For Availability
4
WCI 3202192 WCI 3202192 Contact Us For Availability
4
PIN, HINGE (2) WCI 550T041P01 Contact Us For Availability
4
WCI 079T033H02 WCI 079T033H02 Contact Us For Availability
5
ROD-TOP SUPPORT (2) WCI 618T038P05 Contact Us For Availability
5
WCI 3051155 WCI 3051155 Contact Us For Availability
5
SPRING-BROILER LH WCI 675T079P01 Contact Us For Availability
5
MANIFOLD, PIPE WCI 439T055P03 Contact Us For Availability
5
WCI 3131569 WCI 3131569 Contact Us For Availability
5A
SPRING-BROILER RH WCI 675T079P02 Contact Us For Availability
6
COVER-DR HINGE (2) WCI 3131570 Contact Us For Availability
6
WCI 3131436 WCI 3131436 Contact Us For Availability
6
KNOB, TOP VALVE (4) WCI 3131581 Contact Us For Availability
6
COVER, DOOR LINER WCI 3131207 Contact Us For Availability
6
LINER-BROILER DRWR WCI 381T087F02-86 Contact Us For Availability
6
VALVE (4) WCI 3017846 Contact Us For Availability
7
BRACKET-FLUOR LIGHT MTG LH WCI 3131576 Contact Us For Availability
7
WCI 3131922 WCI 3131922 Contact Us For Availability
7
WCI 3131323 WCI 3131323 Contact Us For Availability
7
PANEL-DRAWER-ALMOND WCI 3131717 Contact Us For Availability
7
NUT SPECIAL WCI 479T069P40 Contact Us For Availability
7
WCI 3131567 WCI 3131567 Contact Us For Availability
8
BRACKET-FLUOR LIGHT MTG RH WCI 3131577 Contact Us For Availability
8
WCI 3202190 WCI 3202190 Contact Us For Availability
8
WCI 3131125 WCI 3131125 Contact Us For Availability
8
NUT COMPRESSION (4) WCI 3131148 Contact Us For Availability
8
WCI 655T421F02-18 WCI 655T421F02-18 Contact Us For Availability
9
RECEPTACLE - FLUOR LIGHT LH WCI 3051222 Contact Us For Availability
9
SCREW, HANDLE (2) WCI 3131102 Contact Us For Availability
9
FASTENER-SPACER (2) WCI 3131387 Contact Us For Availability
9
CLIP, WIRE WCI 145T130P01 Contact Us For Availability
10
RECEPTACLE - FLUOR LIGHT RH WCI 3051223 Contact Us For Availability
10
GLIDE, BROILER (6) WCI 280T061P01 Contact Us For Availability
10
WCI 079T032S02 WCI 079T032S02 Contact Us For Availability
10
WCI 3131904 WCI 3131904 Contact Us For Availability
11
BULB-FLUOR LIGHT WCI 3131275 Contact Us For Availability
11
SEAL, FOAM (4) WCI 3131214 Contact Us For Availability
11
PAN, BROILER WCI 539T010F01-86 Contact Us For Availability
12
WCI 3131439 WCI 3131439 Contact Us For Availability
12
TRIM-LOWER SPLASH WCI 3131965 Contact Us For Availability
12
WCI 3051374 WCI 3051374 Contact Us For Availability
12
INSERT-BROILER WCI 3131356 Contact Us For Availability
12
WCI 3131101 WCI 3131101 Contact Us For Availability
13
WCI 3131241 WCI 3131241 Contact Us For Availability
13
FASTENER-SPACER TOP (3) WCI 3131254 Contact Us For Availability
13
WCI 3131153 WCI 3131153 Contact Us For Availability
13
WCI 095T030F02-86 WCI 095T030F02-86 Contact Us For Availability
14
FASTENER, GLASS (2) WCI 3131607 Contact Us For Availability
14
CLIP, RETAINER (2) WCI 3131720 Contact Us For Availability
14
PLUG-BROILER DRWR (4) WCI 557T035P01 Contact Us For Availability
14
PANEL, BODYSIDE (RH), ALMOND WCI 3200790 Contact Us For Availability
14A
PANEL, BODYSIDE (LH), ALMOND WCI 3200793 Contact Us For Availability
15
WCI 3051727 WCI 3051727 Contact Us For Availability
15
EXTRUSION CHANNEL WCI 3131142 Contact Us For Availability
15
IGNITER-BURNER (2) WCI 3131105 Contact Us For Availability
15
SCREW, LEVEL (4) WCI 636M004P01 Contact Us For Availability
16
WCI 3051194 WCI 3051194 Contact Us For Availability
16
RETAINER IGNITER (2) WCI 612T121F01 Contact Us For Availability
17
KNOB, CLOCK (3) WCI 358T201P01 Contact Us For Availability
17
WCI 058T036F02-86 WCI 058T036F02-86 Contact Us For Availability
17A
INSULATION-WRAP (NON-ILLUSTRATED) WCI 3131201 Contact Us For Availability
17B
INSULATION BACK (NON-ILLUSTRATED) WCI 3131246 Contact Us For Availability
18
SWITCH - FLUOR LIGHT WCI 3051312 Contact Us For Availability
18
WCI 247T074P01 WCI 247T074P01 Contact Us For Availability
19
WCI 695T211P02 WCI 695T211P02 Contact Us For Availability
19
FITTING LOXIT (4) WCI 3131261 Contact Us For Availability
20
GLASS-WORK LIGHT WCI 3131145 Contact Us For Availability
20
WCI 3131327 WCI 3131327 Contact Us For Availability
20
WCI 3131348 WCI 3131348 Contact Us For Availability
21
WCI 3051115 WCI 3051115 Contact Us For Availability
21
WCI 3131438 WCI 3131438 Contact Us For Availability
21
WCI 3131180 WCI 3131180 Contact Us For Availability
21A
WCI 554T388F02 WCI 554T388F02 Contact Us For Availability
21B
COVER-POWER CORD, (NON-ILLUSTRATED) WCI 3131244 Contact Us For Availability
22
WCI 123T120P03 WCI 123T120P03 Contact Us For Availability
23
WCI 123T120P04 WCI 123T120P04 Contact Us For Availability
23
WCI 750T085H09 WCI 750T085H09 Contact Us For Availability
23
WCI 3015371 WCI 3015371 Contact Us For Availability
24
SHIELD, REAR WALL WCI 3131123 Contact Us For Availability
24
TUBE - ALUM 3/8 WCI 3131448 Contact Us For Availability
24
COVER-FRONT MAIN WCI 3131548 Contact Us For Availability
25
KNOB, THERMOSTAT WCI 3131725 Contact Us For Availability
26
WCI 3131918 WCI 3131918 Contact Us For Availability
27
WCI 3051323 WCI 3051323 Contact Us For Availability
28
WCI 3131434 WCI 3131434 Contact Us For Availability
29
WCI 3131919 WCI 3131919 Contact Us For Availability
29
WCI 215T013P01 WCI 215T013P01 Contact Us For Availability
29B
WASHER (NON-ILLUSTRATED) WCI 3131737 Contact Us For Availability
30
WCI 136T355W03 WCI 136T355W03 Contact Us For Availability
× ![]()
