Model Electrolux 30-3649-23-03 RANGE – Common Parts & Diagrams

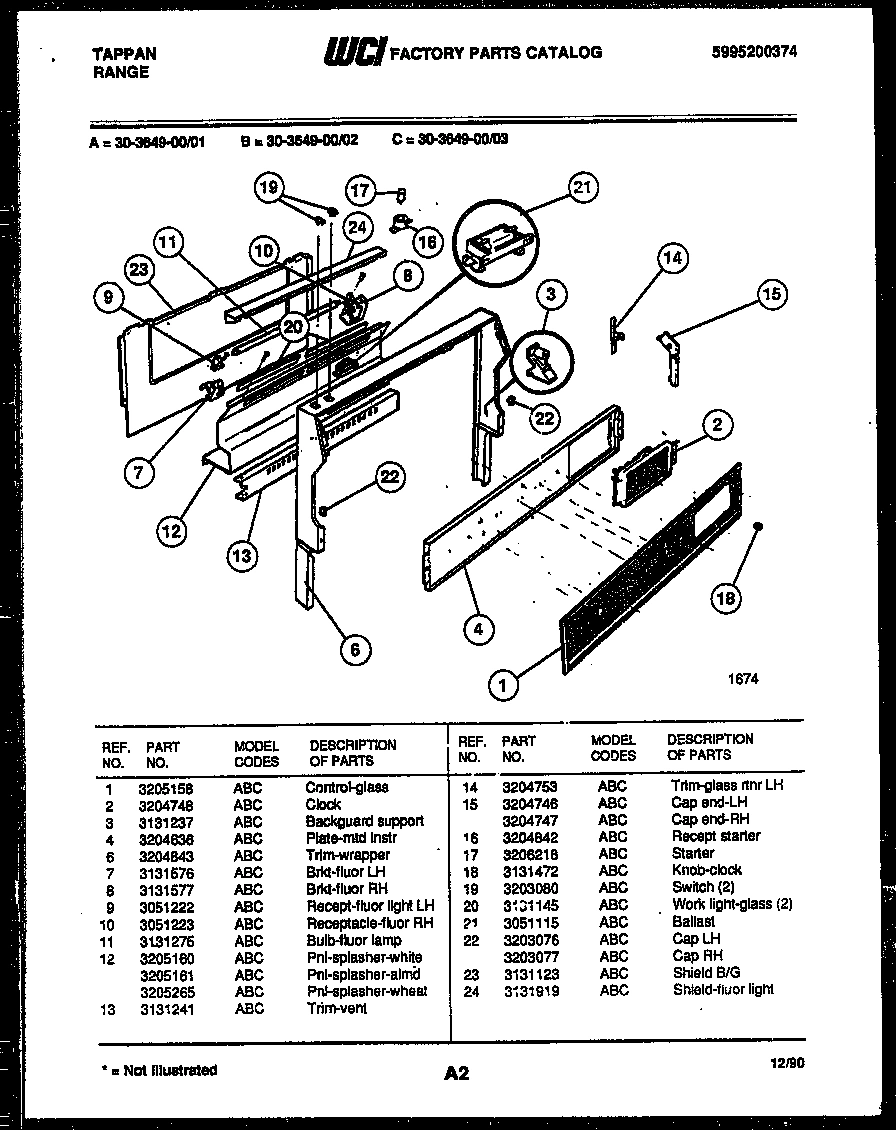

02 - BACKGUARD

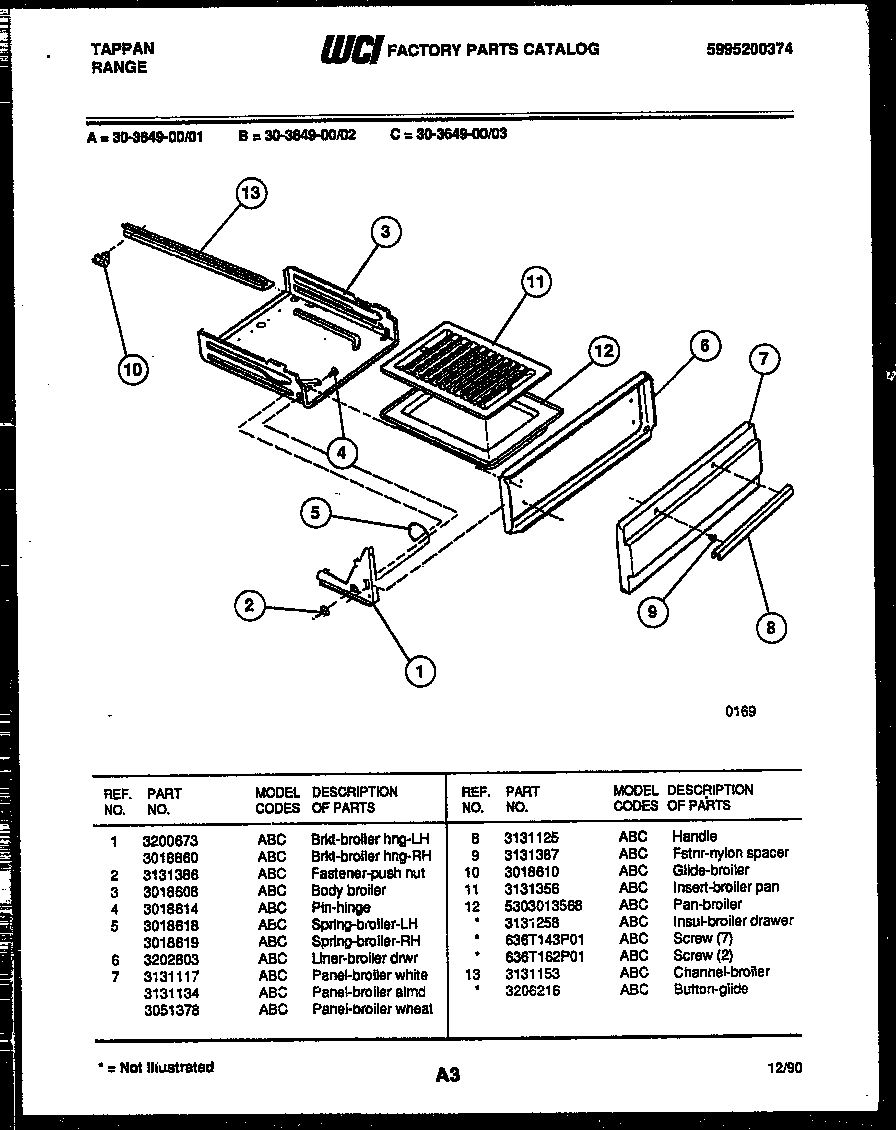

03 - BROILER DRAWER PARTS

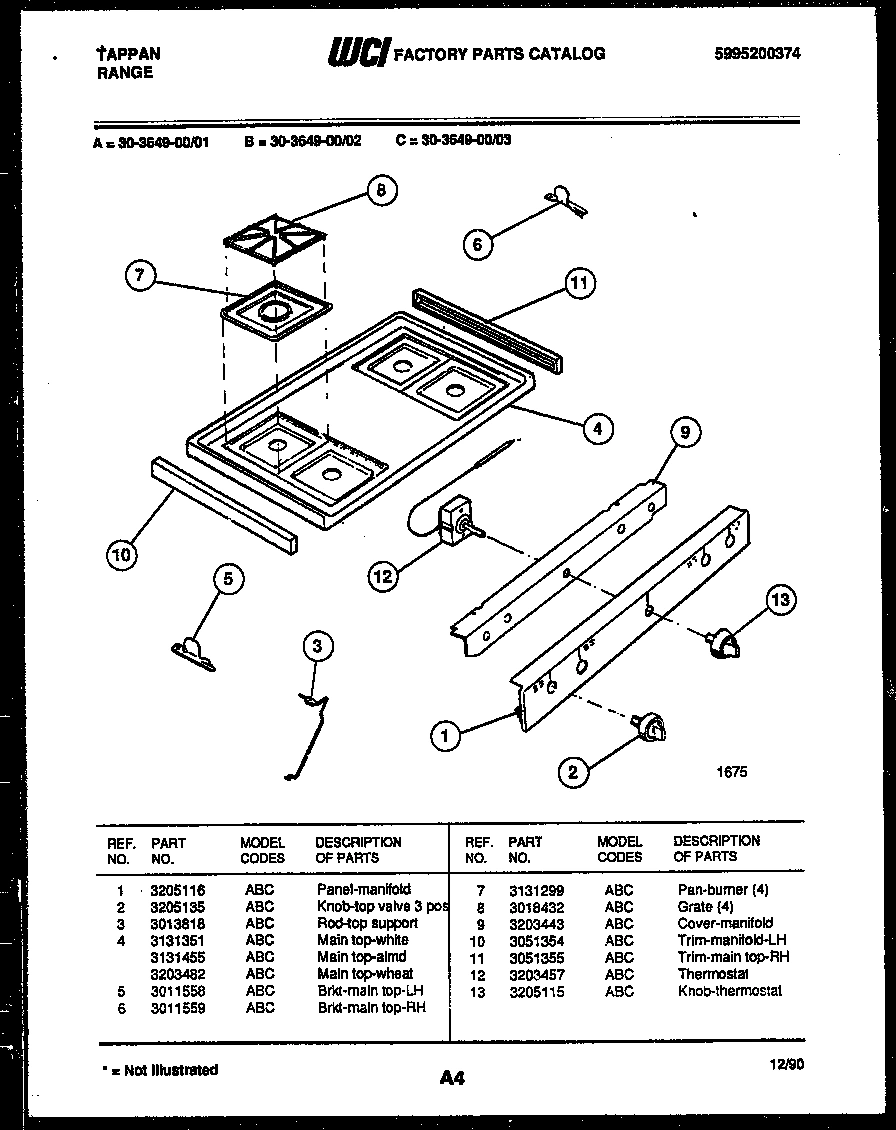

04 - COOKTOP PARTS

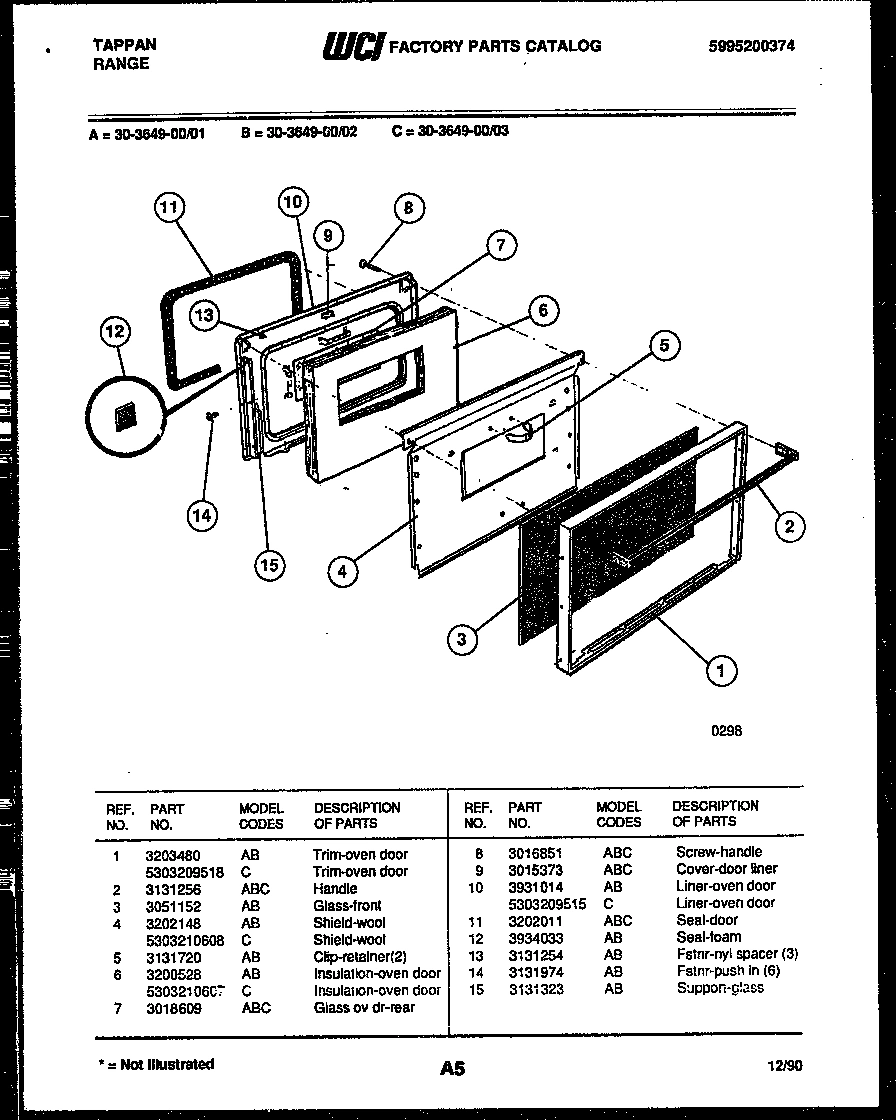

05 - DOOR PARTS

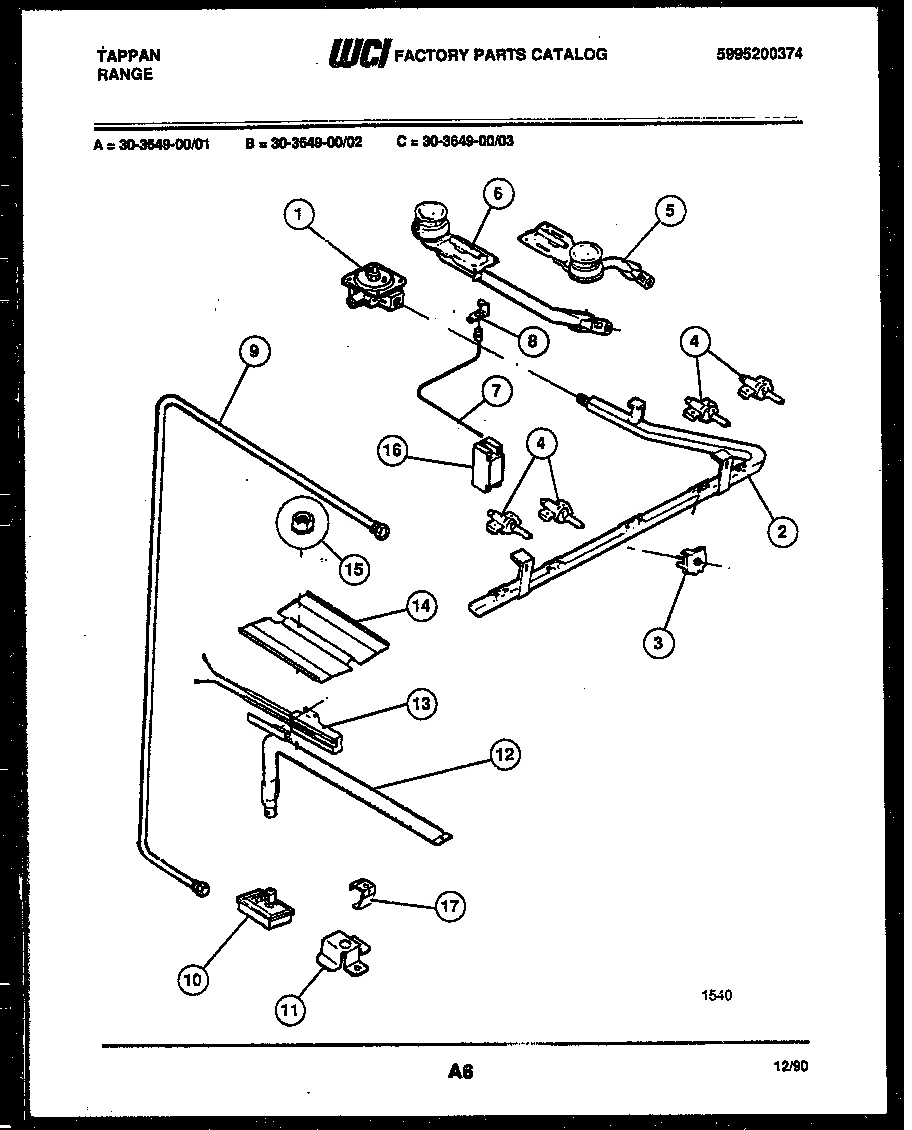

06 - BURNER, MANIFOLD AND GAS CONTROL

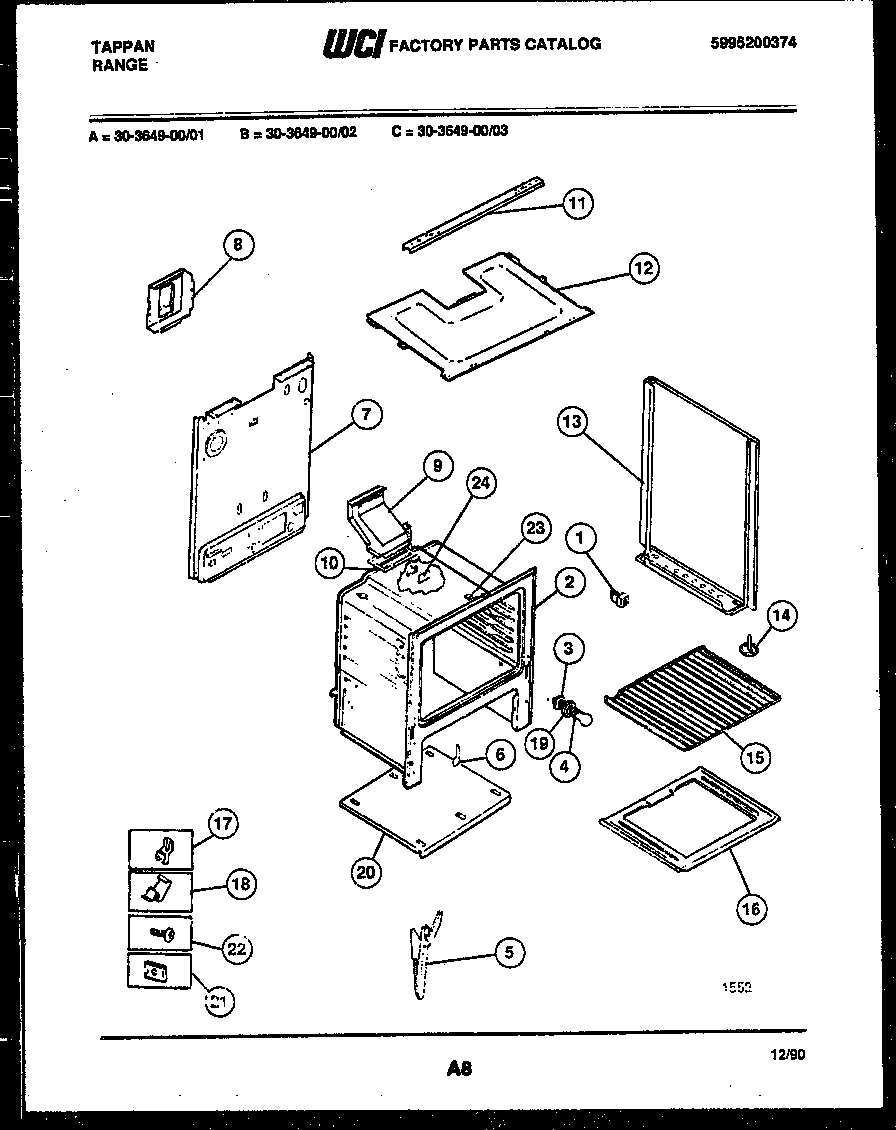

07 - BODY PARTS
Common parts from model Electrolux 30-3649-23-03 RANGE
*31162
WCI 3206216 WCI 3206216 Contact Us For Availability
*31179
DIAGRAM-WIRE (NOT FOR PURCHASE) WCI 19100200002 Contact Us For Availability
*31179
WCI 3131348 WCI 3131348 Contact Us For Availability
*31179
WCI 3934056 WCI 3934056 Contact Us For Availability
1
SPACER, B/S (8) WCI 3014099 Contact Us For Availability
1
BRKT-BROILER HNG (LH) WCI 3200673 Contact Us For Availability
1
WCI 3205116 WCI 3205116 Contact Us For Availability
1
WCI 5303209518 WCI 5303209518 Contact Us For Availability
1A
BRKT-BROILER HNG (RH) WCI 3018860 Contact Us For Availability
2
FASTENER, PUSH NUT WCI 3131386 Contact Us For Availability
2
WCI 3205135 WCI 3205135 Contact Us For Availability
2
WCI 3131256 WCI 3131256 Contact Us For Availability
2
WCI 3205046 WCI 3205046 Contact Us For Availability
3
WCI 3018608 WCI 3018608 Contact Us For Availability
3
ROD, TOP SUPPORT WCI 3013818 Contact Us For Availability
3
WCI 3017931 WCI 3017931 Contact Us For Availability
4
WCI 3018614 WCI 3018614 Contact Us For Availability
4
WCI 3131455 WCI 3131455 Contact Us For Availability
4
WCI 5303210608 WCI 5303210608 Contact Us For Availability
4
VALVE - TOP 3 POS (4) WCI 3204882 Contact Us For Availability
4A
SCREW-VALVE MTG (8) (NON-ILLUSTRATED) WCI 3204499 Contact Us For Availability
5
SPRING-BROILER, LH WCI 3018618 Contact Us For Availability
5
BRKT MAIN TOP LH WCI 3011558 Contact Us For Availability
5
CHANNEL - DOOR HNG WCI 3131569 Contact Us For Availability
5A
SPRING-BROILER, RH WCI 3018619 Contact Us For Availability
6
COVER-HNG CUTOUT WCI 3131570 Contact Us For Availability
6
LINER - BROILER DRWR WCI 3202803 Contact Us For Availability
6
BRKT MAIN TOP RH WCI 3011559 Contact Us For Availability
6
INSULATION, OVEN DOOR WCI 5303210607 Contact Us For Availability
6A
SHIELD-FLUE, (NON-ILLUSTRATED) WCI 3202799 Contact Us For Availability
7
PANEL - BROILER ALMD WCI 3131134 Contact Us For Availability
7
WCI 3131299 WCI 3131299 Contact Us For Availability
7
GLASS-OV DR (REAR) WCI 3018609 Contact Us For Availability
7
WCI 3200276 WCI 3200276 Contact Us For Availability
7
WCI 3203082 WCI 3203082 Contact Us For Availability
8
WCI 3131125 WCI 3131125 Contact Us For Availability
8
GRATE (4) WCI 3018432 Contact Us For Availability
8
WCI 3016851 WCI 3016851 Contact Us For Availability
8
REAR WALL WCI 3131660 Contact Us For Availability
9
FSTNR - NYLON SPACER WCI 3131387 Contact Us For Availability
9
WCI 3203443 WCI 3203443 Contact Us For Availability
9
WCI 3015373 WCI 3015373 Contact Us For Availability
9
WCI 3203458 WCI 3203458 Contact Us For Availability
9
WCI 3131904 WCI 3131904 Contact Us For Availability
10
GLIDE-BROILER WCI 3018610 Contact Us For Availability
10
TRIM-MANIFOLD LH WCI 3051354 Contact Us For Availability
10
WCI 5303209515 WCI 5303209515 Contact Us For Availability
11
BULB - FLUOR LAMP WCI 3131275 Contact Us For Availability
11
WCI 3131356 WCI 3131356 Contact Us For Availability
11
WCI 3051355 WCI 3051355 Contact Us For Availability
11
WCI 3131438 WCI 3131438 Contact Us For Availability
11
CHANNEL - BRNR SUPT WCI 3203441 Contact Us For Availability
12
WCI 3131439 WCI 3131439 Contact Us For Availability
12
PAN-BROILER WCI 5303013568 Contact Us For Availability
12
WCI 3203457 WCI 3203457 Contact Us For Availability
12
WCI 3204962 WCI 3204962 Contact Us For Availability
12A
INSUL - BROILER DRAWER (NON-ILLUSTRATED) WCI 3131258 Contact Us For Availability
12C
WCI 636T162P01 WCI 636T162P01 Contact Us For Availability
13
CHANNEL-BROILER WCI 3131153 Contact Us For Availability
13
WCI 3205115 WCI 3205115 Contact Us For Availability
13
PNL-B/S (ALMD RH) WCI 3200790 Contact Us For Availability
13A
PNL-B/S (ALMD LH) WCI 3200793 Contact Us For Availability
14
WCI 3204753 WCI 3204753 Contact Us For Availability
14
WCI 3203265 WCI 3203265 Contact Us For Availability
14
SCREW-LEVELING (4) WCI 3203397 Contact Us For Availability
15
WCI 3204746 WCI 3204746 Contact Us For Availability
15
WCI 3204747 WCI 3204747 Contact Us For Availability
16
RECEPT STARTER WCI 3204842 Contact Us For Availability
16
WCI 3011519 WCI 3011519 Contact Us For Availability
16A
INSULATION (WRAPPER) (NON-ILLUSTRATED) WCI 3017142 Contact Us For Availability
16B
WCI 3203541 WCI 3203541 Contact Us For Availability
17
STARTER WCI 3206218 Contact Us For Availability
17
BRKT - OVEN BRNR SUPT WCI 3018603 Contact Us For Availability
17A
FSTNR-POWER CORD (NON-ILLUSTRATED) WCI 3012327 Contact Us For Availability
18
KNOB-CLOCK WCI 3131472 Contact Us For Availability
19
HOUSING-OVEN LIGHT WCI 3051511 Contact Us For Availability
20
WORK LIGHT - GLASS (2) WCI 3131145 Contact Us For Availability
20
BASE - BROILER WCI 3131180 Contact Us For Availability
20A
SHIELD-TOP (NON-ILLUSTRATED) WCI 3203455 Contact Us For Availability
21
WCI 3051115 WCI 3051115 Contact Us For Availability
22
CAP-LH WCI 3203076 Contact Us For Availability
22
CAP-RH WCI 3203077 Contact Us For Availability
22A
COVER-POWER CORD, (NON-ILLUSTRATED) WCI 3131244 Contact Us For Availability
23
SHIELD B/G WCI 3131123 Contact Us For Availability
23
WCI 3015372 WCI 3015372 Contact Us For Availability
24
WCI 3018607 WCI 3018607 Contact Us For Availability
24
WCI 3131919 WCI 3131919 Contact Us For Availability
× ![]()
