Model Electrolux 30-3649-00-04 RANGE – Common Parts & Diagrams
02 - BACKGUARD
03 - BROILER DRAWER PARTS

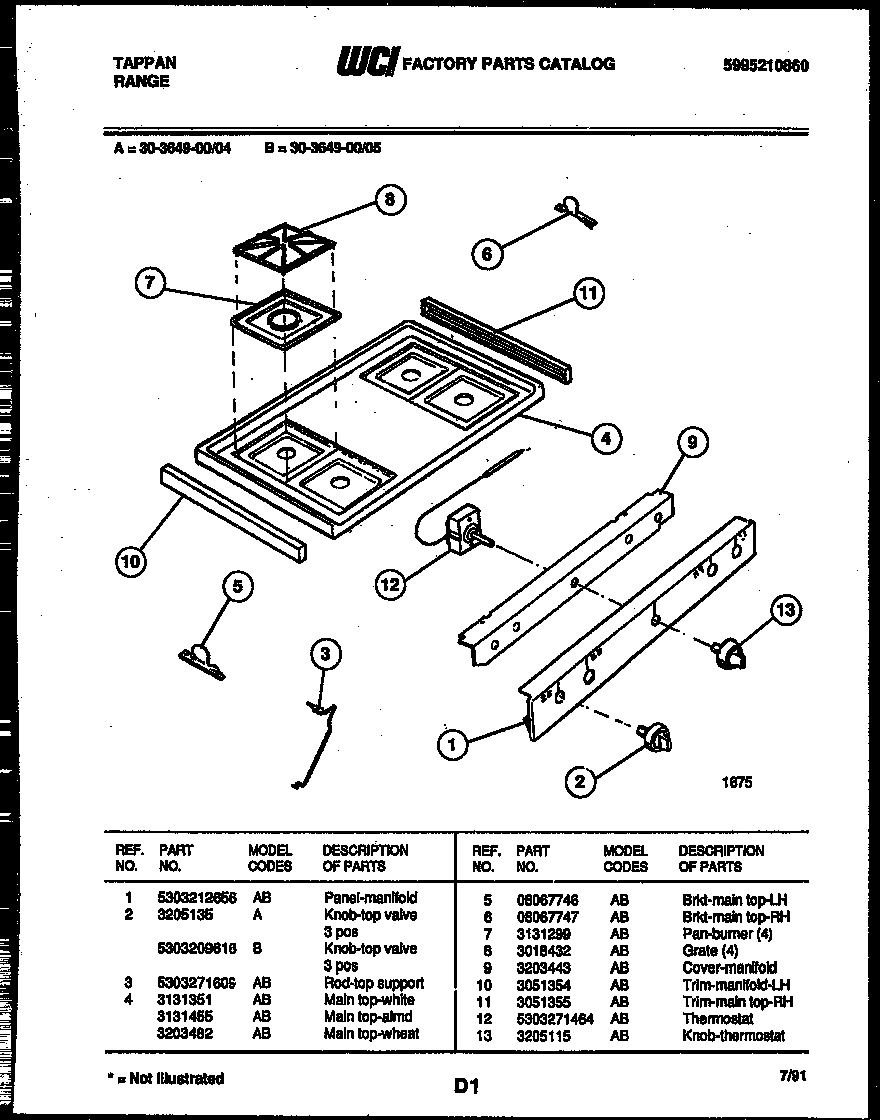

04 - COOKTOP PARTS

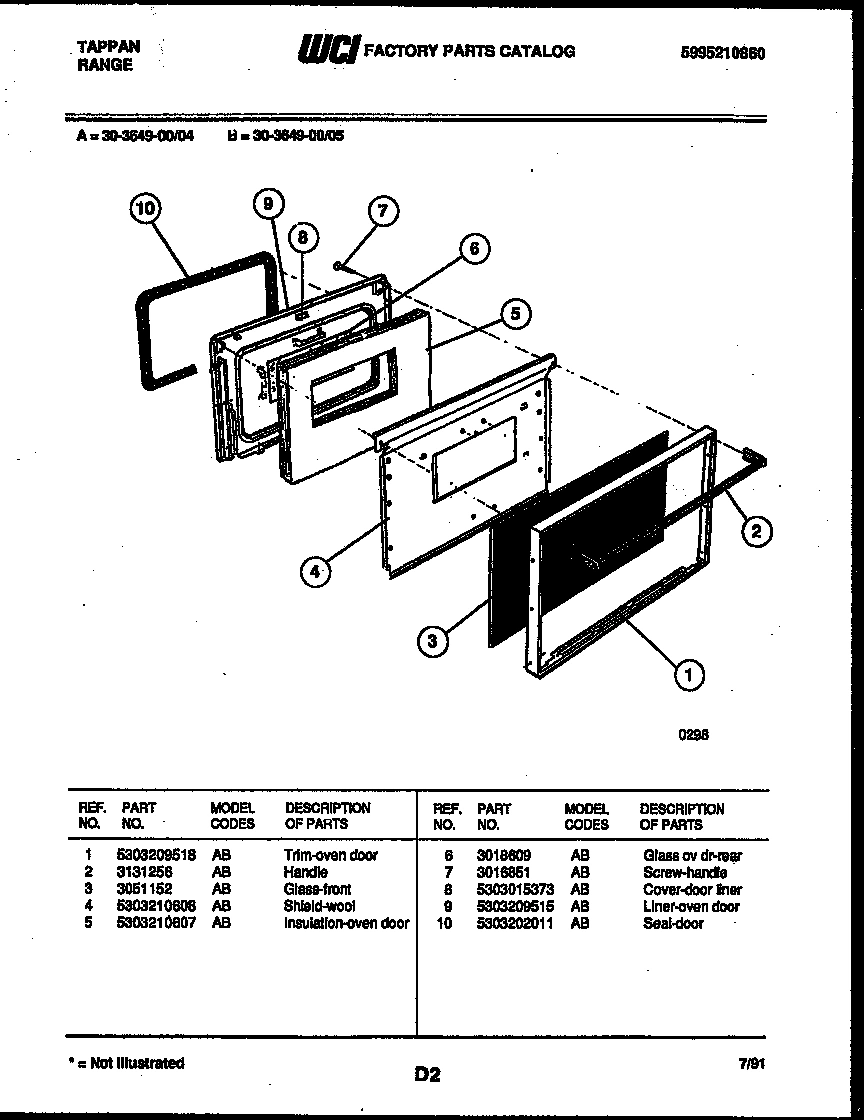

05 - DOOR PARTS

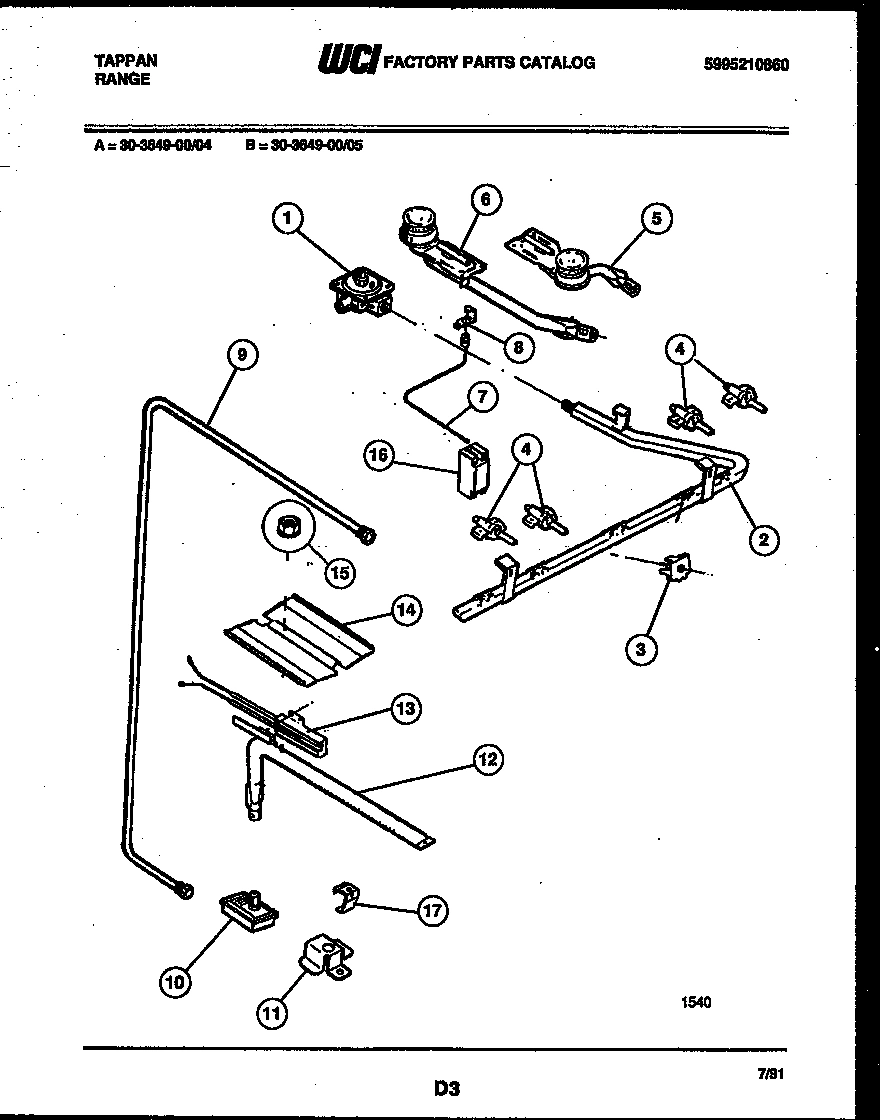

06 - BURNER, MANIFOLD AND GAS CONTROL

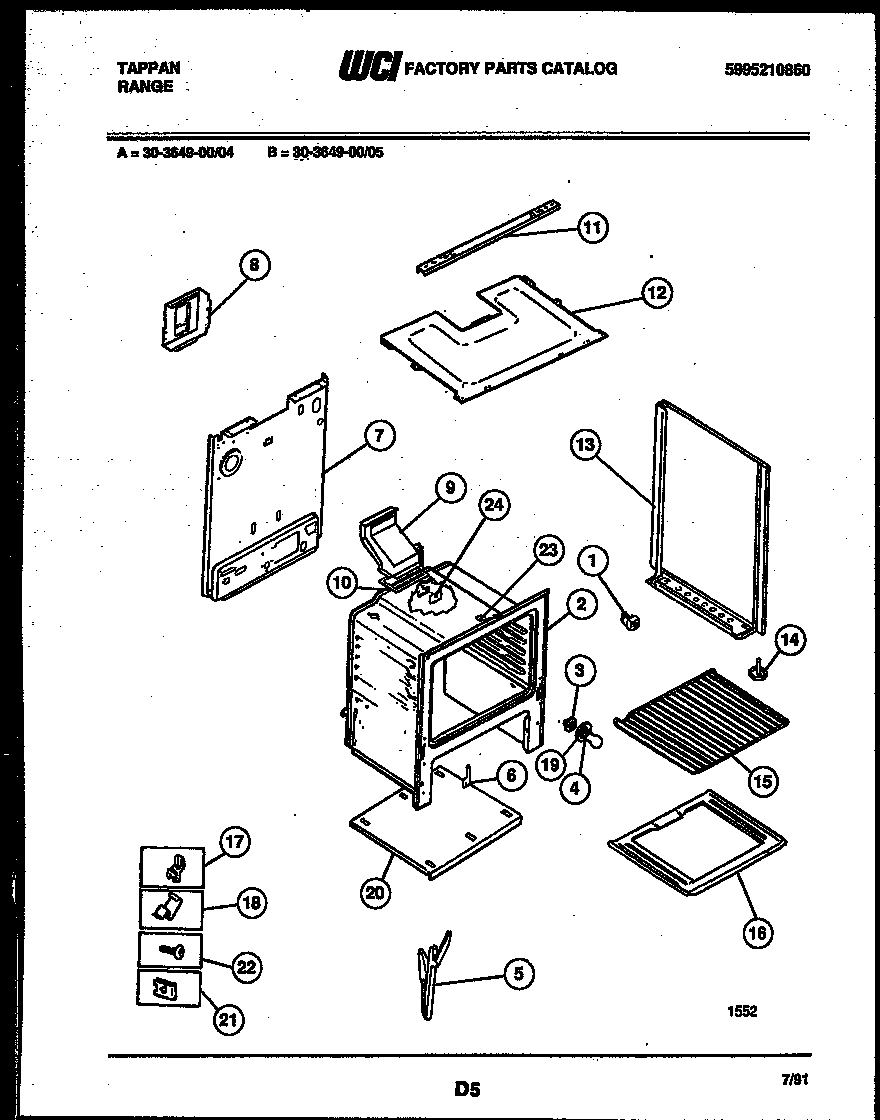

07 - BODY PARTS
Common parts from model Electrolux 30-3649-00-04 RANGE
*56554
WCI 3206216 WCI 3206216 Contact Us For Availability
*56570
WCI 3934056 WCI 3934056 Contact Us For Availability
*56571
DIAGRAM-WIRE (NOT FOR PURCHASE) WCI 19100200002 Contact Us For Availability
*56571
WCI 3131348 WCI 3131348 Contact Us For Availability
1
SPACER, B/S (8) WCI 3014099 Contact Us For Availability
1
BRKT-BROILER HNG (LH) WCI 3200673 Contact Us For Availability
1
WCI 5303212656 WCI 5303212656 Contact Us For Availability
1
WCI 5303209518 WCI 5303209518 Contact Us For Availability
1
CONTROL REGUL WCI 5303208384 Contact Us For Availability
1A
BRKT-BROILER HNG (RH) WCI 3018860 Contact Us For Availability
2
FASTENER, PUSH NUT WCI 3131386 Contact Us For Availability
2
WCI 3205135 WCI 3205135 Contact Us For Availability
2
WCI 3131256 WCI 3131256 Contact Us For Availability
2
WCI 3205046 WCI 3205046 Contact Us For Availability
3
WCI 3018608 WCI 3018608 Contact Us For Availability
3
ROD-TOP SUPPORT WCI 5303271609 Contact Us For Availability
3
WCI 3051152 WCI 3051152 Contact Us For Availability
3
SWITCH-IGNITER WCI 5303208978 Contact Us For Availability
4
WCI 3018614 WCI 3018614 Contact Us For Availability
4
WCI 3131351 WCI 3131351 Contact Us For Availability
4
WCI 3131455 WCI 3131455 Contact Us For Availability
4
WCI 3203482 WCI 3203482 Contact Us For Availability
4
WCI 5303210608 WCI 5303210608 Contact Us For Availability
4
VALVE - TOP 3 POS (4) WCI 3204882 Contact Us For Availability
4A
SCREW-VALVE MTG (8) (NON-ILLUSTRATED) WCI 3204499 Contact Us For Availability
5
CHANNEL - DOOR HNG WCI 316007002 No Longer Available
5
BRKT, MAIN TOP (LH) WCI 08067746 Contact Us For Availability
5
SPRING-BROILER, LH WCI 3018618 Contact Us For Availability
5
INSULATION, OVEN DOOR WCI 5303210607 Contact Us For Availability
5A
SPRING-BROILER, RH WCI 3018619 Contact Us For Availability
6
COVER-HNG CUTOUT WCI 3131570 Contact Us For Availability
6
LINER - BROILER DRWR WCI 3202803 Contact Us For Availability
6
BRKT, MAIN TOP (RH) WCI 08067747 Contact Us For Availability
6
GLASS-OV DR (REAR) WCI 3018609 Contact Us For Availability
6A
SHIELD-FLUE, (NON-ILLUSTRATED) WCI 3202799 Contact Us For Availability
7
PANEL-BROILER-WHEAT WCI 3051378 Contact Us For Availability
7
PANEL - BROILER WHITE WCI 3131117 Contact Us For Availability
7
PANEL - BROILER ALMD WCI 3131134 Contact Us For Availability
7
WCI 3131299 WCI 3131299 Contact Us For Availability
7
WCI 3016851 WCI 3016851 Contact Us For Availability
7
BASE-IGNITER WCI 3200276 Contact Us For Availability
7
WCI 3203082 WCI 3203082 Contact Us For Availability
8
WCI 3131125 WCI 3131125 Contact Us For Availability
8
GRATE (4) WCI 3018432 Contact Us For Availability
8
WCI 5303015373 WCI 5303015373 Contact Us For Availability
8
REAR WALL WCI 3131660 Contact Us For Availability
9
FSTNR - NYLON SPACER WCI 3131387 Contact Us For Availability
9
WCI 3203443 WCI 3203443 Contact Us For Availability
9
WCI 5303209515 WCI 5303209515 Contact Us For Availability
9
WCI 3203458 WCI 3203458 Contact Us For Availability
9
WCI 3131904 WCI 3131904 Contact Us For Availability
10
GLIDE-BROILER WCI 3018610 Contact Us For Availability
10
TRIM-MANIFOLD LH WCI 3051354 Contact Us For Availability
11
BULB - FLUOR LAMP WCI 3131275 Contact Us For Availability
11
WCI 5303131356 WCI 5303131356 Contact Us For Availability
11
WCI 3051355 WCI 3051355 Contact Us For Availability
11
WCI 3131438 WCI 3131438 Contact Us For Availability
11
CHANNEL-BMR SUPT WCI 3203441 Contact Us For Availability
12
WCI 3131439 WCI 3131439 Contact Us For Availability
12
PAN-BROILER WCI 5303013568 Contact Us For Availability
12
WCI 3204962 WCI 3204962 Contact Us For Availability
12A
INSUL - BROILER DRAWER (NON-ILLUSTRATED) WCI 5303131258 Contact Us For Availability
12B
SCREW (2) (NON-ILLUSTRATED) WCI 3013964 Contact Us For Availability
13
CHANNEL-BROILER WCI 3131153 Contact Us For Availability
13
WCI 3205115 WCI 3205115 Contact Us For Availability
13
PNL B/S - WHITE RH WCI 5303269518 Contact Us For Availability
13
WCI 5303269543 WCI 5303269543 Contact Us For Availability
13
PNL-B/S-WHEAT RH WCI 5303271917 Contact Us For Availability
13A
PNL B/S - WHITE LH WCI 5303269519 Contact Us For Availability
13A
WCI 5303269545 WCI 5303269545 Contact Us For Availability
13A
PNL-B/S-WHEAT LH WCI 5303271918 Contact Us For Availability
14
WCI 5303203397 WCI 5303203397 Contact Us For Availability
14
WCI 3203265 WCI 3203265 Contact Us For Availability
14A
WCI 08010570 WCI 08010570 Contact Us For Availability
15A
WCI 3204747 WCI 3204747 Contact Us For Availability
16
RECEPT STARTER WCI 3204842 Contact Us For Availability
16
WCI 5303212540 WCI 5303212540 Contact Us For Availability
16A
INSULATION (WRAPPER) (NON-ILLUSTRATED) WCI 3017142 Contact Us For Availability
16B
WCI 3203541 WCI 3203541 Contact Us For Availability
17
STARTER WCI 3206218 Contact Us For Availability
17
BRKT, OVEN BURNER SUPT WCI 3018603 Contact Us For Availability
17
WCI 08010556 WCI 08010556 Contact Us For Availability
17A
WCI 08067961 WCI 08067961 Contact Us For Availability
18
KNOB-CLOCK WCI 3131472 Contact Us For Availability
19
WCI 5303271606 WCI 5303271606 Contact Us For Availability
20
WORK LIGHT - GLASS (2) WCI 3131145 Contact Us For Availability
20
BASE-BROILER WCI 5303270160 Contact Us For Availability
20A
SHIELD-TOP (NON-ILLUSTRATED) WCI 3203455 Contact Us For Availability
21
WCI 5303051115 WCI 5303051115 Contact Us For Availability
22
CAP-LH WCI 3203076 Contact Us For Availability
22A
CAP-RH WCI 3203077 Contact Us For Availability
22A
COVER-POWER CORD, (NON-ILLUSTRATED) WCI 3131244 Contact Us For Availability
23
SHIELD B/G WCI 3131123 Contact Us For Availability
23
WCI 5303015372 WCI 5303015372 Contact Us For Availability
24
WCI 3018607 WCI 3018607 Contact Us For Availability
24
WCI 3201738 WCI 3201738 Contact Us For Availability
× ![]()
