Model Electrolux 30-3648-23-02 RANGE – Common Parts & Diagrams

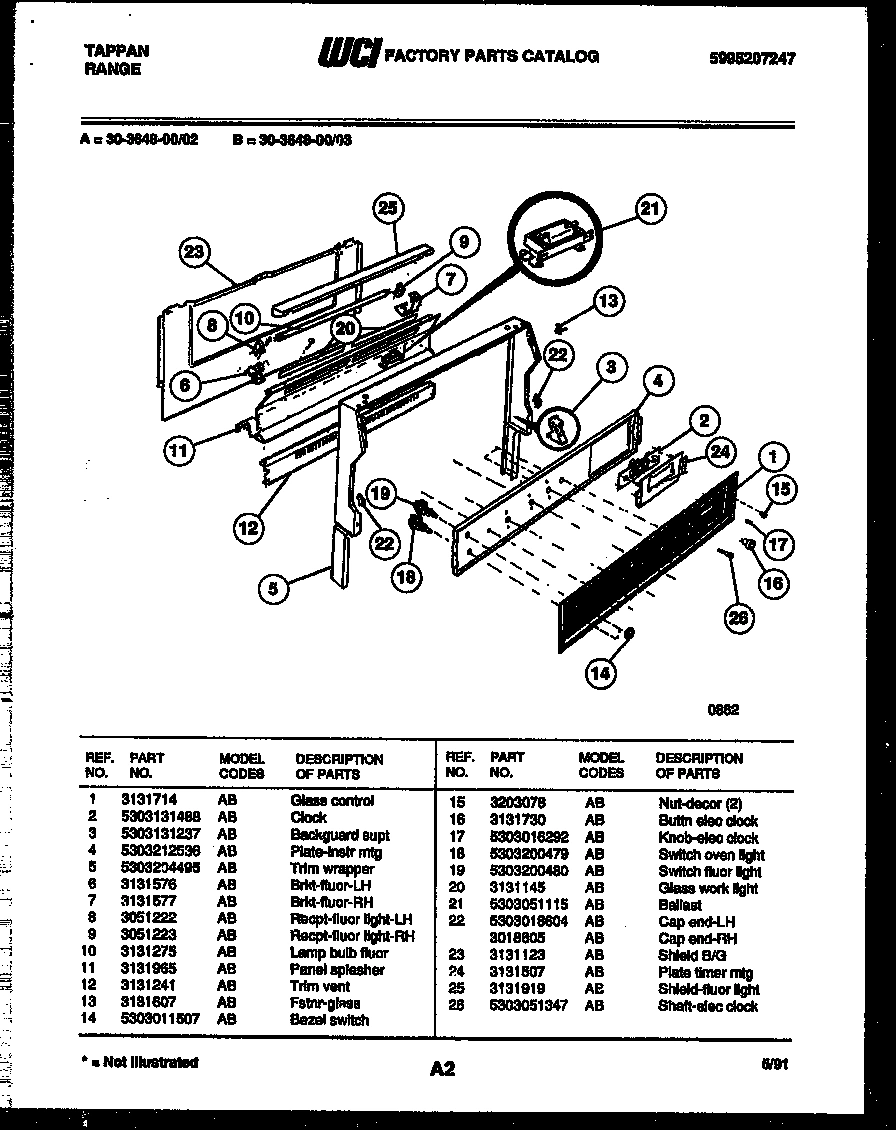

02 - BACKGUARD

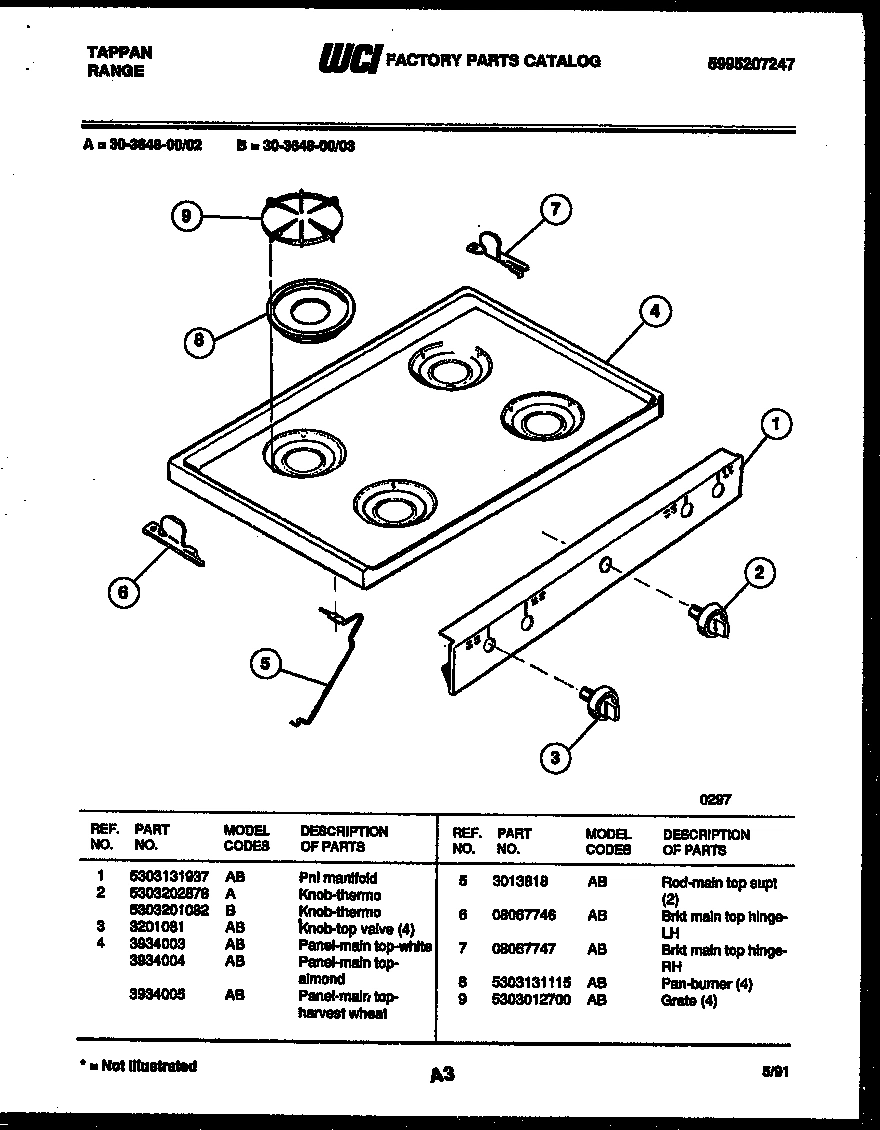

03 - COOKTOP PARTS
04 - BROILER DRAWER PARTS
05 - DOOR PARTS
06 - BURNER, MANIFOLD AND GAS CONTROL
07 - BODY PARTS
Common parts from model Electrolux 30-3648-23-02 RANGE
*42658
INSULATION-OVEN WRAP WCI 3017142 Contact Us For Availability
*42658
INSULATION-BACK WCI 3203541 Contact Us For Availability
*42659
WCI 08067961 WCI 08067961 Contact Us For Availability
*42659
PLATE-OVEN LIGHT WCI 3018615 Contact Us For Availability
*42659
WCI 3131244 WCI 3131244 Contact Us For Availability
*42659
WCI 5303015372 WCI 5303015372 Contact Us For Availability
*42660
WCI 19111220408 WCI 19111220408 Contact Us For Availability
*42660
WCI 3015371 WCI 3015371 Contact Us For Availability
1
SPACER WCI 3014099 Contact Us For Availability
1
WCI 5303131937 WCI 5303131937 Contact Us For Availability
1
BRKT-BROIL HINGE-LH WCI 3200673 Contact Us For Availability
1
WCI 5303209518 WCI 5303209518 Contact Us For Availability
1
BRKT REGULATOR WCI 3131183 Contact Us For Availability
1A
BRKT-BROIL HINGE-RH WCI 3018860 Contact Us For Availability
2
WCI 5303202878 WCI 5303202878 Contact Us For Availability
2
FSTNR - PUSH NUT WCI 3131386 Contact Us For Availability
2
HANDLE WCI 5303131256 Contact Us For Availability
2
WCI 5303018606 WCI 5303018606 Contact Us For Availability
3
WCI 3201081 WCI 3201081 Contact Us For Availability
3
WCI 3018608 WCI 3018608 Contact Us For Availability
3
GLASS-FRONT, BLACK WCI 3051152 Contact Us For Availability
3
TUBE-ALUM REG/MANIF PIPE WCI 5303208495 Contact Us For Availability
4
WCI 5303131405 No Longer Available
4
PANEL-MAIN TOP-ALMOND WCI 3934004 Contact Us For Availability
4
PIN, HINGE (2) WCI 3018614 Contact Us For Availability
4
WCI 3131720 WCI 3131720 Contact Us For Availability
5
ROD-MAIN TOP SUPT. (2) WCI 3013818 Contact Us For Availability
5
SPRING-BROIL-LH-C TYPE WCI 3018618 Contact Us For Availability
5
WCI 3131266 WCI 3131266 Contact Us For Availability
5
BRKT, OVEN BURNER SUPT WCI 3018603 Contact Us For Availability
5
CHANNEL-DOOR HINGE (2) WCI 5303131569 Contact Us For Availability
5A
SPRING-BROIL-RH-C TYPE WCI 3018619 Contact Us For Availability
6
BRKT-MAIN TOP HINGE LH WCI 08067746 Contact Us For Availability
6
COVER-HINGE CUTOUT (2) WCI 3131570 Contact Us For Availability
6
LINER-BROIL DRWR WCI 3202803 Contact Us For Availability
6
INSULATION-OVEN DOOR WCI 3205524 Contact Us For Availability
6
WCI 3131571 WCI 3131571 Contact Us For Availability
7
BRKT-MAIN TOP HINGE RH WCI 08067747 Contact Us For Availability
7
PNL BROIL-ALMOND WCI 3131134 Contact Us For Availability
7
GLASS-OVEN DOOR (REAR) WCI 3018609 Contact Us For Availability
7
TUBE-ALUM VALVE/THERMO WCI 3018624 Contact Us For Availability
7
WCI 3203082 WCI 3203082 Contact Us For Availability
8
PAN-BURNER (4) WCI 5303131115 No Longer Available
8
WCI 5303200332 WCI 5303200332 Contact Us For Availability
8
WCI 3131125 WCI 3131125 Contact Us For Availability
8
WCI 3131323 WCI 3131323 Contact Us For Availability
8
WCI 3131660 WCI 3131660 Contact Us For Availability
9
FSTNR, SPACER (2) WCI 3131387 Contact Us For Availability
9
WCI 08067998 WCI 08067998 Contact Us For Availability
9
WCI 3018623 WCI 3018623 Contact Us For Availability
9
CLIP-WIRE WCI 3011813 Contact Us For Availability
10
WCI 3018610 No Longer Available
10
LAMP BULB FLUOR. WCI 3131275 Contact Us For Availability
10
SCREW, HANDLE (2) WCI 3016851 Contact Us For Availability
10
WCI 3131904 WCI 3131904 Contact Us For Availability
11
WCI 5303131356 WCI 5303131356 Contact Us For Availability
11
WCI 5303015373 WCI 5303015373 Contact Us For Availability
11
WCI 3203265 WCI 3203265 Contact Us For Availability
12
PAN-BROILER WCI 5303013568 Contact Us For Availability
12
FSTNR-SPACER (3) WCI 5303131254 Contact Us For Availability
12
PILOT WCI 3018613 Contact Us For Availability
12
WCI 08067757 WCI 08067757 Contact Us For Availability
12A
INSULATION-BROILER DRWR (NON-ILLUSTRATED) WCI 5303131258 Contact Us For Availability
12C
SCREW (2) (NON-ILLUSTRATED) WCI 3013964 Contact Us For Availability
13
WCI 3131153 WCI 3131153 Contact Us For Availability
13
WCI 3934033 WCI 3934033 Contact Us For Availability
13
WCI 5303934047 WCI 5303934047 Contact Us For Availability
13
WCI 3011597 WCI 3011597 Contact Us For Availability
14
WCI 3018607 WCI 3018607 Contact Us For Availability
14
FSTNR, PUSH IN (6) WCI 3131974 Contact Us For Availability
14
WCI 3131454 WCI 3131454 Contact Us For Availability
14
B/S PNL-HARVEST WHEAT WCI 3131477 Contact Us For Availability
14
WCI 5303131227 WCI 5303131227 Contact Us For Availability
14A
WCI 3131257 WCI 3131257 Contact Us For Availability
14A
WCI 3131453 WCI 3131453 Contact Us For Availability
14A
B/S PNL-HARVEST WHEAT-LH WCI 3131478 Contact Us For Availability
15
SCREW-LEVELING WCI 5303203397 Contact Us For Availability
15
WCI 5303017931 WCI 5303017931 Contact Us For Availability
15A
SCREW (3) (NON-ILLUSTRATED) WCI 3131573 Contact Us For Availability
15A
WCI 08010570 WCI 08010570 Contact Us For Availability
16
WCI 08067799 WCI 08067799 Contact Us For Availability
16
WCI 3201085 WCI 3201085 Contact Us For Availability
17
KNOB-ELEC CLOCK WCI 5303016292 Contact Us For Availability
17
WCI 5303201080 WCI 5303201080 Contact Us For Availability
17
WCI 5303212540 WCI 5303212540 Contact Us For Availability
18
WCI 5303200479 WCI 5303200479 Contact Us For Availability
18
WCI 5303018348 WCI 5303018348 Contact Us For Availability
19
SWITCH-FLUOR LIGHT WCI 5303200480 Contact Us For Availability
19
WCI 3017932 WCI 3017932 Contact Us For Availability
20
GLASS-WORK LIGHT WCI 3131145 Contact Us For Availability
20
WCI 3017935 WCI 3017935 Contact Us For Availability
20
WCI 3131348 WCI 3131348 Contact Us For Availability
21
WCI 5303051115 WCI 5303051115 Contact Us For Availability
21
WCI 3017933 WCI 3017933 Contact Us For Availability
21
WCI 5303270160 WCI 5303270160 Contact Us For Availability
22
WCI 5303018604 WCI 5303018604 Contact Us For Availability
22
WCI 3017934 WCI 3017934 Contact Us For Availability
22A
WCI 3018605 WCI 3018605 Contact Us For Availability
23
SHIELD B/G WCI 3131123 Contact Us For Availability
23
WCI 3013279 WCI 3013279 Contact Us For Availability
24
WCI 5303012879 WCI 5303012879 Contact Us For Availability
24
WCI 3131507 WCI 3131507 Contact Us For Availability
25
WCI 3131919 WCI 3131919 Contact Us For Availability
25
WCI 3206267 WCI 3206267 Contact Us For Availability
26
WCI 5303051347 WCI 5303051347 Contact Us For Availability
26
RETAINER-IGNITION WCI 3018617 Contact Us For Availability
27
BURNER TOP (4) WCI 5303011567 Contact Us For Availability
28
FERRULE (4) WCI 08067945 Contact Us For Availability
29
WCI 3131261 WCI 3131261 Contact Us For Availability
30
WCI 3131404 WCI 3131404 Contact Us For Availability
31
WCI 3131403 WCI 3131403 Contact Us For Availability
32
WCI 3018621 WCI 3018621 Contact Us For Availability
33
NUT COMPRESSION (4) WCI 3131148 Contact Us For Availability
33A
SCREW, VALVE MTG (NON-ILLUSTRATED) WCI 3204499 Contact Us For Availability
34
FERRULE-PILOT WCI 5303201277 Contact Us For Availability
35
NUT-COMPRESSION-PILOT WCI 3201276 Contact Us For Availability
× ![]()
