Model Electrolux 30-3349-00-02 RANGE – Common Parts & Diagrams

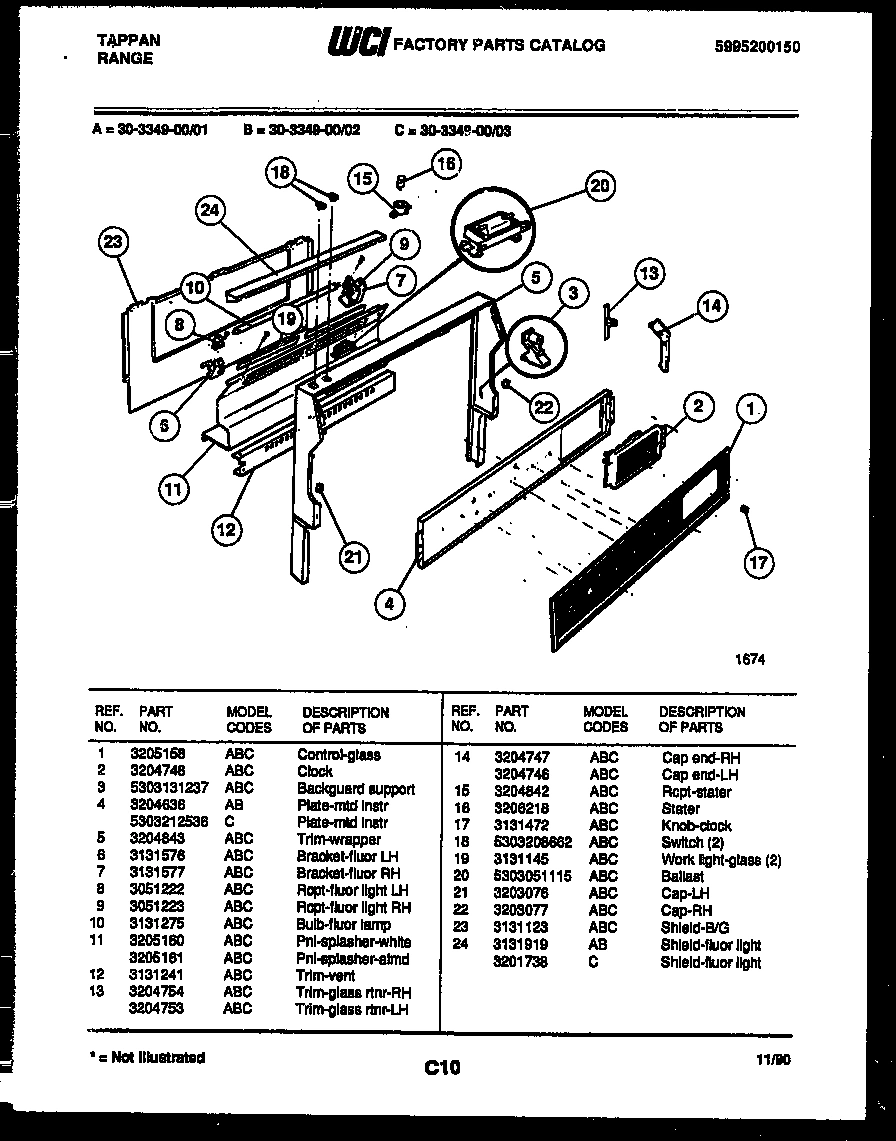

02 - BACKGUARD

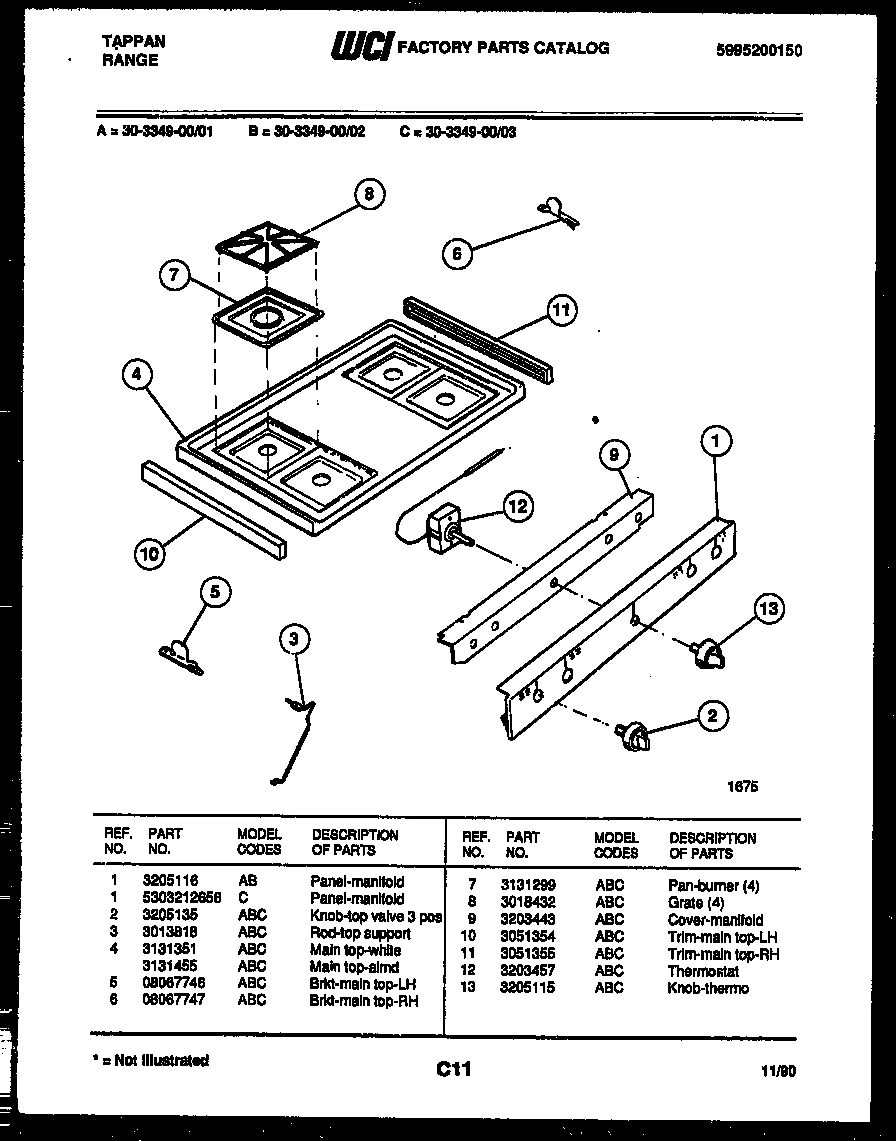

03 - COOKTOP PARTS

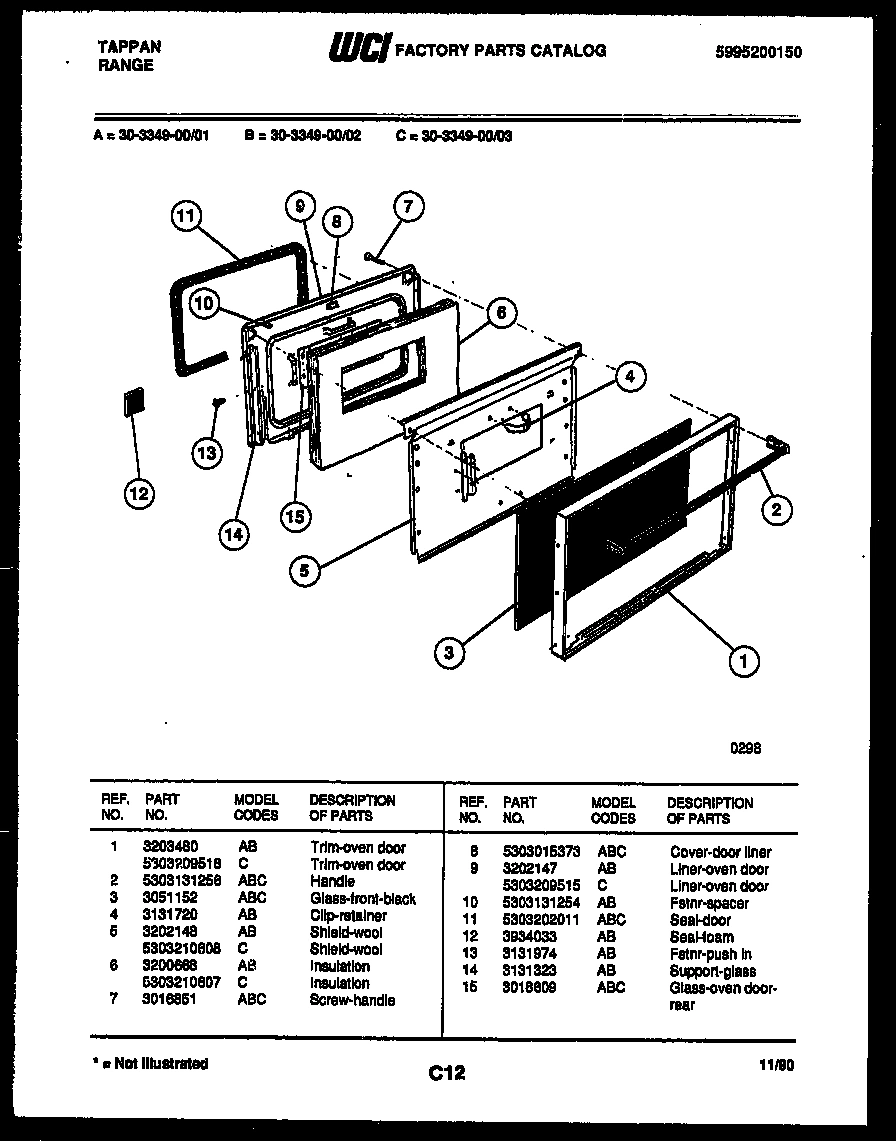

04 - DOOR PARTS

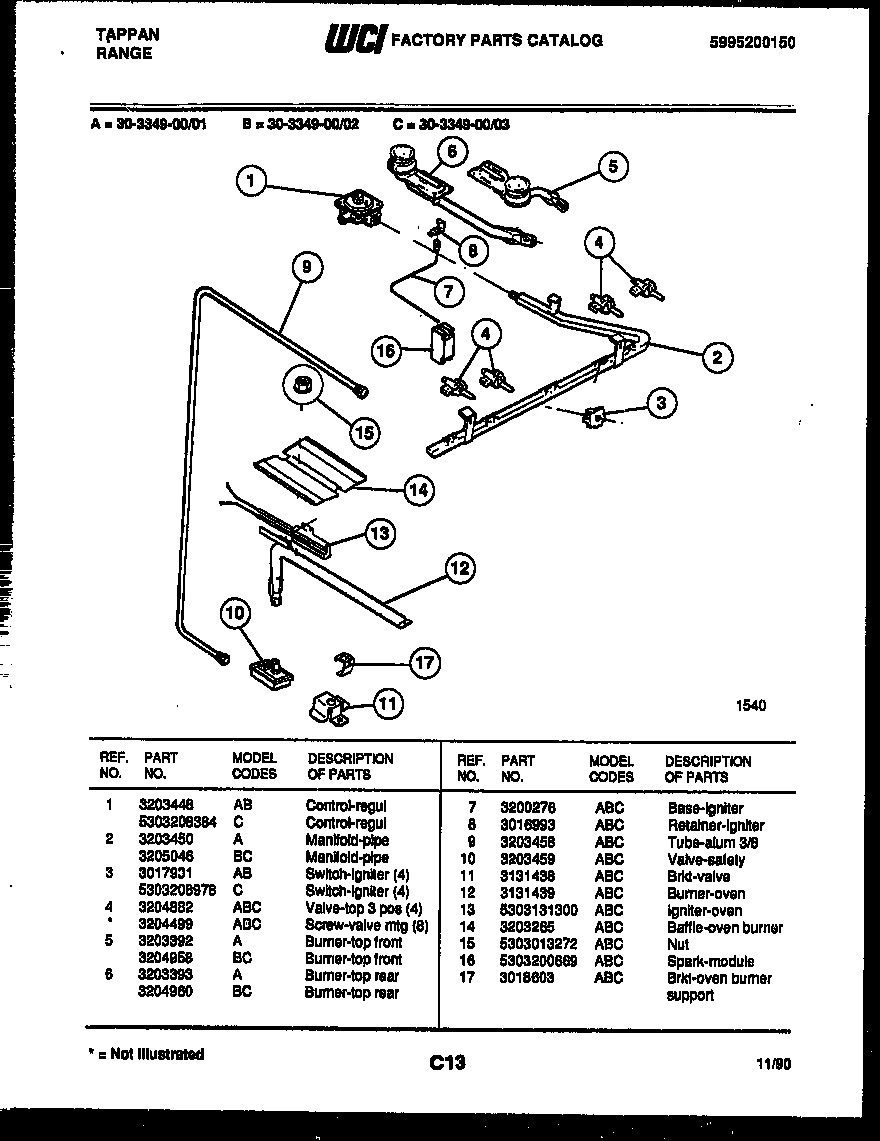

05 - BURNER, MANIFOLD AND GAS CONTROL
06 - BROILER DRAWER PARTS

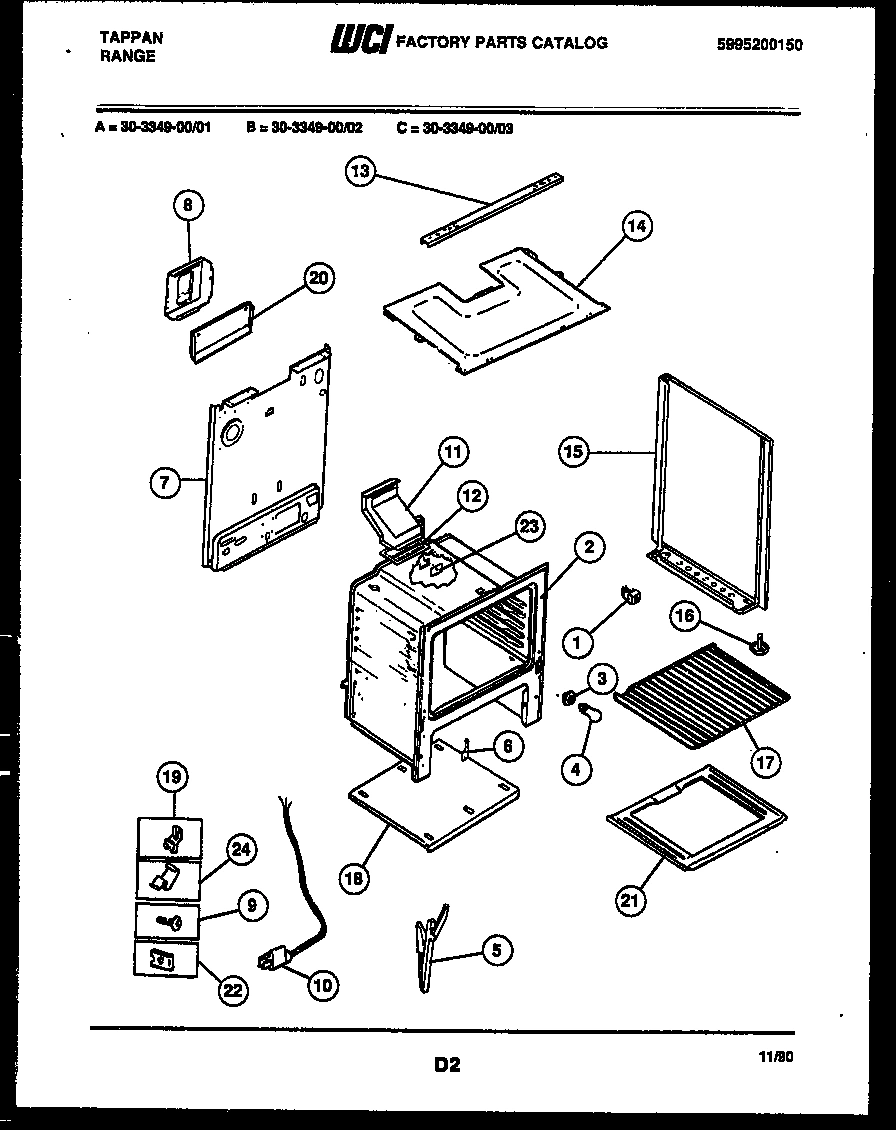

07 - BODY PARTS
Common parts from model Electrolux 30-3349-00-02 RANGE
*25803
WCI 5303208989 WCI 5303208989 Contact Us For Availability
*25807
WCI 3131244 WCI 3131244 Contact Us For Availability
*25808
HOUSING-OVEN LIGHT WCI 3051511 Contact Us For Availability
*25808
WCI 19100200002 WCI 19100200002 Contact Us For Availability
*25808
WCI 3202799 WCI 3202799 Contact Us For Availability
*25808
SHIELD-TOP WCI 3203455 Contact Us For Availability
*25808
WCI 3934056 WCI 3934056 Contact Us For Availability
*25808
WCI 5303015372 WCI 5303015372 Contact Us For Availability
1
SPACER, B/S (8) WCI 3014099 Contact Us For Availability
1
WCI 3205116 WCI 3205116 Contact Us For Availability
1
WCI 3203480 WCI 3203480 Contact Us For Availability
1
CONTROL - REGUL WCI 3203448 Contact Us For Availability
1
BRKT-BROILER HNG (LH) WCI 3200673 Contact Us For Availability
1A
BRKT-BROILER HNG (RH) WCI 3018860 Contact Us For Availability
2
WCI 3205135 WCI 3205135 Contact Us For Availability
2
HANDLE WCI 5303131256 Contact Us For Availability
2
WCI 3205046 WCI 3205046 Contact Us For Availability
2
FASTENER, PUSH NUT WCI 3131386 Contact Us For Availability
3
ROD, TOP SUPPORT WCI 3013818 Contact Us For Availability
3
GLASS-FRONT, BLACK WCI 3051152 Contact Us For Availability
3
WCI 3017931 WCI 3017931 Contact Us For Availability
3
WCI 3018608 WCI 3018608 Contact Us For Availability
4
WCI 3131351 WCI 3131351 Contact Us For Availability
4
WCI 3131455 WCI 3131455 Contact Us For Availability
4
WCI 3131720 WCI 3131720 Contact Us For Availability
4
VALVE - TOP 3 POS (4) WCI 3204882 Contact Us For Availability
4
WCI 3018614 WCI 3018614 Contact Us For Availability
4A
SCREW-VALVE MTG (8) (NON-ILLUSTRATED) WCI 3204499 Contact Us For Availability
5
BRKT, MAIN TOP (LH) WCI 08067746 Contact Us For Availability
5
WCI 3202148 WCI 3202148 Contact Us For Availability
5
SPRING-BROILER, LH WCI 3018618 Contact Us For Availability
5
CHANNEL-DR HNG (2) WCI 5303131569 Contact Us For Availability
5A
SPRING-BROILER, RH WCI 3018619 Contact Us For Availability
6
COVER HNG. CUTOUT (2) WCI 3131570 Contact Us For Availability
6
BRKT, MAIN TOP (RH) WCI 08067747 Contact Us For Availability
6
WCI 3200668 WCI 3200668 Contact Us For Availability
6
LINER - BROILER DRWR WCI 3202803 Contact Us For Availability
7
WCI 3131299 WCI 3131299 Contact Us For Availability
7
WCI 3016851 WCI 3016851 Contact Us For Availability
7
BASE-IGNITER WCI 3200276 Contact Us For Availability
7
PANEL - BROILER WHITE WCI 3131117 Contact Us For Availability
7
PANEL - BROILER ALMD WCI 3131134 Contact Us For Availability
7
WCI 3203082 WCI 3203082 Contact Us For Availability
8
GRATE (4) WCI 3018432 Contact Us For Availability
8
WCI 5303015373 WCI 5303015373 Contact Us For Availability
8
WCI 3201268 WCI 3201268 Contact Us For Availability
8
WCI 3131660 WCI 3131660 Contact Us For Availability
9
WCI 3203443 WCI 3203443 Contact Us For Availability
9
WCI 3202147 WCI 3202147 Contact Us For Availability
9
WCI 3203458 WCI 3203458 Contact Us For Availability
9
FSTNR - NYLON SPACER WCI 3131387 Contact Us For Availability
10
BULB - FLUOR LAMP WCI 3131275 Contact Us For Availability
10
WCI 3051354 WCI 3051354 Contact Us For Availability
10
FSTNR-SPACER WCI 5303131254 Contact Us For Availability
10
GLIDE-BROILER WCI 3018610 Contact Us For Availability
11
WCI 3051355 WCI 3051355 Contact Us For Availability
11
BRKT.-VALVE WCI 3131438 Contact Us For Availability
11
WCI 5303131356 WCI 5303131356 Contact Us For Availability
11
WCI 3131904 WCI 3131904 Contact Us For Availability
12
WCI 3131439 WCI 3131439 Contact Us For Availability
12
WCI 3203457 WCI 3203457 Contact Us For Availability
12
WCI 3934033 WCI 3934033 Contact Us For Availability
12
PAN-BROILER WCI 5303013568 Contact Us For Availability
12A
INSUL - BROILER DRAWER (NON-ILLUSTRATED) WCI 5303131258 Contact Us For Availability
12C
SCREW (2) (NON-ILLUSTRATED) WCI 3013964 Contact Us For Availability
13
KNOB-THERMO WCI 3205115 Contact Us For Availability
13
FSTNR PUSH IN WCI 3131974 Contact Us For Availability
13
CHANNEL-BROILER WCI 3131153 Contact Us For Availability
13
CHNL-BURNER & SPRT WCI 3203441 Contact Us For Availability
14
SUPPORT, GLASS WCI 3131323 Contact Us For Availability
14
WCI 3203265 WCI 3203265 Contact Us For Availability
14
WCI 3204962 WCI 3204962 Contact Us For Availability
15
WCI 3204842 WCI 3204842 Contact Us For Availability
15
GLASS-OVEN DOOR (REAR) WCI 3018609 Contact Us For Availability
15
PNL, B/S RH (WHITE) WCI 3205623 Contact Us For Availability
15
PNL-B/S (RH ALMD) WCI 3205624 Contact Us For Availability
15A
PNL, B/S LH (WHITE) WCI 3205620 Contact Us For Availability
15A
PNL, B/S LH (ALMD) WCI 3205621 Contact Us For Availability
16
WCI 3206218 WCI 3206218 Contact Us For Availability
16
WCI 5303203397 WCI 5303203397 Contact Us For Availability
17
KNOB-CLOCK WCI 3131472 Contact Us For Availability
17
BRKT-OVEN BURNER SUPPORT WCI 3018603 Contact Us For Availability
18
WCI 3011519 WCI 3011519 Contact Us For Availability
19
WORK LIGHT - GLASS (2) WCI 3131145 Contact Us For Availability
20
WCI 5303051115 WCI 5303051115 Contact Us For Availability
20
WCI 3131348 WCI 3131348 Contact Us For Availability
21
CAP-LH WCI 3203076 Contact Us For Availability
21
WCI 5303270160 WCI 5303270160 Contact Us For Availability
22
CAP-RH WCI 3203077 Contact Us For Availability
23
WCI 3018607 WCI 3018607 Contact Us For Availability
23
SHIELD B/G WCI 3131123 Contact Us For Availability
23A
INSUL - OVEN WRAP (NON-ILLUSTRATED) WCI 3017142 Contact Us For Availability
23B
INSUL - OVEN BACK (NON-ILLUSTRATED) WCI 3203541 Contact Us For Availability
23C
WCI 08067961 WCI 08067961 Contact Us For Availability
24
WCI 3131919 WCI 3131919 Contact Us For Availability
× ![]()
