Model Electrolux 30-3348-23-03 RANGE – Common Parts & Diagrams
02 - BACKGUARD
03 - COOKTOP PARTS

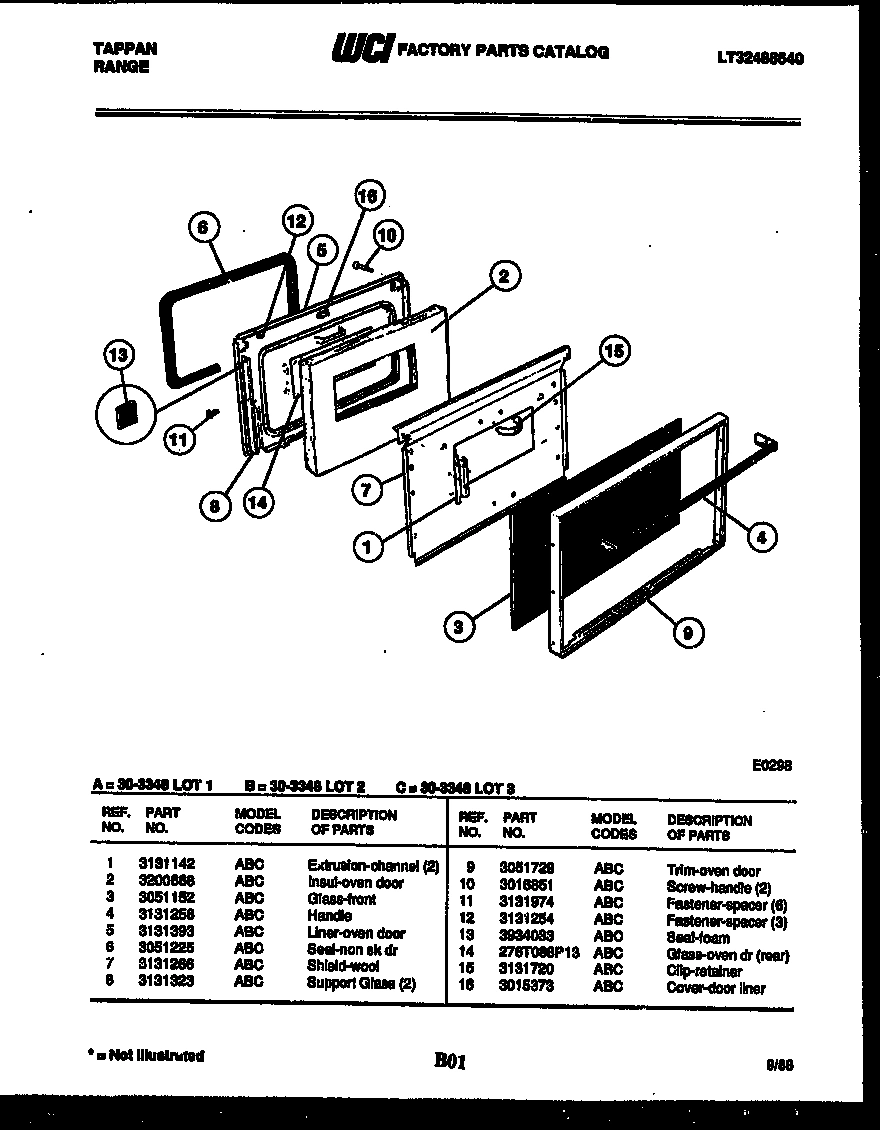

04 - DOOR PARTS

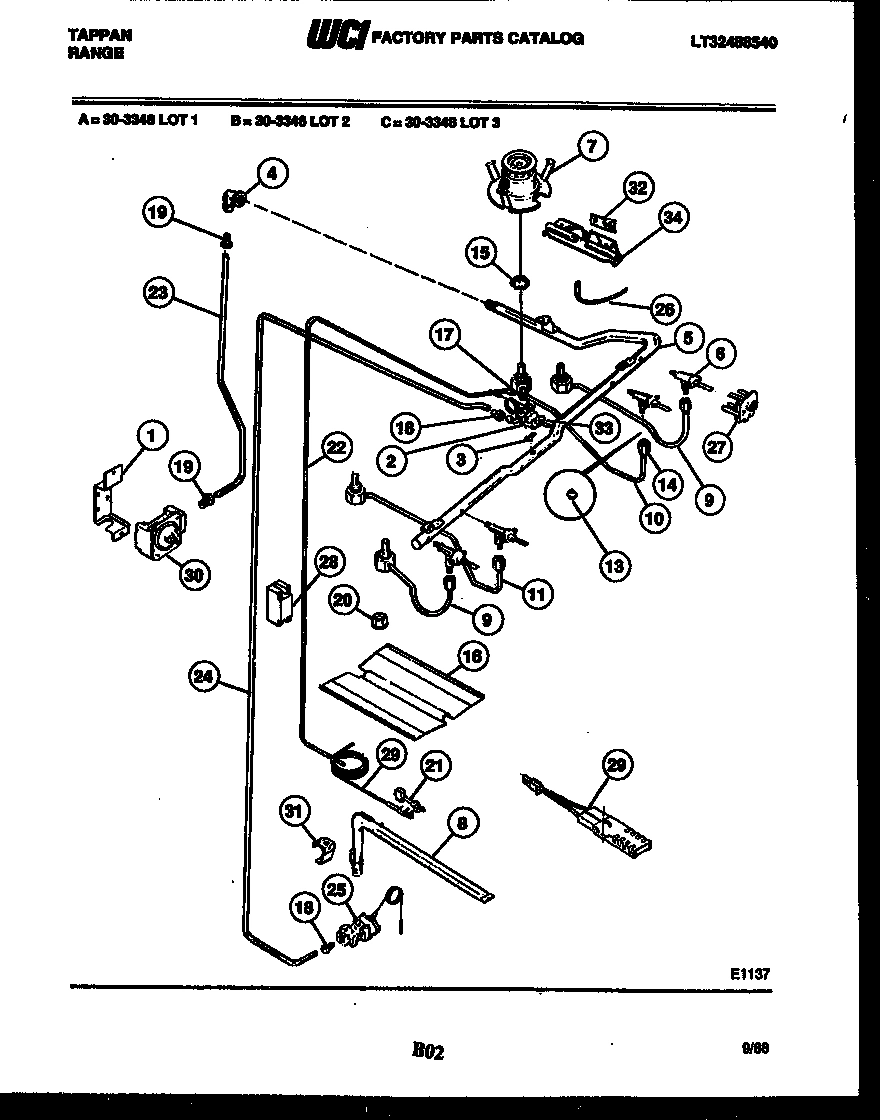

05 - BURNER, MANIFOLD AND GAS CONTROL

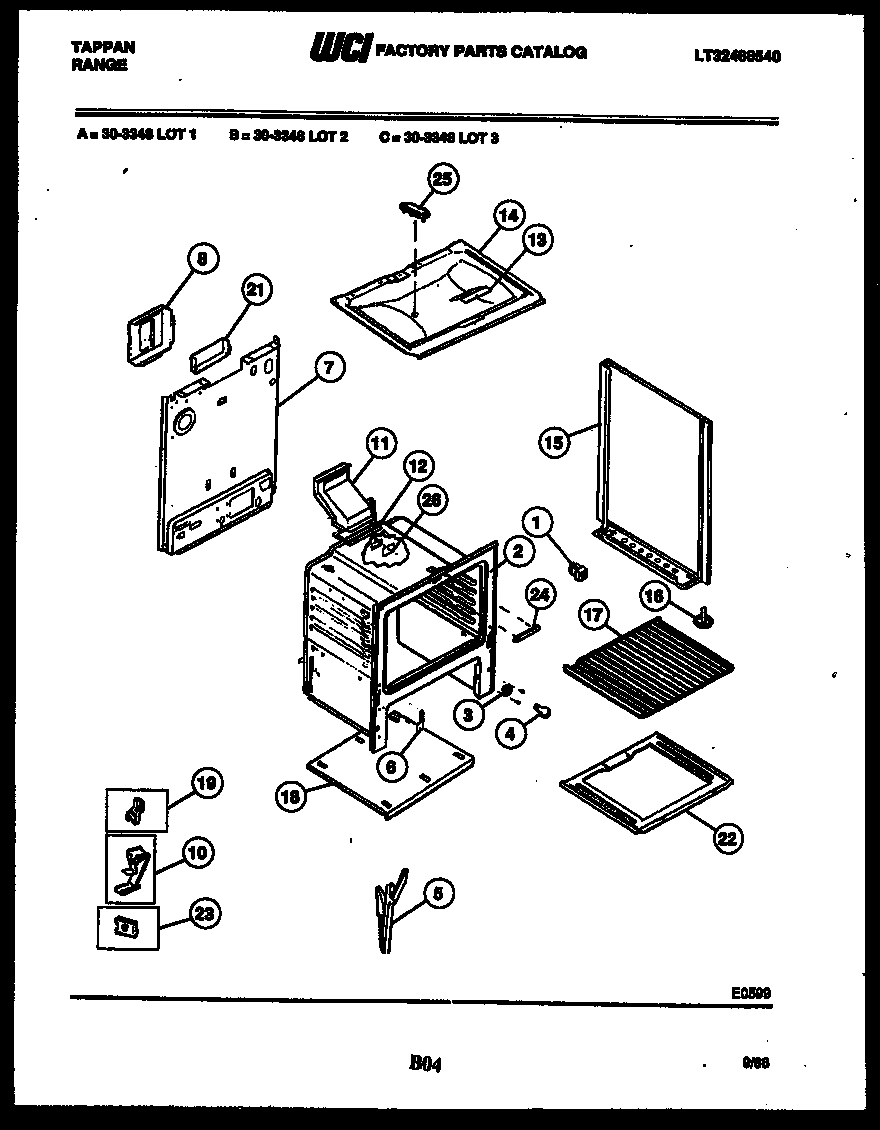

06 - BODY PARTS

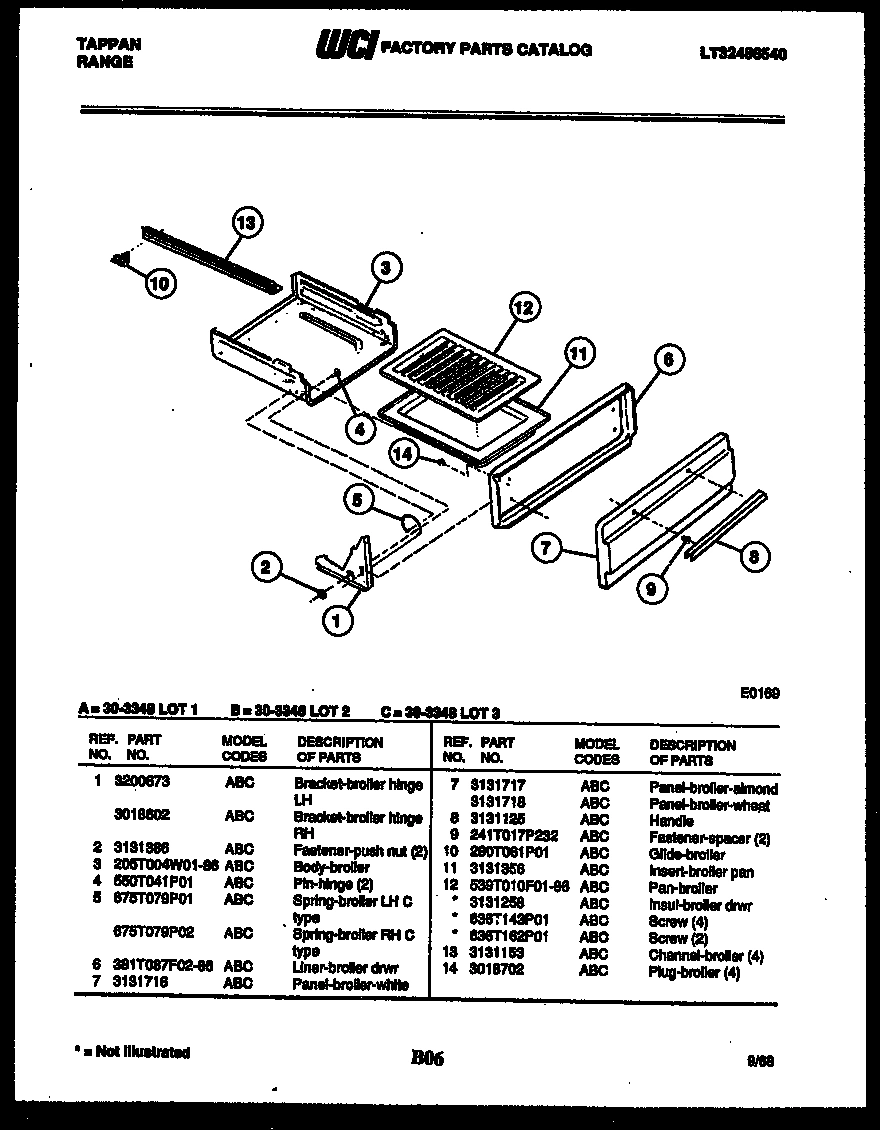

07 - BROILER DRAWER PARTS
Common parts from model Electrolux 30-3348-23-03 RANGE
*17082
WCI 612T124P01 WCI 612T124P01 Contact Us For Availability
*17088
WCI 3051420 WCI 3051420 Contact Us For Availability
1
WCI 3131937 WCI 3131937 Contact Us For Availability
1
WCI 3131142 WCI 3131142 Contact Us For Availability
1
WCI 665T188P02 WCI 665T188P02 Contact Us For Availability
1
WCI 3200673 WCI 3200673 Contact Us For Availability
1A
WCI 3018602 WCI 3018602 Contact Us For Availability
2
WCI 3201082 WCI 3201082 Contact Us For Availability
2
INSUL - OVEN DOOR WCI 3200668 Contact Us For Availability
2
WCI 3201084 WCI 3201084 Contact Us For Availability
2
WCI 3131386 WCI 3131386 Contact Us For Availability
3
WCI 3200882 WCI 3200882 Contact Us For Availability
3
WCI 3201081 WCI 3201081 Contact Us For Availability
3
WCI 3051152 WCI 3051152 Contact Us For Availability
3
BODY, BROILER WCI 205T004W01-86 Contact Us For Availability
4
PANEL-MAIN TOP-ALMD WCI 3934004 Contact Us For Availability
4
WCI 3131256 WCI 3131256 Contact Us For Availability
4
PIN, HINGE (2) WCI 550T041P01 Contact Us For Availability
5
ROD - MAIN TOP SPRT WCI 618T038P05 Contact Us For Availability
5
WCI 3131393 WCI 3131393 Contact Us For Availability
5
WCI 3201083 WCI 3201083 Contact Us For Availability
5
WCI 3131569 WCI 3131569 Contact Us For Availability
5
SPRING, BROILER, LH (C TYPE) WCI 675T079P01 Contact Us For Availability
5A
SPRING, BROILER, RH (C TYPE) WCI 675T079P02 Contact Us For Availability
6
COVER-HINGE CUTOUT (2) WCI 3131570 Contact Us For Availability
6
BRACKET, MAIN TOP HINGE LH WCI 3011558 Contact Us For Availability
6
LINER-BROILER DRWR WCI 381T087F02-86 Contact Us For Availability
7
BRACKET, MAIN TOP HINGE RH WCI 3011559 Contact Us For Availability
7
WCI 3131266 WCI 3131266 Contact Us For Availability
7
WCI 079T032S02 WCI 079T032S02 Contact Us For Availability
7
WCI 3131567 WCI 3131567 Contact Us For Availability
7
PANEL-BROILER-ALMOND WCI 3131717 Contact Us For Availability
8
WCI 3131439 WCI 3131439 Contact Us For Availability
8
BRACKET - FLUOR RH WCI 3131577 Contact Us For Availability
8
WCI 3131323 WCI 3131323 Contact Us For Availability
8
WCI 3131660 WCI 3131660 Contact Us For Availability
8
WCI 3131125 WCI 3131125 Contact Us For Availability
9
RECEPTACLE - FLUOR LIGHT LH WCI 3051222 Contact Us For Availability
9
WCI 3051728 WCI 3051728 Contact Us For Availability
9
FASTENER, SPACER (2) WCI 241T017P232 Contact Us For Availability
9A
WCI 3017932 WCI 3017932 Contact Us For Availability
9B
WCI 3017933 WCI 3017933 Contact Us For Availability
10
RECEPTACLE - FLUOR LIGHT RH WCI 3051223 Contact Us For Availability
10
SCREW, HANDLE (2) WCI 3016851 Contact Us For Availability
10
WCI 3017934 WCI 3017934 Contact Us For Availability
10
WCI 145T130P01 WCI 145T130P01 Contact Us For Availability
10
GLIDE - BROILER WCI 280T061P01 Contact Us For Availability
11
BULB - FLUOR LAMP WCI 3131275 Contact Us For Availability
11
FASTENER, SPACER (6) WCI 3131974 Contact Us For Availability
11
WCI 3017935 WCI 3017935 Contact Us For Availability
11
WCI 3131904 WCI 3131904 Contact Us For Availability
11
WCI 3131356 WCI 3131356 Contact Us For Availability
12
PANEL, SPLASHER WCI 3131965 Contact Us For Availability
12
FASTENER-SPACER (3) WCI 3131254 Contact Us For Availability
12
PAN, BROILER WCI 539T010F01-86 Contact Us For Availability
12A
INSUL, BROILER DRWR (NON-ILLUSTRATED) WCI 3131258 Contact Us For Availability
12C
WCI 636T162P01 WCI 636T162P01 Contact Us For Availability
13
WCI 3131241 WCI 3131241 Contact Us For Availability
13
WCI 3934033 WCI 3934033 Contact Us For Availability
13
FERRULE WCI 247T074P01 Contact Us For Availability
13
WCI 3131101 WCI 3131101 Contact Us For Availability
13
WCI 3131153 WCI 3131153 Contact Us For Availability
14
FASTENER-GLASS (2) WCI 241T049P01 Contact Us For Availability
14
GLASS-OVEN DR REAR WCI 276T088P13 Contact Us For Availability
14
NUT COMPRESSION (4) WCI 3131148 Contact Us For Availability
14
WCI 095T030F02-86 WCI 095T030F02-86 Contact Us For Availability
14
WCI 3018702 WCI 3018702 Contact Us For Availability
15
BEZEL - SWITCH (2) WCI 3011507 Contact Us For Availability
15
WCI 3131720 WCI 3131720 Contact Us For Availability
15
NUT SPECIAL WCI 479T069P40 Contact Us For Availability
15
B/S PANEL-ALMOND RH WCI 3200790 Contact Us For Availability
15A
B/S PANEL-ALMOND LH WCI 3200793 Contact Us For Availability
16
NUT - DECOR (2) WCI 3051194 Contact Us For Availability
16
WCI 3015373 WCI 3015373 Contact Us For Availability
16
WCI 3131327 WCI 3131327 Contact Us For Availability
16
SCREW - LEVELING (4) WCI 636M004P01 Contact Us For Availability
17
BUTTON ELEC. CLOCK WCI 3131730 Contact Us For Availability
17
WCI 3131404 WCI 3131404 Contact Us For Availability
18
WCI 358T206P01 WCI 358T206P01 Contact Us For Availability
18
WCI 3131403 WCI 3131403 Contact Us For Availability
18
WCI 058T036F02-86 WCI 058T036F02-86 Contact Us For Availability
18A
INSUL - OVEN WRAP (NON-ILLUSTRATED) WCI 3017142 Contact Us For Availability
18B
WCI 3131246 WCI 3131246 Contact Us For Availability
19
WCI 695T211P02 WCI 695T211P02 Contact Us For Availability
19
WCI 3131261 WCI 3131261 Contact Us For Availability
19A
FASTENER, POWER CORD (NON-ILLUSTRATED) WCI 241T017P255 Contact Us For Availability
20
SWITCH - FLUOR LIGHT WCI 3051312 Contact Us For Availability
21
WORK LIGHT - GLASS (2) WCI 3131145 Contact Us For Availability
21
WCI 3131348 WCI 3131348 Contact Us For Availability
22
WCI 3051115 WCI 3051115 Contact Us For Availability
22
WCI 3131180 WCI 3131180 Contact Us For Availability
22A
WCI 554T388F02 WCI 554T388F02 Contact Us For Availability
22B
COVER-POWER CORD, (NON-ILLUSTRATED) WCI 3131244 Contact Us For Availability
23
WCI 123T120P03 WCI 123T120P03 Contact Us For Availability
23
WCI 750T085H09 WCI 750T085H09 Contact Us For Availability
23A
WCI 123T120P04 WCI 123T120P04 Contact Us For Availability
24
SHIELD B/G WCI 3131123 Contact Us For Availability
24
TUBE - ALUM 3/8 WCI 3131448 Contact Us For Availability
25
WCI 3131507 WCI 3131507 Contact Us For Availability
25
WCI 3015371 WCI 3015371 Contact Us For Availability
26
SHIELD - FLUOR LIGHT WCI 3131137 Contact Us For Availability
26
WCI 3131105 WCI 3131105 Contact Us For Availability
26
COVER PLATE WCI 174T297F01 Contact Us For Availability
27
SHAFT, ELECTRIC CLOCK WCI 3051347 Contact Us For Availability
27
WCI 3017931 WCI 3017931 Contact Us For Availability
31
WCI 072T821F01 WCI 072T821F01 Contact Us For Availability
32
WCI 612T121F01 WCI 612T121F01 Contact Us For Availability
33
SWITCH, OVEN IGNITER WCI 695T220P01 Contact Us For Availability
34
WCI 136T355W03 WCI 136T355W03 Contact Us For Availability
× ![]()
