Model Electrolux 30-3342-00-01 RANGE – Common Parts & Diagrams

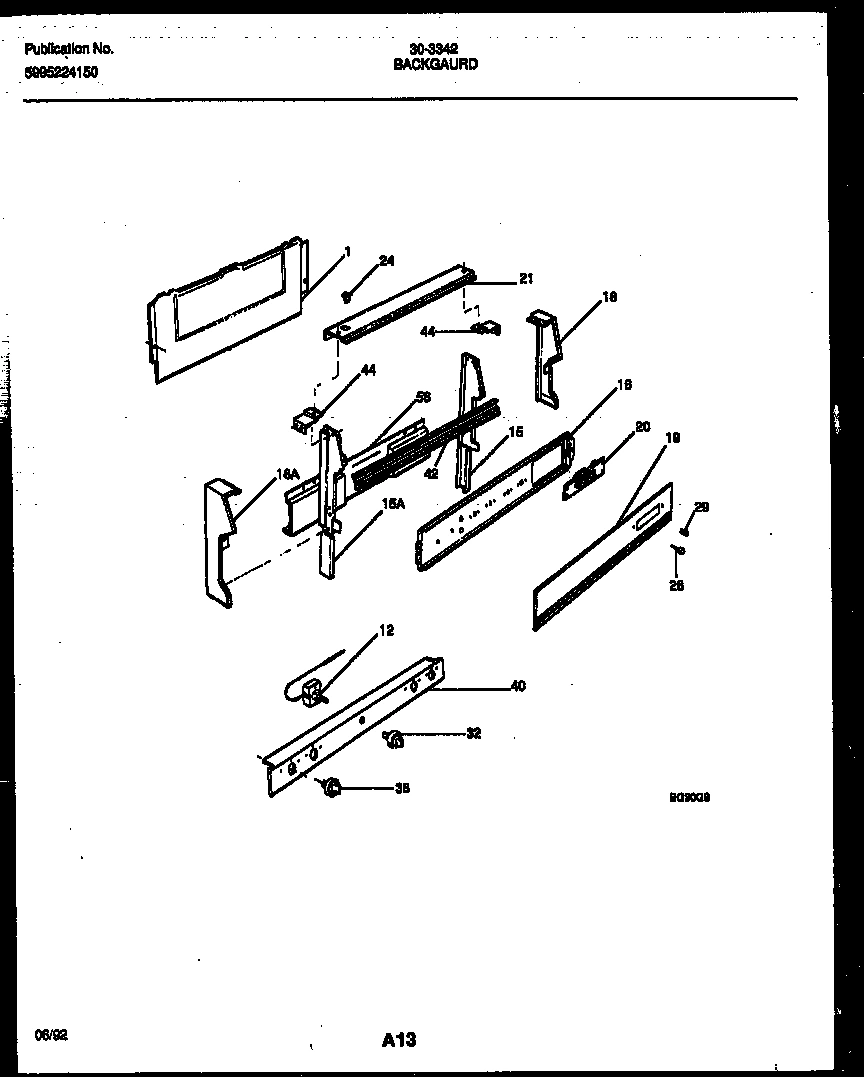

02 - BACKGUARD

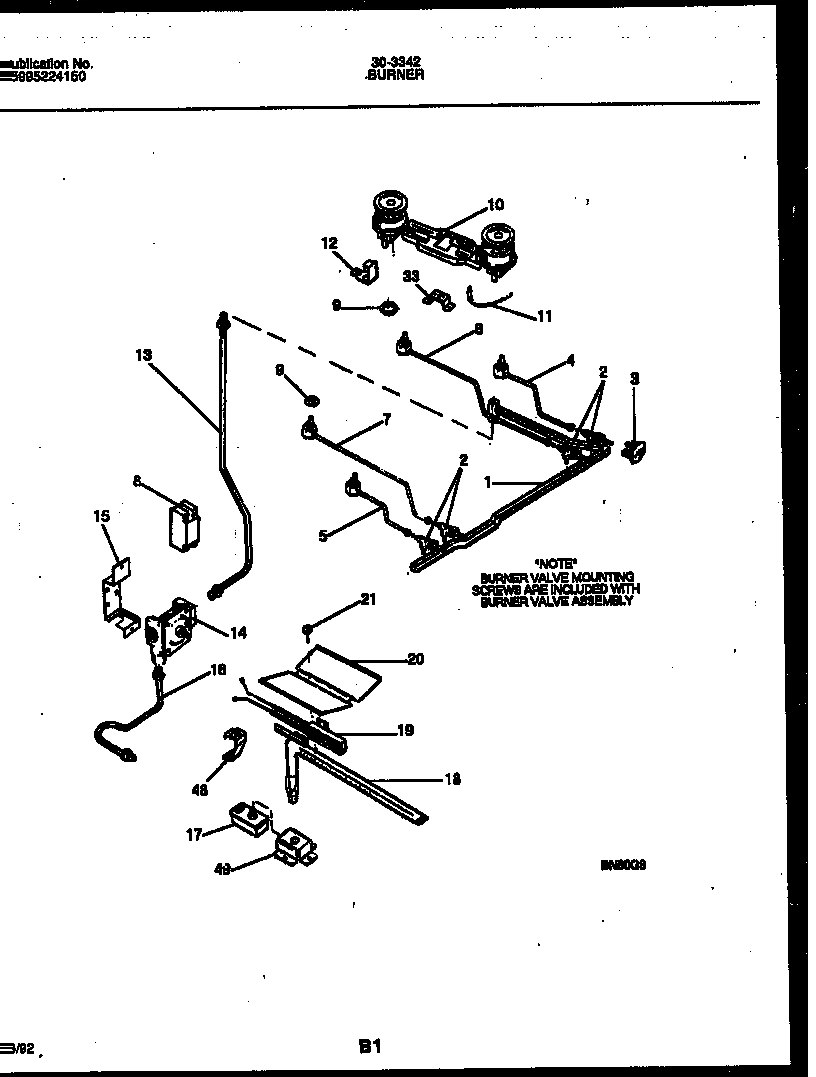

03 - BURNER, MANIFOLD AND GAS CONTROL

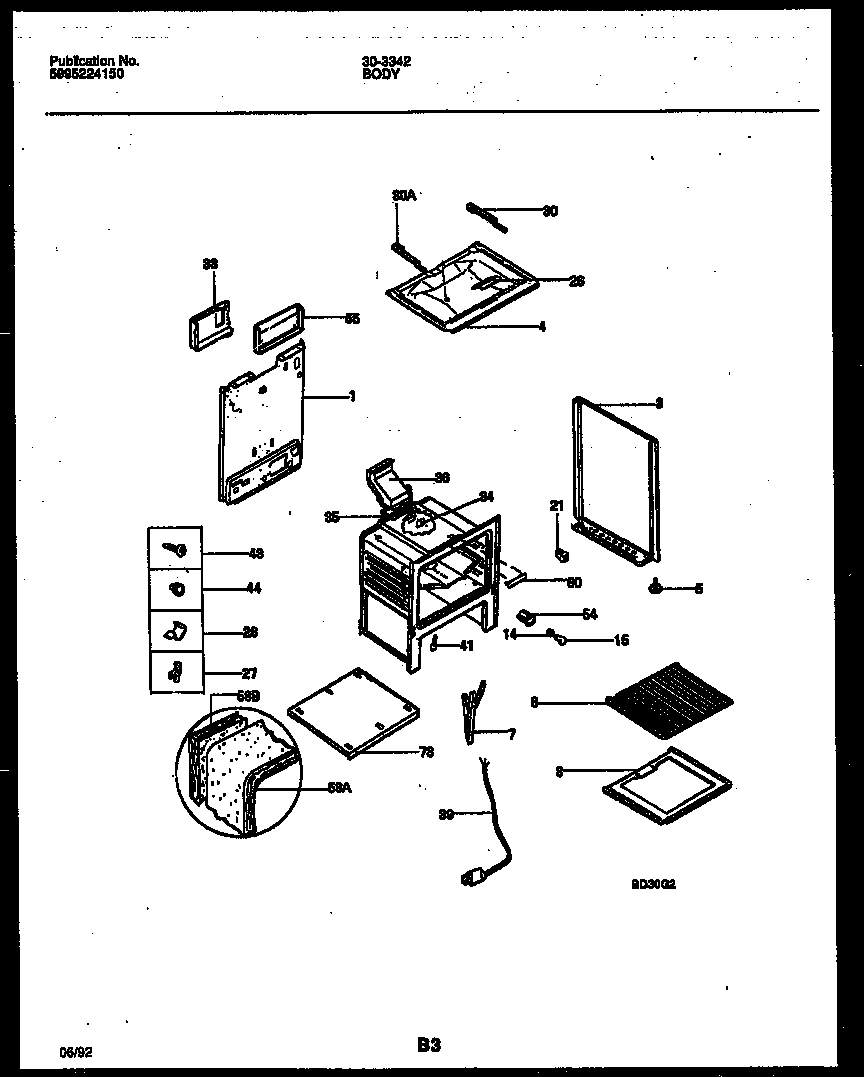

04 - BODY PARTS

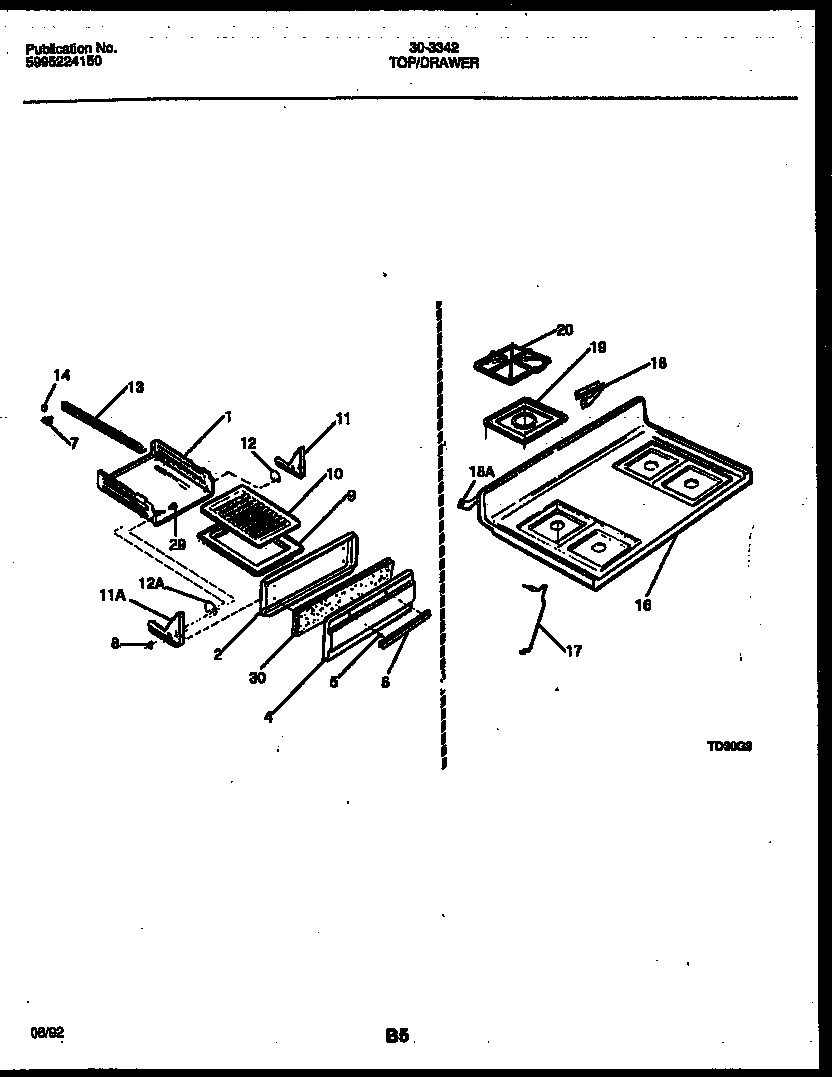

05 - COOKTOP AND BROILER DRAWER PARTS

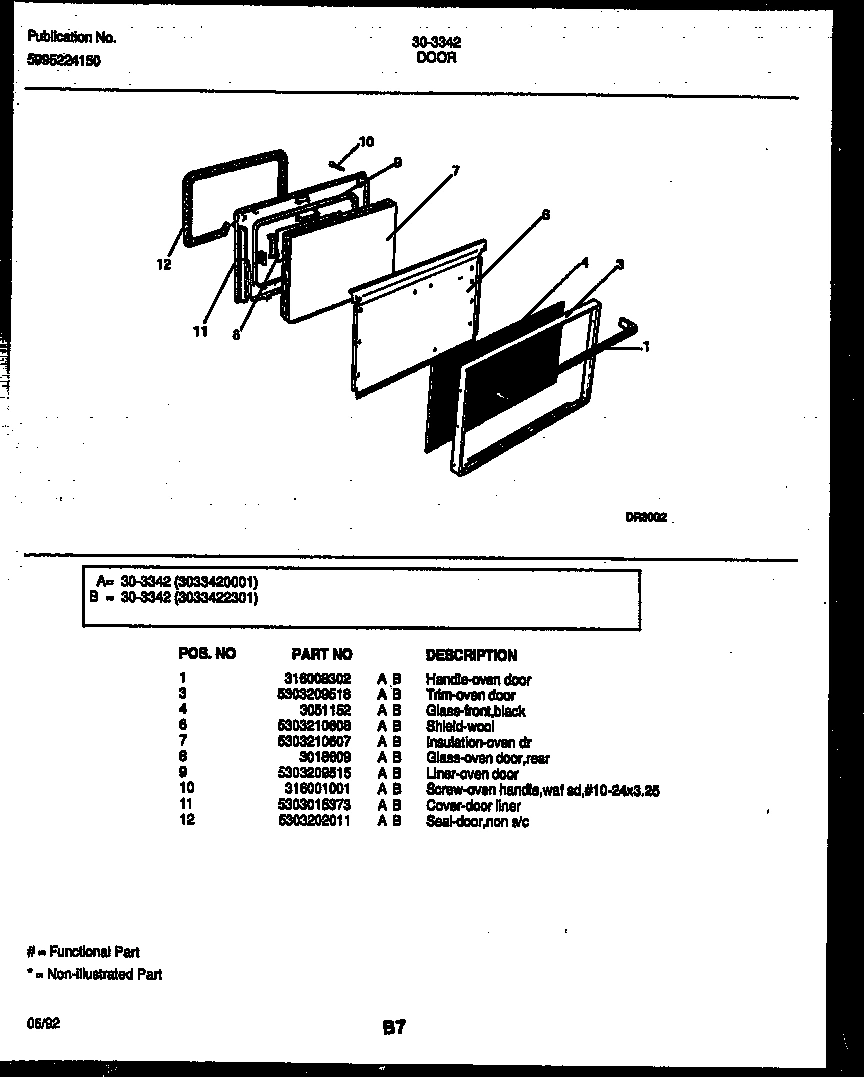

06 - DOOR PARTS
Common parts from model Electrolux 30-3342-00-01 RANGE
1
WCI 3203082 WCI 3203082 Contact Us For Availability
1
DRAWER-BROILER WCI 3018608 Contact Us For Availability
1
WCI 316008302 WCI 316008302 Contact Us For Availability
2
LINER, BROILER DOOR WCI 3202803 Contact Us For Availability
3
SWITCH-IGNITER, (4) WCI 316032000 Contact Us For Availability
3
PANEL-B/SIDE, WHITE, RH WCI 5303269518 Contact Us For Availability
3
WCI 5303209518 WCI 5303209518 Contact Us For Availability
3A
PANEL-B/SIDE, WHITE, LH (NON-ILLUSTRATED) WCI 5303269519 Contact Us For Availability
4
BOX-BURNER WCI 3011597 Contact Us For Availability
4
WCI 3131117 WCI 3131117 Contact Us For Availability
4
GLASS-FRONT, BLACK WCI 3051152 Contact Us For Availability
4A
WCI 08067785 WCI 08067785 Contact Us For Availability
5
SCREW-LEVELING WCI 5303203397 Contact Us For Availability
5
TUBE-BURNER, LF WCI 5303283666 Contact Us For Availability
5
FASTENER, SPACER WCI 3131387 Contact Us For Availability
5A
BRACKET, ANTI-TIP (NON-ILLUSTRATED) WCI 3934056 Contact Us For Availability
5B
NUT-TEE, LEVELING LEG (NON-ILLUSTRATED) WCI 5303288460 Contact Us For Availability
6
TUBE-BURNER, RR WCI 5303283667 Contact Us For Availability
6
WCI 316019501 WCI 316019501 Contact Us For Availability
6
WCI 5303210608 WCI 5303210608 Contact Us For Availability
6A
SCREW-DRAWER HANDLE, 8 TRUSS HEAD, 10-16 X 1/ WCI 5303281651 Contact Us For Availability
7
HINGE-OVEN DOOR WCI 316007001 Contact Us For Availability
7
TUBE-BURNER, LR WCI 5303283668 Contact Us For Availability
7
GLIDE-BROILER WCI 3018610 Contact Us For Availability
7
INSULATION-OVEN DR WCI 5303210607 Contact Us For Availability
8
PANEL-OVEN BOTTOM WCI 5303212540 Contact Us For Availability
8
FASTENER, PUSH NUT WCI 3131386 Contact Us For Availability
8
GLASS-OVEN DOOR (REAR) WCI 3018609 Contact Us For Availability
9
WCI 3013279 WCI 3013279 Contact Us For Availability
9
PAN-BROILER WCI 5303013568 Contact Us For Availability
9
WCI 5303209515 WCI 5303209515 Contact Us For Availability
10
BURNER-TOP, DOUBLE, (4) WCI 5303131147 Contact Us For Availability
10
WCI 5303131356 WCI 5303131356 Contact Us For Availability
10
WCI 316001001 WCI 316001001 Contact Us For Availability
11
IGNITER-TOP BURNER, BASE, (2) WCI 3200276 Contact Us For Availability
11
WCI 3018860 WCI 3018860 Contact Us For Availability
11
WCI 5303015373 WCI 5303015373 Contact Us For Availability
11A
BRACKET-BROILER HINGE, LH, (4) WCI 3200673 Contact Us For Availability
12
SPRING-BROILER, RH WCI 3018619 Contact Us For Availability
12A
SPRING-BROILER, LH WCI 3018618 Contact Us For Availability
13
TUBING-REG./MANF. PIPE WCI 5303208495 Contact Us For Availability
13
CHANNEL-BROILER WCI 3131153 Contact Us For Availability
14
WCI 3206216 WCI 3206216 Contact Us For Availability
16
WCI 5303285552 WCI 5303285552 Contact Us For Availability
18
WCI 3131439 WCI 3131439 Contact Us For Availability
18
HINGE-MAIN TOP (RH) WCI 5303273062 Contact Us For Availability
18A
HINGE-MAIN TOP (LH) WCI 5303273063 Contact Us For Availability
19
PAN BURNER WCI 3131299 Contact Us For Availability
20
WCI 5303272852 WCI 5303272852 Contact Us For Availability
20
WCI 3203265 WCI 3203265 Contact Us For Availability
21
WCI 3014099 WCI 3014099 Contact Us For Availability
26
WCI 08067757 WCI 08067757 Contact Us For Availability
28
CLIP-WIRE WCI 3011813 Contact Us For Availability
29
KNOB-CLOCK, BUTTON/SLIDE WCI 5303272305 Contact Us For Availability
29
WCI 3018614 WCI 3018614 Contact Us For Availability
30
BRACKET-MAINTOP HNG, RH WCI 5303283574 Contact Us For Availability
30
INSULATION-BRL DRWR WCI 5303131258 Contact Us For Availability
30A
BRACKET-MAINTOP HNG, LH WCI 5303283575 Contact Us For Availability
33
BRACKET BURNER MTG WCI 3200277 Contact Us For Availability
33
WCI 3131660 WCI 3131660 Contact Us For Availability
34
WCI 3018607 WCI 3018607 Contact Us For Availability
36
WCI 5303273108 WCI 5303273108 Contact Us For Availability
39A
COVER-POWER CORD, (NON-ILLUSTRATED) WCI 3131244 Contact Us For Availability
39B
WCI 08067961 WCI 08067961 Contact Us For Availability
41
WCI 3131570 WCI 3131570 Contact Us For Availability
48
BRACKET, BURNER SUPPORT, OVEN WCI 3018603 Contact Us For Availability
49
BRACKET, SAFETY VALVE WCI 3131438 Contact Us For Availability
54
WCI 5303271606 WCI 5303271606 Contact Us For Availability
55
WCI 5303273110 WCI 5303273110 Contact Us For Availability
58A
INSULATION-WRAPPER WCI 3017142 Contact Us For Availability
58B
INSULATION, OVEN BACK WCI 3203541 Contact Us For Availability
60
WCI 5303015372 WCI 5303015372 Contact Us For Availability
73
BASE-BROIL WCI 5303281627 Contact Us For Availability
× ![]()
