Model Electrolux 30-3148-66-01 RANGE – Common Parts & Diagrams

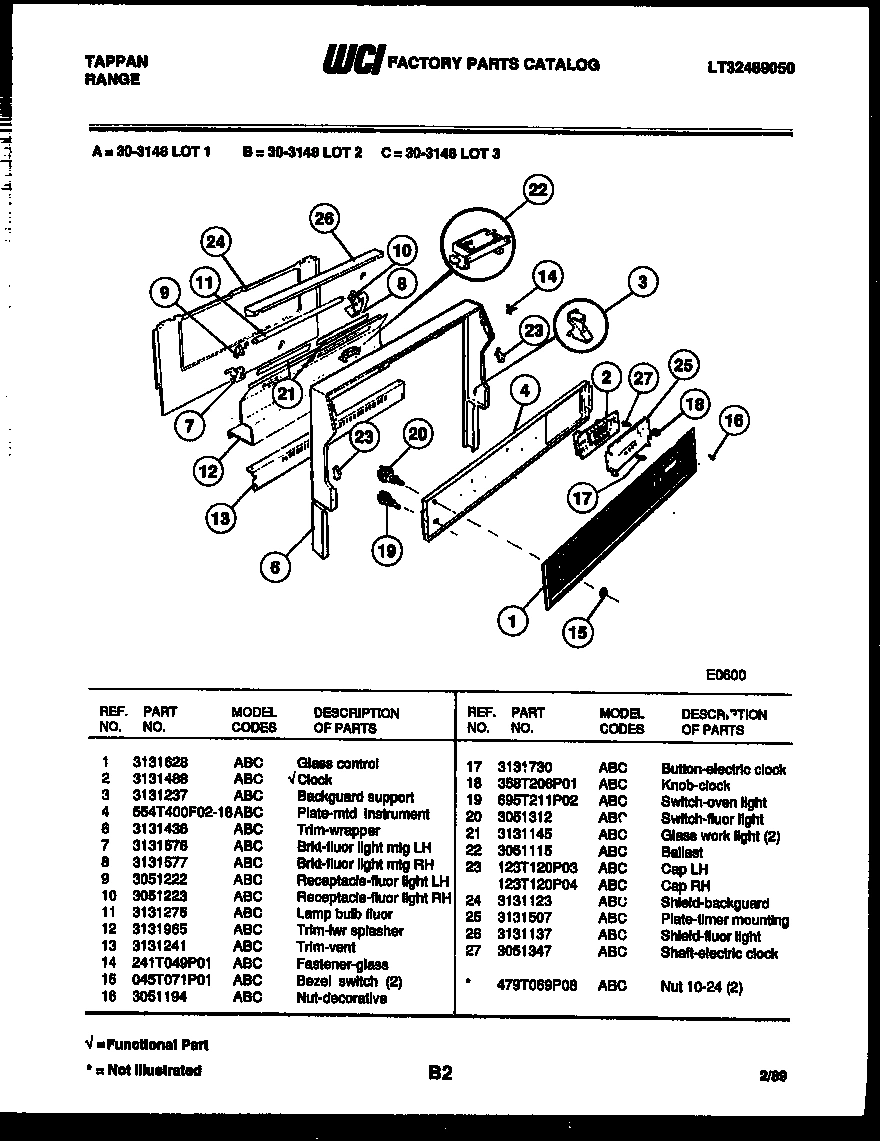

02 - BACKGUARD

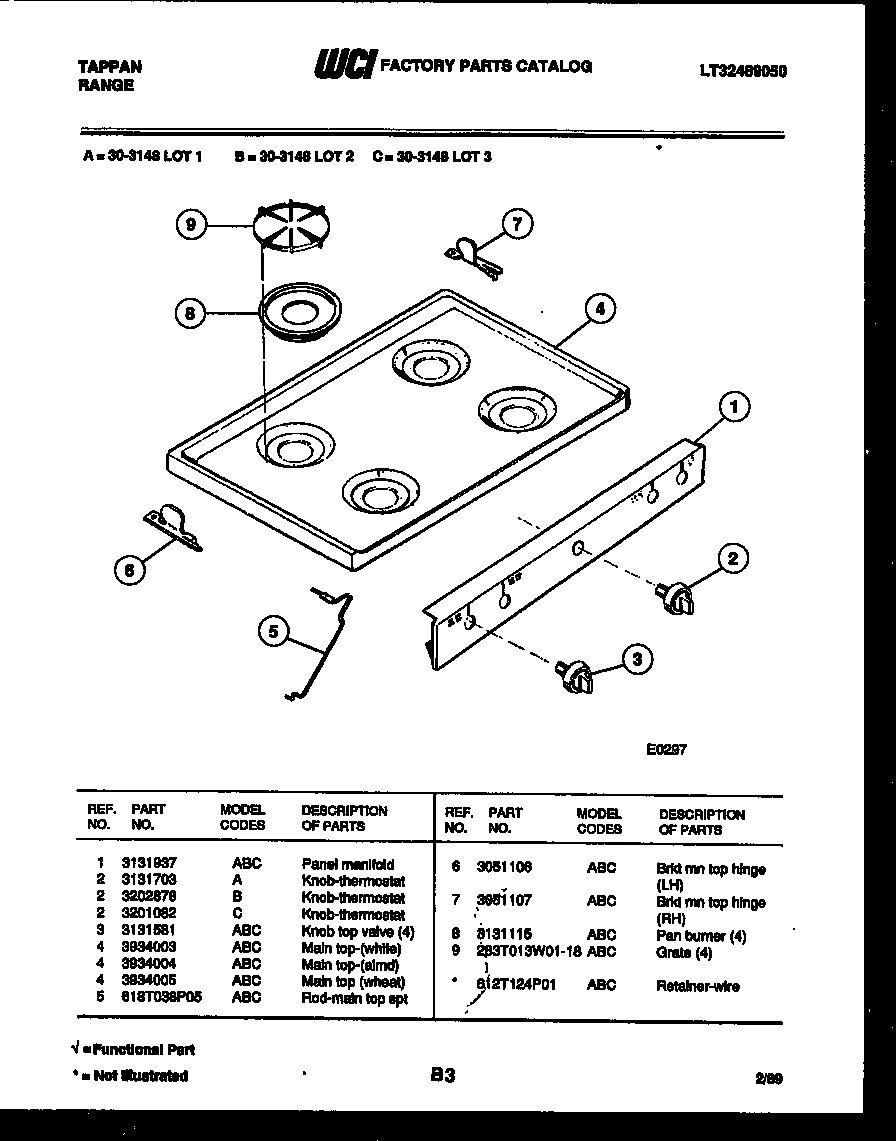

03 - COOKTOP PARTS

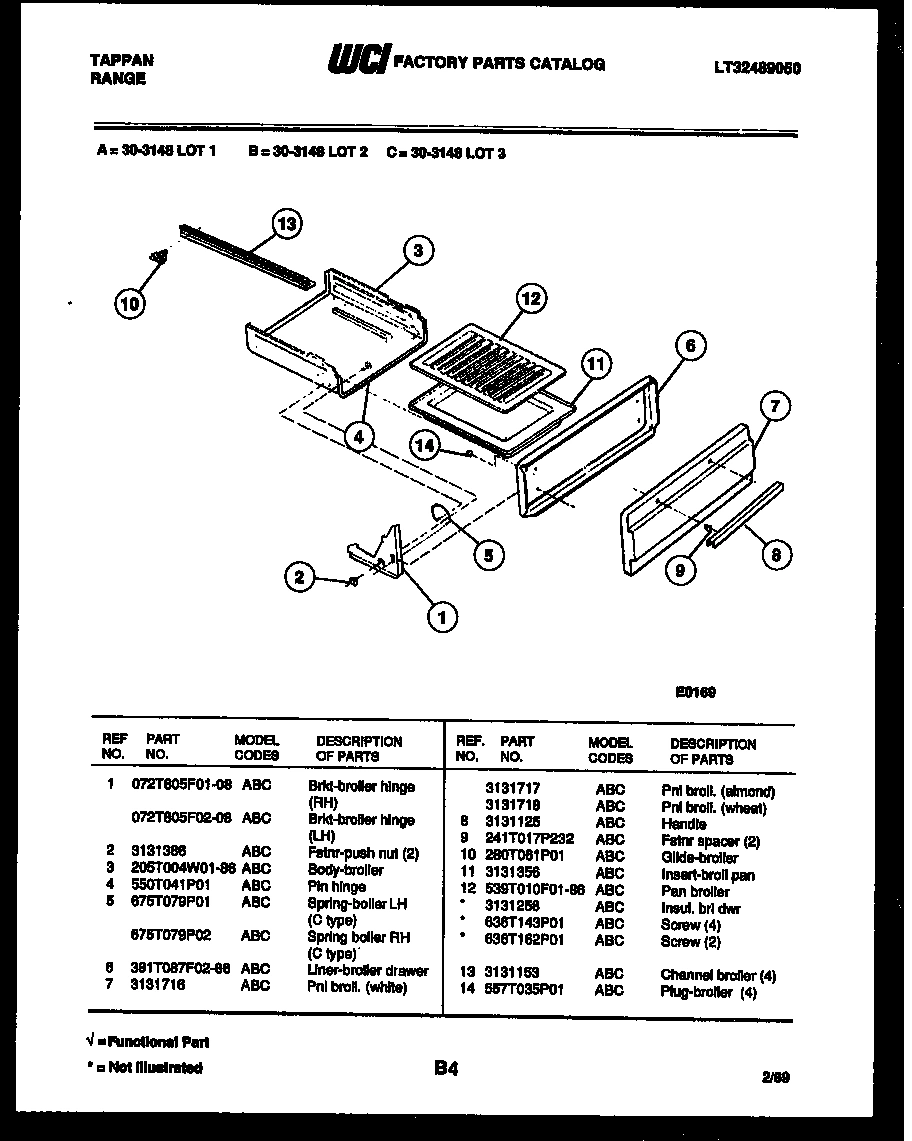

04 - BROILER DRAWER PARTS

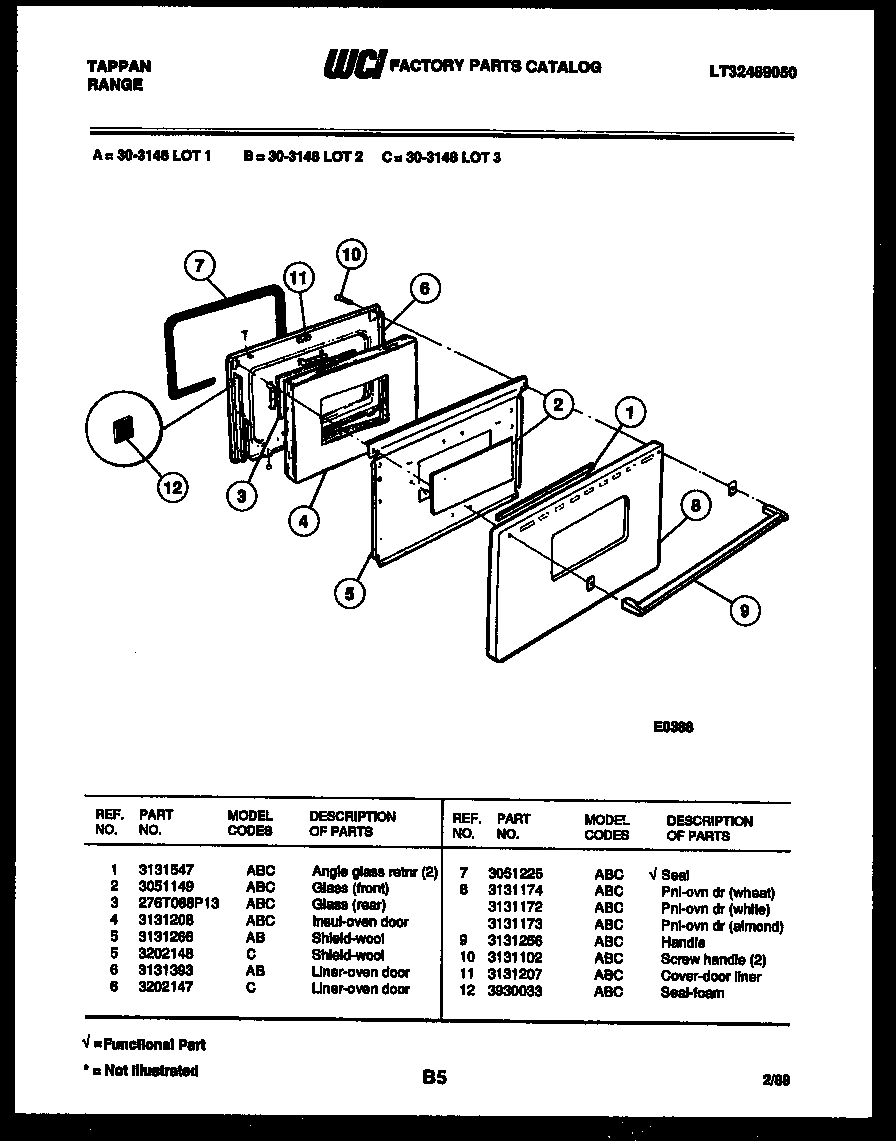

05 - DOOR PARTS

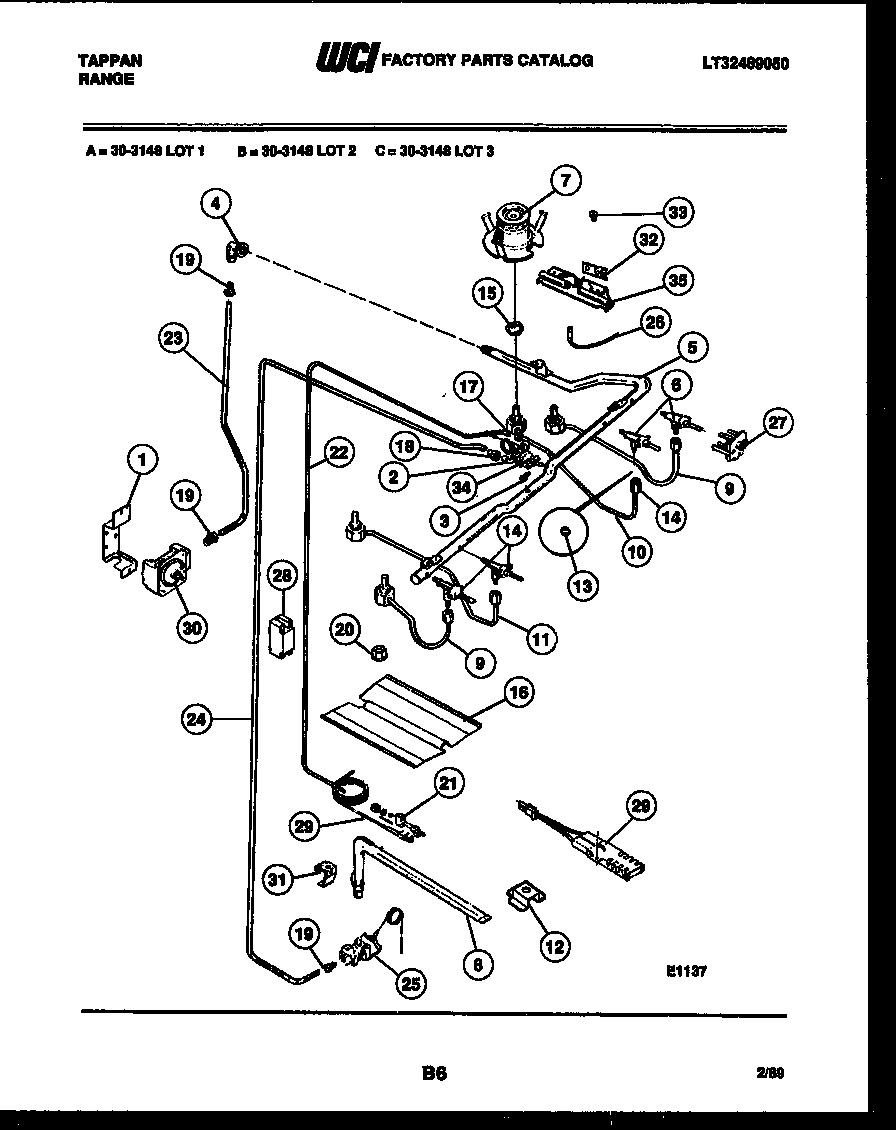

06 - BURNER, MANIFOLD AND GAS CONTROL

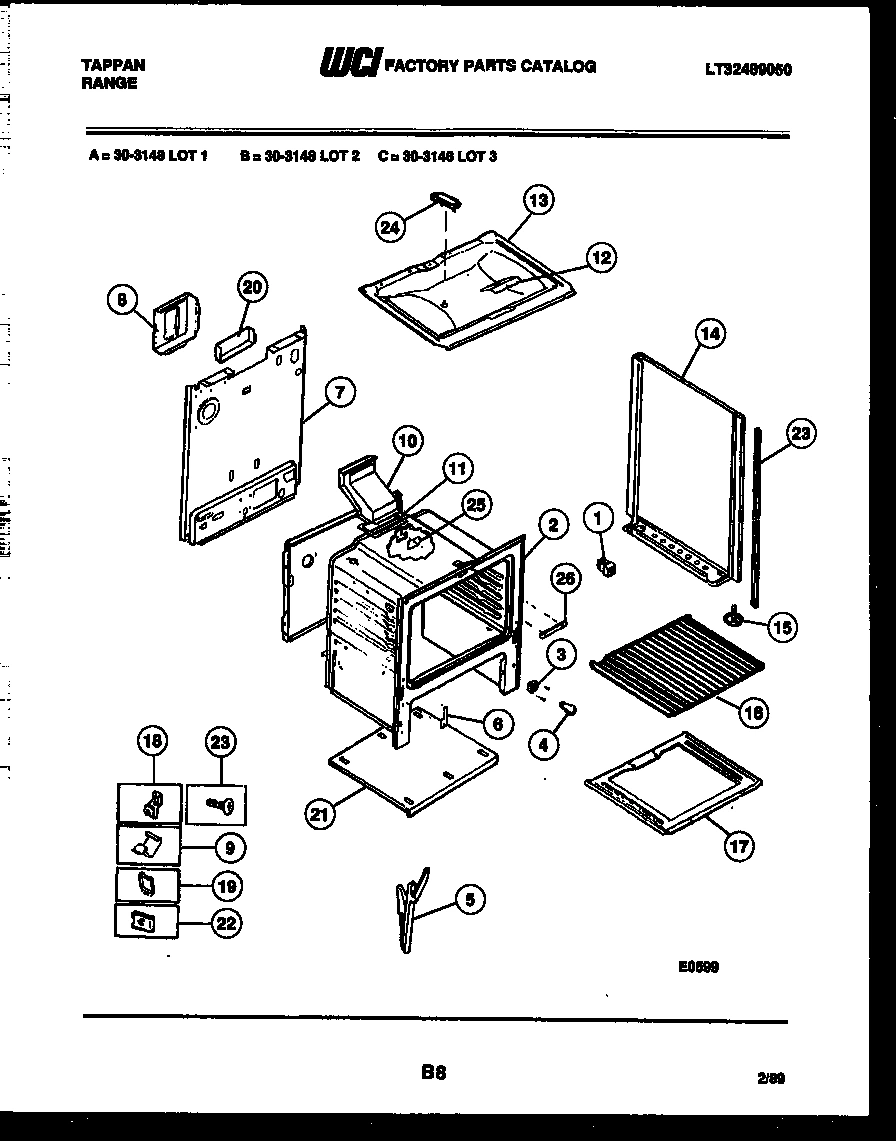

07 - BODY PARTS
Common parts from model Electrolux 30-3148-66-01 RANGE
*13943
WCI 612T124P01 WCI 612T124P01 Contact Us For Availability
1
WCI 3131937 WCI 3131937 Contact Us For Availability
1
WCI 072T805F01-08 WCI 072T805F01-08 Contact Us For Availability
1
ANGLE GLASS RETNR (2) WCI 3131547 Contact Us For Availability
1
BRACKET REGULATOR WCI 3131183 Contact Us For Availability
1
WCI 665T188P02 WCI 665T188P02 Contact Us For Availability
1A
WCI 072T805F02-08 WCI 072T805F02-08 Contact Us For Availability
2
KNOB-THERMOSTAT WCI 3131703 Contact Us For Availability
2
FSTNR, PUSH NUT (2) WCI 3131386 Contact Us For Availability
2
WCI 3051149 WCI 3051149 Contact Us For Availability
2
WCI 3018622 WCI 3018622 Contact Us For Availability
3
KNOB, TOP VALVE (4) WCI 3131581 Contact Us For Availability
3
BODY, BROILER WCI 205T004W01-86 Contact Us For Availability
3
WCI 276T088P13 WCI 276T088P13 Contact Us For Availability
3
ADAPTER-THERMOSTAT WCI 3018601 Contact Us For Availability
4
PLATE-MTD INSTRUMENT WCI 554T400F02-18 Contact Us For Availability
4
WCI 3934005 WCI 3934005 Contact Us For Availability
4
PIN, HINGE WCI 550T041P01 Contact Us For Availability
4
WCI 3131208 WCI 3131208 Contact Us For Availability
4
WCI 3012204 WCI 3012204 Contact Us For Availability
5
ROD-MAIN TOP SPT WCI 618T038P05 Contact Us For Availability
5
SPRING-BOILER LH (C TYPE) WCI 675T079P01 Contact Us For Availability
5
WCI 3131266 WCI 3131266 Contact Us For Availability
5
PIPE WCI 3018612 Contact Us For Availability
5
CHNL-DR HINGE (2) WCI 3131569 Contact Us For Availability
5A
SPRING BOILER RH (C TYPE) WCI 675T079P02 Contact Us For Availability
6
COVER-HINGE CUTOUT (2) WCI 3131570 Contact Us For Availability
6
WCI 3131436 WCI 3131436 Contact Us For Availability
6
BRKT MN TOP HINGE (LH) WCI 3051106 Contact Us For Availability
6
LINER (BROILER DRAWER) WCI 381T087F02-86 Contact Us For Availability
6
WCI 3131393 WCI 3131393 Contact Us For Availability
6
VALVE 3 POS. WCI 3017846 Contact Us For Availability
7
BRKT-FLUOR LIGHT MTG LH WCI 3131576 Contact Us For Availability
7
BRKT MN TOP HINGE (RH) WCI 3051107 Contact Us For Availability
7
PNL, BROIL,-WHEAT WCI 3131718 Contact Us For Availability
7
BURNER TOP (4) WCI 3011567 Contact Us For Availability
7
WCI 3131567 WCI 3131567 Contact Us For Availability
8
WCI 5303131115 No Longer Available
8
BRKT-FLUOR LIGHT MTG RH WCI 3131577 Contact Us For Availability
8
WCI 3131125 WCI 3131125 Contact Us For Availability
8
PNL-OVN DR (WHEAT) WCI 3131174 Contact Us For Availability
8
WCI 3131571 WCI 3131571 Contact Us For Availability
8
SHIELD-RR WALL WCI 655T421F02-18 Contact Us For Availability
9
RECEPTACLE - FLUOR LIGHT LH WCI 3051222 Contact Us For Availability
9
FSTNR-SPACER (2) WCI 241T017P232 Contact Us For Availability
9
WCI 3131256 WCI 3131256 Contact Us For Availability
9
BURNER-TUBE (LF RF) WCI 3131970 Contact Us For Availability
9
WCI 145T130P01 WCI 145T130P01 Contact Us For Availability
10
RECEPTACLE - FLUOR LIGHT RH WCI 3051223 Contact Us For Availability
10
GLIDE - BROILER WCI 280T061P01 Contact Us For Availability
10
SCREW, HANDLE (2) WCI 3131102 Contact Us For Availability
10
WCI 079T033H02 WCI 079T033H02 Contact Us For Availability
10
WCI 3131904 WCI 3131904 Contact Us For Availability
11
LAMP BULB FLUOR. WCI 3131275 Contact Us For Availability
11
INSERT-BROIL PAN WCI 3131356 Contact Us For Availability
11
COVER, DOOR LINER WCI 3131207 Contact Us For Availability
11
WCI 3011570 WCI 3011570 Contact Us For Availability
12
WCI 3131965 WCI 3131965 Contact Us For Availability
12
PAN, BROILER WCI 539T010F01-86 Contact Us For Availability
12
WCI 3930033 WCI 3930033 Contact Us For Availability
12
WCI 3131101 WCI 3131101 Contact Us For Availability
12A
INSUL. BRL DWR (NON-ILLUSTRATED) WCI 3131258 Contact Us For Availability
12C
WCI 636T162P01 WCI 636T162P01 Contact Us For Availability
13
WCI 3131241 WCI 3131241 Contact Us For Availability
13
WCI 3131153 WCI 3131153 Contact Us For Availability
13
FERRULE WCI 247T074P01 Contact Us For Availability
13
WCI 095T030F02-86 WCI 095T030F02-86 Contact Us For Availability
14
FASTENER-GLASS WCI 241T049P01 Contact Us For Availability
14
WCI 557T035P01 WCI 557T035P01 Contact Us For Availability
14
NUT-COMPRESSION WCI 3131148 Contact Us For Availability
14A
PNL B/S HV (WHEAT) RH WCI 3131477 Contact Us For Availability
14A
PNL B/S HV (WHEAT) RH WCI 3200791 Contact Us For Availability
14A
PNL B/S HV (WHEAT) RH WCI 3200794 Contact Us For Availability
14B
PNL B/S HV (WHEAT) LH WCI 3131478 Contact Us For Availability
15
WCI 045T071P01 WCI 045T071P01 Contact Us For Availability
15
NUT, SPECIAL WCI 3013279 Contact Us For Availability
15
SCREW, LEVEL (4) WCI 636M004P01 Contact Us For Availability
16
NUT-DECORATIVE WCI 3051194 Contact Us For Availability
16
WCI 3131327 WCI 3131327 Contact Us For Availability
17
BUTTON-ELECTRIC CLOCK WCI 3131730 Contact Us For Availability
17
WCI 3131404 WCI 3131404 Contact Us For Availability
17
WCI 058T036F02-86 WCI 058T036F02-86 Contact Us For Availability
17A
WCI 3131201 WCI 3131201 Contact Us For Availability
17B
WCI 3131246 WCI 3131246 Contact Us For Availability
18
WCI 358T206P01 WCI 358T206P01 Contact Us For Availability
18
WCI 3131403 WCI 3131403 Contact Us For Availability
18A
FSTNR-POWER CORD (NON-ILLUSTRATED) WCI 241T017P255 Contact Us For Availability
19
WCI 695T211P02 WCI 695T211P02 Contact Us For Availability
19
WCI 3131261 WCI 3131261 Contact Us For Availability
20
SWITCH - FLUOR LIGHT WCI 3051312 Contact Us For Availability
20
WCI 3131348 WCI 3131348 Contact Us For Availability
21
WCI 3131145 WCI 3131145 Contact Us For Availability
21
PILOT-OVEN WCI 3018613 Contact Us For Availability
21
WCI 3131180 WCI 3131180 Contact Us For Availability
21A
WCI 554T388F02 WCI 554T388F02 Contact Us For Availability
21B
COVER-POWER CORD, (NON-ILLUSTRATED) WCI 3131244 Contact Us For Availability
22
WCI 3051115 WCI 3051115 Contact Us For Availability
22
TUBE-OVEN PILOT 3/8 WCI 3018623 Contact Us For Availability
23
WCI 123T120P03 WCI 123T120P03 Contact Us For Availability
23
TUBE-ALUMINUM 3/8 WCI 3014477 Contact Us For Availability
23A
WCI 123T120P04 WCI 123T120P04 Contact Us For Availability
24
SHIELD, BACKGUARD WCI 3131123 Contact Us For Availability
24
TUBE-ALUMINUM 3/8 WCI 3018624 Contact Us For Availability
24
COVER, BURNER BOX WCI 174T333P01 Contact Us For Availability
25
PLATE-TIMER MOUNTING WCI 3131507 Contact Us For Availability
25
WCI 3131405 WCI 3131405 Contact Us For Availability
25
WCI 174T297F01 WCI 174T297F01 Contact Us For Availability
26
SHIELD - FLUOR LIGHT WCI 3131137 Contact Us For Availability
26
IGNITER-TOP BURNER WCI 3012879 Contact Us For Availability
26
COVER-FRONT MAIN WCI 3131548 Contact Us For Availability
27
SHAFT, ELECTRIC CLOCK WCI 3051347 Contact Us For Availability
29
IGNITER-ELECTRIC WCI 3934047 Contact Us For Availability
30
CONTROL-REGULATOR WCI 3018606 Contact Us For Availability
31
WCI 072T821F01 WCI 072T821F01 Contact Us For Availability
32
RETAINER, IGNITER (4) WCI 612T121F01 Contact Us For Availability
33
WCI 3051420 WCI 3051420 Contact Us For Availability
34
SWITCH, OVEN IGNITER WCI 695T220P01 Contact Us For Availability
35
WCI 136T355W03 WCI 136T355W03 Contact Us For Availability
× ![]()
