Model Electrolux 30-2769-00-01 RANGE – Common Parts & Diagrams

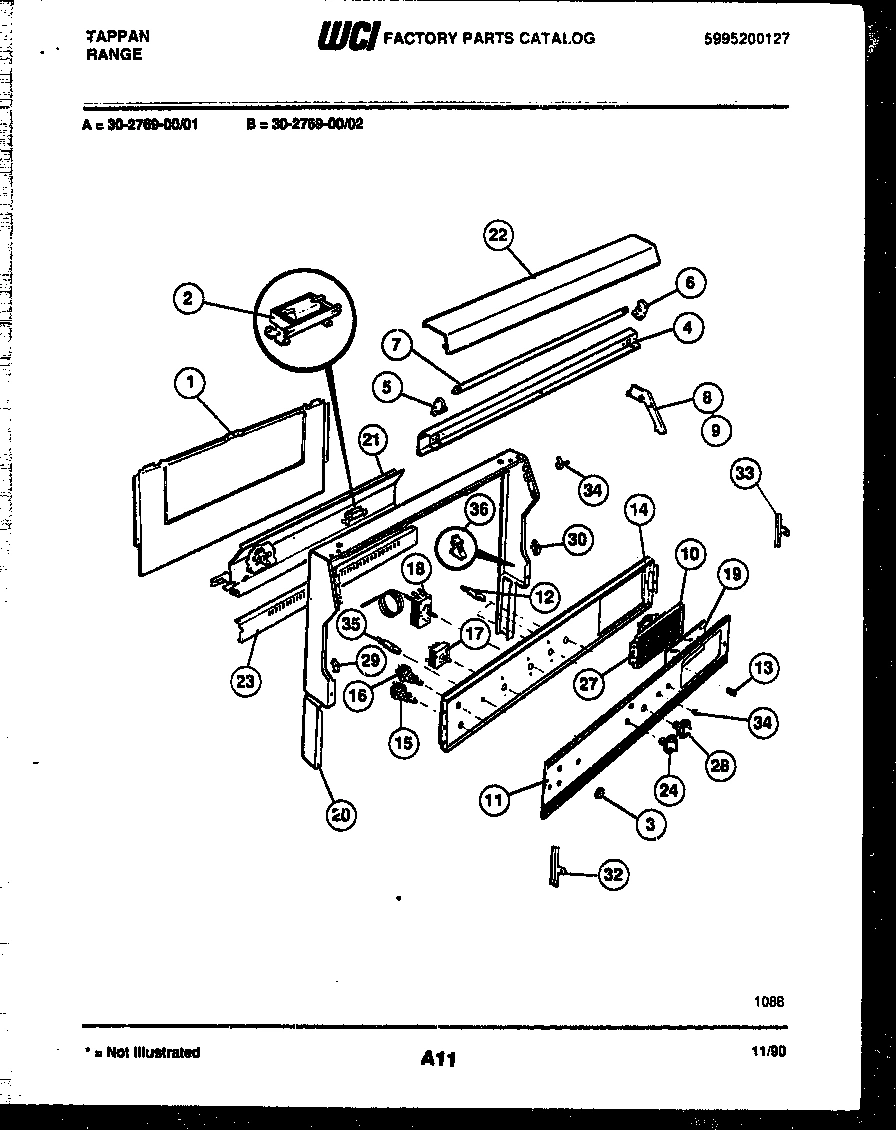

02 - BACKGUARD

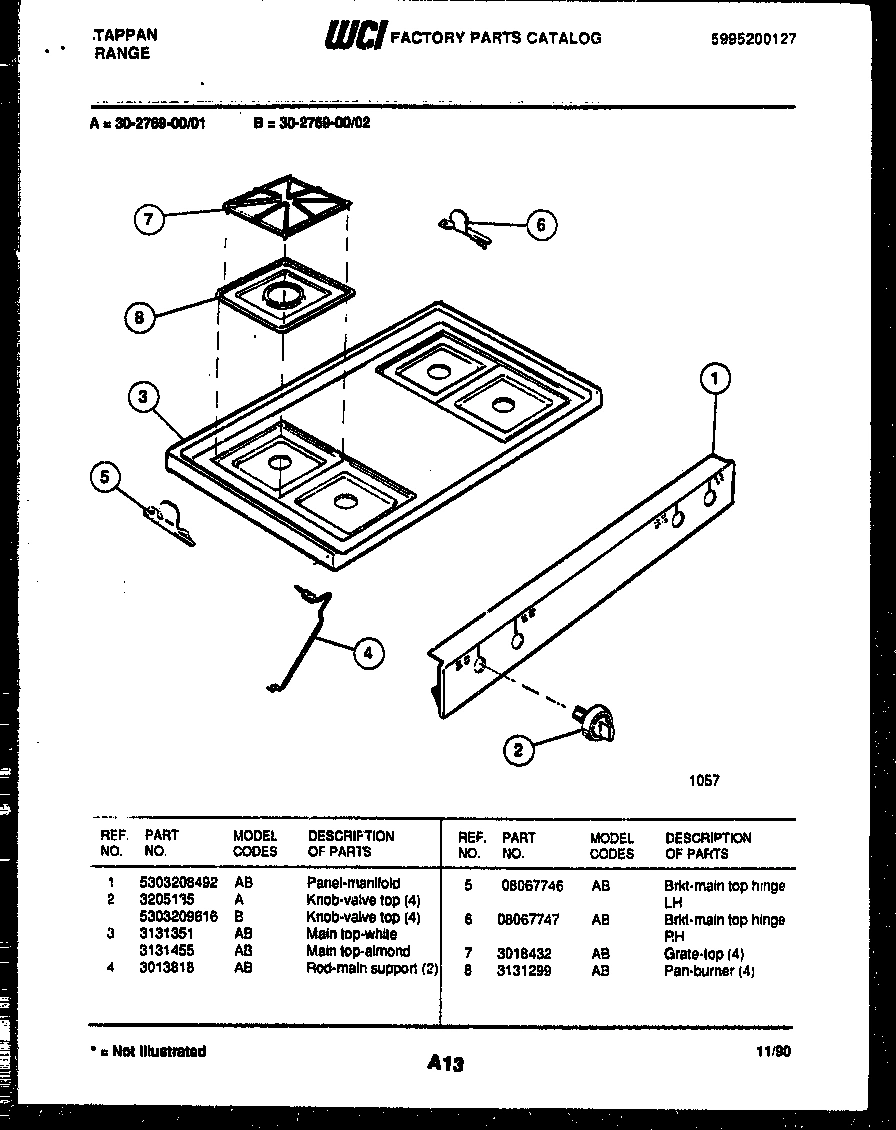

03 - COOKTOP PARTS

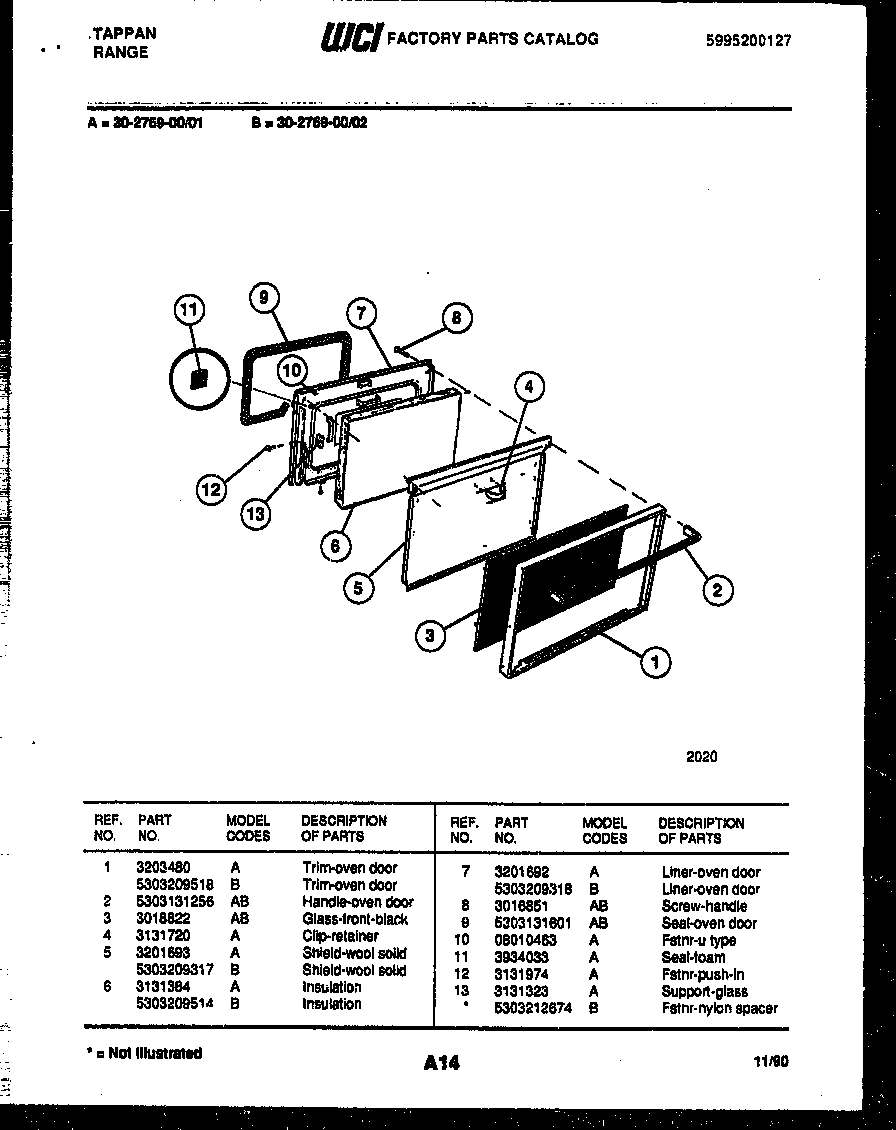

04 - DOOR PARTS

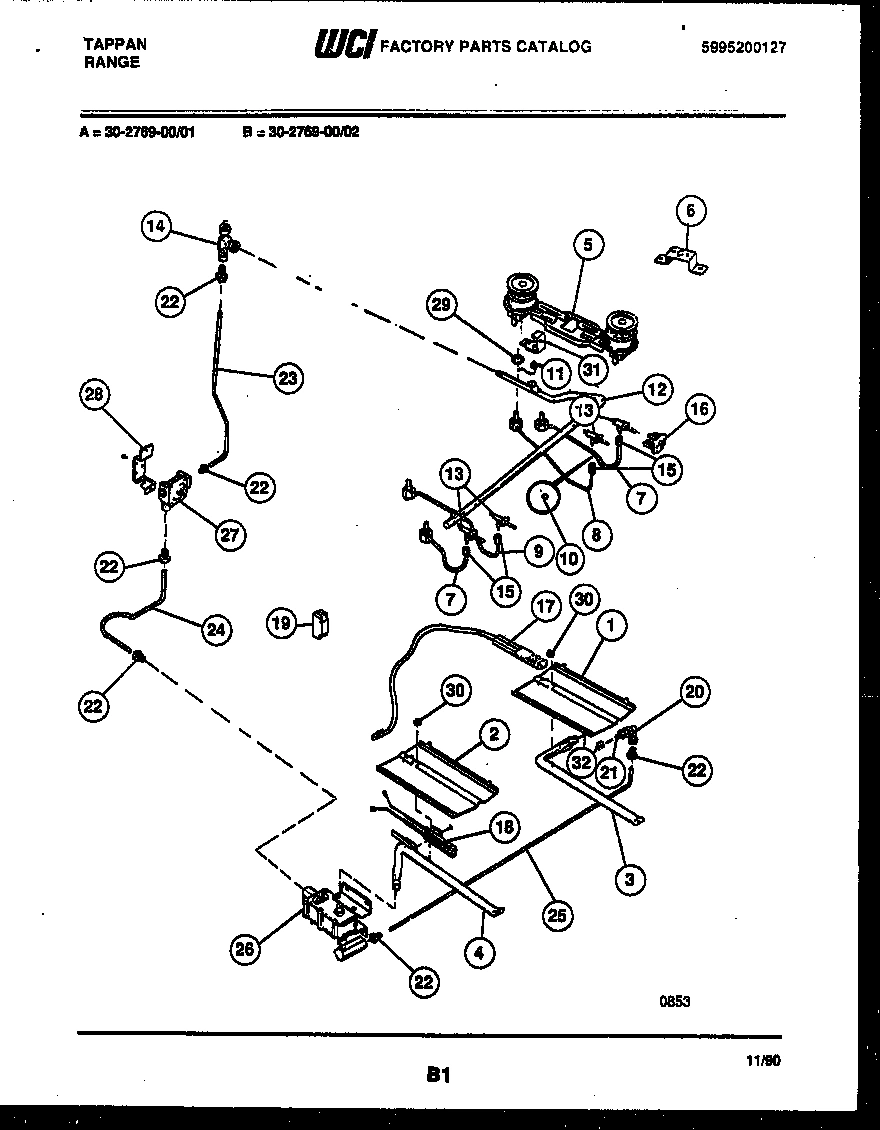

05 - BURNER, MANIFOLD AND GAS CONTROL

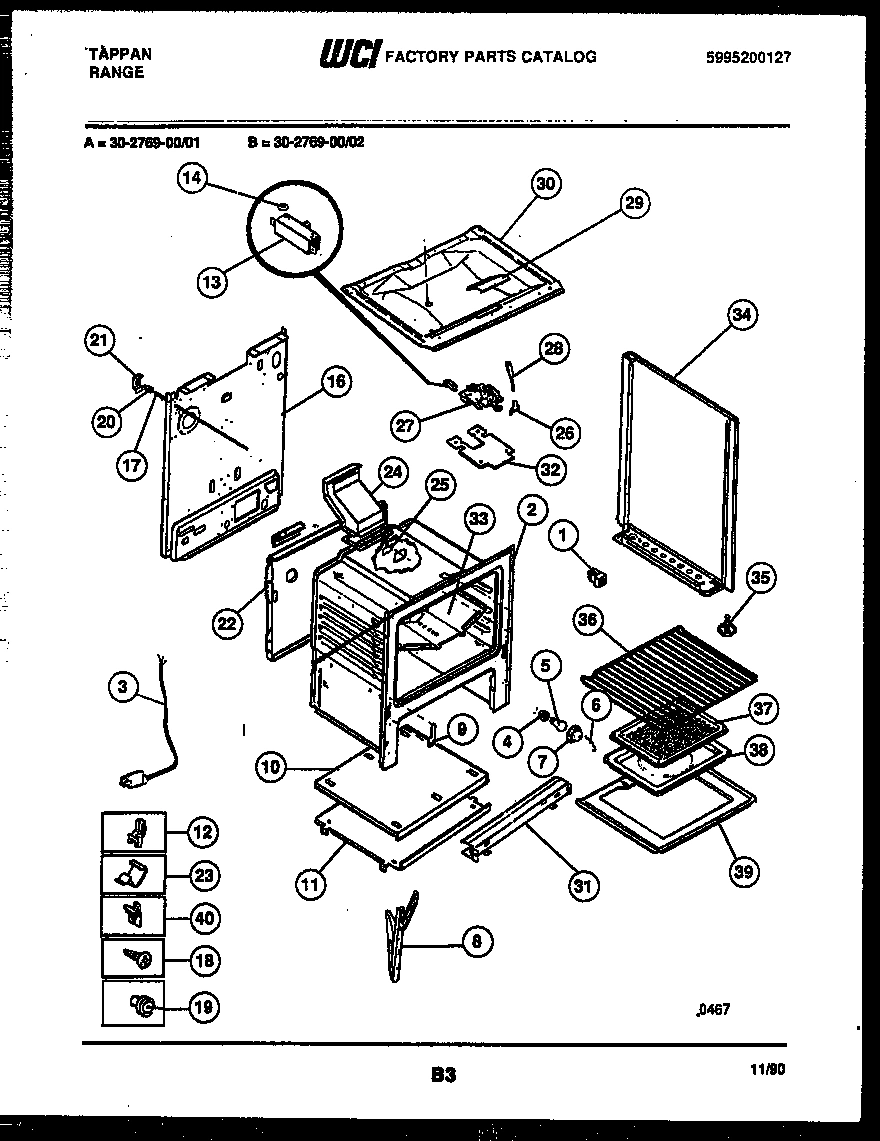

06 - BODY PARTS

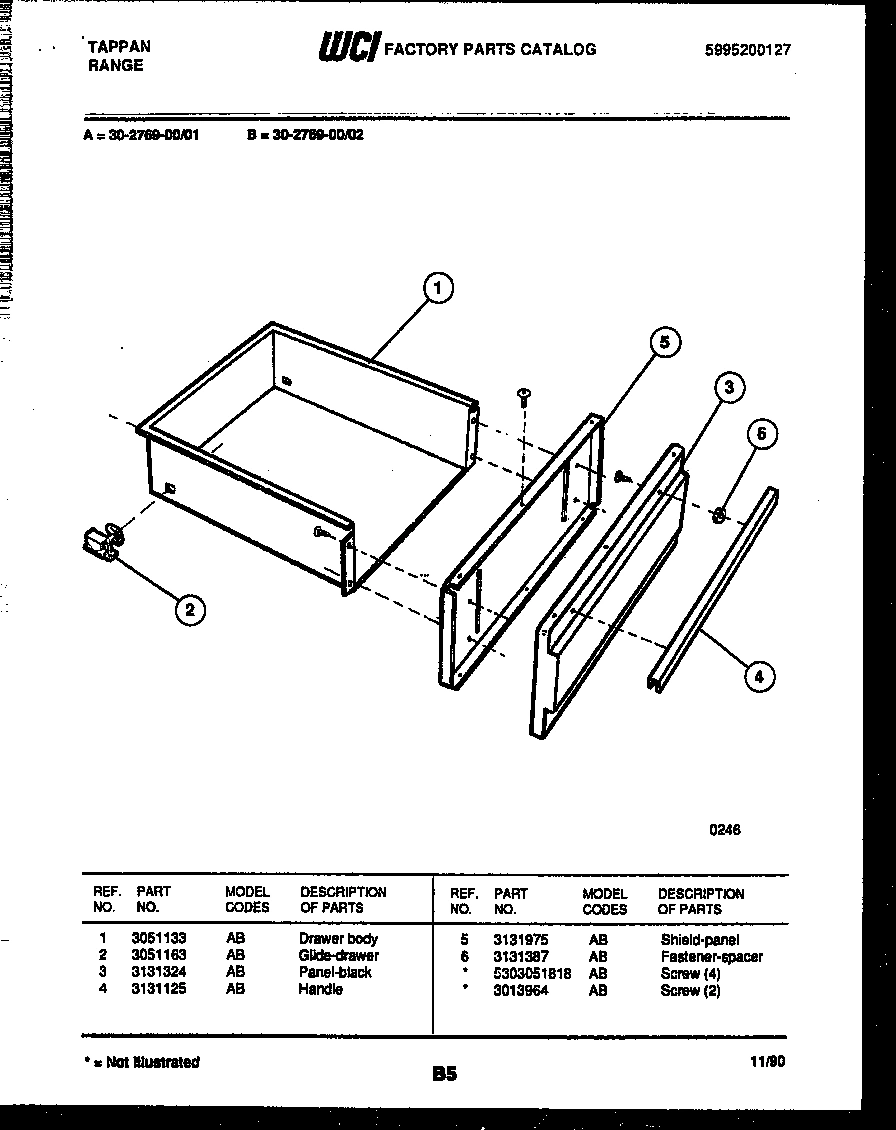

07 - DRAWER PARTS
Common parts from model Electrolux 30-2769-00-01 RANGE
*35839
SHIELD-WIRE WCI 08068018 Contact Us For Availability
*35839
WCI 191S018F03 WCI 191S018F03 Contact Us For Availability
*35839
WCI 3131314 WCI 3131314 Contact Us For Availability
*35839
WCI 3131590 WCI 3131590 Contact Us For Availability
*35839
WCI 3934056 WCI 3934056 Contact Us For Availability
*35840
WCI 3013964 WCI 3013964 Contact Us For Availability
1
WCI 3014099 WCI 3014099 Contact Us For Availability
1
WCI 5303208492 WCI 5303208492 Contact Us For Availability
1
WCI 3203480 WCI 3203480 Contact Us For Availability
1
WCI 5303210379 WCI 5303210379 Contact Us For Availability
1
WCI 3051133 WCI 3051133 Contact Us For Availability
2
KNOB-VALVE TOP (4) WCI 3205135 Contact Us For Availability
2
WCI 5303131256 WCI 5303131256 Contact Us For Availability
2
WCI 3131284 WCI 3131284 Contact Us For Availability
3
WCI 08067935 WCI 08067935 Contact Us For Availability
3
WCI 3131351 WCI 3131351 Contact Us For Availability
3
MAIN TOP, ALMOND WCI 3131455 Contact Us For Availability
3
WCI 3018822 WCI 3018822 Contact Us For Availability
3
WCI 3131324 WCI 3131324 Contact Us For Availability
4
ROD-MAIN SUPPORT (2) WCI 3013818 Contact Us For Availability
4
WCI 3131720 WCI 3131720 Contact Us For Availability
4
WCI 3131290 WCI 3131290 Contact Us For Availability
4
WCI 3131125 WCI 3131125 Contact Us For Availability
5
BRKT-MAIN TOP HINGE LH WCI 08067746 Contact Us For Availability
5
SHIELD, WOOL SOLID WCI 3201693 Contact Us For Availability
5
BURNER-TOP-DOUBLE WCI 5303131147 Contact Us For Availability
5
WCI 3131975 WCI 3131975 Contact Us For Availability
6
BRKT-MAIN TOP HINGE RH WCI 08067747 Contact Us For Availability
6
INSULATION WCI 3131384 Contact Us For Availability
6
WCI 3200277 WCI 3200277 Contact Us For Availability
6
WIRE, GLASS RETAINER WCI 3204483 Contact Us For Availability
6
FASTENER, SPACER WCI 3131387 Contact Us For Availability
7
WCI 3131275 WCI 3131275 Contact Us For Availability
7
GRATE-TOP (4) WCI 3018432 Contact Us For Availability
7
WCI 3201692 WCI 3201692 Contact Us For Availability
7
WCI 5303131970 WCI 5303131970 Contact Us For Availability
8
WCI 3131299 WCI 3131299 Contact Us For Availability
8
WCI 3016851 WCI 3016851 Contact Us For Availability
8
WCI 5303011569 WCI 5303011569 Contact Us For Availability
8
CHANNEL-OVEN HINGE (2) WCI 5303131569 Contact Us For Availability
9
COVER-HINGE CUTOUT (2) WCI 3131570 Contact Us For Availability
9
WCI 5303011570 WCI 5303011570 Contact Us For Availability
10
WCI 08010463 WCI 08010463 Contact Us For Availability
10
WCI 08067945 WCI 08067945 Contact Us For Availability
10
WCI 3131951 WCI 3131951 Contact Us For Availability
11
WCI 3934033 WCI 3934033 Contact Us For Availability
11
IGNITER-TOP BURNER (2) WCI 3200276 Contact Us For Availability
11
WCI 3131313 WCI 3131313 Contact Us For Availability
11A
WCI 08067992 WCI 08067992 Contact Us For Availability
12
FSTNR PUSH IN WCI 3131974 Contact Us For Availability
12
WCI 3018861 WCI 3018861 Contact Us For Availability
13
WCI 5303017846 WCI 5303017846 Contact Us For Availability
13
SUPPORT, GLASS WCI 3131323 Contact Us For Availability
13
SWITCH-LATCH WCI 3131672 Contact Us For Availability
14
WCI 08067948 WCI 08067948 Contact Us For Availability
14
WCI 08067776 WCI 08067776 Contact Us For Availability
14A
WCI 08067978 WCI 08067978 Contact Us For Availability
15
WCI 5303200479 WCI 5303200479 Contact Us For Availability
15
NUT COMPRESSION (4) WCI 3131148 Contact Us For Availability
16
WCI 3203082 WCI 3203082 Contact Us For Availability
17
ROD LIGHT WCI 5303209316 Contact Us For Availability
20
WCI 08067979 WCI 08067979 Contact Us For Availability
20
SWITCH, DOOR WCI 5303202622 Contact Us For Availability
21
TRIM-LWR SPLSHR (WHITE) WCI 3201701 Contact Us For Availability
21
TRIM-LWR SPLSHR (ALMD) WCI 3201702 Contact Us For Availability
21
NUT WCI 3131358 Contact Us For Availability
21
BRACKET-LIGHT SWITCH WCI 5303131289 Contact Us For Availability
22
WCI 3204614 WCI 3204614 Contact Us For Availability
22
WCI 3131261 WCI 3131261 Contact Us For Availability
22
WCI 08067991 WCI 08067991 Contact Us For Availability
23
WCI 3131241 WCI 3131241 Contact Us For Availability
23
TUBE-ALUM 3/8-REGUL TO MANIFOLD WCI 5303208495 Contact Us For Availability
23
CLIP-WIRE WCI 3011813 Contact Us For Availability
24
WCI 3205464 WCI 3205464 Contact Us For Availability
24
TUBE-ALUM 3/8-VALVE TO REGUL WCI 5303208494 Contact Us For Availability
24
WCI 3131931 WCI 3131931 Contact Us For Availability
25
TUBE-ALUM 3/8-VALVE TO MIXER WCI 5303208493 Contact Us For Availability
25A
SHIELD, BIMETAL LATCH (NON-ILLUSTRATED) WCI 3131593 Contact Us For Availability
25B
WCI 08013188 WCI 08013188 Contact Us For Availability
26
WCI 530801597 WCI 530801597 Contact Us For Availability
27
WCI 5303015453 WCI 5303015453 Contact Us For Availability
27
RETAINER CLOCK LENS WCI 3201700 Contact Us For Availability
28
KNOB-SELECTOR SWITCH WCI 3205465 Contact Us For Availability
28
WCI 5303131357 WCI 5303131357 Contact Us For Availability
29
CAP-LH WCI 3203076 Contact Us For Availability
29
NUT, SPECIAL WCI 3013279 Contact Us For Availability
29
WCI 08067757 WCI 08067757 Contact Us For Availability
30
CAP-RH WCI 3203077 Contact Us For Availability
30
WCI 3011597 WCI 3011597 Contact Us For Availability
31
SHIELD, MAIN FRONT WCI 3200835 Contact Us For Availability
32
TRIM-GLASS RETAINER,LH WCI 3204753 Contact Us For Availability
32
WCI 08068015 WCI 08068015 Contact Us For Availability
32
WCI 3051413 WCI 3051413 Contact Us For Availability
33
TRIM-GLASS RETAINER,RH WCI 3204754 Contact Us For Availability
33
WCI 3200836 WCI 3200836 Contact Us For Availability
34
JEWELL-INDICATOR LENS (3) WCI 5308037703 Contact Us For Availability
34
PANEL BODYSIDE-RH-WHITE WCI 3205623 Contact Us For Availability
34
PANEL BODYSIDE-RH-ALMOND WCI 3205624 Contact Us For Availability
34A
PANEL BODYSIDE-LH-WHITE WCI 3205620 Contact Us For Availability
34A
PANEL BODYSIDE-LH-ALMOND WCI 3205621 Contact Us For Availability
35
SCREW-LEVELING WCI 5303203397 Contact Us For Availability
35
INDICATOR LIGHT-LOCK (1) WCI 3201728 Contact Us For Availability
35A
BRACKET-BACKGUARD (NON-ILLUSTRATED) WCI 3131468 Contact Us For Availability
35B
BUSHING-CONTROL SHAFT (NON-ILLUSTRATED) WCI 3204745 Contact Us For Availability
35C
RETAINER-LENS (NON-ILLUSTRATED) WCI 3051224 Contact Us For Availability
35D
WCI 3016408 WCI 3016408 Contact Us For Availability
36
SUPPORT-BACKGUARD (2) WCI 3131237 Contact Us For Availability
37
WCI 5303131356 WCI 5303131356 Contact Us For Availability
38
PAN-BROILER WCI 5303013568 Contact Us For Availability
39
WCI 3011519 WCI 3011519 Contact Us For Availability
39B
WCI 08067961 WCI 08067961 Contact Us For Availability
39C
WCI 3204582 WCI 3204582 Contact Us For Availability
39E
INSULATION-TOP WRAP (NON-ILLUSTRATED) WCI 3131304 Contact Us For Availability
39F
SHIELD-HEAT, BODY SIDE (NON-ILLUSTRATED) WCI 3200834 Contact Us For Availability
39G
INSULATION-WRAPPER (NON-ILLUSTRATED) WCI 3200833 Contact Us For Availability
× ![]()
