Model Electrolux 30-2759-23-10 RANGE – Common Parts & Diagrams

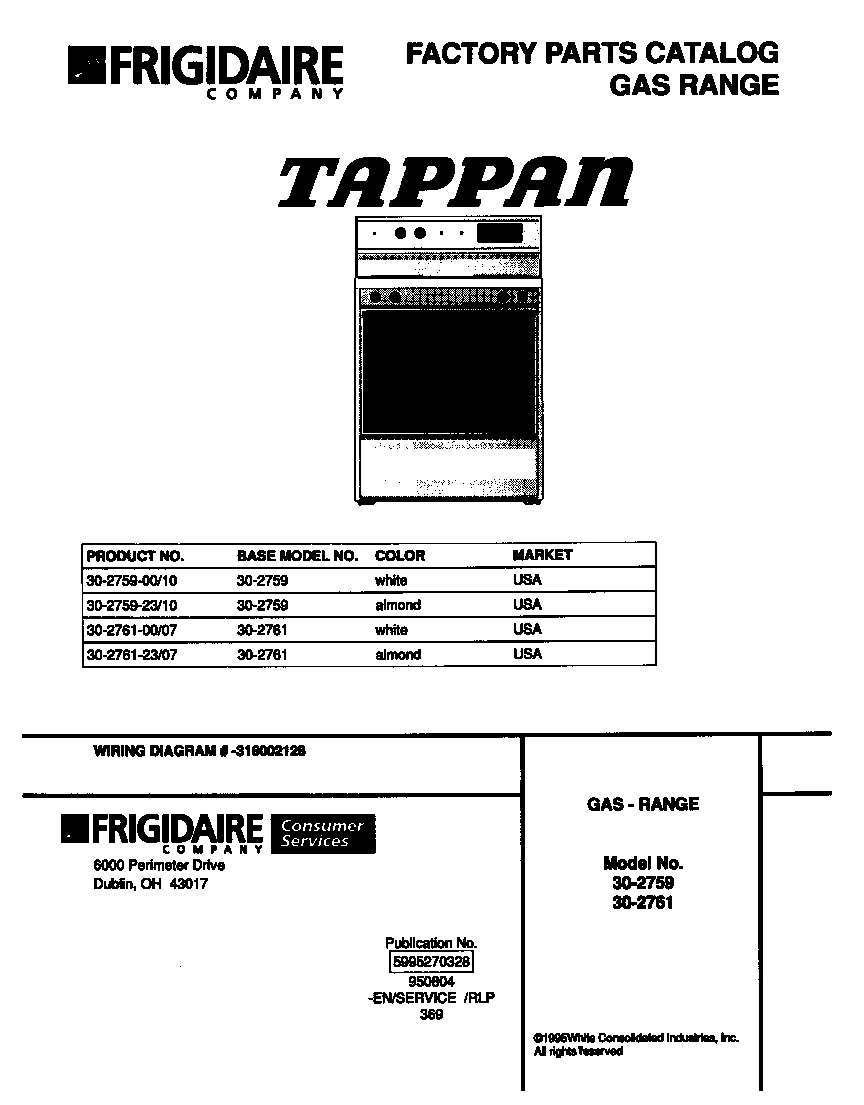

01 - COVER

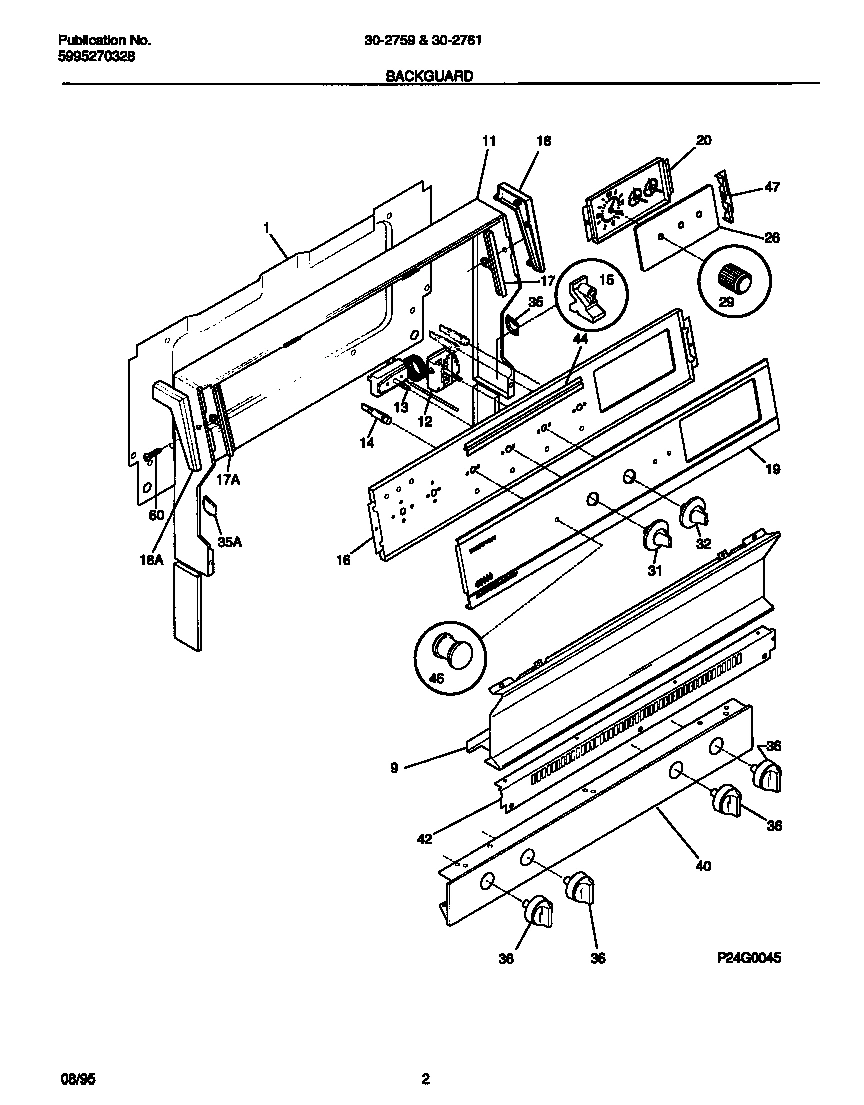

02 - BACKGUARD
03 - BURNER
04 - BODY
05 - TOP/DRAWER
07 - DOOR
08 - WIRING DIAGRAM
Common parts from model Electrolux 30-2759-23-10 RANGE
*17648
SCREW-HEAT SHIELD, HD SHLDR SQDR, 8-18 X 1/2 WCI 5303288570 Contact Us For Availability
*17649
HARNESS-WIRING, MAIN WCI 5303292880 Contact Us For Availability
*17651
FOIL-ALUMINUM WCI 3017527 Contact Us For Availability
*17652
Plug-button,glide ,(4) WCI 3018702 Contact Us For Availability
*17653
RIVET-POP, WARING-PLATE WCI 3203618 Contact Us For Availability
*17654
WCI 5303281584 WCI 5303281584 Contact Us For Availability
*17658
WCI 316065300 WCI 316065300 Contact Us For Availability
*17659
SCREW, CR PAN HD SEMS, 8-32BP X 1.00 WCI 5303212671 Contact Us For Availability
*17661
WCI 5303269859 WCI 5303269859 Contact Us For Availability
1
WCI 316066201 WCI 316066201 Contact Us For Availability
1
WCI 316029410 WCI 316029410 Contact Us For Availability
1
WCI 316002128 WCI 316002128 Contact Us For Availability
2
VALVE-TOP BURNER, 2-POSITION, (4) WCI 316031900 Contact Us For Availability
2
WCI 3131314 WCI 3131314 Contact Us For Availability
2
WCI 3131975 WCI 3131975 Contact Us For Availability
2A
SCREW-TOP VALVE MTG, HEX WASHER HEAD, 1/4-20 WCI 316048200 Contact Us For Availability
3
WCI 316032001 WCI 316032001 Contact Us For Availability
3
WCI 316081006 WCI 316081006 Contact Us For Availability
3
WCI 316067802 WCI 316067802 Contact Us For Availability
3A
SWITCH HARNESS TERMINAL KIT (NOT-ILLUSTRATED WCI 5303935040 Contact Us For Availability
3A
WCI 316081007 WCI 316081007 Contact Us For Availability
3B
SHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED) WCI 3200834 Contact Us For Availability
3C
FASTENER-EDGE MTG (NOT ILLUSTRATED) WCI 3200846 Contact Us For Availability
3D
SHIELD, INSULATION, GALV STEEL (NOT ILLUSTRAT WCI 08067992 Contact Us For Availability
4
WCI 316051400 WCI 316051400 Contact Us For Availability
4
WCI 3011597 WCI 3011597 Contact Us For Availability
4
PANEL-DUMMY, ALMOND WCI 3051202 Contact Us For Availability
4
GLASS-OVEN DOOR, SOLID BLACK, OUTER WCI 5303051153 Contact Us For Availability
4A
SPACER, PANEL/SHIELD (NOT ILLUSTRATED) WCI 3200612 Contact Us For Availability
4B
SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT I WCI 08067785 Contact Us For Availability
5
SCREW-LEVELING WCI 5303203397 Contact Us For Availability
5
WCI 316051401 WCI 316051401 Contact Us For Availability
5A
WCI 3934058 WCI 3934058 Contact Us For Availability
5C
NUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED) WCI 5303288460 Contact Us For Availability
6
WCI 316051402 WCI 316051402 Contact Us For Availability
6
SHIELD-INSULATION, BLACK WCI 5303209317 Contact Us For Availability
7
Hinge,oven door ,(2) WCI 316007001 Contact Us For Availability
7
WCI 316051403 WCI 316051403 Contact Us For Availability
7
WCI 316076400 WCI 316076400 Contact Us For Availability
8
PANEL-OVEN BOTTOM WCI 5303212540 Contact Us For Availability
9
WCI 3013279 WCI 3013279 Contact Us For Availability
9
WCI 316073800 WCI 316073800 Contact Us For Availability
9
WCI 316066602 WCI 316066602 Contact Us For Availability
10
WCI 316057100 WCI 316057100 Contact Us For Availability
10
SCREW-HANDLE MTG, WAFER HEAD, 10-24(F) X 3 WCI 5303281378 Contact Us For Availability
10
WCI 3205234 WCI 3205234 Contact Us For Availability
11
IGNITER-TOP BURNER, BASE, (2) WCI 3200276 Contact Us For Availability
11A
IGNITER-TOP BURNER, BASE, (2) WCI 5303289336 Contact Us For Availability
12
WCI 316027702 WCI 316027702 Contact Us For Availability
13
WCI 316065005 WCI 316065005 Contact Us For Availability
13
WCI 316026800 WCI 316026800 Contact Us For Availability
16
WCI 316065003 WCI 316065003 Contact Us For Availability
16
WCI 5303200658 WCI 5303200658 Contact Us For Availability
17
WCI 316066900 WCI 316066900 Contact Us For Availability
17
RETAINER-GLASS WCI 3204585 Contact Us For Availability
18
WCI 5303015453 WCI 5303015453 Contact Us For Availability
18
WCI 3131290 WCI 3131290 Contact Us For Availability
18
BRACKET-HINGE,MAIN TOP RH WCI 08067747 Contact Us For Availability
18A
BRACKET-HINGE,MAIN TOP LH WCI 08067746 Contact Us For Availability
18A
SHIELD, LATCH TOP (NOT ILLUSTRATED) WCI 3131593 Contact Us For Availability
19
WCI 5303131357 WCI 5303131357 Contact Us For Availability
20
BAFFLE-OVEN BURNER WCI 3131284 Contact Us For Availability
20
WCI 3203218 WCI 3203218 Contact Us For Availability
20A
WCI 08013188 WCI 08013188 Contact Us For Availability
21
SPACER-BODYSIDE, (8) WCI 3014099 Contact Us For Availability
22
WCI 316065002 WCI 316065002 Contact Us For Availability
22
SWITCH-LATCH WCI 5303269499 Contact Us For Availability
22A
STUD, SPACER (NOT ILLUSTRATED) WCI 08067978 Contact Us For Availability
23
WCI 08067935 WCI 08067935 Contact Us For Availability
23
WCI 08067776 WCI 08067776 Contact Us For Availability
24
WCI 316070400 WCI 316070400 Contact Us For Availability
24
SHIELD-LATCH WCI 3051413 Contact Us For Availability
25
BAFFLE-BROILER WCI 5303210379 Contact Us For Availability
25
WCI 3131313 WCI 3131313 Contact Us For Availability
26
WCI 08067757 WCI 08067757 Contact Us For Availability
28
CLIP-WIRE WCI 3011813 Contact Us For Availability
33
BRACKET BURNER MTG WCI 3200277 Contact Us For Availability
33
SHIELD, REAR WALL WCI 316014401 Contact Us For Availability
36
WCI 3131931 WCI 3131931 Contact Us For Availability
38
WCI 316014301 WCI 316014301 Contact Us For Availability
39
HANDLE-DOOR, BLACK, OVEN WCI 5303273127 Contact Us For Availability
39A
WCI 08067961 WCI 08067961 Contact Us For Availability
40
WCI 3200836 WCI 3200836 Contact Us For Availability
41
WCI 3131570 WCI 3131570 Contact Us For Availability
42
WCI 5303270104 WCI 5303270104 Contact Us For Availability
45
SHIELD-WIRE WCI 08068018 Contact Us For Availability
46
WCI 316065800 WCI 316065800 Contact Us For Availability
47
RETAINER, CLOCK GLASS, (2) WCI 3201700 Contact Us For Availability
53
WCI 5303271047 WCI 5303271047 Contact Us For Availability
58A
INSULATION, OVEN WRAPPER WCI 3200833 Contact Us For Availability
58B
WCI 316054200 WCI 316054200 Contact Us For Availability
58C
INSULATION, OVEN TOP WCI 3131304 Contact Us For Availability
72
COVER-LIGHT/SWITCH ROD WCI 5303285692 Contact Us For Availability
× ![]()
