Model Electrolux 30-2759-23-03 RANGE – Common Parts & Diagrams

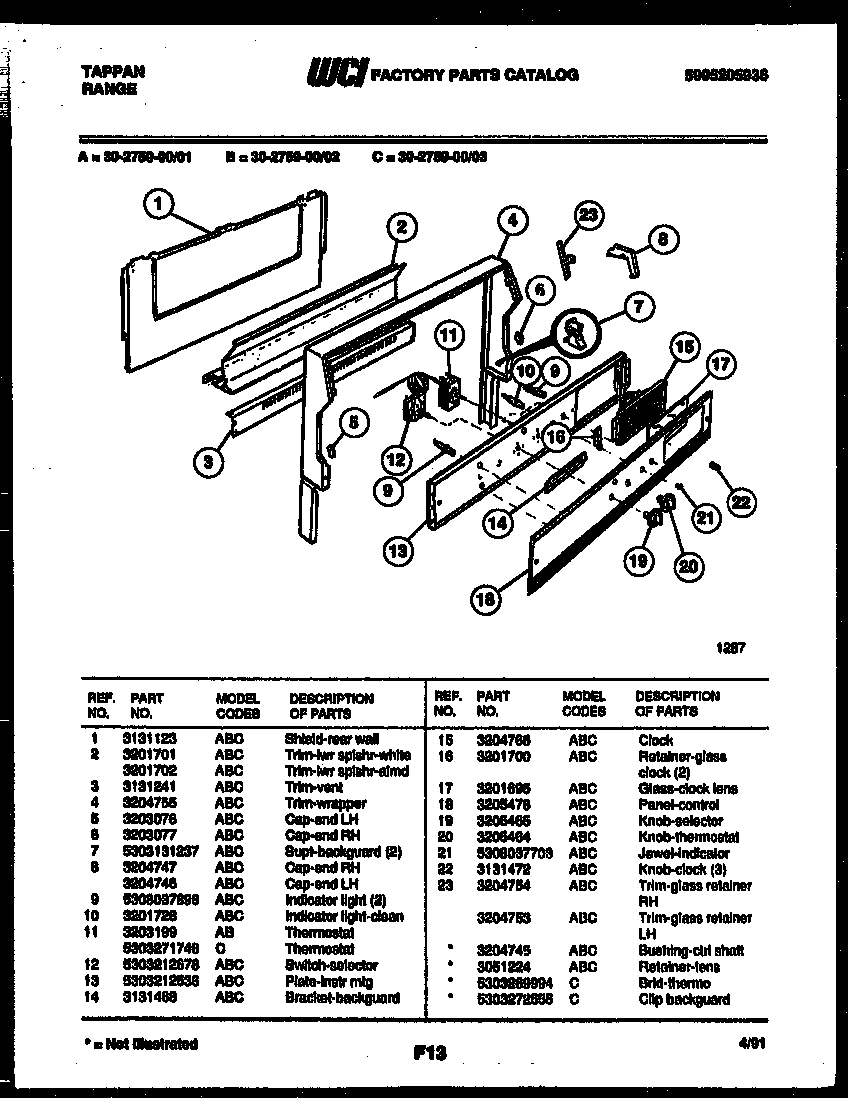

02 - BACKGUARD

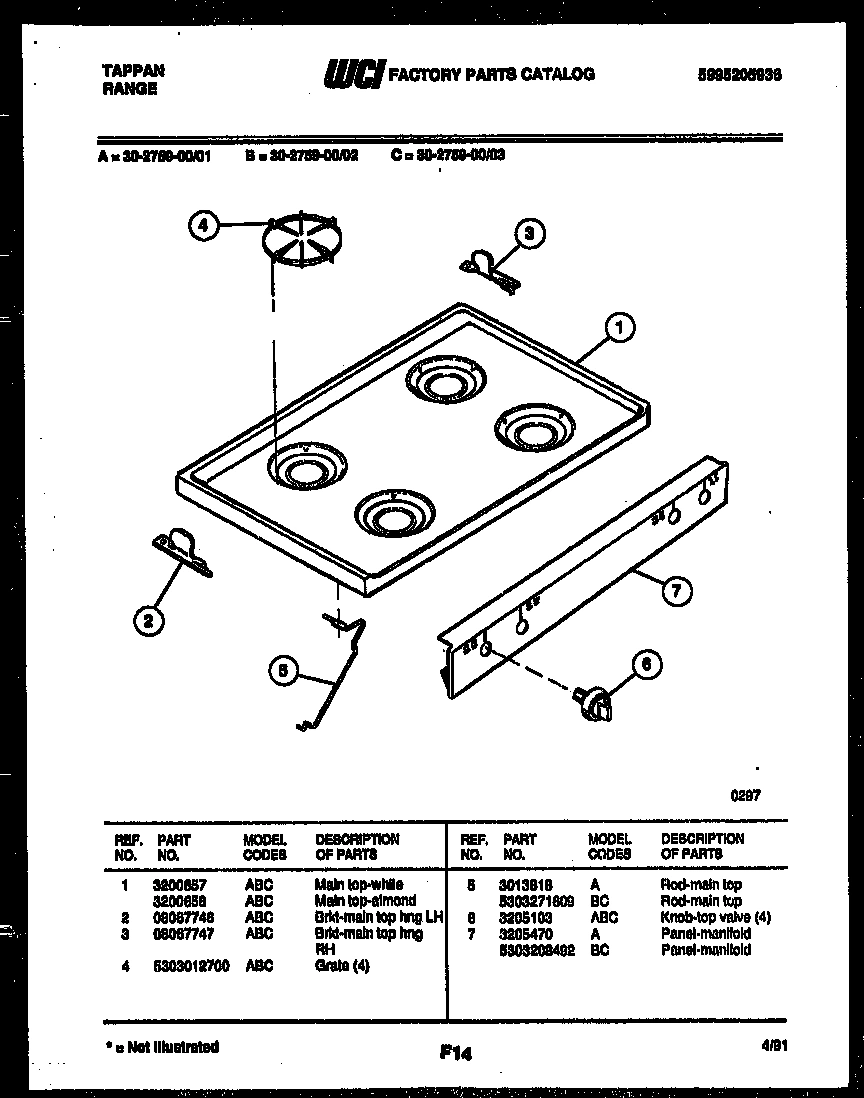

03 - COOKTOP PARTS

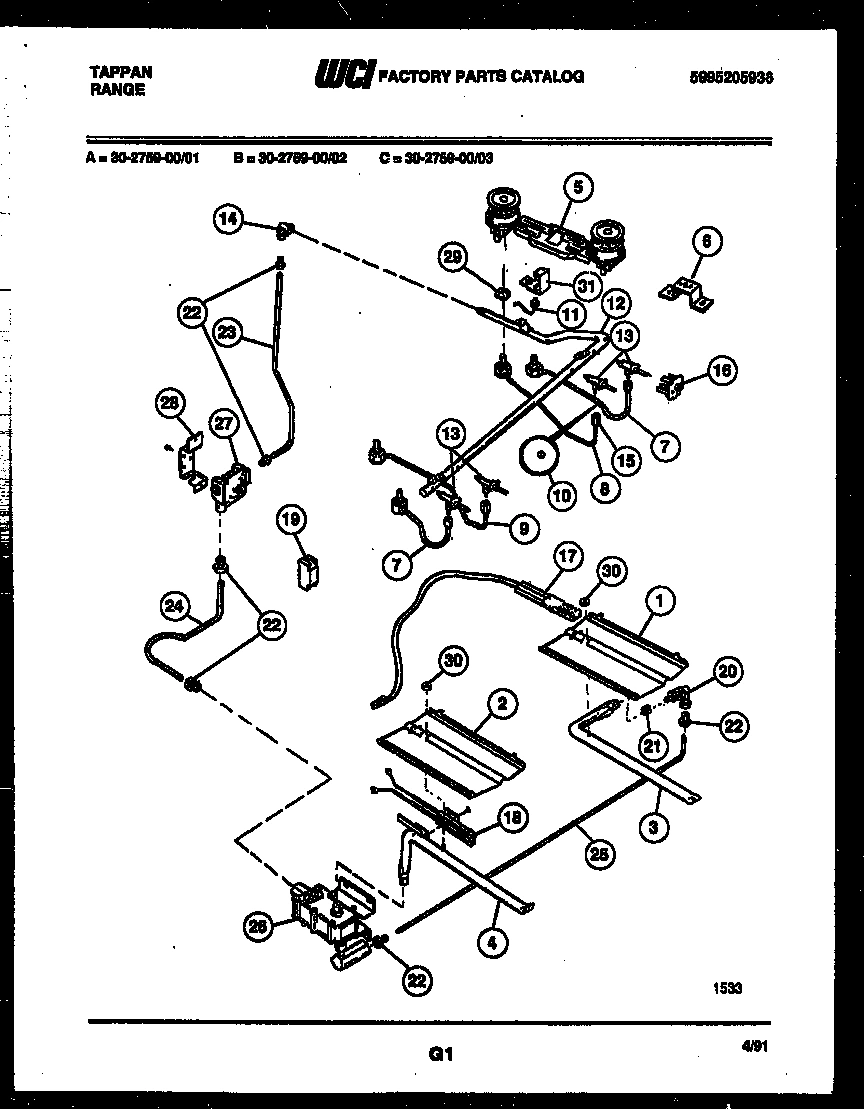

04 - BURNER, MANIFOLD AND GAS CONTROL

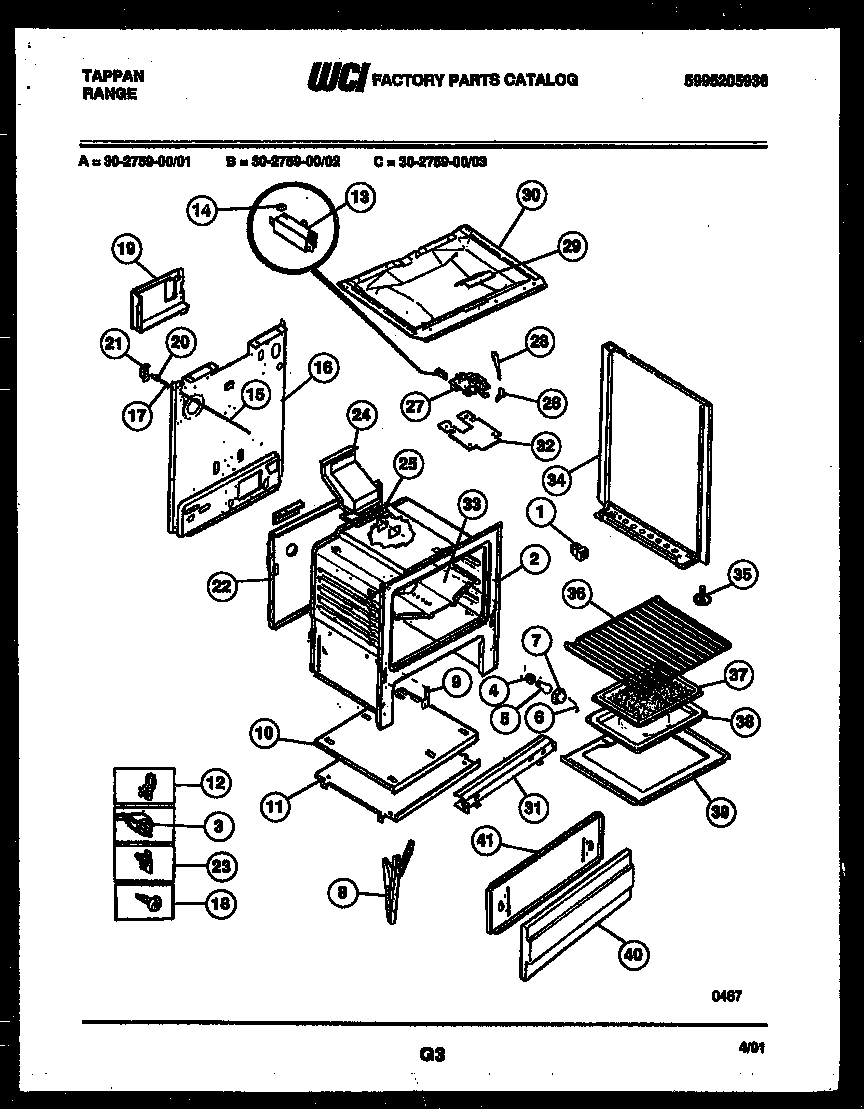

05 - BODY PARTS

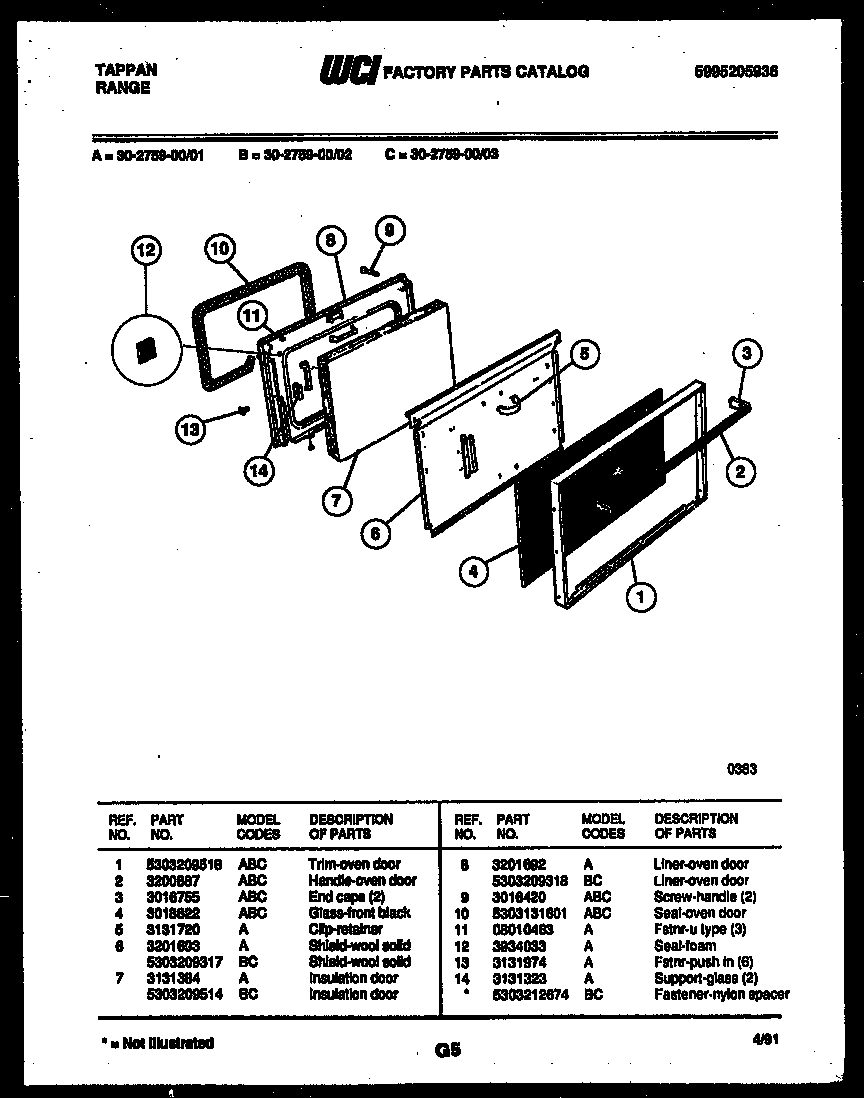

06 - DOOR PARTS
Common parts from model Electrolux 30-2759-23-03 RANGE
*33773
WCI 3131314 WCI 3131314 Contact Us For Availability
*33774
WCI 19100180803 WCI 19100180803 Contact Us For Availability
*33774
ALUMIN FOIL-BODYSIDE WCI 3017527 Contact Us For Availability
*33774
SPACER WCI 3200612 Contact Us For Availability
*33774
WCI 3934056 WCI 3934056 Contact Us For Availability
*33774
WCI 5303269502 WCI 5303269502 Contact Us For Availability
*33776
FASTENER-NYLON SPACER WCI 5303212674 Contact Us For Availability
1
WCI 3014099 WCI 3014099 Contact Us For Availability
1
WCI 3200658 WCI 3200658 Contact Us For Availability
1
WCI 5303210379 WCI 5303210379 Contact Us For Availability
1
WCI 5303209518 WCI 5303209518 Contact Us For Availability
2
BRKT-MAIN TOP HNG LH WCI 08067746 Contact Us For Availability
2
BAFFLE-OVEN BURNER WCI 3131284 Contact Us For Availability
2
HANDLE-OVEN DOOR WCI 3200887 Contact Us For Availability
3
WCI 08067935 WCI 08067935 Contact Us For Availability
3
BRKT-MAIN TOP HNG RH WCI 08067747 Contact Us For Availability
4
WCI 3131290 WCI 3131290 Contact Us For Availability
4
WCI 3018822 WCI 3018822 Contact Us For Availability
5
ROD-MAIN TOP WCI 5303271609 Contact Us For Availability
5
BURNER-TOP-DOUBLE WCI 5303131147 Contact Us For Availability
6
WCI 3205103 WCI 3205103 Contact Us For Availability
6
WCI 3200277 WCI 3200277 Contact Us For Availability
6
RETAINER WCI 3204483 Contact Us For Availability
6
SHIELD-WOOL SOLID WCI 5303209317 Contact Us For Availability
7
WCI 5303208492 WCI 5303208492 Contact Us For Availability
7
WCI 5303209514 WCI 5303209514 Contact Us For Availability
7A
WCI 5303271044 WCI 5303271044 Contact Us For Availability
7B
WCI 5303271041 WCI 5303271041 Contact Us For Availability
8
WCI 5303271043 WCI 5303271043 Contact Us For Availability
8
WCI 5303131564 WCI 5303131564 Contact Us For Availability
8
LINER-OVEN DOOR WCI 5303209318 Contact Us For Availability
9
COVER-HINGE CUTOUT (2) WCI 3131570 Contact Us For Availability
9
WCI 5303271042 WCI 5303271042 Contact Us For Availability
9
SCREW - HANDLE (2) WCI 3016420 Contact Us For Availability
10
WCI 3201728 WCI 3201728 Contact Us For Availability
10
WCI 5303271048 WCI 5303271048 Contact Us For Availability
11
WCI 5303271746 WCI 5303271746 Contact Us For Availability
11
IGNITER-TOP BURNER (2) WCI 3200276 Contact Us For Availability
11
WCI 3131313 WCI 3131313 Contact Us For Availability
11A
WCI 08067992 WCI 08067992 Contact Us For Availability
12
WCI 5303212678 WCI 5303212678 Contact Us For Availability
12
WCI 5303271375 WCI 5303271375 Contact Us For Availability
13
WCI 5303212536 WCI 5303212536 Contact Us For Availability
13
WCI 5303271680 WCI 5303271680 Contact Us For Availability
13
WCI 3131672 WCI 3131672 Contact Us For Availability
14
WCI 3131468 WCI 3131468 Contact Us For Availability
14
WCI 08067776 WCI 08067776 Contact Us For Availability
14A
WCI 08067978 WCI 08067978 Contact Us For Availability
15
WCI 3204766 WCI 3204766 Contact Us For Availability
16
RETAINER-GLASS CLOCK (2) WCI 3201700 Contact Us For Availability
16
IGNITION SWITCH (4) WCI 3131568 Contact Us For Availability
16
WCI 3203082 WCI 3203082 Contact Us For Availability
17
WCI 3201695 WCI 3201695 Contact Us For Availability
17
ROD LIGHT WCI 5303209316 Contact Us For Availability
18
WCI 3205478 WCI 3205478 Contact Us For Availability
19
WCI 3205465 WCI 3205465 Contact Us For Availability
20
WCI 3205464 WCI 3205464 Contact Us For Availability
20
WCI 08067979 WCI 08067979 Contact Us For Availability
20
SWITCH, DOOR WCI 5303202622 Contact Us For Availability
21
WCI 5308037703 WCI 5308037703 Contact Us For Availability
21
BRACKET, LIGHT SWITCH WCI 3131289 Contact Us For Availability
22
WCI 3131472 WCI 3131472 Contact Us For Availability
22
WCI 3131261 WCI 3131261 Contact Us For Availability
22
WCI 08067991 WCI 08067991 Contact Us For Availability
23
TRIM-GLASS RETAINER,RH WCI 3204754 Contact Us For Availability
23
TUBE-ALUM-REGUL TO MANIFOLD WCI 5303208495 Contact Us For Availability
23
CLIP-WIRE WCI 3011813 Contact Us For Availability
23A
TRIM-GLASS RETAINER,LH WCI 3204753 Contact Us For Availability
24
WCI 5303208494 WCI 5303208494 Contact Us For Availability
24
WCI 3131931 WCI 3131931 Contact Us For Availability
25
WCI 5303208493 WCI 5303208493 Contact Us For Availability
25A
SHIELD, BIMETAL LATCH (NON-ILLUSTRATED) WCI 3131593 Contact Us For Availability
25B
WCI 08013188 WCI 08013188 Contact Us For Availability
26
WCI 3203218 WCI 3203218 Contact Us For Availability
27
WCI 5303015453 WCI 5303015453 Contact Us For Availability
28
WCI 5303131357 WCI 5303131357 Contact Us For Availability
29
NUT, SPECIAL WCI 3013279 Contact Us For Availability
29
WCI 08067757 WCI 08067757 Contact Us For Availability
30
NUT WCI 3131358 Contact Us For Availability
30
WCI 3011597 WCI 3011597 Contact Us For Availability
31
WCI 5303271047 WCI 5303271047 Contact Us For Availability
32
WCI 3051413 WCI 3051413 Contact Us For Availability
33
WCI 3200836 WCI 3200836 Contact Us For Availability
34
WCI 5303269545 WCI 5303269545 Contact Us For Availability
34A
WCI 5303269543 WCI 5303269543 Contact Us For Availability
35
SCREW-LEVELING WCI 5303203397 Contact Us For Availability
37
WCI 5303131356 WCI 5303131356 Contact Us For Availability
38
PAN-BROILER WCI 5303013568 Contact Us For Availability
39
OVEN BOTTOM WCI 5303212540 Contact Us For Availability
39B
INSULATION-WRAP (NON-ILLUSTRATED) WCI 3200833 Contact Us For Availability
39C
WCI 08067961 WCI 08067961 Contact Us For Availability
39D
WCI 3204582 WCI 3204582 Contact Us For Availability
39F
INSULATION-TOP (NON-ILLUSTRATED) WCI 3131304 Contact Us For Availability
39G
WCI 08068018 WCI 08068018 Contact Us For Availability
40
PANEL, DUMMY DRWR (WHITE) WCI 3051201 Contact Us For Availability
40
PANEL, DUMMY DRWR (ALMOND) WCI 3051202 Contact Us For Availability
40A
SHIELD-HEAT, BODY SIDE (NON-ILLUSTRATED) WCI 3200834 Contact Us For Availability
41
WCI 3131975 WCI 3131975 Contact Us For Availability
× ![]()
