Model Electrolux 30-2757-00-06 RANGE – Common Parts & Diagrams
02 - BACKGUARD
03 - COOKTOP PARTS

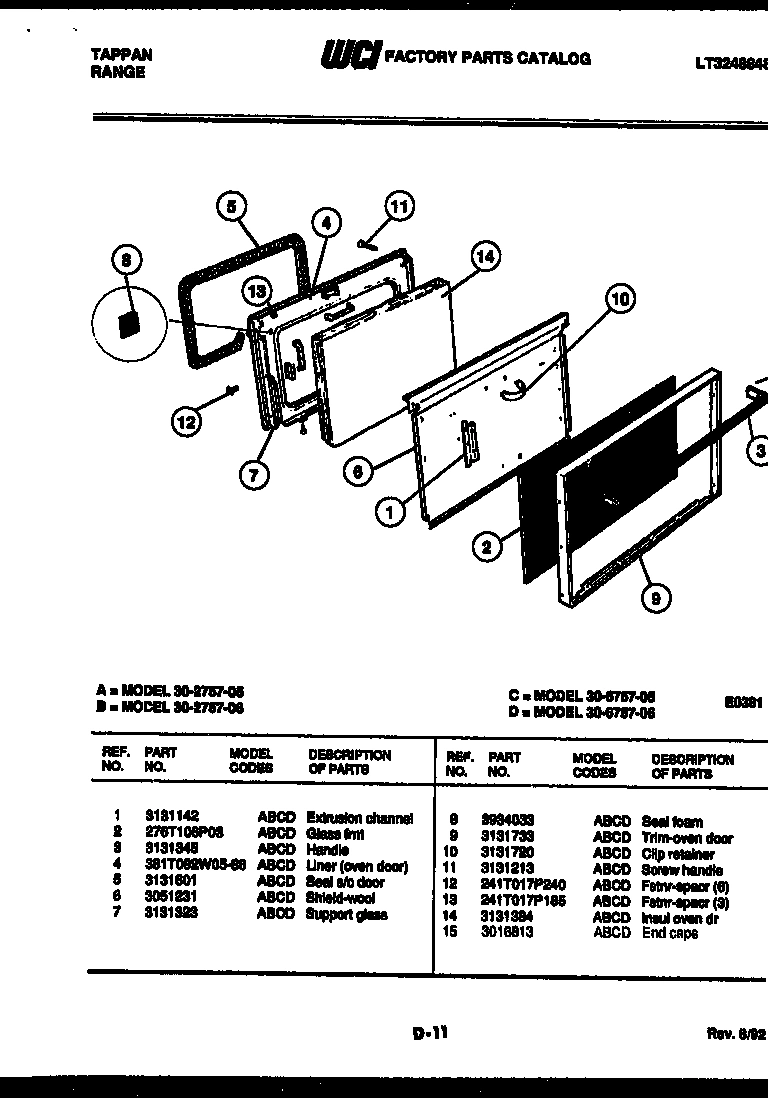

04 - DOOR PARTS

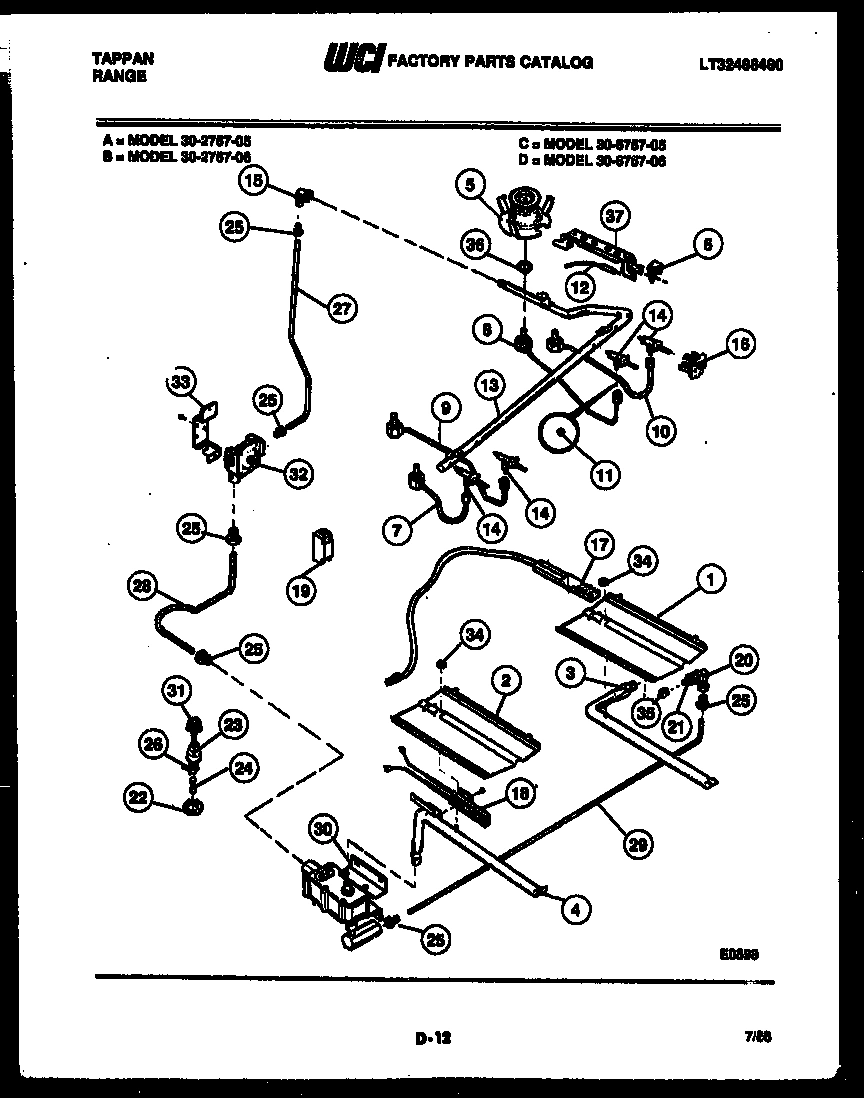

05 - BURNER, MANIFOLD AND GAS CONTROL
06 - BODY PARTS
Common parts from model Electrolux 30-2757-00-06 RANGE
*16584
WCI 612T124P01 WCI 612T124P01 Contact Us For Availability
*16588
RIVET WCI 3051420 Contact Us For Availability
*16592
WCI 3017527 WCI 3017527 Contact Us For Availability
1
WCI 3934026 WCI 3934026 Contact Us For Availability
1
EXTRUSION CHANNEL WCI 3131142 Contact Us For Availability
1
WCI 3131283 WCI 3131283 Contact Us For Availability
1
SPACR-BDYSIDE (8) WCI 665T188P02 Contact Us For Availability
2
BRKT MAIN TOP HINGE-LH WCI 3131286 Contact Us For Availability
2
WCI 276T106P03 WCI 276T106P03 Contact Us For Availability
2
WCI 3131284 WCI 3131284 Contact Us For Availability
3
WCI 277T219P02 WCI 277T219P02 Contact Us For Availability
3
BRKT MAIN TOP HINGE-RH WCI 3131287 Contact Us For Availability
3
HANDLE WCI 3131345 Contact Us For Availability
3
WCI 079T028P01 WCI 079T028P01 Contact Us For Availability
3
WCI 3131363 WCI 3131363 Contact Us For Availability
4
WCI 554T400F02-18 WCI 554T400F02-18 Contact Us For Availability
4
LINER, OVEN DOOR WCI 381T092W05-86 Contact Us For Availability
4
WCI 3131290 WCI 3131290 Contact Us For Availability
5
RETAINER-CLOCK LENS WCI 612T123F01 Contact Us For Availability
5
ROD-MAIN TOP SUPT (2) WCI 618T038P05 Contact Us For Availability
5
WCI 079T032S02 WCI 079T032S02 Contact Us For Availability
6
WCI 3131436 WCI 3131436 Contact Us For Availability
6
KNOB TOP VALVE (4) WCI 358T197P07 Contact Us For Availability
6
WCI 3051231 WCI 3051231 Contact Us For Availability
6
WCI 612T119F01 WCI 612T119F01 Contact Us For Availability
6
WCI 3131104 WCI 3131104 Contact Us For Availability
7
WCI 3131241 WCI 3131241 Contact Us For Availability
7
WCI 521T146P02 WCI 521T146P02 Contact Us For Availability
7
SUPPORT, GLASS WCI 3131323 Contact Us For Availability
7
WCI 079T033H01 WCI 079T033H01 Contact Us For Availability
7
WCI 3131298 WCI 3131298 Contact Us For Availability
8
TRIM LWR SPLASHER WCI 740T509P01 Contact Us For Availability
8
WCI 3934033 WCI 3934033 Contact Us For Availability
8
WCI 079T033H02 WCI 079T033H02 Contact Us For Availability
8
CHANL-DR HNG (2) WCI 3131569 Contact Us For Availability
9
CVR. HNG. CUTOUT (2) WCI 3131570 Contact Us For Availability
9
SHIELD-BACKGRD WCI 3131123 Contact Us For Availability
9
WCI 3131733 WCI 3131733 Contact Us For Availability
9
WCI 079T033H03 WCI 079T033H03 Contact Us For Availability
10
WCI 123T120P03 WCI 123T120P03 Contact Us For Availability
10
WCI 3131720 WCI 3131720 Contact Us For Availability
10
WCI 079T033H04 WCI 079T033H04 Contact Us For Availability
10
WCI 3131312 WCI 3131312 Contact Us For Availability
11
WCI 123T120P04 WCI 123T120P04 Contact Us For Availability
11
SCREW-HANDLE WCI 3131213 Contact Us For Availability
11
WCI 247T074P01 WCI 247T074P01 Contact Us For Availability
11
WCI 3131313 WCI 3131313 Contact Us For Availability
11A
WCI 665T437F01 WCI 665T437F01 Contact Us For Availability
12
FSTNR GLASS (2) WCI 3131607 Contact Us For Availability
12
FSTNR-SPACR (6) WCI 241T017P240 Contact Us For Availability
12
IGN. TOP 50`` (4) WCI 316T034P02 Contact Us For Availability
12
WCI 3131295 WCI 3131295 Contact Us For Availability
13
NUT - DECOR (2) WCI 3051194 Contact Us For Availability
13
FSTNR-SPACR (3) WCI 241T017P185 Contact Us For Availability
13
WCI 439T055P03 WCI 439T055P03 Contact Us For Availability
13
WCI 3131672 WCI 3131672 Contact Us For Availability
14
WCI 358T201P01 WCI 358T201P01 Contact Us For Availability
14
WCI 3131384 WCI 3131384 Contact Us For Availability
14
VALVE-TOP (4) WCI 3017542 Contact Us For Availability
14
WCI 241T001P01 WCI 241T001P01 Contact Us For Availability
14A
RETAINER LENS (3) (NON-ILLUSTRATED) WCI 3051224 Contact Us For Availability
14A
WCI 3051307 WCI 3051307 Contact Us For Availability
15
WCI 722T071P01 WCI 722T071P01 Contact Us For Availability
15
ELBOW 1/2 NP X 9/16-24 WCI 215T013P01 Contact Us For Availability
15
WCI 174T329P01 WCI 174T329P01 Contact Us For Availability
15A
NUT COMPR. (4) (NON-ILLUSTRATED) WCI 3131148 Contact Us For Availability
16
WCI 3131467 WCI 3131467 Contact Us For Availability
16
SWITCH IGN. (4) WCI 695T225P02 Contact Us For Availability
16
WCI 3131567 WCI 3131567 Contact Us For Availability
17
IND. LIGHT (3) WCI 318T023P01 Contact Us For Availability
17
WCI 3051495 WCI 3051495 Contact Us For Availability
18
WCI 342T014P01 WCI 342T014P01 Contact Us For Availability
18
ANGLE, LIGHT SHIELD WCI 3131278 Contact Us For Availability
19
SWITCH-SEL 5 POS WCI 3091345 Contact Us For Availability
19
WCI 3131294 WCI 3131294 Contact Us For Availability
20
WCI 3131964 WCI 3131964 Contact Us For Availability
20
WCI 455T008P02 WCI 455T008P02 Contact Us For Availability
20
WCI 695T128P04 WCI 695T128P04 Contact Us For Availability
21
WCI 3131724 WCI 3131724 Contact Us For Availability
21
WCI 3131358 WCI 3131358 Contact Us For Availability
21
WCI 3131289 WCI 3131289 Contact Us For Availability
22
WCI 3131725 WCI 3131725 Contact Us For Availability
22
WCI 3131309 WCI 3131309 Contact Us For Availability
22
WCI 3131316 WCI 3131316 Contact Us For Availability
23
SUPPORT-B/G WCI 3131237 Contact Us For Availability
23
SEAL ``O``RING WCI 647T087P01 Contact Us For Availability
23
CLIP, WIRE WCI 145T130P01 Contact Us For Availability
24
FUSE WCI 3131297 Contact Us For Availability
24
WCI 3131931 WCI 3131931 Contact Us For Availability
25
FITTING, LOXIT (6) WCI 3131261 Contact Us For Availability
25A
WCI 3131593 WCI 3131593 Contact Us For Availability
25B
SCREW LATCH KNOB (NON-ILLUSTRATED) WCI 636T144P01 Contact Us For Availability
26
WCI 3131359 WCI 3131359 Contact Us For Availability
26
WCI 358T158S02 WCI 358T158S02 Contact Us For Availability
27
WCI 750T085H09 WCI 750T085H09 Contact Us For Availability
27
WCI 368T027P01 WCI 368T027P01 Contact Us For Availability
28
WCI 3131109 WCI 3131109 Contact Us For Availability
28
WCI 3131357 WCI 3131357 Contact Us For Availability
29
WCI 3131364 WCI 3131364 Contact Us For Availability
29
WCI 3131101 WCI 3131101 Contact Us For Availability
30
WCI 095T030F02-86 WCI 095T030F02-86 Contact Us For Availability
31
WCI 3131292 WCI 3131292 Contact Us For Availability
31
WCI 3131311 WCI 3131311 Contact Us For Availability
32
WCI 657T018P01 WCI 657T018P01 Contact Us For Availability
33
WCI 3131315 WCI 3131315 Contact Us For Availability
34
PNL. B/S (RH WHITE) WCI 3131227 Contact Us For Availability
34
PNL. B/S (LH WHITE) WCI 3131257 Contact Us For Availability
35
WCI 479T015P08 WCI 479T015P08 Contact Us For Availability
35
WCI 636M004P01 WCI 636M004P01 Contact Us For Availability
36
NUT SPECIAL WCI 479T069P40 Contact Us For Availability
36A
WCI 3200612 WCI 3200612 Contact Us For Availability
37
WCI 072T839F02 WCI 072T839F02 Contact Us For Availability
37
INSERT-BROILR PAN WCI 3131356 Contact Us For Availability
38
PAN, BROILER WCI 539T010F01-86 Contact Us For Availability
39
WCI 058T036F02-86 WCI 058T036F02-86 Contact Us For Availability
40
WCI 102T044P02 WCI 102T044P02 Contact Us For Availability
40A
FSTNR-POWER CORD (NON-ILLUSTRATED) WCI 241T017P255 Contact Us For Availability
40B
WCI 3131303 WCI 3131303 Contact Us For Availability
40D
WCI 3131304 WCI 3131304 Contact Us For Availability
40E
WCI 655T434F01 WCI 655T434F01 Contact Us For Availability
41
WCI 3051201 WCI 3051201 Contact Us For Availability
42
WCI 3131383 WCI 3131383 Contact Us For Availability
× ![]()
