Model Electrolux 30-2551-23-04 RANGE – Common Parts & Diagrams

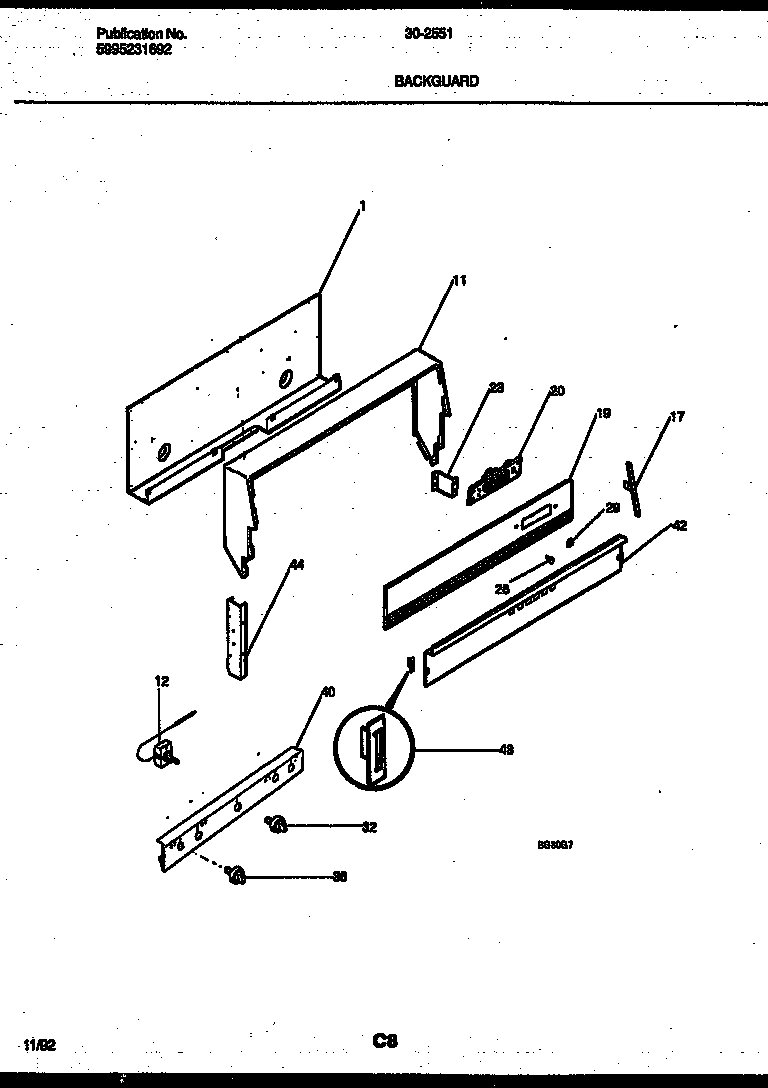

02 - BACKGUARD

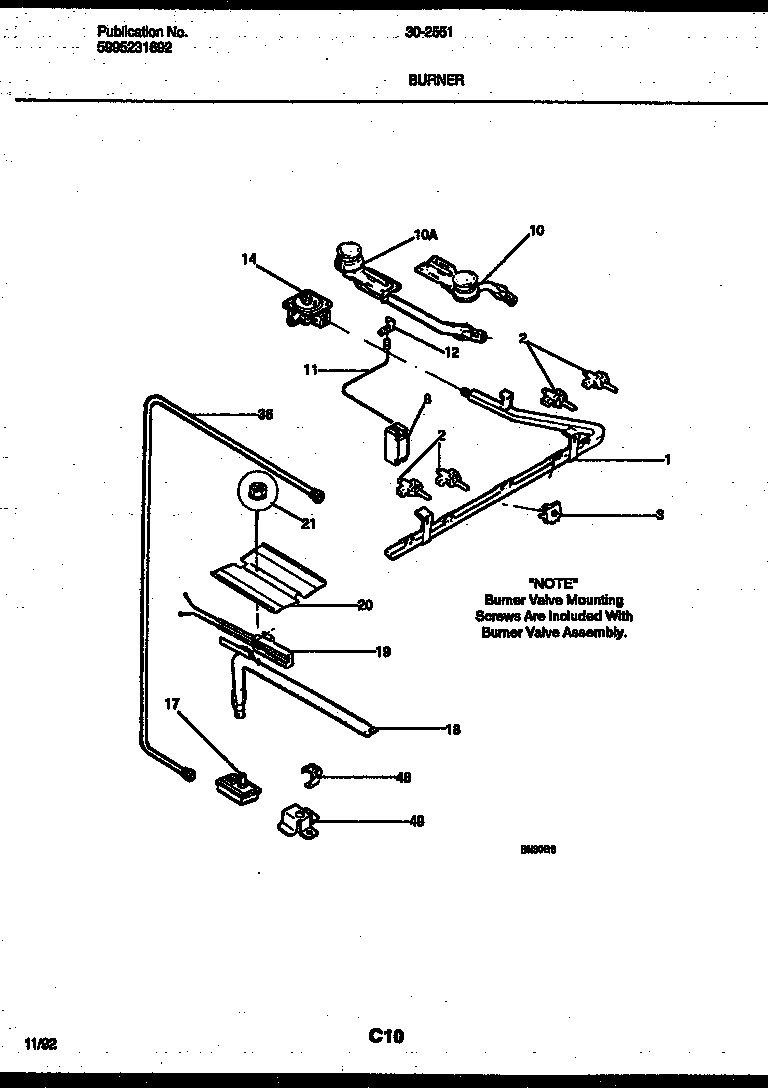

03 - BURNER PARTS

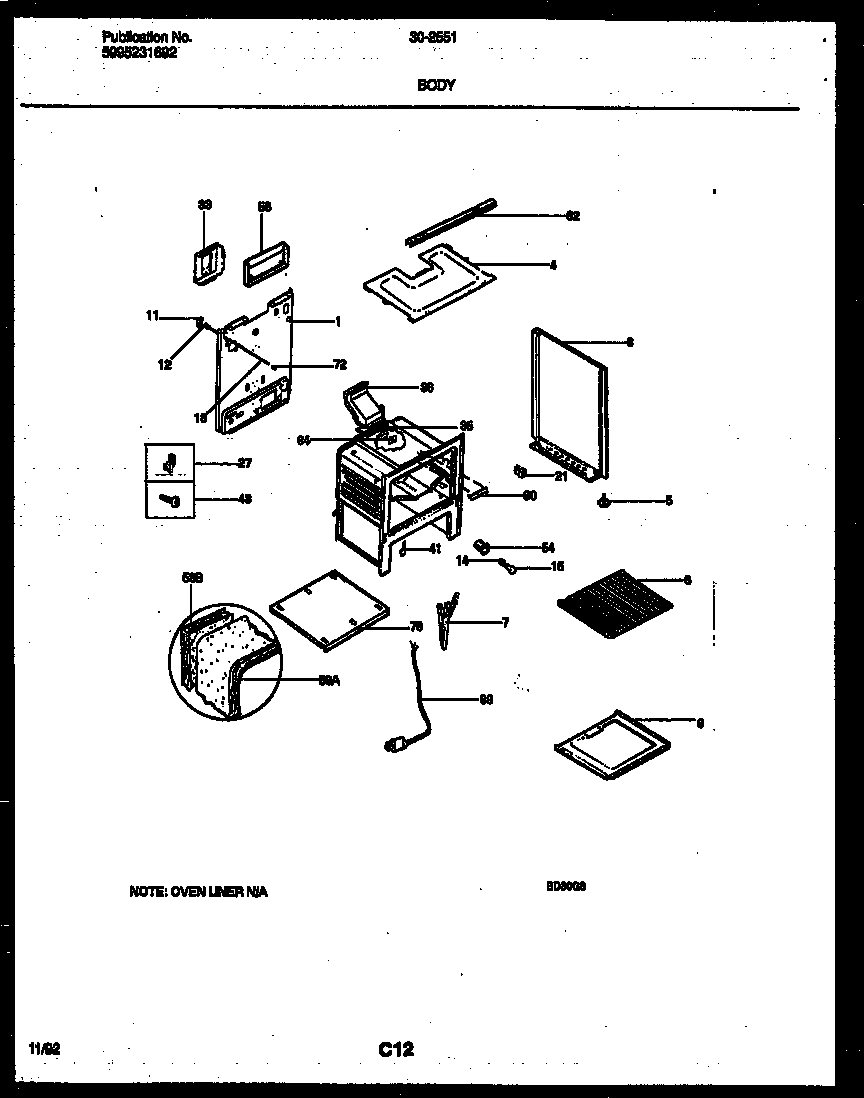

04 - BODY PARTS

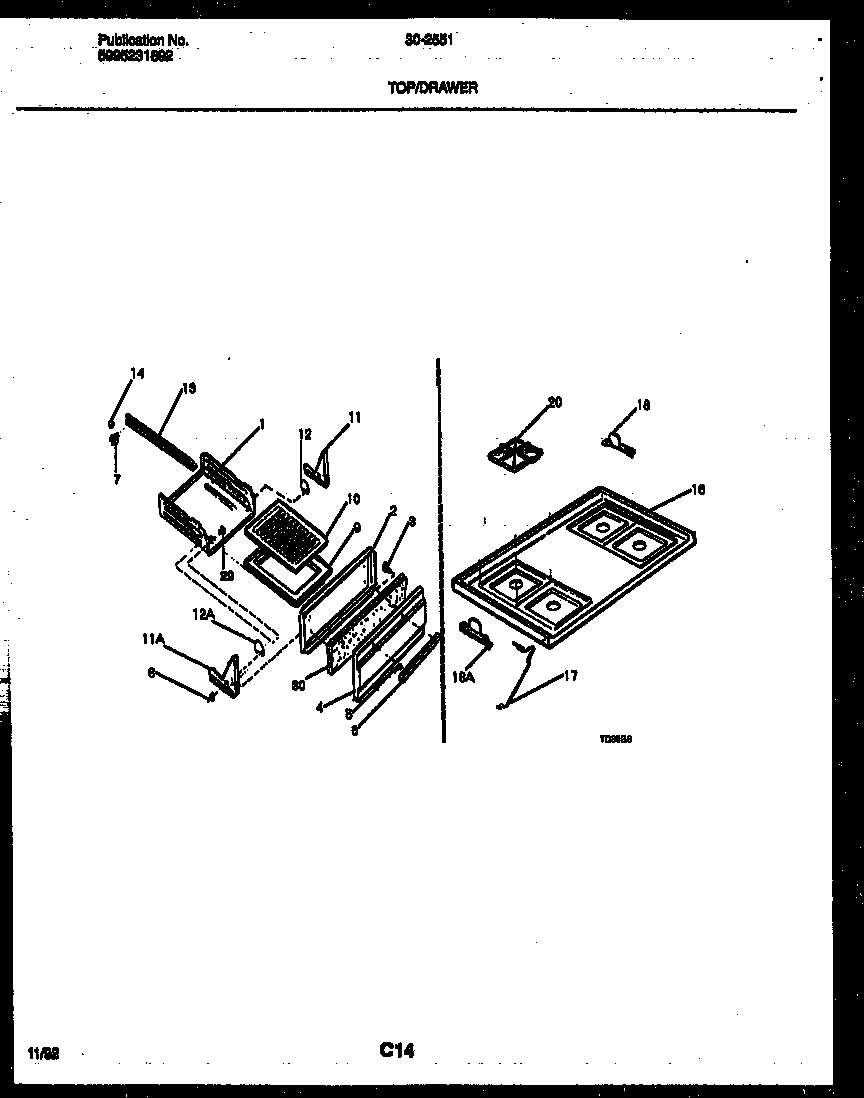

05 - COOKTOP AND BROILER DRAWER PARTS

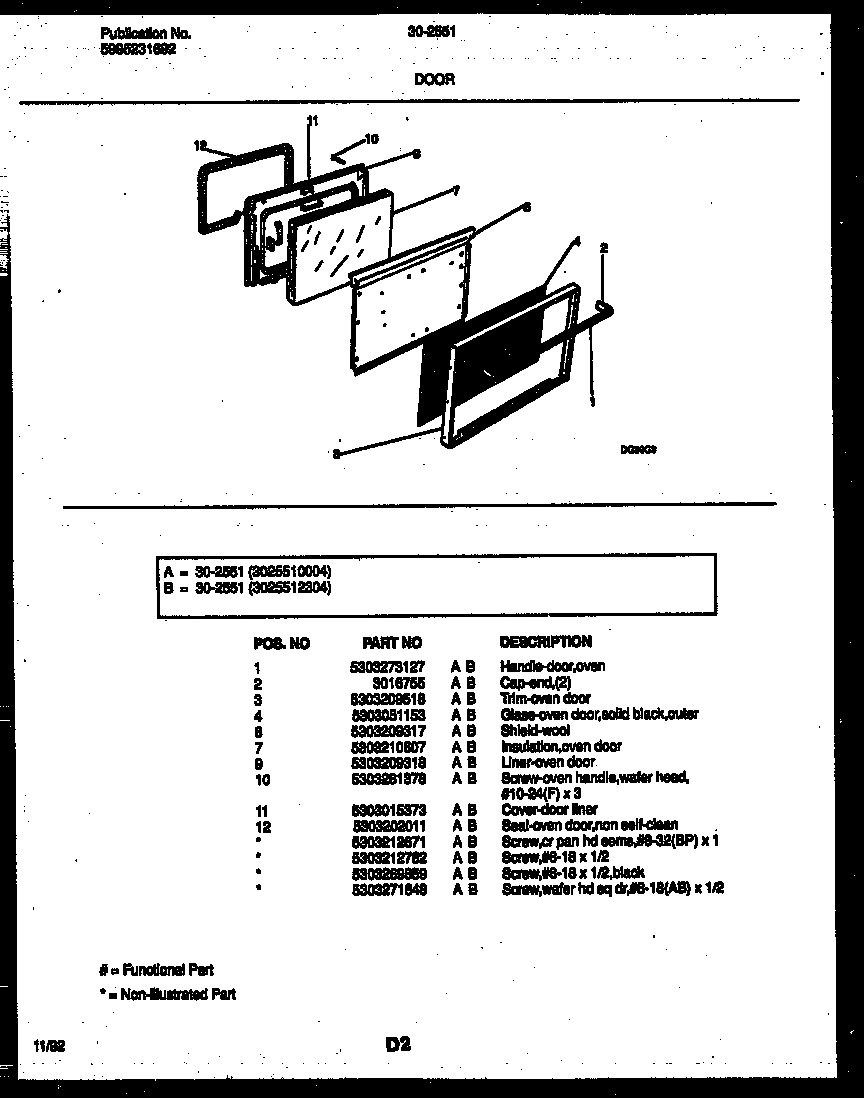

06 - DOOR PARTS
Common parts from model Electrolux 30-2551-23-04 RANGE
*82457
WCI 08067961 WCI 08067961 Contact Us For Availability
*82457
SHIELD - FLUE PROFILE WCI 5303280614 Contact Us For Availability
*82458
WCI 5303281584 WCI 5303281584 Contact Us For Availability
*82459
WCI 5303212671 WCI 5303212671 Contact Us For Availability
*82459
WCI 5303269859 WCI 5303269859 Contact Us For Availability
1
WCI 3203082 WCI 3203082 Contact Us For Availability
1
DRAWER-BROILER WCI 3018608 Contact Us For Availability
1
HANDLE-DOOR, OVEN WCI 5303273127 Contact Us For Availability
2
LINER, BROILER DOOR WCI 3202803 Contact Us For Availability
3
WCI 316032001 WCI 316032001 Contact Us For Availability
3
SCREW-DRAWER HANDLE, 8 TRUSS HEAD, 10-16 X 1/ WCI 5303281651 Contact Us For Availability
3
WCI 5303269543 WCI 5303269543 Contact Us For Availability
3
WCI 5303209518 WCI 5303209518 Contact Us For Availability
3B
WCI 5303269545 WCI 5303269545 Contact Us For Availability
4
WCI 3204962 WCI 3204962 Contact Us For Availability
4
WCI 3131134 WCI 3131134 Contact Us For Availability
4
GLASS-OVEN DOOR, SOLID BLACK, OUTER WCI 5303051153 Contact Us For Availability
4A
WCI 08067785 WCI 08067785 Contact Us For Availability
5
SCREW-LEVELING WCI 5303203397 Contact Us For Availability
5
FASTENER-SPACER, PUSH-IN NUT, NYLON WCI 3131387 Contact Us For Availability
5A
WCI 5303288460 WCI 5303288460 Contact Us For Availability
5B
WCI 3931015 WCI 3931015 Contact Us For Availability
6
HANDLE-DRAWER, BRUSHED CHROME WCI 3201268 Contact Us For Availability
6
WCI 5303209317 WCI 5303209317 Contact Us For Availability
7
GLIDE-BROILER WCI 3018610 No Longer Available
7
Hinge,oven door ,(2) WCI 316007001 Contact Us For Availability
7
INSULATION, OVEN DOOR WCI 5303210607 Contact Us For Availability
8
PANEL-OVEN BOTTOM WCI 5303212540 Contact Us For Availability
8
NUT, PUSH-ON, (2) WCI 3131386 Contact Us For Availability
9
PAN-BROILER WCI 5303013568 Contact Us For Availability
9
LINER-OVEN DOOR WCI 5303209318 Contact Us For Availability
10
SCREW-OVEN HANDLE, WAFER HEAD, 10-24(F) X 3 WCI 5303281378 Contact Us For Availability
10
WCI 5303131356 WCI 5303131356 Contact Us For Availability
11
BRACKET-LIGHT SWITCH WCI 5303131289 Contact Us For Availability
11
WCI 5303281621 WCI 5303281621 Contact Us For Availability
11
WCI 5303015373 WCI 5303015373 Contact Us For Availability
11A
WCI 5303281620 WCI 5303281620 Contact Us For Availability
12
SWITCH-OVEN LIGHT, DOOR FRAME WCI 5303202622 Contact Us For Availability
12
SPRING-BROILER, RH WCI 3018619 Contact Us For Availability
12A
SPRING-BROILER, LH WCI 3018618 Contact Us For Availability
13
WCI 5303269501 WCI 5303269501 Contact Us For Availability
13
CHANNEL-BROILER WCI 3131153 Contact Us For Availability
14
PLUG-BUTTON, GLIDE WCI 3206216 Contact Us For Availability
16
MAIN TOP, ALMOND WCI 5303281619 Contact Us For Availability
17
ROD-MAINTOP SUPPORT WCI 5303271609 Contact Us For Availability
18
WCI 3131439 WCI 3131439 Contact Us For Availability
18
BRACKET-HINGE,MAIN TOP RH WCI 08067747 Contact Us For Availability
18A
BRACKET-HINGE,MAIN TOP LH WCI 08067746 Contact Us For Availability
20
GRATE (4) WCI 3018432 Contact Us For Availability
21
SPACER-BODYSIDE, (2) WCI 3014099 Contact Us For Availability
29
BUTTON-SELECTOR, CLOCK/TIMER, BLACK WCI 5303272305 Contact Us For Availability
29
WCI 3018614 WCI 3018614 Contact Us For Availability
30
INSULATION, BROILER DRAWER WCI 5303131258 Contact Us For Availability
32
WCI 3203441 WCI 3203441 Contact Us For Availability
33
WCI 3131660 WCI 3131660 Contact Us For Availability
33A
WCI 5303291882 WCI 5303291882 Contact Us For Availability
34
WCI 3018607 WCI 3018607 Contact Us For Availability
36
WCI 3131904 WCI 3131904 Contact Us For Availability
39A
COVER-POWER CORD, (NON-ILLUSTRATED) WCI 3131244 Contact Us For Availability
41
WCI 3131570 WCI 3131570 Contact Us For Availability
54
WCI 5303271606 WCI 5303271606 Contact Us For Availability
55
WCI 5303291880 WCI 5303291880 Contact Us For Availability
55A
SHIELD-FLUE, (NON-ILLUSTRATED) WCI 3202799 Contact Us For Availability
58A
INSULATION, OVEN WRAPPER WCI 3017142 Contact Us For Availability
58B
INSULATION, OVEN BACK WCI 3203541 Contact Us For Availability
60
COVER-OVEN FRONT WCI 5303015372 Contact Us For Availability
72
WCI 5303285692 WCI 5303285692 Contact Us For Availability
73
WCI 5303281627 WCI 5303281627 Contact Us For Availability
× ![]()
