Model Electrolux 30-2551-00-01 RANGE – Common Parts & Diagrams

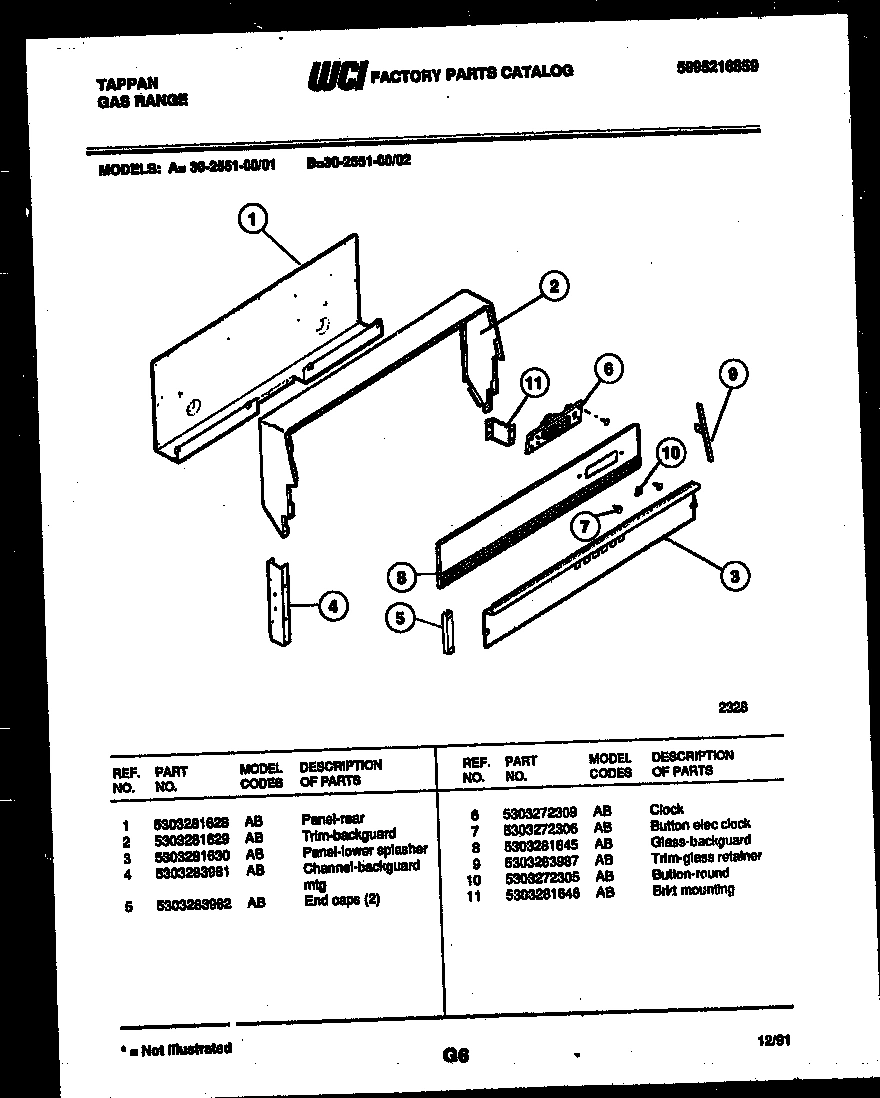

02 - BACKGUARD

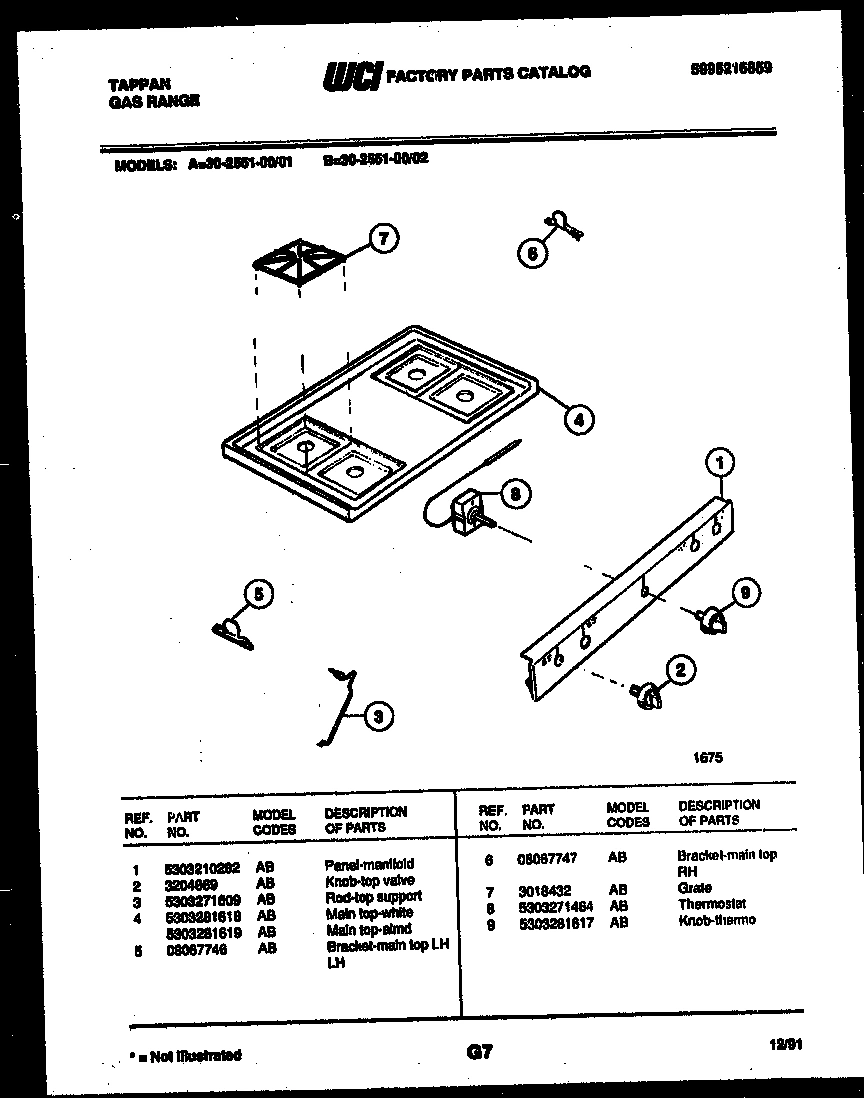

03 - COOKTOP PARTS

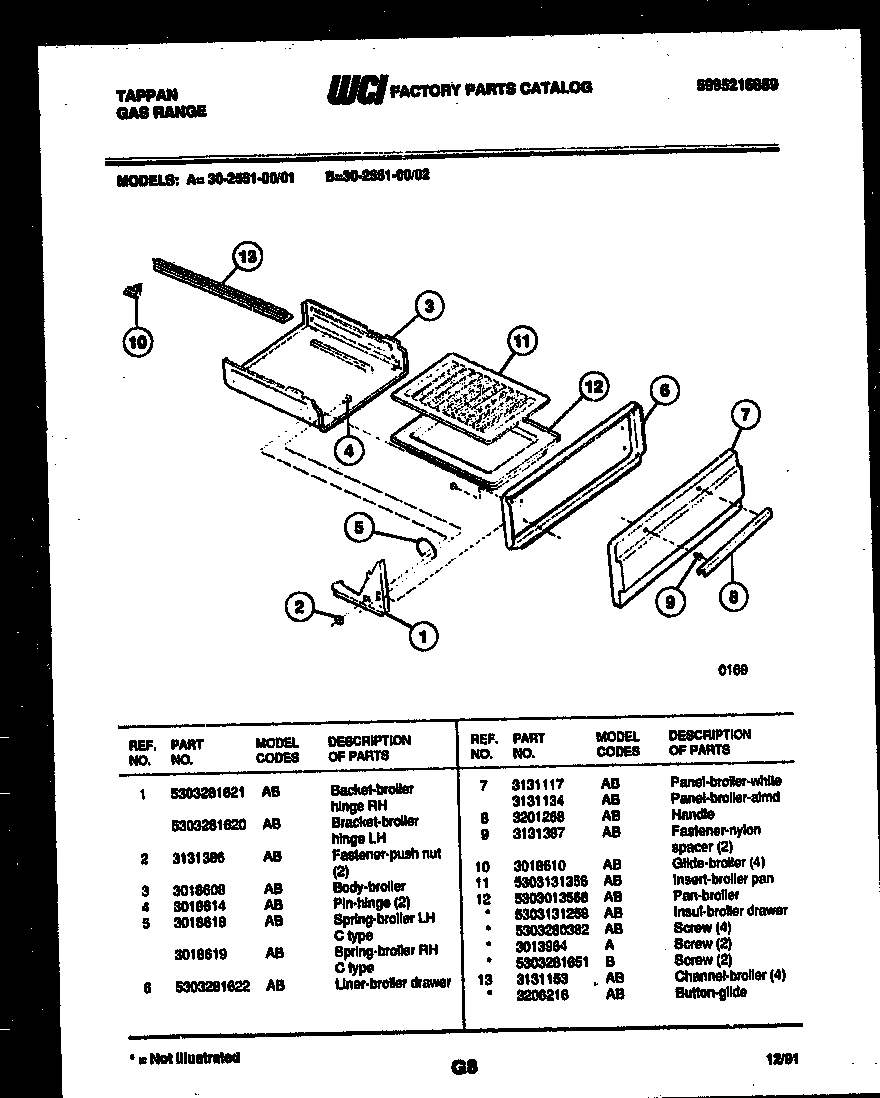

04 - BROILER DRAWER PARTS

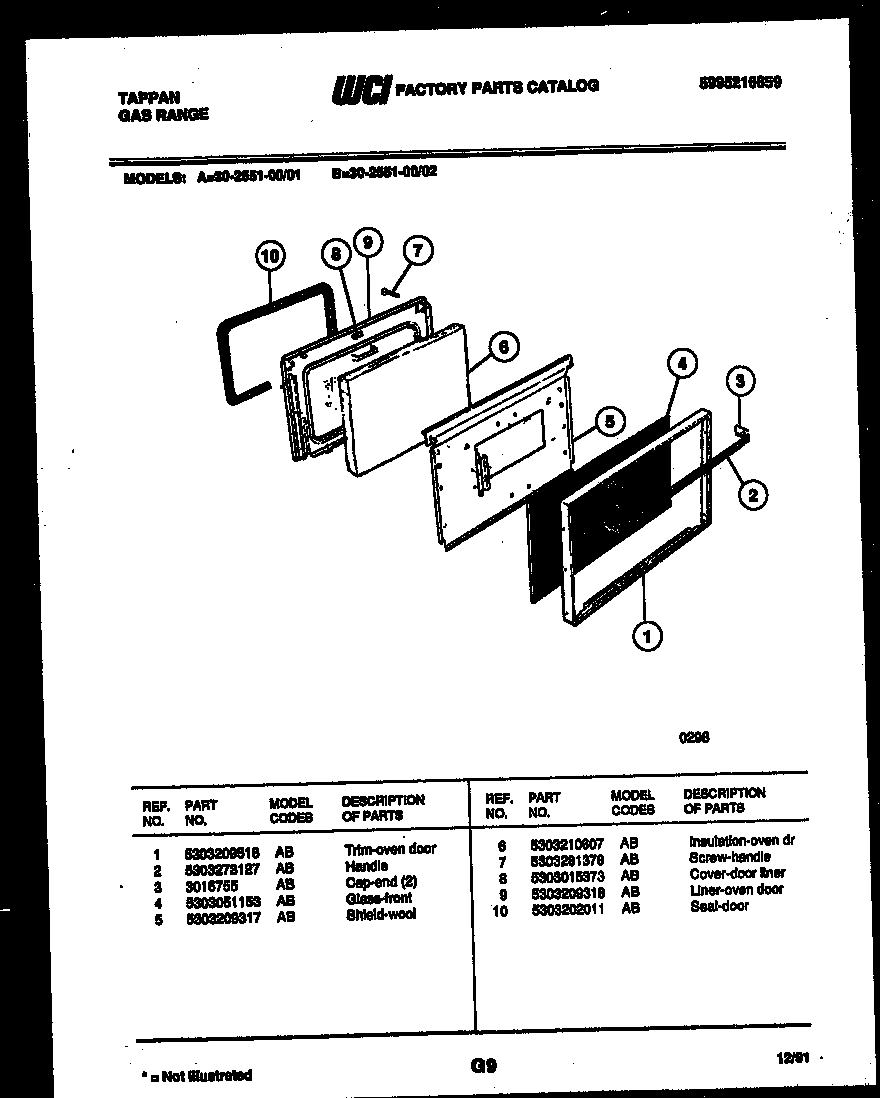

05 - DOOR PARTS
06 - BURNER, MANIFOLD AND GAS CONTROL

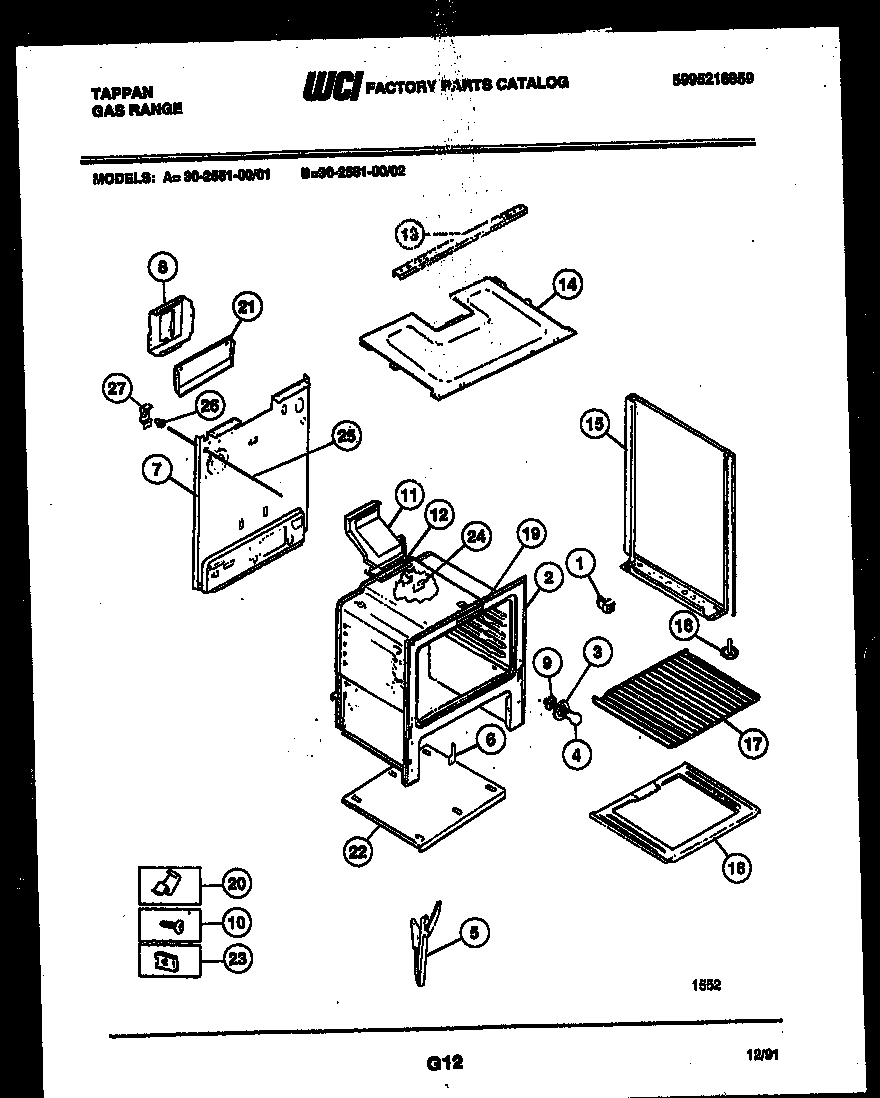

07 - BODY PARTS
Common parts from model Electrolux 30-2551-00-01 RANGE
*61533
WCI 3206216 WCI 3206216 Contact Us For Availability
*61541
WCI 08010570 WCI 08010570 Contact Us For Availability
*61541
WCI 19100200032 WCI 19100200032 Contact Us For Availability
*61541
WCI 3202799 WCI 3202799 Contact Us For Availability
1
SPACER, B/S (8) WCI 3014099 Contact Us For Availability
1
BACKET-BROILER HINGE RH WCI 5303281621 Contact Us For Availability
1
WCI 5303209518 WCI 5303209518 Contact Us For Availability
1
CONTROL - REGUL WCI 5303280293 Contact Us For Availability
1A
BRACKET-BROILER HINGE LH WCI 5303281620 Contact Us For Availability
2
WCI 3131386 WCI 3131386 Contact Us For Availability
2
WCI 5303273127 WCI 5303273127 Contact Us For Availability
2
WCI 5303272435 WCI 5303272435 Contact Us For Availability
3
WCI 3018608 WCI 3018608 Contact Us For Availability
3
SWITCH - IGNITOR (4) WCI 3131568 Contact Us For Availability
4
PIN, HINGE (2) WCI 3018614 Contact Us For Availability
4
GLASS-FRONT WCI 5303051153 Contact Us For Availability
4
VALVE - TOP 2 POS (4) WCI 5303272436 Contact Us For Availability
5
BRACKET-MAIN TOP LH LH WCI 08067746 Contact Us For Availability
5
WCI 3018618 WCI 3018618 Contact Us For Availability
5
WCI 5303209317 WCI 5303209317 Contact Us For Availability
5A
WCI 3018619 WCI 3018619 Contact Us For Availability
6
COVER HNG. CUTOUT (2) WCI 3131570 Contact Us For Availability
6
WCI 5303281622 WCI 5303281622 Contact Us For Availability
6
INSULATION-OVEN DR WCI 5303210607 Contact Us For Availability
7
WCI 5303281378 WCI 5303281378 Contact Us For Availability
7
WCI 3018432 WCI 3018432 Contact Us For Availability
7
PANEL - BROILER WHITE WCI 3131117 Contact Us For Availability
7
WCI 3200276 WCI 3200276 Contact Us For Availability
7
WCI 3203082 WCI 3203082 Contact Us For Availability
8
WCI 3201268 WCI 3201268 Contact Us For Availability
8
WCI 5303015373 WCI 5303015373 Contact Us For Availability
8
WCI 3131660 WCI 3131660 Contact Us For Availability
9
WCI 5303281617 WCI 5303281617 Contact Us For Availability
9
FASTENER-NYLON SPACER (2) WCI 3131387 Contact Us For Availability
9
LINER-OVEN DOOR WCI 5303209318 Contact Us For Availability
9
WCI 3203458 WCI 3203458 Contact Us For Availability
9
WCI 5303271606 WCI 5303271606 Contact Us For Availability
10
GLIDE, BROILER (4) WCI 3018610 No Longer Available
10
BUTTON-ROUND WCI 5303272305 Contact Us For Availability
11
WCI 5303131356 WCI 5303131356 Contact Us For Availability
11
WCI 3131438 WCI 3131438 Contact Us For Availability
11
WCI 3131904 WCI 3131904 Contact Us For Availability
12
WCI 3131439 WCI 3131439 Contact Us For Availability
12
PAN-BROILER WCI 5303013568 Contact Us For Availability
12A
INSUL - BROILER DRAWER (NON-ILLUSTRATED) WCI 5303131258 Contact Us For Availability
12B
SCREW (2) (NON-ILLUSTRATED) WCI 3013964 Contact Us For Availability
13
WCI 3131153 WCI 3131153 Contact Us For Availability
13
CHANNEL-BURNER SPRT WCI 3203441 Contact Us For Availability
14
WCI 3203265 WCI 3203265 Contact Us For Availability
14
WCI 3204962 WCI 3204962 Contact Us For Availability
15
PANEL-BODYSIDE, WHITE, RH WCI 5303269518 Contact Us For Availability
15A
PANEL-BODYSIDE, WHITE, LH WCI 5303269519 Contact Us For Availability
16
SCREW-LEVELLING (4) WCI 5303203397 Contact Us For Availability
17
BRACKET, OVEN BURNER SUPPORT WCI 3018603 Contact Us For Availability
18
WCI 5303212540 WCI 5303212540 Contact Us For Availability
18A
WCI 3017142 WCI 3017142 Contact Us For Availability
18B
INSULATION, OVEN BACK (NON-ILLUSTRATED) WCI 3203541 Contact Us For Availability
19
WCI 5303015372 WCI 5303015372 Contact Us For Availability
19A
WCI 08067961 WCI 08067961 Contact Us For Availability
21
WCI 5303280614 WCI 5303280614 Contact Us For Availability
22
BASE-BROIL WCI 5303281627 Contact Us For Availability
22A
ANTI-TIP BRACKET (NON-ILLUSTRATED) WCI 3931015 Contact Us For Availability
22B
COVER-POWER CORD, (NON-ILLUSTRATED) WCI 3131244 Contact Us For Availability
24
WCI 3018607 WCI 3018607 Contact Us For Availability
25
WCI 5303209316 WCI 5303209316 Contact Us For Availability
26
WCI 5303202622 WCI 5303202622 Contact Us For Availability
27
WCI 5303131289 WCI 5303131289 Contact Us For Availability
× ![]()
