Model Electrolux 30-2538-23-05 RANGE – Common Parts & Diagrams

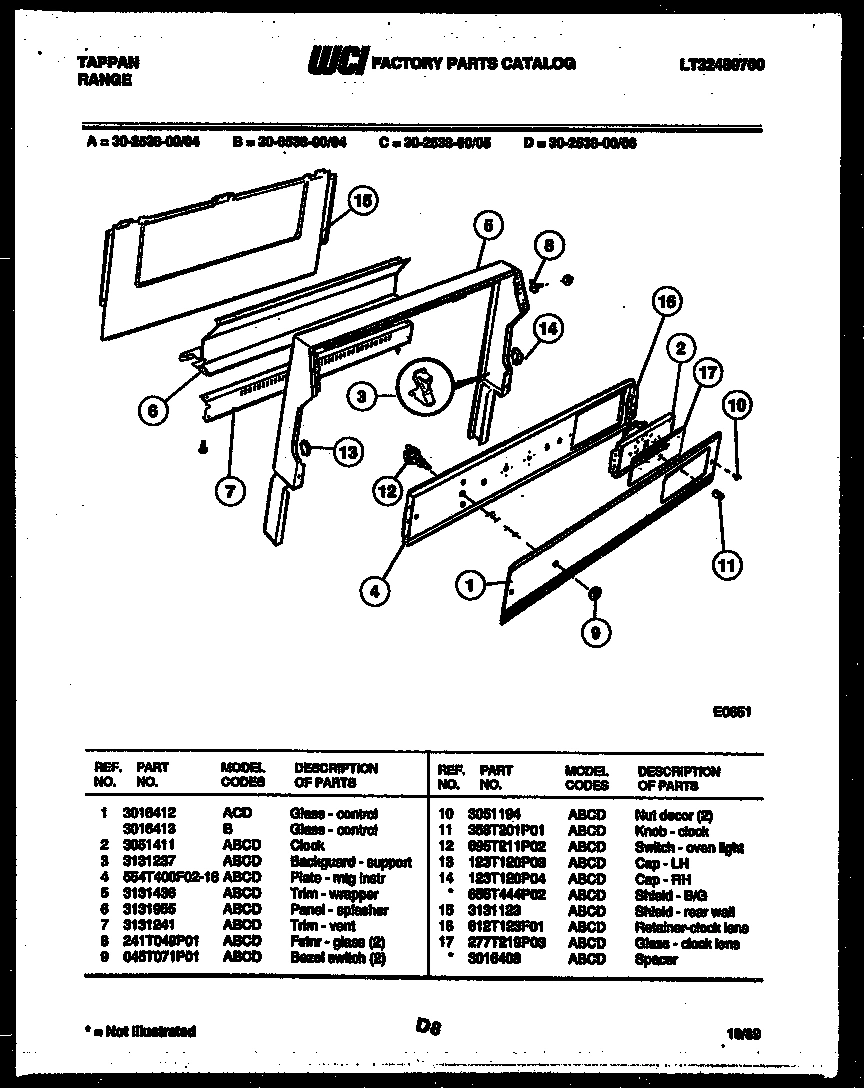

02 - BACKGUARD

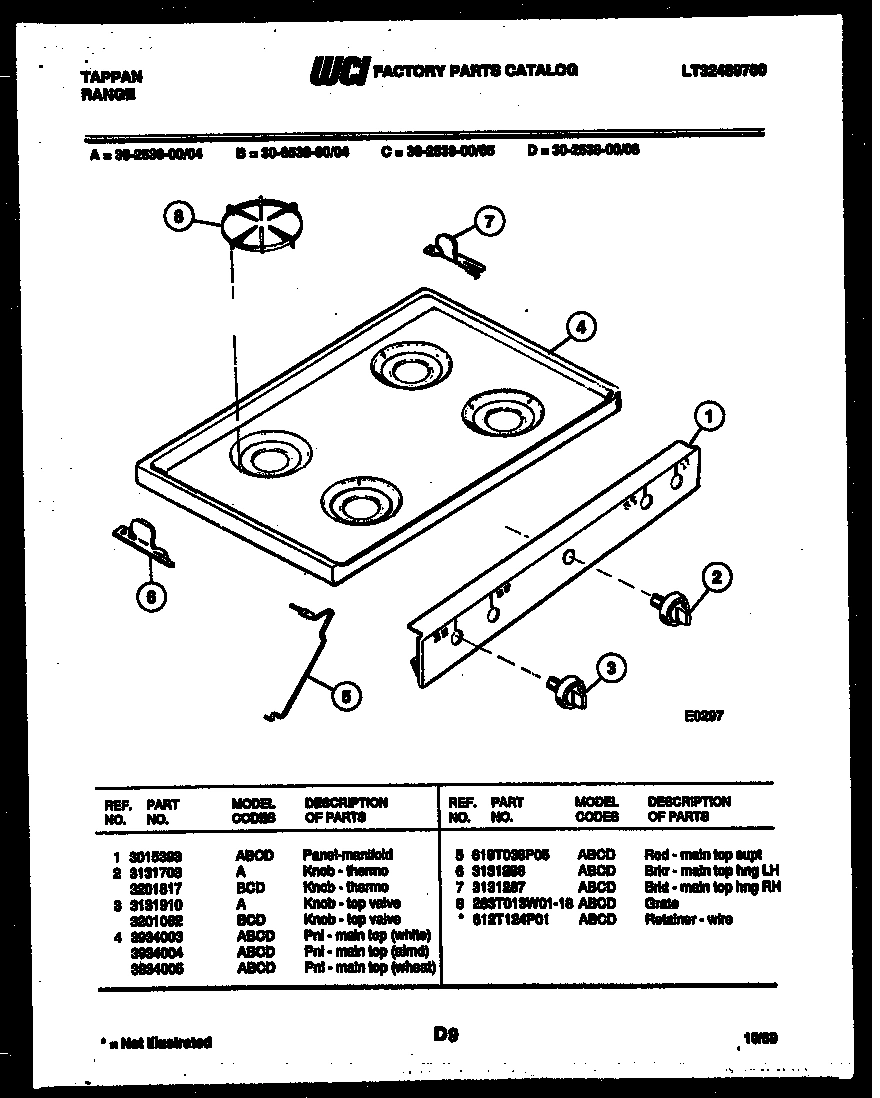

03 - COOKTOP PARTS

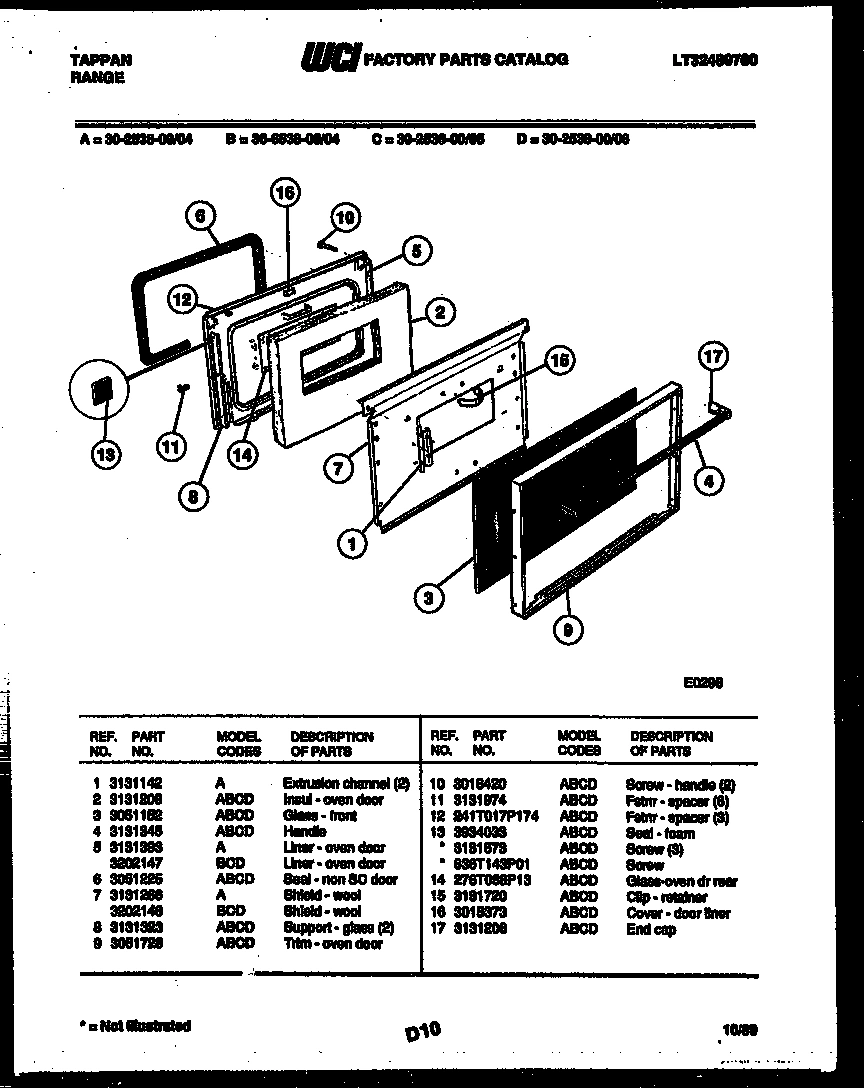

04 - DOOR PARTS

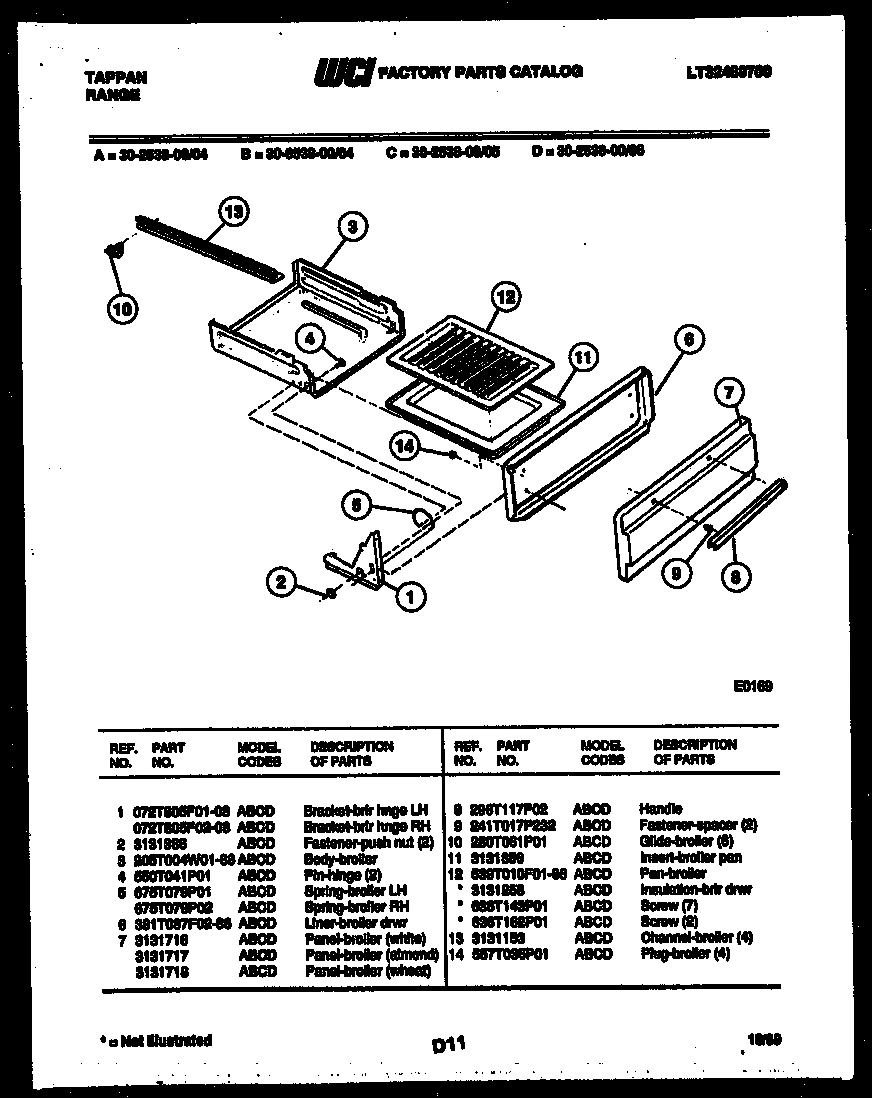

05 - BROILER DRAWER PARTS

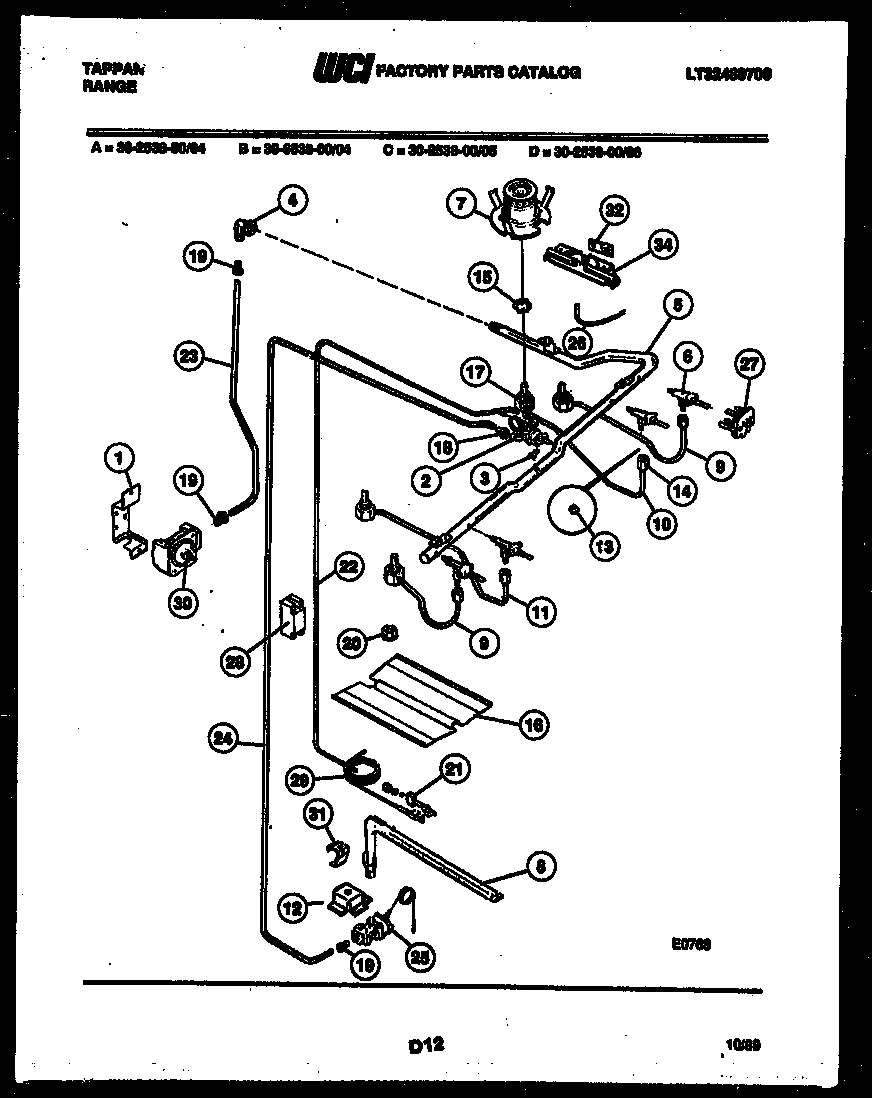

06 - BURNER, MANIFOLD AND GAS CONTROL

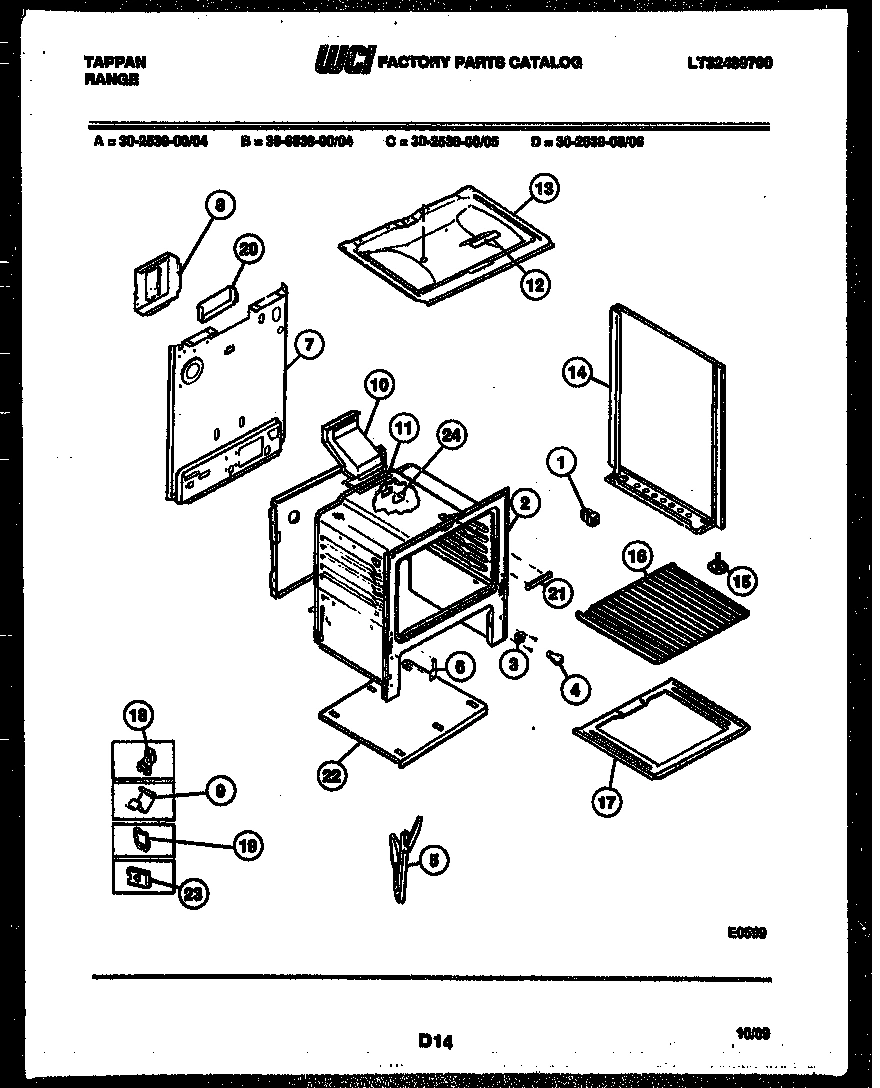

07 - BODY PARTS
Common parts from model Electrolux 30-2538-23-05 RANGE
*33441
WCI 612T124P01 WCI 612T124P01 Contact Us For Availability
*33460
WCI 3934056 WCI 3934056 Contact Us For Availability
1
PANEL-MANIFOLD WCI 3015393 Contact Us For Availability
1
WCI 072T805F01-08 WCI 072T805F01-08 Contact Us For Availability
1
WCI 665T188P02 WCI 665T188P02 Contact Us For Availability
1A
WCI 072T805F02-08 WCI 072T805F02-08 Contact Us For Availability
2
KNOB - THERMO WCI 3201817 Contact Us For Availability
2
WCI 3131208 WCI 3131208 Contact Us For Availability
2
WCI 3131386 WCI 3131386 Contact Us For Availability
2
WCI 3201107 WCI 3201107 Contact Us For Availability
3
BACKGUARD SUPPORT WCI 3131237 Contact Us For Availability
3
KNOB - TOP VALVE WCI 3201082 Contact Us For Availability
3
WCI 3051152 WCI 3051152 Contact Us For Availability
3
BODY, BROILER WCI 205T004W01-86 Contact Us For Availability
4
PLATE - MTG INSTR WCI 554T400F02-18 Contact Us For Availability
4
PNL MAIN TOP-WHITE WCI 3934003 Contact Us For Availability
4
PNL MAIN TOP-ALMD WCI 3934004 Contact Us For Availability
4
PNL MAIN TOP (WHEAT) WCI 3934005 Contact Us For Availability
4
HANDLE WCI 3131345 Contact Us For Availability
4
PIN, HINGE (2) WCI 550T041P01 Contact Us For Availability
4
WCI 215T013P01 WCI 215T013P01 Contact Us For Availability
5
WCI 3131436 WCI 3131436 Contact Us For Availability
5
ROD-MAIN TOP SUPT. WCI 618T038P05 Contact Us For Availability
5
WCI 3202147 WCI 3202147 Contact Us For Availability
5
SPRING-BROILER LH WCI 675T079P01 Contact Us For Availability
5
WCI 3201106 WCI 3201106 Contact Us For Availability
5
CHANNEL DR HNG (2) WCI 3131569 Contact Us For Availability
5A
SPRING-BROILER RH WCI 675T079P02 Contact Us For Availability
6
COVER HNG. CUTOUT (2) WCI 3131570 Contact Us For Availability
6
PANEL - SPLASHER WCI 3131955 Contact Us For Availability
6
BRKR - MAIN TOP HNG LH WCI 3131286 Contact Us For Availability
6
LINER-BROILER DRWR WCI 381T087F02-86 Contact Us For Availability
6
VALVE - TOP 3 POS. (4) WCI 3017542 Contact Us For Availability
7
WCI 3131241 WCI 3131241 Contact Us For Availability
7
BRKT MAIN TOP HNG RH WCI 3131287 Contact Us For Availability
7
WCI 3202148 WCI 3202148 Contact Us For Availability
7
PANEL-BROILER-ALMOND WCI 3131717 Contact Us For Availability
7
WCI 079T032S02 WCI 079T032S02 Contact Us For Availability
7
WCI 3131567 WCI 3131567 Contact Us For Availability
8
WCI 3131439 WCI 3131439 Contact Us For Availability
8
FSTNR-GLASS(2) WCI 241T049P01 Contact Us For Availability
8
WCI 3131323 WCI 3131323 Contact Us For Availability
8
WCI 296T117P02 WCI 296T117P02 Contact Us For Availability
8
WCI 666T421F02-18 WCI 666T421F02-18 Contact Us For Availability
9
WCI 045T071P01 WCI 045T071P01 Contact Us For Availability
9
WCI 3051728 WCI 3051728 Contact Us For Availability
9
FASTENER, SPACER (2) WCI 241T017P232 Contact Us For Availability
9
BURNER-TUBE (LF RF) WCI 3131970 Contact Us For Availability
9
WCI 145T130P01 WCI 145T130P01 Contact Us For Availability
10
NUT - DECOR (2) WCI 3051194 Contact Us For Availability
10
SCREW - HANDLE (2) WCI 3016420 Contact Us For Availability
10
GLIDE, BROILER (6) WCI 280T061P01 Contact Us For Availability
10
WCI 3011569 WCI 3011569 Contact Us For Availability
10
WCI 252T048W01-18 WCI 252T048W01-18 Contact Us For Availability
11
WCI 358T201P01 WCI 358T201P01 Contact Us For Availability
11
FSTNR. SPACER (6) WCI 3131974 Contact Us For Availability
11
WCI 3131356 WCI 3131356 Contact Us For Availability
11
WCI 3011570 WCI 3011570 Contact Us For Availability
12
WCI 695T211P02 WCI 695T211P02 Contact Us For Availability
12
FSTNR-SPACER (3) WCI 241T017P174 Contact Us For Availability
12
PAN, BROILER WCI 539T010F01-86 Contact Us For Availability
12
WCI 3131430 WCI 3131430 Contact Us For Availability
12
WCI 3131101 WCI 3131101 Contact Us For Availability
12A
INSULATION-BRLR DRWR (NON-ILLUSTRATED) WCI 3131258 Contact Us For Availability
12B
WCI 636T162P01 WCI 636T162P01 Contact Us For Availability
13
WCI 123T120P03 WCI 123T120P03 Contact Us For Availability
13
WCI 3934033 WCI 3934033 Contact Us For Availability
13
WCI 3131153 WCI 3131153 Contact Us For Availability
13
WCI 247T074P01 WCI 247T074P01 Contact Us For Availability
13
WCI 095T030F02-86 WCI 095T030F02-86 Contact Us For Availability
13A
SCREW (3) (NON-ILLUSTRATED) WCI 3131573 Contact Us For Availability
14
WCI 123T120P04 WCI 123T120P04 Contact Us For Availability
14
GLASS-OVEN DR REAR WCI 276T088P13 Contact Us For Availability
14
WCI 557T035P01 WCI 557T035P01 Contact Us For Availability
14
NUT COMPRESSION (4) WCI 3131148 Contact Us For Availability
14
WCI 3200790 WCI 3200790 Contact Us For Availability
14
WCI 3200793 WCI 3200793 Contact Us For Availability
14A
SHIELD B/G WCI 655T444P02 Contact Us For Availability
15
SHIELD, REAR WALL WCI 3131123 Contact Us For Availability
15
WCI 3131720 WCI 3131720 Contact Us For Availability
15
WCI 479T069P40 WCI 479T069P40 Contact Us For Availability
15
SCREW - LEVELING (4) WCI 636M004P01 Contact Us For Availability
16
RETAINER-CLOCK LENS WCI 612T123F01 Contact Us For Availability
16
WCI 3015373 WCI 3015373 Contact Us For Availability
16
WCI 3131327 WCI 3131327 Contact Us For Availability
17
WCI 277T219P03 WCI 277T219P03 Contact Us For Availability
17
WCI 3131404 WCI 3131404 Contact Us For Availability
17
WCI 058T036F02-86 WCI 058T036F02-86 Contact Us For Availability
17A
WCI 3131201 WCI 3131201 Contact Us For Availability
17B
WCI 3131246 WCI 3131246 Contact Us For Availability
18
WCI 3131403 WCI 3131403 Contact Us For Availability
18A
FSTNR-POWER CORD (NON-ILLUSTRATED) WCI 241T017P255 Contact Us For Availability
19
WCI 3131261 WCI 3131261 Contact Us For Availability
20
WCI 3131348 WCI 3131348 Contact Us For Availability
21
COVER-FRONT MAIN WCI 3131548 Contact Us For Availability
22
WCI 3131180 WCI 3131180 Contact Us For Availability
22A
WCI 554T388F02 WCI 554T388F02 Contact Us For Availability
22B
COVER-POWER CORD, (NON-ILLUSTRATED) WCI 3131244 Contact Us For Availability
23
TUBE - ALUM WCI 750T085H09 Contact Us For Availability
24
TUBE - ALUM WCI 3131448 Contact Us For Availability
24
WCI 174T297F01 WCI 174T297F01 Contact Us For Availability
26
WCI 3051105 WCI 3051105 Contact Us For Availability
27
WCI 3131568 WCI 3131568 Contact Us For Availability
31
WCI 072T821F01 WCI 072T821F01 Contact Us For Availability
32
WCI 612T121F01 WCI 612T121F01 Contact Us For Availability
33
WCI 695T220P01 WCI 695T220P01 Contact Us For Availability
34
WCI 136T355W03 WCI 136T355W03 Contact Us For Availability
× ![]()
