Model Electrolux 30-2518-23-01 RANGE – Common Parts & Diagrams

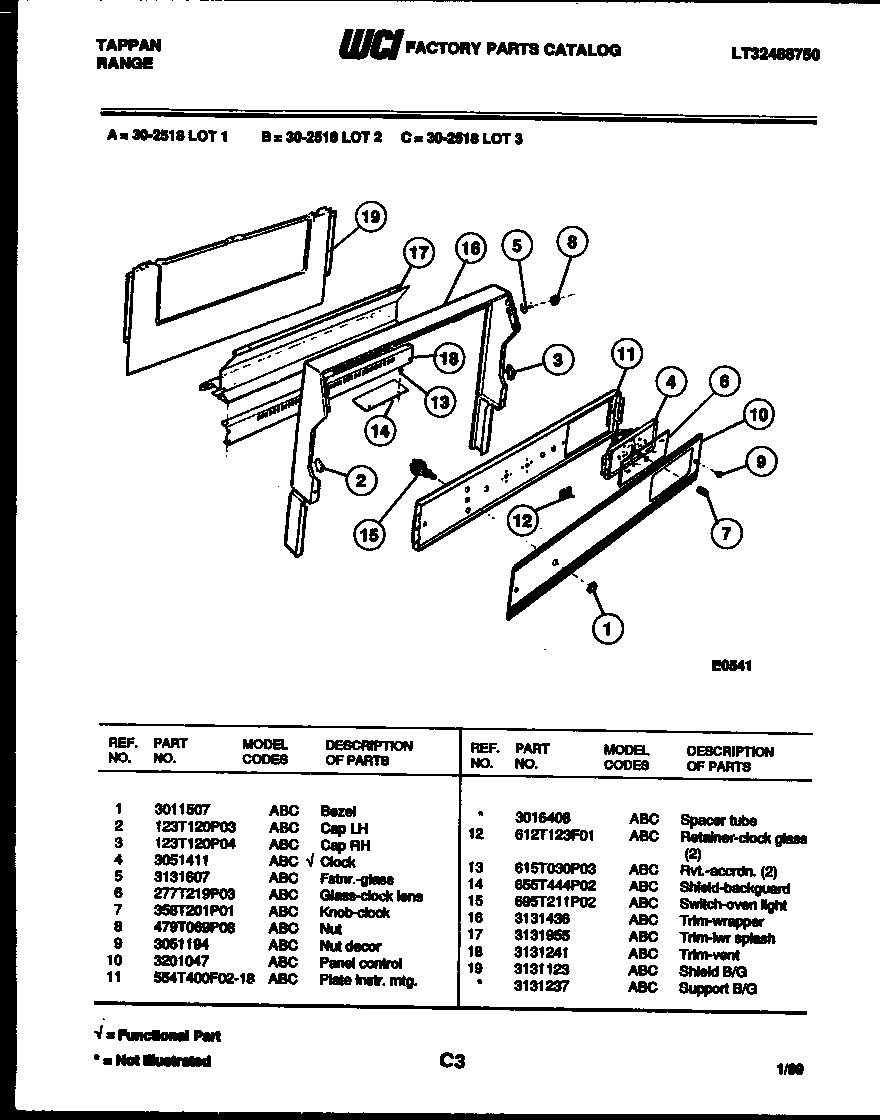

02 - BACKGUARD AND CONTROL PARTS

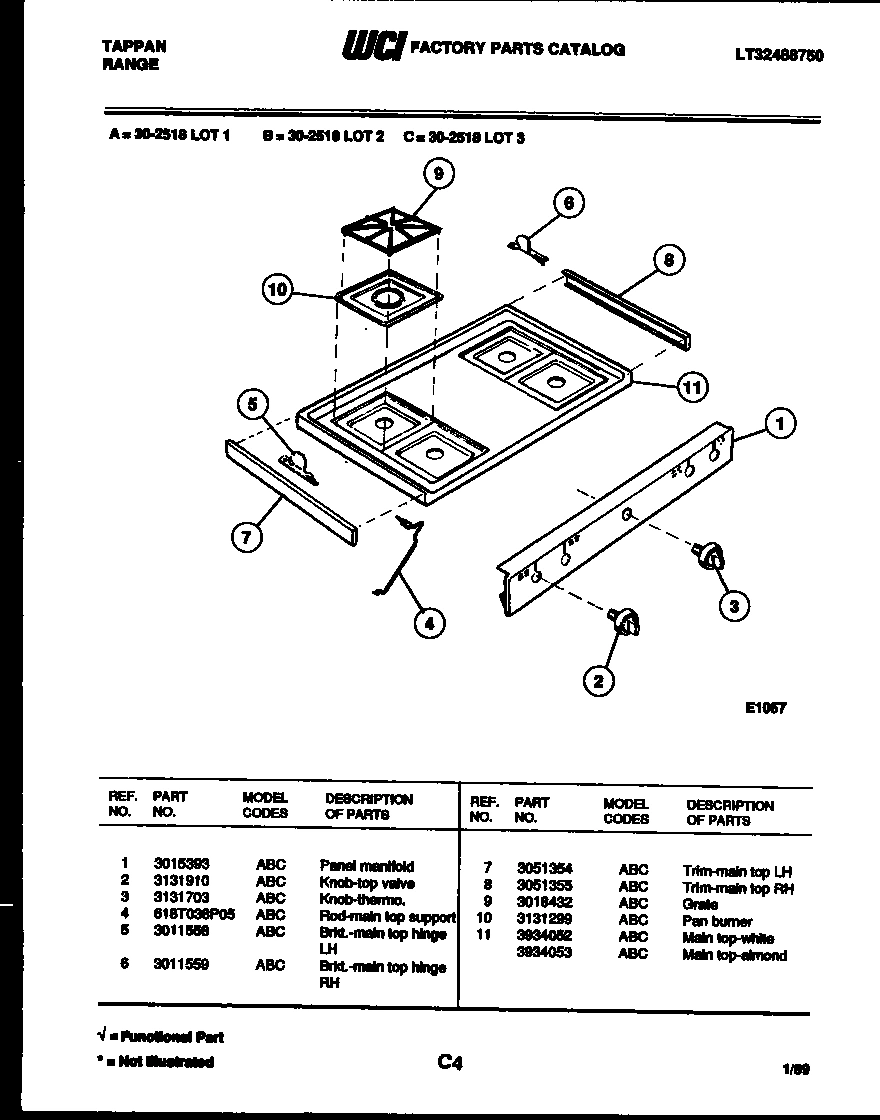

03 - COOKTOP PARTS

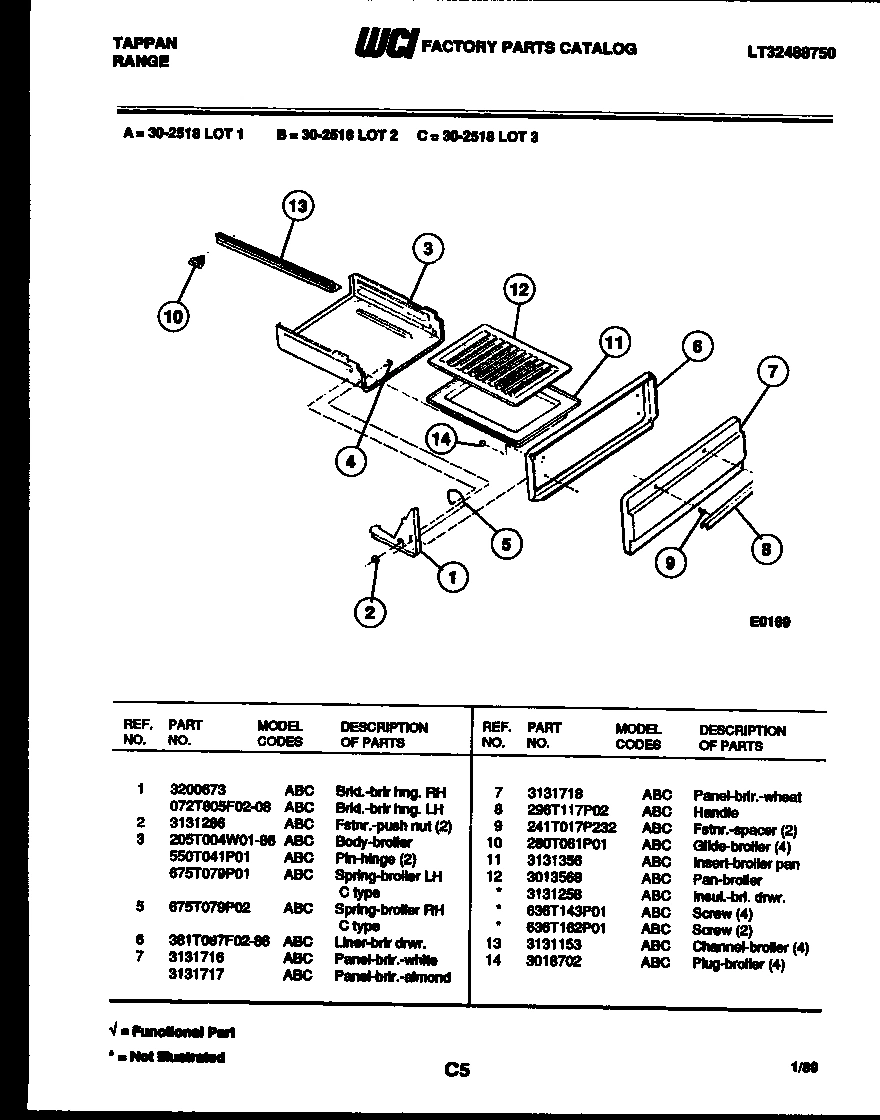

04 - BROILER DRAWER PARTS

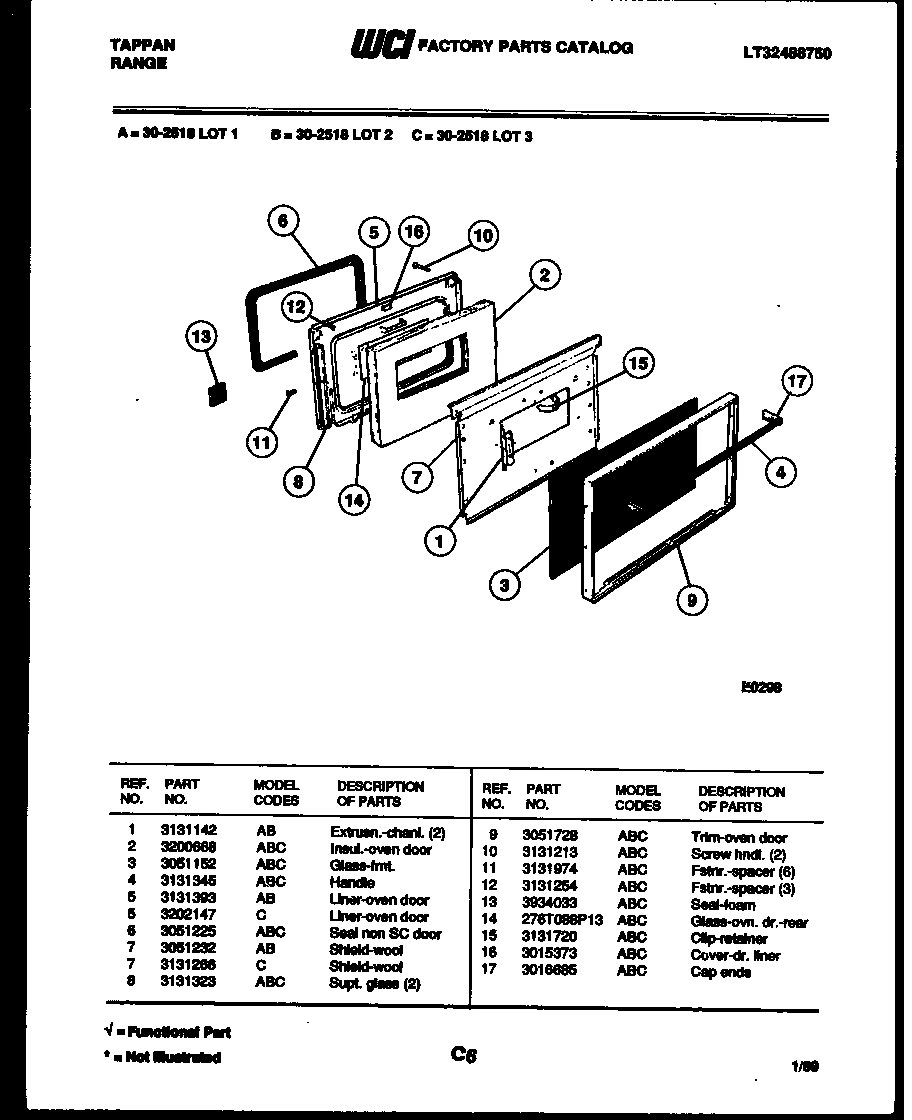

05 - DOOR PARTS

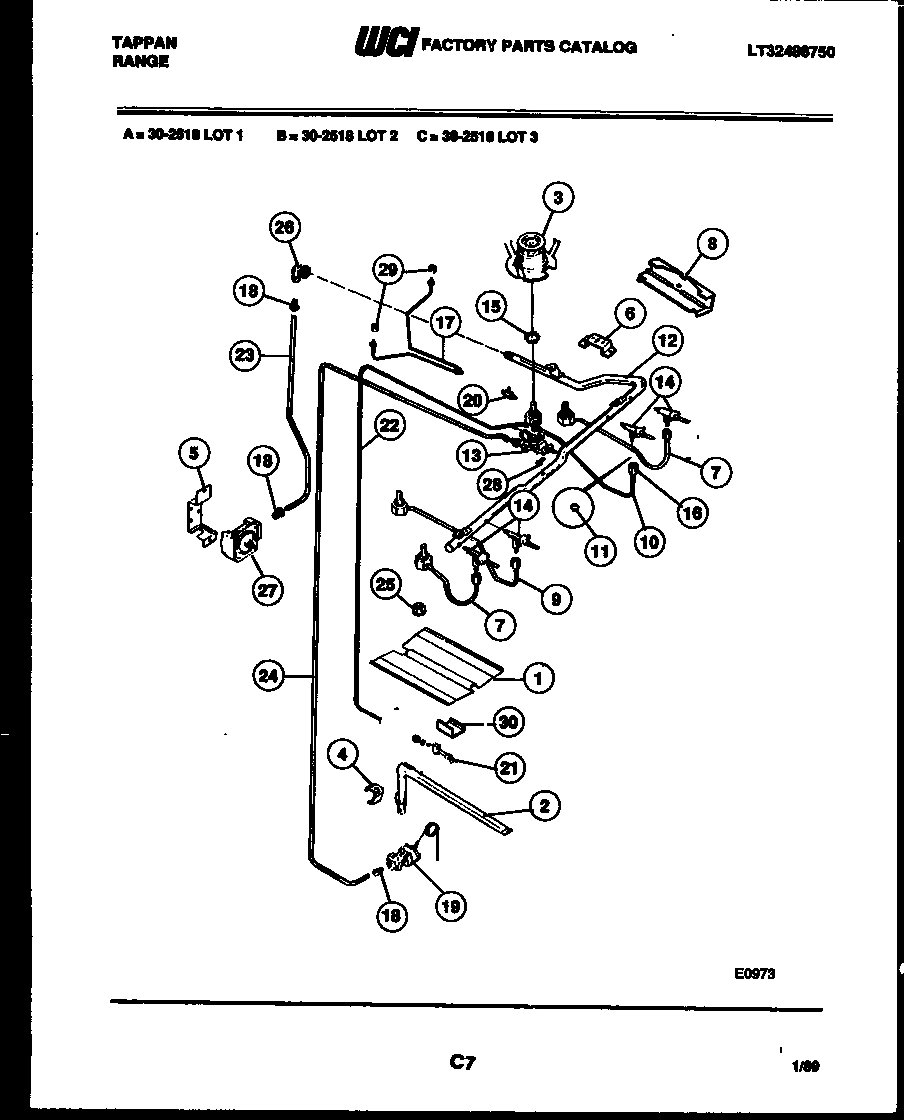

06 - BURNER PARTS

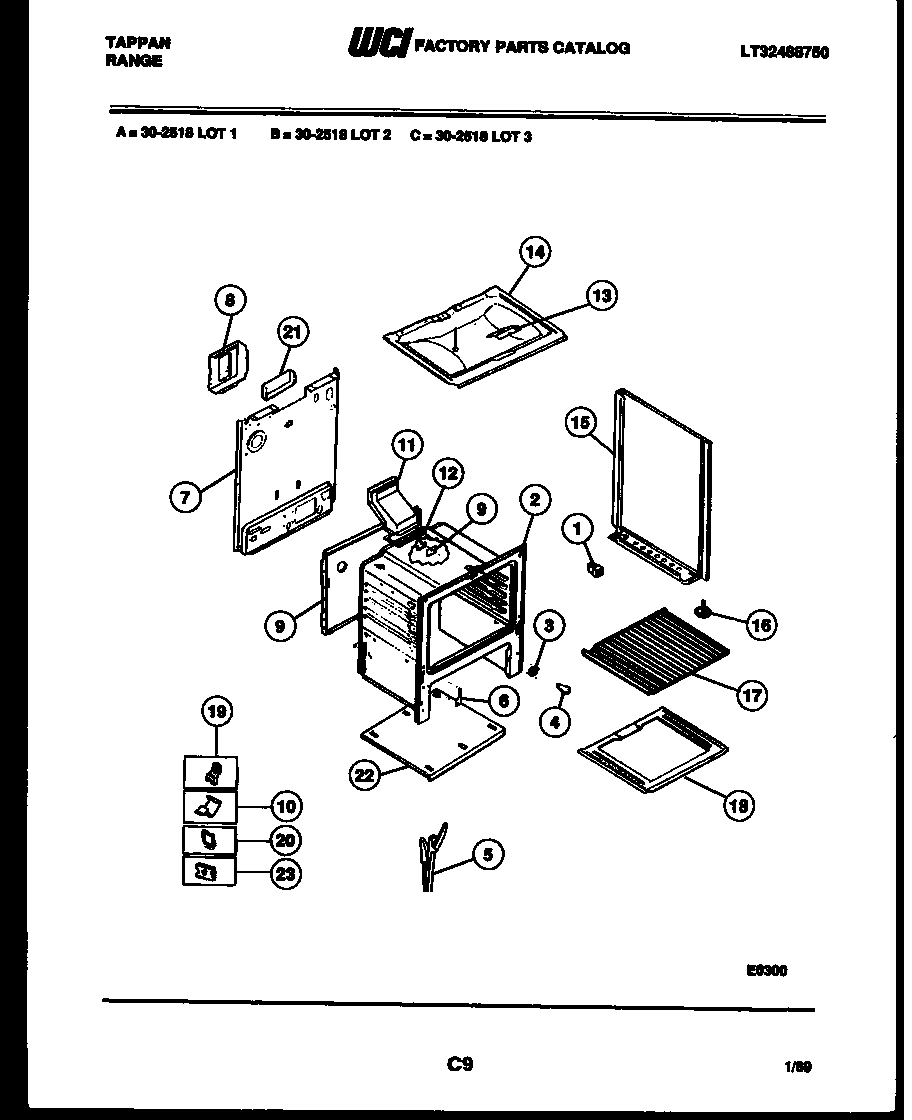

07 - BODY PARTS
Common parts from model Electrolux 30-2518-23-01 RANGE
*19622
FERRULE WCI 247T073P01 Contact Us For Availability
*19622
WCI 3051420 WCI 3051420 Contact Us For Availability
*19622
NUT-COMPRESSION WCI 479T080P01 Contact Us For Availability
*19623
FITTING 3/8 WCI 3131403 Contact Us For Availability
*19626
CVR.-FRNT. MAIN WCI 3015372 Contact Us For Availability
1
PANEL-MANIFOLD WCI 3015393 Contact Us For Availability
1
BRKT.-BRLR HNG. RH WCI 3200673 Contact Us For Availability
1
EXTRUSN-CHANL (2) WCI 3131142 Contact Us For Availability
1
WCI 3131327 WCI 3131327 Contact Us For Availability
1
WCI 665T188P02 WCI 665T188P02 Contact Us For Availability
1A
WCI 072T805F02-08 WCI 072T805F02-08 Contact Us For Availability
2
KNOB TOP VALVE WCI 3131910 Contact Us For Availability
2
FSTNR.-PUSH NUT (2) WCI 3131286 Contact Us For Availability
2
INSUL - OVEN DOOR WCI 3200668 Contact Us For Availability
2
WCI 3131571 WCI 3131571 Contact Us For Availability
3
WCI 3131703 WCI 3131703 Contact Us For Availability
3
BODY, BROILER WCI 205T004W01-86 Contact Us For Availability
3
GLASS-FRNT WCI 3051152 Contact Us For Availability
3
BRNR.-TOP ASSY (2) WCI 3011567 Contact Us For Availability
3A
PIN, HINGE (2) WCI 550T041P01 Contact Us For Availability
3B
SPRING, BROILER, LH (C TYPE) WCI 675T079P01 Contact Us For Availability
4
WCI 3051411 WCI 3051411 Contact Us For Availability
4
WCI 618T038P05 WCI 618T038P05 Contact Us For Availability
4
HANDLE WCI 3131345 Contact Us For Availability
4
WCI 072T821F01 WCI 072T821F01 Contact Us For Availability
5
FSTNR.-GLASS WCI 3131607 Contact Us For Availability
5
BRKT. MAIN TOP HINGE (LH) WCI 3011558 Contact Us For Availability
5
SPRING, BROILER, RH (C TYPE) WCI 675T079P02 Contact Us For Availability
5
WCI 3131393 WCI 3131393 Contact Us For Availability
5
WCI 072T850F01 WCI 072T850F01 Contact Us For Availability
5
CHANNEL, DOOR HINGE (2) WCI 3131569 Contact Us For Availability
6
CVR. HNG. CUTOUT (2) WCI 3131570 Contact Us For Availability
6
WCI 277T219P03 WCI 277T219P03 Contact Us For Availability
6
BRKT. MAIN TOP HINGE (RH) WCI 3011559 Contact Us For Availability
6
WCI 381T087F02-86 WCI 381T087F02-86 Contact Us For Availability
6
WCI 072T851F02 WCI 072T851F02 Contact Us For Availability
7
WCI 358T201P01 WCI 358T201P01 Contact Us For Availability
7
WCI 3051354 WCI 3051354 Contact Us For Availability
7
WCI 3131717 WCI 3131717 Contact Us For Availability
7
WCI 3051232 WCI 3051232 Contact Us For Availability
7
BURNER-TUBE (LF RF) WCI 3131970 Contact Us For Availability
7
WCI 3011463 WCI 3011463 Contact Us For Availability
8
WCI 479T069P08 WCI 479T069P08 Contact Us For Availability
8
WCI 3051355 WCI 3051355 Contact Us For Availability
8
WCI 296T117P02 WCI 296T117P02 Contact Us For Availability
8
SUPT. GLASS (2) WCI 3131323 Contact Us For Availability
8
WCI 136T355W04 WCI 136T355W04 Contact Us For Availability
8
WCI 3131660 WCI 3131660 Contact Us For Availability
9
WCI 3051194 WCI 3051194 Contact Us For Availability
9
WCI 3018432 WCI 3018432 Contact Us For Availability
9
FSTNR-SPACER (2) WCI 241T017P232 Contact Us For Availability
9
WCI 3051728 WCI 3051728 Contact Us For Availability
9
WCI 079T033H02 WCI 079T033H02 Contact Us For Availability
9
WCI 174T297F01 WCI 174T297F01 Contact Us For Availability
10
WCI 3201047 WCI 3201047 Contact Us For Availability
10
PAN BURNER WCI 3131299 Contact Us For Availability
10
WCI 280T061P01 WCI 280T061P01 Contact Us For Availability
10
SCREW HNDL. (2) WCI 3131213 Contact Us For Availability
10
WCI 079T033H03 WCI 079T033H03 Contact Us For Availability
10
WCI 145T130P01 WCI 145T130P01 Contact Us For Availability
11
WCI 554T400F02-18 WCI 554T400F02-18 Contact Us For Availability
11
WCI 3934053 WCI 3934053 Contact Us For Availability
11
WCI 3131356 WCI 3131356 Contact Us For Availability
11
FSTNR. SPACER (6) WCI 3131974 Contact Us For Availability
11
WCI 247T074P01 WCI 247T074P01 Contact Us For Availability
11
WCI 3131904 WCI 3131904 Contact Us For Availability
11A
WCI 3016408 WCI 3016408 Contact Us For Availability
12
WCI 612T123F01 WCI 612T123F01 Contact Us For Availability
12
WCI 3013568 WCI 3013568 Contact Us For Availability
12
FSTNR.-SPACER (3) WCI 3131254 Contact Us For Availability
12
WCI 439T055P02 WCI 439T055P02 Contact Us For Availability
12A
INSUL, BRL, DRWR (NON-ILLUSTRATED) WCI 3131258 Contact Us For Availability
12C
WCI 636T162P01 WCI 636T162P01 Contact Us For Availability
13
WCI 615T030P03 WCI 615T030P03 Contact Us For Availability
13
WCI 3131153 WCI 3131153 Contact Us For Availability
13
WCI 3934033 WCI 3934033 Contact Us For Availability
13
WCI 722T058P02 WCI 722T058P02 Contact Us For Availability
13
WCI 3131101 WCI 3131101 Contact Us For Availability
14
WCI 655T444P02 WCI 655T444P02 Contact Us For Availability
14
WCI 3018702 WCI 3018702 Contact Us For Availability
14
GLASS-OVN DR REAR WCI 276T088P13 Contact Us For Availability
14
WCI 3017542 WCI 3017542 Contact Us For Availability
14
WCI 095T030F02-86 WCI 095T030F02-86 Contact Us For Availability
15
WCI 695T211P02 WCI 695T211P02 Contact Us For Availability
15
WCI 3131720 WCI 3131720 Contact Us For Availability
15
WCI 479T069P40 WCI 479T069P40 Contact Us For Availability
15
WCI 3131454 WCI 3131454 Contact Us For Availability
15
B/S PNL. (ALMOND) RH WCI 3200790 Contact Us For Availability
15A
WCI 3131453 WCI 3131453 Contact Us For Availability
15A
B/S PNL. (ALMOND) LH WCI 3200793 Contact Us For Availability
16
WCI 3131436 WCI 3131436 Contact Us For Availability
16
COVER DR LINER WCI 3015373 Contact Us For Availability
16
NUT-COMPRSSN. (4) WCI 3131148 Contact Us For Availability
16
SCREW - LEVELING (4) WCI 636M004P01 Contact Us For Availability
17
WCI 3131955 WCI 3131955 Contact Us For Availability
17
WCI 750T185P01 WCI 750T185P01 Contact Us For Availability
18
WCI 3131241 WCI 3131241 Contact Us For Availability
18
WCI 3131261 WCI 3131261 Contact Us For Availability
18
WCI 058T036F02-86 WCI 058T036F02-86 Contact Us For Availability
18A
INSUL - OVEN WRAP (NON-ILLUSTRATED) WCI 3017142 Contact Us For Availability
18B
WCI 3131246 WCI 3131246 Contact Us For Availability
19
SHIELD B/G WCI 3131123 Contact Us For Availability
19
WCI 3131405 WCI 3131405 Contact Us For Availability
19A
FSTNR-POWER CORD (NON-ILLUSTRATED) WCI 241T017P255 Contact Us For Availability
20
FILTER WCI 244T039P01 Contact Us For Availability
21
WCI 549T037P01 WCI 549T037P01 Contact Us For Availability
21
WCI 3131348 WCI 3131348 Contact Us For Availability
22
WCI 750T056P21 WCI 750T056P21 Contact Us For Availability
22
WCI 3131180 WCI 3131180 Contact Us For Availability
22A
WCI 554T388F02 WCI 554T388F02 Contact Us For Availability
22B
COVER-POWER CORD, (NON-ILLUSTRATED) WCI 3131244 Contact Us For Availability
23
WCI 750T085H09 WCI 750T085H09 Contact Us For Availability
24
WCI 750T085H13 WCI 750T085H13 Contact Us For Availability
26
ELBW WCI 215T013P01 Contact Us For Availability
27
WCI 166T013P01 WCI 166T013P01 Contact Us For Availability
28
WCI 3018601 WCI 3018601 Contact Us For Availability
29
CAP-TOP PILOT, (2) WCI 124T010P01 Contact Us For Availability
30
WCI 3131204 WCI 3131204 Contact Us For Availability
× ![]()
