Model Electrolux 30-2249-00-06 RANGE – Common Parts & Diagrams
02 - BACKGUARD
03 - COOKTOP PARTS

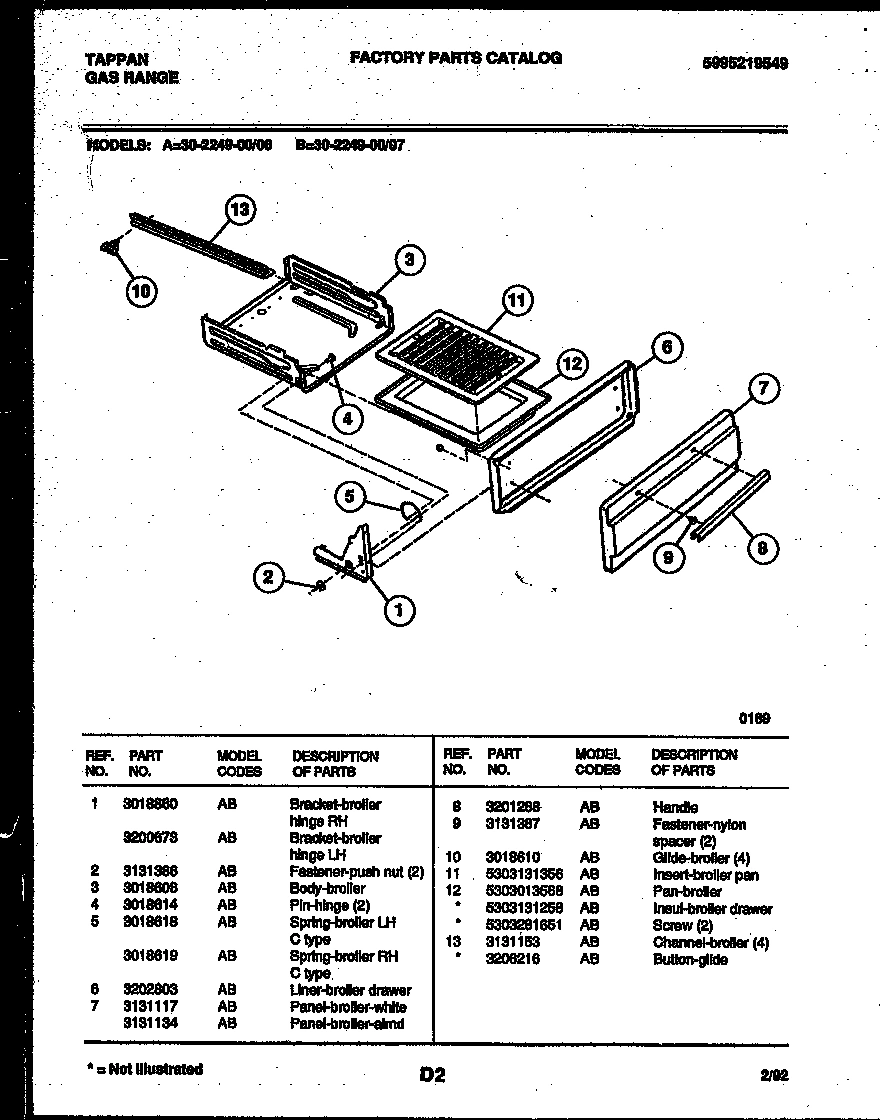

04 - BROILER DRAWER PARTS

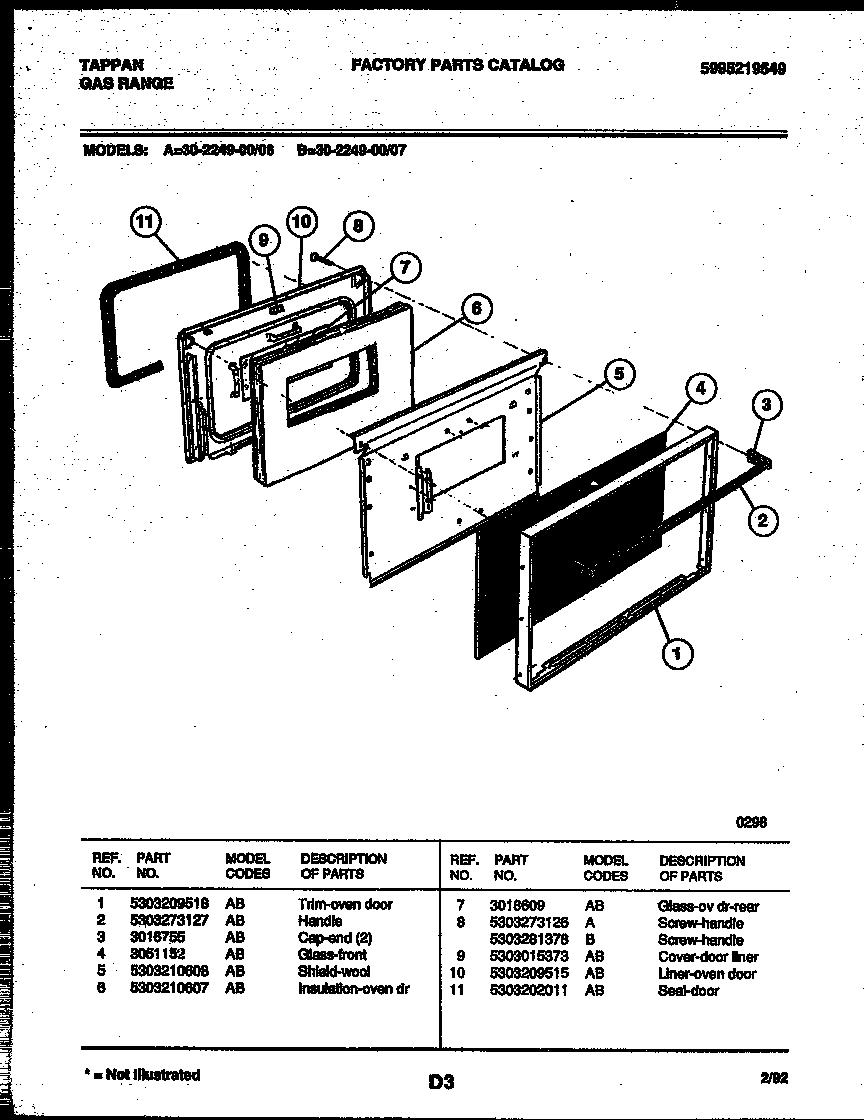

05 - DOOR PARTS

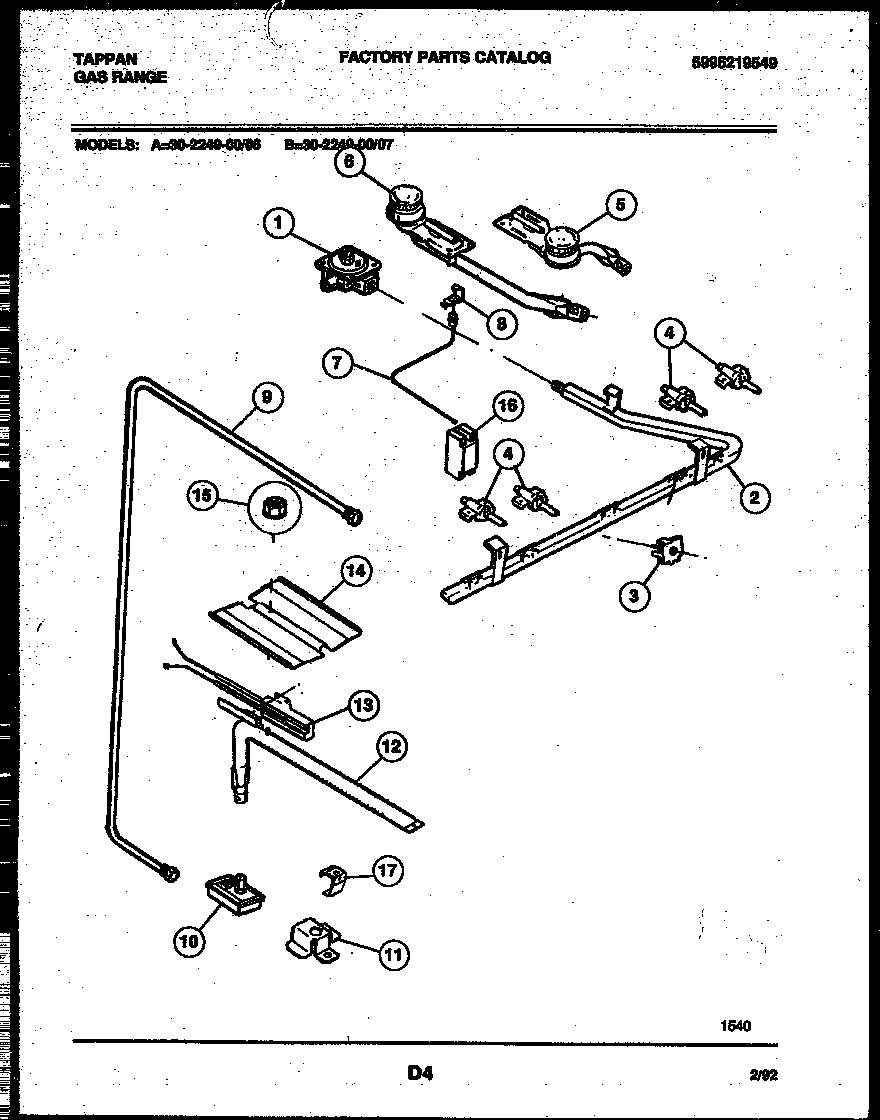

06 - BURNER, MANIFOLD AND GAS CONTROL
07 - BODY PARTS
Common parts from model Electrolux 30-2249-00-06 RANGE
*61974
WCI 3206216 WCI 3206216 Contact Us For Availability
*61979
DIAGRAM, WIRING (NOT FOR PURCHASE) WCI 19100180225 Contact Us For Availability
*61979
WCI 3202799 WCI 3202799 Contact Us For Availability
*61979
SHIELD-TOP WCI 3203455 Contact Us For Availability
1
SPACER, B/S (8) WCI 3014099 Contact Us For Availability
1
WCI 5303212656 WCI 5303212656 Contact Us For Availability
1
WCI 3018860 WCI 3018860 Contact Us For Availability
1
WCI 5303209518 WCI 5303209518 Contact Us For Availability
1
CONTROL - REGUL WCI 5303280293 Contact Us For Availability
1A
WCI 3200673 WCI 3200673 Contact Us For Availability
2
KNOB-TOP VALVE 3 POS WCI 3205103 Contact Us For Availability
2
WCI 3131386 WCI 3131386 Contact Us For Availability
2
WCI 5303273127 WCI 5303273127 Contact Us For Availability
2
WCI 5303272435 WCI 5303272435 Contact Us For Availability
3
ROD-TOP SUPPORT WCI 5303271609 Contact Us For Availability
3
WCI 3018608 WCI 3018608 Contact Us For Availability
3
SWITCH-IGNITOR (4) WCI 5303280577 Contact Us For Availability
4
WCI 3131351 WCI 3131351 Contact Us For Availability
4
PIN, HINGE (2) WCI 3018614 Contact Us For Availability
4
WCI 3051152 WCI 3051152 Contact Us For Availability
4
WCI 5303280578 WCI 5303280578 Contact Us For Availability
5
BRACKET, MAIN TOP, LH WCI 08067746 Contact Us For Availability
5
WCI 3018618 WCI 3018618 Contact Us For Availability
5
WCI 5303210608 WCI 5303210608 Contact Us For Availability
5
CHANNEL - DR HNG (2) WCI 316007000 Contact Us For Availability
5A
WCI 3018619 WCI 3018619 Contact Us For Availability
6
COVER HNG. CUTOUT (2) WCI 3131570 Contact Us For Availability
6
BRACKET, MAIN TOP, RH WCI 08067747 Contact Us For Availability
6
WCI 3202803 WCI 3202803 Contact Us For Availability
6
INSULATION-OVEN DR WCI 5303210607 Contact Us For Availability
7
WCI 3131299 WCI 3131299 Contact Us For Availability
7
PANEL - BROILER WHITE WCI 3131117 Contact Us For Availability
7
GLASS-OV DR (REAR) WCI 3018609 Contact Us For Availability
7
WCI 3200276 WCI 3200276 Contact Us For Availability
7
WCI 3203082 WCI 3203082 Contact Us For Availability
8
WCI 3018432 WCI 3018432 Contact Us For Availability
8
WCI 3201268 WCI 3201268 Contact Us For Availability
8
WCI 5303273126 WCI 5303273126 Contact Us For Availability
8
WCI 3131660 WCI 3131660 Contact Us For Availability
9
WCI 3203443 WCI 3203443 Contact Us For Availability
9
FASTENER-NYLON SPACER (2) WCI 3131387 Contact Us For Availability
9
WCI 5303015373 WCI 5303015373 Contact Us For Availability
9
WCI 3203458 WCI 3203458 Contact Us For Availability
9
WCI 5303271606 WCI 5303271606 Contact Us For Availability
10
GLIDE, BROILER (4) WCI 3018610 No Longer Available
10
WCI 3051354 WCI 3051354 Contact Us For Availability
10
WCI 5303209515 WCI 5303209515 Contact Us For Availability
11
WCI 3051355 WCI 3051355 Contact Us For Availability
11
WCI 5303131356 WCI 5303131356 Contact Us For Availability
11
WCI 3131438 WCI 3131438 Contact Us For Availability
11
WCI 3131904 WCI 3131904 Contact Us For Availability
12
WCI 3131439 WCI 3131439 Contact Us For Availability
12
PAN-BROILER WCI 5303013568 Contact Us For Availability
12A
INSUL - BROILER DRAWER (NON-ILLUSTRATED) WCI 5303131258 Contact Us For Availability
12B
SCREW (2) (NON-ILLUSTRATED) WCI 5303281651 Contact Us For Availability
13
KNOB-THERMO WCI 3205115 Contact Us For Availability
13
WCI 3131153 WCI 3131153 Contact Us For Availability
13
CHANNEL-BURNER SPRT WCI 3203441 Contact Us For Availability
14
WCI 3203265 WCI 3203265 Contact Us For Availability
14
WCI 3204962 WCI 3204962 Contact Us For Availability
15
WCI 3204746 WCI 3204746 Contact Us For Availability
15
PANEL-BODYSIDE, WHITE, RH WCI 5303269518 Contact Us For Availability
15A
WCI 3204747 WCI 3204747 Contact Us For Availability
15A
PANEL-BODYSIDE, WHITE, LH WCI 5303269519 Contact Us For Availability
16
WCI 3131468 WCI 3131468 Contact Us For Availability
16
SCREW-LEVELLING (4) WCI 3206285 Contact Us For Availability
17
WCI 3204753 WCI 3204753 Contact Us For Availability
17
BRACKET, OVEN BURNER SUPPORT WCI 3018603 Contact Us For Availability
17A
WCI 3204754 WCI 3204754 Contact Us For Availability
18
WCI 5303212540 WCI 5303212540 Contact Us For Availability
18A
WCI 3017142 WCI 3017142 Contact Us For Availability
18B
INSULATION, OVEN BACK (NON-ILLUSTRATED) WCI 3203541 Contact Us For Availability
19
WCI 5303015372 WCI 5303015372 Contact Us For Availability
19A
WCI 08067961 WCI 08067961 Contact Us For Availability
21
WCI 5303280614 WCI 5303280614 Contact Us For Availability
22
WCI 5303270160 WCI 5303270160 Contact Us For Availability
22A
ANTI, TIP BRACKET (NON-ILLUSTRATED) WCI 3934056 Contact Us For Availability
22B
COVER-POWER CORD, (NON-ILLUSTRATED) WCI 3131244 Contact Us For Availability
24
WCI 3018607 WCI 3018607 Contact Us For Availability
× ![]()
