Model Electrolux 30-2239-00-02 RANGE – Common Parts & Diagrams

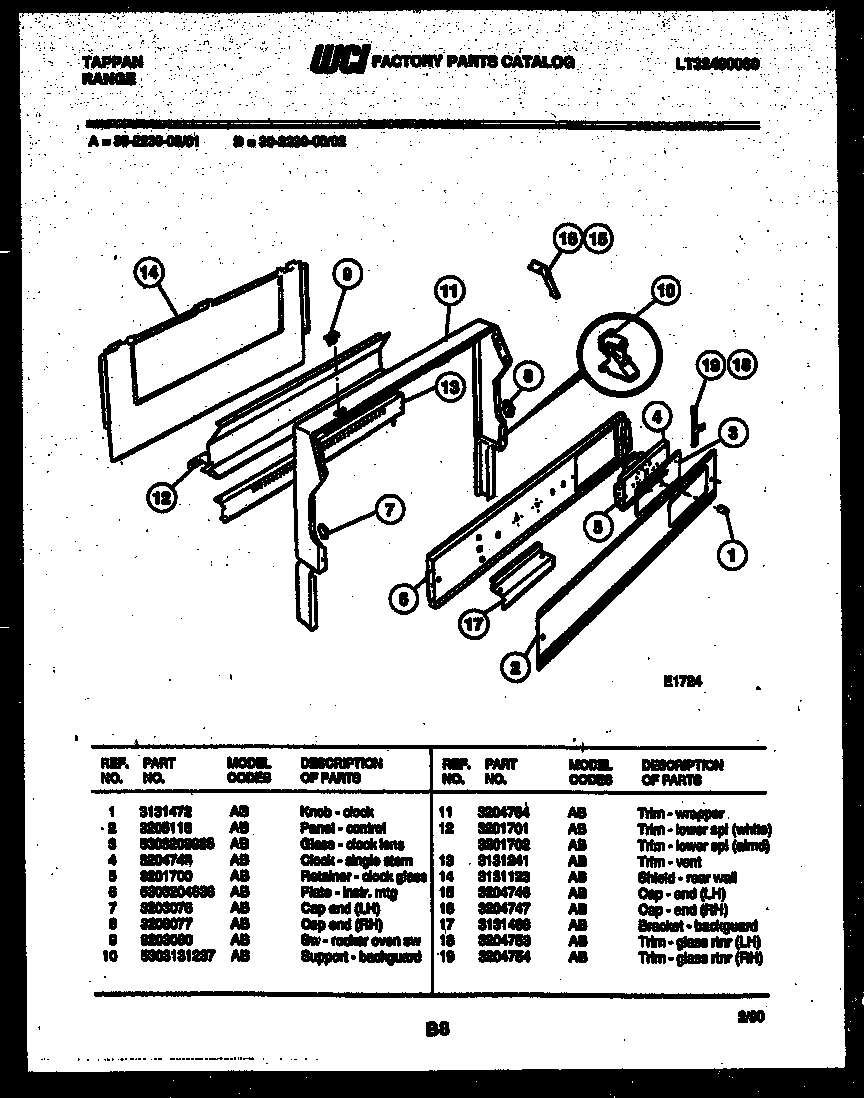

02 - BACKGUARD

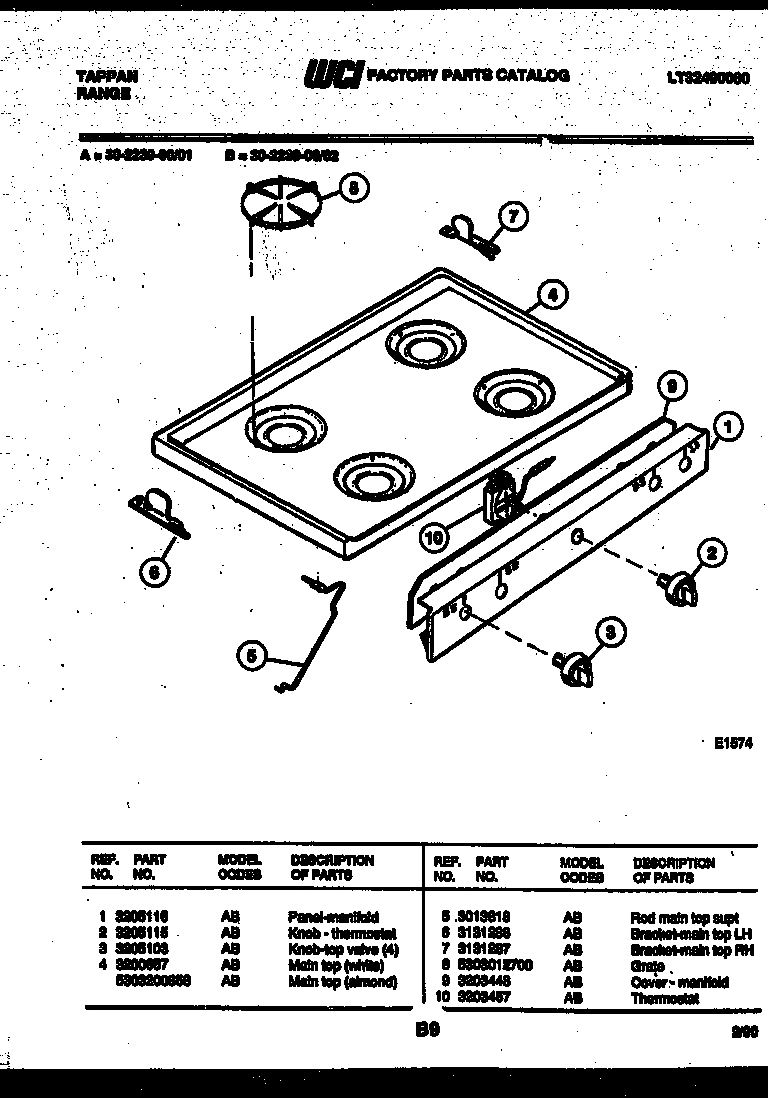

03 - COOKTOP PARTS

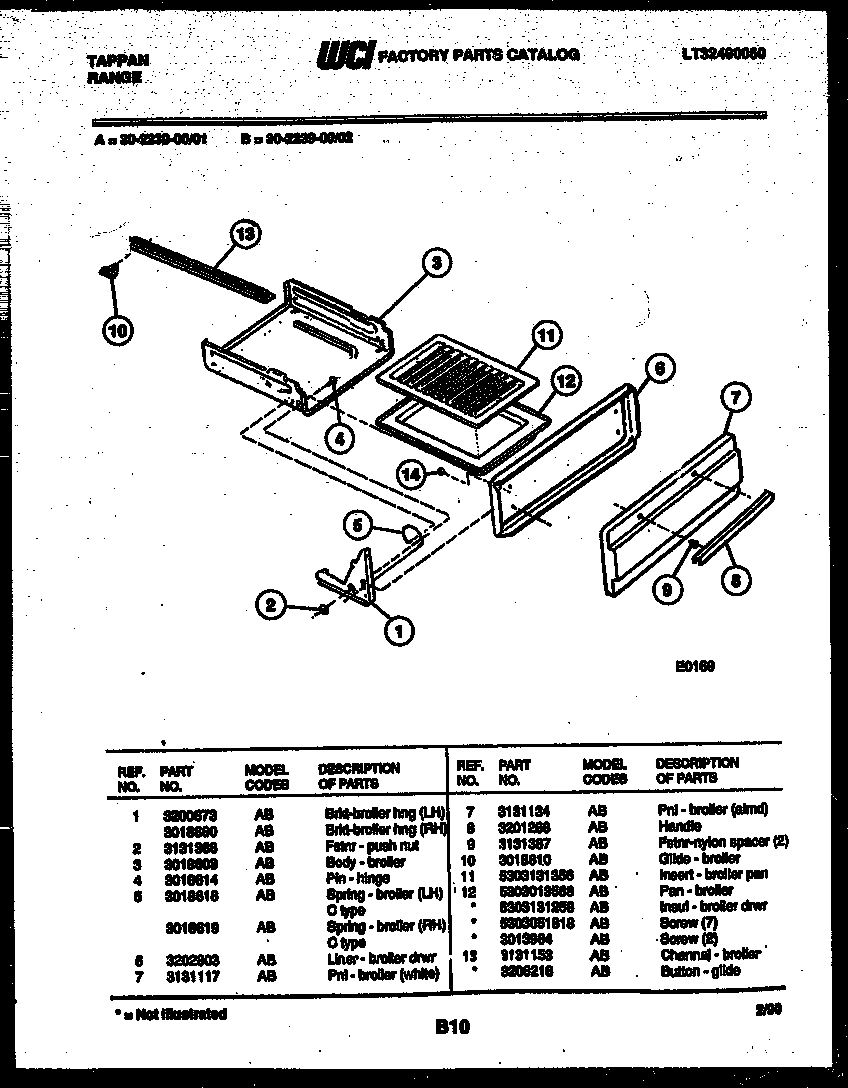

04 - BROILER DRAWER PARTS

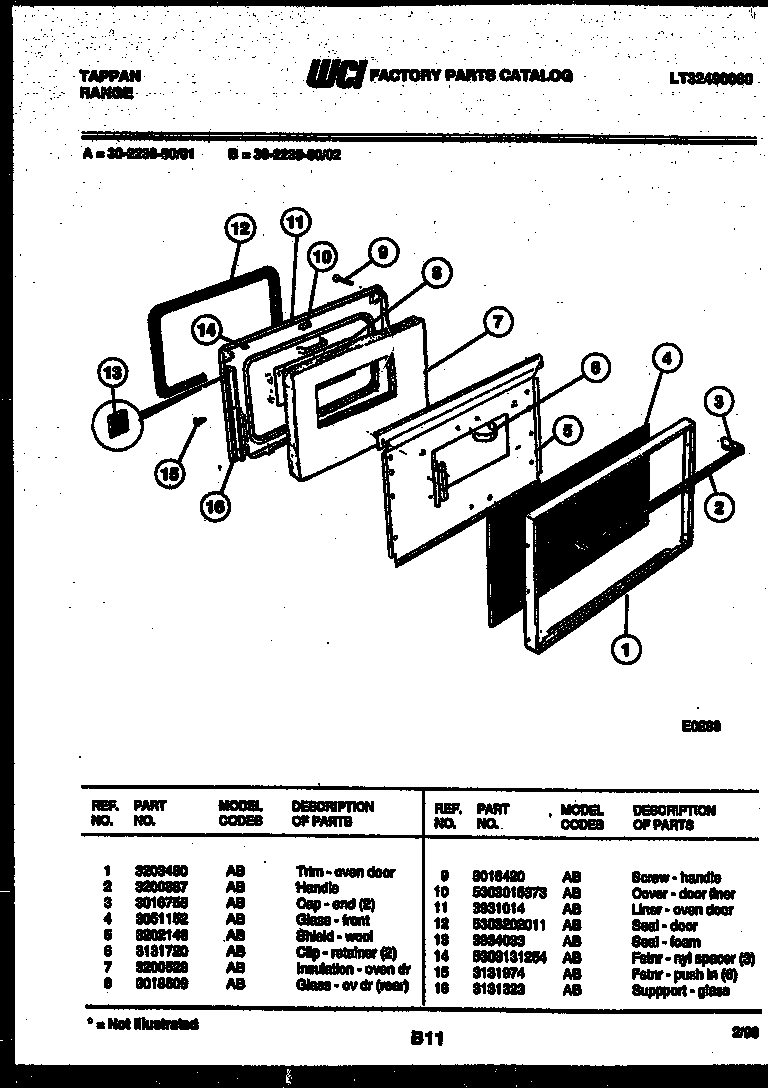

05 - DOOR PARTS

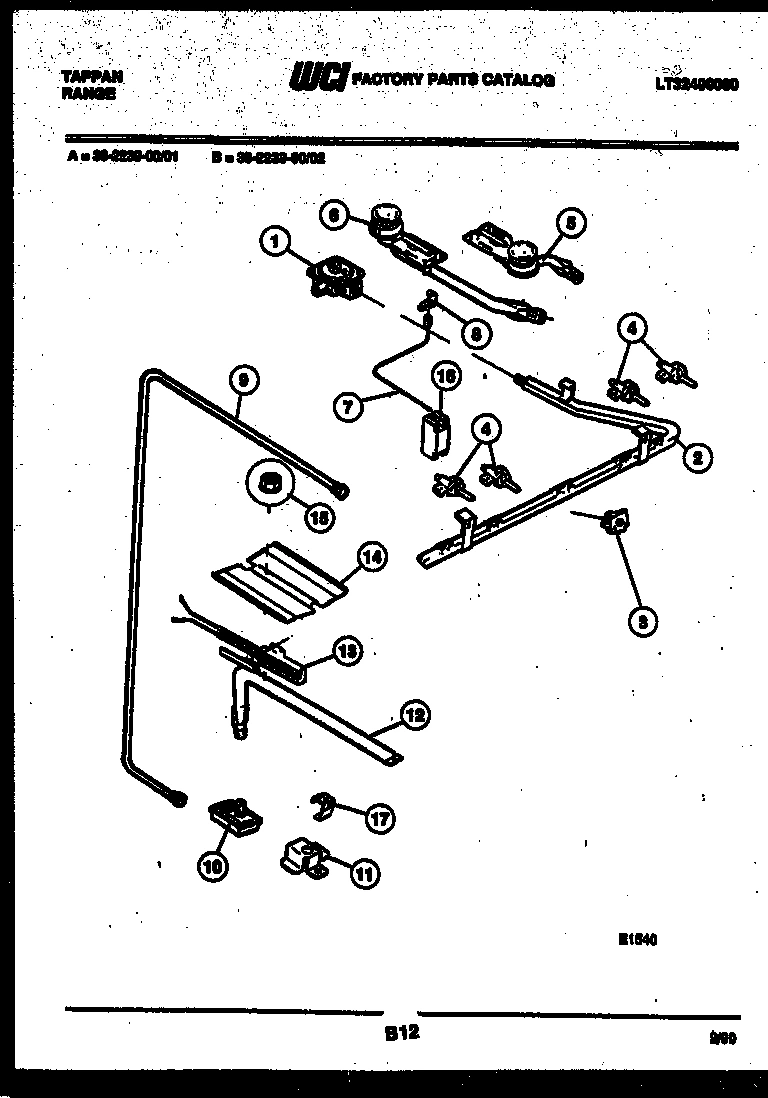

06 - BURNER, MANIFOLD AND GAS CONTROL

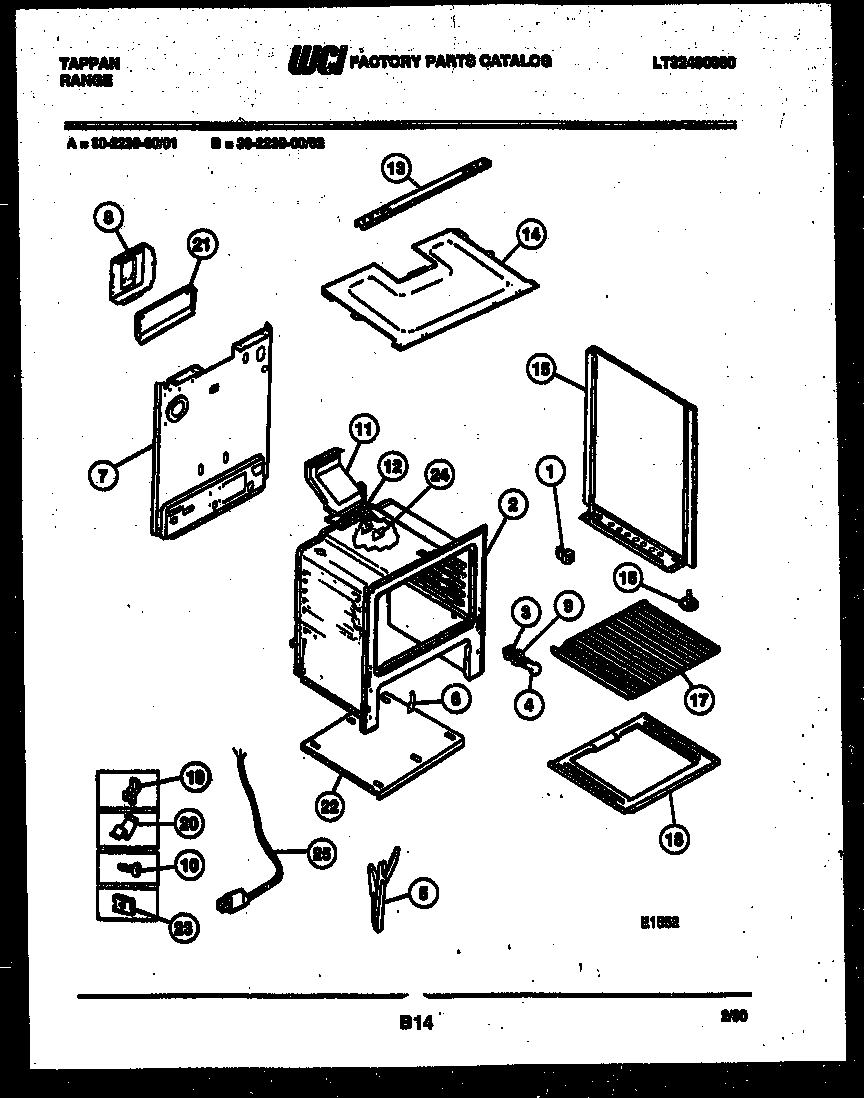

07 - BODY PARTS
Common parts from model Electrolux 30-2239-00-02 RANGE
*32259
WCI 3206216 WCI 3206216 Contact Us For Availability
1
SPACER, B/S (8) WCI 3014099 Contact Us For Availability
1
WCI 3205116 WCI 3205116 Contact Us For Availability
1
BRKT-BROILER HNG (LH) WCI 3200673 Contact Us For Availability
1
WCI 3203480 WCI 3203480 Contact Us For Availability
1
CONTROL REGUL WCI 5303208384 Contact Us For Availability
1A
BRKT-BROILER HNG (RH) WCI 3018860 Contact Us For Availability
2
WCI 3205115 WCI 3205115 Contact Us For Availability
2
FSTNR - PUSH NUT WCI 3131386 Contact Us For Availability
2
WCI 3200887 WCI 3200887 Contact Us For Availability
2
WCI 3205046 WCI 3205046 Contact Us For Availability
3
WCI 3205103 WCI 3205103 Contact Us For Availability
3
WCI 3018608 WCI 3018608 Contact Us For Availability
3
SWITCH, IGNITER (4) WCI 5303208397 Contact Us For Availability
4
WCI 5303200658 WCI 5303200658 Contact Us For Availability
4
WCI 3018614 WCI 3018614 Contact Us For Availability
4
WCI 3051152 WCI 3051152 Contact Us For Availability
4
WCI 3202796 WCI 3202796 Contact Us For Availability
4A
WCI 3204499 WCI 3204499 Contact Us For Availability
5
ROD - MAINTOP SUPT. WCI 3013818 Contact Us For Availability
5
WCI 3018618 WCI 3018618 Contact Us For Availability
5
WCI 3202148 WCI 3202148 Contact Us For Availability
5
CHANNEL-DR HNG (2) WCI 5303131569 Contact Us For Availability
5A
WCI 3018619 WCI 3018619 Contact Us For Availability
6
COVER HNG. CUTOUT (2) WCI 3131570 Contact Us For Availability
6
BRACKET-MAIN TOP LH WCI 3131286 Contact Us For Availability
6
LINER - BROILER DRWR WCI 3202803 Contact Us For Availability
6
CLIP, RETAINER (2) WCI 3131720 Contact Us For Availability
6
WCI 3203393 WCI 3203393 Contact Us For Availability
7
BRACKET-MAIN TOP RH WCI 3131287 Contact Us For Availability
7
PNL - BROILER (ALMD) WCI 3131134 Contact Us For Availability
7
INSULATION - OVEN DR WCI 3200528 Contact Us For Availability
7
WCI 3200276 WCI 3200276 Contact Us For Availability
7
WCI 3203082 WCI 3203082 Contact Us For Availability
8
WCI 3201268 WCI 3201268 Contact Us For Availability
8
GLASS-OV DR (REAR) WCI 3018609 Contact Us For Availability
8
WCI 3131660 WCI 3131660 Contact Us For Availability
9
HOUSING-OVEN LIGHT WCI 3051511 Contact Us For Availability
9
WCI 3203443 WCI 3203443 Contact Us For Availability
9
FSTNR-NYLON SPACER (2) WCI 3131387 Contact Us For Availability
9
WCI 3016420 WCI 3016420 Contact Us For Availability
9
WCI 3203458 WCI 3203458 Contact Us For Availability
10
GLIDE-BROILER WCI 3018610 No Longer Available
10
WCI 3203457 WCI 3203457 Contact Us For Availability
10
WCI 5303015373 WCI 5303015373 Contact Us For Availability
11
WCI 5303131356 WCI 5303131356 Contact Us For Availability
11
WCI 3931014 WCI 3931014 Contact Us For Availability
11
WCI 3131438 WCI 3131438 Contact Us For Availability
11
WCI 3131904 WCI 3131904 Contact Us For Availability
12
WCI 3131439 WCI 3131439 Contact Us For Availability
12
PAN-BROILER WCI 5303013568 Contact Us For Availability
12A
INSUL - BROILER DRWR (NON-ILLUSTRATED) WCI 5303131258 Contact Us For Availability
12B
SCREW (2) (NON-ILLUSTRATED) WCI 3013964 Contact Us For Availability
13
CHANNEL-BROILER WCI 3131153 Contact Us For Availability
13
WCI 3934033 WCI 3934033 Contact Us For Availability
13
CHANNEL-BURNER BOX WCI 3203441 Contact Us For Availability
14
FSTNR - NYL SPACER (3) WCI 5303131254 Contact Us For Availability
14
WCI 3203265 WCI 3203265 Contact Us For Availability
14
WCI 3204962 WCI 3204962 Contact Us For Availability
15
FSTNR, PUSH IN (6) WCI 3131974 Contact Us For Availability
15
B/S - PNL (ALMD) RH WCI 3205624 Contact Us For Availability
15A
B/S - PNL (ALMD) LH WCI 3205621 Contact Us For Availability
16
WCI 5303203397 WCI 5303203397 Contact Us For Availability
16
WCI 3204747 WCI 3204747 Contact Us For Availability
16
SUPPPORT - GLASS WCI 3131323 Contact Us For Availability
17
WCI 3131468 WCI 3131468 Contact Us For Availability
17
BRKT - OVEN BRNR SUPT WCI 3018603 Contact Us For Availability
18
WCI 3204753 WCI 3204753 Contact Us For Availability
18
WCI 3011519 WCI 3011519 Contact Us For Availability
18A
INSUL - OVEN WRAP (NON-ILLUSTRATED) WCI 3017142 Contact Us For Availability
18B
INSUL - OVEN BACK (NON-ILLUSTRATED) WCI 3203541 Contact Us For Availability
19
WCI 3204754 WCI 3204754 Contact Us For Availability
19A
FSTNR-POWER CORD (NON-ILLUSTRATED) WCI 3012327 Contact Us For Availability
21
WCI 3131348 WCI 3131348 Contact Us For Availability
22
WCI 3131180 WCI 3131180 Contact Us For Availability
22A
ANTI, TIP BRACKET (NON-ILLUSTRATED) WCI 3934056 Contact Us For Availability
22B
COVER-POWER CORD, (NON-ILLUSTRATED) WCI 3131244 Contact Us For Availability
23A
COVER, FRONT MAIN (NON-ILLUSTRATED) WCI 5303015372 Contact Us For Availability
24
WCI 3018607 WCI 3018607 Contact Us For Availability
24A
SHIELD-FLUE, (NON-ILLUSTRATED) WCI 3202799 Contact Us For Availability
24B
SHIELD-TOP (NON-ILLUSTRATED) WCI 3203455 Contact Us For Availability
× ![]()
