Model Electrolux 30-2237-66-03 RANGE – Common Parts & Diagrams

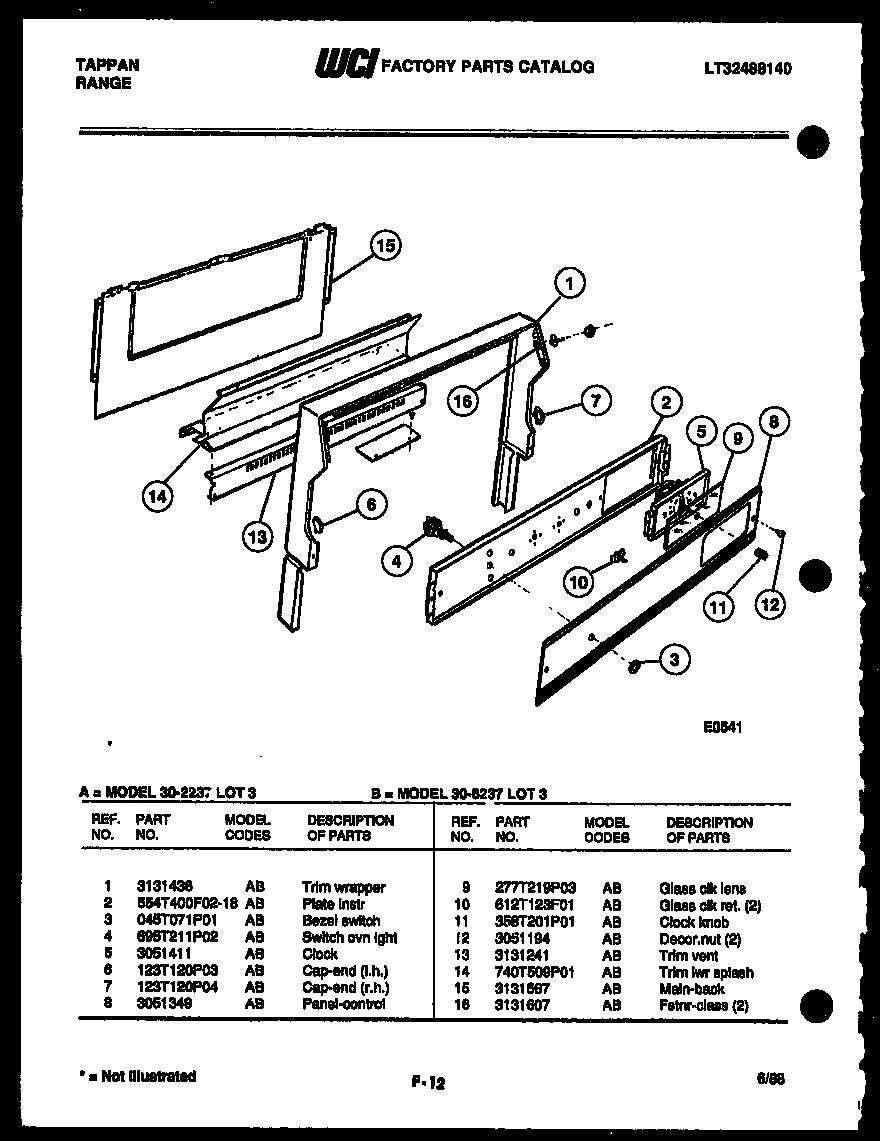

02 - BACKGUARD

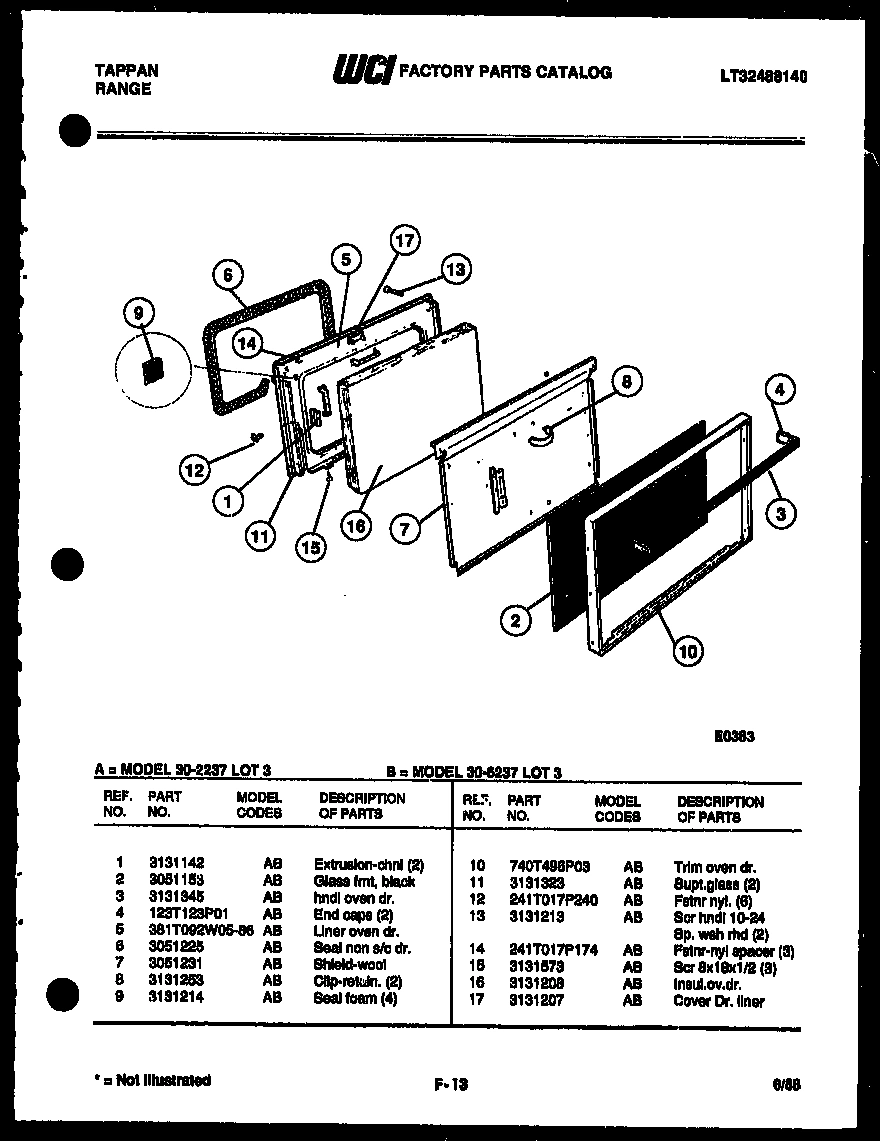

03 - DOOR PARTS

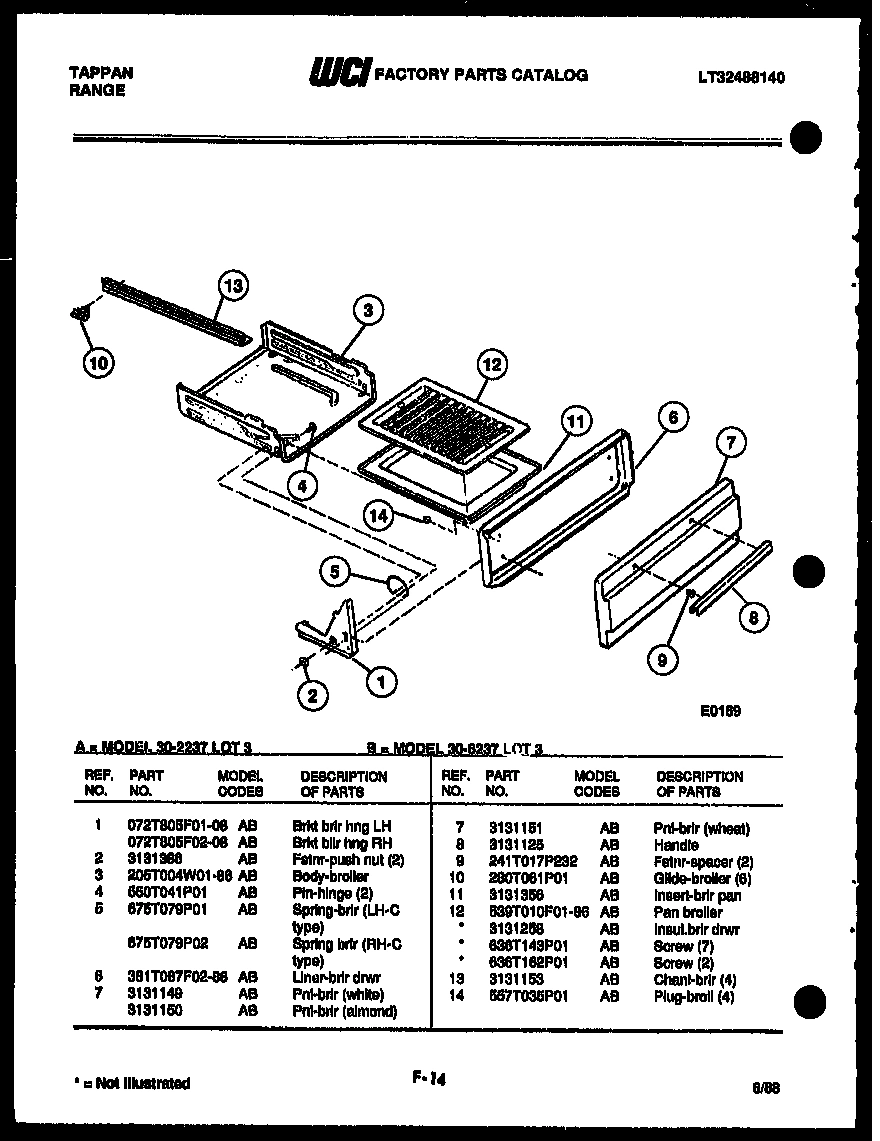

04 - BROILER DRAWER PARTS

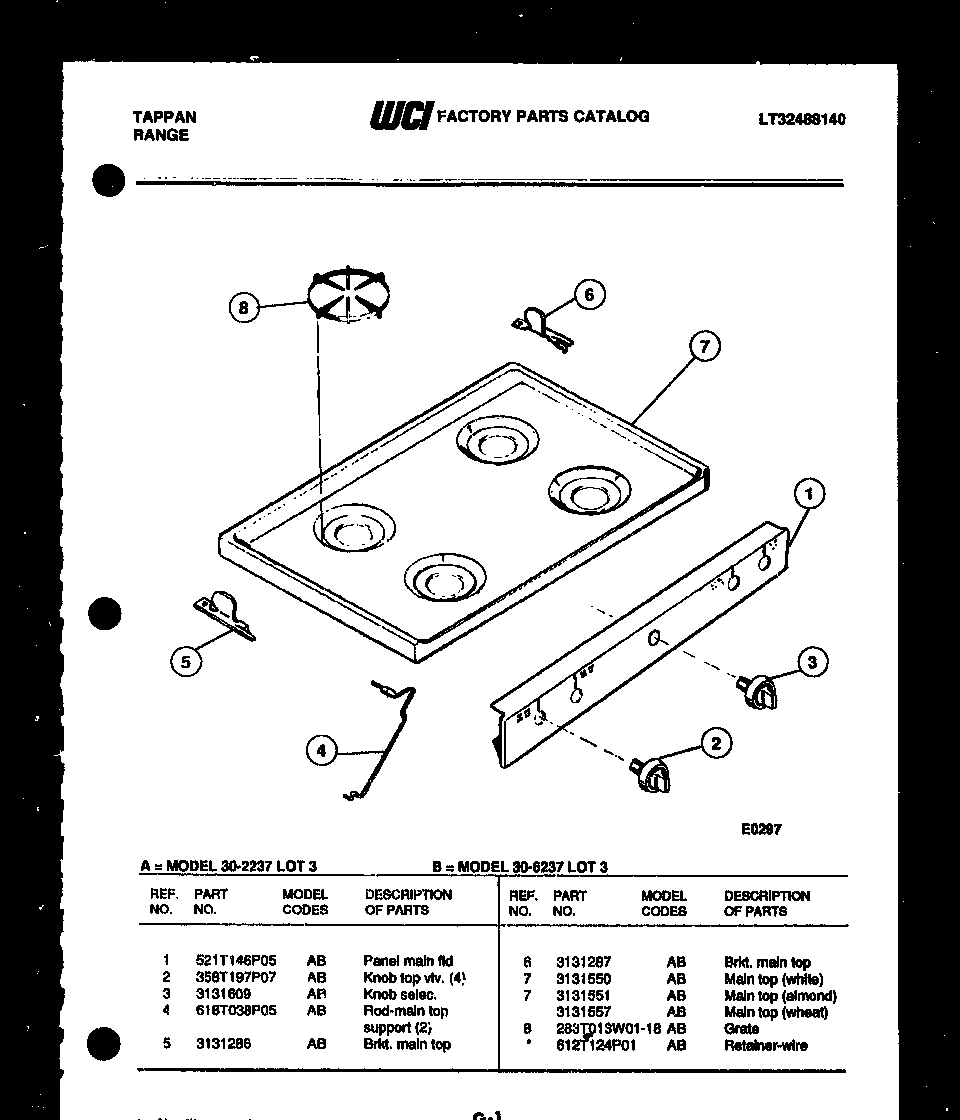

05 - COOKTOP PARTS

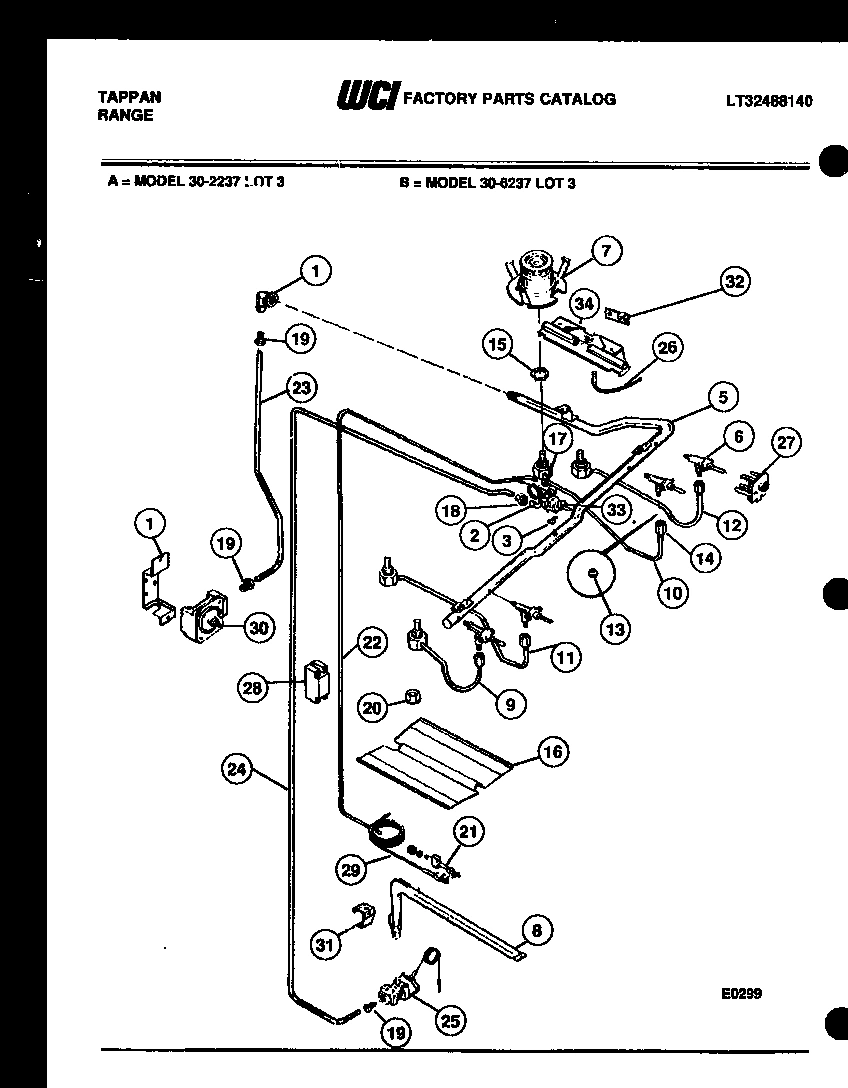

06 - BURNER, MANIFOLD AND GAS CONTROL

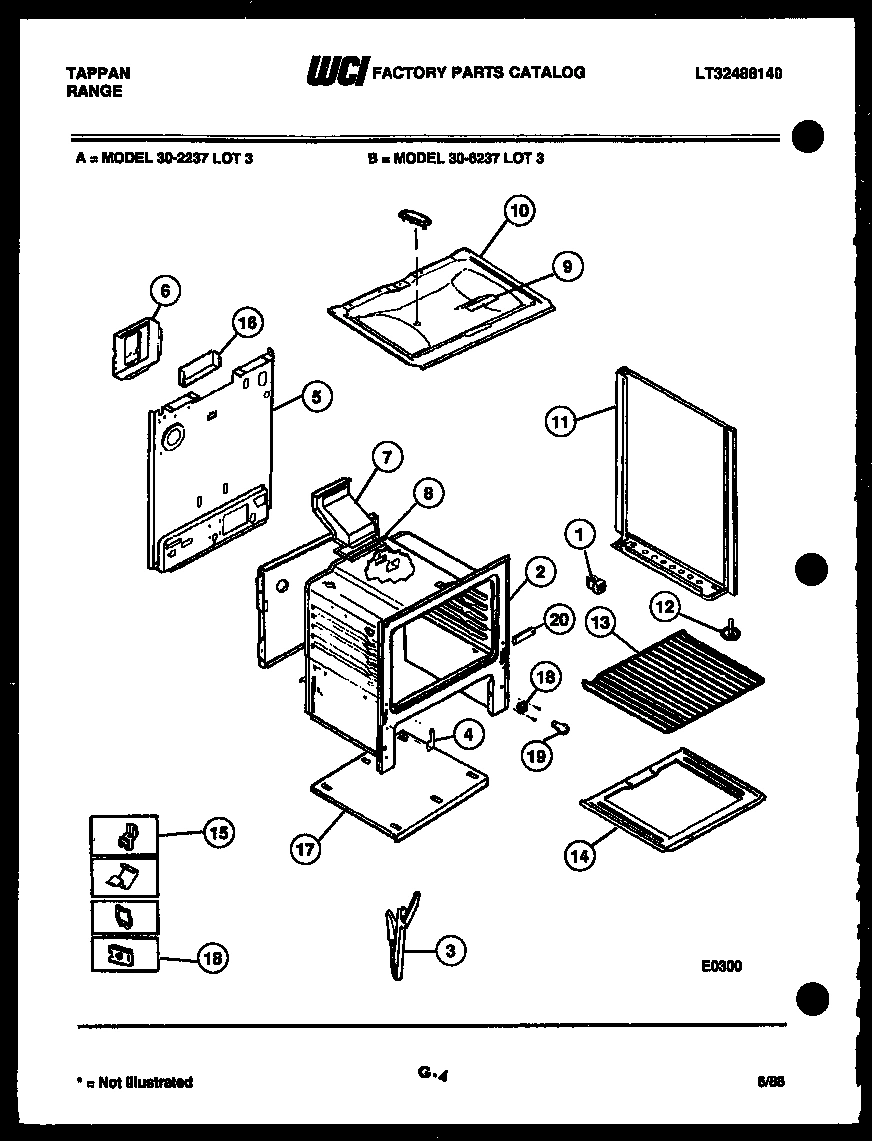

07 - BODY PARTS
Common parts from model Electrolux 30-2237-66-03 RANGE
*14469
WCI 612T124P01 WCI 612T124P01 Contact Us For Availability
*14473
WCI 3051420 WCI 3051420 Contact Us For Availability
1
EXTRUSION CHNL (2) WCI 3131142 Contact Us For Availability
1
WCI 072T805F01-08 WCI 072T805F01-08 Contact Us For Availability
1
WCI 521T146P05 WCI 521T146P05 Contact Us For Availability
1
WCI 072T850F01 WCI 072T850F01 Contact Us For Availability
1
SPACER, BODYSIDE (8) WCI 665T188P02 Contact Us For Availability
1A
WCI 072T805F02-08 WCI 072T805F02-08 Contact Us For Availability
2
GLASS FRNT, BLACK WCI 3051153 Contact Us For Availability
2
FSTNR, PUSH NUT (2) WCI 3131386 Contact Us For Availability
2
WCI 358T197P07 WCI 358T197P07 Contact Us For Availability
2
WCI 722T073P01 WCI 722T073P01 Contact Us For Availability
3
WCI 045T071P01 WCI 045T071P01 Contact Us For Availability
3
WCI 3131345 WCI 3131345 Contact Us For Availability
3
BODY, BROILER WCI 205T004W01-86 Contact Us For Availability
3
WCI 3131609 WCI 3131609 Contact Us For Availability
3
WCI 003T039P01 WCI 003T039P01 Contact Us For Availability
3
CHNL DR HNGE (2) WCI 3131569 Contact Us For Availability
4
COVER-HNGE CUT-OUT (2) WCI 3131570 Contact Us For Availability
4
SWITCH OVN LGHT WCI 695T211P02 Contact Us For Availability
4
PIN, HINGE (2) WCI 550T041P01 Contact Us For Availability
4
ROD, MAIN TOP SUPPORT (2) WCI 618T038P05 Contact Us For Availability
4
WCI 215T013P01 WCI 215T013P01 Contact Us For Availability
5
WCI 3051411 WCI 3051411 Contact Us For Availability
5
WCI 3131567 WCI 3131567 Contact Us For Availability
5
WCI 381T092W05-86 WCI 381T092W05-86 Contact Us For Availability
5
SPRING-BRLR (LH-C TYPE) WCI 675T079P01 Contact Us For Availability
5
BRKT. MAIN TOP WCI 3131286 Contact Us For Availability
5
WCI 439T055P07 WCI 439T055P07 Contact Us For Availability
5A
SPRING BRLR (RH-C TYPE) WCI 675T079P02 Contact Us For Availability
6
CAP-END (L.H.) WCI 123T120P03 Contact Us For Availability
6
WCI 381T087F02-86 WCI 381T087F02-86 Contact Us For Availability
6
BRKT. MAIN TOP WCI 3131287 Contact Us For Availability
6
VLVE TOP-2 POS. (4) WCI 3017542 Contact Us For Availability
6
WCI 655T421F02-18 WCI 655T421F02-18 Contact Us For Availability
7
CAP-END (R.H.) WCI 123T120P04 Contact Us For Availability
7
WCI 3051231 WCI 3051231 Contact Us For Availability
7
WCI 3131149 WCI 3131149 Contact Us For Availability
7
PNL-BRLR (WHEAT) WCI 3131151 Contact Us For Availability
7
WCI 3131550 WCI 3131550 Contact Us For Availability
7
MAIN TOP (WHEAT) WCI 3131557 Contact Us For Availability
7
WCI 079T032S02 WCI 079T032S02 Contact Us For Availability
7
WCI 3131503 WCI 3131503 Contact Us For Availability
8
WCI 3051349 WCI 3051349 Contact Us For Availability
8
WCI 3131253 WCI 3131253 Contact Us For Availability
8
WCI 3131125 WCI 3131125 Contact Us For Availability
8
WCI 3131571 WCI 3131571 Contact Us For Availability
9
GLASS CLK LENS WCI 277T219P03 Contact Us For Availability
9
SEAL, FOAM (4) WCI 3131214 Contact Us For Availability
9
FSTNR-SPACER (2) WCI 241T017P232 Contact Us For Availability
9
WCI 079T003H01 WCI 079T003H01 Contact Us For Availability
9
WCI 3131101 WCI 3131101 Contact Us For Availability
10
GLASS CLK RET. (2) WCI 612T123F01 Contact Us For Availability
10
WCI 740T496P03 WCI 740T496P03 Contact Us For Availability
10
GLIDE, BROILER (6) WCI 280T061P01 Contact Us For Availability
10
WCI 079T033H02 WCI 079T033H02 Contact Us For Availability
10
WCI 095T030F02-86 WCI 095T030F02-86 Contact Us For Availability
11
CLOCK KNOB WCI 358T201P01 Contact Us For Availability
11
SUPT. GLASS (2) WCI 3131323 Contact Us For Availability
11
INSERT-BRLR PAN WCI 3131356 Contact Us For Availability
11
WCI 079T033H03 WCI 079T033H03 Contact Us For Availability
11
PNL. B/S (RH WHITE) WCI 3131227 Contact Us For Availability
11
PNL. B/S (LH WHITE) WCI 3131257 Contact Us For Availability
11
PNL. B/S (RH WHEAT) WCI 3131477 Contact Us For Availability
11
PNL. B/S (LH WHEAT) WCI 3131478 Contact Us For Availability
12
DECOR, NUT (2) WCI 3051194 Contact Us For Availability
12
FSTNR NYL (6) WCI 241T017P240 Contact Us For Availability
12
PAN, BROILER WCI 539T010F01-86 Contact Us For Availability
12
WCI 079T033H04 WCI 079T033H04 Contact Us For Availability
12
SCREW - LEVELING (4) WCI 636M004P01 Contact Us For Availability
12A
INSUL.-BRLR DRWR (NON-ILLUSTRATED) WCI 3131258 Contact Us For Availability
12C
WCI 636T162P01 WCI 636T162P01 Contact Us For Availability
13
WCI 3131241 WCI 3131241 Contact Us For Availability
13
SCR HNDL 10-24 SP WSH RHD (2) WCI 3131213 Contact Us For Availability
13
CHANL-BRLR (4) WCI 3131153 Contact Us For Availability
13
WCI 247T074P01 WCI 247T074P01 Contact Us For Availability
14
WCI 740T509P01 WCI 740T509P01 Contact Us For Availability
14
FSTNR-NYL SPACER (3) WCI 241T017P174 Contact Us For Availability
14
PLUG-BROIL. (4) WCI 557T035P01 Contact Us For Availability
14
NUT-COMPRSSN. (4) WCI 3131148 Contact Us For Availability
14
WCI 058T036F02-86 WCI 058T036F02-86 Contact Us For Availability
14A
WCI 3131201 WCI 3131201 Contact Us For Availability
14B
WCI 3131246 WCI 3131246 Contact Us For Availability
15
WCI 3131573 WCI 3131573 Contact Us For Availability
15
WCI 479T069P40 WCI 479T069P40 Contact Us For Availability
16
FSTNR-CLASS (2) WCI 3131607 Contact Us For Availability
16
INSUL-OV DR WCI 3131208 Contact Us For Availability
16
WCI 3131327 WCI 3131327 Contact Us For Availability
16
WCI 3131180 WCI 3131180 Contact Us For Availability
17
WCI 3131207 WCI 3131207 Contact Us For Availability
17
WCI 3131404 WCI 3131404 Contact Us For Availability
17B
WCI 241T017P16 WCI 241T017P16 Contact Us For Availability
18
WCI 3131403 WCI 3131403 Contact Us For Availability
19
FITTING-LOXIT (3) WCI 3131261 Contact Us For Availability
20
COVER FRNT MAIN WCI 3131548 Contact Us For Availability
21
WCI 549T037P01 WCI 549T037P01 Contact Us For Availability
22
TUBE PILOT WCI 750T056P21 Contact Us For Availability
23
WCI 750T085H09 WCI 750T085H09 Contact Us For Availability
24
WCI 750T085H13 WCI 750T085H13 Contact Us For Availability
25
WCI 3131405 WCI 3131405 Contact Us For Availability
26
IGNITER ELCTROD (2) WCI 316T034P02 Contact Us For Availability
27
SWITCH IGN. (4) WCI 3131568 Contact Us For Availability
29
WCI 3131604 WCI 3131604 Contact Us For Availability
30
CONTRL REGUL. WCI 166T013P01 Contact Us For Availability
31
WCI 072T821F01 WCI 072T821F01 Contact Us For Availability
32
RETAIN. IGN. (2) WCI 612T121F01 Contact Us For Availability
33
SW OVEN IGNITER WCI 695T220P01 Contact Us For Availability
34
WCI 136T355W03 WCI 136T355W03 Contact Us For Availability
× ![]()
