Model Electrolux 30-2139-00-03 RANGE – Common Parts & Diagrams
02 - BACKGUARD
03 - COOKTOP PARTS

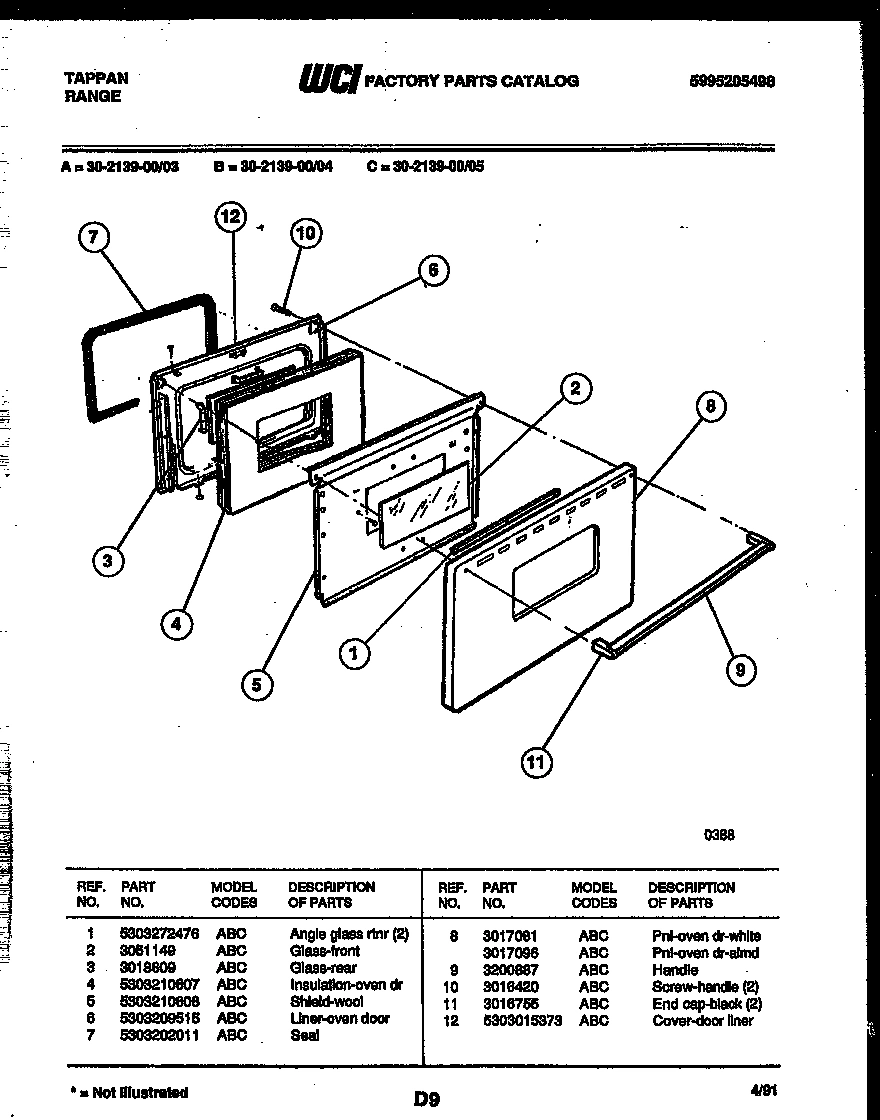

04 - DOOR PARTS

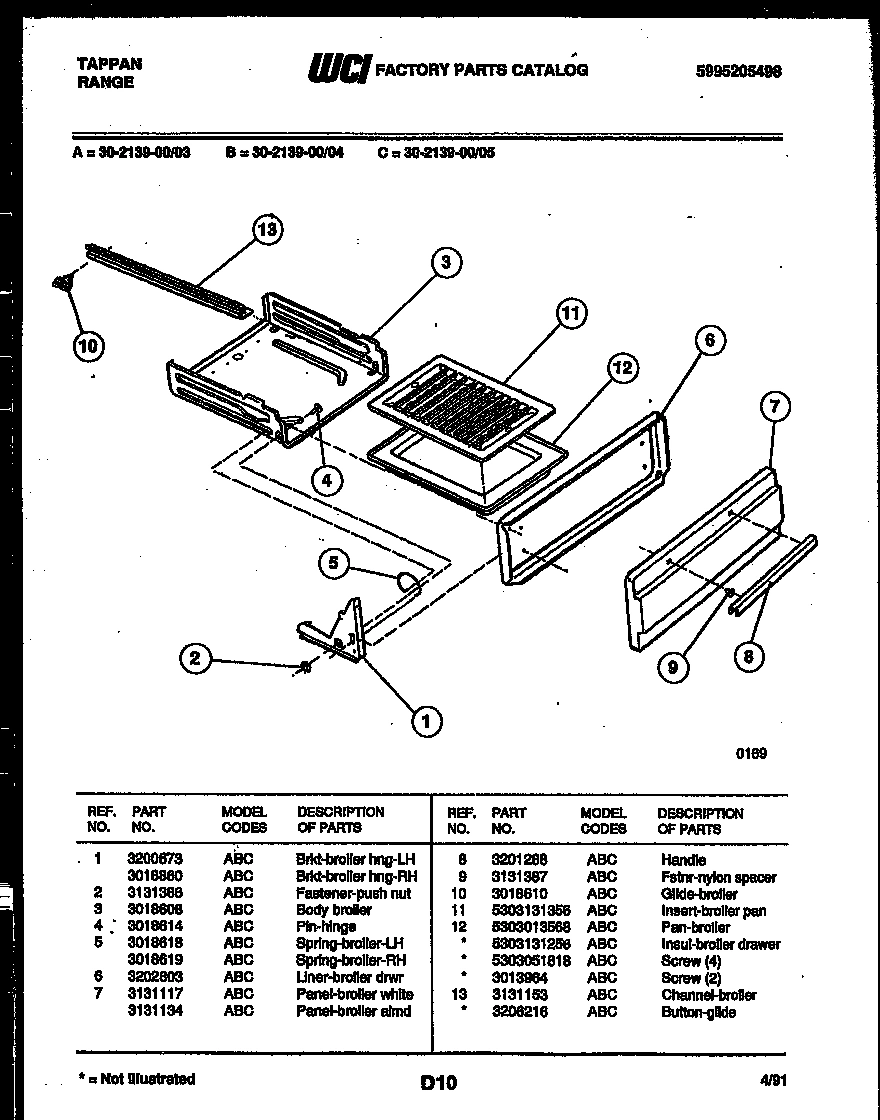

05 - BROILER DRAWER PARTS

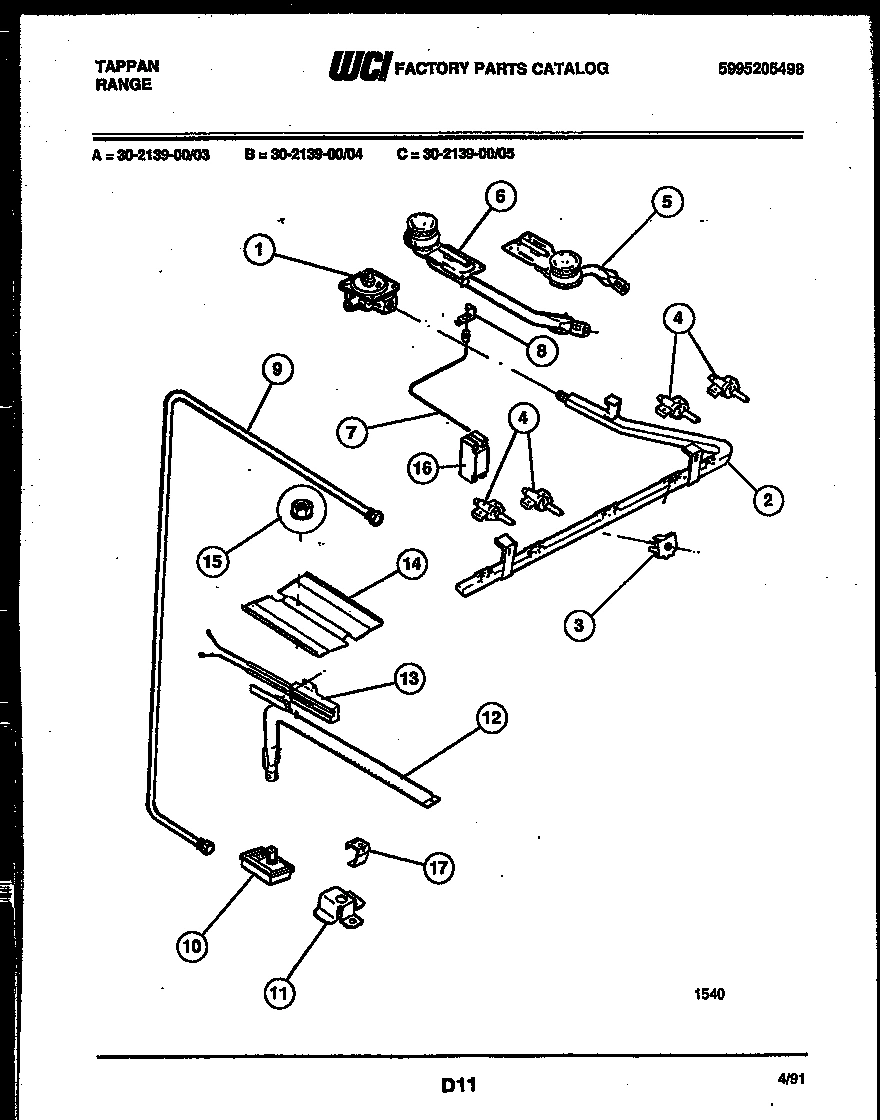

06 - BURNER, MANIFOLD AND GAS CONTROL

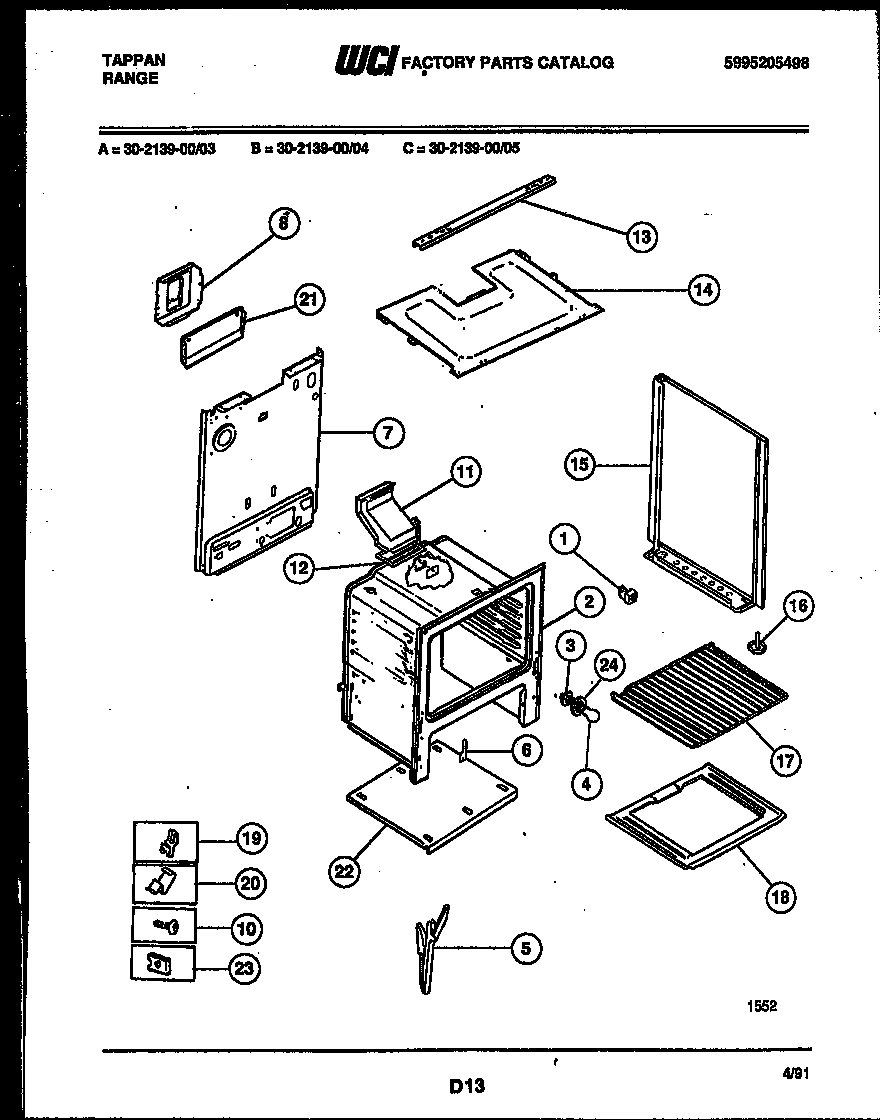

07 - BODY PARTS
Common parts from model Electrolux 30-2139-00-03 RANGE
*49104
WCI 3206216 WCI 3206216 Contact Us For Availability
*49109
WIRING DIAGRAM-NOT FOR PURCHASE WCI 19100180225 Contact Us For Availability
*49109
SHIELD-TOP WCI 3203455 Contact Us For Availability
*49109
WCI 3934056 WCI 3934056 Contact Us For Availability
1
WCI 5303272476 WCI 5303272476 Contact Us For Availability
1
BRKT-BROILER HNG (LH) WCI 3200673 Contact Us For Availability
1
CONTROL REGUL WCI 5303208384 Contact Us For Availability
1
WCI 3041099 WCI 3041099 Contact Us For Availability
1A
BRKT-BROILER HNG (RH) WCI 3018860 Contact Us For Availability
2
WCI 3205115 WCI 3205115 Contact Us For Availability
2
WCI 3051149 WCI 3051149 Contact Us For Availability
2
FASTENER, PUSH NUT WCI 3131386 Contact Us For Availability
2
WCI 3205046 WCI 3205046 Contact Us For Availability
3
WCI 3205103 WCI 3205103 Contact Us For Availability
3
WCI 3018609 WCI 3018609 Contact Us For Availability
3
WCI 3018608 WCI 3018608 Contact Us For Availability
3
WCI 5303208397 WCI 5303208397 Contact Us For Availability
4
WCI 3200657 WCI 3200657 Contact Us For Availability
4
INSULATION-OVEN DR WCI 5303210607 Contact Us For Availability
4
WCI 3018614 WCI 3018614 Contact Us For Availability
4
VALVE - TOP (2 POS) WCI 3202796 Contact Us For Availability
4A
SCREW, VALVE MTG (NON-ILLUSTRATED) WCI 3204499 Contact Us For Availability
5
ROD - MAINTOP SUPT. WCI 3013818 Contact Us For Availability
5
WCI 5303210608 WCI 5303210608 Contact Us For Availability
5
SPRING-BROILER, LH WCI 3018618 Contact Us For Availability
5
SPRING-BROILER, RH WCI 3018619 Contact Us For Availability
5
CHANNEL - DOOR HNG WCI 5303131569 Contact Us For Availability
6
BRKT, MAIN TOP (LH) WCI 08067746 Contact Us For Availability
6
COVER HNG. CUTOUT (2) WCI 3131570 Contact Us For Availability
6
WCI 5303209515 WCI 5303209515 Contact Us For Availability
6
LINER - BROILER DRWR WCI 3202803 Contact Us For Availability
7
BRKT, MAIN TOP (RH) WCI 08067747 Contact Us For Availability
7
PANEL - BROILER WHITE WCI 3131117 Contact Us For Availability
7
BASE-IGNITER WCI 3200276 Contact Us For Availability
7
WCI 3203082 WCI 3203082 Contact Us For Availability
8
WCI 3017081 WCI 3017081 Contact Us For Availability
8
WCI 3201268 WCI 3201268 Contact Us For Availability
8
WCI 3131660 WCI 3131660 Contact Us For Availability
9
WCI 3203443 WCI 3203443 Contact Us For Availability
9
WCI 3200887 WCI 3200887 Contact Us For Availability
9
FSTNR - NYLON SPACER WCI 3131387 Contact Us For Availability
9
WCI 3203458 WCI 3203458 Contact Us For Availability
10
WCI 3203457 WCI 3203457 Contact Us For Availability
10
SCREW - HANDLE (2) WCI 3016420 Contact Us For Availability
10
GLIDE-BROILER WCI 3018610 Contact Us For Availability
11
WCI 5303131356 WCI 5303131356 Contact Us For Availability
11
WCI 3131438 WCI 3131438 Contact Us For Availability
11
WCI 3131904 WCI 3131904 Contact Us For Availability
12
WCI 3131439 WCI 3131439 Contact Us For Availability
12
WCI 5303015373 WCI 5303015373 Contact Us For Availability
12
PAN-BROILER WCI 5303013568 Contact Us For Availability
12A
INSUL - BROILER DRAWER (NON-ILLUSTRATED) WCI 5303131258 Contact Us For Availability
12B
SCREW (2) (NON-ILLUSTRATED) WCI 3013964 Contact Us For Availability
13
CHANNEL-BROILER WCI 3131153 Contact Us For Availability
13
CHANNEL BURNER WCI 3203441 Contact Us For Availability
14
SHIELD, REAR WALL WCI 3131123 Contact Us For Availability
14
WCI 3203265 WCI 3203265 Contact Us For Availability
14
WCI 3204962 WCI 3204962 Contact Us For Availability
15
WCI 3204746 WCI 3204746 Contact Us For Availability
15
NUT WCI 5303212656 Contact Us For Availability
15
PNL B/S - WHITE RH WCI 5303269518 Contact Us For Availability
15A
WCI 3204747 WCI 3204747 Contact Us For Availability
15A
PNL B/S - WHITE LH WCI 5303269519 Contact Us For Availability
16
WCI 3131468 WCI 3131468 Contact Us For Availability
16
SCREW-LEVEL (4) WCI 3206285 Contact Us For Availability
17
WCI 3204753 WCI 3204753 Contact Us For Availability
17
BRKT-OVEN BURNER SUPPORT WCI 3018603 Contact Us For Availability
17A
WCI 3204754 WCI 3204754 Contact Us For Availability
18
WCI 5303212540 WCI 5303212540 Contact Us For Availability
18A
INSUL - OVEN WRAP (NON-ILLUSTRATED) WCI 3017142 Contact Us For Availability
18B
INSUL - OVEN BACK (NON-ILLUSTRATED) WCI 3203541 Contact Us For Availability
19B
WCI 08067961 WCI 08067961 Contact Us For Availability
21
WCI 3202799 WCI 3202799 Contact Us For Availability
22
WCI 5303270160 WCI 5303270160 Contact Us For Availability
22A
COVER-PLATE (NON-ILLUSTRATED) WCI 3018607 Contact Us For Availability
22B
COVER-POWER CORD, (NON-ILLUSTRATED) WCI 3131244 Contact Us For Availability
23A
COVER, FRONT MAIN (NON-ILLUSTRATED) WCI 5303015372 Contact Us For Availability
24
HOUSING-OVEN LIGHT WCI 3051511 Contact Us For Availability
× ![]()
