Model Electrolux 30-2138-23-06 RANGE – Common Parts & Diagrams

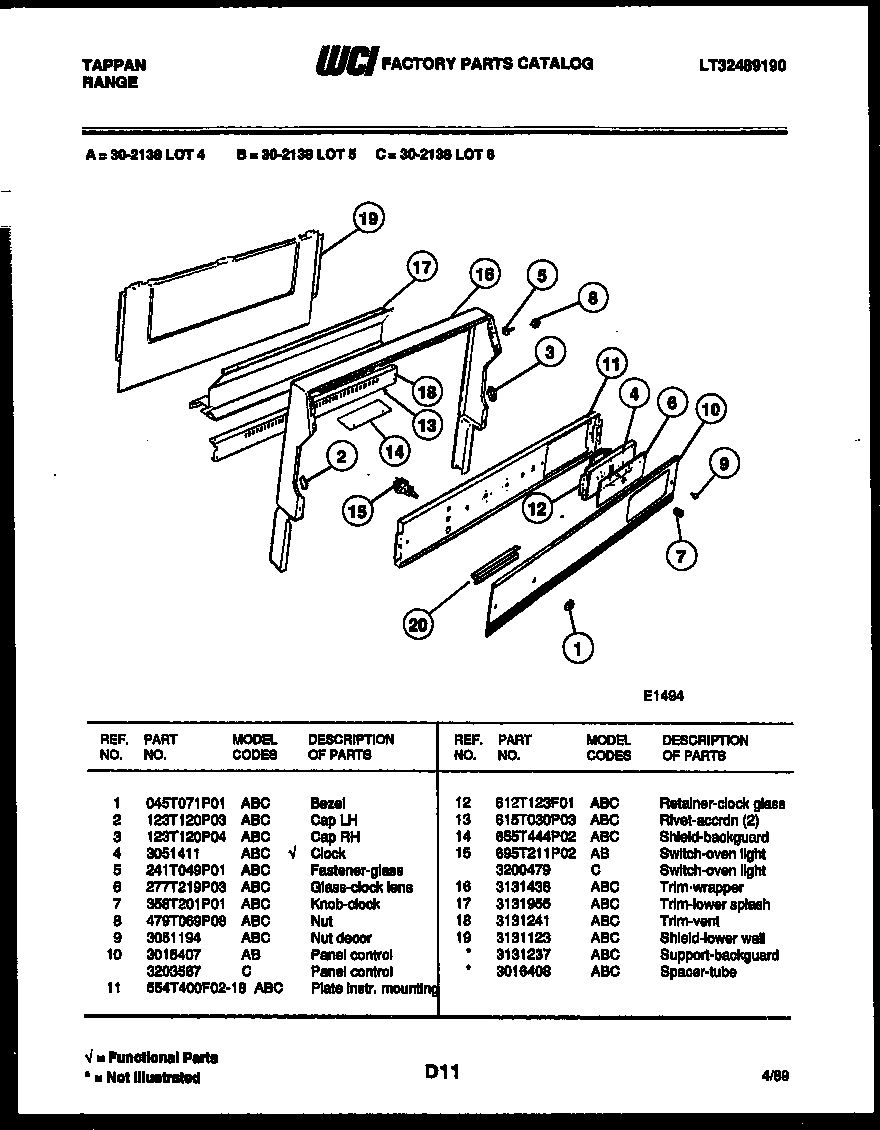

02 - BACKGUARD

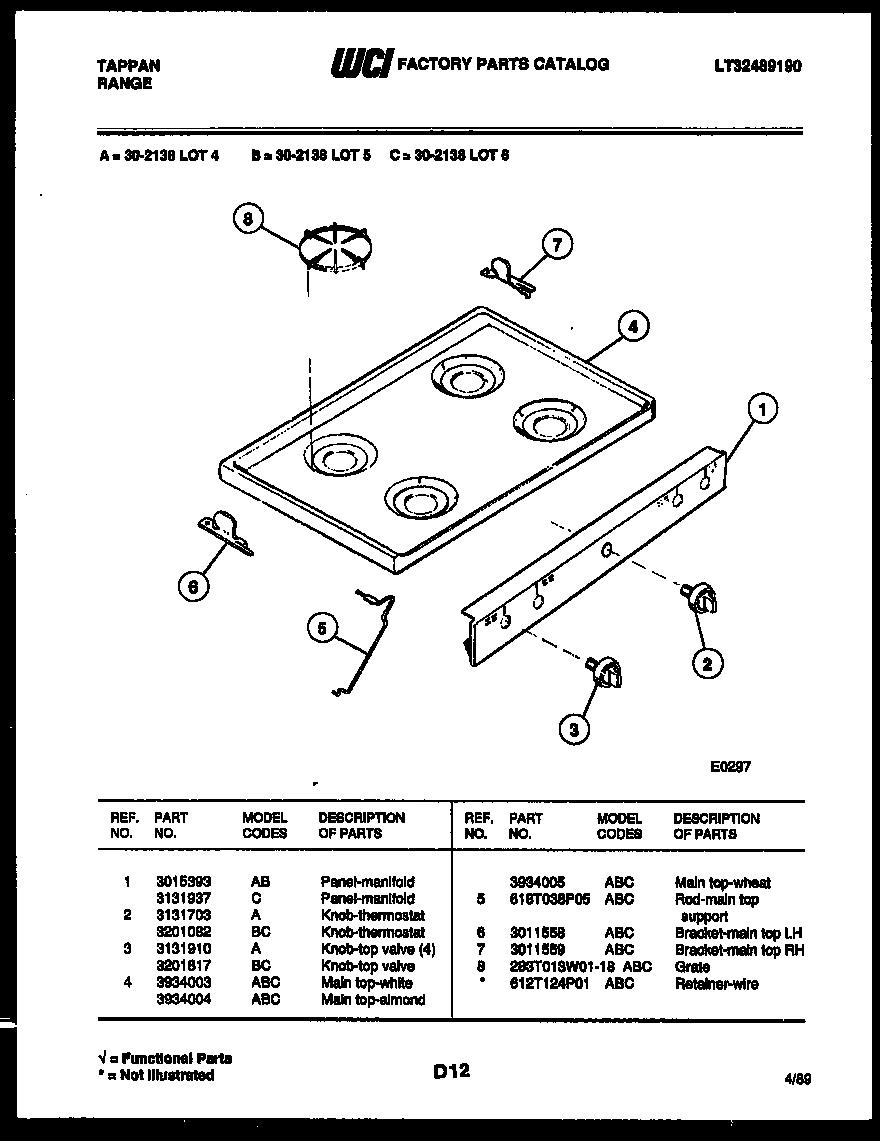

03 - COOKTOP PARTS

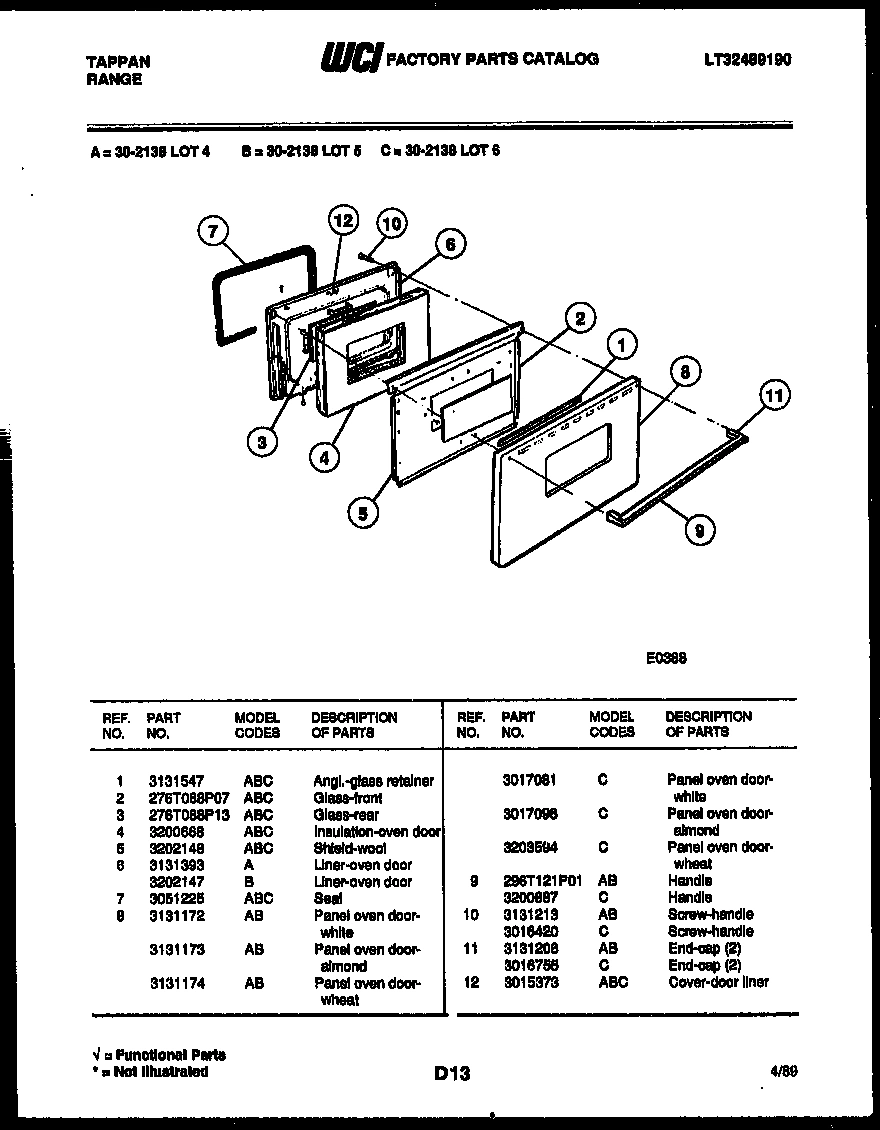

04 - DOOR PARTS
05 - BROILER DRAWER PARTS

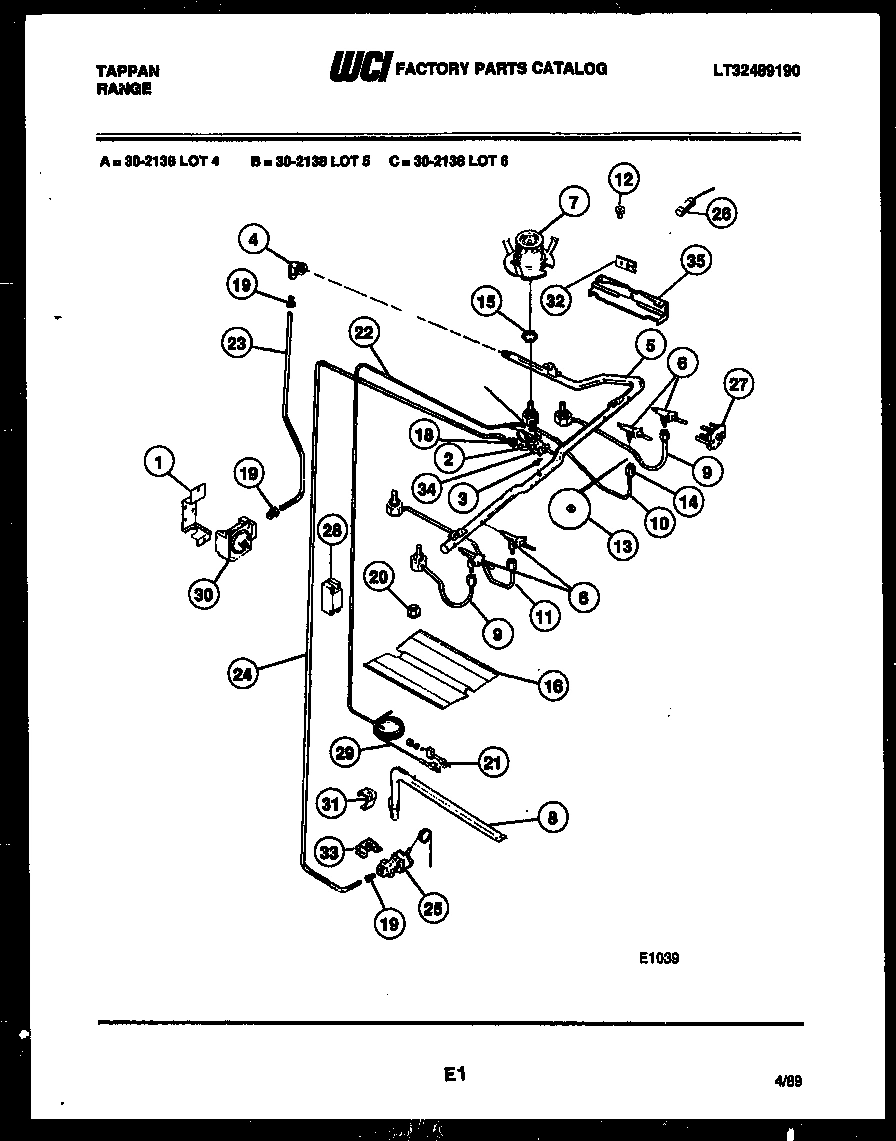

06 - BURNER PARTS

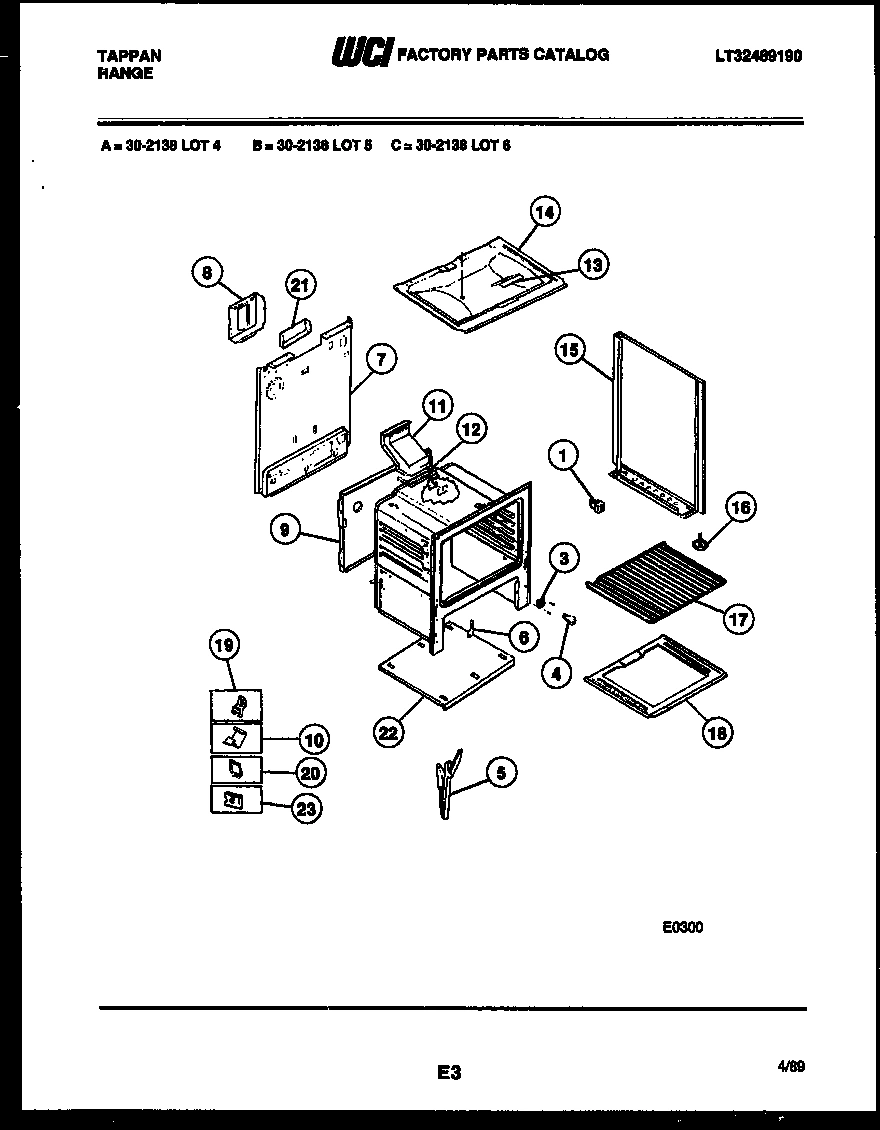

07 - BODY PARTS
Common parts from model Electrolux 30-2138-23-06 RANGE
*20733
WCI 612T124P01 WCI 612T124P01 Contact Us For Availability
*20746
WCI 3015372 WCI 3015372 Contact Us For Availability
*20746
ANTI TIP BRACKET KIT WCI 3934056 Contact Us For Availability
1
SPACER, B/S (8) WCI 3014099 Contact Us For Availability
1
WCI 3131937 WCI 3131937 Contact Us For Availability
1
ANGL.-GLASS RETAINER WCI 3131547 Contact Us For Availability
2
WCI 3201082 WCI 3201082 Contact Us For Availability
2
GLASS-FRONT WCI 276T088P07 Contact Us For Availability
2
WCI 3201107 WCI 3201107 Contact Us For Availability
3
WCI 276T088P13 WCI 276T088P13 Contact Us For Availability
3A
WCI 3201817 WCI 3201817 Contact Us For Availability
4
WCI 3051411 WCI 3051411 Contact Us For Availability
4
WCI 3934003 WCI 3934003 Contact Us For Availability
4
WCI 3934004 WCI 3934004 Contact Us For Availability
4
WCI 3934005 WCI 3934005 Contact Us For Availability
4
INSULATION-OVEN DOOR WCI 3200668 Contact Us For Availability
4
WCI 3012204 WCI 3012204 Contact Us For Availability
5
FASTENER-GLASS WCI 241T049P01 Contact Us For Availability
5
WCI 618T038P05 WCI 618T038P05 Contact Us For Availability
5
WCI 3202148 WCI 3202148 Contact Us For Availability
5
WCI 3201106 WCI 3201106 Contact Us For Availability
6
COVER-HINGE CUTOUT (2) WCI 3131570 Contact Us For Availability
6
WCI 277T219P03 WCI 277T219P03 Contact Us For Availability
6
BRACKET-MAIN TOP LH WCI 3011558 Contact Us For Availability
6
VALVE-3 POS. WCI 3017542 Contact Us For Availability
7
WCI 358T201P01 WCI 358T201P01 Contact Us For Availability
7
BRACKET-MAIN TOP RH WCI 3011559 Contact Us For Availability
7
WCI 3011567 WCI 3011567 Contact Us For Availability
7
WCI 3131567 WCI 3131567 Contact Us For Availability
7A
WCI 3131134 WCI 3131134 Contact Us For Availability
8
WCI 3131439 WCI 3131439 Contact Us For Availability
8
WCI 479T069P08 WCI 479T069P08 Contact Us For Availability
8
PANEL, OVEN DOOR, ALMOND WCI 3017096 Contact Us For Availability
8
WCI 3201268 WCI 3201268 Contact Us For Availability
8
WCI 3131660 WCI 3131660 Contact Us For Availability
9
WCI 3051194 WCI 3051194 Contact Us For Availability
9
WCI 3200887 WCI 3200887 Contact Us For Availability
9
FASTENER-SPACER (2) WCI 3131387 Contact Us For Availability
9
WCI 3131970 WCI 3131970 Contact Us For Availability
10
GLIDE, BROILER (4) WCI 3018610 No Longer Available
10
WCI 3203567 WCI 3203567 Contact Us For Availability
10
WCI 3016420 WCI 3016420 Contact Us For Availability
10
WCI 3011569 WCI 3011569 Contact Us For Availability
10
WCI 3011813 WCI 3011813 Contact Us For Availability
11
PLATE INSTR MOUNTING WCI 554T400F02-18 Contact Us For Availability
11
WCI 3131356 WCI 3131356 Contact Us For Availability
11
WCI 3011570 WCI 3011570 Contact Us For Availability
11
WCI 3131904 WCI 3131904 Contact Us For Availability
12
RETAINER-CLOCK GLASS WCI 612T123F01 Contact Us For Availability
12
WCI 3015373 WCI 3015373 Contact Us For Availability
12
WCI 3013568 WCI 3013568 Contact Us For Availability
12
WCI 3051420 WCI 3051420 Contact Us For Availability
12A
INSULATOR-BROILER DRAWER (NON-ILLUSTRATED) WCI 3131258 Contact Us For Availability
12C
SCREW (2) (NON-ILLUSTRATED) WCI 3013964 Contact Us For Availability
13
RIVET-ACCRDN (2) WCI 615T030P03 Contact Us For Availability
13
WCI 3131153 WCI 3131153 Contact Us For Availability
13
WCI 3012358 WCI 3012358 Contact Us For Availability
13
WCI 3131101 WCI 3131101 Contact Us For Availability
14
WCI 655T444P02 WCI 655T444P02 Contact Us For Availability
14
NUT-COMPRESSION WCI 3131148 Contact Us For Availability
14
WCI 3011597 WCI 3011597 Contact Us For Availability
15
WCI 3200479 WCI 3200479 Contact Us For Availability
15
NUT, SPECIAL WCI 3013279 Contact Us For Availability
15
B/S PANEL-ALMOND RH WCI 3200790 Contact Us For Availability
15A
B/S PANEL-ALMOND LH WCI 3200793 Contact Us For Availability
16
WCI 3131436 WCI 3131436 Contact Us For Availability
16
WCI 3131327 WCI 3131327 Contact Us For Availability
16
SCREW, LEVEL (4) WCI 3203397 Contact Us For Availability
17
TRIM-LOWER SPLASH WCI 3131955 Contact Us For Availability
17
WCI 3131404 WCI 3131404 Contact Us For Availability
18
WCI 3131241 WCI 3131241 Contact Us For Availability
18
BOTTOM, OPEN WCI 3011519 Contact Us For Availability
18A
INSULATOR-OVEN WRAP (NON-ILLUSTRATED) WCI 3017142 Contact Us For Availability
18A
INSULATOR-OVEN WRAP (NON-ILLUSTRATED) WCI 3131201 Contact Us For Availability
18B
INSULATOR-OVEN BACK (NON-ILLUSTRATED) WCI 3131246 Contact Us For Availability
19
SHIELD-LOWER WALL WCI 3131123 Contact Us For Availability
19
WCI 3131261 WCI 3131261 Contact Us For Availability
19A
FASTENER-POWER CORD (NON-ILLUSTRATED) WCI 3012327 Contact Us For Availability
21
WCI 3131348 WCI 3131348 Contact Us For Availability
22
WCI 3131180 WCI 3131180 Contact Us For Availability
22A
WCI 3018615 WCI 3018615 Contact Us For Availability
22B
COVER-POWER CORD, (NON-ILLUSTRATED) WCI 3131244 Contact Us For Availability
23
WCI 3014477 WCI 3014477 Contact Us For Availability
24
WCI 3131448 WCI 3131448 Contact Us For Availability
26
WCI 3131105 WCI 3131105 Contact Us For Availability
27
WCI 695T225P02 WCI 695T225P02 Contact Us For Availability
31
BRACKET WCI 3018603 Contact Us For Availability
32
WCI 612T121F01 WCI 612T121F01 Contact Us For Availability
33
BRACKET-SAFETY WCI 3131438 Contact Us For Availability
34
WCI 695T220P01 WCI 695T220P01 Contact Us For Availability
35
WCI 136T355W03 WCI 136T355W03 Contact Us For Availability
× ![]()
