Model Electrolux 30-2138-23-01 RANGE – Common Parts & Diagrams
02 - BACKGUARD
03 - COOKTOP PARTS

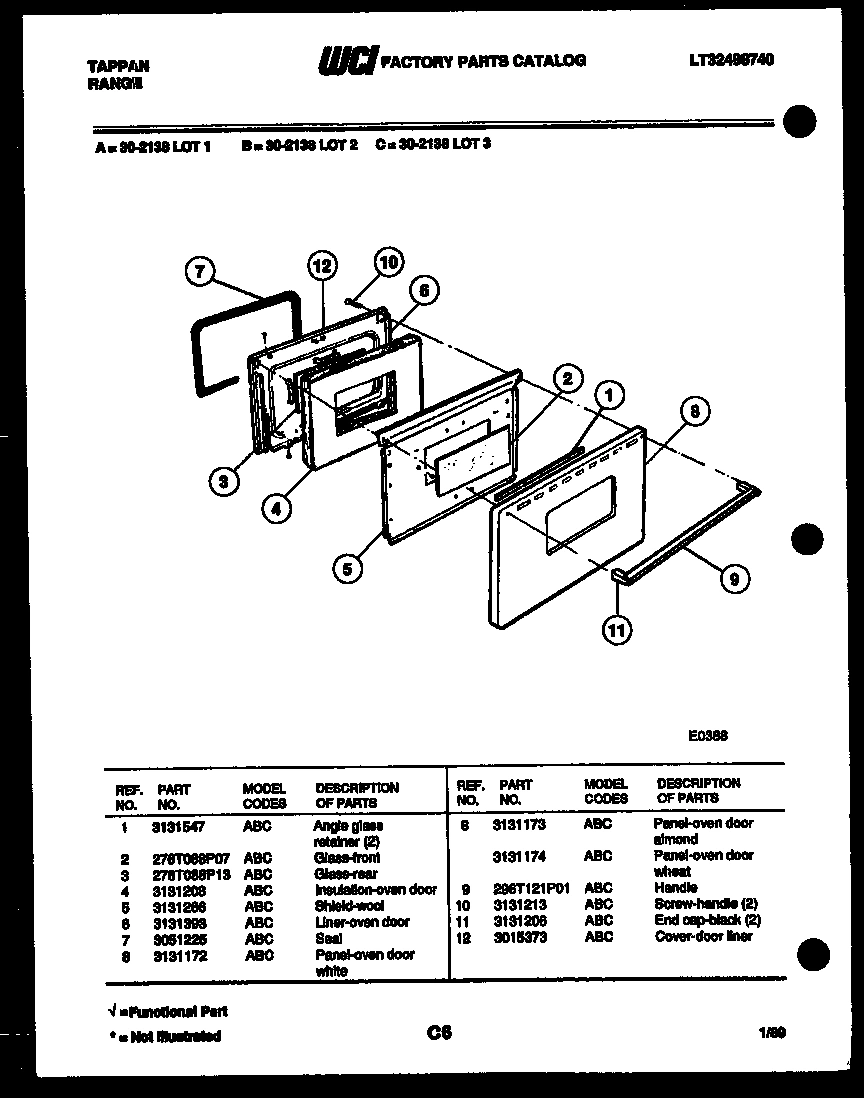

04 - DOOR PARTS

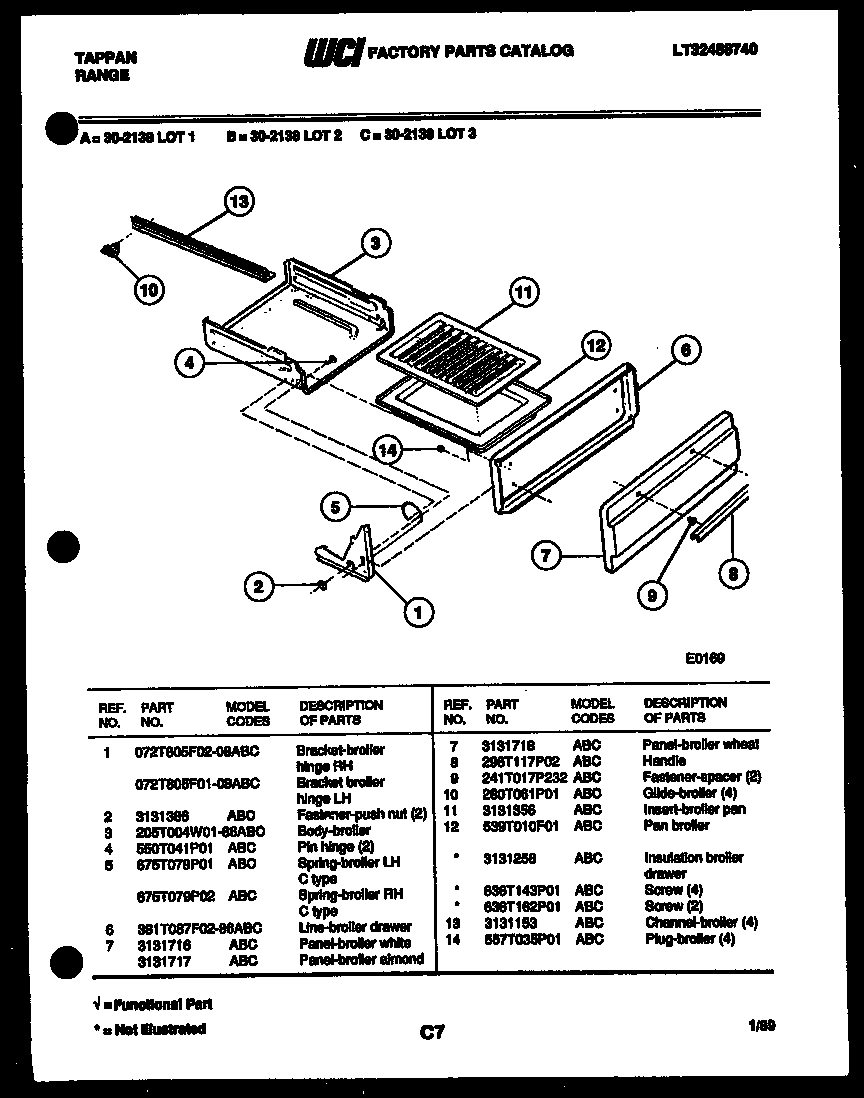

05 - BROILER DRAWER PARTS

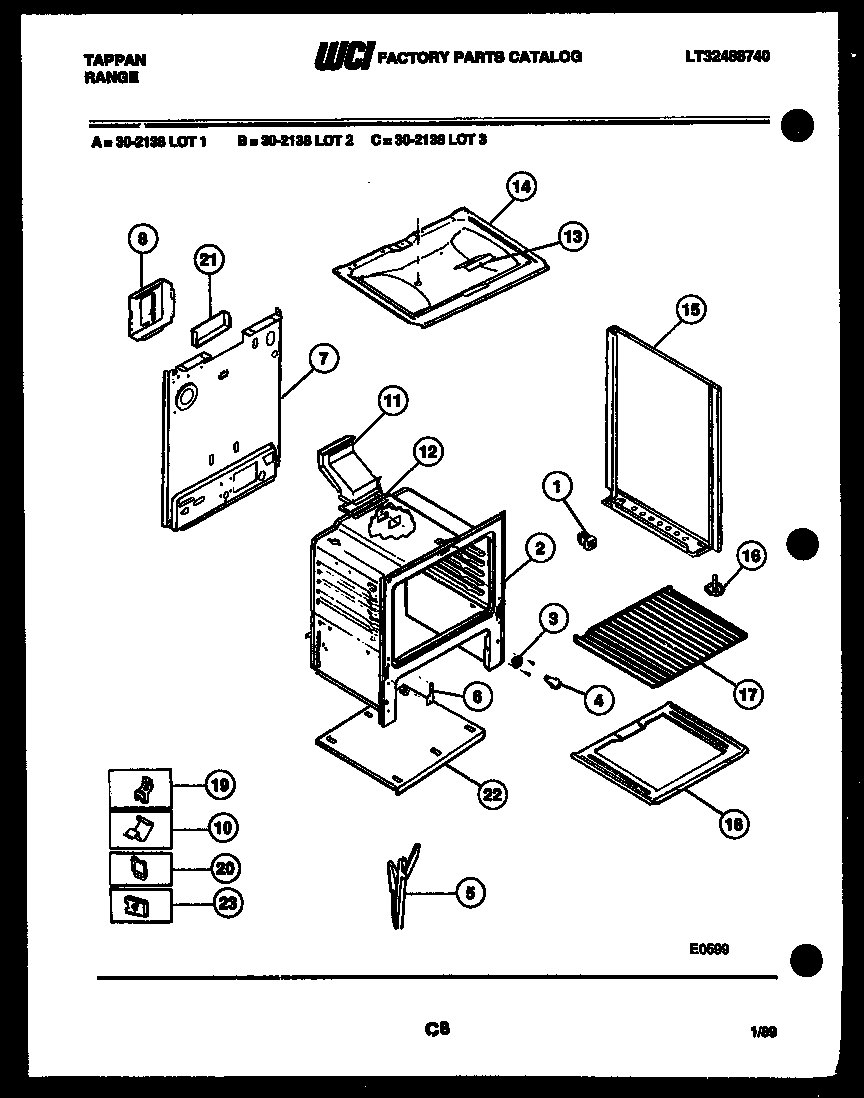

06 - BODY PARTS

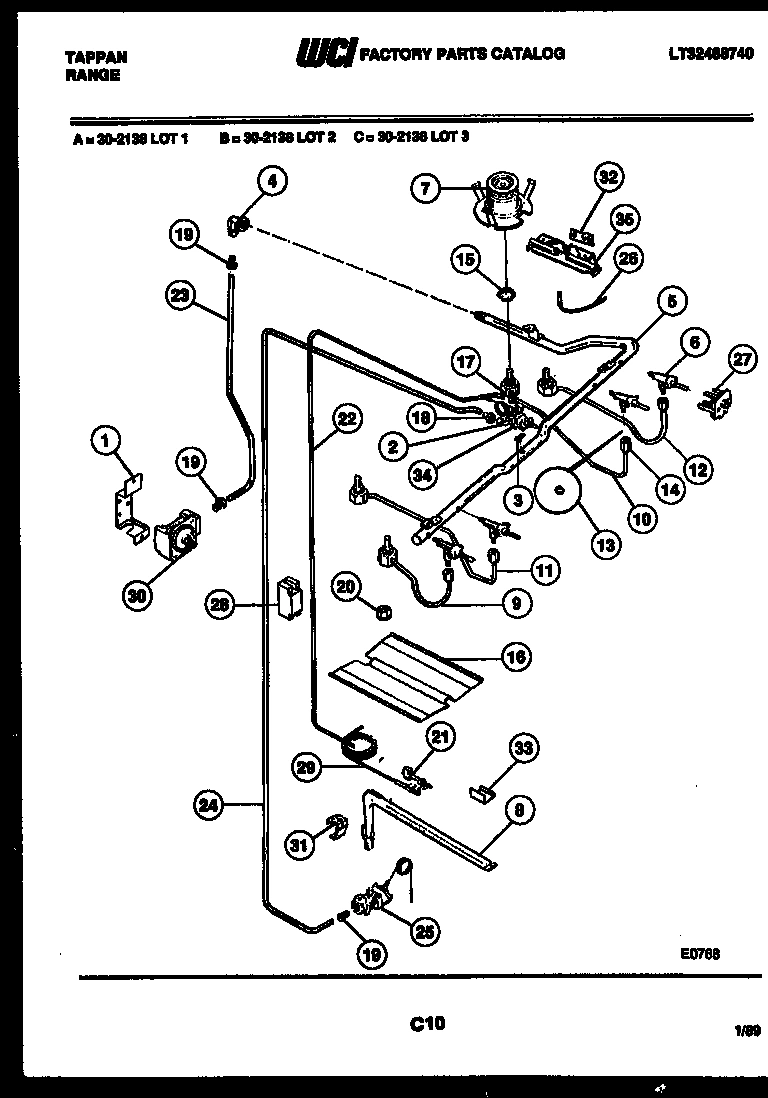

07 - BURNER, MANIFOLD AND GAS CONTROL
Common parts from model Electrolux 30-2138-23-01 RANGE
*15618
WCI 3131237 WCI 3131237 Contact Us For Availability
*15618
WCI 612T124P01 WCI 612T124P01 Contact Us For Availability
*15624
WCI 174T333P01 WCI 174T333P01 Contact Us For Availability
*15624
COVER-FRONT MAIN WCI 3131548 Contact Us For Availability
*15626
RIVET WCI 3051420 Contact Us For Availability
1
WCI 045T071P01 WCI 045T071P01 Contact Us For Availability
1
PANEL-MANIFOLD WCI 3015393 Contact Us For Availability
1
ANGLE-GLASS RETAINER (2) WCI 3131547 Contact Us For Availability
1
WCI 072T805F02-08 WCI 072T805F02-08 Contact Us For Availability
1
WCI 665T188P02 WCI 665T188P02 Contact Us For Availability
1
WCI 072T850F01 WCI 072T850F01 Contact Us For Availability
1A
WCI 072T805F01-08 WCI 072T805F01-08 Contact Us For Availability
2
WCI 123T120P03 WCI 123T120P03 Contact Us For Availability
2
KNOB-THERMOSTAT WCI 3131703 Contact Us For Availability
2
GLASS-FRONT WCI 276T088P07 Contact Us For Availability
2
WCI 3131386 WCI 3131386 Contact Us For Availability
2
WCI 722T073P01 WCI 722T073P01 Contact Us For Availability
3
WCI 123T120P04 WCI 123T120P04 Contact Us For Availability
3
KNOB-TOP VALVE (4) WCI 3131910 Contact Us For Availability
3
WCI 276T088P13 WCI 276T088P13 Contact Us For Availability
3
BODY, BROILER WCI 205T004W01-86 Contact Us For Availability
3
WCI 003T039P01 WCI 003T039P01 Contact Us For Availability
4
WCI 3051411 WCI 3051411 Contact Us For Availability
4
WCI 3934002 WCI 3934002 Contact Us For Availability
4
INSULATION, OVEN DOOR WCI 3131208 Contact Us For Availability
4
PIN, HINGE (2) WCI 550T041P01 Contact Us For Availability
4
WCI 215T013P01 WCI 215T013P01 Contact Us For Availability
5
FASTENER-GLASS WCI 241T049P01 Contact Us For Availability
5
WCI 618T038P05 WCI 618T038P05 Contact Us For Availability
5
WCI 3131266 WCI 3131266 Contact Us For Availability
5
SPRING, BROILER, LH (C TYPE) WCI 675T079P01 Contact Us For Availability
5
CHANNEL, DOOR HINGE (2) WCI 3131569 Contact Us For Availability
5
WCI 439T055P07 WCI 439T055P07 Contact Us For Availability
5A
SPRING, BROILER, RH (C TYPE) WCI 675T079P02 Contact Us For Availability
6
COVER-HINGE CUTOUT (2) WCI 3131570 Contact Us For Availability
6
WCI 277T219P03 WCI 277T219P03 Contact Us For Availability
6
BRACKET-MAIN TOP LH WCI 3131286 Contact Us For Availability
6
WCI 3131393 WCI 3131393 Contact Us For Availability
6
LINE-BROILER DRAWER WCI 381T087F02-86 Contact Us For Availability
6
VALVE-3 POS. (4) WCI 774T135P01 Contact Us For Availability
7
WCI 358T201P01 WCI 358T201P01 Contact Us For Availability
7
BRACKET-MAIN TOP RH WCI 3131287 Contact Us For Availability
7
PANEL-BROILER-ALMOND WCI 3131717 Contact Us For Availability
7
WCI 3131567 WCI 3131567 Contact Us For Availability
7
WCI 079T032S02 WCI 079T032S02 Contact Us For Availability
8
WCI 479T069P08 WCI 479T069P08 Contact Us For Availability
8
PANEL-OVEN DOOR (ALMOND) WCI 3131173 Contact Us For Availability
8
WCI 296T117P02 WCI 296T117P02 Contact Us For Availability
8
WCI 665T421F01-18 WCI 665T421F01-18 Contact Us For Availability
8
WCI 3131571 WCI 3131571 Contact Us For Availability
9
NUT-DECORATIVE WCI 3051194 Contact Us For Availability
9
WCI 296T121P01 WCI 296T121P01 Contact Us For Availability
9
FASTENER, SPACER (2) WCI 241T017P232 Contact Us For Availability
9
WCI 079T033H01 WCI 079T033H01 Contact Us For Availability
10
WCI 3016407 WCI 3016407 Contact Us For Availability
10
WCI 3131213 WCI 3131213 Contact Us For Availability
10
WCI 280T061P01 WCI 280T061P01 Contact Us For Availability
10
CLIP, WIRE WCI 145T130P01 Contact Us For Availability
10
WCI 079T033H02 WCI 079T033H02 Contact Us For Availability
11
PLATE INSTR MOUNTING WCI 554T400F02-18 Contact Us For Availability
11
WCI 3131356 WCI 3131356 Contact Us For Availability
11
WCI 252T048W01-18 WCI 252T048W01-18 Contact Us For Availability
11
WCI 079T033H03 WCI 079T033H03 Contact Us For Availability
12
WCI 612T123F01 WCI 612T123F01 Contact Us For Availability
12
WCI 3015373 WCI 3015373 Contact Us For Availability
12
WCI 539T010F01 WCI 539T010F01 Contact Us For Availability
12
WCI 079T033H04 WCI 079T033H04 Contact Us For Availability
12A
INSULATION, BROILER DRAWER (NON-ILLUSTRATED) WCI 3131258 Contact Us For Availability
12B
WCI 636T162P01 WCI 636T162P01 Contact Us For Availability
13
RIVET-ACCORDIAN (2) WCI 615T030P03 Contact Us For Availability
13
WCI 3131153 WCI 3131153 Contact Us For Availability
13
WCI 3131101 WCI 3131101 Contact Us For Availability
13
WCI 247T074P01 WCI 247T074P01 Contact Us For Availability
14
WCI 655T444P02 WCI 655T444P02 Contact Us For Availability
14
WCI 557T035P01 WCI 557T035P01 Contact Us For Availability
14
WCI 095T030F02-86 WCI 095T030F02-86 Contact Us For Availability
14
NUT COMPRESSION (4) WCI 3131148 Contact Us For Availability
15
WCI 695T211P02 WCI 695T211P02 Contact Us For Availability
15
BODYSIDE PANEL-ALMOND RH WCI 3131454 Contact Us For Availability
15
WCI 479T069P40 WCI 479T069P40 Contact Us For Availability
15A
BODYSIDE PANEL-ALMOND LH WCI 3131453 Contact Us For Availability
16
WCI 3131436 WCI 3131436 Contact Us For Availability
16
SCREW, LEVEL (4) WCI 636M004P01 Contact Us For Availability
16
WCI 3131327 WCI 3131327 Contact Us For Availability
17
TRIM-LOWER SPLASHER WCI 3131955 Contact Us For Availability
17
WCI 3131404 WCI 3131404 Contact Us For Availability
18
WCI 3131241 WCI 3131241 Contact Us For Availability
18
WCI 058T036F02-86 WCI 058T036F02-86 Contact Us For Availability
18
WCI 3131403 WCI 3131403 Contact Us For Availability
18A
INSULATION, OVEN WRAP (NON-ILLUSTRATED) WCI 3131201 Contact Us For Availability
18B
INSULATION-OVEN BACK (NON-ILLUSTRATED) WCI 3131246 Contact Us For Availability
19
SHIELD-LOWER WALL WCI 3131123 Contact Us For Availability
19
WCI 3131261 WCI 3131261 Contact Us For Availability
19A
FASTENER, POWER CORD (NON-ILLUSTRATED) WCI 241T017P255 Contact Us For Availability
21
WCI 3131348 WCI 3131348 Contact Us For Availability
21
PILOT, OVEN WCI 549T037P01 Contact Us For Availability
22
WCI 3131180 WCI 3131180 Contact Us For Availability
22
TUBE, OVEN PILOT, 3/16 WCI 750T056P21 Contact Us For Availability
22A
WCI 554T388F02 WCI 554T388F02 Contact Us For Availability
22B
COVER-POWER CORD, (NON-ILLUSTRATED) WCI 3131244 Contact Us For Availability
23
TUBE, ALUMINUM, 3/8 WCI 750T085H09 Contact Us For Availability
24
TUBE, ALUMINUM, 3/8 WCI 750T085H13 Contact Us For Availability
25
WCI 3131405 WCI 3131405 Contact Us For Availability
26
WCI 316T034P02 WCI 316T034P02 Contact Us For Availability
27
SWITCH - IGNITOR (4) WCI 3131568 Contact Us For Availability
29
WCI 316T039P03 WCI 316T039P03 Contact Us For Availability
30
CONTROL, REGULATOR WCI 166T013P01 Contact Us For Availability
31
WCI 072T821F01 WCI 072T821F01 Contact Us For Availability
32
WCI 612T121F01 WCI 612T121F01 Contact Us For Availability
33
WCI 174T297F01 WCI 174T297F01 Contact Us For Availability
34
WCI 695T220P01 WCI 695T220P01 Contact Us For Availability
35
WCI 136T355W03 WCI 136T355W03 Contact Us For Availability
× ![]()
