Model Electrolux 30-2132-00-03 RANGE – Common Parts & Diagrams

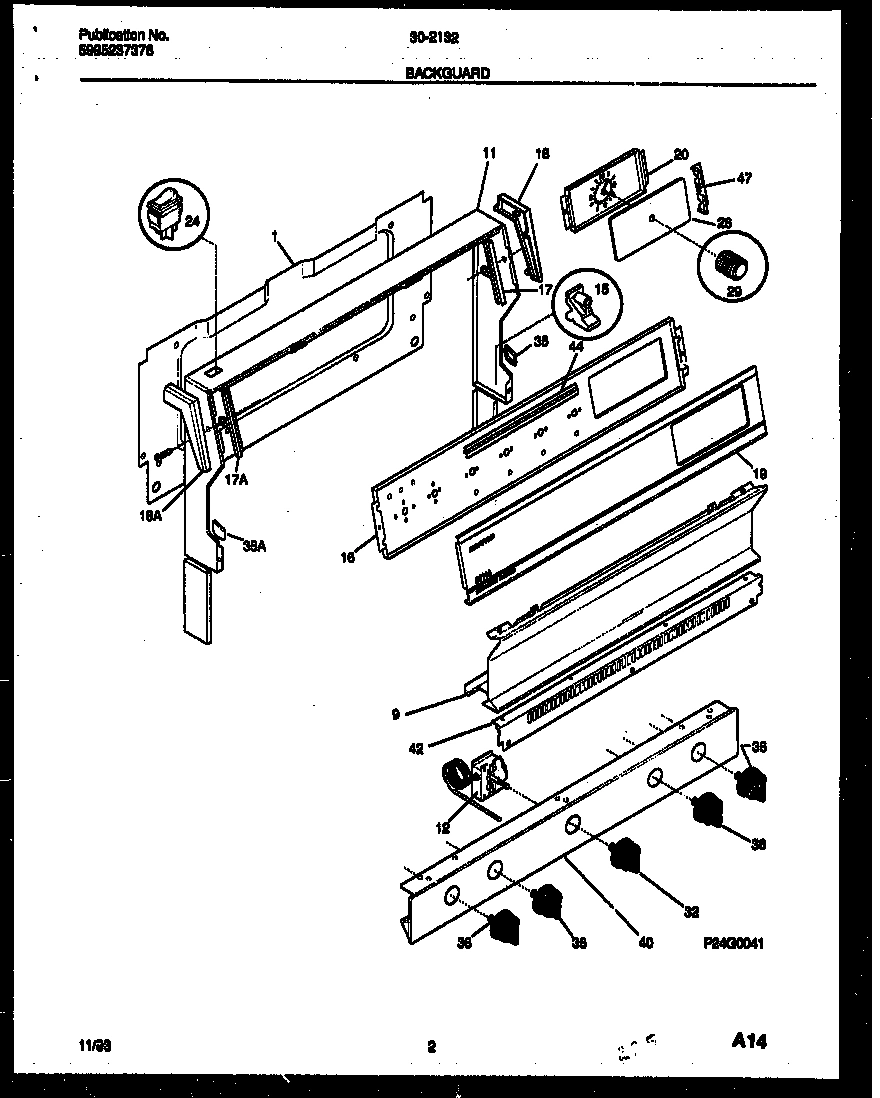

02 - BACKGUARD

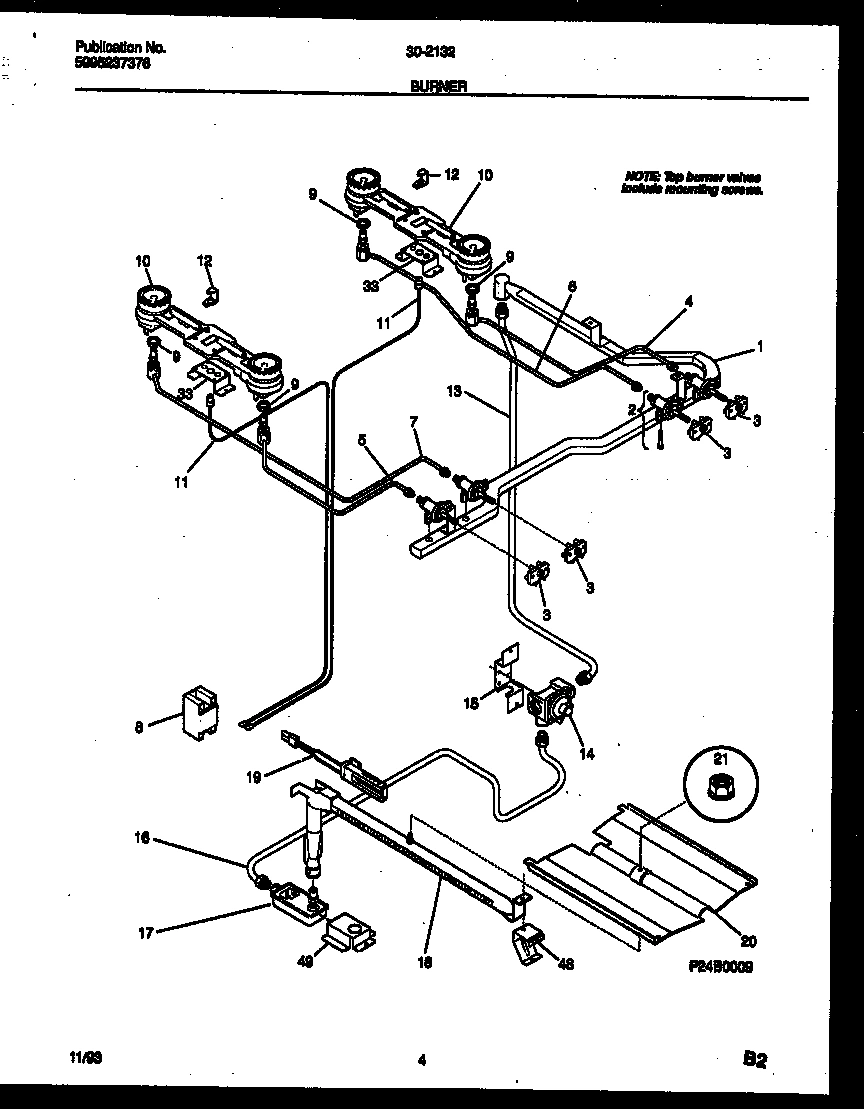

03 - BURNER PARTS
04 - BODY PARTS
05 - COOKTOP AND BROILER DRAWER PARTS
06 - DOOR PARTS
Common parts from model Electrolux 30-2132-00-03 RANGE
*91400
WCI 08067961 WCI 08067961 Contact Us For Availability
*91401
SHIELD - FLUE PROFILE WCI 5303280614 Contact Us For Availability
*91404
WCI 5303212671 WCI 5303212671 Contact Us For Availability
*91404
WCI 5303269859 WCI 5303269859 Contact Us For Availability
1
WCI 3203082 WCI 3203082 Contact Us For Availability
1
DRAWER-BROILER WCI 3018608 Contact Us For Availability
2
LINER, BROILER DOOR WCI 3202803 Contact Us For Availability
3
WCI 316032001 WCI 316032001 Contact Us For Availability
3
PANEL-BODYSIDE, WHITE, RH WCI 5303269518 Contact Us For Availability
3A
PANEL-BODYSIDE, WHITE, LH (NON-ILLUSTRATED) WCI 5303269519 Contact Us For Availability
4
TUBE-BURNER, RF WCI 5303283665 Contact Us For Availability
4
WCI 3011597 WCI 3011597 Contact Us For Availability
4
WCI 3131117 WCI 3131117 Contact Us For Availability
4A
SCREW,HEX WASHER HEAD, 8-18(AB) X 1/2 WCI 08067785 Contact Us For Availability
5
SCREW-LEVELING WCI 5303203397 Contact Us For Availability
5
TUBE-BURNER, LF WCI 5303283666 Contact Us For Availability
5
FASTENER-SPACER, PUSH-IN NUT, NYLON WCI 3131387 Contact Us For Availability
5
GLASS, OVEN DOOR, FRONT WCI 3051149 Contact Us For Availability
5A
WCI 5303288460 WCI 5303288460 Contact Us For Availability
5B
ANTI-TIP KIT (NON-ILLUSTRATED) WCI 3934056 Contact Us For Availability
6
TUBE-BURNER, RR WCI 5303283667 Contact Us For Availability
6
SHIELD-INSULATION WCI 5303210608 Contact Us For Availability
7
GLIDE-BROILER WCI 3018610 No Longer Available
7
Hinge,oven door ,(2) WCI 316007001 Contact Us For Availability
7
TUBE-BURNER, LR WCI 5303283668 Contact Us For Availability
7
INSULATION, OVEN DOOR WCI 5303210607 Contact Us For Availability
8
PANEL-OVEN BOTTOM WCI 5303212540 Contact Us For Availability
8
NUT, PUSH-ON, (2) WCI 3131386 Contact Us For Availability
8
GLASS-OVEN DOOR, INNER WCI 3018609 Contact Us For Availability
9
WCI 3013279 WCI 3013279 Contact Us For Availability
9
PAN-BROILER WCI 5303013568 Contact Us For Availability
9
WCI 5303209515 WCI 5303209515 Contact Us For Availability
10
WCI 316057100 WCI 316057100 Contact Us For Availability
10
SCREW-HANDLE MTG, WAFER HEAD, 10-24(F) X 3 WCI 5303281378 Contact Us For Availability
10
WCI 5303131356 WCI 5303131356 Contact Us For Availability
11
IGNITER-TOP BURNER, BASE, (2) WCI 3200276 Contact Us For Availability
11
BRACKET-HINGE, BROILER, RH WCI 3018860 Contact Us For Availability
11
WCI 5303015373 WCI 5303015373 Contact Us For Availability
11A
BRACKET-HINGE, BROILER, LH, (4) WCI 3200673 Contact Us For Availability
12
SPRING-BROILER, RH WCI 3018619 Contact Us For Availability
12A
SPRING-BROILER, LH WCI 3018618 Contact Us For Availability
13
TUBE, ALUMINUM, RGLTR TO MANF, WITH FITTINGS WCI 5303208495 Contact Us For Availability
13
CHANNEL-BROILER WCI 3131153 Contact Us For Availability
13
PANEL, OVEN DOOR, WHITE WCI 3017081 Contact Us For Availability
14
PLUG-BUTTON, GLIDE WCI 3206216 Contact Us For Availability
16
WCI 3200657 WCI 3200657 Contact Us For Availability
17
ROD-MAINTOP SUPPORT WCI 5303271609 Contact Us For Availability
18
WCI 3131439 WCI 3131439 Contact Us For Availability
18
BRACKET-HINGE,MAIN TOP RH WCI 08067747 Contact Us For Availability
18A
BRACKET-HINGE,MAIN TOP LH WCI 08067746 Contact Us For Availability
20
WCI 3203265 WCI 3203265 Contact Us For Availability
21
SPACER-BODYSIDE, (8) WCI 3014099 Contact Us For Availability
22
Retainer,glass ,(2) ,angle WCI 5303272476 Contact Us For Availability
26
WCI 08067757 WCI 08067757 Contact Us For Availability
28
CLIP-WIRE WCI 3011813 Contact Us For Availability
29
WCI 3018614 WCI 3018614 Contact Us For Availability
30
INSULATION, BROILER DRAWER WCI 5303131258 Contact Us For Availability
31
WCI 3015371 WCI 3015371 Contact Us For Availability
33
BRACKET BURNER MTG WCI 3200277 Contact Us For Availability
33
WCI 316055601 WCI 316055601 Contact Us For Availability
34
WCI 3018607 WCI 3018607 Contact Us For Availability
36
WCI 3131904 WCI 3131904 Contact Us For Availability
39
HANDLE-DRAWER, BRUSHED CHROME WCI 3201268 Contact Us For Availability
39
HANDLE-DOOR, OVEN WCI 5303273127 Contact Us For Availability
41
WCI 3131570 WCI 3131570 Contact Us For Availability
48
Bracket,support ,oven burner WCI 3018603 Contact Us For Availability
49
BRACKET, SAFETY VALVE WCI 3131438 Contact Us For Availability
54
WCI 5303271606 WCI 5303271606 Contact Us For Availability
58A
INSULATION, OVEN WRAPPER WCI 3017142 Contact Us For Availability
58B
INSULATION, OVEN BACK WCI 3203541 Contact Us For Availability
60
SCREW-DRAWER HANDLE, 8 TRUSS HEAD, 10-16 X 1/ WCI 5303281651 Contact Us For Availability
60
COVER-OVEN FRONT WCI 5303015372 Contact Us For Availability
73
WCI 5303281627 WCI 5303281627 Contact Us For Availability
93
WCI 316055501 WCI 316055501 Contact Us For Availability
× ![]()
