Model Electrolux 30-0127-23-03 RANGE – Common Parts & Diagrams

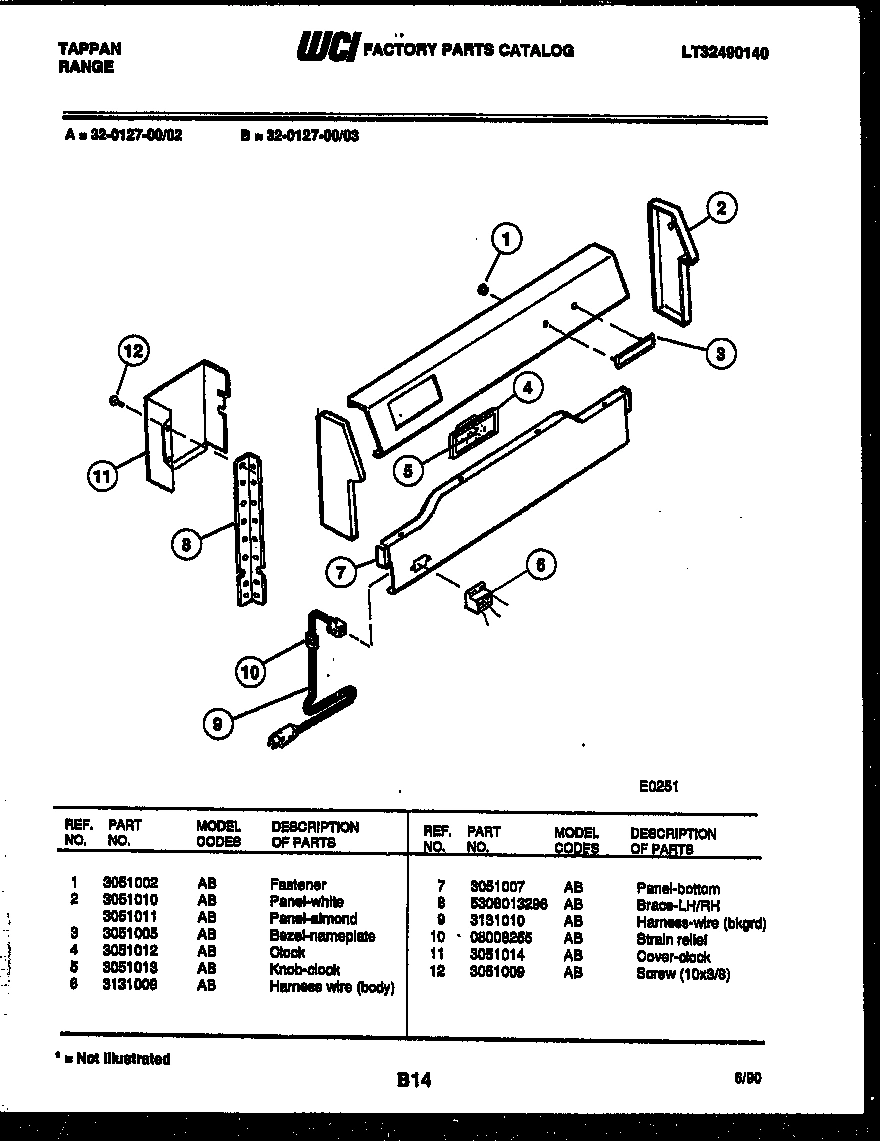

02 - BACKGUARD

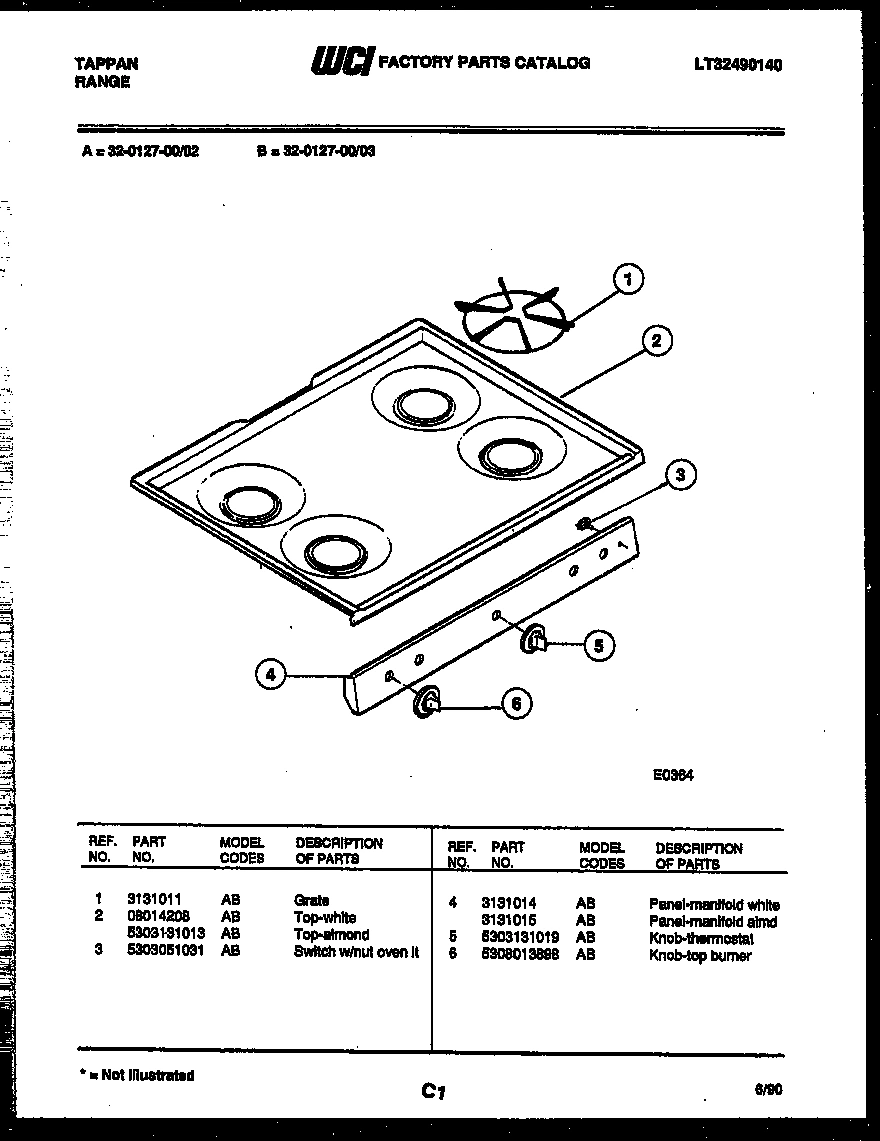

03 - COOKTOP PARTS

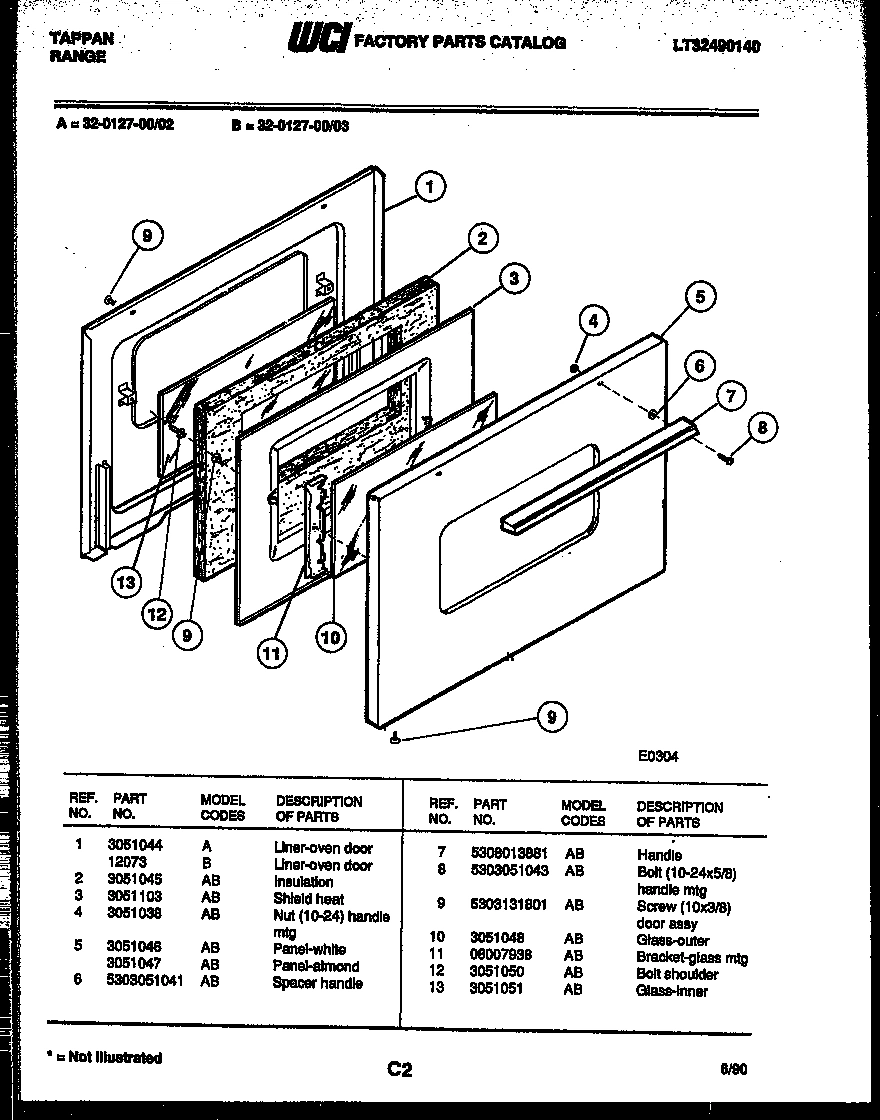

04 - DOOR PARTS

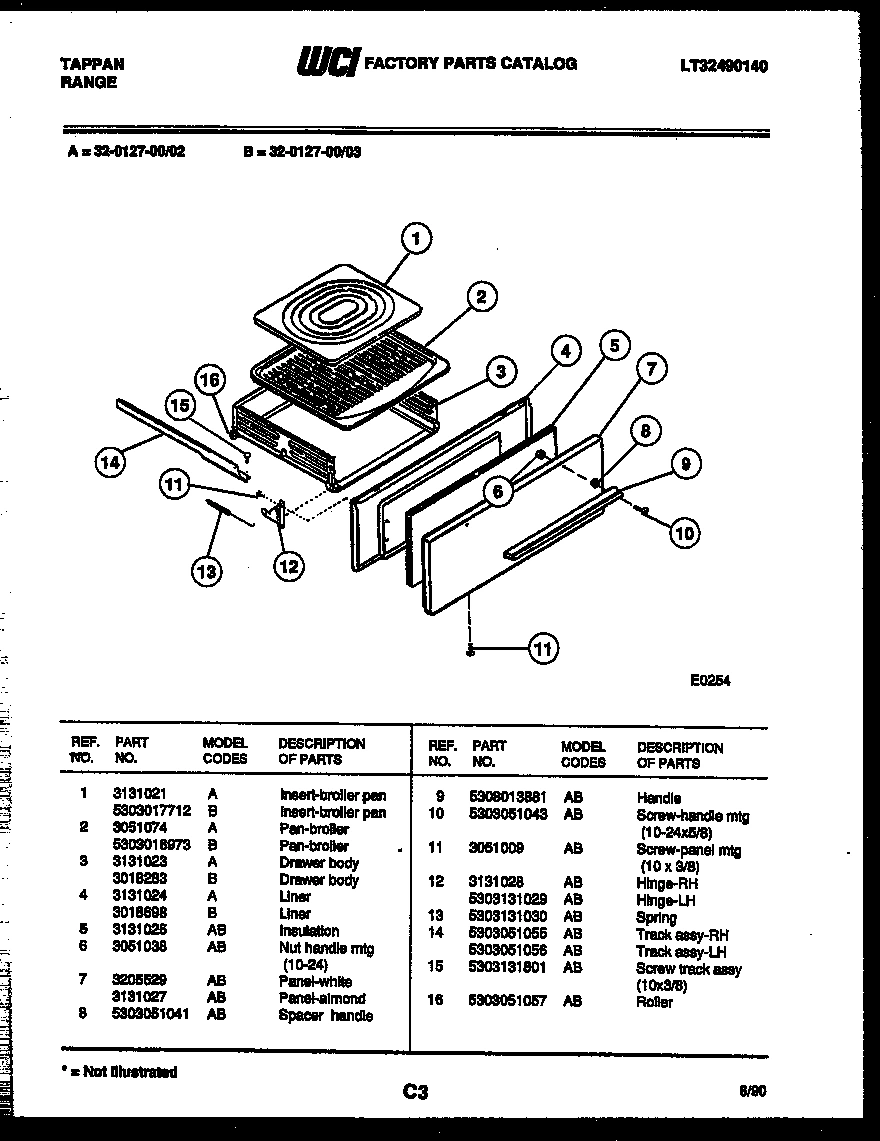

05 - BROILER DRAWER PARTS

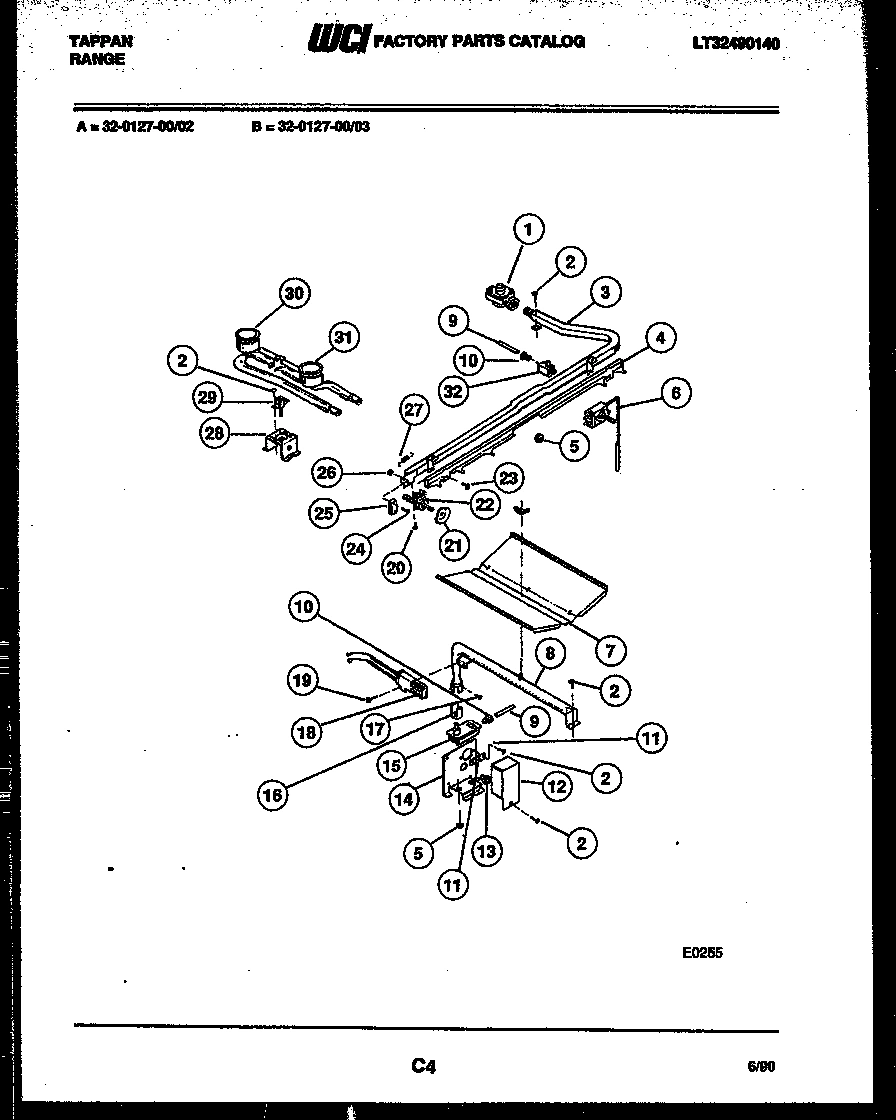

06 - BURNER, MANIFOLD AND GAS CONTROL

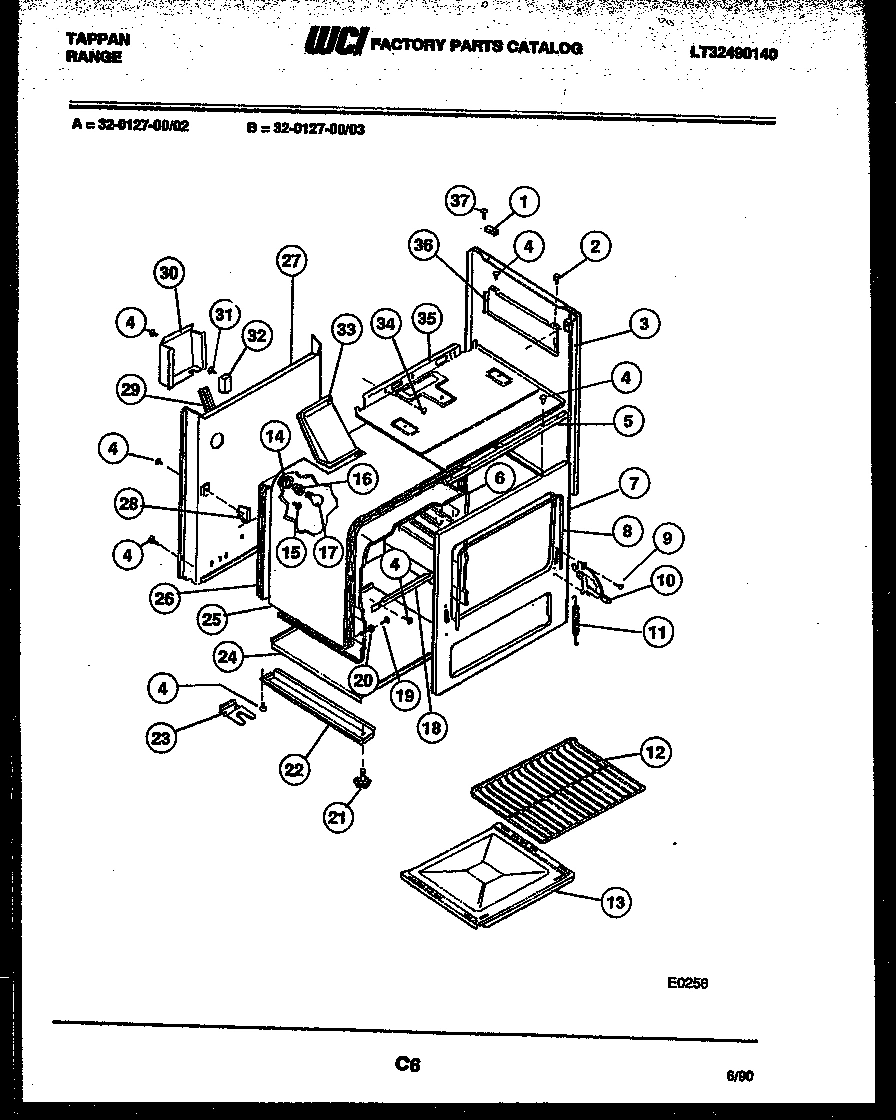

07 - BODY PARTS
Common parts from model Electrolux 30-0127-23-03 RANGE
1
GRATE WCI 3131011 Contact Us For Availability
1
WCI 12073 WCI 12073 Contact Us For Availability
1
WCI 5303017712 WCI 5303017712 Contact Us For Availability
1
GROMMET-MAINTOP WCI 3205587 Contact Us For Availability
2
WCI 08014208 WCI 08014208 Contact Us For Availability
2
TOP-ALMOND WCI 5303131013 Contact Us For Availability
2
WCI 3051045 WCI 3051045 Contact Us For Availability
2
WCI 5303016973 WCI 5303016973 Contact Us For Availability
2
GROMMET WCI 3051063 Contact Us For Availability
3
WCI 5303051031 WCI 5303051031 Contact Us For Availability
3
WCI 3051103 WCI 3051103 Contact Us For Availability
3
MANIFOLD WCI 3131081 Contact Us For Availability
3
PANEL BODYSIDE-LH/RH (ALMOND) WCI 5308014019 Contact Us For Availability
4
WCI 3051009 WCI 3051009 Contact Us For Availability
4
WCI 3131014 WCI 3131014 Contact Us For Availability
4
WCI 3131015 WCI 3131015 Contact Us For Availability
4
LINER WCI 3018698 Contact Us For Availability
4
SLIDE BAR WCI 3131082 Contact Us For Availability
5
WCI 5303131019 WCI 5303131019 Contact Us For Availability
5
WCI 3051047 WCI 3051047 Contact Us For Availability
5
WCI 3131025 WCI 3131025 Contact Us For Availability
5
SUPPORT-CONTROL PNL WCI 3051067 Contact Us For Availability
6
KNOB-TOP BURNER WCI 5308013898 Contact Us For Availability
6
WCI 5308013926 WCI 5308013926 Contact Us For Availability
6
OVEN LINER-SIDE RH WCI 3018284 Contact Us For Availability
6A
OVEN LINER-SIDE LH WCI 3018285 Contact Us For Availability
6B
OVEN LINER-TOP WCI 3018700 Contact Us For Availability
6C
WCI 3206196 WCI 3206196 Contact Us For Availability
7
WCI 3131027 WCI 3131027 Contact Us For Availability
7
WCI 3205529 WCI 3205529 Contact Us For Availability
7
BAFFLE WCI 5303131061 Contact Us For Availability
7
WCI 3017713 WCI 3017713 Contact Us For Availability
8
WCI 5303202752 WCI 5303202752 Contact Us For Availability
8
SPACER HANDLE WCI 5303051041 Contact Us For Availability
8
WCI 5303051069 WCI 5303051069 Contact Us For Availability
9
WCI 3131010 WCI 3131010 Contact Us For Availability
9
WCI 5308013881 WCI 5308013881 Contact Us For Availability
9
TUBING OVEN SUPPLY (3/8) WCI 5303009495 Contact Us For Availability
9A
CAM DOOR-RH WCI 5303204670 Contact Us For Availability
10
WCI 08008255 WCI 08008255 Contact Us For Availability
10
WCI 3051048 WCI 3051048 Contact Us For Availability
10
WCI 5308007983 WCI 5308007983 Contact Us For Availability
11
WCI 3051014 WCI 3051014 Contact Us For Availability
11
WCI 08007938 WCI 08007938 Contact Us For Availability
11
TERMINAL BLOCK WCI 5308007985 Contact Us For Availability
11
SPRING CAM-LH/RH WCI 5303051079 Contact Us For Availability
12
WCI 3051050 WCI 3051050 Contact Us For Availability
12
HINGE - RH WCI 3131028 Contact Us For Availability
12
Cover,safety valve WCI 3131088 Contact Us For Availability
12
RACK WCI 3016158 Contact Us For Availability
12A
HINGE - LH WCI 5303131029 Contact Us For Availability
13
WCI 3051051 WCI 3051051 Contact Us For Availability
13
SPRING WCI 5303131030 Contact Us For Availability
13
OVEN-BOTTOM WCI 3018697 Contact Us For Availability
14
TUBE - OVEN LIGHT WCI 3051511 Contact Us For Availability
14
TRACK ASSY-RH WCI 5303051055 Contact Us For Availability
14
SUPPORT SAFETY VALVE WCI 3131069 Contact Us For Availability
14A
TRACK ASSY-LH WCI 5303051056 Contact Us For Availability
15
SAFETY VALVE WCI 5308009419 Contact Us For Availability
16
ROLLER WCI 5303051057 Contact Us For Availability
16
WCI 3131066 WCI 3131066 Contact Us For Availability
17
WCI 3131065 WCI 3131065 Contact Us For Availability
18
SUPPORT-OVEN BTM WCI 3131038 Contact Us For Availability
19
SCREW-IGNITOR MTG (10 X 3/8) WCI 5303131801 Contact Us For Availability
19
WCI 3131039 WCI 3131039 Contact Us For Availability
20
WCI 08011436 WCI 08011436 Contact Us For Availability
20
WCI 3131040 WCI 3131040 Contact Us For Availability
21
CAM-TOP BURNER VALVE WCI 5308008002 Contact Us For Availability
21
LEVELLING LEG WCI 5303051080 Contact Us For Availability
22
VALVE-TOP BURNER WCI 5303131057 Contact Us For Availability
22
RAIL BASE-LH/RH WCI 5308068047 Contact Us For Availability
23
WCI 3131092 WCI 3131092 Contact Us For Availability
23
WCI 3131041 WCI 3131041 Contact Us For Availability
24
WCI 3131093 WCI 3131093 Contact Us For Availability
24
MAIN BOTTOM WCI 3131042 Contact Us For Availability
25
WCI 5303131094 WCI 5303131094 Contact Us For Availability
25
INSULATION-TOP/SIDES WCI 3131043 Contact Us For Availability
26
WCI 3131095 WCI 3131095 Contact Us For Availability
26
WCI 3131044 WCI 3131044 Contact Us For Availability
27
SPRING - SLIDE BAR WCI 5303131096 Contact Us For Availability
27
WCI 3131045 WCI 3131045 Contact Us For Availability
28
WCI 3203964 WCI 3203964 Contact Us For Availability
28
Support,oven rear WCI 3051096 Contact Us For Availability
29
IGNITOR-TOP BURNER WCI 3203970 Contact Us For Availability
29
CHANNEL MAIN BACK WIRE WCI 3131046 Contact Us For Availability
30
Burner,top ,rear WCI 5303131079 No Longer Available
30
COVER WCI 3131047 Contact Us For Availability
31
BURNER-TOP FRONT WCI 5303131080 Contact Us For Availability
31
WCI 3131048 WCI 3131048 Contact Us For Availability
32
WCI 5303131099 WCI 5303131099 Contact Us For Availability
33
VENT BOX WCI 3017173 Contact Us For Availability
34
WCI 3051101 WCI 3051101 Contact Us For Availability
35
BURNER BOX WCI 3017573 Contact Us For Availability
36
WCI 5303131053 WCI 5303131053 Contact Us For Availability
36A
WCI 5303131054 WCI 5303131054 Contact Us For Availability
37
WCI 3131031 WCI 3131031 Contact Us For Availability
× ![]()
