Model LG 29UC97C-B – Common Parts & Diagrams

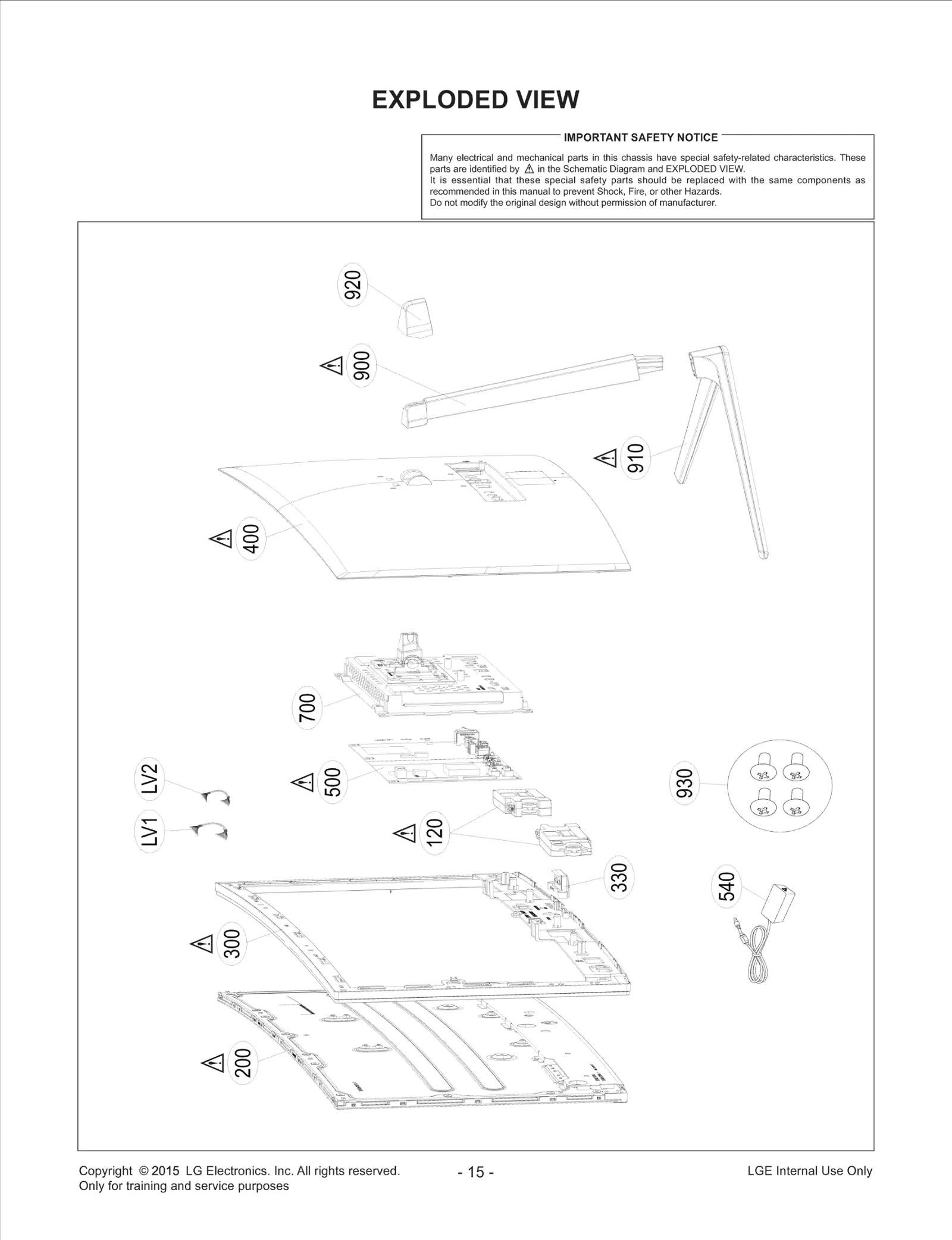

Diagram 0
Diagram 1
Common parts from model LG 29UC97C-B
200
LCD,Module-TFT LGE EAJ63587601 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ63147701 Contact Us For Availability
330
PCB Assembly,Sub LGE EBR80664702 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ87663004 Contact Us For Availability
500
PCB Assembly,Main LGE EBR81291401 Contact Us For Availability
540
Adapters,Desktop LGE EAY62990906 Contact Us For Availability
700
Frame Assembly LGE ADV75247602 Contact Us For Availability
900
Base Assembly LGE AAN74989208 Contact Us For Availability
910
Base Assembly LGE AAN74950410 Contact Us For Availability
920
Cover LGE MCK68371107 Contact Us For Availability
A1
Manual Assembly LGE AFN77198221 Contact Us For Availability
A5
Cable,Assembly LGE EAD00926103 Contact Us For Availability
C10
Harness,Multi LGE EAD62847609 Contact Us For Availability
C201
Capacitor,Ceramic,Ch LGE 0CC180BKFAA Contact Us For Availability
C730
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C801
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C808
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C813
Capacitor,Ceramic,Chip LGE 0CK223BF5CA Contact Us For Availability
C820
Capacitor,Ceramic,Chip LGE 0CK222BKG6A Contact Us For Availability
C835
Capacitor,Ceramic,Ch LGE 0CK224DK56A Contact Us For Availability
C840
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
C912
Capacitor,Ceramic,Ch LGE 0CC100BKF1A Contact Us For Availability
C2618
Capacitor,Ceramic,Chip LGE 0CK105DH56A Contact Us For Availability
C2621
Capacitor,Ceramic,Chip LGE 0CH1474K562 Contact Us For Availability
C2628
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
IC102
IC,MEMORIES LGE 0IMMR00014A Contact Us For Availability
IC205
S/W,Firmware LGE SAA37633810 Contact Us For Availability
IC901
S/W,Firmware LGE SAA37574103 Contact Us For Availability
LV1
Cable,FFC LGE EAD61652564 Contact Us For Availability
LV2
Cable,FFC LGE EAD61858771 Contact Us For Availability
P200
Connector,Wafer LGE 6630V93270J Contact Us For Availability
P201
Connector,Wafer LGE 6630V93270K Contact Us For Availability
P202
Connector,Wafer LGE 6630V90141C Contact Us For Availability
Q203
TRANSISTOR,BIPOLARS LGE 0TRDI80002A Contact Us For Availability
R5
RESISTOR,METAL GLAZE LGE 0RJ1800D677 Contact Us For Availability
R6
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
R8
RESISTOR,METAL GLAZE LGE 0RJ8200C678 Contact Us For Availability
R9
Resistor,Chip LGE 0RJ3300C678 Contact Us For Availability
R111
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R119
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R166
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R201
Resistor,Chip LGE 0RJ1004C478 Contact Us For Availability
R213
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R256
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R267
RESISTOR,METAL GLAZE LGE 0RJ2002C478 Contact Us For Availability
R569
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R705
Resistor,Chip LGE 0RJ0682C678 Contact Us For Availability
R711
Resistor,Chip LGE 0RJ2002C678 Contact Us For Availability
R712
Resistor,Chip LGE 0RJ5602C478 Contact Us For Availability
R713
Resistor,Chip LGE 0RJ7502C478 Contact Us For Availability
R718
Resistor,Chip LGE 0RJ3301C478 Contact Us For Availability
R720
Resistor,Chip LGE 0RJ1002C478 Contact Us For Availability
R741
Resistor,Chip LGE 0RJ1502C478 Contact Us For Availability
R742
Resistor,Chip LGE 0RJ4702C478 Contact Us For Availability
R746
Resistor,Chip LGE 0RJ1003C478 Contact Us For Availability
R813
RESISTOR,METAL GLAZE LGE 0RJ4701D677 Contact Us For Availability
R826
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
R827
RESISTOR,METAL GLAZE LGE 0RJ2701C678 Contact Us For Availability
R913
RESISTOR CHIP 10 1/10W 5 C.R/ LGE 0RH0102D622 Contact Us For Availability
R1017
Resistor,Chip LGE 0RJ3302C478 Contact Us For Availability
R1025
Resistor,Chip LGE 0RJ3901C478 Contact Us For Availability
R2606
Resistor,Chip LGE 0RJ1802C478 Contact Us For Availability
R2611
Resistor,Chip LGE 0RJ2703C478 Contact Us For Availability
R2621
Resistor,Chip LGE 0RJ6801C478 Contact Us For Availability
R2623
Resistor,Chip LGE 0RH3902B622 Contact Us For Availability
R2624
Resistor,Chip LGE 0RJ1501C678 Contact Us For Availability
R2625
Resistor,Chip LGE 0RJ2402C478 Contact Us For Availability
R2631
Resistor,Chip LGE 0RJ0100J488 Contact Us For Availability
R2643
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R2647
Resistor,Chip LGE 0RJ1001E478 Contact Us For Availability
X200
Crystal LGE 6202VDT002S Contact Us For Availability
× ![]()
