Model LG 29LY570H – Common Parts & Diagrams

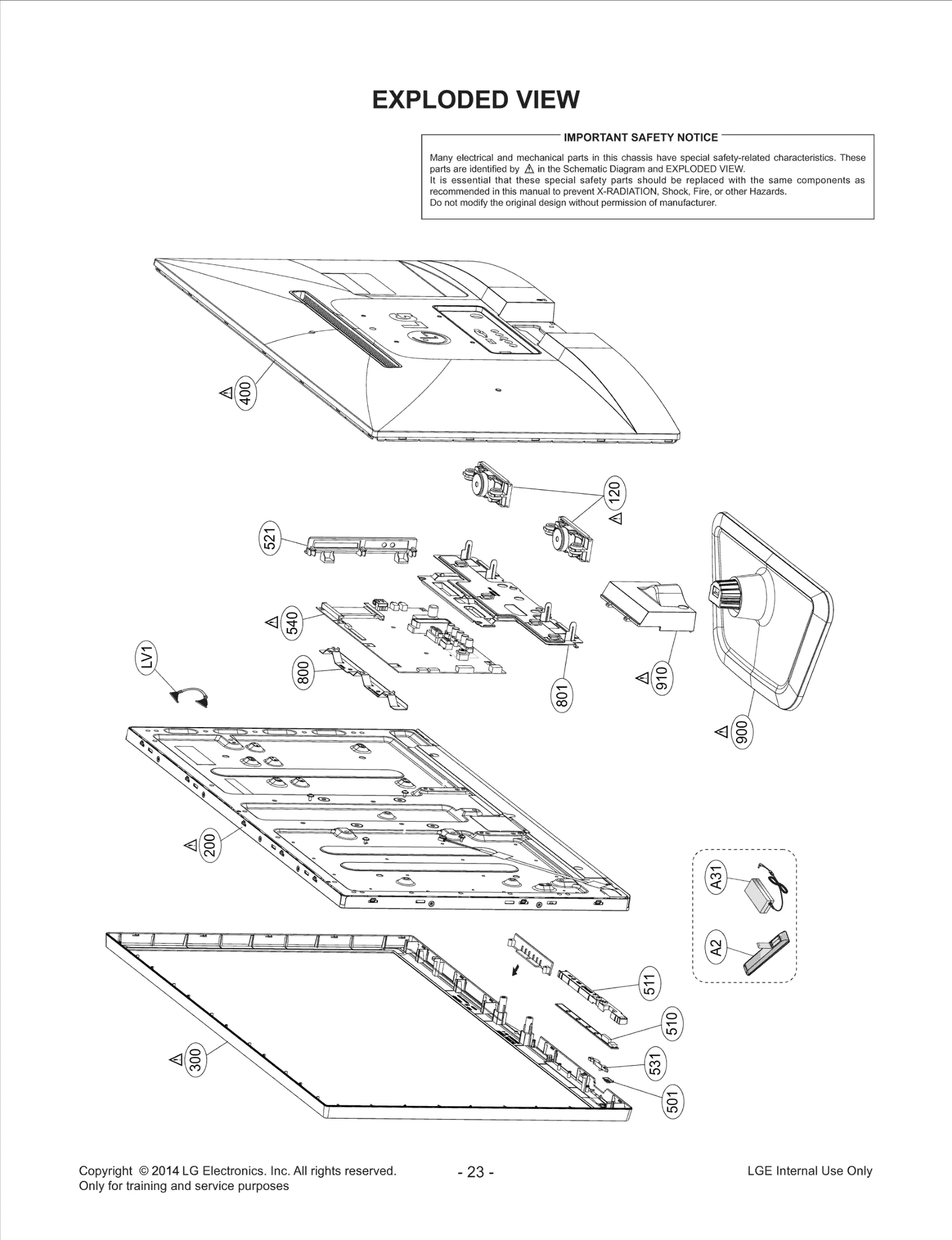

Diagram 0
Diagram 1
Common parts from model LG 29LY570H
200
LCD,Module-TFT LGE EAJ62627801 Contact Us For Availability
300
Cabinet Assembly LGE ABJ73970643 Contact Us For Availability
501
Lens LGE MFB63033502 Contact Us For Availability
510
Package Assembly LGE AGF77625501 Contact Us For Availability
521
Cover LGE MCK67388723 Contact Us For Availability
531
Lens LGE MFB63013402 Contact Us For Availability
540
Mainboard,BPR Total Assembly,SVC LGE EBU62807403 Contact Us For Availability
800
Plate,Metal LGE MGJ63673401 Contact Us For Availability
801
Frame Assembly LGE ADV74427502 Contact Us For Availability
900
Base Assembly LGE AAN74368605 Contact Us For Availability
A31
Adapters LGE EAY62990901 Contact Us For Availability
C248
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C422
Capacitor,Ceramic,Chip LGE 0CK226DC67A Contact Us For Availability
C445
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C924
Capacitor,Ceramic,Chip LGE 0CK104ER56A Contact Us For Availability
C1803
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C1813
CAPACITOR,FIXED CERA LGE 0CK474DH56A Contact Us For Availability
C5616
CAPACITOR,FIXED CERA LGE 0CK333CK56A Contact Us For Availability
C5618
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
D5000
Diode,Switching LGE 0DSGD00038A Contact Us For Availability
JK1704
Connector,DSUB LGE 6630TGA004Q Contact Us For Availability
L901
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
LV1
Cable,FFC LGE EAD62296507 Contact Us For Availability
N/A
Capacitor,Ceramic,Ch LGE 0CK225DD66A Contact Us For Availability
P900
Conector,Wafer LGE 6602T20009B Contact Us For Availability
R938
Resistor,Chip LGE 0RH1004D422 Contact Us For Availability
R1825
RESISTOR CHIP 100K 1/10W 5 D. LGE 0RH1003D622 Contact Us For Availability
× ![]()
