Model Whirlpool 2961020 MICROWAVE OVEN – Common Parts & Diagrams

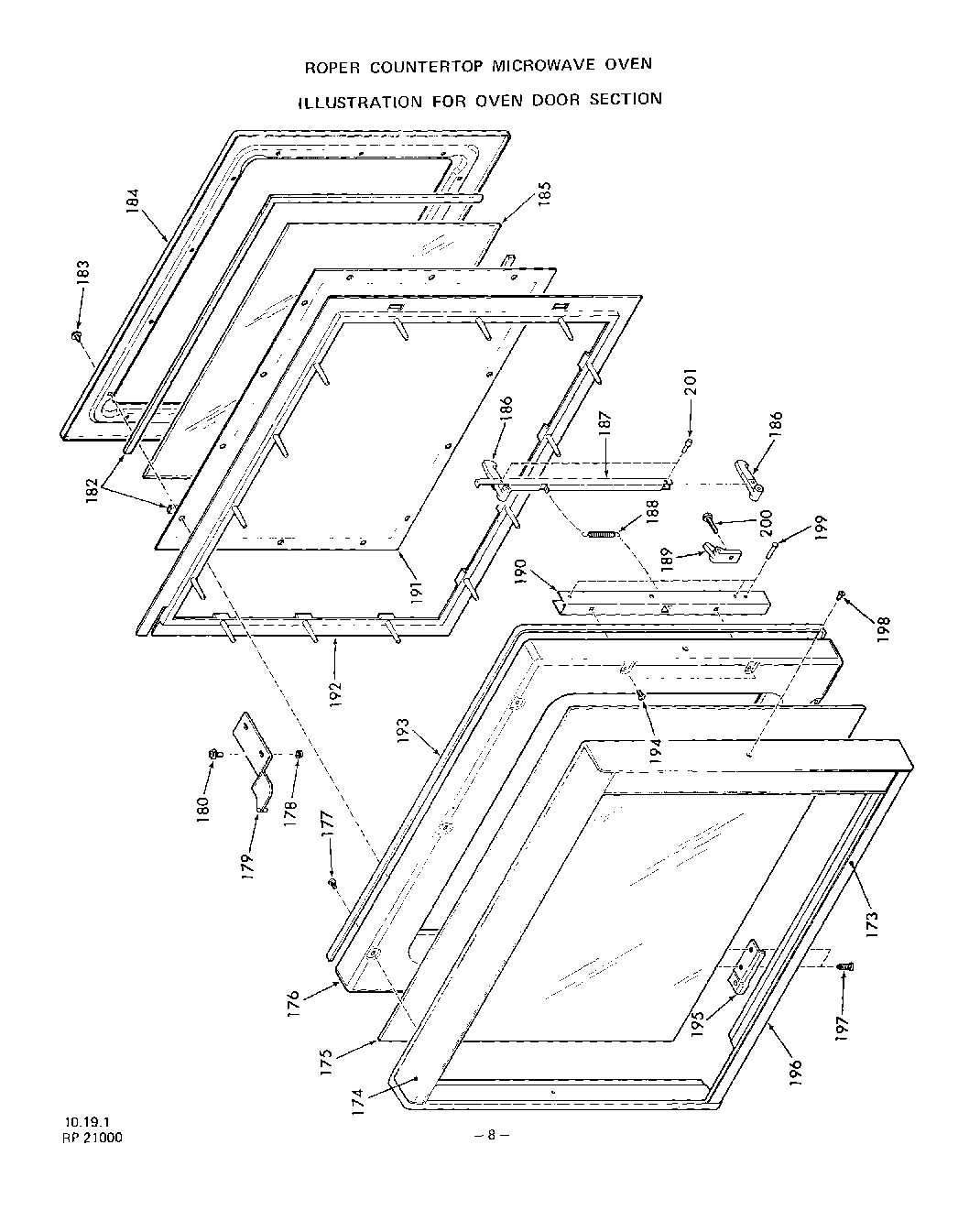

06 - OVEN DOOR

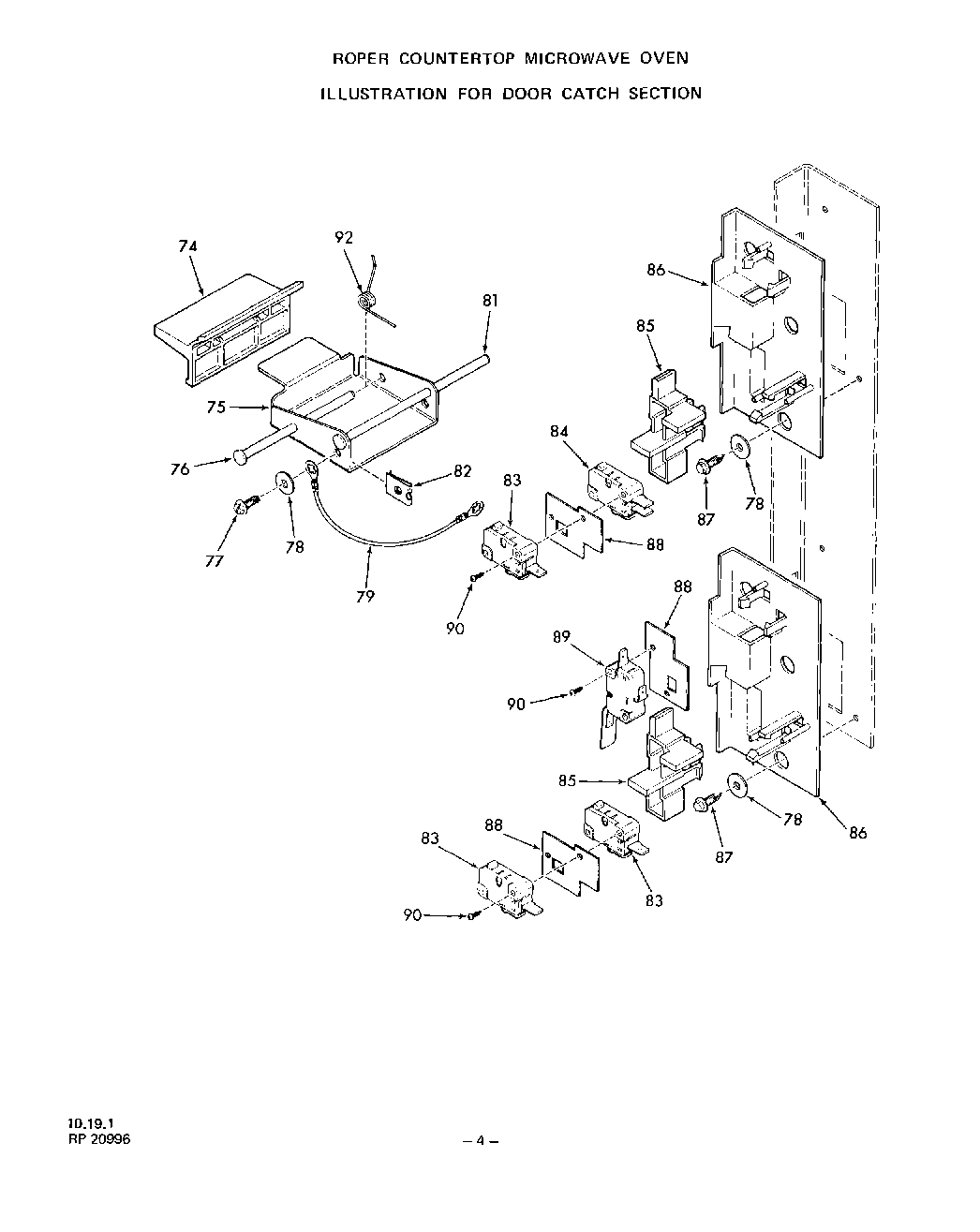

04 - DOOR CATCH

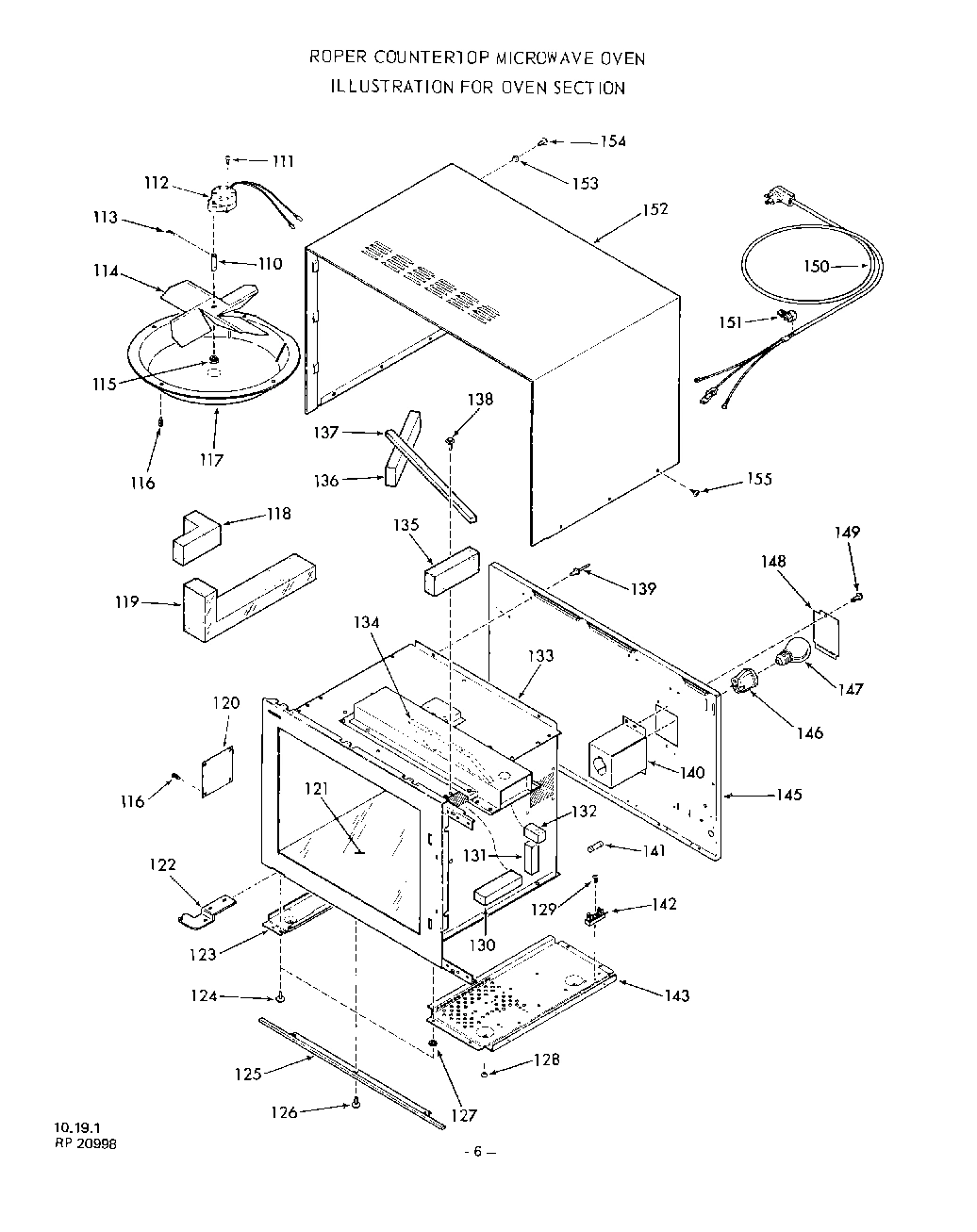

05 - OVEN

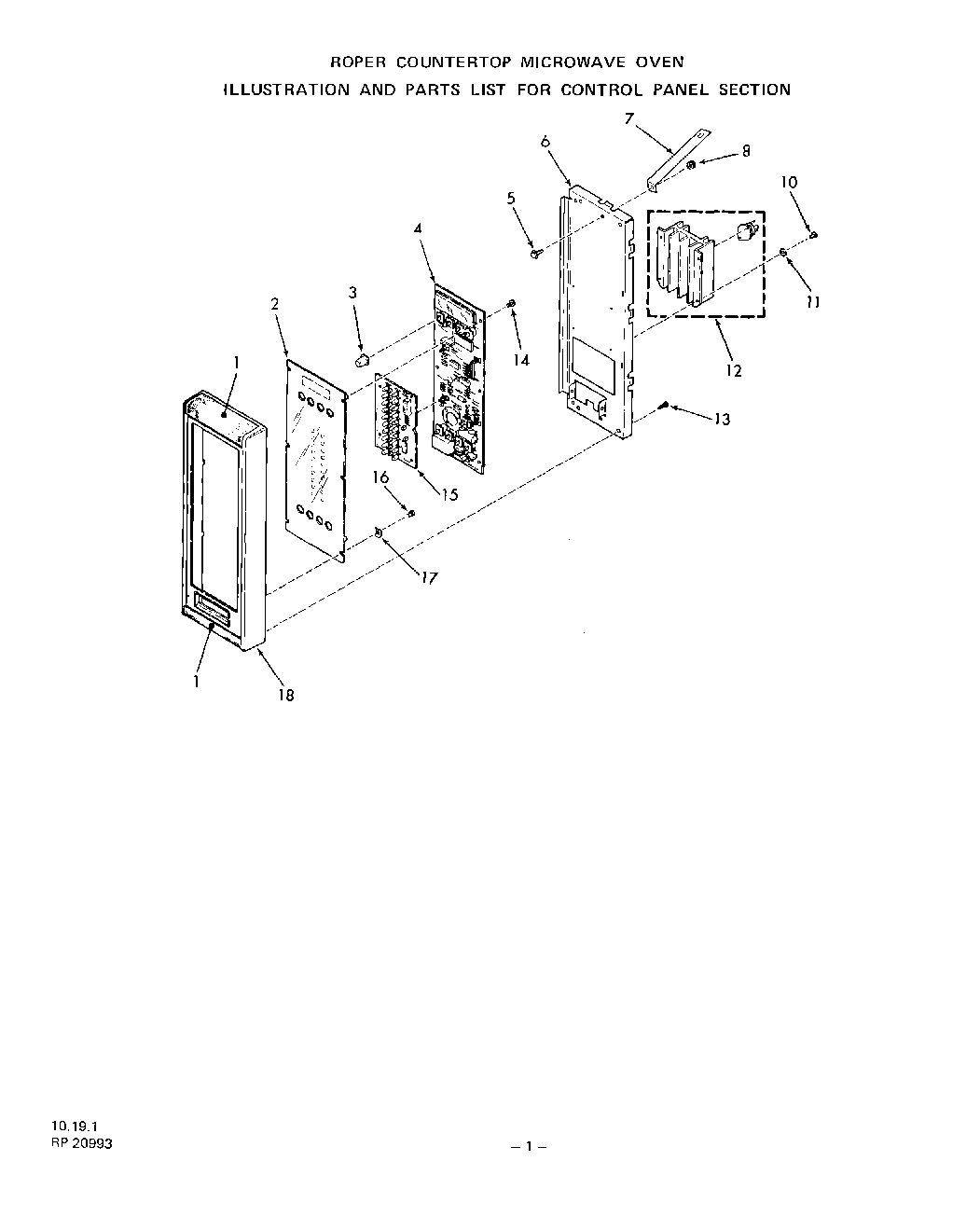

02 - CONTROL PANEL

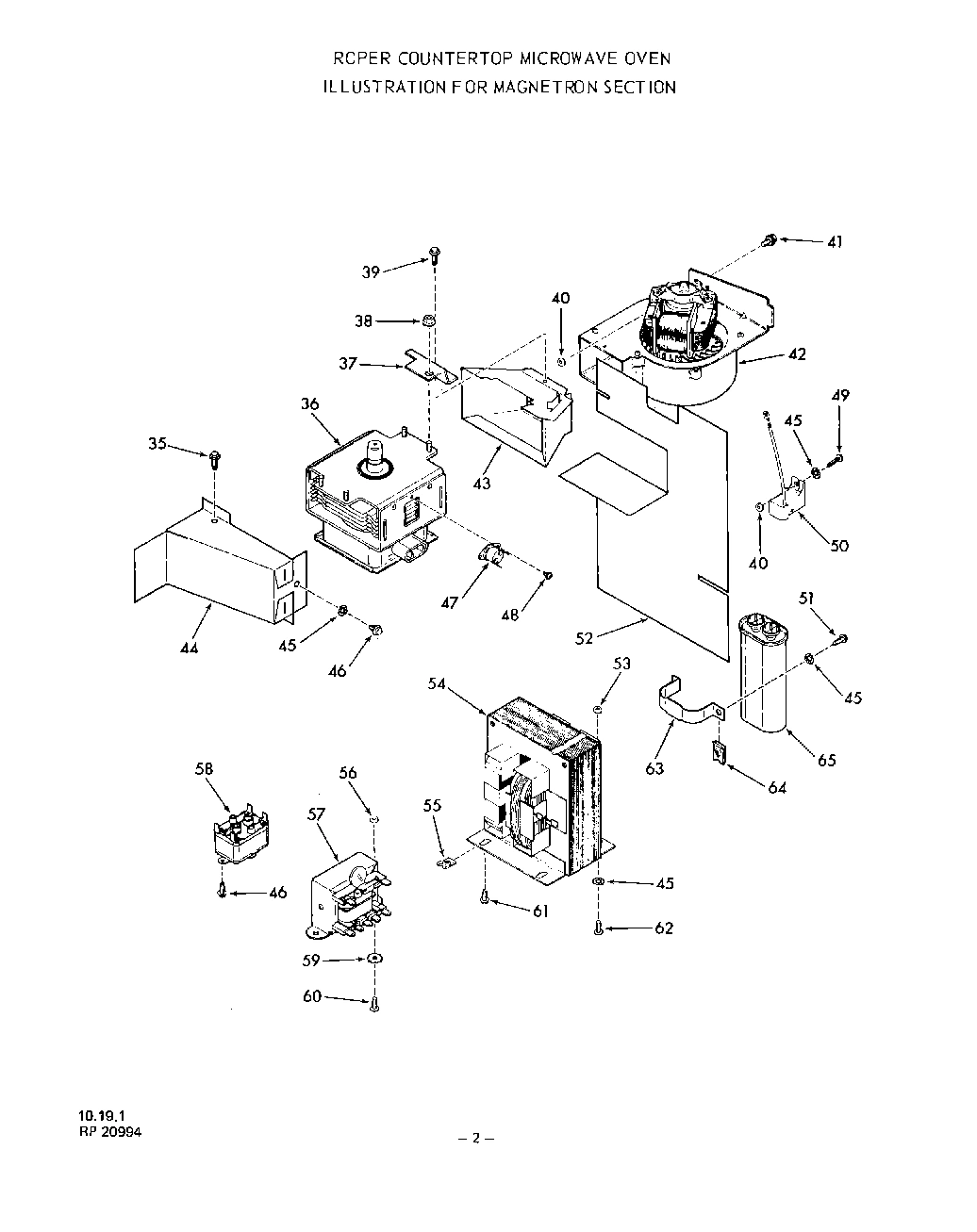

03 - MAGNETRON

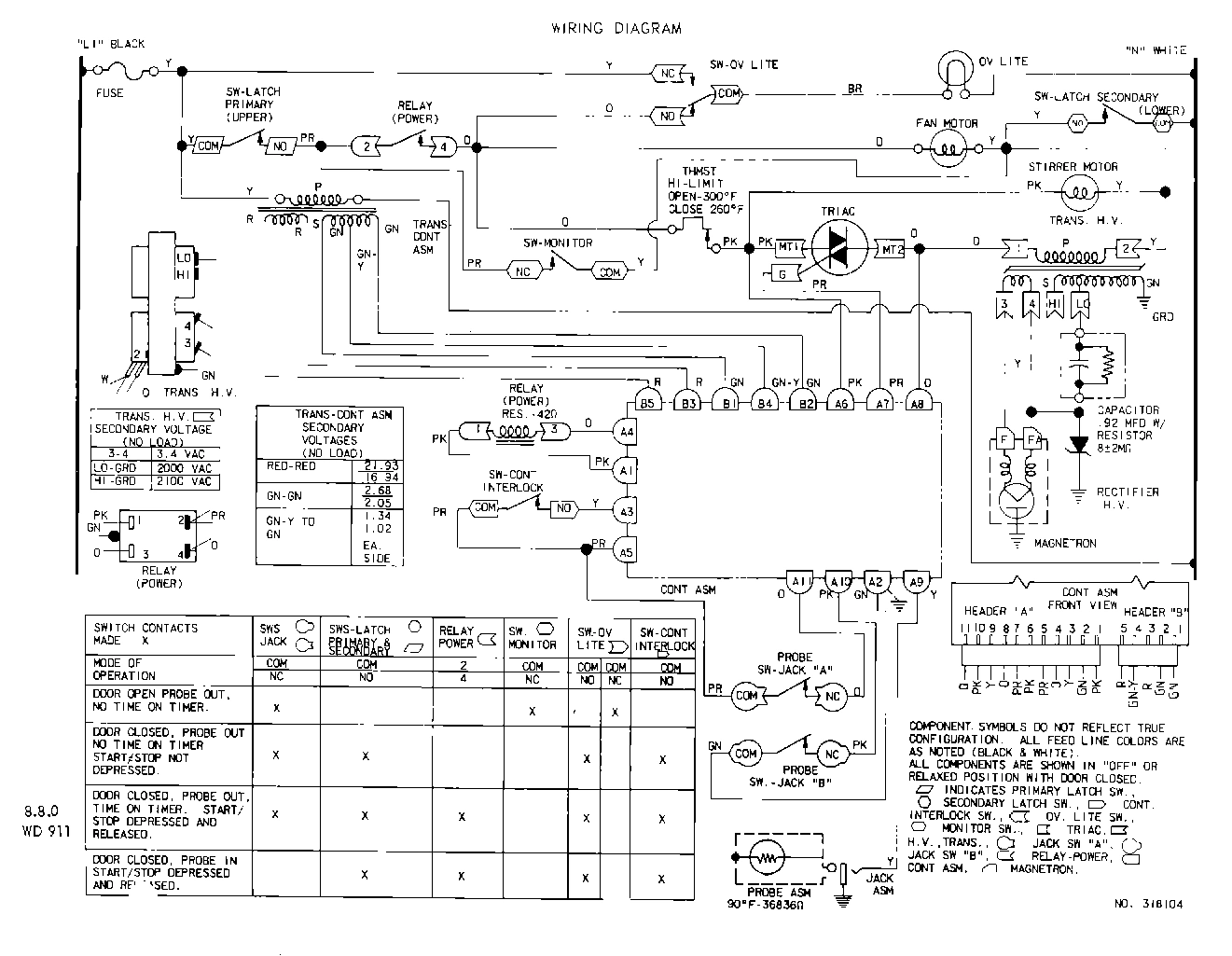

08 - WIRING DIAGRAM

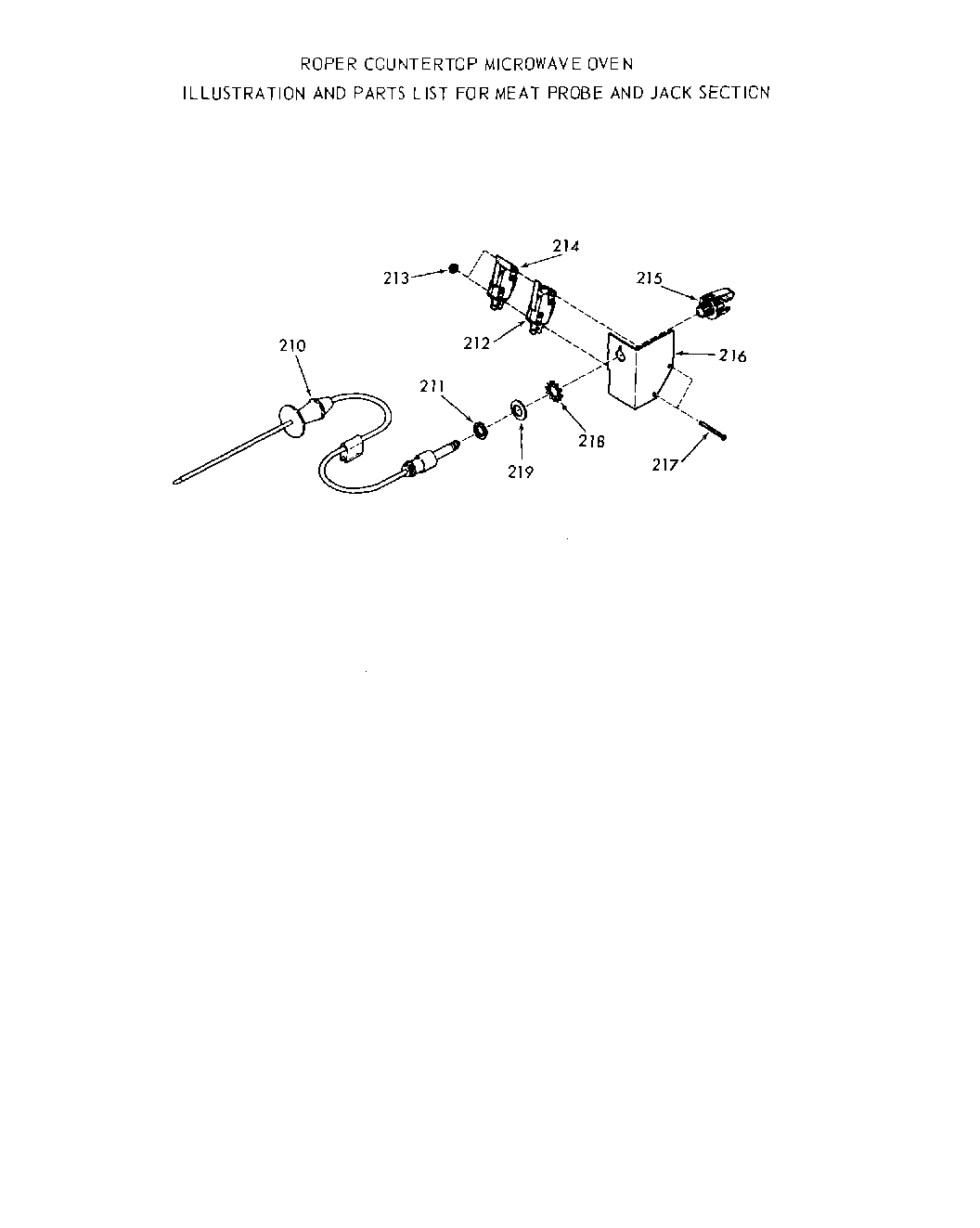

07 - MEAT PROBE AND JACK, LIT/OPTIONAL
Common parts from model Whirlpool 2961020 MICROWAVE OVEN
Lo Voltagexxx 2961010, 2961020 WPL 320296 Contact Us For Availability
1
Trimxxx WPL 316458 Contact Us For Availability
2
Lens - Control Panelxxx WPL 316383 Contact Us For Availability
3
Push Buttonxxx WPL 316962 Contact Us For Availability
4
Control Asm.xxx WPL 319630 Contact Us For Availability
6
Extension-Front Frame WPL 316377 Contact Us For Availability
7
Brace-Control Panelxxx WPL 311765 Contact Us For Availability
10
Screw 6-32x3/8``xxx WPL 295268 Contact Us For Availability
11
Lockwasherxxx WPL 279634 Contact Us For Availability
12
Triac & Heat Sink Asm.xxx (2961000) WPL 310275 Contact Us For Availability
12
Triac & Heat Sink Asm.xxx (2961010, 2961020) WPL 320777 Contact Us For Availability
13
Screw 6-19x3/8``xxx WPL 321325 Contact Us For Availability
14
Screw 6-32x1/4``xxx WPL 72102 Contact Us For Availability
15
L.E.D. Boardxxxx WPL 310535 Contact Us For Availability
16
Screw 4-24x1/4`` WPL 315617 Contact Us For Availability
17
Speed Nutxxx WPL 321326 Contact Us For Availability
18
Control Panel Trim Asm. (Inc`s Key 1) WPL 319042 Contact Us For Availability
35
Screw 10-32X17/32``xxx WPL 295849 Contact Us For Availability
36
Magnetronxxx (2961000, 2961010) WPL 312990 Contact Us For Availability
36
Magnetronxxx (2961020) WPL 320525 Contact Us For Availability
37
Support-Blowerxxx WPL 311092 Contact Us For Availability
38
Flange Nutxxx WPL 309503 Contact Us For Availability
39
Screw 8-32x3/8`` WPL 315627 Contact Us For Availability
40
Keps Nut 10-32xxx WPL 285726 Contact Us For Availability
41
Screw 10-32x3/8``xxx WPL 306855 Contact Us For Availability
42
Blower Asm. w/Motorxxx WPL 311413 Contact Us For Availability
43
Blower Duct-Magnetronxxx (2961000, 2961010) WPL 310318 Contact Us For Availability
43
Blower Duct-Magnetronxxx (2961020) WPL 318416 Contact Us For Availability
44
Inlet Duct-Cavityxxx (2961000, 2961010) WPL 315913 Contact Us For Availability
44
Inlet Duct-Cavityxxx (2961020) WPL 321752 Contact Us For Availability
45
Lockwasher WPL 109156 Contact Us For Availability
46
Screw 8-32x3/8``xxx WPL 97217 Contact Us For Availability
47
Thermostatxxx WPL 313240 Contact Us For Availability
48
Screw 4-40x1/4`` WPL 309711 Contact Us For Availability
51
Screw 10 - 32 x 7/16`` WPL 295850 Contact Us For Availability
52
Air Barrier WPL 315918 Contact Us For Availability
53
Keps Nut WPL 74056 Contact Us For Availability
54
Transformer-Hi Voltage WPL 319634 Contact Us For Availability
55
Speed Nut WPL 310792 Contact Us For Availability
56
Keps Nut 8-32 WPL 239764 Contact Us For Availability
57
Transformer-control WPL 318395 Contact Us For Availability
58
Relay-Pwer WPL 310277 Contact Us For Availability
59
Lockwasher WPL 235110 Contact Us For Availability
60
Screw 8-32x3/8`` WPL 319215 Contact Us For Availability
61
Screw 10Bx1/2`` WPL 310793 Contact Us For Availability
62
Screw 10-24x1/2`` WPL 103790 Contact Us For Availability
64
Speed Nut 10 - 32 WPL 108069 Contact Us For Availability
65
Capacitor-Hi Voltage WPL 318793 Contact Us For Availability
74
Handle-Door Releasexxx WPL 315300 Contact Us For Availability
75
Bracke-Door Releasexxx WPL 315302 Contact Us For Availability
77
Screw 10 - 32 x 1/2`` WPL 102430 Contact Us For Availability
78
Washer WPL 99279 Contact Us For Availability
79
Ground Wirexxx WPL 318341 Contact Us For Availability
81
Pin-Door Releasexxx WPL 315315 Contact Us For Availability
83
Switch-Latchxxx WPL 304546 Contact Us For Availability
84
Switch-Oven Light WPL 315889 Contact Us For Availability
85
Actuator-Swithcxxx WPL 315297 Contact Us For Availability
86
Mounting Bracket-Switchxxx WPL 315296 Contact Us For Availability
87
Screw 10 - 32 x 17/32`` WPL 102428 Contact Us For Availability
88
Insulation-Switchxxx WPL 315915 Contact Us For Availability
89
Switch-Monitor WPL 315875 Contact Us For Availability
90
Screw 1ABx1/4``xxx WPL 318010 Contact Us For Availability
92
Springxxx WPL 319445 Contact Us For Availability
110
Shaft-Stirrerxxx WPL 308693 Contact Us For Availability
112
Stirrer Motorxxx WPL 310499 Contact Us For Availability
113
Retainer Clipxxx WPL 286965 Contact Us For Availability
114
Blade-Stirrerxxx WPL 308716 Contact Us For Availability
115
Nut WPL 291214 Contact Us For Availability
116
Accordian Rivetxxx WPL 312448 Contact Us For Availability
117
Cover-/Stirrerxxx WPL 316000 Contact Us For Availability
118
Duct-Wrapper Dischargexxx WPL 312356 Contact Us For Availability
119
Duct-Cavity Discargexxx WPL 312357 Contact Us For Availability
120
Cover-Oven Lightxxx WPL 300281 Contact Us For Availability
121
Glass Cook Shelfxxx WPL 319851 Contact Us For Availability
122
Bottom Hinge-Oven Doorxxx WPL 315616 Contact Us For Availability
123
Base Supportxxx WPL 315900 Contact Us For Availability
125
Barrier-Intrusionxxx WPL 321443 Contact Us For Availability
126
Screw 8-32 x 3/3``xxx WPL 232183 Contact Us For Availability
128
Rivet-Plastic (4 Req.) WPL 311540 Contact Us For Availability
129
Screw 6-32x1/4`` WPL 232933 Contact Us For Availability
130
Foam Strip 4`` x 3/4`` x 1 1/8``xxx WPL 311398 Contact Us For Availability
131
Foam Strip 2-1/2`` x 3/4`` x 3/4``xxx WPL 311399 Contact Us For Availability
132
Foam Strip 1-1/2`` x 3/4`` x 3/4``xxx WPL 310331 Contact Us For Availability
133
Oven Capacity Complete (Inc. 121) WPL 315909 Contact Us For Availability
134
Shifter-Phasexxx WPL 310242 Contact Us For Availability
135
Duct-Wrapper Dischargexxx WPL 312509 Contact Us For Availability
136
Foam Strip 7-5/8`` x 3/4`` x 1-5/8``xxx WPL 310329 Contact Us For Availability
137
Foam Strip 14`` x 3/8`` x 1/2``xxx WPL 310330 Contact Us For Availability
139
Pop Rivetxxx WPL 300028 Contact Us For Availability
140
Housing-Oven Lightxxx WPL 310283 Contact Us For Availability
141
Fuse Onlyxxx WPL 305031 Contact Us For Availability
142
Holder-Fusexxx WPL 305030 Contact Us For Availability
143
Base-Component Mounting WPL 315898 Contact Us For Availability
145
Main Backxxx WPL 319191 Contact Us For Availability
146
Holder-Oven Lampxxx WPL 87883 Contact Us For Availability
147
Oven Lamp Bulbxxx WPL 111257 Contact Us For Availability
148
Access Platexxx WPL 300283 Contact Us For Availability
150
Service Cordxxx WPL 321910 Contact Us For Availability
151
Strain Relief WPL 311112 Contact Us For Availability
152
Wrapper Cabinetxxx WPL 315583 Contact Us For Availability
154
Screw 8-32 x 3/8`` WPL 315895 Contact Us For Availability
155
Screw 6-32 x 5/16`` WPL 300000 Contact Us For Availability
173
Bottom Trim-Oven Doorxxx WPL 316460 Contact Us For Availability
174
Top Trim-Oven Doorxxx WPL 316459 Contact Us For Availability
175
Outer Glass-Oven Doorxxx WPL 316550 Contact Us For Availability
176
Frame-Oven Doorxxx WPL 315290 Contact Us For Availability
179
Bracket-Upper Hingexxx WPL 315594 Contact Us For Availability
182
Foam Tapexxx WPL 318412 Contact Us For Availability
183
Screw 8-32 x 7/16``xxx WPL 319530 Contact Us For Availability
184
Retainer-Glassxxx WPL 315292 Contact Us For Availability
185
Inner Glass-Oven Doorxxx WPL 315294 Contact Us For Availability
186
Hook-Latchxxx WPL 315298 Contact Us For Availability
187
Link-Latchxxx WPL 315308 Contact Us For Availability
188
Springxxx WPL 318316 Contact Us For Availability
189
Stop-Latch WPL 316698 Contact Us For Availability
190
Bracket-Latchxxx WPL 316776 Contact Us For Availability
191
Shieldxxx WPL 315293 Contact Us For Availability
192
Cover-Chokexxx WPL 315295 Contact Us For Availability
193
Absorber-Energyxxx WPL 320481 Contact Us For Availability
194
Screw 6-32 x 3/8`` WPL 303820 Contact Us For Availability
195
Bracket - Lower Hingexxx WPL 315613 Contact Us For Availability
196
Ov. Dr. Trim Asem. (Incl Keys 173 & 174) WPL 319055 Contact Us For Availability
197
Screw 10-32 x 5/16``xxx WPL 235460 Contact Us For Availability
198
Screw 6AB x 3/8``xxx WPL 315962 Contact Us For Availability
199
Rivet (3 Required) WPL 85522 Contact Us For Availability
200
Screw 10-32 x 3/4``xxx WPL 316785 Contact Us For Availability
201
Pin (2 Required) WPL 316699 Contact Us For Availability
210
Meat Probe & Plugxxx WPL 310739 Contact Us For Availability
211
Lock Nutxxx WPL 103901 Contact Us For Availability
212
Switch-Probexxx WPL 307069 Contact Us For Availability
213
Keps Nut 4-40xxx WPL 306638 Contact Us For Availability
214
Switch-Probexxx WPL 307070 Contact Us For Availability
215
Jack - Meat Probexxx WPL 307065 Contact Us For Availability
216
Bracket-Switch & Meat Probexxx WPL 307071 Contact Us For Availability
217
Screw 4-40 x 1``xxx WPL 102751 Contact Us For Availability
218
Lockwasherxxx WPL 286967 Contact Us For Availability
219
Washerxxx WPL 103902 Contact Us For Availability
219
Hi Voltagexxx WPL 311270 Contact Us For Availability
219
Microwave Cookery Book WPL 313879 Contact Us For Availability
219
Lo Voltagexxx 2961000 WPL 316453 Contact Us For Availability
219
Installation & Reference Guide WPL 316544 Contact Us For Availability
219
Use & Care Manual WPL 316547 Contact Us For Availability
219
Modulexxx 2961000 WPL 316571 Contact Us For Availability
219
Transformer-Controlsxxx WPL 318402 Contact Us For Availability
219
Modulexxx 2961010, 2961020 WPL 321913 Contact Us For Availability
219
Wire Harness WPL ARI11532A2 Contact Us For Availability
× ![]()
