Model LG 295.89990.000 – Common Parts & Diagrams
Diagram 0
Diagram 1

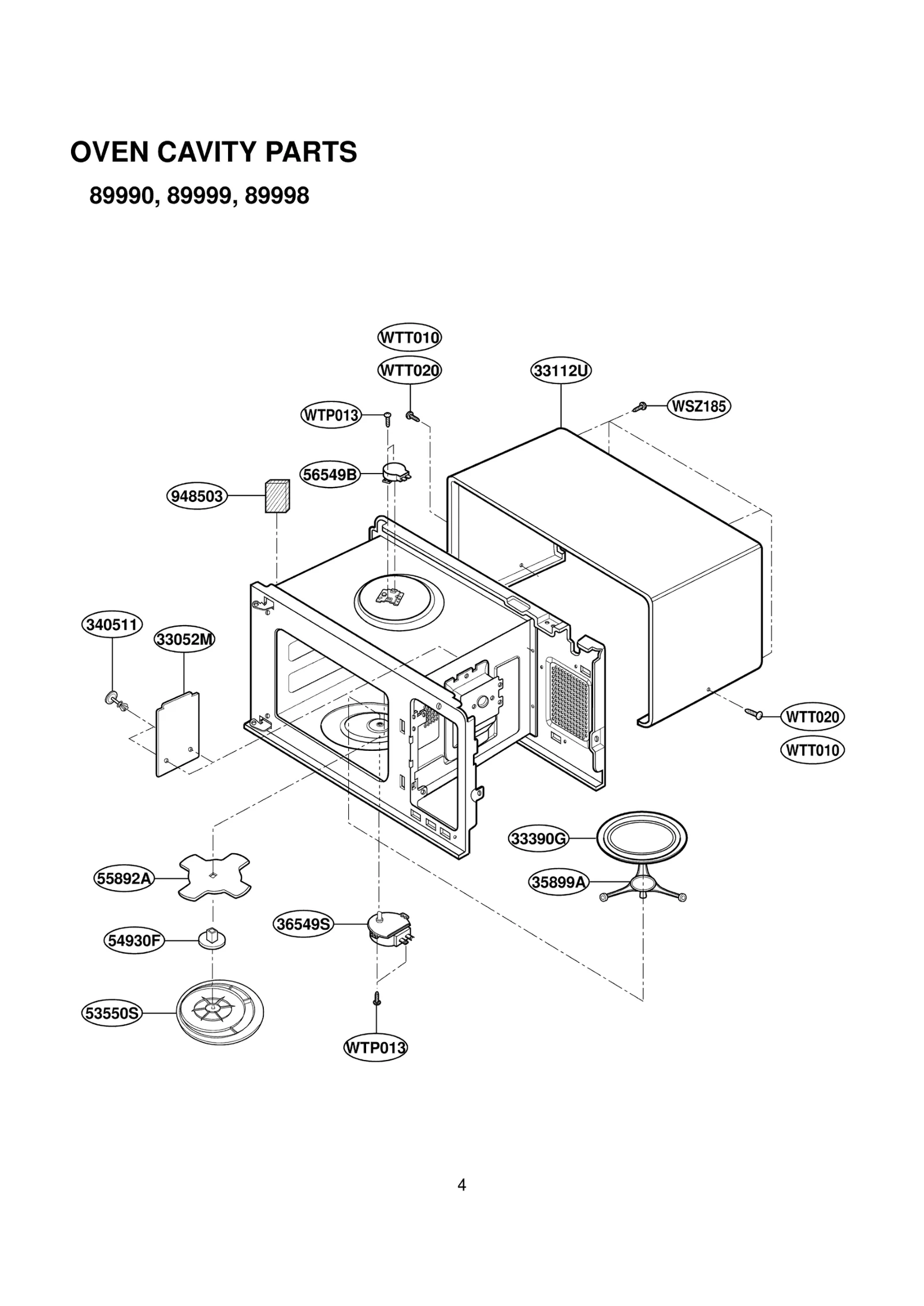

Diagram 2

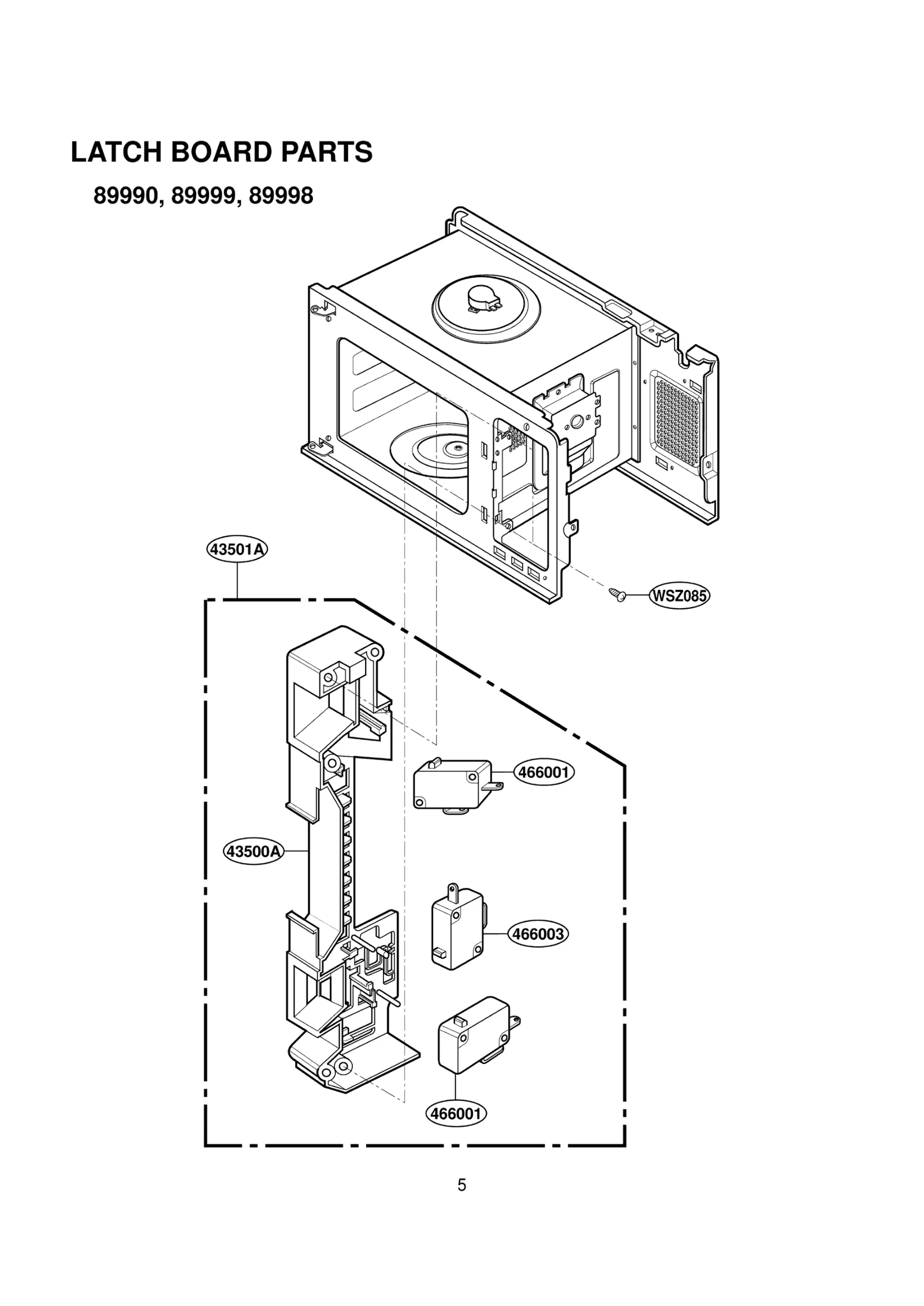

Diagram 3

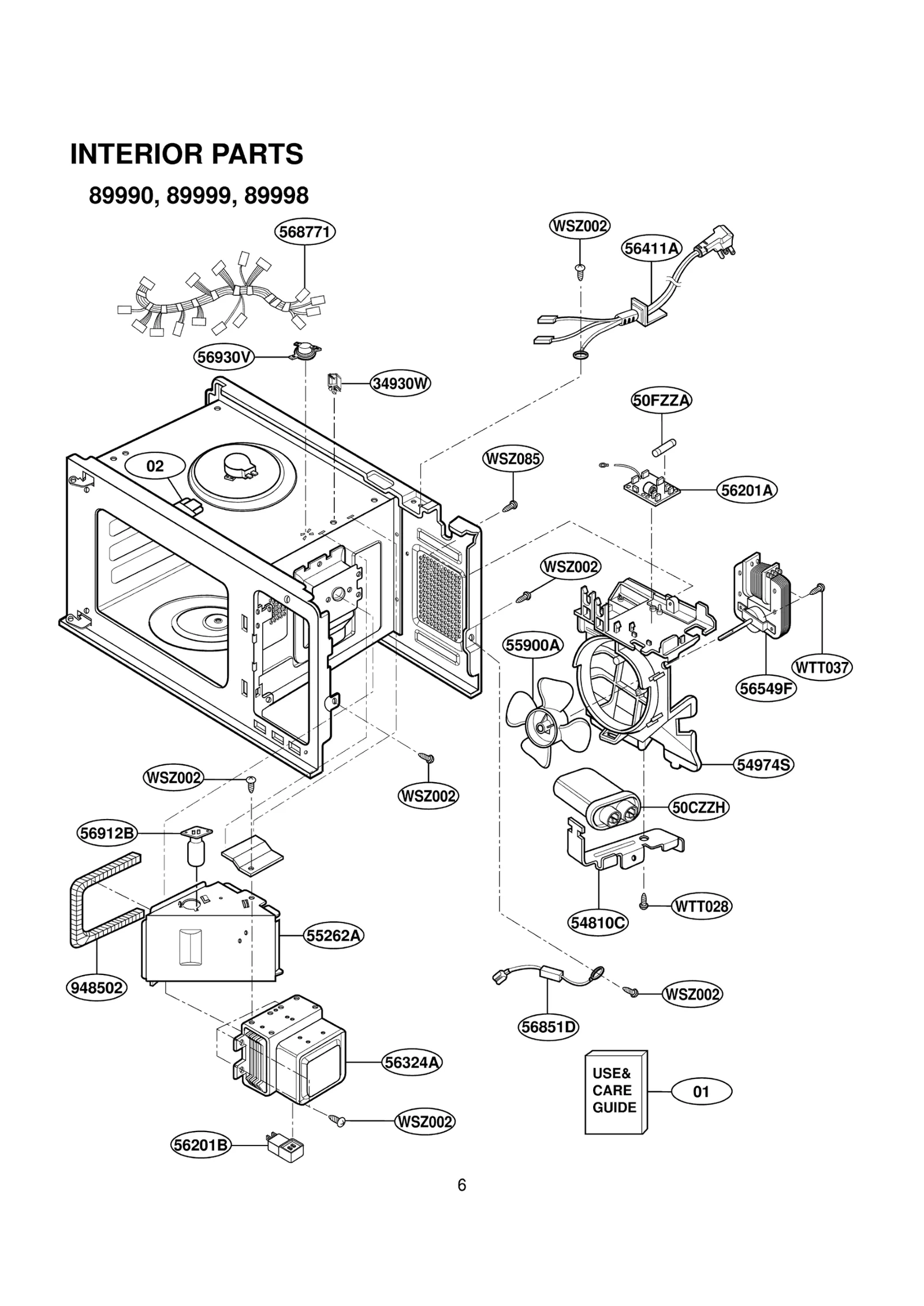

Diagram 4
Diagram 5

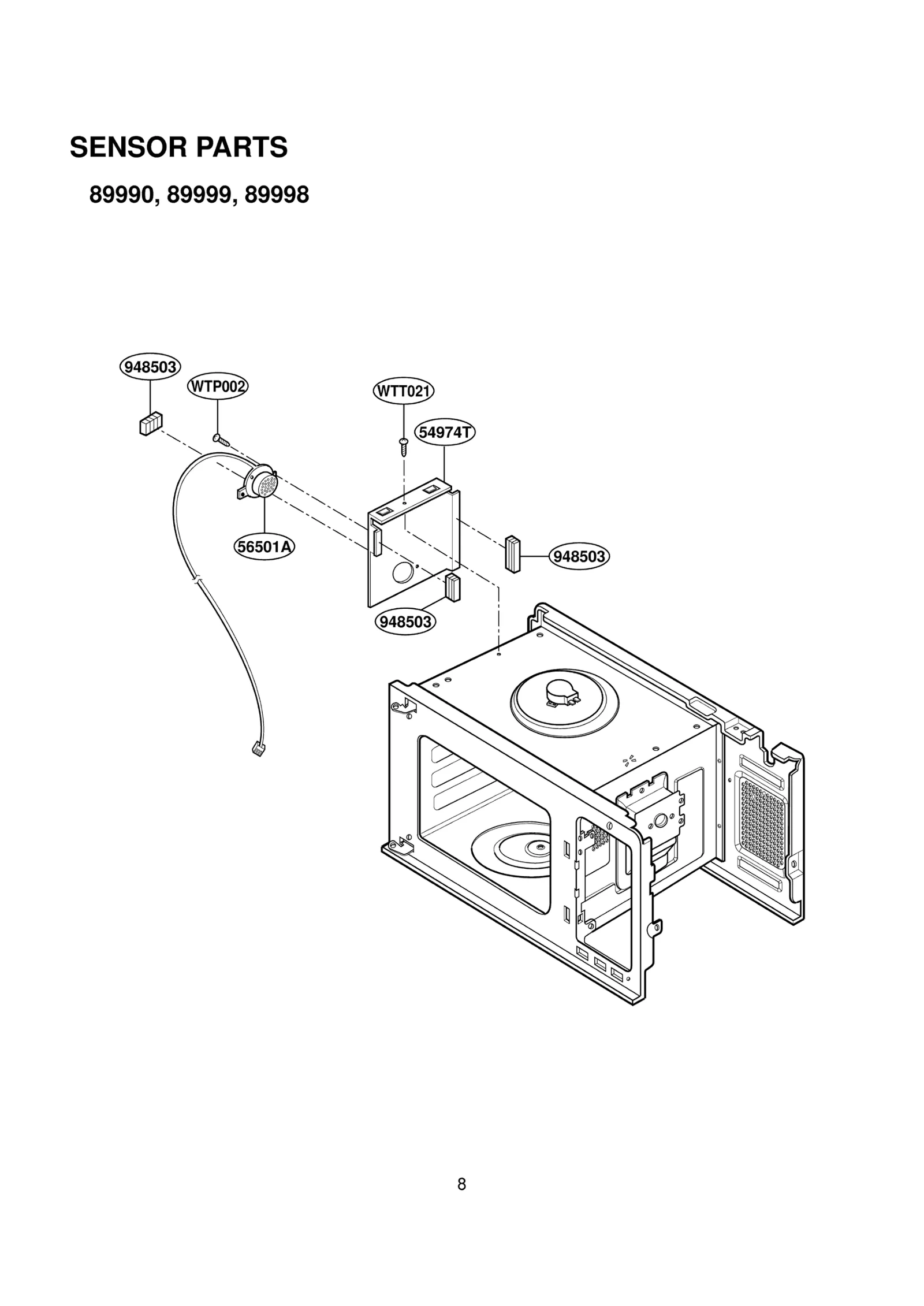

Diagram 6
Diagram 7
Common parts from model LG 295.89990.000
*01
LGE 3828W5A1570 LGE 3828W5A1570 Contact Us For Availability
*02
LGE 3828W5S1626 LGE 3828W5S1626 Contact Us For Availability
*05
LABEL,COOKING GUIDE LGE 3850W3D055A Contact Us For Availability
*05
LABEL,COOKING GUIDE LGE 3850W3D055B Contact Us For Availability
*07
CARD,TECHNICAL LGE 3858W3T017U Contact Us For Availability
*10
BOX,[YELLOW] LGE 3890W3Y121A Contact Us For Availability
24781S
LGE 4781W1S047E LGE 4781W1S047E Contact Us For Availability
33112U
OUT CASE LGE 3112W0U028A Contact Us For Availability
33390G
TRAY,[GLASS] LGE 3390W1G009C Contact Us For Availability
35889A
ROTATING RING ASSY LGE 5889W2A011C Contact Us For Availability
36549S
MOTOR(CIRC),SYNCHRONOUS LGE 6549W1S015A Contact Us For Availability
43500A
LATCH BOARD LGE 3500W1A005A Contact Us For Availability
43501A
BOARD ASSY,LATCH LGE 3501W1A016F Contact Us For Availability
44510A
LEVER-SWITCH MH6110XBBO W/POOL LGE 4510W4A005A Contact Us For Availability
54810C
BRACKET HVC MA-690M,1190M,685M LGE 4810W4C003A Contact Us For Availability
54974S
GUIDE SUCTION LGE 4974W1S010A Contact Us For Availability
54974T
DUCT LGE 5208W1A001B Contact Us For Availability
55900A
PROPELLER LGE 2B72125A Contact Us For Availability
56170D
TRANSFORMER,HIGH VOLTAGE LGE 6170W1D023J Contact Us For Availability
56201A
NOISE FILTER ASSY 100V 50/60HZ LGE 2B72130F Contact Us For Availability
56201B
CHOKE FILTER ASSY MS-100/120/1 LGE 6201W2A019A Contact Us For Availability
56411A
POWER CORD ASS Y MA-870RV 1161 LGE 6411W2A002B Contact Us For Availability
56501A
LGE 6501W1A003B LGE 6501W1A003B Contact Us For Availability
56549F
MOTOR(CIRC),FAN LGE 6549W1F005B Contact Us For Availability
56930V
THERMOSTAT,BIMETAL LGE 6930W1A001J Contact Us For Availability
63302A
Plate,Base LGE 3302W0A014A Contact Us For Availability
63302R
Plate,Base LGE 3302W1A046A Contact Us For Availability
63303L
BASE PLATE ASSY,MWO LGE 3303W0A010A Contact Us For Availability
63303R
BASE PLATE ASSY,MWO LGE 3303W1A040A Contact Us For Availability
249401
KNOB CONTROL LGE 4940W2A004A Contact Us For Availability
250201
BUTTON-MIC LGE 5020W2A097A Contact Us For Availability
250202
BUTTON-MIC LGE 5020W2A098A Contact Us For Availability
250203
LGE 5020W2A101A LGE 5020W2A101A Contact Us For Availability
268711
LGE 6871W2S118B LGE 6871W2S118B Contact Us For Availability
268712
PWB(PCB) ASSY,[MAIN] LGE 6871W2S117A Contact Us For Availability
568771
LEAD WIRE ASSY LGE 6877W1A282A Contact Us For Availability
AR4
RESISTOR ARRAY LGE 0RZ1503G610 Contact Us For Availability
BZ1
LGE 6908W3YA01A LGE 6908W3YA01A Contact Us For Availability
C01
CAPACITOR,FIXED CERAMIC(High d LGE 0CK1040K948 Contact Us For Availability
C03
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE2276H638 Contact Us For Availability
C07
CAPACITOR ELECTROLYTIC 4.7M SM LGE 0CE4756K638 Contact Us For Availability
C11
CAPACITOR ELECTROLYTIC CE,47MF LGE 0CE4766K638 Contact Us For Availability
C13
CAPACITOR ELECTROLYTIC 10M SM LGE 0CE1066K638 Contact Us For Availability
C20
CAPACITOR,FIXED CERAMIC(High d LGE 0CK2230K948 Contact Us For Availability
C81
CAPACITOR CERAMIC (HIGH DIELE) LGE 0CK2210K518 Contact Us For Availability
CN01
LGE 6631W3YA16E LGE 6631W3YA16E Contact Us For Availability
CN1
CONNECTOR (CIRC) WAF LGE 6630W5V021A Contact Us For Availability
CN3
LGE 6630W5YA35C LGE 6630W5YA35C Contact Us For Availability
CN4
CONNECTOR (CIRC) LGE 6630W5V013A Contact Us For Availability
D02
DIODE IN4002,MA-1354P,1554M *N LGE 0DD400209AA Contact Us For Availability
DP1
LGE 6302W5A015A LGE 6302W5A015A Contact Us For Availability
EN01
LGE 6024W5A0004 LGE 6024W5A0004 Contact Us For Availability
PT1
TRANSFORMER POWER 120V/60HZ,14 LGE 6010W2P043A Contact Us For Availability
Q01
TRANSISTOR KTA1266-TP-Y(KTA101 LGE 0TR126609AA Contact Us For Availability
Q30
TRANSISTOR LGE 0TR320209BA Contact Us For Availability
Q31
TRANSISTOR LGE 0TR319809AA Contact Us For Availability
R01
Resistor,Carbon Film LGE 0RD1501F608 Contact Us For Availability
R02
FIXED CARBON FILM 4.7K UG8*NSP LGE 0RD4701F608 Contact Us For Availability
R12
RESISTOR FIXED CARBON FILM 10 LGE 0RD0102F608 Contact Us For Availability
R22
RESISTOR FIXED CARBON FILM 1.0 LGE 0RD1001G608 Contact Us For Availability
R25
Resistor,Carbon Film LGE 0RD4701G608 Contact Us For Availability
R30
Resistor,Carbon Film LGE 0RD1002F608 Contact Us For Availability
R33
Resistor,Carbon Film LGE 0RD5601F608 Contact Us For Availability
R51
Resistor,Carbon Film LGE 0RD1000F608 Contact Us For Availability
R60
RESISTOR FIXED CARBON FILM MV- LGE 0RD4702G608 Contact Us For Availability
R61
Resistor,Carbon Film LGE 0RD2701F608 Contact Us For Availability
R62
LGE 0RN2003F408 LGE 0RN2003F408 Contact Us For Availability
R63
Resistor,Metal Film LGE 0RN1001F408 Contact Us For Availability
R66
RESISTOR FIXED CARBON FILM 100 LGE 0RD1003F608 Contact Us For Availability
R67
LGE 0RN5101F408 LGE 0RN5101F408 Contact Us For Availability
R68
LGE 0RN4901F408 LGE 0RN4901F408 Contact Us For Availability
R69
RESISTOR,FIXED CARBON FILM LGE 0RD6600H602 Contact Us For Availability
R71
LGE 0RK1605A608 LGE 0RK1605A608 Contact Us For Availability
R72
LGE 0RK8004A608 LGE 0RK8004A608 Contact Us For Availability
R73
LGE 0RD4004G608 LGE 0RD4004G608 Contact Us For Availability
R74
LGE 0RD2004G608 LGE 0RD2004G608 Contact Us For Availability
R75
FIXED CARBON FILM 1M-J *NSP LGE 0RD1004F608 Contact Us For Availability
R76
Resistor,Carbon Film LGE 0RD5103F608 Contact Us For Availability
R77
LGE 0RD2703F608 LGE 0RD2703F608 Contact Us For Availability
R78
Resistor,Carbon Film LGE 0RD1503F608 Contact Us For Availability
R81
Resistor,Carbon Film LGE 0RD2202F608 Contact Us For Availability
R94
RESISTOR FIXED CARBON FILM 22 LGE 0RD2202G608 Contact Us For Availability
R100
Resistor,Carbon Film LGE 0RD3302F608 Contact Us For Availability
R101
LGE 0RD1202G608 LGE 0RD1202G608 Contact Us For Availability
RY1
RELAY LGE 6920W2D010B Contact Us For Availability
RY2
RELAY OZF-S-112LM1P DC12V MV-1 LGE 6920W2YD04A Contact Us For Availability
SW06
SWITCH,TACT LGE 6600W5R004A Contact Us For Availability
U01
LGE 0IZZW5A016B LGE 0IZZW5A016B Contact Us For Availability
U04
IC KIA4558P(8DIP LIN OP-AMP/BI LGE 0IKE455800A Contact Us For Availability
U05
IC,SAMSUNG ELECTRONICS LGE 0ISS791500A Contact Us For Availability
WSZ202
SCREW,DRAWING LGE 1SZZW2A002D Contact Us For Availability
ZD1
DIODE ZENER UZ5.1BS TP26 SM 0 LGE 0DZ510009AE Contact Us For Availability
ZD2
DIODE ZENER LGE 0DZ750009AC Contact Us For Availability
× ![]()
