Model LG 27SR5BF-P – Common Parts & Diagrams

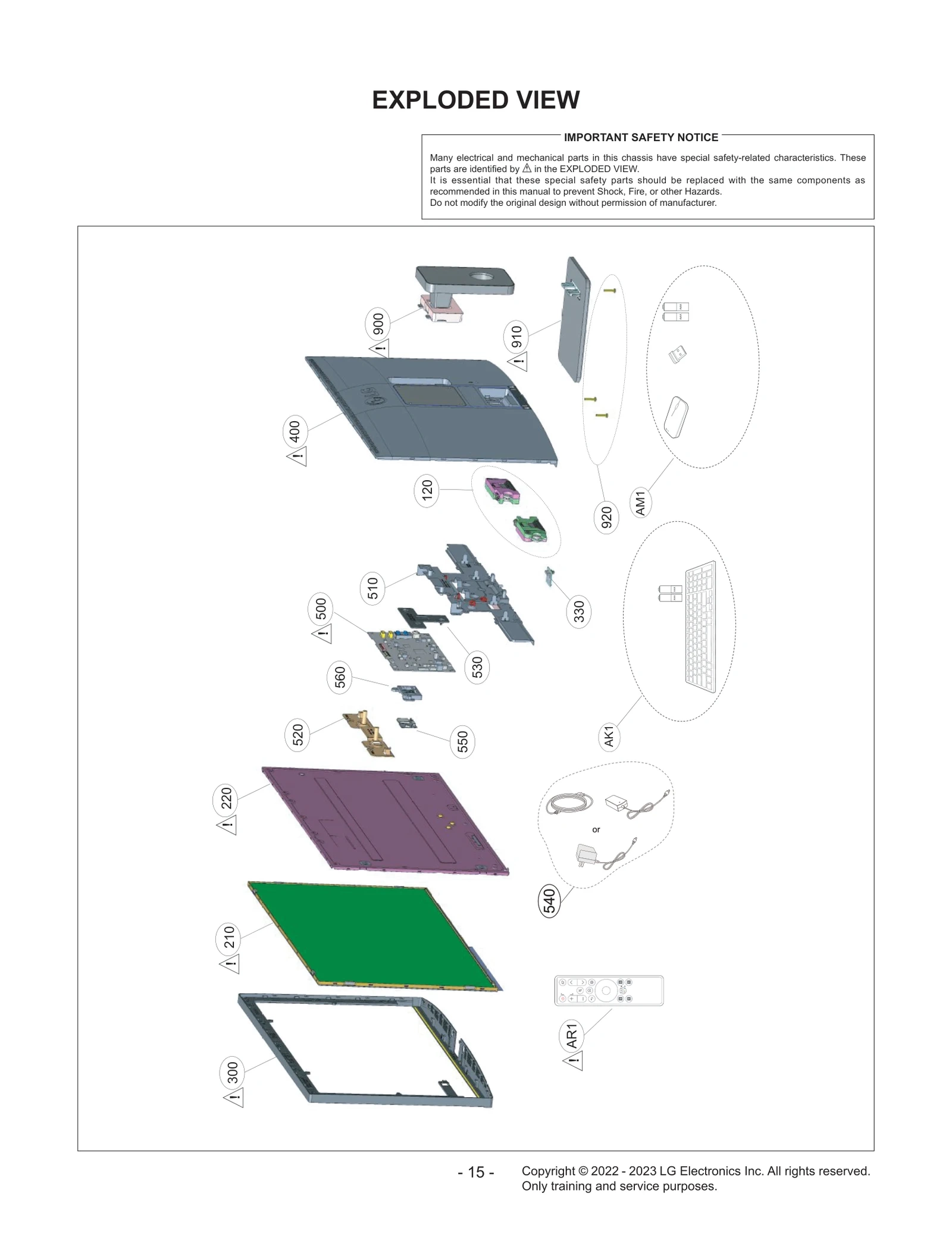

Diagram 0
Diagram 1
Common parts from model LG 27SR5BF-P
200
Module,Assembly LGE EAT63400020 Contact Us For Availability
210
LCD,Panel-TFT LGE EAJ65460101 Contact Us For Availability
220
Back Light Assembly LGE EBV61138230 Contact Us For Availability
300
Cabinet Assembly LGE ABJ76763305 Contact Us For Availability
330
PCB Assembly,Sub LGE EBR41672401 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ30579005 Contact Us For Availability
510
Frame Assembly LGE ADV30083701 Contact Us For Availability
520
Frame Assembly LGE ADV30098201 Contact Us For Availability
530
Plate Assembly LGE AGU30079901 Contact Us For Availability
540
Adapters LGE EAY65895725 Contact Us For Availability
560
Cover LGE MCK71743901 Contact Us For Availability
900
Base Assembly LGE AAN30106409 Contact Us For Availability
910
Base Assembly LGE AAN30106507 Contact Us For Availability
A01
Manual Assembly LGE AFN30121497 Contact Us For Availability
A04
Card LGE 3840TRL039A Contact Us For Availability
A07
Card LGE 3840TWL061C Contact Us For Availability
A08
Cable,Assembly LGE EAD65185202 Contact Us For Availability
A09
Card LGE MBM67535701 Contact Us For Availability
A10
Card LGE MBM67546215 Contact Us For Availability
A11
Card LGE MBM67549905 Contact Us For Availability
AK2
Keyboard Assembly LGE AEW74231730 Contact Us For Availability
AM1
Mouse Assembly LGE AFW73188930 Contact Us For Availability
AM2
Mouse Assembly LGE AFW73189130 Contact Us For Availability
AM3
Mouse Assembly LGE AFW73189330 Contact Us For Availability
B01
Primary Cell Battery,Alkaline LGE EAC61978501 Contact Us For Availability
LV1
Cable,FFC LGE EAD63667628 Contact Us For Availability
LV2
Cable,FFC LGE EAD65825873 Contact Us For Availability
× ![]()
