Model LG 27MP89HM-S – Common Parts & Diagrams

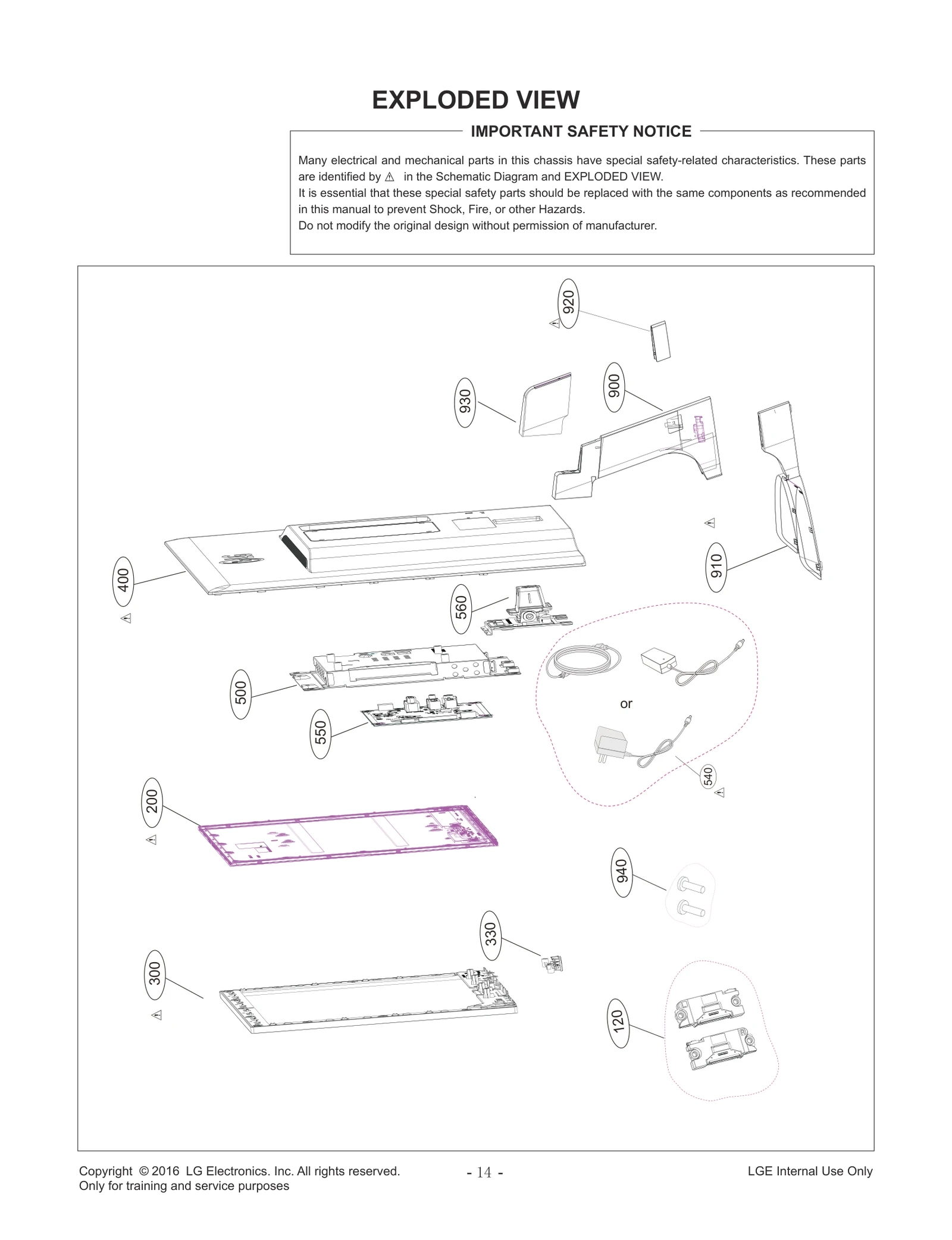

Diagram 0
Diagram 1
Common parts from model LG 27MP89HM-S
120
Speaker Assembly LGE EAB63628201 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ63970201 Contact Us For Availability
330
PCB Assembly LGE EBR82335206 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ89357201 Contact Us For Availability
500
Frame Assembly LGE ADV76050601 Contact Us For Availability
540
Adapters LGE EAY62549311 Contact Us For Availability
550
Main Board,BPR Total Assembly LGE EBU63574603 Contact Us For Availability
560
Frame Assembly LGE ADV76031701 Contact Us For Availability
900
Base Assembly LGE AAN75929601 Contact Us For Availability
910
Base Assembly LGE AAN75929501 Contact Us For Availability
920
Package Assembly LGE AGF77182259 Contact Us For Availability
930
Package Assembly LGE AGF78528801 Contact Us For Availability
940
Package Assembly LGE AGF76702621 Contact Us For Availability
A1
Manual Assembly LGE AFN77732121 Contact Us For Availability
A4
Card LGE 3840TRL039A Contact Us For Availability
A7
Card LGE 3840TWL061C Contact Us For Availability
A8
Cable,Assembly LGE EAD00926140 Contact Us For Availability
A9
Card LGE MBM65756222 Contact Us For Availability
C10
Harness,Single LGE EAD61729313 Contact Us For Availability
LV1
Cable,FFC LGE EAD63169856 Contact Us For Availability
P200
WAFER LGE 6602T20009E Contact Us For Availability
P201
Connector,DSUB LGE EAG61072907 Contact Us For Availability
P201
Connector,DSUB LGE EAG61072905 Contact Us For Availability
× ![]()
