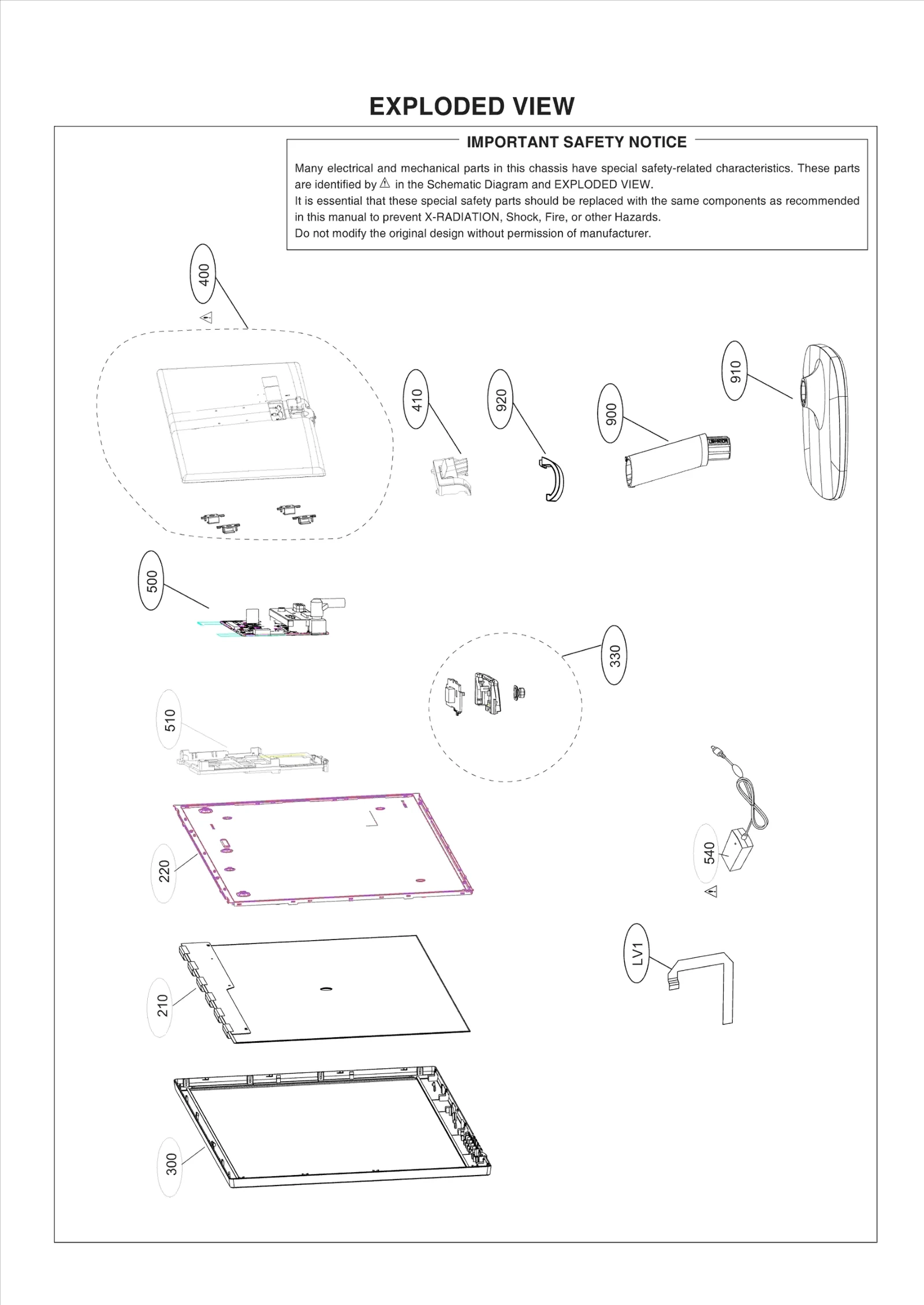

Diagram 1
Common parts from model LG 27MP57HT-P
210
LCD,Panel-TFT LGE EAJ62571301 Contact Us For Availability
220
Back Light Assembly LGE EBV61138204 Contact Us For Availability
300
Cabinet Assembly LGE ABJ74687201 Contact Us For Availability
330
PCB Assembly,Sub LGE EBR79824901 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ87610703 Contact Us For Availability
410
Base Assembly LGE AAN75069201 Contact Us For Availability
500
BPR Total Assembly LGE EBU63223401 Contact Us For Availability
510
Bracket LGE MAZ64563602 Contact Us For Availability
540
Adapters LGE EAY62710707 Contact Us For Availability
540
Adapters LGE EAY62790007 Contact Us For Availability
900
Base Assembly LGE AAN75088701 Contact Us For Availability
910
Base Assembly LGE AAN75028901 Contact Us For Availability
920
Package Assembly LGE AGF77744201 Contact Us For Availability
A1
Manual Assembly LGE AFN76676421 Contact Us For Availability
A5
Cable,Assembly LGE EAD57734001 Contact Us For Availability
A7
Card LGE 3840TWL061C Contact Us For Availability
A9
Card LGE 3840TRL039A Contact Us For Availability
C115
Capacitor,Ceramic,Chip LGE 0CH1474K562 Contact Us For Availability
C116
Capacitor,Ceramic,Chip LGE 0CK822BH56A Contact Us For Availability
C139
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C144
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C145
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C169
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C170
Capacitor,Ceramic,Ch LGE 0CK104CHG6A Contact Us For Availability
D108
Diode,Schottky LGE EAH44241601 Contact Us For Availability
D108
DIODE,SWITCHING LGE 0DSON00138A Contact Us For Availability
IC101
S/W,Firmware LGE SAA37784701 Contact Us For Availability
IC200
IC,EEPROM LGE EAN60997601 Contact Us For Availability
JK202
Connector,DSUB LGE EAG61072904 Contact Us For Availability
JK203
Jack,Phone LGE 6612F00099H Contact Us For Availability
LV1
Cable,FFC LGE EAD62389048 Contact Us For Availability
P100
WAFER LGE 6602T20009E Contact Us For Availability
P101
Connector,Wafer LGE EAG62172203 Contact Us For Availability
P102
Connector,FFC/FPC/PIC LGE EAG60908201 Contact Us For Availability
R8
Resistor,Chip LGE 0RJ2001C678 Contact Us For Availability
R10
Resistor,Chip LGE 0RJ1200C678 Contact Us For Availability
R101
Resistor,Metal Oxide Film LGE EBC01402307 Contact Us For Availability
R104
Resistor,Chip LGE 0RJ3300C678 Contact Us For Availability
R105
Resistor,Chip LGE 0RJ1802C678 Contact Us For Availability
R117
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R119
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R125
Resistor,Chip LGE 0RJ0562C478 Contact Us For Availability
R127
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R150
Resistor,Chip LGE 0RJ2002C678 Contact Us For Availability
R158
Resistor,Chip LGE 0RJ8201C478 Contact Us For Availability
R160
Resistor,Chip LGE 0RJ1004C478 Contact Us For Availability
R165
Resistor,Chip LGE 0RJ2000C678 Contact Us For Availability
R178
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
R179
RESISTOR,METAL GLAZE LGE 0RJ2701C678 Contact Us For Availability
R181
Resistor,Chip LGE 0RJ0101C678 Contact Us For Availability
R186
Resistor,Chip LGE 0RJ1503C478 Contact Us For Availability
R194
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R201
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R203
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R217
Resistor,Chip LGE 0RJ0752C678 Contact Us For Availability
R221
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R358
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
× ![]()
