Model LG 27MP38VQ-B – Common Parts & Diagrams

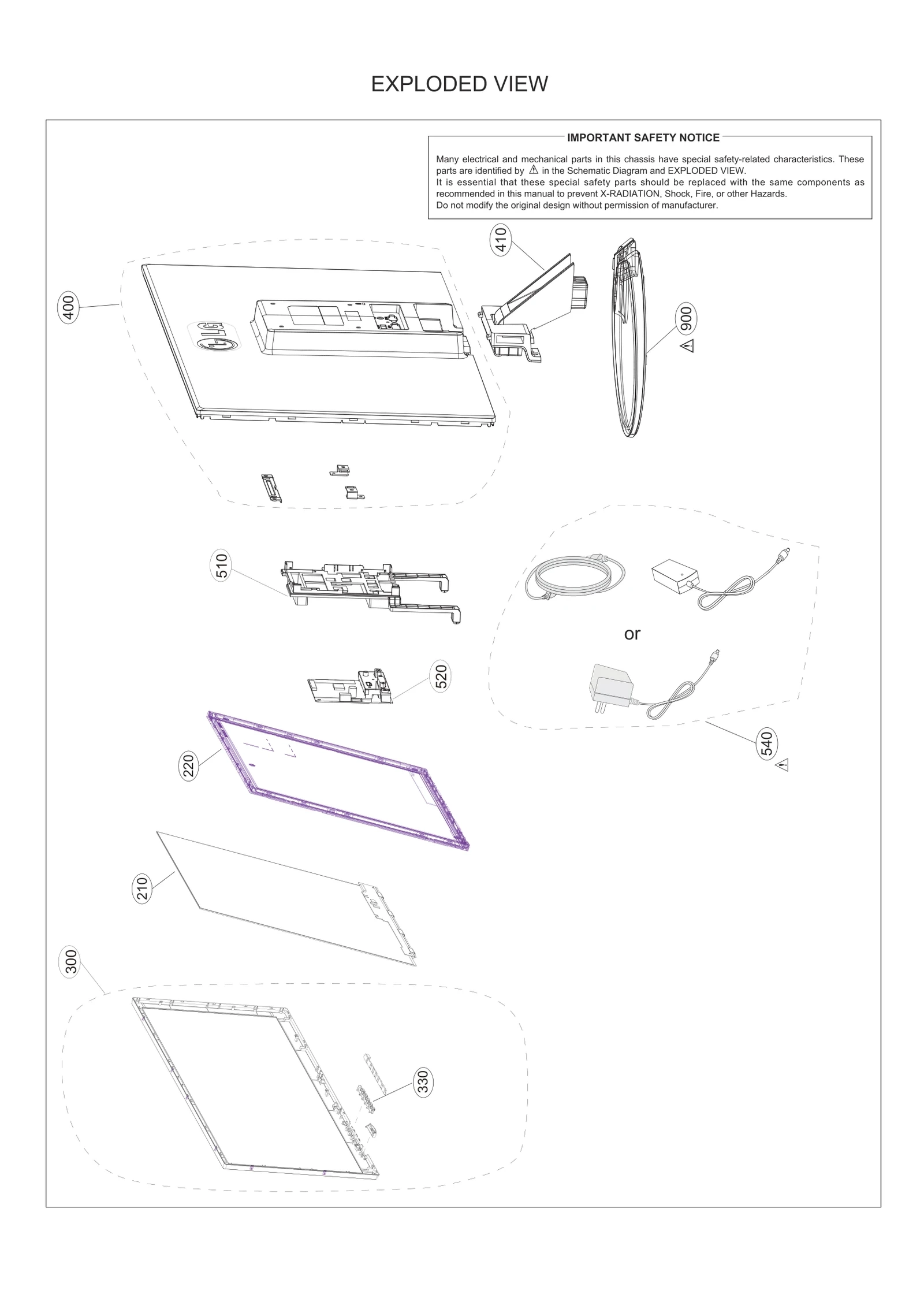

Diagram 0
Diagram 1
Common parts from model LG 27MP38VQ-B
200
Module,Assembly LGE EAT63402001 Contact Us For Availability
210
LCD,Panel-TFT LGE EAJ62571301 Contact Us For Availability
220
Back Light Assembly LGE EBV61138211 Contact Us For Availability
300
Cabinet Assembly LGE ABJ73808647 Contact Us For Availability
330
PCB Assembly LGE EBR78285901 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ85921416 Contact Us For Availability
410
Base Assembly LGE AAN74132001 Contact Us For Availability
510
Bracket LGE MAZ63429808 Contact Us For Availability
520
Main Board,BPR Total Assembly LGE EBU63622453 Contact Us For Availability
540
Adapters LGE EAY62710711 Contact Us For Availability
540
Adapters LGE EAY62790010 Contact Us For Availability
900
Base Assembly LGE AAN74310701 Contact Us For Availability
A1
Manual Assembly LGE AFN77486021 Contact Us For Availability
A4
Card LGE 3840TRL039A Contact Us For Availability
A5
Cable,Assembly LGE EAD57734001 Contact Us For Availability
A7
Card LGE 3840TWL061C Contact Us For Availability
A9
Card LGE MBM65356117 Contact Us For Availability
C113
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C149
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
D105
Diode,Schottky LGE EAH44241601 Contact Us For Availability
D105
DIODE,SWITCHING LGE 0DSON00138A Contact Us For Availability
JK202
Connector,DSUB LGE EAG61072906 Contact Us For Availability
JK202
Connector,DSUB LGE EAG61072904 Contact Us For Availability
JK203
Connector,DSUB LGE EAG63249804 Contact Us For Availability
JK203
Connector,DSUB LGE EAG63249803 Contact Us For Availability
LV1
Cable,FFC LGE EAD62389048 Contact Us For Availability
P100
Connector,Wafer LGE EAG64509801 Contact Us For Availability
P100
WAFER LGE 6602T20009E Contact Us For Availability
P100
Connector,Wafer LGE EAG31366106 Contact Us For Availability
P101
Connector,FFC/FPC/PIC LGE EAG60908201 Contact Us For Availability
× ![]()
