Model LG 27MD5KL-B – Common Parts & Diagrams

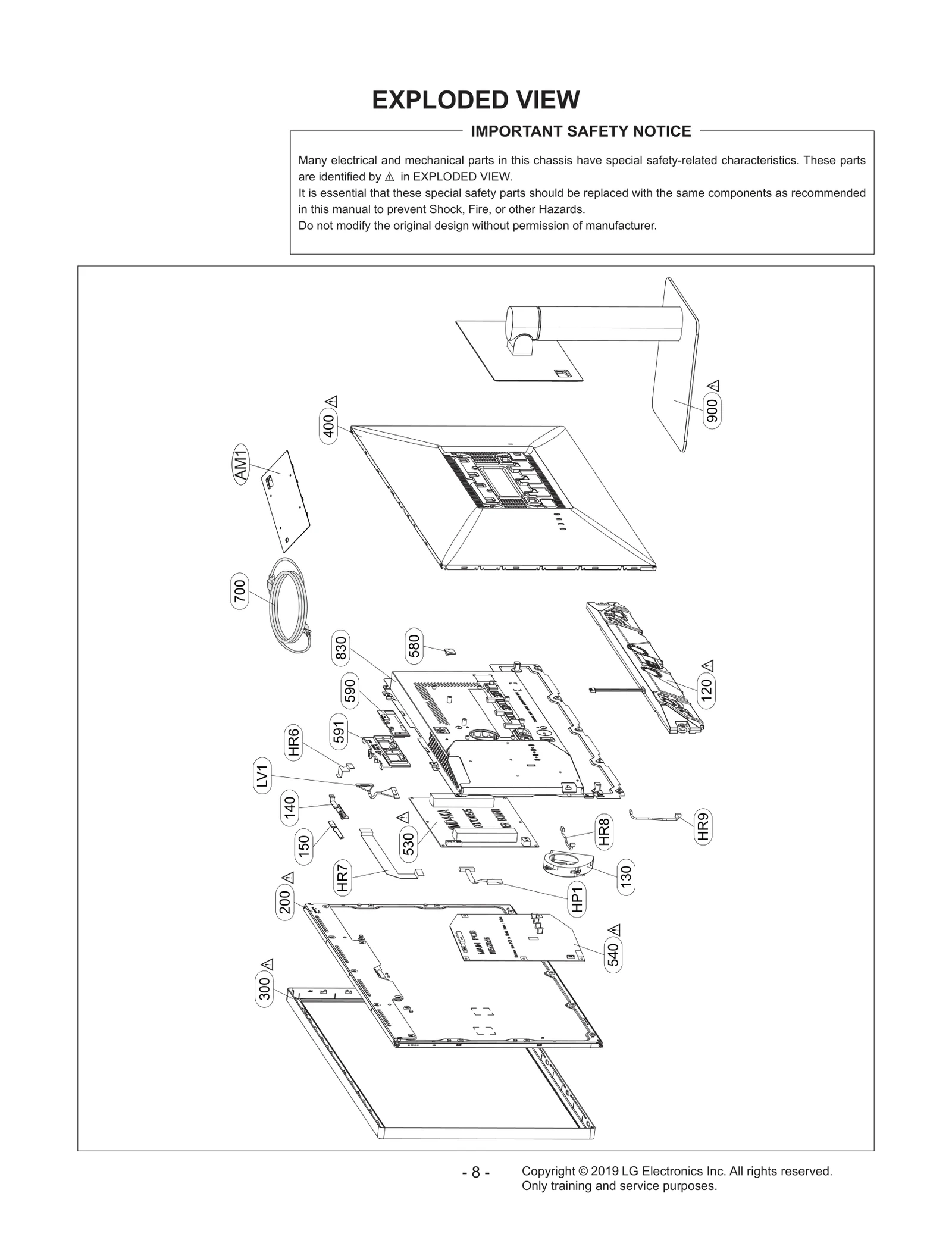

Diagram 0
Diagram 1
Common parts from model LG 27MD5KL-B
120
Speaker Assembly LGE EAB64408802 Contact Us For Availability
130
Fan Module LGE EAL61800804 Contact Us For Availability
140
Frame LGE MDQ64957202 Contact Us For Availability
150
PCB Assembly LGE EBR83503101 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ64411401 Contact Us For Availability
300
Cabinet Assembly LGE ABJ75327417 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ88869701 Contact Us For Availability
530
Power Supply Assembly LGE EAY65288602 Contact Us For Availability
540
BPR Insert PCB Assembly LGE EBR86604902 Contact Us For Availability
590
PCB Assembly,Sub LGE EBR86720902 Contact Us For Availability
591
Cover LGE MCK69246201 Contact Us For Availability
830
Frame Assembly LGE ADV75946705 Contact Us For Availability
900
Base Assembly LGE AAN75808705 Contact Us For Availability
A1
Manual Assembly LGE AFN78731822 Contact Us For Availability
A4
Card LGE 3840TWL061C Contact Us For Availability
A5
Package Assembly LGE AGF78321750 Contact Us For Availability
A6
Cable,Assembly LGE EAD63932604 Contact Us For Availability
A7
Card LGE 3840TRL039A Contact Us For Availability
A8
Cable,Assembly LGE EAD63988301 Contact Us For Availability
A9
Card LGE MBM65499043 Contact Us For Availability
A11
Package Assembly LGE AGF78321740 Contact Us For Availability
HR9
Harness,Single LGE EAD63806822 Contact Us For Availability
LV1
Harness,Single LGE EAD63967301 Contact Us For Availability
MT1
Tape,Double Faced LGE RAB34873121 Contact Us For Availability
× ![]()
