  • LG 27M45H-B Parts List

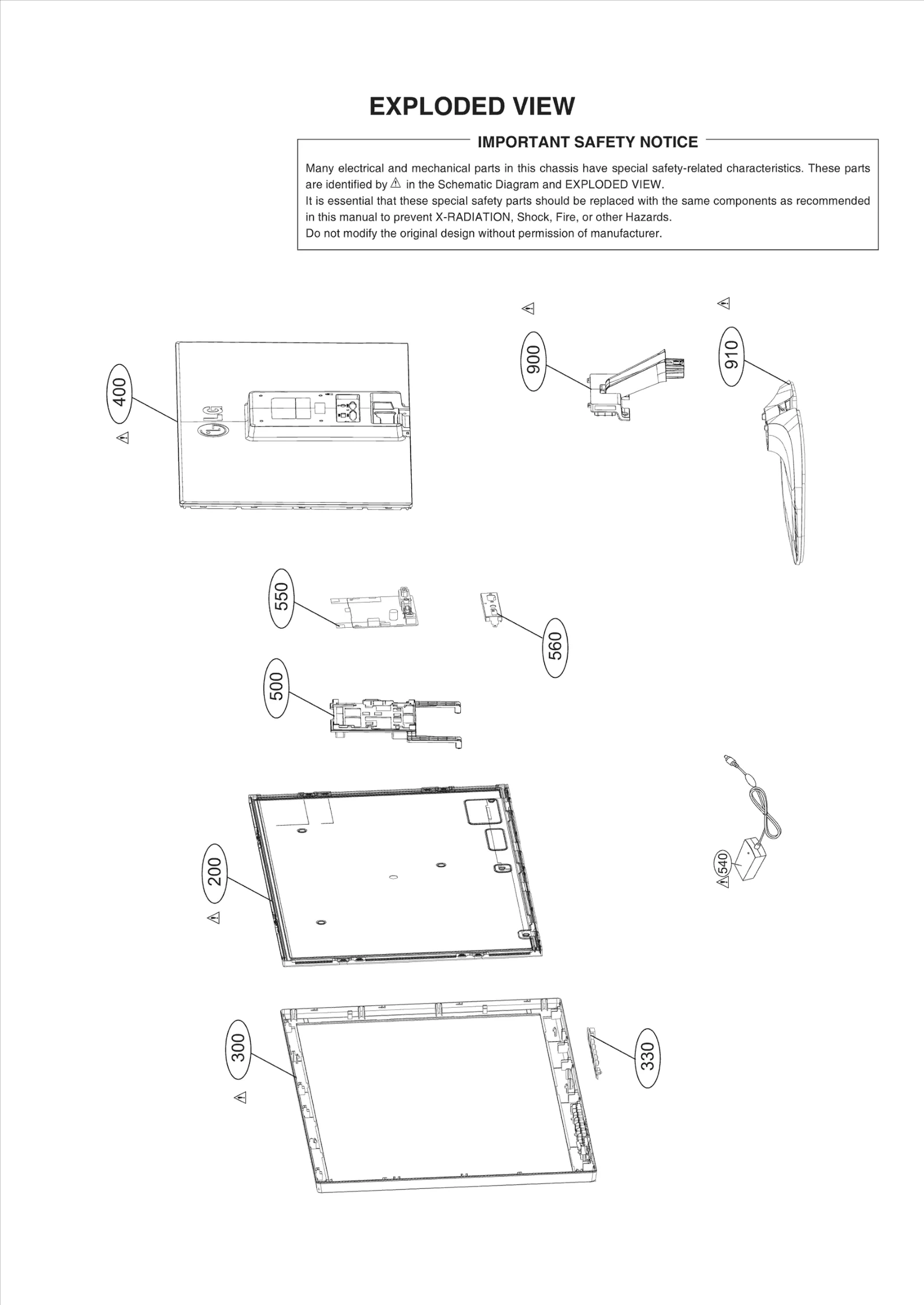

Model LG 27M45H-B – Common Parts & Diagrams

200
LCD,Module-TFT
LCD,Module-TFT LGE EAJ62508101 Contact Us For Availability
View on Model
200
LCD,Module-TFT
LCD,Module-TFT LGE EAJ62508102 Contact Us For Availability
View on Model
300
Cabinet Assembly
Cabinet Assembly LGE ABJ73808626 Contact Us For Availability
View on Model
330
PCB Assembly
PCB Assembly LGE EBR78285901 Contact Us For Availability
View on Model
400
Cover Assembly,Rear
Cover Assembly,Rear LGE ACQ85921414 Contact Us For Availability
View on Model
500
Bracket
Bracket LGE MAZ63429801 Contact Us For Availability
View on Model
540
Adapters
Adapters LGE EAY62790007 Contact Us For Availability
View on Model
550
BPR Total Assembly
BPR Total Assembly LGE EBU62441801 Contact Us For Availability
View on Model
560
Plate,Shield
Plate,Shield LGE MGJ63763401 Contact Us For Availability
View on Model
900
Base Assembly
Base Assembly LGE AAN74648701 Contact Us For Availability
View on Model
910
Base Assembly
Base Assembly LGE AAN74648801 Contact Us For Availability
View on Model
A1
Manual Assembly
Manual Assembly LGE AFN76411921 Contact Us For Availability
View on Model
A4
Card
Card LGE 3840TRL039A Contact Us For Availability
View on Model
A5
Cable,Assembly
Cable,Assembly LGE EAD57734001 Contact Us For Availability
View on Model
A7
Card
Card LGE MBM64176612 Contact Us For Availability
View on Model
A9
Card
Card LGE 3840TWL061C Contact Us For Availability
View on Model
C10
Harness,Single
Harness,Single LGE EAD62186003 Contact Us For Availability
View on Model
C114
Capacitor,Ceramic,Chip
Capacitor,Ceramic,Chip LGE 0CH1474K562 Contact Us For Availability
View on Model
C115
Capacitor,Ceramic,Chip
Capacitor,Ceramic,Chip LGE 0CK822BH56A Contact Us For Availability
View on Model
C170
Capacitor,Ceramic,Ch
Capacitor,Ceramic,Ch LGE 0CK104CHG6A Contact Us For Availability
View on Model
IC101
S/W,Firmware
S/W,Firmware LGE SAA37061001 Contact Us For Availability
View on Model
IC200
IC,EEPROM
IC,EEPROM LGE EAN60997601 Contact Us For Availability
View on Model
IC200
IC,MEMORIES
IC,MEMORIES LGE 0IMMR00014A Contact Us For Availability
View on Model
JK201
Jack,Phone
Jack,Phone LGE 6612F00099E Contact Us For Availability
View on Model
JK202
Connector,DSUB
Connector,DSUB LGE EAG61072904 Contact Us For Availability
View on Model
LV1
Cable,FFC
Cable,FFC LGE EAD62389078 Contact Us For Availability
View on Model
P100
Connector,Wafer
Connector,Wafer LGE EAG31366106 Contact Us For Availability
View on Model
P100
WAFER
WAFER LGE 6602T20009E Contact Us For Availability
View on Model
Q100
TRANSISTOR,BIPOLARS
TRANSISTOR,BIPOLARS LGE 0TRDI80002A Contact Us For Availability
View on Model
R2
RESISTOR,METAL GLAZE
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
View on Model
R3
RESISTOR,METAL GLAZE
RESISTOR,METAL GLAZE LGE 0RJ1501D677 Contact Us For Availability
View on Model
R100
Resistor,Chip
Resistor,Chip LGE 0RH3300D622 Contact Us For Availability
View on Model
R101
Resistor,Chip
Resistor,Chip LGE 0RJ1003C478 Contact Us For Availability
View on Model
R102
Resistor,Chip
Resistor,Chip LGE 0RJ1802C678 Contact Us For Availability
View on Model
R108
Resistor,Chip
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
View on Model
R112
Resistor,Chip
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
View on Model
R173
Resistor,Chip
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
View on Model
R177
RESISTOR,METAL GLAZE
RESISTOR,METAL GLAZE LGE 0RJ2701C678 Contact Us For Availability
View on Model
R196
Resistor,Chip
Resistor,Chip LGE 0RJ2002C678 Contact Us For Availability
View on Model
R330
Resistor,Metal Oxide Film
Resistor,Metal Oxide Film LGE EBC01402307 Contact Us For Availability
View on Model
X100
Crystal
Crystal LGE EAW60658001 Contact Us For Availability
View on Model
