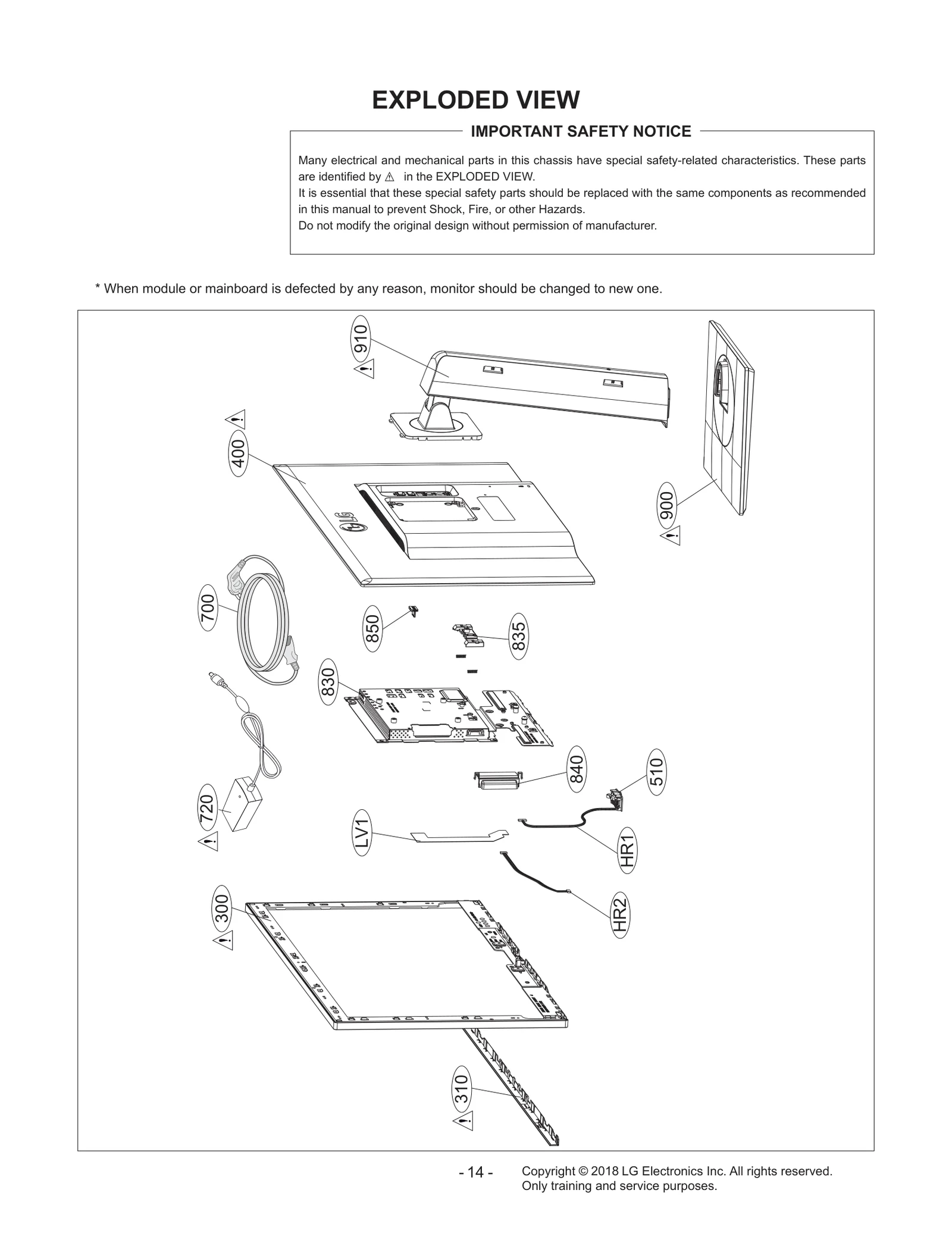

Model LG 27HJ713C-B – Common Parts & Diagrams

200
LCD,Module-TFT
LCD,Module-TFT LGE EAJ63988301 Contact Us For Availability
View on Model
300
Cabinet Assembly
Cabinet Assembly LGE ABJ75207306 Contact Us For Availability
View on Model
310
Cover Assembly
Cover Assembly LGE ACQ88533702 Contact Us For Availability
View on Model
400
Cover Assembly,Rear
Cover Assembly,Rear LGE ACQ88533813 Contact Us For Availability
View on Model
510
DMS Chassis Assembly
DMS Chassis Assembly LGE EBT64455511 Contact Us For Availability
View on Model
700
Power Cord,Detach
Power Cord,Detach LGE EAD61728001 Contact Us For Availability
View on Model
720
Adapters
Adapters LGE EAY64449601 Contact Us For Availability
View on Model
830
Frame Assembly
Frame Assembly LGE ADV75846117 Contact Us For Availability
View on Model
835
Cover
Cover LGE MCK69445701 Contact Us For Availability
View on Model
850
Cover
Cover LGE MCK69784404 Contact Us For Availability
View on Model
900
Base Assembly
Base Assembly LGE AAN75908802 Contact Us For Availability
View on Model
910
Base Assembly
Base Assembly LGE AAN75908706 Contact Us For Availability
View on Model
HR1
Harness,Single
Harness,Single LGE EAD62123005 Contact Us For Availability
View on Model
LV1
Cable,FFC
Cable,FFC LGE EAD63825203 Contact Us For Availability
View on Model
