Model LG 27GX790B-B – Common Parts & Diagrams

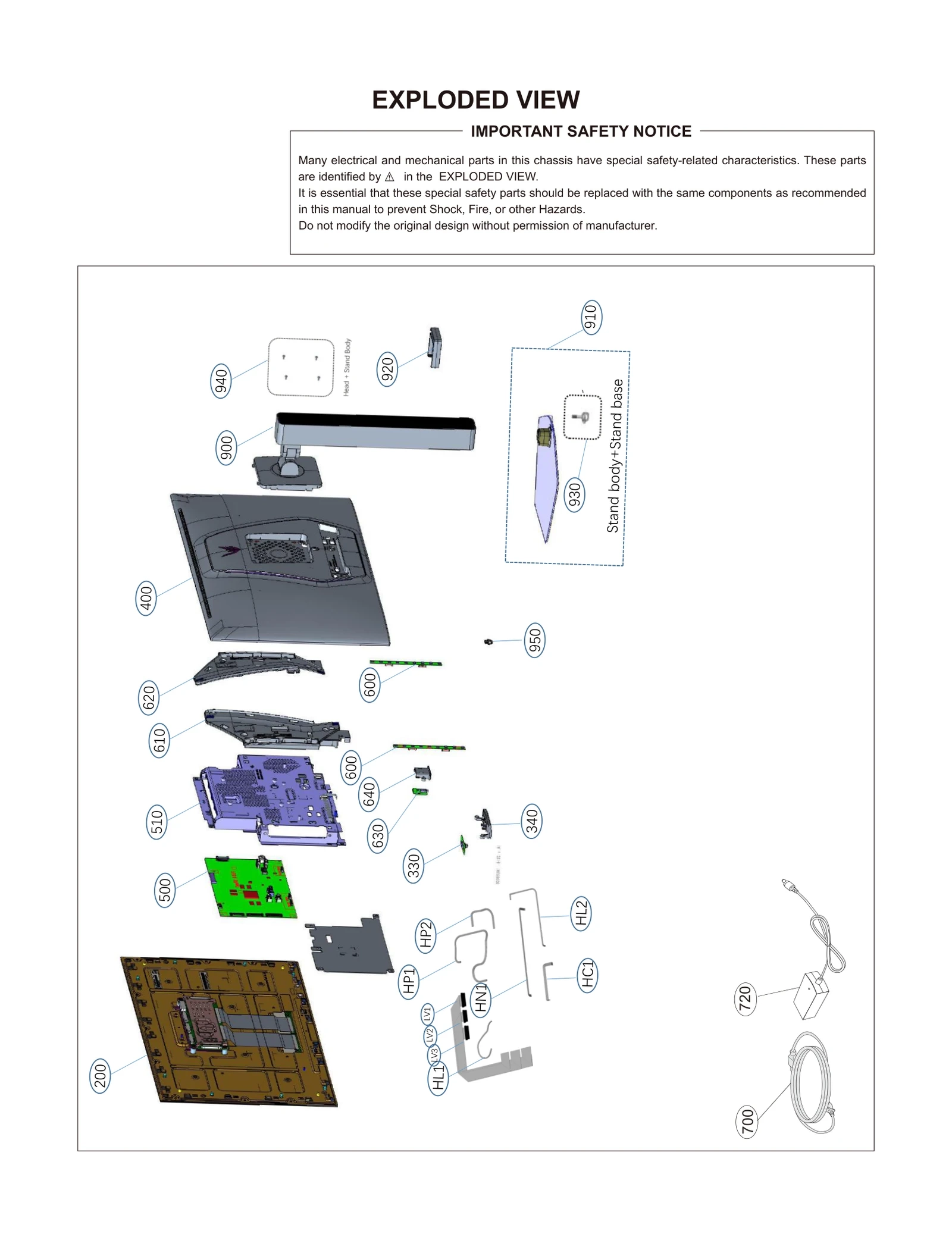

Diagram 0
Diagram 1
Common parts from model LG 27GX790B-B
200
OLED,Module-AM LGE EAJ30073601 Contact Us For Availability
330
PCB Assembly,Sub LGE EBR39141511 Contact Us For Availability
340
Cover LGE MCK30085101 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ30809301 Contact Us For Availability
500
BPR Total Assembly LGE EBU68054510 Contact Us For Availability
510
Frame Assembly LGE ADV30128401 Contact Us For Availability
600
PCB Assembly,Sub LGE EBR39217909 Contact Us For Availability
610
Cover,Rear LGE MCK30085001 Contact Us For Availability
620
Cover,Rear LGE MCK30085002 Contact Us For Availability
630
PCB Assembly,Sub LGE EBR39141202 Contact Us For Availability
640
Cover LGE MCK71614705 Contact Us For Availability
700
Power Cord,Detach LGE 6410VUH007B Contact Us For Availability
720
Adapters LGE EAY65914501 Contact Us For Availability
720
Adapters,Desktop LGE EAY63032212 Contact Us For Availability
900
Base Assembly LGE AAN30147235 Contact Us For Availability
910
Base Assembly LGE AAN00851301 Contact Us For Availability
920
Package Assembly LGE AGF78482226 Contact Us For Availability
940
Screw,Machine LGE FAB30006505 Contact Us For Availability
950
Package Assembly LGE AGF78443809 Contact Us For Availability
A04
Card LGE 3840TRL039A Contact Us For Availability
A08
Cable,Assembly LGE EAD65912803 Contact Us For Availability
A10
Card LGE MBM67507701 Contact Us For Availability
HL2
Harness,Single LGE EAD64847116 Contact Us For Availability
HN1
Harness,Single LGE EAD56480857 Contact Us For Availability
HP1
Harness,Single LGE EAD62122720 Contact Us For Availability
LV1
Cable,FFC LGE EAD63787629 Contact Us For Availability
LV2
Cable,FFC LGE EAD63787518 Contact Us For Availability
LV3
Cable,FFC LGE EAD63787630 Contact Us For Availability
× ![]()
