Model LG 27GN850-B – Common Parts & Diagrams

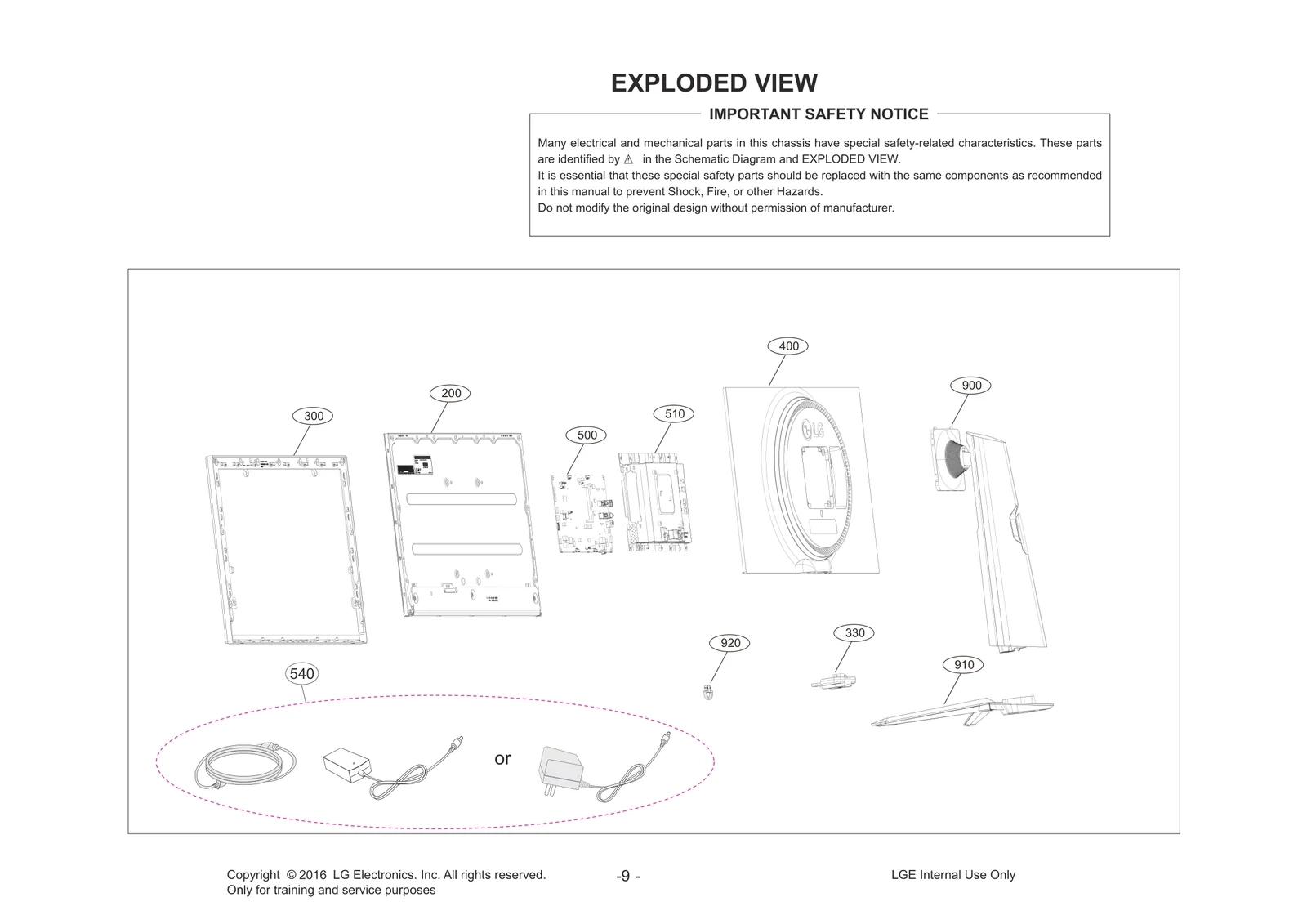

Diagram 0
Diagram 1
Common parts from model LG 27GN850-B
200
LCD,Module-TFT LGE EAJ65387901 Contact Us For Availability
300
Cabinet Assembly LGE ABJ76387101 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ91116504 Contact Us For Availability
510
Frame Assembly LGE ADV77465702 Contact Us For Availability
900
Base Assembly LGE AAN77408704 Contact Us For Availability
910
Base Assembly LGE AAN30002902 Contact Us For Availability
A1
Manual Assembly LGE AFN30018521 Contact Us For Availability
A3
Power Cord,Detach LGE 6410VUH007B Contact Us For Availability
A4
Card LGE 3840TRL039A Contact Us For Availability
A8
Cable,Assembly LGE EAD63954401 Contact Us For Availability
A9
Card LGE MBM64637211 Contact Us For Availability
A10
Card LGE 3840TWL061C Contact Us For Availability
C10
Harness,Single LGE EAD63967301 Contact Us For Availability
C248
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C260
Capacitor,Ceramic,Ch LGE 0CC180BKFAA Contact Us For Availability
C415
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C539
Capacitor,Ceramic,Ch LGE 0CC221BKFAA Contact Us For Availability
C551
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C704
Capacitor,Ceramic,Ch LGE 0CZZB00058A Contact Us For Availability
C723
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C732
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
C908
Capacitor,Ceramic,Ch LGE 0CK474DK56A Contact Us For Availability
P200
Connector,Wafer LGE 6630V90141C Contact Us For Availability
P200
Connector,Wafer LGE EAG62172205 Contact Us For Availability
P702
Connector,Wafer LGE EAG62172203 Contact Us For Availability
Q504
TR,Bipolar LGE 0TRKE80046A Contact Us For Availability
R102
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R112
Resistor,Chip LGE 0RJ1004C678 Contact Us For Availability
R214
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
R243
Resistor,Chip LGE 0RJ2003C678 Contact Us For Availability
R251
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R255
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R301
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R400
Resistor,Chip LGE 0RJ1203C478 Contact Us For Availability
R414
Resistor,Chip LGE 0RJ5102C678 Contact Us For Availability
R422
Resistor,Chip LGE 0RJ1002C478 Contact Us For Availability
R426
Resistor,Chip LGE 0RJ3302C478 Contact Us For Availability
R433
Resistor,Chip LGE 0RJ2402C478 Contact Us For Availability
R434
Resistor,Chip LGE 0RJ4702C478 Contact Us For Availability
R529
Resistor,Chip LGE 0RJ4703C678 Contact Us For Availability
R536
Resistor,Chip LGE 0RJ0511C478 Contact Us For Availability
R712
Resistor,Chip LGE 0RJ2700C478 Contact Us For Availability
R714
Resistor,Chip LGE 0RJ0512C678 Contact Us For Availability
R720
Resistor,Chip LGE 0RJ7502C478 Contact Us For Availability
R721
Resistor,Chip LGE 0RJ1402C478 Contact Us For Availability
R738
Resistor,Chip LGE 0RJ2203C478 Contact Us For Availability
R747
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R750
Resistor,Chip LGE 0RJ1802C478 Contact Us For Availability
R751
Resistor,Chip LGE 0RJ5601C478 Contact Us For Availability
R753
Resistor,Chip LGE 0RJ1000C478 Contact Us For Availability
R754
Resistor,Chip LGE 0RJ0100J488 Contact Us For Availability
R755
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
X200
Crystal LGE 6202VDT002S Contact Us For Availability
× ![]()
