Model LG 27GK750F-B – Common Parts & Diagrams

Common parts from model LG 27GK750F-B

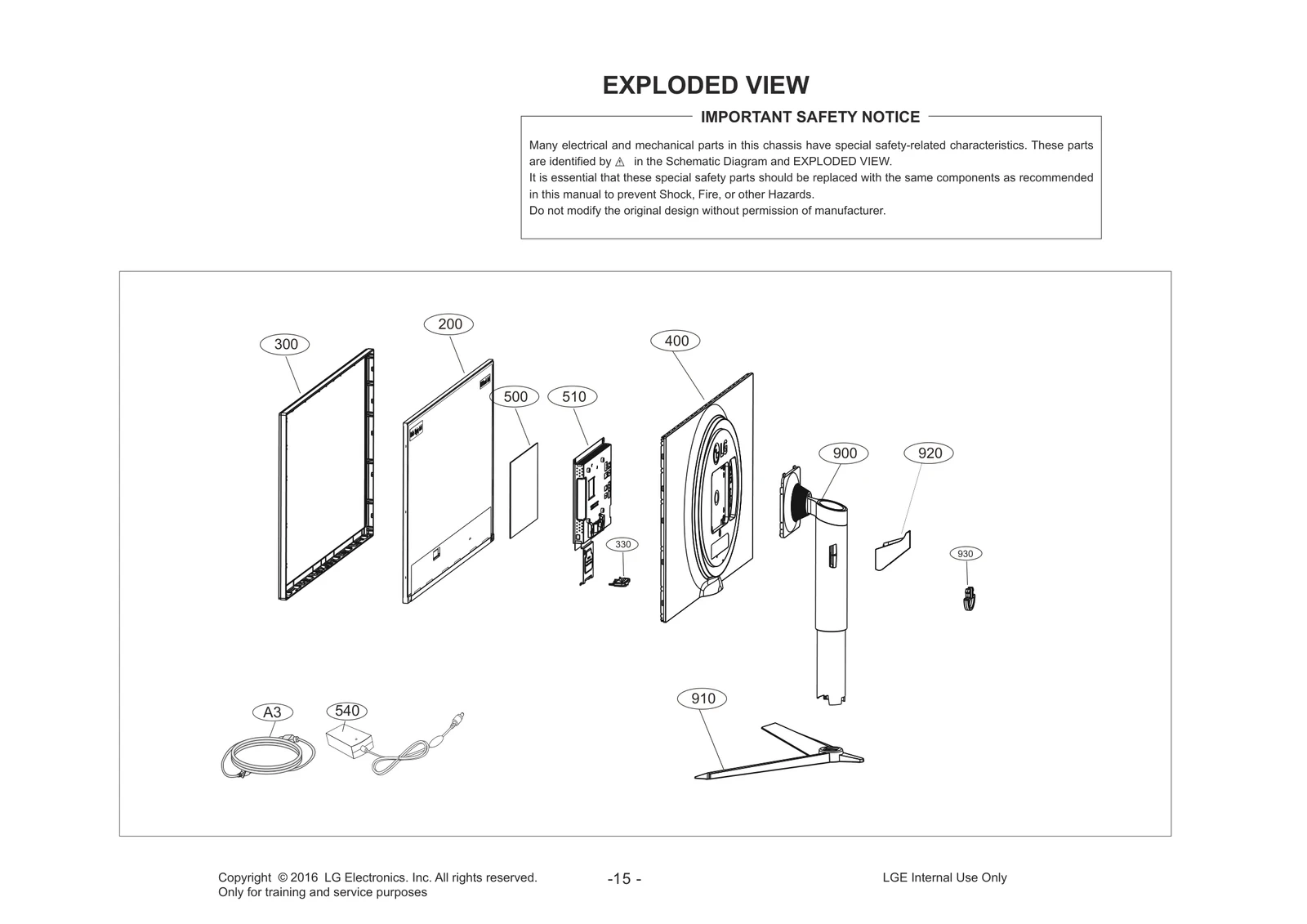

Diagram 0

Print

• This Diagram
• All Diagrams

200

LCD,Module-TFT LGE EAJ64287601 Contact Us For Availability

View on Model

300

Cabinet Assembly LGE ABJ75687201 Contact Us For Availability

View on Model

330

PCB Assembly,Sub Backorder LGE EBR85245401 View Details $18.10

View on Model

400

Cover Assembly,Rear LGE ACQ89796601 Contact Us For Availability

View on Model

500

MAIN BOARD,BPR TOTAL ASSEMBLY Backorder LGE EBU64508601 View Details $229.31

View on Model

510

FRAME ASSEMBLY Backorder LGE ADV76406101 View Details $28.84

View on Model

540

Adapters Backorder LGE EAY63031602 View Details $98.10

View on Model

900

Base Assembly LGE AAN76348902 Contact Us For Availability

View on Model

910

Base Assembly LGE AAN76428801 Contact Us For Availability

View on Model

920

AGF77182273 LG Package Assembly Backorder LGE AGF77182273 View Details $7.94

View on Model

930

Package Assembly Backorder LGE AGF77182274 View Details $3.33

View on Model

A1

Manual Assembly LGE AFN78117721 Contact Us For Availability

View on Model

A3

EAD62348802 LG TV AC Power Cord Cable Backorder LGE EAD62348802 View Details $22.20

View on Model

A4

Card LGE MBM66205702 Contact Us For Availability

View on Model

A7

Card LGE 3840TRL039A Contact Us For Availability

View on Model

A8

Cable,Assembly LGE EAD63954401 Contact Us For Availability

View on Model

A9

Card LGE 3840TWL061C Contact Us For Availability

View on Model

A10

Cable,Assembly Backorder LGE EAD63749401 View Details $55.75

View on Model

A11

Cable,Assembly LGE EAD61273120 Contact Us For Availability

View on Model

×
